Kenwood KDC-U7046BT User manual

KDC-U7046BT
KDC-U7046BTL
KDC-U6046
KDC-U6046L
CD-RECEIVER
Quick Start Guide
CD 接收机
快捷入门指南
© B59-2008-00/00 (MW)
B59-2008-0000KDCU7046QSGM.indd1B59-2008-0000KDCU7046QSGM.indd1 09/12/1811:0309/12/1811:03

2|Quick Start Guide
Contents
Before use .................................................. 3
First step ..................................................... 4
Basic Operations...................................... 5
Playing Music (CD/USB/iPod).............. 6
Listening to the Radio ........................... 7
Hands-free phoning ............................... 8
Accessories ..............................................10
Installation Procedure .........................10
Before Installation.................................10
Connecting Wires to Terminals.........12
Installation/Removing the Unit........14
B59-2008-0000KDCU7046QSGM.indd2B59-2008-0000KDCU7046QSGM.indd2 09/12/1811:0309/12/1811:03

English |3
Before use
2WARNING
To prevent injury or fire, take the
following precautions:
To prevent a short circuit, never put or leave
any metallic objects (such as coins or metal
tools) inside the unit.

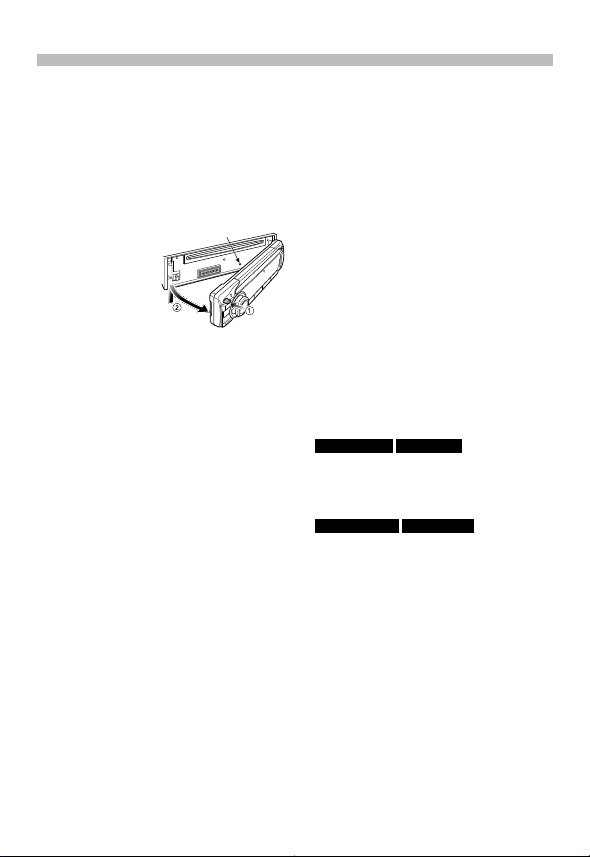

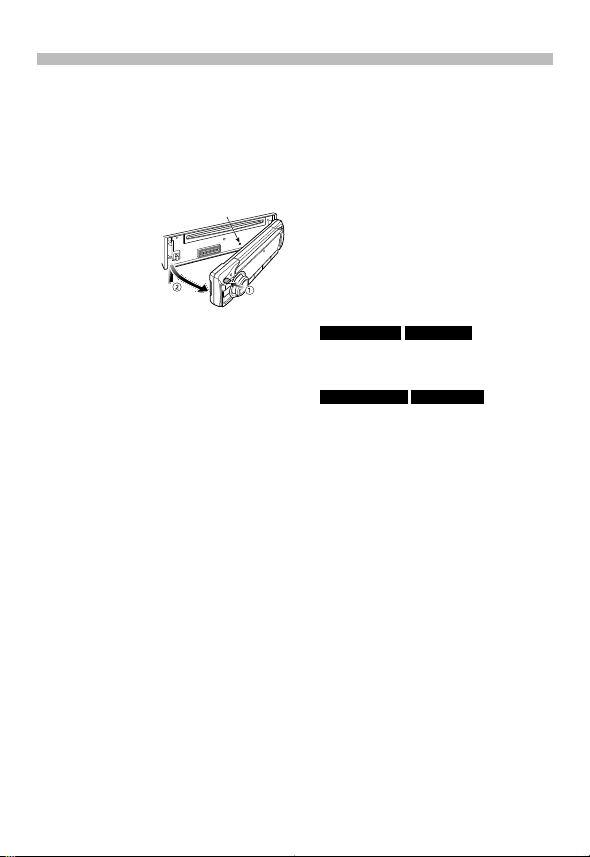

How to reset your unit
If the unit fails to
operate properly,
press the Reset
button. The unit
returns to factory
settings when the
Reset button is
pressed.
Cleaning the Unit
If the faceplate of this unit is stained, wipe it
with a clean soft dry cloth such as a silicon
cloth.
If the faceplate is stained badly, wipe the
stain off with a cloth moistened with a
neutral cleaner, then wipe it again with a
clean soft dry cloth.
Applying spray cleaner directly to the unit
may affect its mechanical parts. Wiping
the faceplate with a hard cloth or using a
volatile liquid such as thinner or alcohol
may scratch the surface or erase characters.
Unit and Faceplate Terminals
• To prevent deterioration, do not touch the
terminals of the unit and faceplate with
your fingers.
• If the terminals on the unit or faceplate
get dirty, wipe them with a clean soft
dry cloth.
Lens Fogging
When you turn on the car heater in cold
weather, dew or condensation may form
on the lens in the CD player of the unit.
Called lens fogging, this condensation on
the lens may not allow CDs to play. In such
a situation, remove the disc and wait for
the condensation to evaporate. If the unit
still does not operate normally after a while,
consult your Kenwood dealer.
Notes
• If you experience problems during
installation, consult your Kenwood dealer.
• When you purchase optional accessories,
check with your Kenwood dealer to make
sure that they work with your model and
in your area.
• Characters that conform to ISO 8859-1
can be displayed.
• To display characters in the following
language, additional setting is required.
KDC-U7046BT KDC-U6046
- Chinese
Refer to 32 Chinese language setting of
<Function setting> (page 15) (Instruction
Manual).
• KDC-U7046BTL KDC-U6046L
- Arabic
- Persian
- Thai
Refer to 33 Language setting of <Function
setting> (page 15) (Instruction Manual).
• The illustrations of the display and the
panel appearing in this manual are
examples used to explain more clearly
how the controls are used. Therefore,
what appears on the display in the
illustrations may differ from what appears
on the display on the actual equipment,
and some of the illustrations on the
display may be inapplicable.
Reset button
B59-2008-0000KDCU7046QSGM.indd3B59-2008-0000KDCU7046QSGM.indd3 09/12/1811:0309/12/1811:03

4|Quick Start Guide
First step
Exit Demonstration Mode
Turn off the demonstration mode
when you use it for the first time after
installation.
1Press the [ENTER] button to quit
the demonstration mode when the
messages “To Cancel DEMO Press the
ENTER Key” are displayed (approx. 15
seconds).
2Turn the Control knob to select “YES”,
and then press the [ENTER] button.
The demonstration mode can also be
canceled in the Function setting mode.
Refer to <Function setting> (page 15) of
Instruction manual.

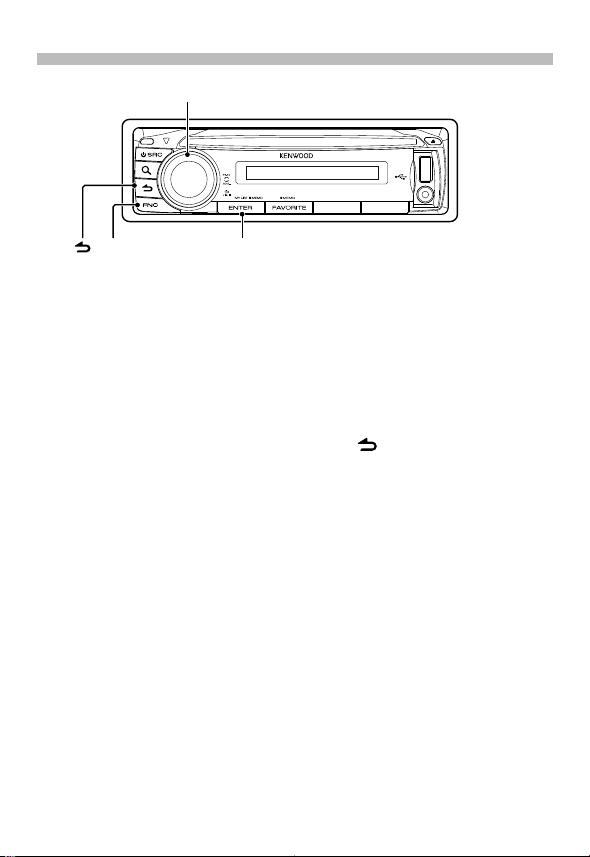

Adjusting the Clock & Date
1Press the [FNC] button to enter the
Function setting mode.
2The item can be selected and
determined as follows.
”Settings” ➜“Clock & Date” ➜“Clock
Adjust”
To select the item, turn the Control
knob. To determine the item, press the
[ENTER] button.
3Turn the Control knob to adjust the
hour, and then press the [ENTER] button.
4Turn the Control knob to adjust the
minute, and then press the [ENTER]
button.
5Turn the Control knob to select “Date
Adjust”, and then press the [ENTER]
button.
6Turn the Control knob to adjust the
year, and then press the [ENTER] button.
7Turn the Control knob to adjust the
month, and then press the [ENTER]
button.
8Turn the Control knob to adjust the day,
and then press the [ENTER] button.
9Turn the Control knob to select “Date
Mode”, and then press the [ENTER]
button.
10 Turn the Control knob to select Date
format, and then press the [ENTER]
button.
11 Press the [ ] button for at least 1
second to exit the Function setting
mode.
Control Knob
[FNC] [ENTER]
[ ]
B59-2008-0000KDCU7046QSGM.indd4B59-2008-0000KDCU7046QSGM.indd4 09/12/1811:0309/12/1811:03

English |5

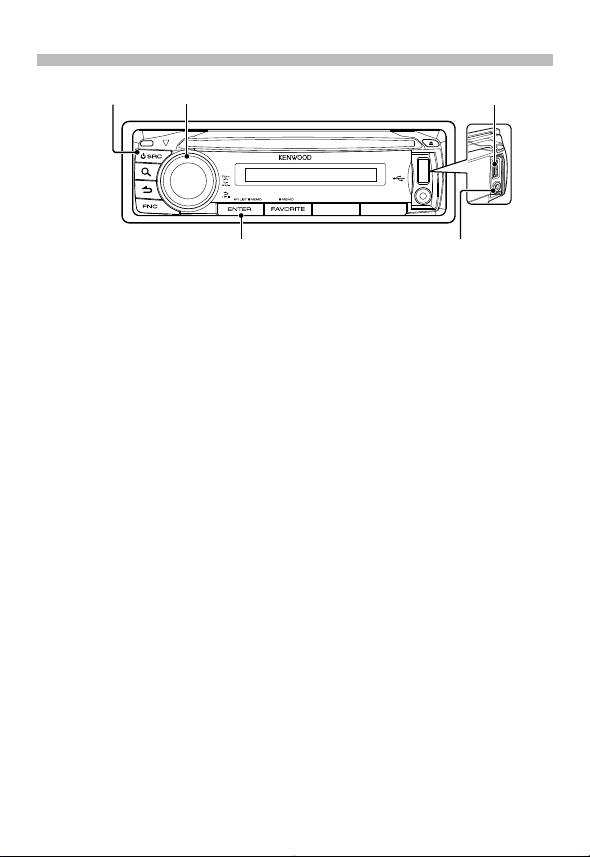

Basic Operations
Power
Turns the power ON by pressing the
[SRC] button.
Press the [SRC] button for at least 1
second to turn the power OFF.
Source selection
Press the [SRC] button and then turn the
Control knob. To determine the selected
source, press the [ENTER] button.
Tuner (“TUNER”) ➜Bluetooth Audio (“BT
AUDIO”) (KDC-U7046BT/ KDC-U7046BTL
only) ➜USB (“USB”) or iPod (“iPod”) ➜
CD (“CD”) ➜Auxiliary Input (“AUX”) ➜
Standby (“STANDBY”) ➜Tuner...
Volume
Turn the Control knob to adjust the
sound volume.
USB terminal
USB device or iPod can be connected.
CA-U1EX or KCA-iP101 (optional
accessories) is recommended to connect
a USB device or iPod.
Auxiliary input
Portable audio device can be connected
with the stereo mini-plug (3.5 mm ø).
[ENTER]
[SRC]
Auxiliary input
USB TerminalControl Knob
B59-2008-0000KDCU7046QSGM.indd5B59-2008-0000KDCU7046QSGM.indd5 09/12/1811:0309/12/1811:03

6|Quick Start Guide

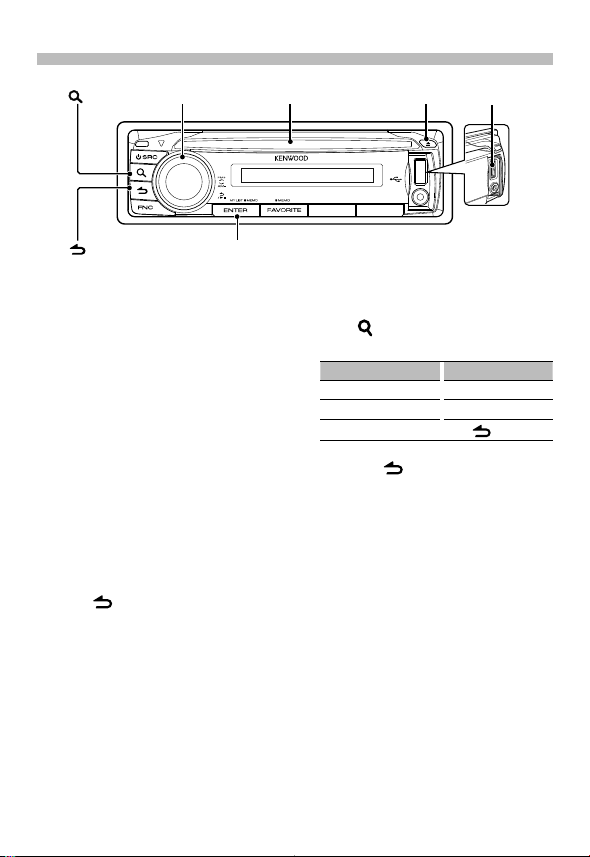

Playing Music (CD/USB/iPod)
Playing Disc
Insert the disc in the Disc slot.
When inserted, the source is switched
automatically and a song starts playing.
Playing USB device
Connect a USB device or iPod to the USB
terminal.
When connected, the source is switched
automatically and a song starts playing.
Selecting an Audio file folder
Push the Control knob towards up or
down to select a folder.
Selecting a Song
Push the Control knob towards right or
left to select a song (track or file).
Fast Forward or Fast Backward of
the Song
Press and hold the Control knob
towards right or left to fast-forward or
fast-backward the audio file containing
songs (tracks or files).
Pause and play
Press the []button to pause or
resume playing a song (track or file).
Music Search
Searching for the song you want to play.
1Press the []button.
2Search for music.
Operation type Operation
Movement between items Turn the Control knob.
Selection of item Press the [ENTER].
Return to previous item Press the []button.
To cancel the music search operation of
Audio file or iPod, press the [ ] button
for at least 1 second.
Removing Disc
Press the [0]button to eject a disc.
Removing USB device
Press the [0]button for at least 2
seconds to enter the USB Remove mode
(“USB REMOVE” is displayed) and the USB
device can be removed safely.
[ENTER]
[ ]
[0]
[ ] USB TerminalControl Knob Disc slot
B59-2008-0000KDCU7046QSGM.indd6B59-2008-0000KDCU7046QSGM.indd6 09/12/1811:0309/12/1811:03

English |7
Listening to the Radio
Selecting a Tuner source
1Press the [SRC] button.
2Turn the Control knob to select “TUNER”,
and then press the [ENTER] button.
Selecting the Band
Push the Control knob towards up to
change the band in the order of FM1 ➜
FM2 ➜FM3.
Push the Control knob towards down to
change the band to AM.
Selecting a Station
Push the Control knob leftward and
rightward to select the station you want
to listen to.
Control Knob
[ENTER]
[SRC]
B59-2008-0000KDCU7046QSGM.indd7B59-2008-0000KDCU7046QSGM.indd7 09/12/1811:0309/12/1811:03

8|Quick Start Guide
Hands-free phoning
Registering cell-phone
Register your Bluetooth cellphone in this
unit.
1By operating the cell-phone, register
the hands-free unit (pairing). Select
“KENWOOD BT CD/R-4P1” or “KCA-BT200”
from the list of connected units.
2Enter the PIN code of this unit from the
cellphone.
The PIN code of this unit is “0000” by
default.
When registration of your cellphone
is complete, the phone book of the
cellphone is automatically downloaded
to this unit. (If the phone book has not
been downloaded to this unit, operate
the cellphone to download it.)
Calling a number in the Phone
Book
Dial the phone number in the phone book
of your cell phone.
If the phone book has not been
downloaded to this unit, operate the
cellphone to download it.
1KDC-U7046BT KDC-U7046BTL
Press the [ ] button.
KDC-U6046 KDC-U6046L
Press the [FNC] button for at least 1
second.
2Turn the Control knob to select “Initial
Search”, and then press the [ENTER]
button.
3Input initial.
Operation type Operation
Select the characters. Turn the Control knob.
Move the character page. Push the Control knob
towards up or down.
4Press the [ENTER] button.
5Turn the Control knob to select phone
number.
Push the Control knob towards right
or left to select the name of the called
party.
6KDC-U7046BT KDC-U7046BTL
Press the [ ] button to dial.
KDC-U6046 KDC-U6046L
Press the [ENTER] button to dial.
[ENTER]
[SRC]
[FNC]
[ ] [ ]
KDC-U7046BT
KDC-U7046BTL
KDC-U7046BT
KDC-U7046BT KDC-U7046BT
KDC-U7046BTL
Control Knob Microphone
Function of KDC-U7046BT/ KDC-U7046BTL/ KCA-BT200 (Optional Accessory)
B59-2008-0000KDCU7046QSGM.indd8B59-2008-0000KDCU7046QSGM.indd8 09/12/1811:0309/12/1811:03

English |9
Answering a Phone Call
KDC-U7046BT KDC-U7046BTL
Press the [ ] button.
KDC-U6046 KDC-U6046L
Press the [ENTER] button.
Disconnecting a Call
KDC-U7046BT KDC-U7046BTL
Press the [ ] button.
KDC-U6046 KDC-U6046L
Press the [SRC] button.
Microphone Gain and Noise
redaction setting (KDC-U7046BT/
KDC-U7046BTL only)
If the microphone level is low or the
ambient noise is large during hands free
phoning, make adjustments.
1Press the [ ] button to enter the
Bluetooth mode.
2Press the [FNC] button to enter the
Function setting mode.
3The item can be selected and
determined as follows.
”Settings” ➜“Detailed Settings” ➜“MIC
Gain”, “NR Level”, or “Echo Cancel”
To select the item, turn the Control
knob. To determine the item, press the
[ENTER] button.
4Turn the Control knob to select
Microphone gain, Noise redaction level,
or Echo Cancel level, and then press the
[ENTER] button.
5Press the [ ] button for at least 1
second to exit the Function setting
mode.
If the microphone level is still low after
making adjustments, use an optional
accessory microphone KCA-MC10 as
needed.
B59-2008-0000KDCU7046QSGM.indd9B59-2008-0000KDCU7046QSGM.indd9 09/12/1811:0309/12/1811:03

10 |Quick Start Guide
2WARNING
If you connect the ignition wire (red) and
the battery wire (yellow) to the car chassis
(ground), you may cause a short circuit,
that in turn may start a fire. Always connect
those wires to the power source running
through the fuse box.
¤
• Mounting and wiring this product
requires skills and experience. For safety’s
sake, leave the mounting and wiring work
to professionals.
• Make sure to ground the unit to a
negative 12V DC power supply.
• Do not install the unit in a spot exposed
to direct sunlight or excessive heat or
humidity. Also avoid places with too
much dust or the possibility of water
splashing.
• Do not use your own screws. Use only
the screws provided. If you use the wrong
screws, you could damage the unit.
• If the power is not turned ON (“PROTECT”
is displayed), the speaker wire may have
a short-circuit or touched the chassis of
the vehicle and the protection function
may have been activated. Therefore, the
speaker wire should be checked.
• If your car’s ignition does not have an ACC
position, connect the ignition wires to a
power source that can be turned on and
off with the ignition key. If you connect
the ignition wire to a power source with
a constant voltage supply, as with battery
wires, the battery may die.
• If the console has a lid, make sure to
install the unit so that the faceplate will
not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires
aren’t touching to cause a short circuit,
then replace the old fuse with one with
the same rating.
• Insulate unconnected wires with vinyl
Before InstallationAccessories
Installation Procedure
1
.....1
2
.....2
3
.....4
4
.....4
1. To prevent a short circuit, remove the key
from the ignition and disconnect the -
battery.
2. Make the proper input and output wire
connections for each unit.
3. Connect the speaker wires of the wiring
harness.
4. Connect the wiring harness wires in the
following order: ground, battery, ignition.
5. Connect the wiring harness connector to
the unit.
6. Install the unit in your car.
7. Reconnect the -battery.
8. Press the reset button.
B59-2008-0000KDCU7046QSGM.indd10B59-2008-0000KDCU7046QSGM.indd10 09/12/1811:0309/12/1811:03

English |11
For Good Reception
To assure good reception, note the
following:
• Communicate with the cell-phone within
the line-of-sight distance of 10 m (30
ft). The communication range becomes
shorter depending on the surrounding
environment. The communication
range also becomes shorter when there
is an obstacle between this unit and
the cell-phone. The above maximum
communication range (10 m) is not
always assured.
• A broadcast station or walkie-talkie
located nearby can interfere with
communication due to too strong signal.
tape or other similar material. To prevent
a short circuit, do not remove the caps on
the ends of the unconnected wires or the
terminals.
• Connect the speaker wires correctly to the
terminals to which they correspond. The
unit may be damaged or fail to work if
you share the -wires or ground them to
any metal part in the car.
• When only two speakers are being
connected to the system, connect the
connectors either to both the front
output terminals or to both the rear
output terminals (do not mix front and
rear). For example, if you connect the +
connector of the left speaker to a front
output terminal, do not connect the -
connector to a rear output terminal.
• After the unit is installed, check whether
the brake lamps, blinkers, wipers, etc. on
the car are working properly.
• Mount the unit so that the mounting
angle is 30° or less.
• Reception may drop if there are metal
objects near the Bluetooth antenna.
(KDC-U7046BT/ KDC-U7046BTL only)
Bluetooth antenna unit
¤CAUTION
Install this unit in the console of your
vehicle.
Do not touch the metal part of this unit
during and shortly after the use of the
unit. Metal part such as the heat sink and
enclosure become hot.
¤CAUTION
• Keep battery out of reach of children
and in original package until ready to
use. Dispose of used batteries promptly.
If swallowed contact physician
immediately.
• Do not leave the battery near fire or
under direct sunlight. A fire, explosion
or excessive heat generation may result.
• Do not set the remote control in hot
places such as on the dashboard.
• Danger of explosion if Lithium battery is
incorrectly replaced. Replace only with
the same or equivalent type.
B59-2008-0000KDCU7046QSGM.indd11B59-2008-0000KDCU7046QSGM.indd11 09/12/1811:0309/12/1811:03

–
+
12 |Quick Start Guide
Connecting Wires to Terminals
White/Black
Gray/Black
Green/Black
Purple/Black
White
Gray
Green
Purple
To front left speaker
To front right speaker
To rear right speaker
To rear left speaker
Ignition wire (Red)
Battery wire (Yellow)
Ground wire (Black) ·(To car chassis)
Ignition key
switch
Car fuse box
(Main fuse)
ACC
Car fuse
box
Battery
⁄
• Speaker Impedance: 4 – 8 Ω
• USB terminal Maximum Supply current
: 500 mA
B59-2008-0000KDCU7046QSGM.indd12B59-2008-0000KDCU7046QSGM.indd12 09/12/1811:0309/12/1811:03

P.CONT
ILLUMI
REMOTE CONT
REMOTE INPUT
STEERING WHEEL
ANT.
CONT
MUTE
L
R
L
R
English |13
To optional accessory microphone KCA-MC10
(KDC-U7046BT/ KDC-U7046BTL only)
FM/AM antenna input
Front output
Fuse (10A)
Sub Woofer output
Rear output
To Kenwood disc changer/ External optional
accessory
⁄To connect these leads, refer to the
relevant instruction manuals.
Wiring harness
(Accessory1)
If no connections are made, do not let the wire come out from
the tab.
Power control wire
(Blue/White)
Motor antenna control wire
(Blue)
Dimmer control wire
(Orange / White)
When using the optional power amplifier,
connect to its power control terminal.
To car light control switch
Depending on what antenna you are
using, connect either to the control
terminal of the motor antenna, or to the
power terminal for the booster amplifier of
the film-type or short pole type antenna.
Mute control wire (Brown)
To use the steering wheel remote control
feature, an exclusive remote adapter (not
supplied) that matches your car is required.
Steering remote control wire
(Light Blue/Yellow)
Connect to the terminal that is grounded
when either the telephone rings or
during conversation. (KDC-U7046BT/
KDC-U7046BTL only)
⁄To connect the Kenwood navigation
system, consult your navigation
manual.
B59-2008-0000KDCU7046QSGM.indd13B59-2008-0000KDCU7046QSGM.indd13 09/12/1811:0309/12/1811:03

14 |Quick Start Guide
Installation/Removing the Unit
non-Japanese cars
Bend the tabs of the mounting sleeve
with a screwdriver or similar utensil
and attach it in place.
⁄
• Make sure that the unit is installed
securely in place. If the unit is unstable, it
may malfunction (for example, the sound
may skip).
Japanese cars
1. Refer to the section <Removing the hard
rubber frame> and then remove the
hard rubber frame.
2. Align the holes in the unit (two locations
on each side) with the vehicle mounting
bracket and secure the unit with the
accessory screws.
8 mm
MAX.
ø5mm ø5mm
8mm
MAX.
T
NT
N
T/N
T: Toyota cars
N: Nissan cars
Accessory3...for Nissan car
Accessory4...for Toyota car
34
Removing the hard rubber frame
1. Engage the catch pins on the removal
tool and remove the two locks on the
upper level.
Lift up and pull the frame forward as
shown in the figure.
Catch
Lock
Removal tool (Accessory2)
2. When the upper level is removed,
remove the lower two locations.
⁄
• The frame can be removed from the
bottom side in the same manner.
Removing the Unit
1. Refer to the section <Removing the hard
rubber frame> and then remove the
hard rubber frame.
2. Remove the faceplate.
3. Insert the two removal tools deeply into
the slots on each side, as shown.
4. Lower the removal tool toward the
bottom, and pull out the unit halfway
while pressing towards the inside.
Accessory2
¤
• Be careful to avoid injury from the catch
pins on the removal tool.
5. Pull the unit all the way out with your
hands, being careful not to drop it.
B59-2008-0000KDCU7046QSGM.indd14B59-2008-0000KDCU7046QSGM.indd14 09/12/1811:0309/12/1811:03

English |15
This symbol mark indicates that
Kenwood manufactured this
product so as to decrease harmful
influence on the environment.
• The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Kenwood Corporation
is under license. Other trademarks and trade
names are those of their respective owners.
• The “AAC” logo is a trademark of Dolby
Laboratories.
• iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
• iPhone is a trademark of Apple Inc.
• “Made for iPod”means that an electronic
accessory has been designed to connect
specifically to iPod and has been certified by
the developer to meet Apple performance
standards.
• “Works with iPhone” means that an electronic
accessory has been designed to connect
specifically to iPhone and has been certified
by the developer to meet Apple performance
standards.
• Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
The marking of products using lasers
(Except for some areas)
CLASS 1
LASER PRODUCT
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. It means that the unit
is utilizing laser beams that are of a weaker class.
There is no danger of hazardous radiation outside
the unit.
B59-2008-0000KDCU7046QSGM.indd15B59-2008-0000KDCU7046QSGM.indd15 09/12/1811:0309/12/1811:03

16 |快捷入门指南
目录
使用之前 ...................................................... 17
第一步操作.................................................. 18
基本操作 ...................................................... 19
播放音乐 (CD/USB/iPod) ....................... 20
收听广播 ...................................................... 21
免提通话 ...................................................... 22
附件 ................................................................24
安装步骤 ...................................................... 24
安装之前 ...................................................... 24
将导线与端子连接 ................................... 26
本机的安装/拆卸方法 ............................. 28
QuickStartGuideMCHS.indd16QuickStartGuideMCHS.indd16 09/12/1718:0609/12/1718:06

中文 |17
使用之前
2警告
为了防止受伤或火灾，请遵守下列注
意事项:
󰅙󰀸
󰂾󰆮󰅣󰅰
本机的复位方法
󰄿
󰇵


󰆲
本机的保养
󰃄󰁉
󰃓
󰃄󰁉󰃼󰅰
󰂽󰁉
󰅑
󰀶󰁉󰀸󰅪󰄡󰁉󰆎

󰄡󰇔
本机和面板的端子
󰅙󰁉
󰇑
󰇑󰃄󰁉
󰃓
透镜雾气
󰂾󰁉

󰀶󰄤
󰄶
󰄿󰂯󰁱

说明
󰆮󰁱

󰁱

󰂾󰁉
󰇔
 KDC-U7046BT KDC-U6046

󰄗32󰅰󰁵
󰁉
 KDC-U7046BTL KDC-U6046L



󰄗33󰁵
󰁉
󰂾󰅰󰁉
󰅦󰁉
󰀚󰂾󰅰
󰁱󰆮󰅣󰁖
󰁉

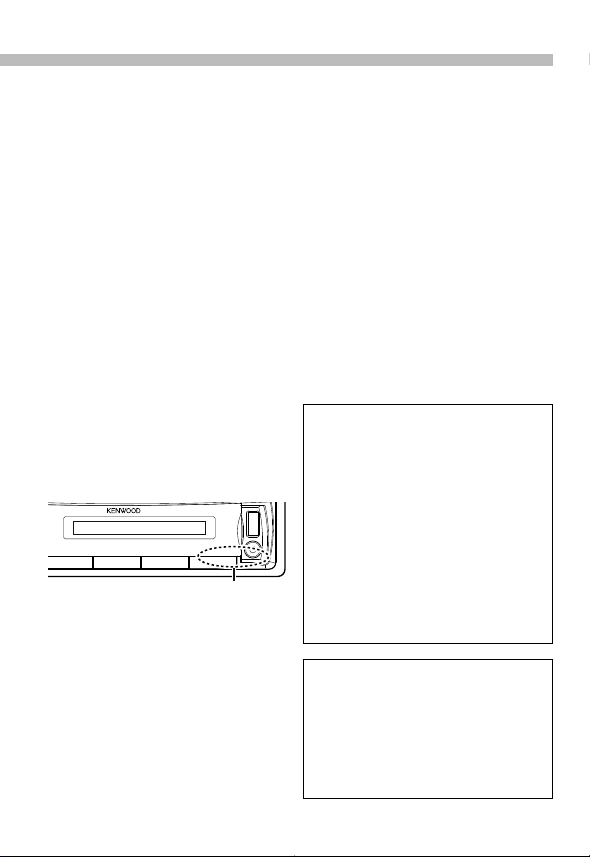

复位按钮
QuickStartGuideMCHS.indd17QuickStartGuideMCHS.indd17 09/12/1718:0609/12/1718:06

18 |快捷入门指南
第一步操作
退出演示模式
安装后第一次使用本机时，请取消演示模
式。
1 󰂾

󰂠[ENTER]

2󰆨控制旋钮󰃕
[ENTER] 


󰄗󰁉

调节时钟和日期
1 [FNC]
2 󰄗󰃕
➜󰅳
➜󰅳
󰆨控制旋钮󰃕
[ENTER]
3󰆨控制旋钮
[ENTER]
4󰆨控制旋钮󰅳
[ENTER]
5󰆨控制旋钮󰃕
[ENTER]
6󰆨控制旋钮
[ENTER]
7󰆨控制旋钮󰂦
[ENTER]
8󰆨控制旋钮
[ENTER]
9󰆨控制旋钮󰃕
[ENTER]
10 󰆨 控制旋钮󰃕
[ENTER]
11[ ]󰅳

控制旋钮
[FNC] [ENTER]
[ ]
QuickStartGuideMCHS.indd18QuickStartGuideMCHS.indd18 09/12/1718:0609/12/1718:06

中文 |19
基本操作
电源
[SRC]󰂘
[SRC]󰅳󰂘
选择信号源
[SRC]󰆨控制旋钮
󰃕󰂘[ENTER]

➜󰀜

➜
➜➜󰆚
➜➜
音量
󰆨控制旋钮󰀜
USB端子
󰆮󰅣
󰀑󰁉
󰆮󰅣
辅助输入
󰁉󰅑
󰀜󰆮󰅣
[ENTER]
[SRC]
辅助输入
USB端子控制旋钮
QuickStartGuideMCHS.indd19QuickStartGuideMCHS.indd19 09/12/1718:0609/12/1718:06

20 |快捷入门指南
播放音乐 (CD/USB/iPod)
播放光盘
光盘槽
󰂘󰇒

播放USB装置
󰆮󰅣󰁱USB端子
󰂘󰇒

选择音频文件夹
控制旋钮󰃕
选择歌曲
󰁘󰇱控制旋钮󰃕󰀜

歌曲的快进或快退
󰁘󰇱󰆟控制旋钮
󰀜󰀜
暂停和播放
[ ]󰃁
󰀜
音乐搜索
搜索需要播放的歌曲。
1 [ ]
2 󰀜
操作类型 操作
󰂾󰅎 󰆨控制旋钮
󰃕 [ENTER]
 []
󰀜󰀜󰇵
[ ]󰅳
取出光盘
[0]
拆除USB装置
[0]󰅳󰆮󰅣

󰆮󰅣
[ENTER]
[ ]
[0]
[ ] USB端子控制旋钮 光盘槽
QuickStartGuideMCHS.indd20QuickStartGuideMCHS.indd20 09/12/1718:0609/12/1718:06
