Kenwood DM-5090 User manual

MINIDISC RECORDER
INSTRUCTION MANUAL
DM-5090
B60-3497-00 MA (M,T,C) MC
98/12 11 10 9 8 7 6 5 4 3 2 1 97/12 11 10 9 8

DM-5090 (En)
2
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Introduction
Before applying power
The marking is located on the rear panel and says that the component
uses laser beams that have been classified as Class 1. It means that
the unit is utilizing laser beams that are of a weaker class. There is no
danger of hazardous radiation outside the unit.
CLASS 1
LASER PRODUCT
The marking of products using lasers
(Except for some areas)
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
Safety precautions
Factory fitted moulded mains plug
1. The mains plug contains a fuse. For replacement, use only a 13- Amp ASTA-approved (BS1362) fuse.
2. The fuse cover must be refitted when replacing the fuse in the moulded plug.
3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to
reach a power point, then obtain an appro priate safety approved extension lead or adapter, or consult your dealer.If nonetheless the mains plug
is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.
IMPORTANT :
The wires in the mains lead are coloured in accordance with the following code :
Blue: Neutral
Brown : Live
Do not connect those leads to the earth terminal of a three - pin plug.
Note:
Our warranty does not cover damage caused by excessive line voltage
due to improper setting of the AC voltage selector switch.

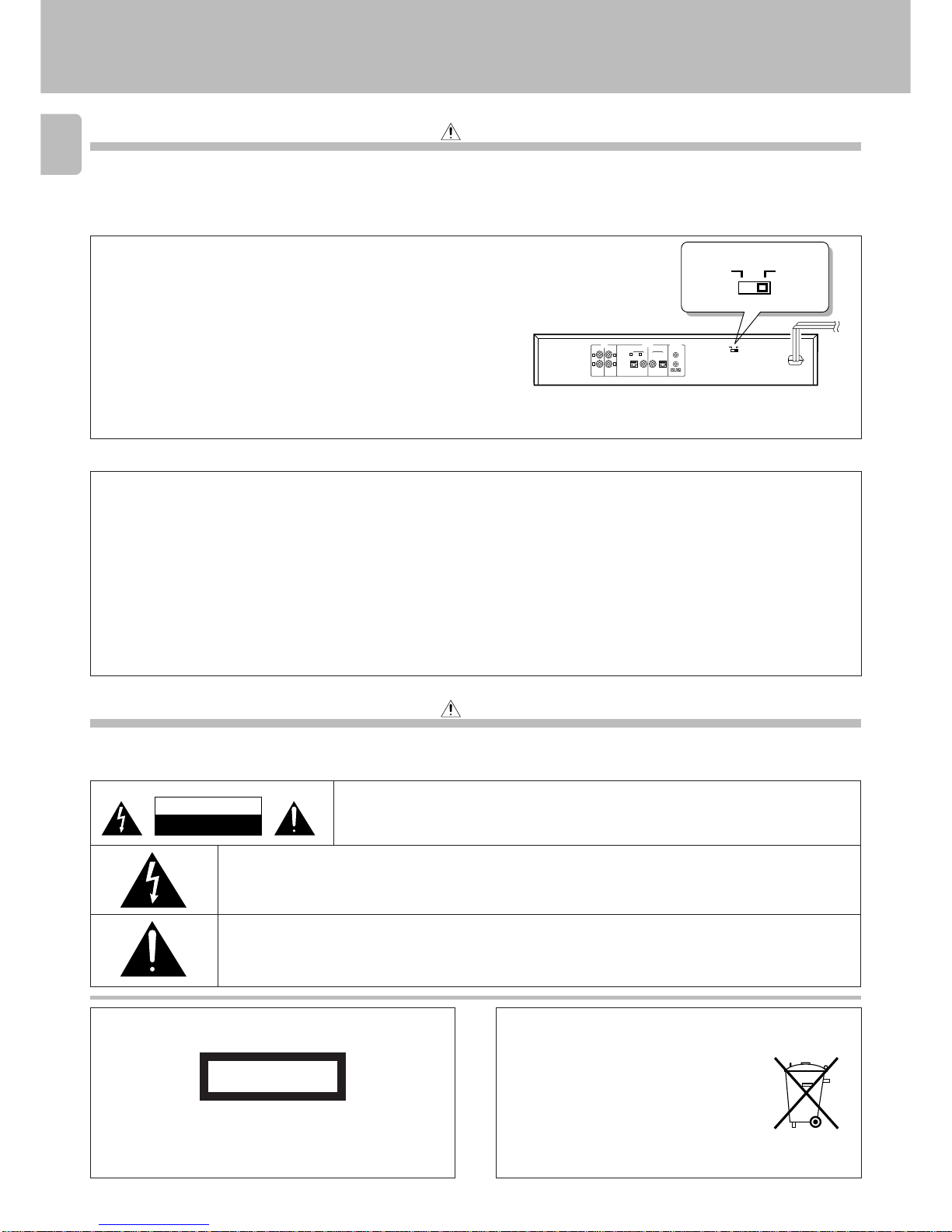

*AC voltage selection
The AC voltage selector switch on the rear panel is set to the voltage
that prevails in the area to which the unit is shipped. Before connecting
the power cord to your AC outlet, make sure that the setting position
of this switch matches your line voltage. If not, it must be set to your
voltage in accordance with the following direction.
AC voltage selector switch
For the United Kingdom
Move switch lever to match your line voltage with a small screwdriver
or other pointed tool.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT
THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE
THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE
OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING
THE APPLIANCE.
Caution : Read this section carefully to ensure safe operation.
Caution : Read this section carefully to ensure safe operation.
Units are designed for operation as follows.
U.S.A. and Canada ................................................................................................................................................................ AC 120 V only
U.K. and Europe ..................................................................................................................................................................... AC 230 V only
*Other countries............................................................................................................................... AC 110-120 / 220-240 V switchable
SYSTEM
CONTROL
PLAY
OUT
OPT.COAX.
REC
IN
2 COAX.1 OPT.
DIGITAL
LINE
PLAY
OUT
REC
IN
R
L
R
L
AC 110 -
120V
‘
AC 220 -
240V
‘
AC 110 -
120V
‘
AC 220 -
240V
‘
REQUIREMENT BY NEDERLAND GAZETTE
Batteries are supplied with this product. When
they empty, you should not throw away. Instead,
hand them in as small chemical waste.

DM-5090 (En)
3
Introduction.......................................................................................................................................... 2
Before applying power ..................................................................................................................... 2
Safety precautions ............................................................................................................................ 2
Contents ........................................................................................................................................... 3
Special feature .................................................................................................................................. 4
Accessories ...................................................................................................................................... 4
IMPORTANT SAFEGUARDS ............................................................................................................... 5
Information that you should know.................................................................................................... 7
Safety Precautions ............................................................................................................................ 7
Maintenance ..................................................................................................................................... 8
MD system............................................................................................................................................ 9
System connections .......................................................................................................................... 10
Names and functions of parts .......................................................................................................... 12
Display/Main unit ............................................................................................................................ 12
Remote control unit ........................................................................................................................ 14
Operation of remote control unit..................................................................................................... 15
Playback of Mini Disc ........................................................................................................................ 16
Playing tracks in order from track No. 1 ......................................................................................... 16
Searching a desired track by its title (TITLE SEARCH) ................................................................... 17
Playback from desired track ........................................................................................................... 18
Random playback ........................................................................................................................... 18
Programming ..................................................................................................................................... 20
Programming tracks in a desired order .......................................................................................... 20
Repeated playback ......................................................................................................................... 22
Recording-related keys ..................................................................................................................... 23
AUTO/MANUAL key ....................................................................................................................... 23
MONITOR key ................................................................................................................................ 23
REC MODE key .............................................................................................................................. 24
Recording (ANALOG input) .............................................................................................................. 26
ANALOG recording ......................................................................................................................... 26
Recording (DIGITAL input)................................................................................................................ 28
DIGITAL recording .......................................................................................................................... 28
Synchro recording with CD playback..............................................................................................30
DIGITAL recording and SCMS ........................................................................................................ 30
Editing................................................................................................................................................. 31
Selecting the editing function type................................................................................................. 31
Moving the track being played (TRACK MOVE) ............................................................................. 32
Moving several tracks at a time (QUICK MOVE)............................................................................ 34
Dividing the track being played (TRACK DIVIDE) ........................................................................... 36
Combining the track being played (TRACK COMBINE) ................................................................. 38
Erasing the track being played (TRACK ERASE) ............................................................................ 40
Erasing one or more track at a time (QUICK ERASE) .................................................................... 42
Editing titles .................................................................................................................................... 44
Changing the displayed contents .................................................................................................... 48
TIME DISPLAY key ......................................................................................................................... 48
LEVEL METER MODE key ............................................................................................................. 48
Timer operations ............................................................................................................................... 49
Timer playback, timer recording ..................................................................................................... 49
In case of difficulty ............................................................................................................................ 50
Specifications..................................................................................................................................... 53
Contents
Introduction
Caution : Read the pages marked carefully to ensure safe operation.

DM-5090 (En)
4
Unpacking
Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped
to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the
carrier for shipping damage.
We recommend that you retain the original carton and packing materials for use should you transport or ship the unit in the future.
Keep this manual handy for future reference.
This unit is audio equipment based on the Mini Disc format. The Mini Disc (MD) is an application of the optical and magneto-optical technology and
has the capability to record signals on discs.The operability of the MD is equivalent to the Compact Disc (CD). The MD uses optional non-contact
system so the recordings are not degraded by eternal factors and the discs are never scratched or damaged in playback.
Special feature
Sampling rate converter
Title input, title search
* Use to adapt the plug on the power
cord to the shape of the wall outlet.
(Accessory only for regions where
use is necessary.)
Remote control unit (1) * AC plug adaptor (1)Batteries (2)
This unit incorporates the KENWOOD-original “D.R.I.V.E.” circuit which
makes high quality sound reproduction possible.
(D.R.I.V.E.:Dynamic Resolution Intensive Vector Enhancement)
The sampling rate converter incorporated in this unit is compatible with all
digital sources (32 kHz, 44.1 kHz, 48 kHz).
÷48 kHz : Standard mode of DAT. For recording of B mode broadcasting of BS tuner, etc.
÷44.1 kHz : Standard mode of DAT. For recording of CD, MD, etc.
÷32 kHz : Standard mode and long-hour mode of DAT. For recording of A mode broadcast-
ing of BS tuner.
In addition to the conventional editing functions (MOVE, DIVIDE, COMBINE
and ERASE), this unit provides more versatile editing functions such as the
QUICKMOVEfunctionformovingdesiredtracksatonceortheQUICKERASE
function for erasing desired tracks at once.
Check that the following accessories are present.
Audio cord (2) System control cord (1) Optical fiber cable (1)
“D.R.I.V.E.” for high-quality recording
Inadditiontothe“Titleinput function” which allows to assign disc and track
titles simply using the multi-jog dial and the “Title search function” which
allows to find the desired track title, the “Preset title function” provides a
selection of frequently used titles.
Versatile editing functions
Accessories
Introduction

DM-5090 (En)
5
IMPORTANT SAFEGUARDS
Please read all of the safety and operating instructions before
operating this appliance. Adhere to all warnings on the appliance
and in the instruction manual. Follow all the safety and operating
instructions. These safety and operating instructions should be
retained for future reference.
1. Power sources – The appliance should be connected to a
power supply only of the type described in the instruction
manual or as marked on the appliance. If you are not sure of
the type of power supply to your home, consult your appliance
dealer or local power company. For appliances intended to
operate from battery power, or other sources, refer to the
instruction manual.
2. Power-cord protection – Power-supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, pay
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.
3. CAUTION – Polarization – This appliance may be
equipped with a polarized alternating-current line plug (a plug
having one blade wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the safety purpose
of the polarized plug.
4. Ventilation – Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of the appliance
and to protect it from overheating, and these openings must
not be blocked or covered. The appliance should be situated so
that its location or position does not interfere with its proper
ventilation.
To maintain good ventilation, do not put records or a table-cloth
on the appliance. Place the appliance at least 10 cm away from
the walls.
Do not use the appliance on a bed, sofa, rug or similar surface
that may block the ventilation openings. This appliance should
not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer’s
instructions have been adhered to.
5. Water and moisture – The appliance should not be
used near water - for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, etc.
Never pull or stretch
the cord.
6. Temperature– The appliance may not function properly
if used at extremely low, or freezing temperatures. The
ideal ambient temperature is above +5°C (41°F).
7. Heat – The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or
other appliances (including amplifiers) that produce heat.
8. Electricshock– Care should be taken so that objects do
not fall and liquid is not spilled into the enclosure
through openings. If a metal objects, such as a hair pin
or a needle, comes into contact with the inside of this
appliance, a dangerous electric shock may result. For
families with children, never permit children to put
anything, especially metal, inside this appliance.
9. Enclosure removal – Never remove the enclosure. If
the internal parts are touched accidentally, a serious
electric shock might occur.
10.Magneticfields– Keep the appliance away from sources
of magnetic fields such as TV sets, speaker systems,
radios, motorized toys or magnetized objects.
11.Cleaning – Unplug this appliance from the wall outlet
before cleaning. Do not use volatile solvents such as
alcohol, paint thinner, gasoline, or benzine, etc. to clean
the cabinet. Use a clean dry cloth.
12.Accessories – Do not place this appliance on an unstable cart,
stand, tripod, bracket, or table. The appliance may fall, causing
serious injury to a child or adult, and serious damage to the
appliance. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the appliance.
Any mounting of the appliance should follow the manufacturer’s
instructions, and should use a mounting accessory
recommended by the manufacturer. An appliance and cart
combination should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance and cart
combination to overturn.
Caution :Read this page carefully to ensure safe operation.
