Kenwood DMX820WXS User manual

B5A-3372-11 (M)© 2019 JVCKENWOOD Corporation
DMX820WXS
MONITOR WITH RECEIVER
INSTRUCTION MANUAL
接收器显示器
使用说明书
• Updated information (the latest Instruction Manual, etc.) is available
from
<http://www.kenwood.com/cs/ce/>.
・所更新的信息（最新的使用说明书、系统更新、新功能等）可在
<http://www.kenwood.com/cs/ce/>中查看。
!B5A-3372-11_DMX_M_EnCs.indb 1 2022/03/30 8:08

2
Contents
Before Use 4
Precautions................................................................... 4
How to read this manual ......................................... 4
Basic Operations 5
Functions of the Buttons on the Front Panel ... 5
Turning on the Unit ................................................... 5
Initial Settings.............................................................. 6
Adjusting the volume............................................... 7
Touch screen operations ......................................... 7
HOME screen descriptions...................................... 8
Source selection screen descriptions.................. 8
Source control screen descriptions ...................10
Popup menu ..............................................................10
List screen ...................................................................11
APPS-Android Auto™/
Apple CarPlay 12
Apple CarPlay Operation.......................................12
Android Auto™ Operation.....................................13
Mirroring......................................................................14
iPod/iPhone 15
Preparation.................................................................15
iPod/iPhone Basic Operation ...............................15
Search Operation......................................................16
USB 17
Connecting a USB device ......................................17
USB Basic Operation................................................17
Search Operation......................................................19
Radio 20
Radio Basic Operation ............................................20
Memory Operation ..................................................21
Selecting Operation ................................................21
Traffic Information ...................................................22
Radio Setup ................................................................22
Bluetooth Control 23
Information for using Bluetooth® devices.......23
Register from the Bluetooth device...................24
Bluetooth Setup........................................................24
Playing Bluetooth Audio Device.........................25
Using Hands-Free Unit............................................27
Other External Components 31
View Camera ..............................................................31
External audio/video players—AV-IN ...............32
!B5A-3372-01_DMX_M_EnCs.indb 2 2019/11/11 14:08

3English
Setting Up 33
Monitor Screen Setup.............................................33
System Setup .............................................................33
User Interface Setup................................................34
Special Setup .............................................................35
Display Setup.............................................................35
AV Setup ......................................................................37
Controlling Audio 38
Speaker/ X’over setup.............................................38
Controlling General Audio....................................39
Equalizer Control ......................................................40
Volume Offset............................................................41
Sound Effect...............................................................41
Listening Position/ DTA..........................................42
Remote control 43
Functions of the Remote control Buttons.......43
Connection/Installation 44
Before Installation ....................................................44
Installing the unit .....................................................45
Troubleshooting 48
Problems and Solutions.........................................48
Error Messages ..........................................................48
Appendix 49
Playable Media and Files........................................49
Specifications.............................................................50
About this Unit..........................................................52
!B5A-3372-01_DMX_M_EnCs.indb 3 2019/11/11 14:08

Before Use
4
Before Use
Precautions
#WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metal
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your KENWOOD dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your KENWOOD dealer to make
sure that they work with your model and in
your area.
• You can select language to display menus,
audio file tags, etc. See User Interface Setup
(P.34).
• The Radio Data System or Radio Broadcast
Data System feature won’t work where the
service is not supported by any broadcasting
station.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with the sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the
stain off with a cloth moistened with neutral
cleaner, then wipe it again with a clean soft
dry cloth.
NOTE
• Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the faceplate
with a hard cloth or using a volatile liquid such
as thinner or alcohol may scratch the surface or
erase screened print.
Ñ How To Reset Your Unit
• If the unit or the connected unit fails to
operate properly, reset the unit.1 Press the
<Reset> button.The unit returns to factory
settings.
NOTE
• Disconnect the USB device before pressing the
<Reset> button. Pressing the <Reset> button
with the USB device connected can damage
the data stored in the USB device. For how to
disconnect the USB device, see Disconnect the
USB device (P.17).
• When the unit is turned on after resetting, the
Initial SETUP screen appears. See Initial setup
(P.6).
How to read this manual
• The screens and panels shown in this manual are
examples used to provide clear explanations of the
operations.
For this reason, they may be different from the actual
screens or panels used, or some display patterns may
be different.
• Indication language: English indications are used
for the purpose of explanation. You can select the
indication language from the [SETUP]menu. See
User Interface Setup (P.34).
Reset button
!B5A-3372-01_DMX_M_EnCs.indb 4 2019/11/11 14:08

Basic Operations
5English
Basic Operations
Functions of the Buttons on
the Front Panel
1
2
3
4
5
6
7
NOTE
• The panels shown in this guide are examples
used to provide clear explanations of the
operations. For this reason, they may be different
from the actual panels.
Name
• Motion
1
S, R(VOL)
• Adjusts volume.
The volume will go up until 15 when you
keep pressing R.
2
[MUTE]
• Mutes/restores the sound.
3
Reset
• If the unit or the connected unit fails to
operate properly, the unit returns to initial
settings when this button is pressed.
4
[HOME]
• Displays the HOME screen (P.8).
• Pressing for 1 second turns the power off.
• When the power off, turns the power on.
5
[MENU]
• Displays the popup menu screen.
• Pressing for 1 second turns the screen off.
6
• Displays the APP (CarPlay/ Android Auto)
screen.
• Pressing for 1 second displays the Voice
Recognition screen (P.28).
7
Remote Sensor
• Receives the remote control signal.
Turning on the Unit
The method of turning on is different
depending on the model.
1
Press the [HOME]button.
 The unit is turned on.
●To turn off the unit:
1
Press the [HOME]button for 1 second.
NOTE
• If it is your first time turning the unit on after
installation, it will be necessary to perform Initial
setup (P.6).
!B5A-3372-01_DMX_M_EnCs.indb 5 2019/11/11 14:08

Basic Operations
6
Initial Settings
Initial setup
Perform this setup when you use this unit first
time.
1
Set each item as follows.
■Language
Select the language used for the control
screen and setting items. Default is“British
English(en)”.
1Touch [Language].
2Touch [Language Select].
3Select the desired language.
4Touch [
].
For detailed operation, see User Interface
Setup (P.34).
■Clock
Adjusts clock.
For detailed operation, see Calendar/clock
settings (P.7).
■Display
Set the image on the screen.
1Touch [Display.
2Touch [Background].
3Select the image.
4Touch [
].
For detailed operation, see Display Setup
(P.35).
■Camera
Set the parameters for the camera.
1Touch [Camera].
2Set each item and touch [
].
For detailed operation, see Camera Setup
(P.31).
■DEMO
Set the demonstration mode. Default is “ON”.
1Touch [DEMO]and set ON or OFF.
2
Touch [Finish].
NOTE
• These settings can be set from the SETUP menu.
See Setting Up (P.33).
!B5A-3372-01_DMX_M_EnCs.indb 6 2019/11/11 14:08

Basic Operations
7English
Calendar/clock settings
1
Press the [MENU]button.
 Popup menu appears.
2
Touch [SETUP].
 SETUP Menu screen appears.
3
Touch [User Interface].
 User Interface screen appears.
4
Touch [Clock Adjust].
5
Adjust the date, then adjust the time.
6
Touch [Set].
NOTE
• Deactivate [RDS CT]before adjusting the clock.
See Radio Setup (P.22).
Adjusting the volume
To adjust the volume (0 to 40),
Press [R]to increase, and press [S]to decrease.
Holding [R]increases the volume continuously
to level 15.
Touch screen operations
To perform operations on the screen, you need
to touch, touch and hold, flick or swipe to select
an item, display setting menu screen or to
change the page, etc.
●Touch
Touch the screen gently to
select an item on the screen.
●Touch and hold
Touch the screen and keep
your finger in place until the
display changes or a message
is displayed.
●Flick
Slide your finger quickly to
the left or right on the screen
to change the page.
You can scroll the list screen
by flicking the screen up/
down.
●Swipe
Slide your finger up or down
on the screen to scroll the
screen.
!B5A-3372-01_DMX_M_EnCs.indb 7 2019/11/11 14:08

Basic Operations
8
HOME screen descriptions
Most functions can be performed from the
HOME screen.
4
3
5 6
1 2
1
• Displays the control screen of current source.
2
• Widget
– You can change the widget by touching
[
]/[ ] or flicking left or right on the
widget area.
– Touch the widget to display the detailed
screen.
3
• Current source information
4
• Displays the source selection screen. (P.9)
5
• Short-cut playback source icons (P.9)
6
• Displays the Hands Free screen. (P.27)
• When connecting as Apple CarPlay or
Android Auto, it works as a phone provided
in Apple CarPlay or Android Auto.
Display the HOME
1
Press the [HOME]button.
 HOME screen appears.
Source selection screen
descriptions
You can display all playback sources and options
on the source selection screen.
3 5
2
4
1
1
• Changes the playback source.
For playback sources, see P.9.
2
• Changes the page. (Touch []/[ ].)
You can also change the page by flicking left
or right on the screen.
3
• Returns to previous screen.
4
• Page indication
5
• Displays the SETUP Menu screen. (P.33)
!B5A-3372-01_DMX_M_EnCs.indb 8 2019/11/11 14:08

Basic Operations
9English
Select the playback source
1
Touch [ ] on the HOME screen.
From the screen, you can select the
following sources and functions.
• Switches to the Android Auto *1/ Apple
CarPlay *2/ Mirroring *3screen from the
connected iPhone/Android device.
(P.12)
• Switches to the Radio broadcast.
(P.20)
• Plays a Bluetooth audio player. (P.23)
• Plays an iPod/iPhone. (P.15)
• Plays files on a USB device. (P.17)
• Switches to an external component
connected to the AV-IN input terminal.
(P.32)
• Displays the Audio screen. (P.38)
• Puts the unit in standby. (P.9)
*1To select the Android Auto source, it is
necessary to connect Android device
compatible with Android Auto and to set
[Mode]to [Android Auto]. (P.14)
*2When iPhone compatible with CarPlay is
connected, [Apple CarPlay]is displayed.
*3To select the Mirroring source, it is necessary
to connect Android device with “Mirroring
OA for KENWOOD” application installed and
to set [Mode]to [Mirroring for Android™].
(P.14)
To select the playback source on the
HOME screen
The 3 items displayed on the source selection
screen as the large icons are shown on the
HOME screen.
You can change items displayed on this area
by customizing the source selection screen.
(P.10)
To select the playback source on the
source control screen
Display source selection buttons by touching [
]/[ ] or flicking left or right on the source control
screen, then select a playback source.
Put the unit in standby
1
Touch [ ] on the HOME screen.
2
Touch [STANDBY].
!B5A-3372-01_DMX_M_EnCs.indb 9 2019/11/11 14:08

Basic Operations
10
Customize Short-cut buttons on
HOME screen
You can arrange the position of the source icons
as you like.
1
Touch [ ] on the HOME screen.
2
Touch and hold the icon which you want
to move to go into the customizing
mode.
3
Drag it where you want to move.
Source control screen
descriptions
There are some functions which can be
operated from most screens.
Indicators
1
2 3 4
Short-cut buttons
1
Connected Bluetooth device information.
2
All sources icon
Displays all sources.
3
Secondary screen
• [
]/[ ] : The Secondary screen changes every
time you touch it. You can also change the
Secondary screen by flicking left or right on
the screen.
• Indicators: Displays the current source
condition and so on.
– MUTE: The mute function is active.
– LOUD: The loudness control function is on.
• Short-cut buttons: The source changes to the
one you have set as a short-cut. For the short-
cut setting, refer to Customize Short-cut
buttons on HOME screen (P.10).
4
[Û]
Touch to display the Hands Free screen.
(P.27)
When connecting as Apple CarPlay or Android
Auto, it works as a phone provided in Apple
CarPlay or Android Auto.
Popup menu
1
Press the [MENU]button.
 Popup menu appears.
2
Touch to display the popup menu.
123
!B5A-3372-01_DMX_M_EnCs.indb 10 2019/11/11 14:08

Basic Operations
11English
The contents of the menu are as follows.
• Displays the Screen Adjustment screen.
(P.33)
• Turns the display off. (P.11)
• Displays the view camera. (P.31)
• Displays the SETUP Menu screen.
(P.33)
• Displays the Audio Control Menu screen.
(P.38)
• Displays the control screen of current
source. Icon feature differs depending on
the source.
1
• Close the popup menu.
2 3
• See HOME screen descriptions
(P.8).
Turn off the screen
1
Select [Display OFF]on the pop-up
menu.
●To turn on the screen
1
Touch the display.
List screen
There are some common function keys in the
list screens of most sources.
61 2
3 4 5
1
Displays list type selection window.
2
Displays music/movie file list.
3
Text scroll
Scrolls the displayed text.
4
etc.
Keys with various functions are displayed here.
• : Plays all tracks in the folder containing
the current track.
• [ : Moves to the upper hierarchy.
5
[ ] / [ ] / [ ] / [ ] Page scroll
You can change the page to display more items
by pressing [
]/[ ].
• [
]/[ ] : Displays the top or bottom page.
6
Return
Returns to previous screen.
NOTE
• Buttons which cannot be activated from the list
screen are not displayed.
!B5A-3372-01_DMX_M_EnCs.indb 11 2019/11/11 14:08

APPS-Android Auto™/ Apple CarPlay
12
APPS-Android Auto™/ Apple CarPlay
Apple CarPlay Operation
CarPlay is a smarter, safer way to use your
iPhone in the car. CarPlay takes the things
you want to do with iPhone while driving and
displays them on the screen of the product. You
can get directions, make calls, send and receive
messages, and listen to the music from iPhone
while driving. You can also use Siri voice control
to make it easier to operate iPhone.
For details about CarPlay, visit https://ssl.apple.
com/ios/carplay/.
Compatible iPhone devices
You can use CarPlay with the following iPhone
models.
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5
Ñ Preparation
1 Connect iPhone using KCA-iP103 via USB
terminal. (P.47)
When iPhone compatible with CarPlay
is connected to the USB terminal, the
Bluetooth smartphone currently connected
is disconnected.
2 Unlock your iPhone.

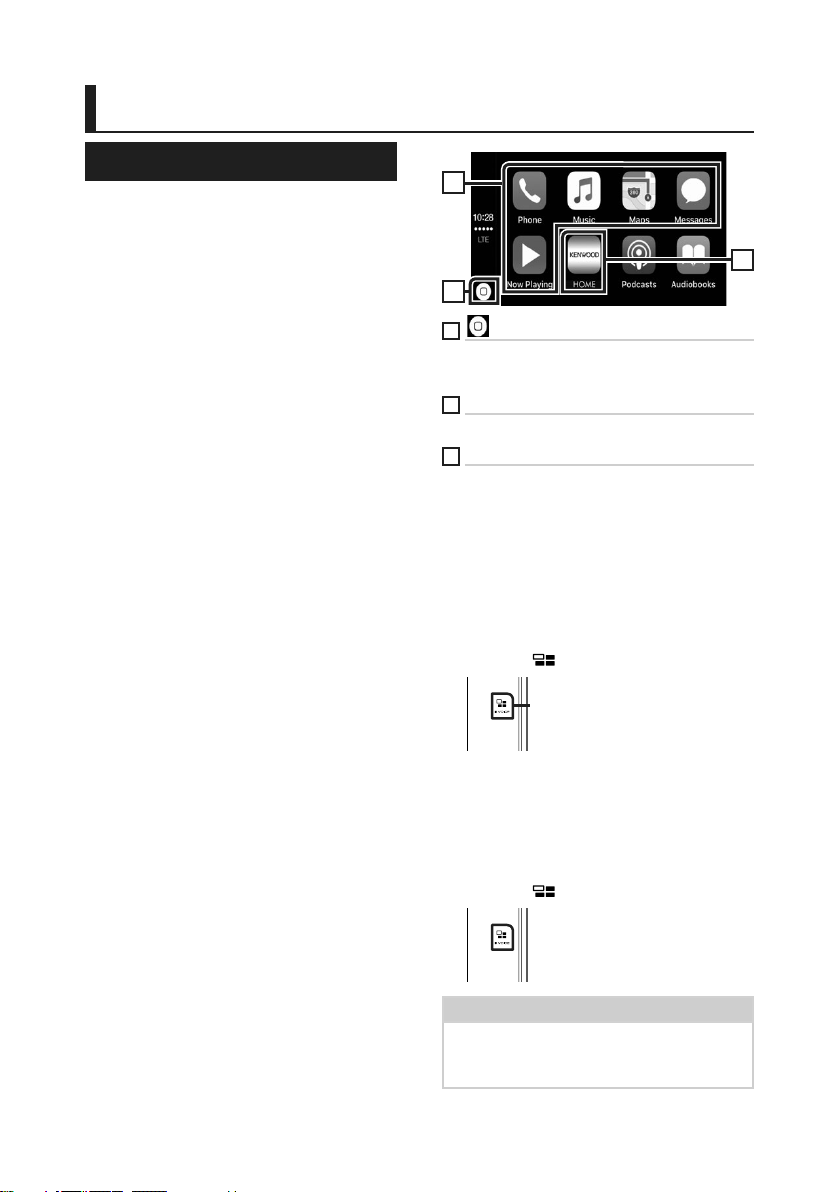

Ñ Operation buttons and
available Apps on the home
screen of CarPlay
You can use the Apps of the connected iPhone.
The items displayed and the language used on
the screen differ among the connected devices.
To enter CarPlay mode, touch [Apple CarPlay]
icon in the source selection screen. (P.9)
3
1
2
1
[ ]
• Displays the home screen of CarPlay.
• Touch and hold to activates Siri.
2
Application buttons
Starts the application.
3
[HOME]
Exits the CarPlay screen and displays the Home
screen.
To exit the CarPlay screen
1 Press the [HOME]button.
Ñ Use Siri
You can activate Siri.
1 Press the [ ] button for 1 second.
Press for 1 second
2 Talk to Siri.
Ñ Switch to the Apple CarPlay
screen while listening to
another source
1 Press the [ ] button.
NOTE
• If sound is output using Apple CarPlay when the
Apple CarPlay screen is displayed, the source is
switched to Apple CarPlay.
!B5A-3372-01_DMX_M_EnCs.indb 12 2019/11/11 14:08

APPS-Android Auto™/ Apple CarPlay
13English
Android Auto™ Operation
Android Auto enables you to use functions of
your Android device convenient for driving. You
can easily access route guidance, make calls,
listen to music, and access convenient functions
on the Android device while driving.
For details about Android Auto, visit https://
www.android.com/auto/ and https://
support.google.com/androidauto.
Compatible Android devices
You can use Android Auto with Android devices
of Android version 5.0 (Lollipop) or later.
NOTE
• Android Auto may not be available on all devices
and is not available in all countries or regions.
Ñ Preparation
1 Connect an Android device via USB
terminal. (P.47)
To use the hands-free function, connect the
Android device via Bluetooth.
When an Android device compatible
with Android Auto is connected to the
USB terminal, the device is connected via
Bluetooth automatically, and the Bluetooth
smartphone currently connected is
disconnected.
2 Unlock your Android device.
NOTE
• To use the Android Auto , It is necessary to set
"Mode" to "Android Auto". (P.14)
Ñ Operation buttons and
available Apps on the Android
Auto screen
You can perform the operations of the Apps of
the connected Android device.
The items displayed on the screen differ among
the connected Android devices.
To enter Android Auto mode, touch [Android
Auto]icon in the source selection screen.
(P.9)
1
1
Application/information buttons
Starts the application or displays information.
To exit the Android Auto screen
1 Press the [HOME]button.
Ñ Using voice control
1 Press the [ ] button for 1 second.
Press for 1 second
To cancel
1 Press the [ ] button.
Ñ Switch to the Android Auto
screen while listening to
another source
1 Press the [ ] button.
NOTE
• If sound is output using Android Auto when the
Android Auto screen is displayed, the source is
switched to Android Auto.
!B5A-3372-01_DMX_M_EnCs.indb 13 2019/11/11 14:08

APPS-Android Auto™/ Apple CarPlay
14
Mirroring
You can display and control the App on the unit
while your smartphone is connected to the USB
terminal.
Ñ Preparation
1 Download Mirroring App from Google
Play.
Install the latest version of the Mirroring
application “Mirroring OA for KENWOOD”on
your Android.
2 Pair your smartphone with the unit via
Bluetooth.
See Register from the Bluetooth device
(P.24) and Connect the Bluetooth device
(P.25).
Select a Device Mode
1 Press the [MENU]button.
 Popup menu appears.
2 Touch [SETUP].
 SETUP screen appears.
3 Touch [Device].
4 Touch [Mode].
5 Touch [Mirroring for Android™].
Ñ Compatible Android
smartphone
• Android version 7.0 or later
• Bluetooth support
NOTE
• This unit may not work for some Android
smartphone's.
Ñ Connecting an Android device
1 Connect an Android device via the USB
terminal.
2 Launch Mirroring App on your Android
Smartphone.
Touch "OK" to start Mirroring App.
Touch "Start now" to start capturing your
Android screen.
3 Start to enjoy Mirroring.
Ñ Mirroring OA Operation
1 Operate your smartphone to activate
Mirroring App, then connect to this unit.
2 Press the [HOME]button.
3 Touch [ ].
4 Touch [Mirroring].
You can display the same screen of the
Android device on the monitor of the unit.
!B5A-3372-01_DMX_M_EnCs.indb 14 2019/11/11 14:08

iPod/iPhone
15English
1 Connect the iPod/iPhone using KCA-
iP103. (P.47)
2 Press the [HOME]button.
3 Touch [ ].
4 Touch [iPod]. (P.9)
●To disconnect the iPod/iPhone connected
with the cable:
1 Detach the iPod/iPhone.
iPod/iPhone Basic Operation
Control screen
3
4
2
5
Open the drawer
1
4
6
1
[ ] / [ ]
• [
]: Repeats the current track/album. Each
time you touch the key, repeat mode switches
in the following sequence;
Song repeat ( ), All songs repeat ( )
• [
]: Randomly plays all tracks in current
album. Each time you touch the key, random
mode switches in the following sequence;
Song random ( ), Random off ( )
2
Track information
• Displays the information of the current file.
• Touch to display the category list screen. See
Category search (P.16).
iPod/iPhone
Preparation
Ñ Connectable iPod/iPhone
The following models can be connected to this
unit.
Made for
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPod touch (6th generation)
• iPod touch (5th generation)
NOTE
• By connecting your iPod/iPhone to this unit with
an optional accessory iPod connection cable
KCA-iP103, you can supply power to your iPod/
iPhone as well as charge it while playing music.
However, the power of this unit must be on.
• If you start playback after connecting the iPod,
the music that has been played by the iPod is
played first.
Ñ Connect iPod/iPhone
Preparation
• Connect an iPod/iPhone with the KCA-iP103
(optional accessory) while CarPlay is not
connected.
• With a CarPlay-capable iPhone, turn off CarPlay
by operating the iPhone at functional setup
before connecting iPhone. For details of the
setup method, contact the manufacturer of the
terminal.
• Only one iPod/iPhone can be connected.
!B5A-3372-01_DMX_M_EnCs.indb 15 2019/11/11 14:08

iPod/iPhone
16
Ñ Category search
You can search a file by selecting category.
1 Touch [Category List].
2 Touch the desired category.
 The list corresponding to your selection
appears.
3 Touch to select desired item in the list.
Repeat this step until you find the desired
file.
Ñ Link search
You can search a file of same artist/album/
genre/composer as the current track.
1 Touch [Link Search].
2 Touch the desired tag type. You can select
from artist, album, genre and composer.
 The list corresponding to your selection
appears.
3 Touch desired item from the content list.
3
[Operation keys
• 1]: Searches track/file. For details on search
operation, see Search Operation (P.16).
• E][F]: Searches the previous/next track/
file. Touch and hold to fast forward or fast
backward.
• [DH]: Plays or pauses.
• : Touch to mute or not to mute.
4
Content list
Touch on the right side of the screen to display
the Content list. Touch again to close the list.
Displays the playing list. When you touch a
track/file name on the list, playback will start.
5
Indicator Items
• MUSIC: Identifies the music file.
6
Artwork/ Play mode indicator/ Playing
time
The jacket of the currently playing file is
displayed.
• D, B, etc.: Current play mode indicator
The meanings of each icon are as follows;
D(play), B(fast forward), A(fast
backward), H(pause).
Search Operation
You can search music files by the following
operations.
1 Touch [1].
2 Touch [S].
3 Select the list type.
NOTE
• For operations in the list screen, see List screen
(P.11).
!B5A-3372-01_DMX_M_EnCs.indb 16 2019/11/11 14:08

USB
17English
USB
Connecting a USB device
1 Connect the USB device with the USB
cable. (P.46)
2 Press the [HOME]button.
3 Touch [ ].
4 Touch [USB]. (P.9)
Ñ Disconnect the USB device
1 Press the [HOME]button.
2 Touch a source other than [USB].
3 Detach the USB device.
Ñ Usable USB device
You can use a mass-storage-class USB device on
this unit.
The word “USB device” appearing in this manual
indicates a flash memory device.
●About file system
The file system should be the one of the
following.
• FAT16 • FAT32 • NTFS
NOTE
• Install the USB device in the place where it will
not affect safe driving.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this
unit. The files can be erased depending on the
operating conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.
USB Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
Control screen
4 3
5
2
6
17
Open the drawer
5
4
1
[ ] / [ ]
• [
]: Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence;
File repeat ( ), Folder repeat ( ),
Repeat all ( )
• [
]: Randomly plays all tracks in current
folder. Each time you touch the key, random
mode switches in the following sequence;
File random ( ), Random off ( )
2
Track information
Displays the information of the current file.
Only a file name and a folder name are
displayed if there is no tag information.
!B5A-3372-01_DMX_M_EnCs.indb 17 2019/11/11 14:08

USB
18
3
[Operation keys
• 1]: Searches track/file. For details on search
operation, see Search Operation (P.19).
• E][F]: Searches the previous/next track/
file.
Touch and hold to fast forward or fast
backward.
• [D]H: Plays or pauses.
• : Touch to mute or not to mute.
4
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel.
• [
][ ] : Searches previous/next folder.
• Aspect: Select screen mode.
Full: Changes the aspect ratio of video and
displays fully on the screen.
Normal: Display with 4:3 ratio.
Auto: Displays video fully on vertical or
horizontal with no ratio change.
5
Content list
Touch on the right side of the screen to display
the Content list. Touch again to close the list.
Displays the playing list. When you touch a
track/file name on the list, playback will start.
6
Indicator Items
• VIDEO: Identifies the video file.
• MUSIC: Identifies the music file.
7
Artwork/ Play mode indicator/ Playing
time
The jacket of the currently playing file is
displayed.
• D, B, etc.: Current play mode indicator
The meanings of each icon are as follows;
D(play), B(fast forward), A(fast
backward), H(pause).
Video screen
9
88
8
Searching file area (Video file only)
Touch to search the next/previous file.
9
Key display area (Video file only)
Touch to display the control screen.
!B5A-3372-01_DMX_M_EnCs.indb 18 2019/11/11 14:08

USB
19English
Search Operation
You can search music or video files by the
following operations.
1 Touch [1].
2 Touch [S].
3 Select the list type.
NOTE
• For operations in the list screen, see List screen
(P.11).
Ñ Category search
You can search a file by selecting category.
1 Touch [Category List].
2 Select whether you search by audio files [
]or video files [
].
3 Touch the desired category (audio file
only).
 The list corresponding to your selection
appears.
4 Touch to select desired item in the list.
Repeat this step until you find the desired
file.
Ñ Link search
You can search a file of same artist/album/genre
as the current track.
1 Touch [Link Search].
2 Touch the desired tag type. You can select
from artist, album and genre.
 The list corresponding to your selection
appears.
3 Touch desired item from the content list.
Ñ Folder search
You can search a file according to hierarchy.
1 Touch [Folder List].
2 Select whether you search by audio files [
]or video files [
].
3 Touch the desired folder.
When you touch a folder its contents are
displayed.
4 Touch to select desired item in the list.
Repeat this step until you find the desired
file.
!B5A-3372-01_DMX_M_EnCs.indb 19 2019/11/11 14:08

Radio
20
Radio
Radio Basic Operation
Most functions can be controlled from the
source control screen.
To enter Radio source, touch [Radio]icon in the
source selection screen. (P.9)
Control screen
4
6
5
3
1
2
Open the drawer
4
7
5
1
Information display
Displays the information of the current station:
Frequency
Touching [ ] allows you to switch between
Content A and Content B.
Content A: PS name, Radio Text, PTY Genre
Content B: Radio Text plus, Title Artist
2
Seek mode
Switches the seek mode in the following
sequence; [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a station with good
reception automatically.
• [AUTO2]: Tunes in stations in memory one
after another.
• [MANUAL]: Switches to the next frequency
manually.
3
Operation keys
• [E][F]: Tunes in a station. The method of
frequency switching can be changed (see 2
in table).
• : Touch to mute or not to mute.
4
Preset list
• Touch on the right side of the screen to
display the Preset list. Touch again to close
the list.
• Recalls the memorized station.
• When touched for 2 seconds, stores the
current receiving station in memory.
5
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel.
• [TI](FM only): Sets the traffic information
mode on. For details, see Traffic Information
(P.22).
• [SETUP: Displays the TUNER SETUP screen. For
details, see Radio Setup (P.22).
• [AME]: Presets stations automatically. For
details, see Auto memory (P.21).
• [PTY](FM only): Searches a program by setting
program type. For details, see Search by
program type (P.21).
• [MONO](FM only): Select the Monaural
reception.
• [LO.S](FM only): Turns the Local Seek function
on or off.
6
[FM][AM]
Switches the band.
7
Indicator Items
• ST: A stereo broadcast is being received.
• MONO: The forced monaural function is on.
• AF: The AF search function is on.
• LOS: The Local Seek function is on.
• RDS: Indicates the state of the Radio Data
System station when the AF function is on.
White: Radio Data System is being received.
Orange: Radio Data System is not being
received.
• TI: Indicates the reception state of traffic
information.
White: TP is being received.
Orange: TP is not being received.
!B5A-3372-01_DMX_M_EnCs.indb 20 2019/11/11 14:08
