Kenwood KMM-BT34 User manual

Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
GET0994-001B (EN)© 2013 JVC KENWOOD Corporation
KMM-BT34
KMM-302BT
KMR-M308BTE
DIGITAL MEDIA RECEIVER
INSTRUCTION MANUAL
DIGITAL-MEDIA-RECEIVER
BEDIENUNGSANLEITUNG
ЦИФРОВОЙ МЕДИА-РЕСИВЕР
ИHCTPУKЦИЯ ПO ЭKCПЛУATAЦИИ
JS_KWD_KMM_BT34_EN_01_C001B.indd 1JS_KWD_KMM_BT34_EN_01_C001B.indd 1 16/12/2013 2:09:09 PM16/12/2013 2:09:09 PM

i
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

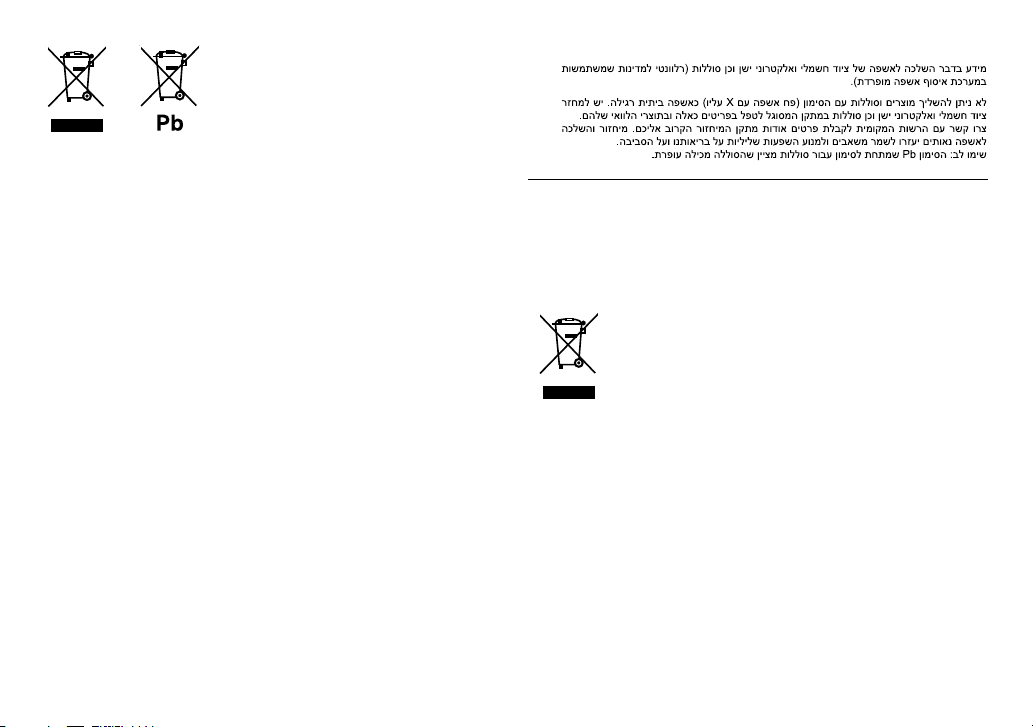

For Israel
For Turkey
Bu ürün 28300 sayılı Resmi Gazete’de yayımlanan Atik Elektrikli ve Elektronik Eşyalarin
Kontrolü Yönetmeliğe uygun olarak üretilmiştir.
Eski Elektrik ve Elektronik Ekipmanların İmha Edilmesi Hakkında Bilgi (ayrı atık
toplama sistemlerini kullanan ülkeleri için uygulanabilir)
Sembollü (üzerinde çarpı işareti olan çöp kutusu) ürünler ev atıkları olarak
atılamaz.
Eski elektrik ve elektronik ekipmanlar, bu ürünleri ve ürün atıklarını geri
dönüştürebilecek bir tesiste değerlendirilmelidir. Yaşadığınız bölgeye
en yakın geri dönüşüm tesisinin yerini öğrenmek için yerel makamlara
müracaat edin. Uygun geri dönüşüm ve atık imha yöntemi sağlığımız ve
çevremiz üzerindeki zararlı etkileri önlerken kaynakların korunmasına da
yardımcı olacaktır.
Information on Disposal of Old Electrical and Electronic Equipment and Batteries
(applicable for EU countries that have adopted separate waste collection systems)
Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as
household waste.
Old electrical and electronic equipment and batteries should be recycled at a facility capable of
handling these items and their waste byproducts.
Contact your local authority for details in locating a recycle facility nearest to you. Proper
recycling and waste disposal will help conserve resources whilst preventing detrimental effects
on our health and the environment.
Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.
Entsorgung von gebrauchten elektrischen und elektronischen Geräten und Batterien
(anzuwenden in den Ländern der Europäischen Union und anderen europäischen
Ländern mit einem separaten Sammelsystem für solche Geräte)
Das Symbol (durchgestrichene Mülltonne) auf dem Produkt oder seiner Verpackung weist darauf
hin, dass dieses Produkt nicht als normaler Haushaltsabfall behandelt werden darf, sondern an
einer Annahmestelle für das Recycling von elektrischen und elektronischen Geräten und batterien
abgegeben werden muss.
Durch Ihren Beitrag zur korrekten Entsorgung dieses Produktes schützen Sie die Umwelt und
die Gesundheit Ihrer Mitmenschen.
Unsachgemässe oder falsche Entsorgung gefährden Umwelt und Gesundheit. Weitere
Informationen über das Recycling dieses Produktes erhalten Sie von Ihrer Gemeinde oder den
kommunalen Entsorgungsbetrieben.
Achtung:Das Zeichen „Pb“ unter dem Symbol fur Batterien zeigt an, dass diese Batterie Blei
enthalt.
JS_KWD_KMM_BT34_EWE0_01_S001A.indd iJS_KWD_KMM_BT34_EWE0_01_S001A.indd i 7/11/2013 10:34:13 AM7/11/2013 10:34:13 AM

ii
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Дата изготовления (месяц/год) находится на этикетке устройства.
В соответствии с Законом Российской Федерации “О защите прав потребителей” срок
службы (годности) данного товара “по истечении которого он может представлять
опасность для жизни, здоровья потребителя, причинять вред его имуществу или
окружающей среде” составляет семь (7) лет со дня производства. Этот срок является
временем, в течение которого потребитель данного товара может безопасно им
пользоваться при условии соблюдения инструкции по эксплуатации данного товара,
проводя необходимое обслуживание, включающее замену расходных материалов и/или
соответствующее ремонтное обеспечение в специализированном сервисном центре.
Дополнительные косметические материалы к данному товару, поставляемые вместе с
ним, могут храниться в течение двух (2) лет со дня его производства.
Срок службы (годности), кроме срока хранения дополнительных косметических
материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других
прав потребителя, в частности, гарантийного свидетельства KENWOOD, которое он может
получить в соответствии с законом о правах потребителя или других законов, связанных
с ним.
• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to
connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to
meet Apple performance standards. Apple is not responsible for the operation of this device or
its compliance with safety and regulatory standards. Please note that the use of this accessory
with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in
the U.S. and other countries.
• Lightning is a trademark of Apple Inc.
• Android is trademark of Google Inc.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other
trademarks and trade names are those of their respective owners.
libFLAC
Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson
Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions
and the following disclaimer in the documentation and/or other materials provided with the
distribution.
- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to
endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
JS_KWD_KMM_BT34_EWE0_01_S001A.indd iiJS_KWD_KMM_BT34_EWE0_01_S001A.indd ii 7/11/2013 10:34:13 AM7/11/2013 10:34:13 AM

2
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

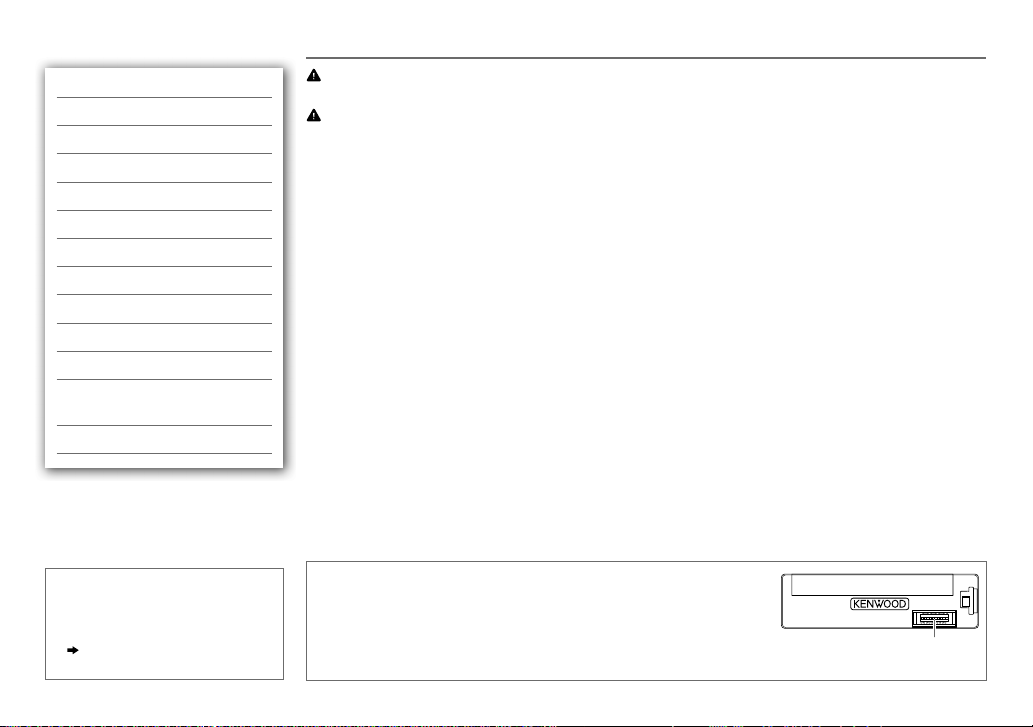

CONTENTS BEFORE USE
Warning
Do not operate any function that takes your attention away from safe driving.
Caution
Volume setting:
• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of
the output level.
General:
• Avoid using the external devices if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded
data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short
circuit.
BEFORE USE 2
BASICS 3
GETTING STARTED 3
RADIO 5

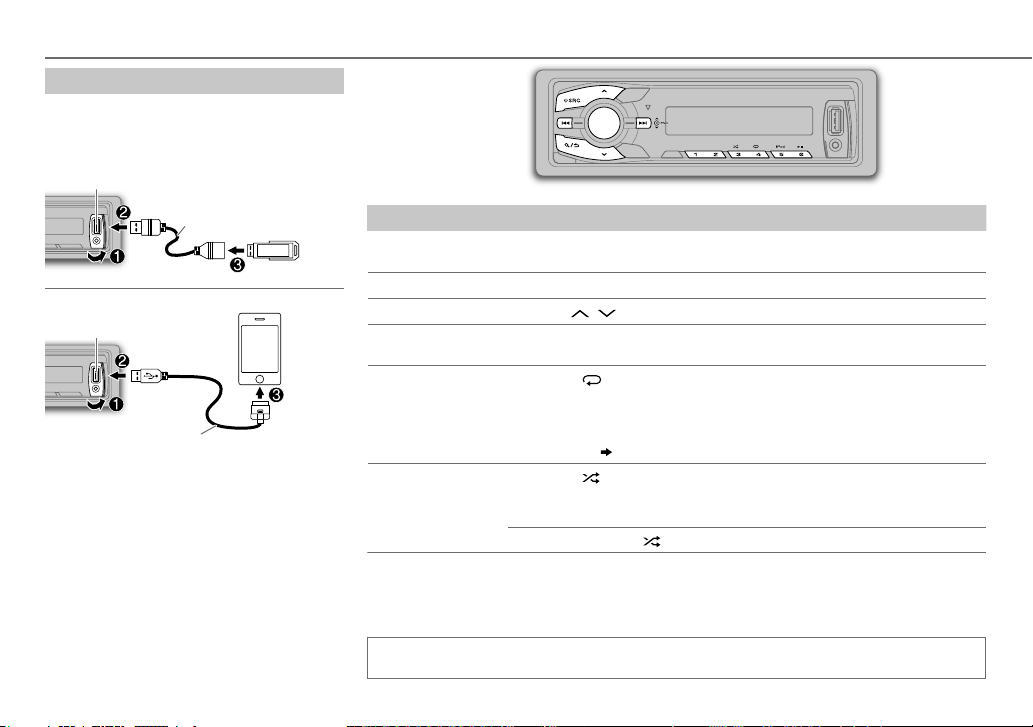

USB/ iPod 6
AUX 8
BLUETOOTH® 8
DISPLAY SETTINGS 12
AUDIO SETTINGS 13
MORE INFORMATION 14
TROUBLESHOOTING 14

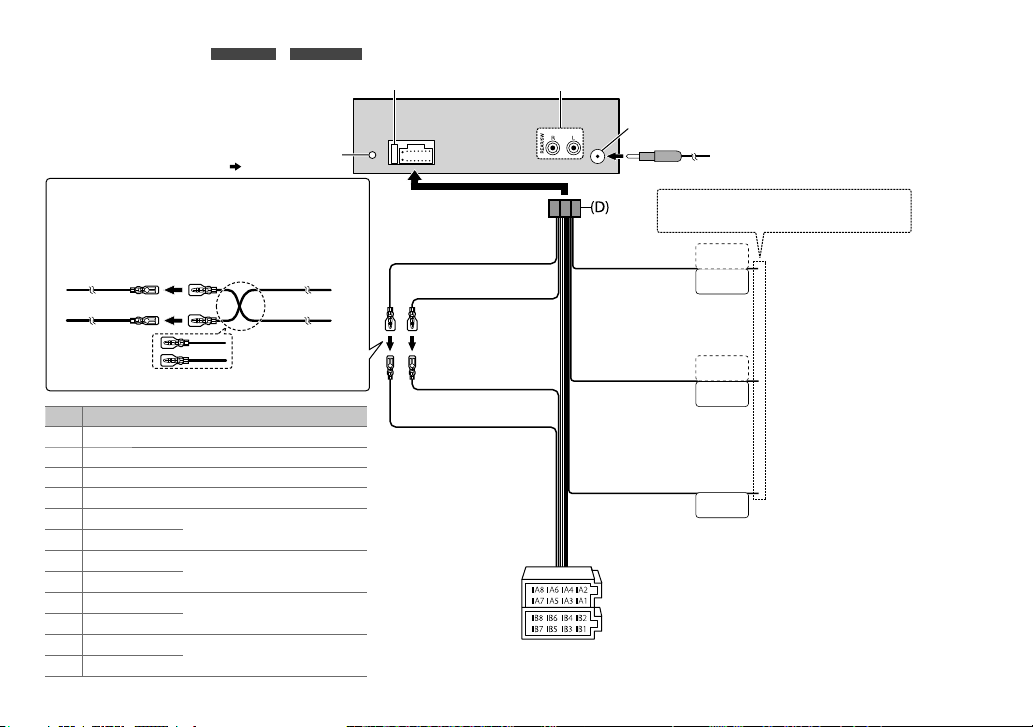

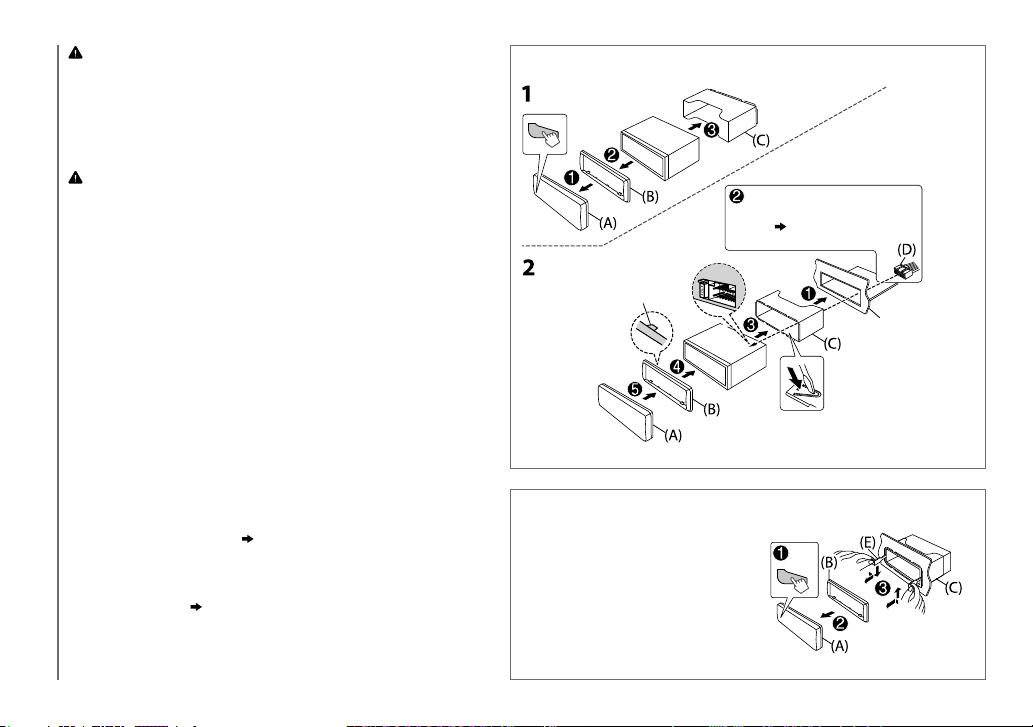

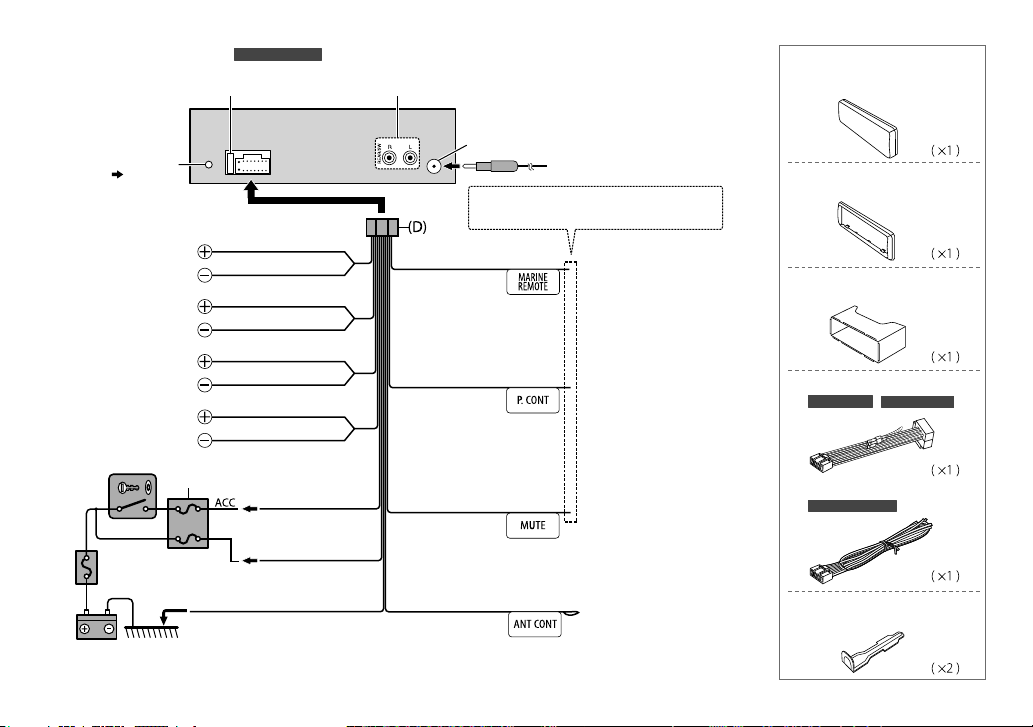

INSTALLATION /
CONNECTION 16
SPECIFICATIONS 19
How to read this manual
• Operations are explained mainly
using buttons on the faceplate.
•
[XX] indicates the selected items.
•
( XX) indicates references are
available on the stated page.
Maintenance
Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft
cloth.
Cleaning the connector: Detach the faceplate and clean the connector
gently with a cotton swab, being careful not to damage the connector. Connector (on the reverse
side of the faceplate)
JS_KWD_KMM_BT34_EN_01_EN.indd 2JS_KWD_KMM_BT34_EN_01_EN.indd 2 8/11/2013 4:09:07 PM8/11/2013 4:09:07 PM

3
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Select the display language and cancel the
demonstration
When you turn on the power (or after you reset the
unit), the display shows: “SELLANGUAGE” “PRESS”
“VOLUMEKNOB”
1 Turn the volume knob to select [ENG] (English) or
[RUS] (Russian) , then press the knob.
[ENG] is selected for the initial setup.
Then, the display shows: “CANCELDEMO” “PRESS”
“VOLUMEKNOB”
2 Press the volume knob.
[YES] is selected for the initial setup.
3 Press the volume knob again.
“DEMOOFF” appears.
For KMR-M308BTE ,
[DEMO OFF] is selected initially.
BASICS
To Do this (on the faceplate)
Turn on the power Press BSRC.
• Press and hold to turn off the power.
Adjust the volume Turn the volume knob.
Select a source Press BSRC repeatedly.
Change the display
information
Press DISPSCRL repeatedly.
• Press and hold to scroll the current display information.

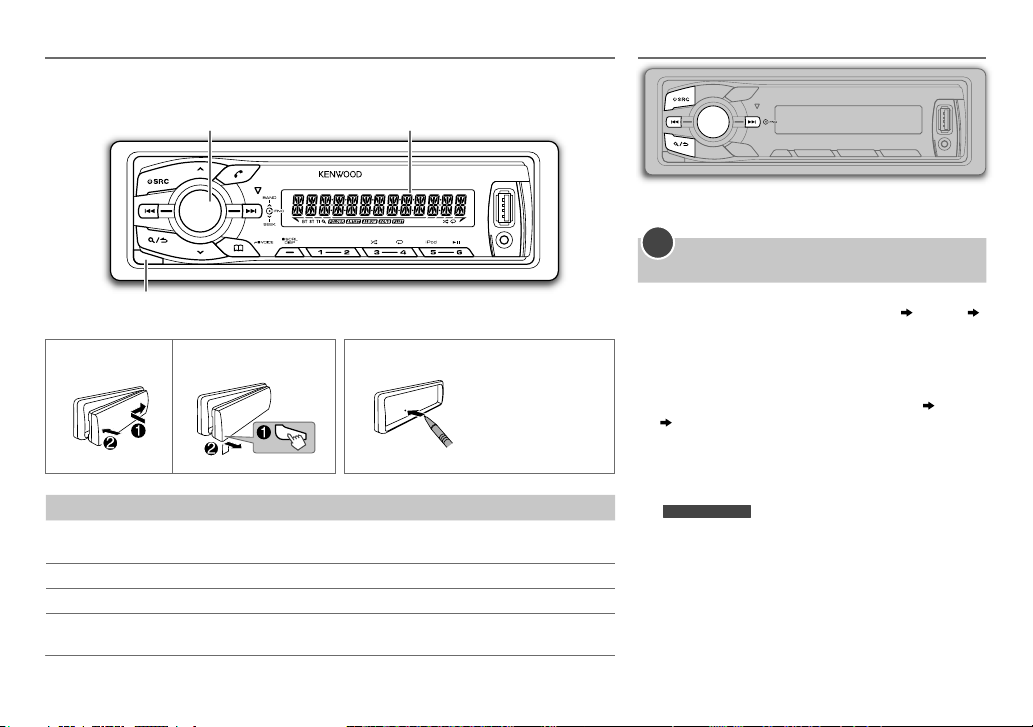

Faceplate
How to reset
Attach Detach
Volume knob
(turn/press)
Detach button
Display window
GETTING STARTED
1
ENGLISH |
Your preset
adjustments will also
be erased.
JS_KWD_KMM_BT34_EWE0_01_EN.indd 3JS_KWD_KMM_BT34_EWE0_01_EN.indd 3 7/11/2013 12:54:59 PM7/11/2013 12:54:59 PM

4
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Default: XX
AUDIO CONTROL
SWITCH PREOUT REAR
/ SUB-W : Selects whether rear speakers or a subwoofer are connected to the line out
terminals on the rear (through an external amplifier).
SP SELECT OFF / 5/4 / 6 × 9/6 / OEM : Selects according to the speaker size (5inches or 4inches,
6×9inches or 6inches) or OEM speakers for optimum performance.
DISPLAY
EASY MENU
(For
KMM-302BT
)
ON :Both display and button illumination change to white color when entering [FUNCTION] .;
OFF :Both display and button illumination remain as [COLOR SELECT] color. ( 12)
TUNER SETTING
PRESET TYPE NORMAL
: Memorizes one station for each preset button in each band (FM1/ FM2/ FM3/ MW/
LW). ;
MIX : Memorizes one station for each preset button, regardless of the selected band.
SYSTEM
KEY BEEP ON
:Activates the keypress tone.; OFF :Deactivates.
SOURCE SELECT
BUILT-IN AUX ON
:Enables AUX in source selection.; OFF :Disables. ( 8)
RUSSIAN SET
Selects the display language for [FUNCTION] menu and Tag information (folder name, file
name, song title, artist name, album name) if applicable.
RUSSIAN OFF :Display language is English.; РУССКИЙ BКЛ :Display language is Russian.
P-OFF WAIT Applicable only when the demonstration mode is turned off.
Sets the duration when the unit will automatically turns off (while in standby mode) to save
the battery.
20M : 20minutes; 40M : 40minutes; 60M : 60minutes; OFF ––– :Cancels
F/W UPDATE
UPDATE
 SYSTEM/ UPDATE BT
F/W UP xx.xx YES
:Starts upgrading the firmware.; NO :Cancels (upgrading is not activated).
For details on how to update the firmware, see: www.kenwood.com/cs/ce/
Set the clock
1 Press the volume knob to enter
[FUNCTION] .
2 Turn the volume knob to select [CLOCK] , then press
the knob.
3 Turn the volume knob to select [CLOCK ADJUST] ,
then press the knob.
4 Turn the volume knob to make the settings, then
press the knob.
Day Hour Minute
5 Turn the volume knob to select [CLOCK FORMAT] ,
then press the knob.
6 Turn the volume knob to select [12H] or [24H] , then
press the knob.
7 Press and hold to exit.
To return to the previous setting item or hierarchy,
press .
While in clock display screen...
Press and hold DISP SCRL to enter clock
adjustment mode directly.
Then, perform step 4to set the clock.
Set the initial settings
1 Press BSRC to enter STANDBY.
2 Press the volume knob to enter [FUNCTION] .
3 Turn the volume knob to make a selection (see the
following table), then press the knob.
4 Press and hold to exit.
To return to the previous setting item or hierarchy,
press .
2
3
GETTING STARTED
JS_KWD_KMM_BT34_EN_01_EN.indd 4JS_KWD_KMM_BT34_EN_01_EN.indd 4 8/11/2013 4:09:40 PM8/11/2013 4:09:40 PM

5
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
RADIO
Search for a station
1 Press BSRC to select TUNER.
2 Press BAND repeatedly to select FM1/ FM2/
FM3/ MW (or LW).
3 Press S/ Tto search for a station.
• To change the searching method for S/ T:
Press SEEK repeatedly.
AUTO1: Automatically search for a station.
AUTO2: Search for a preset station.
MANUAL: Manually search for a station.
• To store a station: Press and hold one of the number
buttons (1to6).
• To select a stored station: Press one of the number
buttons (1to6).
Other settings
1 Press the volume knob to enter
[FUNCTION] .
2 Turn the volume knob to make a selection (see
the following table), then press the knob.
3 Press and hold to exit.
To return to the previous setting item or hierarchy,
press .
Default: XX
TUNER SETTING
LOCAL SEEK ON
:Searches only FM stations with good reception.; OFF :Cancels.
AUTO MEMORY YES :Automatically starts memorizing 6 stations with good reception.; NO :Cancels. (Selectable
only if
[NORMAL] is selected for [PRESET  TYPE] .) (  4)
MONO SET ON
:Improves the FM reception, but the stereo effect may be lost.; OFF :Cancels.
NEWS SET ON :The unit will temporarily switch to News Programme if available.; OFF :Cancels.
REGIONAL ON :Switches to another station only in the specific region using the “AF” control.; OFF :Cancels.
AF SET ON :Automatically searches for another station broadcasting the same program in the same Radio
Data System network with better reception when the current reception is poor.;
OFF :Cancels.
TI ON :Allows the unit to temporarily switch to Traffic Information.; OFF :Cancels.
PTY SEARCH Press the volume knob to enter PTY language selection. Turn the volume knob to select the PTY
language (
ENGLISH / FRENCH / GERMAN ), then press the knob.
Selects the available Program Type (see the following), then, press
S/ T to start.
CLOCK
TIME SYNC ON
:Synchronizes the unit’s time to the Radio Data System station time.; OFF :Cancels.
• [LOCAL SEEK] / [MONO SET] / [NEWS SET] / [REGIONAL] / [AF SET] / [TI] / [PTY SEARCH] is selectable only
when the band is FM1/ FM2/ FM3.
• Available Program Type:
SPEECH : NEWS , AFFAIRS , INFO (information), SPORT , EDUCATE , DRAMA , CULTURE , SCIENCE , VARIED ,
WEATHER , FINANCE , CHILDREN , SOCIAL , RELIGION , PHONE IN , TRAVEL , LEISURE , DOCUMENT
MUSIC : POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS , OTHER M
(music), JAZZ , COUNTRY , NATION M (music), OLDIES , FOLK M (music)
The unit will search for the Program Type categorized under
[SPEECH] or [MUSIC] if selected.
• If the volume is adjusted during reception of traffic information, alarm or news bulletin,
the adjusted volume is memorized automatically. It will be applied the next time traffic
information, alarm or news bulletin function is turned on.
JS_KWD_KMM_BT34_EWE0_01_EN.indd 5JS_KWD_KMM_BT34_EWE0_01_EN.indd 5 7/11/2013 12:55:00 PM7/11/2013 12:55:00 PM

6
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
USB/ iPod
To Do this
Pause or resume
playback
Press 6 IW.
Select a file Press S/ T.
Select a folder *3Press / .
Reverse/
Fast-forward
Press and hold S/ T.
Repeat play *4Press 4 repeatedly.
• MP3/WMA/WAV/FLAC file or iPod: FILEREPEAT, FOLDERREPEAT,
REPEATOFF
• KENWOOD Music Editor Light (KME Light)/ KENWOOD Music Control
(KMC) file
( 14) : FILEREPEAT, REPEATOFF
Random play *4Press 3 repeatedly.
• MP3/WMA/WAV/FLAC file or iPod or KME Light/ KMC file:
FOLDERRANDOM, RANDOMOFF
Press and hold 3 to select “ALLRANDOM”.
*1Do not leave the cable inside the car when not using.
*2You can still play/pause, file skip, fast-forward or reverse files from the unit.
*3Only for MP3/WMA/WAV/FLAC files. This does not work for iPod.
*4For iPod: Applicable only when
[MODE OFF] is selected.
If you connect the iPod/iPhone to the USB input terminal of the unit (while listening to TuneIn
Radio, TuneIn Radio Pro or Aupeo), the unit will output the sound from these apps.
Start playback
The source changes automatically and playback
starts.
USB
iPod/iPhone
Press 5 iPod to select the control mode while
in iPod source.
MODE ON: From the iPod*2.
MODE OFF: From the unit.
USB input terminal
USB input terminal
CA-U1EX (max.: 500mA)
(optional accessory)
KCA-iP102 (optional accessory) or
accessory cable of the iPod/iPhone
*1
JS_KWD_KMM_BT34_EWE0_01_EN.indd 6JS_KWD_KMM_BT34_EWE0_01_EN.indd 6 7/11/2013 12:55:00 PM7/11/2013 12:55:00 PM

7
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
USB/ iPod
Select a file from a list
For iPod: Applicable only when [MODE OFF] is
selected.
( 6)
1 Press .
2 Turn the volume knob to make a selection,
then press the knob.
• MP3/WMA/WAV/FLAC file: Select the
desired folder, then a file.
• iPod or KME Light/ KMC file: Select the
desired file from the list (PLAYLISTS,
ARTISTS, ALBUMS, SONGS, PODCASTS*,
GENRES, COMPOSERS*).
*
Only for iPod.
• To return to the root folder (or first file), press
number button 5 iPod.
• To return to the previous setting item or
hierarchy, press .
• To cancel, press and hold .
If you have many files....
You can search through them quickly (on step 2
above) at a preset skip search ratio by pressing
S/ T.
• See also “Set the skip search ratio.”
• Pressing and holding S/ Tskip songs at
the maximum ratio (10
% ) regardless of the
setting made.
• For USB: Only for files registered in the
database created with KME Light/ KMC.
Set the skip search ratio
While listening to iPod or KME Light/ KMC file...
1 Press the volume knob to enter [FUNCTION] .
2 Turn the volume knob to select [USB] , then
press the knob.
3 Turn the volume knob to select
[SKIP SEARCH] , then press the knob.
4 Turn the volume knob to make a selection,
then press the knob.
0.5% (default)/ 1% / 5% / 10% : Skip search
ratio over the total files.
5 Press and hold to exit.
Change the USB drive
When a smartphone (Mass Storage Class) is
connected to the USB input terminal, you can
select its internal memory or external memory
(such as an SD card) to playback the stored songs.
You can also select the desired drive to playback
when a multiple drives device is connected.
Press 5 iPod repeatedly to select the desired
drive.
(or)
1 Press the volume knob to enter [FUNCTION] .
2 Turn the volume knob to select [USB] , then
press the knob.
3 Turn the volume knob to select
[MUSIC DRIVE] , then press the knob.
4 Press the volume knob to select
[DRIVE CHANGE] .
The next drive is selected automatically.
Repeat steps 1to 4to select the following drives.
Selectable items: [DRIVE  1] to [DRIVE  5]
Select a song by name
While listening to iPod...
1 Press .
2 Turn the volume knob to select a category,
then press the knob.
3 Turn the volume knob quickly to enter
character search.
4 Turn the volume knob to select the
character to be searched for.
5 Press S/ Tto move to the entry
position.
You can enter up to 3characters.
6 Press the volume knob to start searching.
7 Turn the volume knob to make a selection,
then press the knob.
Repeat step7until the desired item is
selected.
• To search for a character other than A to Z
and 0 to 9, enter only “
*”.
• To return to the previous hierarchy, press
.
• To return to the top menu, press number
button 5 iPod.
• To cancel, press and hold .
JS_KWD_KMM_BT34_EWE0_01_EN.indd 7JS_KWD_KMM_BT34_EWE0_01_EN.indd 7 7/11/2013 12:55:01 PM7/11/2013 12:55:01 PM

8
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
BLUETOOTH®
You can operate Bluetooth devices using this
unit.
Connect the microphone
If you turn off the unit or detach the control
panel during a phone call conversation,
the Bluetooth connection is disconnected.
Continue the conversation using your mobile
phone.
Supported Bluetooth profiles
– Hands-Free Profile (HFP)
– Serial Port Profile (SPP)
– Phonebook Access Profile (PBAP)
– Object Push Profile (OPP)
– Advanced Audio Distribution Profile (A2DP)
– Audio/Video Remote Control Profile (AVRCP)
Adjust the
microphone angle Secure using cord clamps (not
supplied) if necessary.
Microphone
input jack
Microphone
(supplied)
Rear panel
AUX
Preparation:
Select
[ON] for [BUILT-IN AUX] . ( 4)
Start listening
1 Connect a portable audio player
(commercially available).
2 Press BSRC to select AUX.
3 Turn on the portable audio player and
start playback.
Set the AUX name
While listening to a portable audio player
connected to the unit...
1 Press the volume knob to enter [FUNCTION] .
2 Turn the volume knob to select [SYSTEM] ,
then press the knob.
3 Turn the volume knob to select [AUX NAME
SET]
, then press the knob.
4 Turn the volume knob to make a selection,
then press the knob.
AUX (default)/ DVD / PORTABLE / GAME / VIDEO / TV
5 Press and hold to exit.
Auxiliary input jack
Portable audio
player
3.5mm stereo mini plug with “L”
shaped connector (commercially
available)
Pair a Bluetooth device
When connecting a Bluetooth device to the
unit for the first time, perform pairing between
the unit and the device. Once the pairing is
completed, the Bluetooth device will remain
registered in the unit even if you reset the unit.
• Up to five devices can be registered (paired)
in total.
• A maximum of two Bluetooth phones and
one Bluetooth audio device can be connected
at any time.
• This unit supports Secure Simple Pairing
(SSP).
• Some Bluetooth devices may not
automatically connect to the unit after
pairing. Connect the device to the unit
manually. Refer to the instruction manual of
the Bluetooth device for more information.
1 Press BSRC to turn on the unit.
2 Search and select this unit model name
(KMM-BT3*/ KMM-3**BT/ KMR-M3**BTE)
on the Bluetooth device.
“PAIRING” “PASS XXXXXX” Device
name “PRESS” “VOLUME KNOB” scrolls
on the display.
3 Press the volume knob to start pairing.
“PAIRING OK” appears when pairing is
completed and “BT” will light up when the
Bluetooth connection is established.
• For some Bluetooth devices, you may need
to enter the Personal Identification Number
(PIN) code immediately after searching.
JS_KWD_KMM_BT34_EWE0_01_EN.indd 8JS_KWD_KMM_BT34_EWE0_01_EN.indd 8 7/11/2013 12:55:01 PM7/11/2013 12:55:01 PM

9
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
To Do this
Reject an incoming call Press BSRC.
End a call Press or BSRC.
Switch between hands-
free and private talk
modes
Press 6IW during a call.
• Operations may vary according to the
connected Bluetooth device.
Adjust the phone
volume
Turn the volume knob during a call.
Phone volume:
[00] to [35] (Default: [15] )
• This adjustment will not affect the volume
of the other sources.
Switch between two
connected phones Press repeatedly.
• Not applicable during a call.
Improve the sound quality during a call
While talking on the phone...
1 Press the volume knob to enter [FUNCTION] .
2 Turn the volume knob to make a selection (see the following table),
then press the knob.
3 Press and hold to exit.
To return to the previous setting item or hierarchy, press .
Default: XX
MIC GAIN –20 —+ 8 ( 0 ):The sensitivity of the microphone increases as the
number increased.
NR LEVEL –5 — –20 ( –10 ):Adjust the noise reduction level until the least noise is
being heard during a phone conversation.
ECHO CANCEL 1 — 10 ( 4 ):Adjust the echo cancellation delay time until the least echo
is being heard during a phone conversation.
• Pairing request (via Bluetooth) is automatically activated if an iPhone/
iPod touch is connected through the USB input terminal. (Applicable
only if
[AUTO PAIRING] is set to [ON] .) ( 12)
Press the volume knob to pair once you have confirm the device name.
Bluetooth test mode
You can check the connectivity of the supported profile between the
Bluetooth device and the unit.
• Make sure there is no Bluetooth device connected.
1 Press and hold .
“PLEASE PAIR YOUR PHONE” appears.
2 Search and select this unit model name (KMM-BT3*/ KMM-3**BT/
KMR-M3**BTE) on the Bluetooth device.
3 Operate the Bluetooth device to confirm pairing.
“TESTING” flashes on the display.
The connectivity result (OK or NG) appears after the test.
PAIRING: Pairing status
HF CNT: Hands-Free Profile (HFP) compatibility
AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility
PB DL: Phonebook Access profile (PBAP) compatibility
• To cancel check mode, press and hold BSRC to turn off the unit.
Bluetooth mobile phone
To Do this
Receive a call Press or the volume knob or one of the
number buttons (1to 6).
• All the button illumination flash when there is an
incoming call.
• When
[AUTO ANSWER] is set to the selected time,
the unit answers incoming call automatically.
(  10)
BLUETOOTH®
JS_KWD_KMM_BT34_EWE0_01_EN.indd 9JS_KWD_KMM_BT34_EWE0_01_EN.indd 9 8/11/2013 12:11:53 PM8/11/2013 12:11:53 PM

10
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Text message notification
When the phone receives a text message, the unit rings and “SMS
RECEIVED” appears.
• You cannot read, edit, or send a message through the unit.
• To clear the message, press any button.
Use Voice Recognition
1 Press and hold to activate Voice Recognition.
The connected phone (which has been paired the earliest) is
activated. However, if priority device is connected, pressing and
holding activate the priority device.
(  12, DVC PRIORITY)
2 Speak the name of the contact you want to call or the voice
command to control the phone functions.
•
Supported Voice Recognition features vary for each phone. Refer to
the instruction manual of the connected phone for details.
• This unit also supports the intelligent personal assistant function of
iPhone.
Bluetooth mode operations
1 Press to enter Bluetooth mode.
2 Turn the volume knob to make a selection (see the following
table), then press the knob.
3 Press and hold to exit.
To return to the previous setting item or hierarchy, press .
To enter
[PHONE BOOK] directly, press . (  PHONE BOOK)
Press again to switch between the phonebooks of the connected
phones.
CALL
HISTORY
1 Press the volume knob to select a name or a phone number.
• “I” indicates call received, “O” indicates call made, “M” indicates call
missed.
•
Press DISP SCRL to change the display category (NUMBER or NAME).
• “NO DATA” appears if there is no recorded call history.
2 Press the volume knob to call.
BLUETOOTH®
PHONE BOOK 1 Turn the volume knob to select a name, then press the knob.
2 Turn the volume knob to select a phone number, then press the knob to call.
• If the phone supports PBAP, the phonebook of the connected phone is
automatically transferred to the unit when pairing. If the phone does not
support PBAP, “TRANSFER PB” appears. Transfer the phonebook manually.
(  12, TRANSFER PB)
• Contacts are categorized as: MO(mobile), HM(home), OF(office), OT(others),
GE(general)
• This unit can display only non-accent letters. (Accent letters such as “Ú” is
showns as “U”.)
•
If the phonebook contains many contacts, (  11, Select a contact by name).
NUMBER
DIAL
1 Turn the volume knob to select a number (0 to 9) or character ( , #, +).
2 Press S/ T to move the entry position.
Repeat steps
1 and 2 until you finish entering the phone number.
3 Press the volume knob to call.
VOICE Speak the name of the contact you want to call or the voice command to control
the phone functions.
BATT* LOW / MID / FULL :Shows the strength of the battery.
SIGNAL* NO SIGNAL / LOW / MID / MAX : Shows the strength of the current received signal.
SETTINGS Default: XX
AUTO
ANSWER
1 — 30 :The unit answer incoming call automatically in the selected time.;
OFF :Cancels.
RING MODE SYSTEM: The unit rings to notify you when a call/text message comes in.
(Default ring tone is different according to the paired device.)
•
CALL: Selects your preferred ring tone ( TONE 1 — 5 ) for incoming calls.
•
MESSAGE: Selects your preferred ring tone ( TONE 1 — 5 ) for incoming text
messages.
PHONE: The unit uses the connected phones’ ring tone to notify you when a
call/text message comes in. (The connected phone will ring if it does not support
this feature.)
SMS
NOTIFY*
ON: The unit rings and “SMS RECEIVED” appears to notify you of an incoming
text message.;
OFF :Cancels.
* Functionality depends on the type of the phone used.
JS_KWD_KMM_BT34_EN_001B_EN.indd 10JS_KWD_KMM_BT34_EN_001B_EN.indd 10 26/12/2013 3:26:58 PM26/12/2013 3:26:58 PM

11
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
BLUETOOTH®
Select a contact by name
• You can search through the contacts quickly according to the first
letter (A to Z), number (0 to 9), or symbol.
• The second alphabet of the contact will be searched if the first
alphabet does not exist.
1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [PHONE BOOK] , then press the
knob.
3 Turn the volume knob quickly to enter alphabet search
mode.
The first menu (ABCDEFGHIJK) appears. To go to the other
menu (LMNOPQRSTUV or WXYZ1 ), press / .
4 Turn the volume knob or press S/ Tto select the desired
first letter, then press the knob.
• To search with numbers, select “1”.
• To search with symbols, select “ ”.
5 Turn the volume knob to select a name, then press the knob.
6 Turn the volume knob to select a phone number, then press
the knob to call.
To return to the previous hierarchy, press .
Store a contact in memory
You can store up to 6 contacts.
1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [CALL HISTORY] , [PHONE BOOK] , or
[NUMBER DIAL] , then press the knob.
3 Turn the volume knob to select a contact or enter a phone
number.
If a contact is selected, press the volume knob to show the
phone number.
4 Press and hold one of the number buttons (1to 6).
“STORED” appears when the contact is stored.
To erase a contact from the preset memory, select [NUMBER DIAL]
in step
2 and store a blank number.
Make a call from memory
1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1to 6).
3 Press the volume knob to call.
“NO MEMORY” appears if there is no contacts stored.
Delete a contact
Not applicable for mobile phone that supports PBAP.
1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [CALL HISTORY] or [PHONE BOOK] , then press
the knob.
3 Turn the volume knob to select a contact.
If a contact is selected, press the volume knob to show the phone number.
4 Press and hold the volume knob to enter delete mode.
5 Turn the volume knob to select [DELETE ONE] or [DELETE ALL] , then press the
knob.
DELETE ONE : Selected name or phone number in step 3is deleted.
DELETE ALL : All names or phone numbers from the selected menu in step 2is
deleted.
6 Turn the volume knob to select [YES] or [NO] , then press the knob.
Bluetooth mode settings
1 Press the volume knob to enter
[FUNCTION] .
2 Turn the volume knob to select [BT MODE] , then press the knob.
3 Turn the volume knob to make a selection (see the following table), then
press the knob.
4 Press and hold to exit.
To return to the previous setting item or hierarchy, press .
Default: XX
PHONE SELECT
Selects the phone or audio device to connect or disconnect.
“” appears in front of the device name.
AUDIO SELECT
DEVICE DELETE
1 Turn the volume knob to select a device to delete, then press the knob.
2 Turn the volume knob to select [YES] or [NO] , then press the knob.
JS_KWD_KMM_BT34_EN_001B_EN.indd 11JS_KWD_KMM_BT34_EN_001B_EN.indd 11 26/12/2013 3:27:00 PM26/12/2013 3:27:00 PM

12
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
BLUETOOTH®
DVC PRIORITY Selects a device to be connected as
priority device.
“” appears in front of the device name
set as priority.
TRANSFER PB *
“DL PB ” appear and transfer the
phonebook of the connected phone to
this unit manually.
* Selectable only when the connected
phone supports OPP.
PIN CODE EDIT
(0000)
Changes the PIN code (up to 6 digits).
1 Turn the volume knob to select a
number.
2 Press S/ T to move the entry
position.
Repeat steps
1 and 2 until you finish
entering the PIN code.
3 Press the volume knob to confirm.
RECONNECT ON :The unit automatically reconnect
when the Bluetooth device is within
range.;
OFF :Cancels.
AUTO PAIRING ON :The unit automatically pair
supported Bluetooth device (iPhone/
iPod touch) when it is connected
through USB input terminal.Depending
on the iOS version of the connected
iPhone/iPod touch, this function may
not work. ;
OFF :Cancels.
BT HF/AUDIO FRONT :Ouputs audio from the front left
and right speakers.;
ALL :Outputs audio
from all the speakers.
INITIALIZE YES :Initializes all the Bluetooth settings
(including stored pairing, phonebook,
and etc.).;
NO :Cancels.
Bluetooth audio player
Operations and display indications may differ
according to their availability on the connected
device.
To Do this
Playback 1 Press BSRC to select
BTAUDIO.
2 Operate the Bluetooth
audio player to start
playback.
Pause or
resume
playback
Press 6IW.
Select group
or folder
Press / .
Reverse/
forward skip
Press S/ T.
Reverse/fast-
forward
Press and hold S/ T.
Repeat play Press 4 repeatedly to
make a selection.
ALLREPEAT, FILEREPEAT,
REPEATOFF
Random
play
Press 3 repeatedly to
make a selection.
FOLDERRANDOM,
RANDOMOFF
Press and hold 3 to
select “ALLRANDOM.”
DISPLAY SETTINGS
1 Press the volume knob to enter [FUNCTION] .
2 Turn the volume knob to select [DISPLAY] ,
then press the knob.
3 Turn the volume knob to make a selection
(see the following table), then press the
knob.
4 Press and hold to exit.
To return to the previous setting item or
hierarchy, press .
Default: XX
COLOR
SELECT*
VARIABLE SCAN / COLOR 01 —
COLOR 24 / USER : Selects your preferred
button illumination color.
You can create your own color (when
[COLOR 01] — [COLOR 24] or [USER] is
selected). The color you have created can be
selected when you select
[USER] .
1 Press and hold the volume knob to enter
the detailed color adjustment.
2 Press S/ T to select the color ( R /
G / B ) to adjust.
3 Turn the volume knob to adjust the level
(
0  —  9 ), then press the knob.
DIMMER ON : Dims the display illumination (and
button illumination*).
; OFF : Illuminates
according to the
[BRIGHTNESS] settings.
BRIGHTNESS LVL 0 — LVL 31 : Selects your preferred
brightness level for display illumination (and
button illumination*).
TEXT SCROLL AUTO / ONCE : Selects whether to scroll the
display information automatically, or scroll
only once.
; OFF : Cancels.
* For KMM-302BT .
JS_KWD_KMM_BT34_EN_001B_EN.indd 12JS_KWD_KMM_BT34_EN_001B_EN.indd 12 26/12/2013 3:27:00 PM26/12/2013 3:27:00 PM

13
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
AUDIO SETTINGS
While listening to any source...
1 Press the volume knob to enter [FUNCTION] .
2 Turn the volume knob to select [AUDIO CONTROL] , then press the
knob.
3 Turn the volume knob to make a selection (see the following table),
then press the knob.
Repeat step
3until the desired item is selected or activated.
4 Press and hold to exit.
To return to the previous setting item or hierarchy, press .
Default:
XX
SUB-W LEVEL –15 to +15 (0) Adjusts the subwoofer output level.
BASS LEVEL –8 to +8 (+6)
Adjusts the level to memorize for each source. (Before
making an adjustment, select the source you want
to adjust.)
MID LEVEL –8 to +8 (+5)
TRE LEVEL –8
to +8 (0)
EQ PRO
BASS ADJUST BASS CTR FRQ 60/ 80/ 100/ 200
: Selects the center frequency.
BASS LEVEL –8
to +8 (+6) : Adjusts the level.
BASS Q FACTOR 1.00/ 1.25/ 1.50/ 2.00 :Adjusts the quality factor.
BASS EXTEND ON
: Turns on the extended bass. ; OFF : Cancels.
MID ADJUST MID CTR FRQ 0.5/ 1.0/ 1.5/ 2.5K
: Selects the center frequency.
MID LEVEL –8
to +8 (+5) : Adjusts the level.
MID Q FACTOR 0.75/ 1.00/ 1.25
: Adjusts the quality factor.
TRE ADJUST
TRE CTR FRQ 10.0/ 12.5/ 15.0/ 17.5K : Selects the center frequency.
TRE LEVEL –8 to +8 (0) : Adjusts the level.
PRESET EQ DRIVE EQ / TOP40 / POWERFUL / ROCK / POPS / EASY / JAZZ /
NATURAL / USER :Selects a preset equalizer suitable to the music
genre. (Select
[USER] to use the customized bass, middle, and treble
settings.)
[DRIVE EQ] is a preset equalizer that reduces noise from the road.
BASS BOOST LV1
/ LV2 / LV3 : Selects your preferred bass boost level. ;
OFF : Cancels.
LOUDNESS LV1 / LV2 :Selects your preferred low and high frequencies boost to
produce a well-balanced sound at a low volume level.;
OFF :Cancels.
SUBWOOFER  SET ON :Turns on the subwoofer output.; OFF :Cancels.
LPF  SUBWOOFER THROUGH :All signals are sent to the subwoofer.; 85HZ / 120HZ /
160HZ :Audio signals with frequencies lower than 85Hz/ 120Hz/
160Hz are sent to the subwoofer.
SUB-W  PHASE REVERSE (180°)/ NORMAL (0°):Selects the phase of the subwoofer
output to be in line with the speaker output for optimum
performance. (Selectable only if a setting other than
[THROUGH] is
selected for
[LPF SUBWOOFER] .)
FADER R15 to F15 ( 0 ):Adjusts the rear and front speaker output balance.
BALANCE L15 to R15 ( 0 ):Adjusts the left and right speaker output balance.
VOLUME  OFFSET
(Default: 0 )
–8 to +8 (for AUX) ; –8 to 0 (for other sources):Presets the volume
adjustment level of each source. (Before adjustment, select the source
you want to adjust.)
SOUND  RECNSTR
(Sound
reconstruction)
ON :Creates realistic sound by compensating the high-frequency
components and restoring the rise-time of the waveform that are lost
in audio data compression.;
OFF :Cancels.
• [SUB-W LEVEL] / [SUBWOOFER SET] / [LPF SUBWOOFER] / [SUB-W PHASE] is
selectable only if
[SWITCH PREOUT] is set to [SUB-W] . ( 4)
• [SUB-W LEVEL] / [LPF SUBWOOFER] / [SUB-W PHASE] is selectable only if
[SUBWOOFER SET] is set to [ON] .
JS_KWD_KMM_BT34_EWE0_01_EN.indd 13JS_KWD_KMM_BT34_EWE0_01_EN.indd 13 7/11/2013 12:55:02 PM7/11/2013 12:55:02 PM

14
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
MORE INFORMATION
General
Detailed information and notes about the playable
audio files are stated in an online manual on the
following web site:
www.kenwood.com/cs/ce/audiofile/
Playable files
• Playable audio file: MP3 (.mp3), WMA (.wma),
WAV(.wav), FLAC (.flac)
• Playable USB device file system: FAT12, FAT16,
FAT32
Even when audio files comply with the standards
listed above, playback may be impossible depending
on the types or conditions of media or device.
About USB devices
• This unit can play MP3/WMA/WAV/FLAC files stored
on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer
than 5m may result in abnormal playback.
•
This unit cannot recognize a USB device whose rating is
other than 5V and exceeds 1A.
About KENWOOD Music Editor Light
and KENWOOD Music Control
• This unit supports the PC application KENWOOD
Music Editor Light and Android™ application
KENWOOD Music Control.
• When you play audio files with song data added
using the KENWOOD Music Editor Light or
KENWOOD Music Control, you can search for audio
files by Genres, Artists, Albums, Playlists, and
Songs.
• KENWOOD Music Editor Light and KENWOOD Music
Control are available on the following web site:
www.kenwood.com/cs/ce/
TROUBLESHOOTING
About iPod/iPhone
Made for
- iPod touch (1st, 2nd, 3rd, 4th, and 5th generation)
- iPod classic
- iPod nano (3rd, 4th, 5th, 6th, and 7th generation)
- iPhone, iPhone 3G, 3GS, 4, 4S, 5
• For the latest compatible list and software versions
of iPhone/iPod, see:
www.kenwood.com/cs/ce/ipod
• You cannot operate iPod if “KENWOOD” or “ ” is
displayed on iPod.
About Bluetooth
• Depending on the Bluetooth version of the device,
some Bluetooth devices may not be able to connect
to this unit.
• This unit may not work with some Bluetooth
devices.
• Signal conditions vary, depending on the
surroundings.
• For more information about Bluetooth, visit the
following website: www.kenwood.com/cs/ce/
Symptom Remedy
Sound cannot be heard. • Adjust the volume to the optimum level.
• Check the cords and connections.
“PROTECT” appears and no
operations can be done.
Check to be sure the terminals of the
speaker wires are insulated properly,
then reset the unit. If this does not solve
the problem, consult your nearest service
center.
• Sound cannot be heard.
• The unit does not turn on.
• Information shown on the
display is incorrect.
Clean the connectors.
( 2)
The unit does not work at all. Reset the unit. ( 3)
• Radio reception is poor.
• Static noise while listening to
the radio.
• Connect the antenna firmly.
• Pull the antenna out all the way.
“NA FILE” appears.
Make sure the media contains supported
audio files.
“READ ERROR” appears. Copy the files and folders onto the USB
device again. If this does not solve the
problem, reset the USB device or use
another USB device.
“NO DEVICE” appears. Connect a USB device, and change the
source to USB again.
“COPY PRO” appears. A copy-protected file is played.
“NA DEVICE” appears.
Connect a supported USB device, and
check the connections.
“NO MUSIC” appears. Connect a USB device that contains
playable audio files.
JS_KWD_KMM_BT34_EN_01_EN.indd 14JS_KWD_KMM_BT34_EN_01_EN.indd 14 8/11/2013 4:10:34 PM8/11/2013 4:10:34 PM

15
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Symptom Remedy
“iPod ERROR” appears. Reconnect the iPod. / Reset the iPod.
“READING” keeps flashing. Do not use too many hierarchical levels or folders.
Elapsed playing time is not
correct.
This is caused by how the tracks are recorded.
Correct characters are not
displayed (e.g. album name).
This unit can only display uppercase letters, numbers,
and a limited number of symbols. Uppercase Cyrillic
letters can also be displayed if
[RUSSIAN SET] is set to
[РУССКИЙ BКЛ]. ( 4)
Bluetooth®
No Bluetooth device
is detected.
• Search from the Bluetooth device again.
• Reset the unit.
( 3)
Pairing cannot be
made.
• Make sure you have entered the same PIN code to both
the unit and Bluetooth device.
• Delete pairing information from both the unit and the
Bluetooth device, then perform pairing again.
( 8)
“DEVICE FULL”
appears.
The number of registered devices has reached its limit.
Retry after deleting an unnecessary device.
( 11,
DEVICE DELETE)
Echo or noise occurs. • Adjust the microphone unit’s position. ( 8)
• Check the [ECHO CANCEL] setting. ( 9)
Phone sound quality
is poor.
• Reduce the distance between the unit and the Bluetooth
device.
• Move the car to a place where you can get a better signal
reception.
• Voice calling method
is not successful.
• “N/A VOICE TAG”
appears.
• Use voice calling method in a more quiet environment.
• Reduce the distance from the microphone when you
speak the name.
• Make sure the same voice as the registered voice tag is
used.
TROUBLESHOOTING
Symptom Remedy
Bluetooth®
“NOT SUPPORT”
appears.
The connected phone does not support Voice
Recognition feature.
• “NO ENTRY” appears.
• “NO PAIR” appears.
There is no registered device connected/found via
Bluetooth.
“ERROR” appears. Try the operation again. If “ERROR” appears again,
check if the device supports the function you have
tried.
“NO INFO” appears. Bluetooth device cannot get the contact information.
Sound is being
interrupted or skipped
during playback of a
Bluetooth audio player.
• Reduce the distance between the unit and the
Bluetooth audio player.
• Turn off, then turn on the unit and try to connect again.
• Other Bluetooth devices might be trying to connect to
the unit.
The connected
Bluetooth audio player
cannot be controlled.
• Check whether the connected Bluetooth audio player
supports Audio/Video Remote Control Profile (AVRCP).
(Refer to the instructions of your audio player.)
• Disconnect and connect the Bluetooth player again.
• “HF ERROR XX”
appears.
• “BT ERROR” appears.
Reset the unit and try the operation again. If this does
not solve the problem, consult your nearest service
center.
JS_KWD_KMM_BT34_EN_001B_EN.indd 15JS_KWD_KMM_BT34_EN_001B_EN.indd 15 16/12/2013 2:12:30 PM16/12/2013 2:12:30 PM

16
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
INSTALLATION / CONNECTION
Warning
• The unit can only be used with a 12V DC power supply, negative ground.
• Disconnect the battery’s negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or
Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car’s chassis again after installation.
Caution
• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio
dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this
unit during and shortly after use of the unit. Metal parts such as the heat sink and
enclosure become hot.
• Do not connect the
[ wires of speakers to the car chassis or Ground wire (black), or
connect them in parallel.
• Mount the unit at an angle of less than 30º.
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition
wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power
supply and is turned on and off by the ignition key.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on
the car are working properly.
•
If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the
old fuse with one that has the same rating.
Basic procedure
1 Remove the key from the ignition switch, then disconnect
the
[ terminal of the car battery.
2 Connect the wires properly.
See Wiring connection.
( 17, 18)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the [ terminal of the car battery.
5 Reset the unit. ( 3)
Do the required wiring.
( 17, 18)
Dashboard of your car
Bend the appropriate tabs to hold
the mounting sleeve firmly in place.
How to remove the unit
1 Detach the faceplate.
2 Fit the catch pin on the
extraction keys into the holes on
both sides of the trim plate, then
pull it out.
3 Insert the extraction keys deeply
into the slots on each side, then
follow the arrows as shown on
the right.
Installing the unit (in-dash mounting)
Hook on the top side
Orientate the trim
plate as illustrated
before fitting.
JS_KWD_KMM_BT34_EWE0_01_EN.indd 16JS_KWD_KMM_BT34_EWE0_01_EN.indd 16 7/11/2013 12:55:02 PM7/11/2013 12:55:02 PM

17
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
REMOTE CONT
STEERINGWHEEL
REMOTE INPUT
MUTE
P. CONT
ANT CONT
Wiring connection (for KMM-BT34 / KMM-302BT )
Fuse (10A)
Antenna terminal
Light blue/yellow
(Steering remote
control wire)
To the steering wheel remote control
adapter
Blue/White
(Power control wire/
Antenna control wire)
Brown
(Mute control wire)
To the power control terminal when using
the optional power amplifier, or to the
antenna control terminal in the vehicle.
To connect the Kenwood navigation
system, consult your navigation manual.
Yellow (A4)
Red (Ignition wire)
Red (A7)
Yellow (Battery wire)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1 Purple
]
: Rear speaker (right)
B2 Purple/black
[
B3 Gray
]
: Front speaker (right)
B4 Gray/black
[
B5 White
]
: Front speaker (left)
B6 White/black
[
B7 Green
]
: Rear speaker (left)
B8 Green/black
[
ISO connectors
Connecting the ISO connectors on some VW/Audi or Opel
(Vauxhall) automobiles
You may need to modify the wiring of the supplied wiring
harness as illustrated below.
Unit
Vehicle
A7 (Red) Ignition wire (Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
If no connections are made, do not let the wire
come out from the tab.
Rear/subwoofer output
Microphone input jack
( 8)
JS_KWD_KMM_BT34_EN_01_EN.indd 17JS_KWD_KMM_BT34_EN_01_EN.indd 17 8/11/2013 4:12:42 PM8/11/2013 4:12:42 PM

18
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Part list for installation
(A) Faceplate
Wiring connection (for KMR-M308BTE )
Fuse (10A) Rear/ subwoofer output
Antenna terminal
Car fuse box
Car fuse box
Battery
Ignition switch
Blue/White
(Power control wire)
Light blue/yellow
(Steering remote
control wire)
Red
(Ignition wire)
Yellow
(Battery wire)
Black (Ground wire)
To the metallic body or chassis
of the car
To the power control terminal when
using the optional power amplifier,
or to the antenna control terminal in
the vehicle.
Brown
(Mute control wire)
Blue
(Antenna control
wire)
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
To connect the Kenwood navigation
system, refer your navigations manual.
To front speaker (left)
To rear speaker (left)
To front speaker (right)
To rear speaker (right)
(Not used)
If no connections are made, do not let the wire
come out from the tab.
To the steering wheel remote control
adapter
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(for
KMM-BT34
/
KMM-302BT
)
(E) Extraction key
Microphone input
jack
( 8)
(for
KMR-M308BTE
)
JS_KWD_KMM_BT34_EN_03_EN.indd 18JS_KWD_KMM_BT34_EN_03_EN.indd 18 25/11/2013 3:25:58 PM25/11/2013 3:25:58 PM
