Kenwood CKB 250E User manual

Before operating this oven,
please read these instructions carefully
MULTI-FUNCTION
ELECTRONIC OVEN
CKB 250E
Instructions for use - Installation advice
GB

2

3
CONTENTS
Page Number
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Important Safeguards & Recommendations . . . . . . . . . . . . . . . . . . . . 5-6
Oven Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Oven using & Electronic Programmer . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using the oven - Cooking Functions . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cleaning & maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Advice For The Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Electrical section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Guarantee. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Read the instructions carefully before installing and using the appliance.
CAUTION: This appliance must only be installed in a permanently ventilated room in
compliance with the applicable regulations.
Important:
The appliance is designed and approved for domestic use only and should not be
installed in a commercial, semi commercial or communal environment.
Your product will not be guaranteed if installed in any of the above environments
and could affect any third party or public liability insurances you may have.

4
Dear Customer,
Thank you for purchased a Kenwood Multifunction
Electronic Oven.
The safety precautions and recommendations within this
booklet are for your own safety and that of others. They will
also provide a means by which to make full use of the
features offered by your appliance.
Please preserve this booklet carefully. It may be useful in
future, either to yourself or to others in the event that doubts
should arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking foodstuffs.
Any other form of usage is to be considered as
inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event
of damage caused by improper, incorrect or illogical use
of the appliance.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN
ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority differentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible nega-
tive consequences for the environment and health deriving from inap-
propriate disposal and enables the constituent materials to be recov-
ered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.

5
IMPORTANT SAFEGUARDS & RECOMMENDATIONS
•Do not carry out any cleaning or maintenance without first disconnecting the
appliance from the electrical supply.
•During and after use of the oven, certain parts will become very hot. Do not
touch hot parts.
•After use always ensure that the controls are in the OFF position.
•Keep children away from the oven during use.
•Do not allow young children or infirm persons to use the appliance without your
supervision.
•WARNING
When correctly installed, your product meets all safety requirements laid down
for this type of product category. However special care should be taken around
the rear or the underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges, that may cause
injury.
•Fire Risk! Do not store inflammable materials inside the oven.
•Always use oven gloves when removing the shelves and food trays from the
oven whilst hot.
•Clean the oven regularly and do not allow fat or oils to build up in the oven
base or trays. Remove spillages as soon as they occur.
•Always stand back from the oven when opening the oven door to allow steam
and hot air to escape before removing the food.
•Do not hang towels, dishcloths or other items on the cooker or its handle – as
this could be a fire hazard.
•Make sure that electrical cords connecting other appliances in the proximity can-
not become entrapped in the oven door.
•Before disposing of an unwanted appliance, it is recommended that it is made
inoperative and that all potentially hazardous parts are made harmless.
•If the supply cord is damaged, it must be replaced by a special cord by a
qualified electrical technician in order to avoid a hazard.
CE Declaration of conformity
–This oven has been designed to be used only for cooking. Any other use (such as
heating a room) is improper and dangerous.
–This oven has been designed, constructed, and marketed in compliance with:
- safety requirements of EEC Directive “Low voltage” 73/23;
- safety requirements of EEC Directive “EMC” 89/336;
- requirements of EEC Directive 93/68.

6
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR USE OF ELECTRICAL
APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamen-
tal rules. In particular:
•Never touch the appliance with wet hands or feet;
•Do not operate the appliance barefooted;
•Do not allow children or disabled people to use the appliance without your super-
vision.
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or unreasonable use of the appliance.
USING THE OVEN FOR THE FIRST TIME
You are advised to carry out the following operations:
•Furnish the interior of the oven as described under the heading “Cleaning &
Maintenance”.
•Switch the empty oven ON at maximum temperature for about two hours to
eliminate traces of grease and smell from the components.
•Let the oven cool down, switch off, then clean the inside of the oven with a
cloth soaked in water and neutral detergent and dry thoroughly.
BEFORE USING FOR THE FIRST TIME
•Read the instructions carefully before installing and using the appliance.
•After unpacking the appliance, check that it is not damaged. In case of doubt,
do not use the appliance and contact your supplier or a qualified engineer.
•Remove all the packing materials (i.e. plastic bags, polystyrene foam, etc.) and
do not leave it around within easy reach of children, as these may cause serious
injuries. The packaging materials are recyclable.
•Do not attempt to modify the technical characteristics of the appliance, as it
may become dangerous to use.
•The appliance should be installed and all the electrical connections made by a
qualified engineer in compliance with local regulations in force and following the
manufacturer's instructions.

7
GENERAL FEATURES
This is an oven that presents partic-
ular features from an operational
point of view. It is possible to insert
9 different cooking programs to sat-
isfy every cooking need.
The 9 positions, controlled by the
electronic programmer and a temper-
ature probe, are obtained by 4 heat-
ing elements which are:
• Lower element 1300 W
• Upper element 1000 W
• Grill element 2000 W
• Circular element 2200 W
NOTE:
Upon first use, it is advisable to oper-
ate the oven, at the maximum tem-
perature, for 60 minutes in the posi-
tion and then to eliminate pos-
sible traces of grease on the heating
elements.
Repeat the operation for another 15
minutes with the grill element on as
explained in the chapters GRILLING
and USE OF THE GRILL.
WARNING:
The door is hot, use the handle.
During use the appliance becomes
hot. Care should be taken to avoid
touching heating elements inside the
oven.
OPERATING PRINCIPLES
Heating and cooking in the FULL ELECTRON-
IC MULTIFUNCTION oven are obtained in the
following ways:
a. by normal convection
The heat is produced by the upper and
lower heating elements.
b. by semi-forced convection from the bot-
tom
The heat produced by the lower heating
element is distributed throughout the oven
by the fan.
c. by forced convection
A fan sucks in the air contained in the
oven, which is circulated it through the cir-
cular heating element and then forced back
into the oven by the fan.
Before the hot air is sucked back again by
the fan to repeat the described cycle, it
envelops the food in the oven, provoking a
complete and rapid cooking. It is possible
to cook several dishes simultaneously.
d. by semi-forced convection from the bot-
tom and back
The heat produced by the lower and circu-
lar heating elements is distributed through-
out the oven by the fan.
e. by semi-forced convection
The heat produced by the upper and lower
heating elements is distributed throughout
the oven by the fan.
f. by radiation
The heat is radiated by the infra red grill
element.
g. by double radiation
The heat is radiated by the infra red grill
and the top heating elements.
h. by radiation and ventilation
The radiated heat from the infra red grill
element is distributed throughout the oven
by the fan.
i. by ventilation
The food is defrosted by using the fan and
the bottom heating element (“dEF” mode).
By setting the temperature to higher val-
ues(from 40 to 100°C max) it is possible to
use this mode as a food warmer.
1 - OVEN FEATURES

8
CONTROL PANEL
Temperature
operating zone
Cooking functions
operating zone
Electronic programmer
operating zone
On/Off and "Children Care"
operating zone
Temperature display
Programmer display
Functions display
Fig. 1.1

9

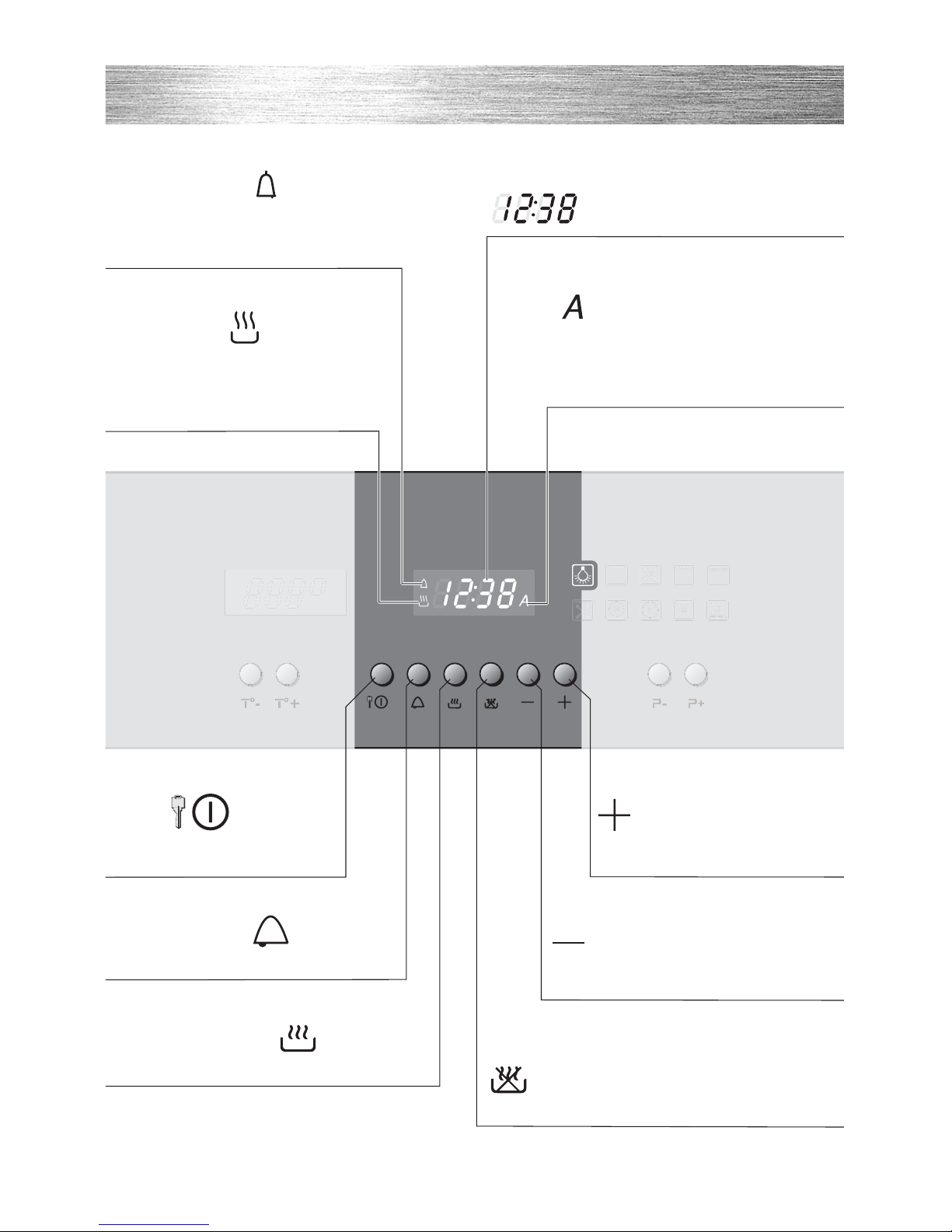

SYMBOL
Lit = semi-automatic or automatic
cooking programmed
Flashing = semi-automatic or
automatic cooking completed
SYMBOL
Lit = operation of heating
elements (cooking functions)
Flashing = semi-automatic or
automatic cooking completed
DIGITS
Normally time of the day
SYMBOL
Lit = minute minder in operation
Flashing = countdown completed
by the minute minder
SYMBOL
ON/OFF or
"Children Care" selection
SYMBOL
Minute minder selection
SYMBOL
Cooking time selection
SYMBOL
End cooking time selection
SYMBOL
To decrease the numbers
on the programmer display
SYMBOL
To increase the numbers
on the programmer display
SYMBOL
End cooking time selection
Fig. 2.1
2 - OVEN USING & ELECTRONIC PROGRAMMER

10
OR
SETTING TIME OF DAY
The programmer is provided with an electronic clock with luminous figures showing
the hour and minutes.
To set the time, press the two buttons “ ” simultaneously and with “ : ” symbol
flashing on the programmer display, press the button “ ” or “ ” to increase or
decrease the digits.
VERY IMPORTANT NOTE: Setting the clock will zero any programmes in progress
and the setted cooking function starts to operate immediately.
ELECTRONIC PROGRAMMER FEATURES
The electronic programmer performs the follow-
ing functions:
•24 hours clock with illuminated display.
•Timer (up to 23 hours and 59 minutes).
•Program for semi-automatic oven cooking.
•Program for automatic oven cooking.
•Automatic switch off (after 10 hours when
using the oven in manual operation).
• "Children Care" safety selection (deactivation
of the programmer selection).
•Confirmation by three acoustic signals of last
setting performed (excluding oven program-
mer activation).
IMPORTANT NOTE:
The first time the oven is used or after a black-
out three zeroes “0:00” will appear on the pro-
grammer display.
Before using the oven set the time of the day.
WARNING:
After any programmer setting, wait for the three acoustic signals of confirmation
before proceeding with a new selection.

11
OVEN PROGRAMMER ACTIVATION / DEACTIVATION (ON / OFF)
To activate the oven programmer:
•Press the button “ ”; 0n appears for 2 seconds on the programmer display and
the oven lamp lights (symbol “ ” illuminated on the functions display). Then the
time of the day appears.
•The oven is ready to be operated.
•If the oven is not operated within 3 minutes the oven programmer is automatically
deactivated ("stand-by" condition); the oven light and “ ” symbol switch off and
“OFF” appears, for some seconds, on the programmer display.
Then the time of the day appears.
To deactivate the oven programmer:
•Press the button “ ”; OFF appears, for some seconds, on the display. The oven
is turned off (“stand-by” condition) and appears the time of the day on the program-
mer display.
WARNING - IMPORTANT NOTE
Do not deactivate the oven programmer with an automatic or semi-automatic
cooking programmed: this operation will cancel the programmed cooking.
Only the minute minder operates in the “stand-by” condition.

12
"CHILDREN CARE" SAFETY SELECTION
By pressing the button “ ” for about 5 seconds it is possible to activate the
“Children Care” option.
The display shows “n--0”, 0n and then the time appears again.
When the “Children Care” option has been selected it is possible only to turn off the
oven (stand-by mode), operate the minute minder and check the cooking time or the
end of the cooking time.
In this setting it is not possible to change the oven cooking program (cooking function,
temperature) and the time selected for a semi-automatic or automatic cooking: if press-
ing the relative button “n--0” appears on central or left temperature display.
To deactivate the “Children Care” option press the button “ ” for about 5 seconds.
The display shows “n--0”, OFF and then the time of the
day appears again.
IMPORTANT: If the oven has been switched off (stand-by mode) with the “Children
Care” option selected it is possible to turn on the oven only after having deacti-
vated the “Children Care”.
5 seconds
5 seconds

13
MINUTE MINDER
The minute minder consists simply of an acoustic signal which can be set for a max-
imum of 23 hours an 59 minutes.
The minute counter, at the end of countdown, does not stop the operation of the oven
(heating elements stay on). Remember to turn off the oven manually.
•Press button “ ”. The “ ” symbol lights and ":" symbol flashes on the program-
mer display.
•Press button “ ” or “ ” to set the time required.
•The countdown starts immediately and after about 5 seconds the time of the day
appears again on the display.
•To check the countdown press button “ ”; the time is indicated (for some seconds)
in hours and minutes.
•At the end of the countdown an intermittent acoustic signal sounds and the “ ”
symbol flashes on the programmer display. Press any pushbutton of the programmer
(not “ ” ON/OF) to stop the intermittent acoustic signal.
NOTE:
The minute minder operates also if the oven, after selection, is turned OFF (stand-
by). The minute minder can also be set in the "stand-by" condition (OFF).
UP TO
OR

14
MANUAL USE OF THE OVEN
Activate the oven programmer as indicated in the “OVEN PROGRAMMER ACTIVA-
TION/DEACTIVATION (ON/OFF)” chapter.
If “A” symbol is shown on the programmer display (semi-automatic or automatic cooking
selected) the programmed cooking time shall be cancelled as indicated in the “CAN-
CELLING A SET PROGRAMME” chapter.
Operate the oven manually by selecting the oven function and temperature as indicated
in the “USING THE OVEN - COOKING FUNCTIONS” chapter.
After about 4 seconds from the last selection the oven starts to operate.
The “ ” symbol appears on the programmer display.
The “ ° ” (Celsius degrees) symbol appears on the temperature display indicating that
the heating elements are operating. If flashing this indicates that the oven is preheating.
To turn off the oven press the “ ” symbol.
IMPORTANT:
The oven operates in the manual use for maximum 10 hours. After 10 hours it
switches off automatically.
CANCELLING A SET PROGRAMME
To cancel a set programme (“A” symbol activated on the programmer display) press
the two buttons “ ” simultaneously.
IMPORTANT:
If the oven is on, remember to switch it off manually otherwise it does not stop
operating in the set mode.
IMPORTANT:
A set programme is also cancelled when the oven is switched OFF in the “stand-
by” condition. At the next power up the oven is not programmed.

15
1
2
3
4
5
6
7
8
9
10
11 12
1
2
3
OR
SEMI-AUTOMATIC COOKING - ONLY END OF COOKING
This automatically switches off the oven after the required cooking time.
Two methods of semi-automatic cooking are available:
1ST METHOD: Programming the duration of the cooking
•Set the oven (function and temperature) as indicated in the “USING THE OVEN - COOK-
ING FUNCTIONS” chapter.
•
Set the duration of the cooking (“hh:mm” - hours and minutes) by pressing button
“”
(“ : ” symbol flashes on the programmer display) and then button “ ” to move
forward or “ ” to move back if you have gone beyond the required time. Set it to ten
minutes less than the time required because the stored heat will complete the cooking.
•“A” letter and “ ” symbol appear on the programmer display; the oven starts to operate
immediately and it will switch off automatically at the end of the cooking time (an inter-
mittent acoustic signal sounds, the “A” letter and “ ” symbol flash on the programmer
display and the oven lamp is lit - press any pushbutton of the programmer [not ON/OFF]
to stop the intermittent acoustic signal).
•During cooking press button “ ” (press two times if the oven lamp is not lit - first
press lights only oven lamp) to display the remaining duration of the cooking (countdown).
•During cooking press button “ ” (press two times if the oven lamp is not lit - first
press lights only oven lamp) to display the time when cooking will be completed.
•The cooking program can be cancelled at any time as indicated in the "CANCELLING A
SET PROGRAMME" chapter.
1- Time when the oven is programmed (10:00)
2- Time necessary to cook the food (2 hours)
3- Time when cooking will be completed (12:00)
CAUTION: after a black-out three zeroes
"0:00" appear on the display.
The semi-automatic cooking is cancelled.
Example

16
2ND METHOD: Programming the time when cooking will be completed.
•Set the oven (function and temperature) as indicated in the “USING THE OVEN - COOKING
FUNCTIONS” chapter.
•Set the time when cooking will be completed (“hh:mm” - hours and minutes) by pressing
button “” (“ : ” symbol flashes on the programmer display) and then button “ ” to
move forward or “ ” to move back if you have gone beyond the required time. Set it to
ten minutes less than the time required because the stored heat will complete the cooking.
•“A” letter and “ ” symbol appear on the programmer display; the oven starts to operate
immediately and it will switch off automatically at the end of the cooking time (an inter-
mittent acoustic signal sounds, the “A” letter and “ ” symbol flash on the programmer
display and the oven lamp is lit - press any pushbutton of the programmer [not ON/OFF]
to stop the intermittent acoustic signal).
•During cooking press button “ ” (press two times if the oven lamp is not lit - first press
lights only oven lamp) to display the time when cooking will be completed.
•During cooking press button “ ” (press two times if the oven lamp is not lit - first press
lights only oven lamp) to display the remaining duration of the cooking (countdown).
•The cooking program can be cancelled at any time as indicated in the "CANCELLING A
SET PROGRAMME" chapter.
1
2
3
4
5
6
7
8
9
10
11 12
1
3
2
1- Time when the oven is programme (10:00)
2- Time when cooking will be completed (12:00)
3- Duration of the cooking (2 hours).
CAUTION: after a black-out three zeroes
"0:00" appear on the display.
The semi-automatic cooking is cancelled.
Example
OR

17
AUTOMATIC COOKING - START AND END OF COOKING
This automatically switches on the oven and switches it off at the required time.
To cook the food in the automatic mode follow these instructions:
1. Set the duration of the cooking
Set it
(“hh:mm” - hours and minutes) by pressing button “”(“ : ” symbol flashes
on the programmer display) and then button “” to move forward or “” to move
back if you have gone beyond the required time.
Set it to ten minutes less than the time required because the stored heat will complete
the cooking.
“A” letter symbol appears on the programmer display.
OR
OR
2. Set the time when cooking has to be completed.
Set it
(“hh:mm” - hours and minutes) by pressing button “”(“ : ” symbol flashes on
the programmer display) and then button
“” to move forward or “” to move
back if you have gone beyond the required time. Attention: the time when cooking
has to be completed cannot be lower than time of the day plus duration of the cooking.

18
3. Set the cooking temperature and function
Operate as indicated in the "USING THE OVEN - COOKING FUNCTIONS" chapter.
The oven starts to operate for the programmed cooking time considering the time for
which the food has to be cooked.
“A” letter is lit on the programmer display and “” symbol appears on the programmer
display when the oven starts to operate.
At the end of the automatic cooking an intermittent acoustic signal sounds and the
“A”
letter and “” symbol flash on the programmer display; press any button of the pro-
grammer [not ON/OFF] to stop the intermittent acoustic signal.
Press button
“” (press two times if the oven lamp is not lit - first press lights only
oven lamp) to display the duration of the cooking programme or the remaining duration
of the cooking if the oven is already operating (countdown).
Press button
“” (press two times if the oven lamp is not lit - first press lights only
oven lamp) to display the time when cooking has to be completed.
The cooking program can be cancelled at any time as indicated in the "CANCELLING
A SET PROGRAMME" chapter.
1
2
3
4
5
6
7
8
9
10
11 12
1
2
3
4
7:30
CAUTION: after a black-out three zeroes "0:00" appear on the display.
The semi-automatic cooking is cancelled.
1-Time when the oven is programmed
(07:30)
2-Time necessary to cook the food (2 hours)
3-Time when the food to be cooked must
be ready (12:00)
4-Time when the oven automatically switch-
es on (10:00)
Example

19
AUDIBLE SIGNAL
You can choose from three variations.
To select press the
“” button.
END OF A PROGRAMMED SEMI-AUTOMATIC OR AUTOMATIC COOKING
At the end of the programmed semi-automatic or automatic cooking the oven switches
off automatically the heating elements and the oven lamp.
An intermittent acoustic signal sounds and the
“A” letter and “” symbol flash on
the programmer display; the temperature display is deactivated.
Press any pushbutton of the programmer [not ON/OFF] to stop the intermittent acoustic
signal. After pressing, the oven lamp lights (light mode) and the oven is ready to be
used for a new manual or programmed cooking otherwise it can be switched off as
indicated in the "OVEN PROGRAMMER ACTIVATION/DEACTIVATION" chapter.

20
IMPORTANT - “----” MESSAGE ON BOTH PROGRAMMER AND TEMPERATURE DISPLAYS
This indicates that the oven cavity is overheated. The oven is stalled and has to be
activated as below:
• Open the oven door and let the cavity to cool.
• Press the two buttons “ ” simultaneously.
• Three zeroes “0:00” flash on the display; proceed as per first connection to the mains
by setting the time of the day and then activating the oven programmer.
If this abnormal situation persists disconnect the oven from the mains and contact the
After-Sales Service
ABNORMAL SITUATIONS - ERROR CODES
In case of abnormal situations the oven is automatically switched off: only the cooling fan
motor operates and on the programmer display, an error message code appears.
The oven is stalled.
If this condition disappears the oven returns in the stand-by (OFF) condition where the
central programmer display is activated and the time is displayed.
If this condition does not disappear try to disconnect the oven from the mains and then
reconnect.
If the abnormal situation persists, disconnect the oven
from the mains and contact the After-Sales Service.
SOME ERROR
CODES ON
TEMPERATURE
DISPLAY
SOME ERROR
CODES ON
TEMPERATURE
DISPLAY
