Kenwood TKR-D810 User manual

JVC KENWOOD Corporation
SERVICE MANUAL
This product uses Lead Free solder.
This product complies with the RoHS directive for the European market.
© 2014-7 PRINTED IN JAPAN
RQ034 (K)B5B-7144-00
TKR-D810

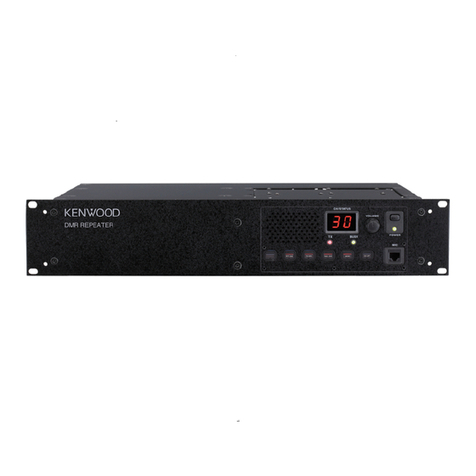

UHF DIGITAL BASE-REPEATER
N SYNC
REFIN RX IN
TX OUT CONTROL
I/O
TEST/SPKR
DC 13.2V
FUSE 15A
CH/STATUS
VOLUME
BUSY
TX POWER
MIC
Panel assy
(A6C-0002-00)
Knob (Power)
(K29-9106-04)
Key top
(K29-9370-02)
Knob (Volume)
(K29-5389-03)
Modular jack
(E58-0522-05)
Rear panel
(A82-0077-02)
Antenna cable (REF IN)
(E30-7690-05)
Antenna cable (RX IN)
(E30-3418-15)
Lead wire with connector
(ACC15P)
(E37-0913-05)
Lead wire with connector
(DSUB25P)
(E37-1376-05)
Modular jack x 2
(E58-0533-05)
DC cord (Ext DC in)
(E30-3414-05)
Blade fuse (15A/32V)
(F05-1537-05)
Antenna cable (TX OUT)
(E30-7528-15)
GENERAL................................................................... 2
SYSTEM SET-UP........................................................ 3
REALIGNMENT ......................................................... 3
OPERATING FEATURES............................................ 5
INSTALLATION.......................................................... 6
MODIFICATION ......................................................... 8
DISASSEMBLY FOR REPAIR..................................... 9
CIRCUIT DESCRIPTION .......................................... 10
COMPONENTS DESCRIPTION............................... 19
PARTS LIST.............................................................. 21
EXPLODED VIEW..................................................... 44
PACKING.................................................................. 46
TROUBLE SHOOTING............................................. 47
ADJUSTMENT......................................................... 52
TERMINAL FUNCTION ........................................... 64
PC BOARD
FINAL UNIT (X45-4022-71) ................................. 72
CONTROL UNIT (X53-4580-10)........................... 76
DISPLAY UNIT (X54-4060-20) ............................. 80
TX-RX UNIT (X57-8972-72)................................. 84
RX VCO/PLL UNIT (X58-5210-10) ....................... 88
TX VCO/PLL UNIT (X58-5220-10) ....................... 89
INTERCONNECTION DIAGRAM ............................ 90
SCHEMATIC DIAGRAM .......................................... 92
BLOCK DIAGRAM ................................................. 104
OPTIONAL ACCESSORIES
KES-5 (EXTERNAL SPEAKER) .......................... 107
SPECIFICATIONS.................................. BACK COVER
APPENDIX (SCHEMATIC DIAGRAM X53-458)
CONTENTS

TKR-D810
2
GENERAL
INTRODUCTION
SCOPE OF THIS MANUAL
This manual is intended for use by experienced techni-
cians familiar with similar types of commercial grade com-
munications equipment. It contains all required service
information for the equipment and is current as of the pub-
lication date. Changes which may occur after publication
are covered by either Service Bulletins or Manual Revisions.
These are issued as required.
ORDERING REPLACEMENT PARTS
When ordering replacement parts or equipment informa-
tion, the full part identification number should be included.
This applies to all parts: components, kits, or chassis. If the
part number is not known, include the chassis or kit number
of which it is a part, and a sufficient description of the re-
quired component for proper identification.
PERSONAL SAFETY
The following precautions are recommended for personal
safety:
• DO NOT transmit if someone is within two feet (0.6 me-
ter) of the antenna.
• DO NOT transmit until all RF connectors are secure and
any open connectors are properly terminated.
• SHUT OFF this equipment when near electrical blasting
caps or while in an explosive atmosphere.
• All equipment should be properly grounded before pow-
erup for safe operation.
• This equipment should be serviced by only qualified
technicians.
SERVICE
This transceiver is designed for easy servicing. Refer to
the schematic diagrams, printed circuit board views, and
alignment procedures contained within.
Document Copyrights
Copyright 2014 by JVC KENWOOD Corporation. All rights
reserved.
No part of this manual may be reproduced, translated,
distributed, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording, or other-
wise, for any purpose without the prior written permission of
JVC KENWOOD Corporation.
Disclaimer
While every precaution has been taken in the preparation
of this manual, JVC KENWOOD Corporation assumes no
responsibility for errors or omissions. Neither is any liability
assumed for damages resulting from the use of the informa-
tion contained herein. JVC KENWOOD Corporation reserves
the right to make changes to any products herein at any
time for improvement purposes.
Firmware Copyrights
The title to and ownership of copyrights for firmware
embedded in KENWOOD product memories are reserved
for JVC KENWOOD Corporation. Any modifying, reverse
engineering, copy, reproducing or disclosing on an Internet
website of the firmware is strictly prohibited without prior
written consent of JVC KENWOOD Corporation. Further-
more, any reselling, assigning or transferring of the firmware
is also strictly prohibited without embedding the firmware in
KENWOOD product memories.
Transceivers containing AMBE+2™ Vocoder:
The AMBE+2™ voice coding technology is embedded in
the firmware under the license of Digital Voice Systems, Inc.

TKR-D810
3
SYSTEM SET-UP
REALIGNMENT
1. Modes
User mode
PC mode
Firmware programming mode
PC programming mode
PC test mode PC tuning mode
Mode Function
User mode Use this mode for normal operation.
PC mode
Use this mode to make various settings by
means of the FPU through the RS-232C
port.
PC programming
mode
Use to read and write frequency data and
other features to and from the repeater.
PC test mode Use to check the repeater using the PC.
This feature is included in the FPU.
Firmware program-
ming mode
Use when changing the firmware program
of the flash memory.
2. How to Enter Each Mode
Mode Operation
User mode Power on.
PC mode Received commands from PC.
Firmware programming mode [PF1] + Power on (one second)
3. PC Mode
3-1. Preface
The repeater is programmed by using a personal com-
puter, programming interface (KPG-46A/46U) and FPU (pro-
gramming software).
The programming software can be used with a PC. Fig-
ure 1 shows the setup of a PC for programming.
3-2. Connection Procedure
1. Connect the repeater to the computer using the interface
cable.
Note:
• You must install the KPG-46U driver in the computer to
use the USB programming interface cable (KPG-46U).
2. When power is applied, the user mode is entered im-
mediately. When the PC sends a command, the repeater
enters the PC mode and displays “PC” on the 7-segment
LED. When data is being transmitted to the PC from the
repeater, the TX LED lights. The BUSY LED lights when
data from the PC is being received by the repeater.
Note:
• The data stored in the personal computer must match
the model type, when it is written into the flash memory.
Merchandise received
Choose the type of transceiver
See page 3.
A personal computer, programming interface (KPG-46A/46U), and
programming software (KPG-174D) are required for programming.
DC power supply or
duplexer?
Repeater programming & setup
Installation in the optional space
YES
NO
Delivery
(Option)
Frequency range RF power Type
TX/RX 400~470MHz 40W E
External speaker? KES-5 installation
YES
NO (Option)
See page 6.
See page 6.
