KR-V8030
INSTRUCTION MANUAL
KENWOOD CORPORATION

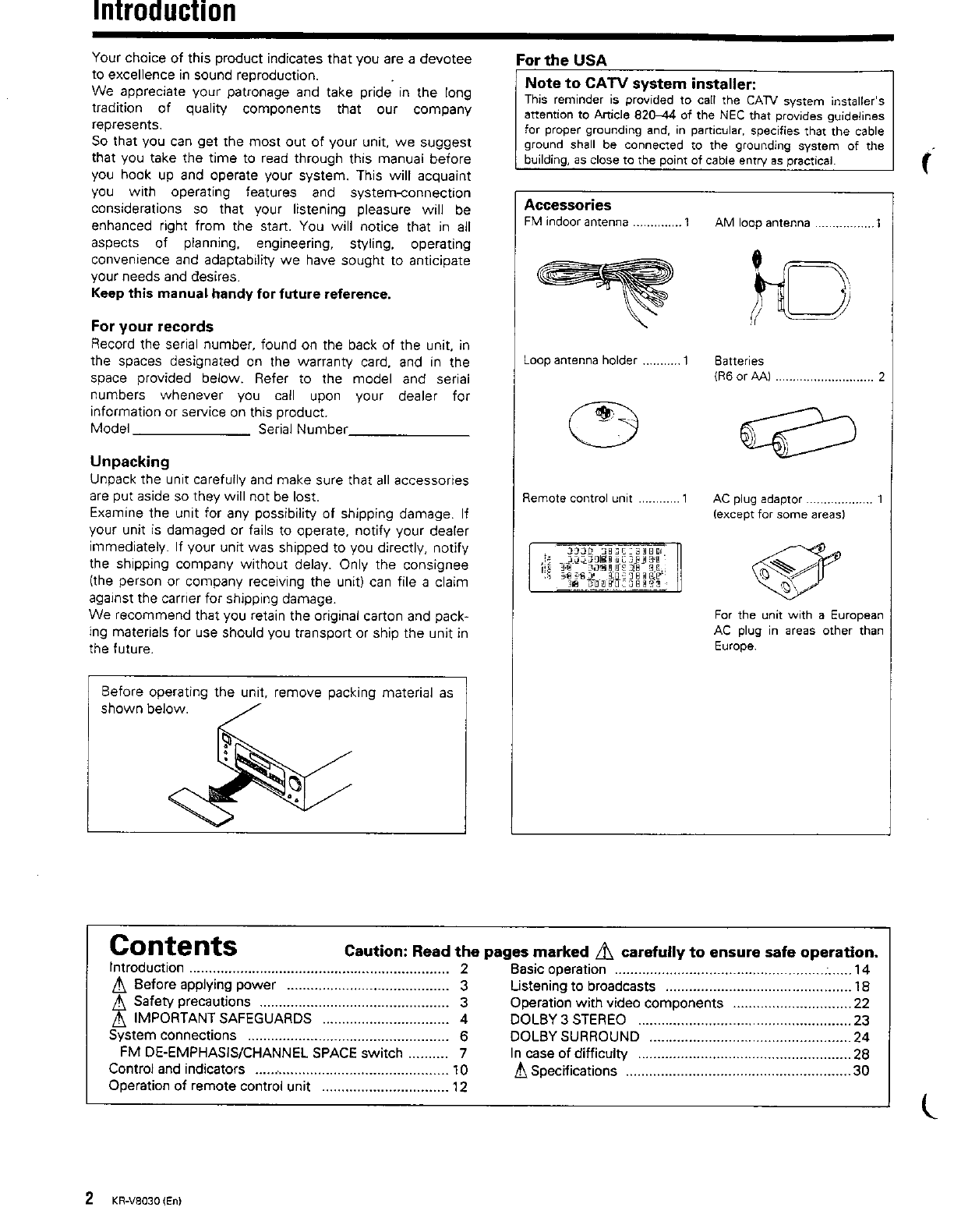

introduction
Your choice of this product indicates that you are a devotee
to excellence in sound reproduction. .
We appreciate your patronage and take pride in the long
tradition of quality components that our company
represents.
So that you can get the most out of your unit, we suggest
that you take the time to read through this manuai before
you hook up and operate your system. This will acquaint
you with operating features and system-connection
considerations so that your listening pleasure will be
enhanced right from the start. You will notice that in all
aspects of planning, engineering, styling, operating
convenience and adaptability we have sought to anticipate
your needs and desires.
Keep this manual handy for future reference.
For your records
Record the serial number, found on the back of the unit, in
the spaces designated on the warranty card, and in the
space provided below. Refer to the model and seriai
numbers whenever you call upon your dealer for
information or service on this product.
Model Serial Number.
Unpacking
Unpack the unit carefuily and make sure that all accessories
are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If
your unit is damaged or fails to operate, notify your dealer
immediately. If your unit was shipped to you directly, notify
the shipping company without delay. Only the consignee
(the person or company receiving the unit) can file a claim
against the carrier for shipping damage.
We recommend that you retain the original carton and pack-
ing materials for use should you transport or ship the unit in
the future.
Before operating the unit, remove packing material as
shown below.
For the USA
Note to CATV system installer:
This reminder is provided to call the CATV system installer's
attention to Article 820-44 of the NEC that provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Accessories
FM indoor antenna ..,......... 1
i)
Loop antenna holder ...........1 Batteries
{RG of AA) oo escent 2
Remote control unit AC plug adaptor occ eee 1
(except for some areas)
oe
For the unit with a European
AC plug in areas other than
Europe.
Contents
IATPOMUCTION oo... eee eeceteseeteatseeesseeseensecesecteseseaeseneessanees
A\ Before applying power
Safety precautions
iN IMPORTANT SAFEGUARDS
System connections
FM DE-EMPHASIS/CHANNEL SPACE switch .
Control and indicators
Operation of remote control unit
NONDEWWN
ey
Caution: Read the pages marked /\ carefully to ensure safe operation.
14
-18
Basic operation
Listening to broadcasts
Operation with video components +22
DOLBY 3 STEREO ... .23
DOLBY SURROUND .24
In case of difficulty .28
A Specifications ... .30
2 KR-v8030 {En}

Before applying power
For the U.S.A. and Canada
A
Caution:
Read
this
page
carefully
to
ensure
safe
operation.
nnd
For Australia and Europe
Important!
Units shipped to the U.S.A. and Canada are designed for
operation on 120 volts AC only.
CAUTION: To PREVENT ELECTRIC SHOCK DO NOT USE
THE AC PLUG WITH AN EXTENSION CORD. RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
Important!
Units shipped to Australia are designed for operation on 240 V
AC only.
Units shipped to Europe are designed for operation on 230 V AC
only,
For the United Kingdom
For other countries
important!
Units
shipped
to
the
U.K.
are
designed
for
operation
on
240
volts AC only.
The
mains
plug
must
be
removed
from
the
wall
socket
prior
to
any interna! examination.
The
wires
in
this
mains
lead
are
coloured
in
accordance
with
the
following code:
Blue ..
Brown
The
wires
in
this
mains
iead
must
be
connected
to
the
terminals
in
the
plug
as
follows:
Wire
colour
Plug
terminal
marking
Or ;
{Brown to ‘e
Live
Blue to
Neutral t
N
Plug —
i i
Notes:
1.
If
@
13-amp
plug
is
used,
this
must
be
fitted
with
a
5-amp
fuse.
2.
If
a
3-pin
plug
with
earthing
contact
is
used,
no
wire
must
be
connected
to
the
E
terminal.
Important!
Units shipped to countries other than the above countries are
equipped with an AC voltage selector switch on the rear
panel.Refer to the following paragraph for the proper setting of
this switch.
AC voltage selection
This unit operates on 110-120 or 220-240 volts AC. The AC
voltage selector switch Type A or Type B on the rear panel is
set to the voltage that prevails in the area to which the unit is
shipped. Before connecting the power cord to your AC outlet,
make sure that the setting position of this switch matches your
line voltage. If not, it must be set to your voltage in accordance
with the following direction.
Note: -
Our warranty does not cover damage caused by excessive line
voitage due to improper setting of the AC voltage selector
switch.
AC voltage selector switch
AC100-
~AC220V
~AC240V
~
120V
Type.B
_
CW
RREVIOV- «am AC220V-
120V ~ 240V ~
Move switch lever to match your line voltage
with a small screwdriver or other pointed tool.
Safety precautions
WARNING:
TO
PREVENT
FIRE
OR
SHOCK
HAZARD,
DO
NOT
EXPOSE
THIS
APPLIANCE
TO
RAIN
OR
MOISTURE.
CAUTION
RISK OF CLECTRIC SHOCK
Do NOT OerN
CAUTION:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK,
DO
NOT
REMOVE
COVER
(OR
BACK).
NO
USER-SERVICEABLE
PARTS
INSIDE,
REFER
SERVIC-
ING
TO
QUALIFIED
SERVICE
PERSONNEL.
THE
LIGHTNING
FLASH
WITH
ARROWHEAD
SYMBOL,
WITHIN
AN
EQUILATERAL
TRIANGLE,
IS
INTENDED
TO
ALERT
THE
USER
TO
THE
PRESENCE
OF
UNINSULATED
‘DANGEROUS
VOLT-
AGE*
WITHIN
THE
PRODUCT'S
ENCLOSURE
THAT
MAY
BE
OF
SUFFICIENT
MAGNITUDE
TO
CONSTITUTE
A
RISK
OF
ELECTRIC
SHOCK
TO
PERSONS.
THE
EXCLAMATION
POINT
WITHIN
AN
EQUILATERAL
TRIANGLE
IS
INTENDED
TO
ALERT
THE
USER
TO
THE
PRESENCE
OF
IMPORTANT
OPERATING
AND
MAINTENANCE
(SERVICING)
IN-
STRUCTIONS
IN
THE
LITERATURE
ACCOMPANYING
THE
APPLIANCE.
KRvananifa 3

IVIPFURnRTANI
ovAFEU
UARUS
A
Caution:
Read
this
page
carefully
to
ensure
safe
operation.
Please read all of the safety and operating instructions
before operating this unit. For best results, follow ail
wa
rnings placed on the unit and adhere to the operating and
use instructions. These safety and operating instructions
should be retained for future reference.
1.
6.
4
Power sources ~The unit should be connected to a
power supply only of the type described in the
operating instructions or as marked on the appliance.
. Power-cord protection —- Power-supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, pay
Particular attention to cords at plugs, convenience
receptacles, and.the point where they exit from the
unit.
Never pull or stretch
the cord.
. Grounding or polarization-The precautions should
be taken so that the grounding or polarization means of
this unit is not defeated.
. Ventilation - The unit should be situated so that its
location or position does not interfere with its proper
ventilation.
To maintain good ventilation, do not put records or a
table-cloth on the unit. Place the unit at least 10 cm
away from the walls.
Do not use the unit on a bed, sofa, rug or similar
surface that may block the ventilation openings.
. Water and moisture-The unit should not be used
near water—for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, etc.
Temperature - The unit may not function property if
used at extremely low, or.freezing temperatures. The
ideal ambient temperature is above +5°C (41°F).
KR-V8030 (En)
7. Heat~The unit should be situated away from heat
sources such as radiators, heat registers, stoves, or
other units (including amplifiers) that produce heat.
8. Electric shock - Care should be taken so that objects
do not fail and liquid is not spilled into the enclosure
through openings. If a metal object, such as a hair pin
or a needle, comes into contact with the inside of this
unit, a dangerous electric shock may result. For families
with children, never permit children to put anything,
especially metal, inside this unit.
9. Enclosure removal ~ Never remove the enclosure. If
the internal parts are touched accidentally, a serious
electric shock might occur.
10. Magnetic fields — Keep the unit away from sources of
magnetic fields such as TV sets, speaker systems,
tadios, motorized toys or magnetized objects.
11. Cleaning — Do not use volatile solvents such as alcohol,
paint thinner, gasoline, or benzine, etc. to clean the
cabinet. Use a clean dry cloth.

A Caution: Read this page carefully to ensure safe operation.
12. Carts and stands — An appliance and cart combination
should be moved with care. Quick stops, excessive €XAMPLE OF ANTENNA GROUNDING AS PER
* NATIONAL ELECTRICAL CODE
force, and uneven surfaces may cause the appliance
and cart combination to overturn.
ANTENNA
LEAD IN
C WIRE
e ANTENNA
DISCHARGE UNIT
G (NEC SECTION 810-20)
ELECTRIC |
SERVICE ie
vA
oy
EQUIPMENT
‘GROUNDING
CONCUCTORS
INEC SECTION B10-21)
GROUND CLAMPS: i
13. Nonuse periods —-The power cord of the unit should paa-——— BOWER SERVICE GROUNDING :
be unpiugged from the outlet when left unused for a NEC — NATIONAG ELECTRICAL CODE (NEC AAT 250, PART H)
Jong period of time.
14. Abnormal smell -|f an abnormal smeil or smoke is 18. Power lines- An outdoor antenna should be located
detected, immediately turn the power OFF and pull out away from power lines.
the power cord. Contact your dealer or nearest service
center. 19. AC outlets-Do not connect other audio equipment
POWER OFF! with @ power consumption larger than that specified to
‘ the AC outlet on the rear panel. Never connect other
electrical units, such as an iron or toaster, to it to
prevent fire or electric shock.
15. Damage requiring service-The unit should be
serviced by qualified service personnel when:
A. The power-supply cord or the plug has been
damaged; or
B. Objects have failen, or liquid has been spilled into
the unit; or
C. The unit has been exposed to rain; or ost
D, The unit does not appear to operate normaily or
exhibits a marked change in performance; or
E. The unit has been dropped, or the enclosure
damaged.
16. Servicing — The user should not attempt to service the
unit beyond that described in the operating instructions. a
All other servicing should be referred to qualified
service personnel.
17. Outdoor antenna grounding - If an outside antenna is
connected to the receiver, be sure the antenna system
is grounded so as to provide some protection against
voltage surges and built up static charges. Section 810
of the National Electrical Code, ANSI/NFPA No. 70 -
1984, provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding
electrode. See Figure.
. Notes:
7 1, Item 3 is not required except for grounded or polarized equipment.
2. Item 17 and 18 are not required except for units provided with antenna terminals.
3. item 17 complies with UL in the U.S.A.
KR-veo3o (En) 5 y

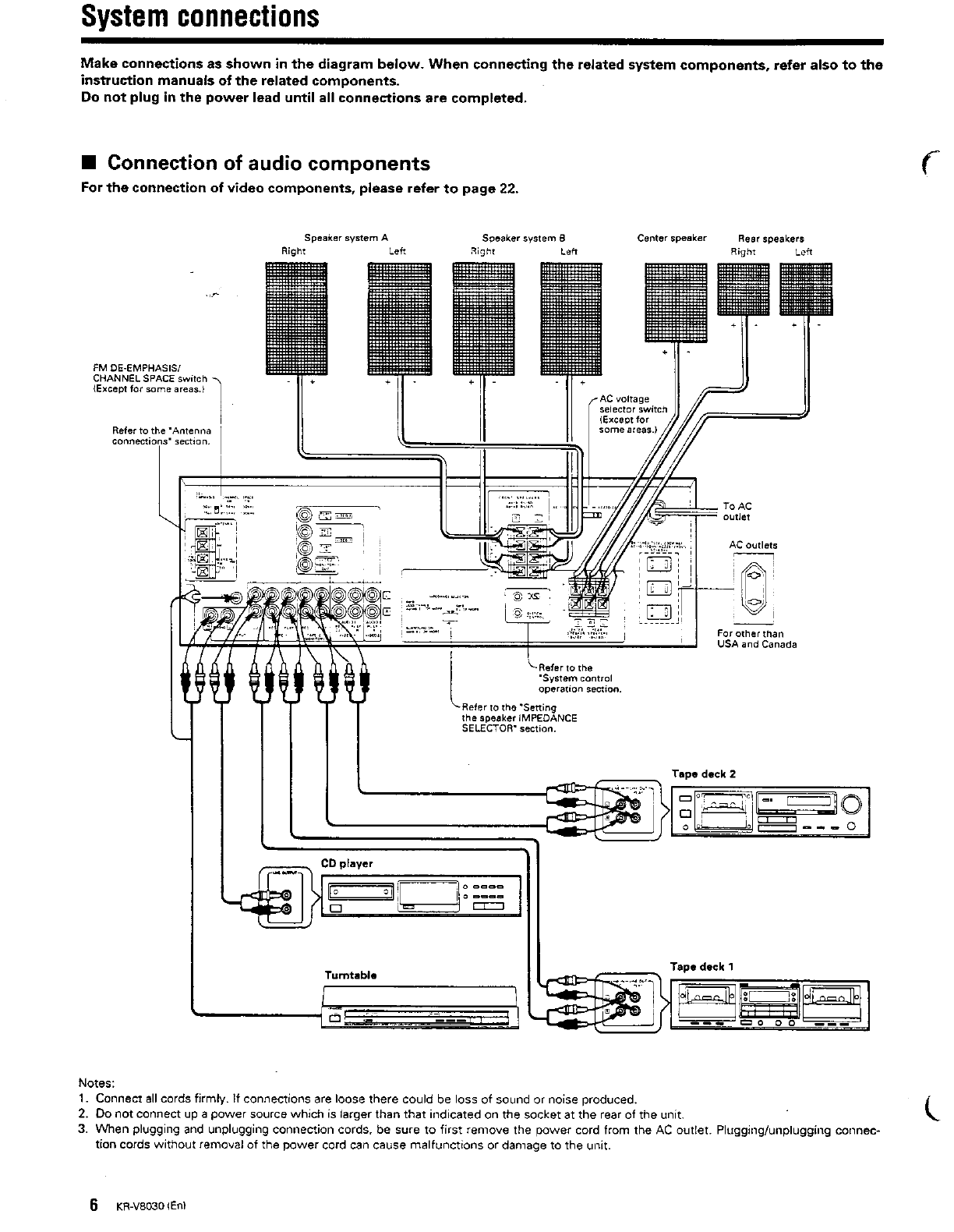

System connections
Make connections as shown in the diagram below. When connecting the related system components, refer also to the
instruction manuals of the related components.
Do not plug in the power lead until all connections are completed.
H Connection of audio components
For the connection of video components, please refer to page 22.
&M DE-EMPHASIS/
CHANNEL SPACE switch ~
{Except for same areas.)
Refer to the “Antenna
connections" section.
Speaker system A
Speaker system &
Center speaker
Rear speakers
Right Right Left Right Left
=a =|
ite +
+ | -
-We +[P- +
AC voltage
selector switch
(Except for
some areas.)
1. To AC
[outlet
AC outlets
!
| ffs) |
Woot
7,
a
For other tha
USA and Canada
Refer to the
“System control
operation section.
Refer to the "Setting
the speaker IMPEDANCE
SELECTOR*® section.
Tape deck 2
Notes:
CD player
(Cees | jo cace
= =
Turntable Tape deck 1
f | Sama Fel 8) Aamo
ae LS —
a
=
Te
==
o_O
6
=
a
1. Connect all cords firmly. If connections are loose there could be loss of sound or noise produced.
2. Do not connect up a power source which is larger than that indicated on the socket at the rear of the unit.
3. When plugging and unplugging connection cords, be sure to first remove the power cord from the AC outlet. Plugging/unplugging connec-
tion cords without removal of the power cord can cause malfunctions or damage to the unit.
6 kr-va030 (en!

c
Connection of antennas
@ Push the lever. @ Insert the conductor. @) Return the lever.
@ Never short-circuit the + and - speaker cords.
@ If the feft and right speakers are connected inversely or if
the speaker cords are connected with reversed polarity,
the sound becomes unnatural with ambiguous acoustic
image positioning. Be sure to connect the speakers and
speaker cords correctly.
Setting the SPEAKER IMPEDANCE SELECTOR
IMPEDANCE SELECTOR
AorB
LESS THAN 8 > Aore
AandB 8 > OR MORE 85 OR MORE
<a
=
SURROUND ON
AorB&S > OR MORE
@ When Surround speakers are not connected
According to the impedance of the speakers used, set the
SPEAKER IMPEDANCE SELECTOR on the rear panel as shown
in the table
@ During speaker system connection and operation of the
SPEAKER IMPEDANCE SELECTOR, set the POWER switch to
OFF,
@ When the IMPEANCE SELECTOR is in ¥) position, sound
is not output from the center and rear speakers.
@ When Surround speakers are connected
Usable speaker Selector Usable speaker Selector
impedance position impedance position
When speakers A and B are connected .
The impedance of the front speakers =a
A and B, center speaker and rear -< I
The impedance of both speakers speakers should be 8 2 — 16 Q.
should be 8 2-162 -
When speakers A or B are connected =P
When the impedance of the L a
speakers is 8 Q- 162 —
i
When the impedance of the
speakers is 42-6 Q
When both of SPEAKERS A and 8 keys are ON, pressing
the PRO LOGIC key or 3 STEREO key switches the speak-
ers key setting to A ON alone. If the B key is pressed now,
the SPEAKERS key setting will be switched to B ON
alone.
FM DE-EMPHASIS/CHANNEL SPACE switch
{Except for some areas}
The FM DE-EMPHASIS/CHANNEL SPACE switch on the rear panel
is set to the correct setting that prevails in the area to which the
unit is shipped. However, if the FM DE-EMPHASIS/CHANNEL
SPACE setting is not matched to the area where the unit is to be
used; for instance, when you move from area 1 to area 2 or vice
versa, desired reception of AM/FM broadcasts is not expected. In
this case, change the FM DE-EMPHASIS/CHANNEL SPACE setting
in accordance with the area corresponding to the table. The FM
DE-EMPHASIS is switched over at the same time.
@ When changing the setting of the FM DE-EMPHASIS/CHANNEL
SPACE switch, first disconnect the power cord, then reset the
channel space switch, connect the power cord again during
pressing the TUNER key of the input selector, and turn the pow-
eron.
@ When activating the CHANNEL SPACE switch, the preset mem-
ory contents of the tuner and the set up memory contents of
the SURROUND function will be lost.
Area CHANNEL FM DE-
SPACE freq. EMPHASIS
1| ULS.A., Canada, and} FM : 100 KHZ 75S
South American AM : 10 KHZ
countries,
2) Other countries FM :50 KHZ 50us
AM :9 KHZ
DE-
EMPHASIS CHANNEL SPACE
AM FM
50us i A oxHz © SOKHz
75us LI gioxHz 100KHz

a iY

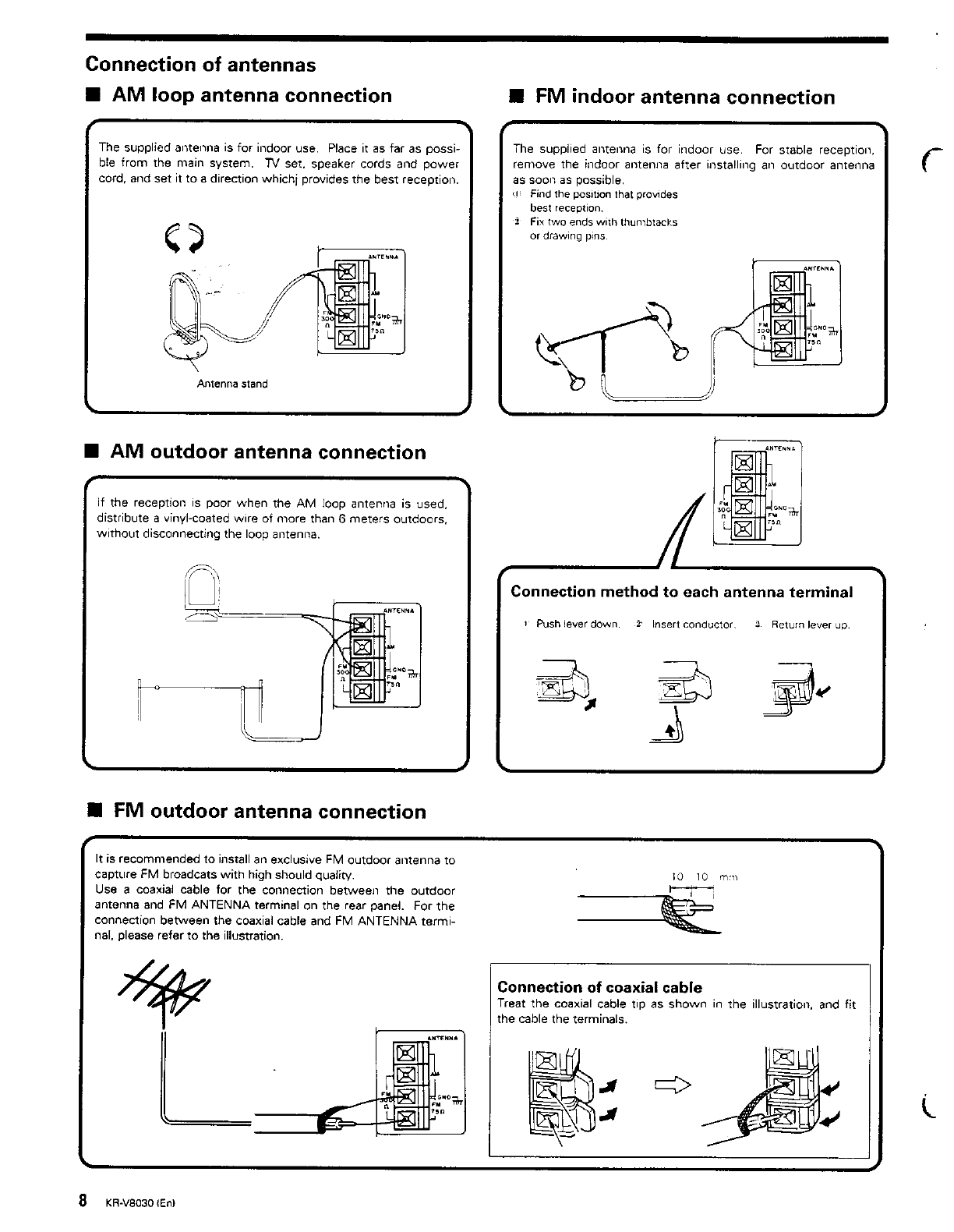

Connection of antennas
@ AM loop antenna connection
@ FM indoor antenna connection
f- ™~
The supplied antenna is for indoor use. Place it as far as possi-
bie from the main system. TV set, speaker cords and power
cord, and set it to a direction whichj provides the best reception.
TENA
Antenna stand
\.. /
(~ ‘
The supplied antenna is for indoor use. For stable reception,
remove the indoor antenna after installing an outdoor antenna
as soon as possible.
WW Find the position that provides
best reception.
2 Fix two ends with thumbtacks
or drawing pins.
ANTENNA,
H AM outdoor antenna connection
NTENNS
(— ‘
if the reception is peor when the AM loop antenna is used,
distribute a vinyl-coated wire of more than 6 meters outdoors,
without disconnecting the loop antenna.
las
f
\
|
{
Connection
method
to
each
antenna
terminal
t ‘ NTENNA
aon
4
iT
+
Push
iever
down.
2
Insert
conductor.
3
Return
lever
up.
S15 [bows, _ _
|
ie
ie
=
| ° =)
ad
‘
\..
J
\..
J
M FM outdoor antenna connection
“a
‘
It is recommended to install an exclusive FM outdoor antenna to
capture FM breadcats with high should quality. 10 10 mm
Use a coaxial cable for the connection between the outdoor ei
antenna and FM ANTENNA terminal on the rear panel. For the
connection between the coaxial cable and FM ANTENNA termi-
nal, please refer to the illustration.
a.
Connection of coaxial cable
Treat the coaxial cable tip as shown in the illustration, and fit
the cable the terminals.
x a
a
8 kR.va030 (En)

{-

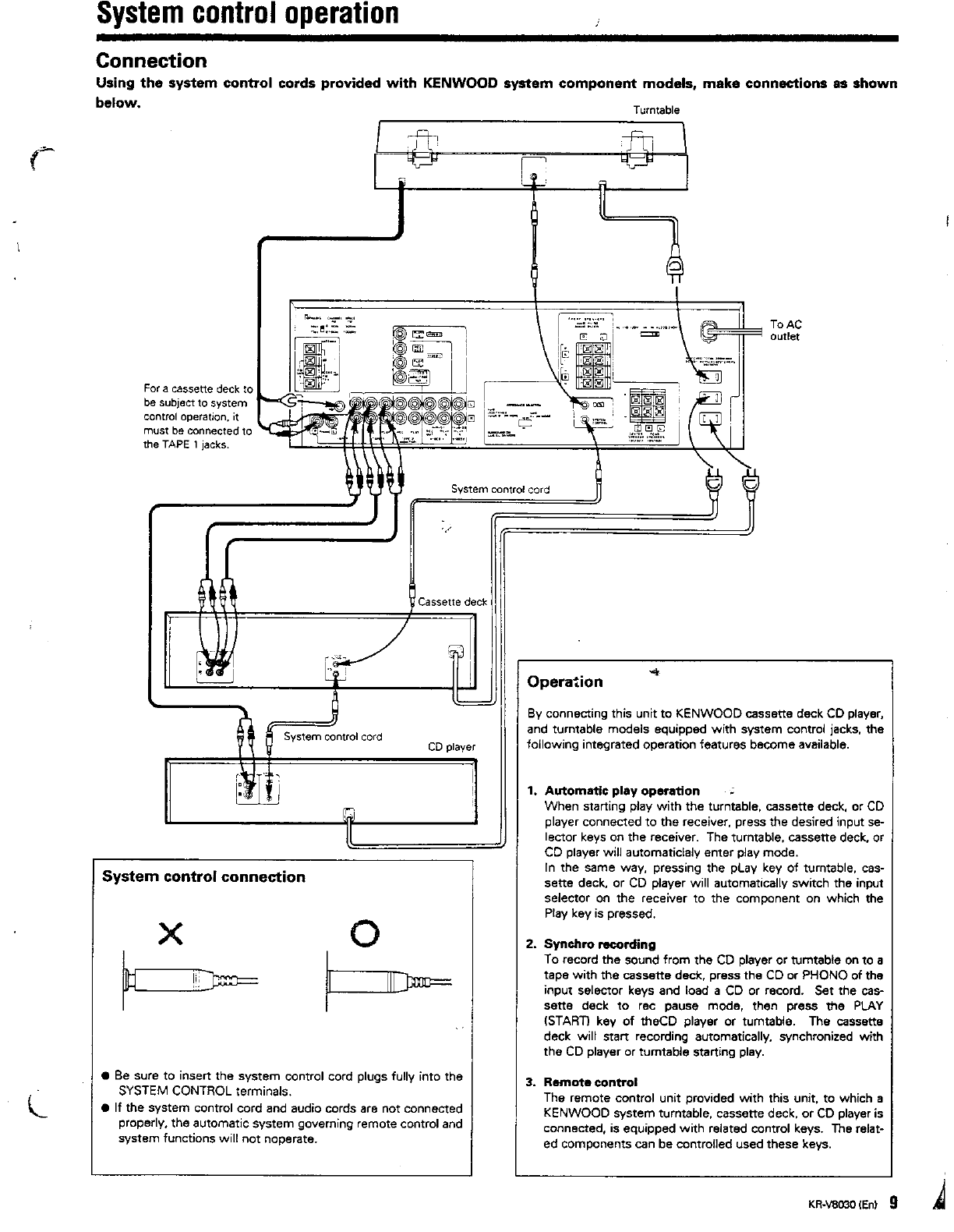

System control operation
Connection
Using the system control cords provided with KENWOOD system component models, make connections as shown
below.
Turntable
|_ fe fh
ae ces
For a cassette deck to
To AC
outlet
be subject to system
control operation, it
must be connected to
oa &
the TAPE 1 jacks.
r
Cassette deck
(J
layer
System control cord
CD pl
b 5
System control connection
x
Ht hess
SYSTEM CONTROL terminals.
system functions wilt not noperate.
@ Be sure to insert the system control cord plugs fully into the
@ If the systern control cord and audio cords are not connected
properly, the automatic system governing remote control and
O
[=
Operation
By connecting this unit to KENWOOD cassette deck CD player,
and turntable modeis equipped with system control jacks, the
foilowing integrated operation features become available.
1. Automatic play operation a
When starting play with the turntable, cassette deck, or CD
player connected to the receiver, press the desired input se-
lector keys on the receiver. The turntable, cassette deck, or
CD player will autornaticlaly enter play mode.
In the same way, pressing the pLay key of turntable, cas-
sette deck, or CD piayer will automatically switch the input
selector on the receiver to the component on which the
Play key is pressed.
2. Synchro recording
To record the sound from the CD player or tumtable on to a
tape with the cassette deck, press the CD or PHONO of the
input selector keys and load a CD or record. Set the cas-
sette deck to rec pause mode, then press the PLAY
(START) key of theCD player or tumtable. The cassette
deck will start recording automatically, synchronized with
the CD player or turntable starting play.
3. Remote control
The remote control unit provided with this unit, to which a
KENWOOD system turntable, cassette deck, or CD player is
connected, is equipped with reiated control keys. The relat-
ed components can be controlled used these keys.
KR-va0g0 (En) 9
y

Controls and indicators
PRO: LOGIC key:
5
7 Remote sensor
BAND key—~
CD DIRECT key 7
LINE STRAIGHT key —
Input
select
keys~7
BALANCE
knob
STAND
BY
indicator
—~,
77
SPEAKER
A,
B
indicators
77
TUNING
key
BY
PASS
key-—~,
77
CENTER
MODE
key
7
LINE
STRAIGHT,
CD
DIRECT
indicators
3
STEREO
key
REAR
LEVEL
keys“
(*
10
key
POWER
key—~
CENTER
LEVEL
~
VOLUME
CONTROL
keys
with
point
indicator
KENWOOD
-4ICE
FTEREG
HECE.
vER
KR-vBg30
~
vouume
Fonrnoe
m
ot
aot
=n
Ce
Lt]
al
ee
F
ggedeguee
:
=
sreaxens
I
SEER
A
r
+
a:
c
©
Teenron)
f{
8
voto
2]
woes
[oe
[oe
|e
|
momo
|
co
I
=
[eer]
©
-
j
Pmones
si
PERFORMANCE
OTA,
SURROUND
SOND
TEEOMOLOGY
VORCAGE
MTEREACE
GATE
CIREUH
peered
®
°
|b
control
knob
PHONES jack Numeric keys—/
SPEAKER A and B keys
A,BOFF @ This position silences all speakers to permit pri-
vate use of headphones.
Activates speakers connected to the SPEAK-
ERS A terinals on the rear panel.
Activates the speakers connected to the
SPEAKERS B terminals on the rear panel.
Activates the speakers connected to the
SPEAKERS A and B terminals simultaneously.
AON e
BON e
A,BON @
SPEAKERS
A
O
°
A SPEAKERS 8B
STAND BY mode of POWER switch
When the power cord of this system is plugged into an Ac out-
let, the STAND BY indicator lights up regardless of the ON/OFF
setting of the POWER switch. This indicates that a small
amount of current is being supplied to the unit to back up the
memory contents. This mode is referred to as the Stand By
mode. While the STAND BY indicator is lit, the power of the
system can be switched ON/OFF from the remote control unit.
@ When both of SPEAKERS A and B keys are ON, pressing the
PRO LOGIC key or 3 STEREO key switches the SPEAKERS
key setting to A ON alone. If the B key is pressed now, the
SPEAKERS key setting will be switched to B ON alone.
10 kr-veogo ten)

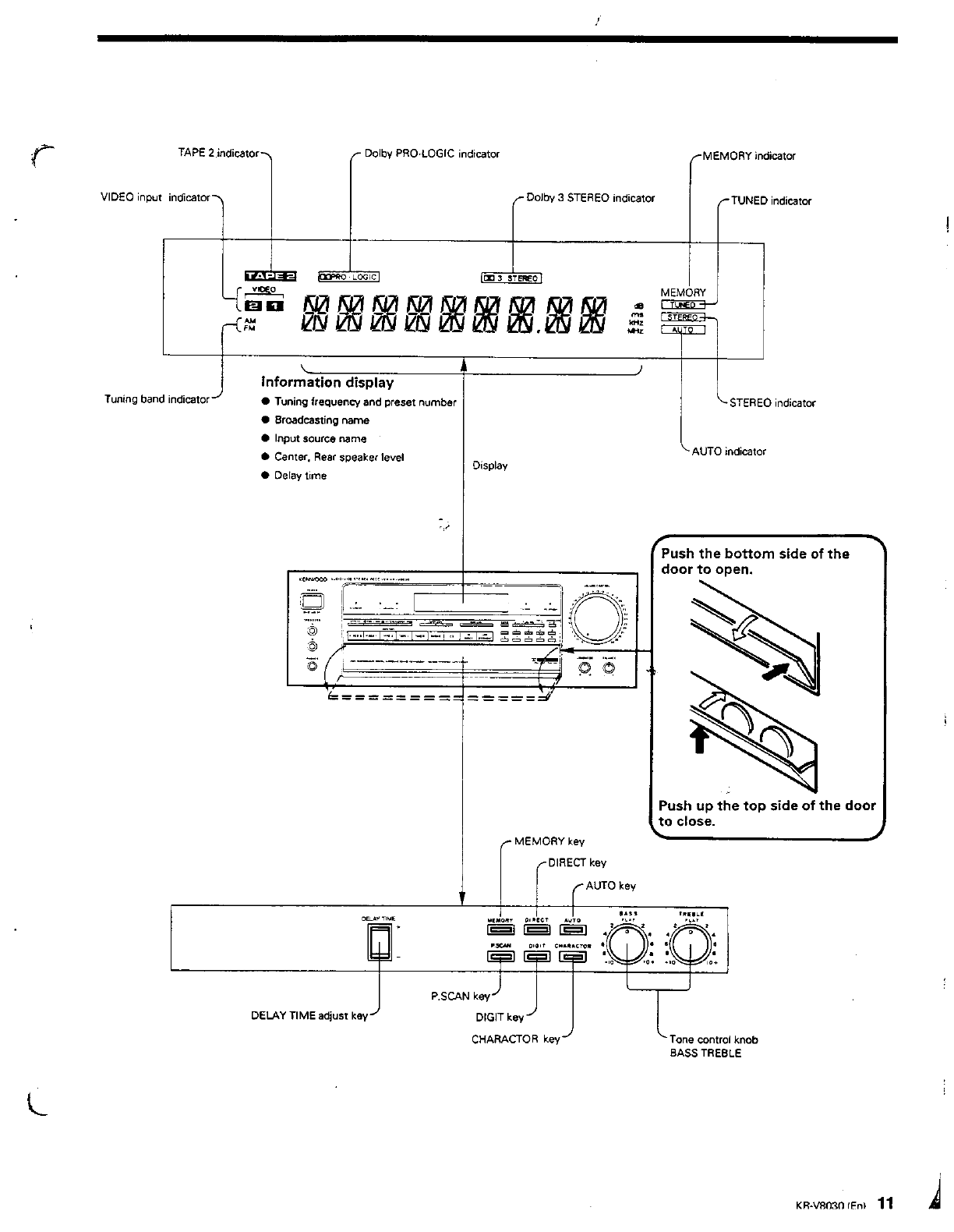

TAPE 2 indicator-~
VIDEO input indicator~
77 Dolby PRO-LOGIC indicator
7 Dolby 3 STEREO indicator
MEMORY indicator
77 TUNED indicator
Tuning band indicator
@ Tuning frequency and preset number
® 8roadcasting name
® Input source name
@ Center, Rear speaker level .
Display
@ Delay time
rae EEPRO- Tocic) (Gas STEREO]
Lf eee mw MEMORY
oo
MR
RRRR
RRR
=
(STEREOS,
an)
VN
ca
)
information display
a \. STEREO indicator
“AUTO indicator
(Push the bottom side of the ~)
door to open.
LY
MEMORY key
Push up the top side of the door
to close. )
DIRECT key
[ cane key
eass
oeLAY Tae wotonr ouneet _auro mt
*
4 “
SCAN mart twaractor # :
7 ‘ 1o%
] P.SCAN tev ]
DELAY TIME adjust key DIGIT key
CHARACTOR key
Tone control knob
BASS TREBLE
11 KR-V8030 (En)

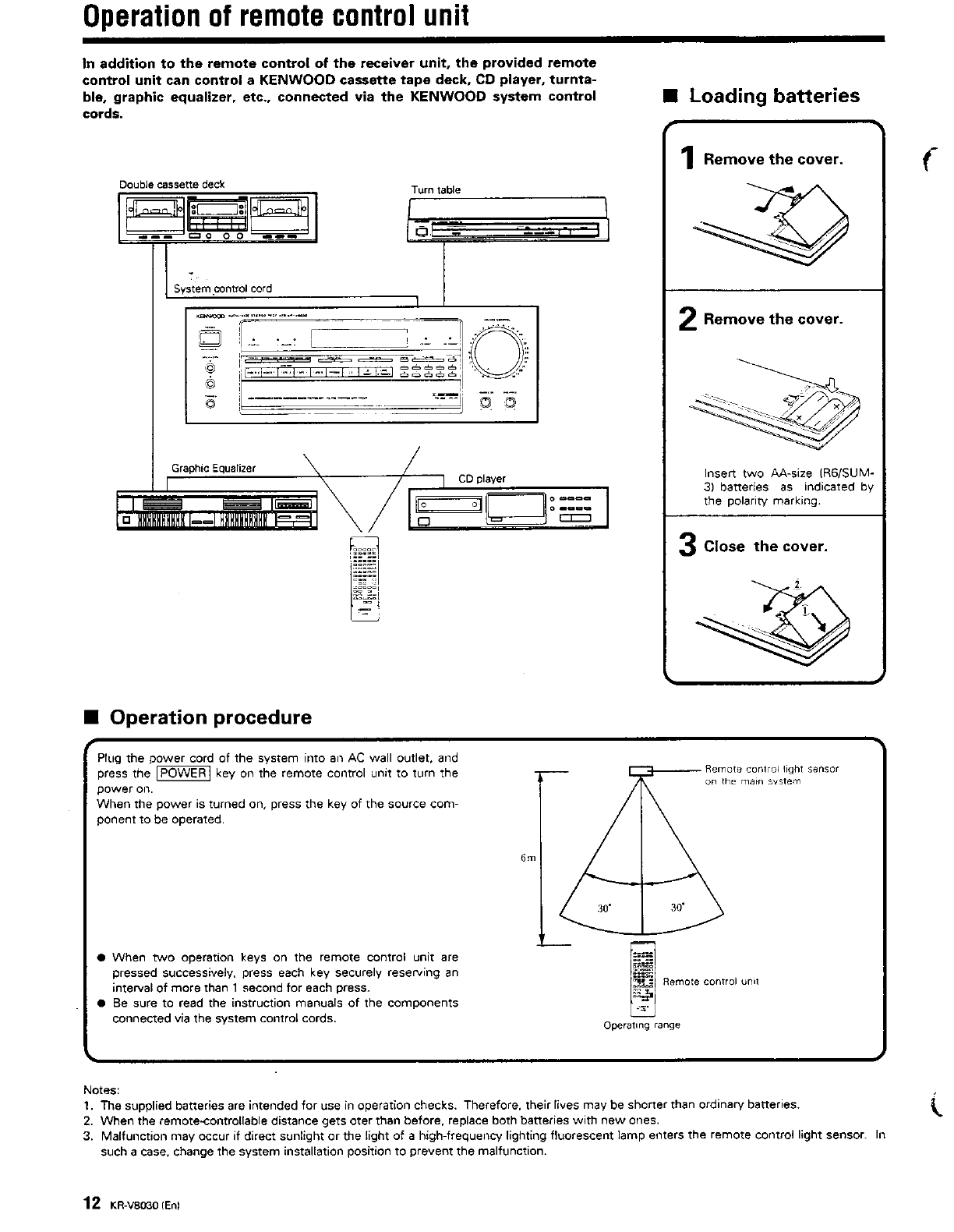

Operation of remote control unit
In addition to the remote control of the receiver unit, the provided remote
control unit can control a KENWOOD cassette tape deck, CD player, turnta-
ble, graphic equalizer, etc., connected via the KENWOOD system control
cords.
Double cassette deck Turn
table
dLaca lh
e6o5
Saan
@ Loading batteries
f— ™~
1 Remove the cover.
Insert two AA-size (R6/SUM-
3) batteries as indicated by
the polarity marking.
= 1 CD player
E 5|| |e Soc
t= a
a
@ Operation procedure
3 Close the cover.
2
Ly
Plug the power cord of the system into an AC wall outlet, and
press the key on the remote control unit to turn the
power on.
When the power is turned on, press the key of the source com-
ponent to be operated.
@ When two operation keys on the remote control unit are
pressed successively, press each key securely reserving an
interval of more than 1 second for each press.
@ Be sure to read the instruction manuals of the components
connected via the system control cords.
L
30°
Operating range
Remote control light sensor
on the main system
Remote control unit
Notes:
1, The supplied batteries are intended for use in operation checks. Therefore, their lives may be shorter than ordinary batteries.
2. When the remote-controllable distance gets oter than before, replace both batteries with new ones.
3. Malfunction may occur if direct sunlight or the light of a high-frequency lighting fluorescent lamp enters the remote control light sensor. In
such a case, change the systern installation position to prevent the malfunction.
12. xRr-vso30 (En)

:
\

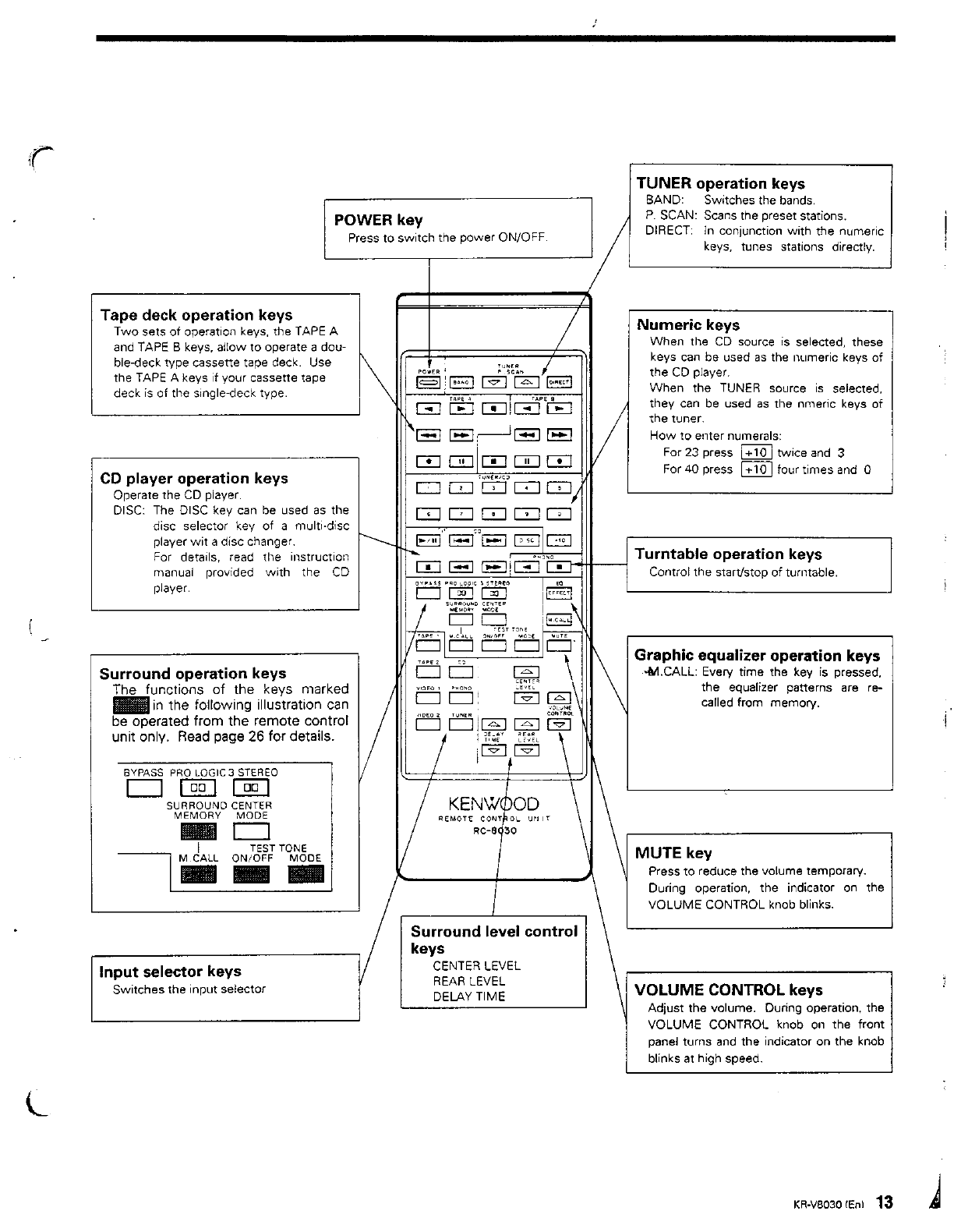

POWER key
Press to switch the power ON/OFF.
TUNER operation keys
BAND: Switches the bands.
P. SCAN: Scans the preset stations.
DIRECT: In conjunction with the numeric
keys, tunes stations directly.
Tape deck operation keys
Two sets of operation keys, the TAPE A
and TAPE B keys, allow to operate a dou-
bie-deck type cassette tape deck. Use
the TAPE A keys if your cassette tape
deck is of the single-deck type.
CD player operation keys
Operate the CD player.
DISC: The DISC key can be used as the
dise selector key of a multi-disc
player wit a disc changer.
For details, read the instruction
manual provided with the CD
player.
Numeric keys
When the CD source is selected, these
keys can be used as the numeric keys of
the CD player.
When the TUNER source is selected,
they can be used as the nmeric keys of
the tuner.
How to enter numerals:
For 23 press twice and 3
For 40 press four times and 0
Surround operation keys
The functions of the keys marked
in the following illustration can
be operated from the remote control
unit only. Read page 26 for details.
BYPASS PRO LOGIC 3 STEREO
SURROUND CENTER
MEMORY MODE
j TEST TONE
M.CALL ON/OFF MODE
DYPASS PRO LOGIC 3 STEREO
SURROUND CENTER
MEMORY MOSE
T Test tone
T] mcaty QWneF Moz
ao
ee
\
COO) a=)
/ ae
t ‘9
KENWOOD
REMOTE CONTROL UNIT
RC-8930
Input selector keys
Switches the input selector
Surround level control
keys
CENTER LEVEL
REAR LEVEL
DELAY TIME
Turntable operation keys
Control the start/stop of turntable.
Graphic equalizer operation keys
~M.CALL: Every time the key is pressed,
the equalizer patterns are re-
called from mernory.
MUTE key
Press to reduce the volume temporary.
During operation, the indicator on the
VOLUME CONTROL knob blinks.
VOLUME CONTROL keys
Adjust the volume. During operation, the
VOLUME CONTROL knob on the front
panel turns and the indicator on the knob
blinks at high speed.
kr-veo30 En 13
i
J

Basic operation
" key
r~ Display
—— CONTROL
@ Basic operation
— PHONES jack ‘Input select keys
BALANCE control
LOUDNESS contral
Tone controls BASS TREBLE
r
1 Press the POWER key to ON.
POWER
ON/S Y
4 Adjust the volume.
Main unit
VOLUME CONTROL
aziga181617
1
The source name characters appear on the display
TUNER
[wows [woes noo Le |
@ When the cassette deck, CD player and turntable are connected
via the system control cord, any of these source components
Starts to be played automatically when the corresponding input
selector switch is pressed.
point indicator is blinking.
Remote control unit
VOLUME
CONTROL
WZ)
@ When the volume is adjusted from the remote control unit, the
VOLUME CONTROL knob on the main unit rotates while the
BALANCE
5 Adjust the left and right volume balance.
6 Adjust the tone.
3 Play the source component.
\.
BASS
2 FLAT 2
4 4
6 6
8 8
-10 10+
TREBLE
2 FLAT 9
14 krvaoso (en

H To mute the sound temporarily
REMOTE CONTROL ONLY
Hf Listening through headphones
(- a
Press the MUTE key on the remote control unit.
VOLUME CONTROL
121Al81617.g
MUTE
Insert the headphole plug into the
headphones jack.
é
@ The effect of LOUDNESS control is less sensible if the VOL-
UME CONTROL is set to the "5" position or above.
Blinks 9 21
Fy 28 @ Set the SPEAKERS switch so that both speaker systems A
8 38 and 8 are OFF.
4 26
7)
ig 2 Adjust the volume.
VOLUME CONTROL
12t3S81817 1g
" 19
E) 21
8 22
7 23
6 24
@ The indicator on the VOLUME CONTROL knob on the 3 38
front panel! blinks. 27
@ Pressing the key again resumes the previous volume.
@ Be sure to minimize the volume before unplugging the head-
\_ y) © phone piug. y,
Note on LOUDNESS control
Listening at high volume allows to enjoy dynamic sound, but hu-
man ears tend to feel low frequencies insufficient when listen-
ing at low volume. When the VOLUME CONTROL is set to a
tow position, the insufficiency of low frequencies felt by human
ears can be compensated by turning the LOUDNESS control
clockwise.
Enhances low frequencies.
LOUDNESS
Notes:
1, When the TAPE 2 key is set to ON, the source selected with
the INPUT SELECTOR cannot be heard from the seakers. To
listen to a source other than cassette deck 2, be sure to set
0 10 the TAPE 2 key to OFF.
2. The source selected with the INPUT SELECTOR is backed
up for a few days even when the power cord is unplugged.
After this period, the tuner is automatically selected when
the power is supplied.
xr-veosoiem 15 y

Basic operation
TAPE 1 key
TAPE 2 key
-— CD DIRECT indicator
r— LINE STRAIGHT indicator
KENGOOO etree ttm
O°
| Operation of CD DIRECT playback
The digital sound of Compact Disc features an ideal re-
production characteristics, and the sound quality pro-
vided by CD can be reproduced with least degradatin by
means of the CD direct playback function.
Input select keys —
L_LINE STRAIGHT key
LCD DIRECT key
H Operation of LINE STRAIGHT
playback
This CD, with least degradation of sound quality.
f- _, f >
1 Press the CD DIRECT key. 1 Select an input source.
D .
bigyer
Lights
up
vingo2
|
viDEO1
TAPE
Z
|
TAPE
t
TUNER
PHONG
co
|
°
CD DIRECT LINE STRAIGHT
2
Play
the
CD
player.
2
Press
the
LINE
STRAIGHT
key.
PLAY/PAUSE LINE
th STRA\GHT ° cos
q CD DIRECT LINE STRAIGHT
C)
@ The CD DIRECT selection is given priority to any other source
being selected by the INPUT SELECTOR. 3 Play the input source.
\. J \. y,
i
‘
(
\
To cancel the CD DIRECT playback function. To cancel LINE STRAIGHT playback
Press
the
CD
DIRECT
key
again,
or
select
the
INPUT
Press
the
LINE
STRAIGHT
key
again.
SELECTOR.
cD LINE
DIA \CT STR{)GHT
@
CD
DIRECT
indicator
goes
off.
@
LINE
STRAIGHT
indicator
goes
off.
\. x7 yy,
Note:
Ouring CD DIRECT or LINE STRAIGHT playback, the tone controls do not function.
16 xr-veo30 En)
oo

nt
M@ Ordinary tape recording
@ Tape dubbing (TAPE2 » TAPE1)
Select the source to be
recorded. DIPINEY
TAPE 1
TUNER
PHONO L cD
va
1 Press the TAPE 2 key.
T TAPE
_ Lights up
VIDEO 1
2 Set cassette deck 1 or 2 in the record-pause
E=?
cd c= ---9
Record-pause mode
2 Select a source other than TAPE 1.
=
OHOND
PUPIL SINS
=
ving 2 | vinec?
ruven | prone
Play the source component to be recorded,
and start recording it on the cassette deck.
o ESSI0 :
2 =
---90
Recording starts.
@ In case of tape dubbing (TAPE 1 +» TAPE 2), play the cassette
deck connected to TAPE 1 and record on the cassette deck
connected to TAPE 2
A
3 Play cassette deck 2 and start recording on
cassette deck 1.
Start recording on deck 1.
Play cassette deck 2.
@ Do not select TAPE 1 while dubbing.
a y,
@ Listening to CD while recording
another source
Note:
For the tape-to-tape dttbbing procedure using a double-deck
type cassette tape deck, please read the instruction manual pro-
vided with the double-deck type cassette tape deck.
cr
1 Select the source to be recorded.
TUNER
PHONO co
im
Start recording on the cassette
3 deck connected to the TAPE 1 jacks.
Ss Se
Recording starts.
2 Play the source to be recorded.
4 Press the CD DIRECT key.
Tne cy
°
CD DIRECT LINE STRAIGHT
co
DIRECT
CD DIRECT indicator Lights up
5 Play the CD player.
@ No other source can be selected until the cassette deck record-
ing is stopped.
@ The source name on the display remains the same, i.e, the name
of the recorded source. J
kR-vg030 (En) 17 |

Listening to broadcasts
TUNER key-} BAND key p TUNING key
M@ Receiving broadcast stations and
storing them in memory (preset
operation)
ee OR AN tay — Numeric key
DIGIT key— AUTO key
‘\
1 Press the TUNER key.
TAPE 1 TUNER PHONO
ial
son rox ~~ 9500. &
@ Previous reception mode is resurned. oo ty aia
@ Pressing the BAND key also set the unit to tuner mode.
2 Select the broadcast band. BAND
aaa 55.00 . 3
Each tire the BAND key is pressed, the
reception band changes between FM and
AM.
3 Select the tuning mode.
AUTO
Lights Pe
@ Normally, select the auto mode Pee 9500 . =
{with AUTO lighted).
Press the key to select the auto (AUTO lighted} or
manual (not lighted) mode.
4 Tune the desired station.
V TUNING A -
To decrease To increase
frequency frequency
Auto tuning mode Manual tuning mode
@ The TUNED indicator lights up when a station is received. Press once. (Tuning Press repeatedly, or press and
@ Use manual tuning mode when the radio wave is weak and stops automatically hold, until the desired station is
noisy. At this time, the stereo FM broadcast is received in when a station is received.)| received.
monaural mode.
5 Store the station in preset memory. MEMORY
MEMORY | lights up for apprx. 5 seca
@
Press
the
MEMORY
key.
7
r
@ Proceed the steps 2 while the [ MEMORY} indicator is lighted. 3 ea 99s
thie - oe
@Press the numeric key.
Ex.) To select preset No. 3:
BAND V_TUNING A +30
To select preset No. 13: mS —— 2 WEMORYoces off
To select preset No. 20: {9} ooooo |
6 7 8 ° 133 GnSn . =
. coco co ~ =
@ Up to 20 stations can be- preset at random, regardless
of the reception band.
@ When a station has previously been preset under the When preset No. 13 is selected.
numeric key pressed, the newly preset station replaces
the
previous
station.
J
18 kr-vaogo (en

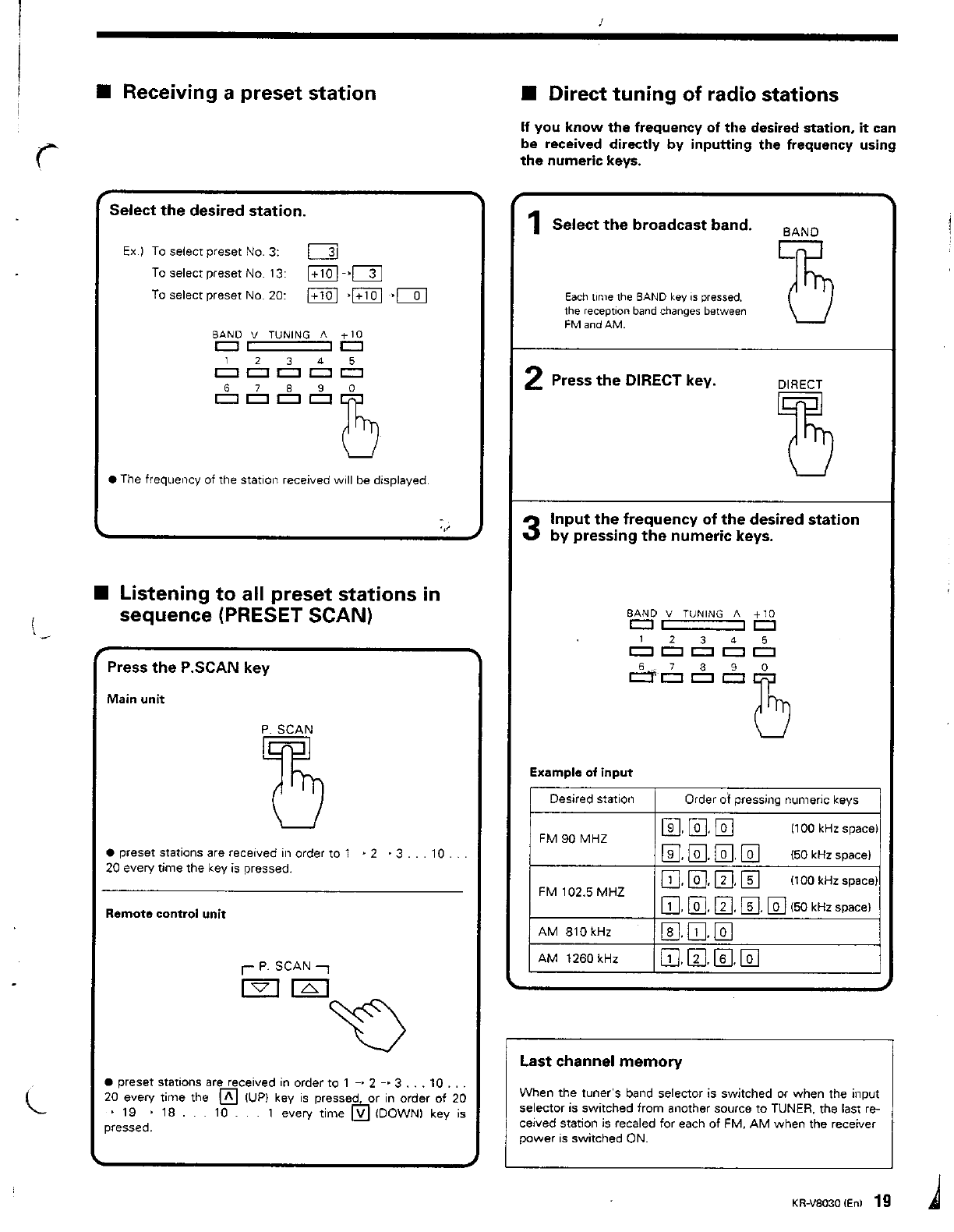

@ Receiving a preset station
M Direct tuning of radio stations
lf you know the frequency of the desired station, it can
be received directly by inputting the frequency using
the numeric keys.
C- ; ; \ ¢ >
Select the desired station.
1 Select the broadcast band. ganiy
Ex.) To select preset No. 3:
To select preset No. 13:
To select preset No. 20: Each time the BAND key is pressed,
the reception band changes between
FM and AM.
BAND V_TUNING A +10
ob oo co
1 2 3 4 5
moomoo 2 Press the DIRECT key. piRECT
aooocooco ty
@ The frequency of the station received will be displayed.
a 3 Input the frequency of the desired station
\. / by pressing the numeric keys.
M@ Listening to all preset stations in
sequence
(PRESET
SCAN)
ees
8
1 2 3 4 5
"
~\
aonmco
Press
the
P.SCAN
key
i
rm
co
ca
a
Main unit
P_SCAN
Example of input
Desired station Order of pressing numeric keys
(100 kHz space}
FM 90 MHZ
@ preset stations are received in ordertoi1 »>2 *3...10... {50 kHz space)
20 every time the key is pressed. (100 kHz space!
FM 102.5 MHZ
. fol, [2], [5]. [0] t60 kHz space)
Remote control unit
AM 810 kHz , [0]
Al 60 KH. . .
P. SCAN 4 M 4260 kHz (6). [0]
Nee y,
@ preset stations are received in order to1 ->2--3...10...
20 every time the (UP} key is pressed, or in order of 20
*19 > 18...10... 1 every time
pressed,
Last channel memory
When the tuner’s band selector is switched or when the input
selector is switched from another source to TUNER, the fast re-
ceived station is recaled for each of FM, AM when the receiver
power is switched ON.
\.. r,
kr-veozoien 19

Listening to broadcasts
eee eee ee reer reer errr eee errr eee eee
@ Displaying station names
Station names composed of up to four digits of charactrers and/or symbols can be displayed on the tuner display.
Example: To receive FM 98.80 MHz, input its name with characters "CBE", and preset them under numeric key [3].
4 »
1 Receive FM 98.80 MHz, and enter the character input mode.
_ 7 9880. - Loe 3k
V TUNING A CHARACTOR Blinks
2 Select the characters to be displayed with that station.
® Display the desired character. ( Types of characters that can
V_TUNING_A
we
be
innput
a aise After having pressed the CHARACTER
key, press the TUNING key to display
the characters available.
® Establish the selection.
DIGIT _ rai pee seas Maree
. Qe
7 98765....3210
Blinking digit change to the next digit.
Biank position
® Repeat steps 1 and 2 until all of the required characters have
been input.
@ To select "C’, press the UP segment three times.
@ To insert a space, simply press the DIGIT key.
3 End the character input.
CHARACTOR
ane co ACS
~ b. 2Urt
@ The character input also terminates automatically when fourth character has been input.
@ Press the CHARACTER key to terminate character input with three characters or less.
4 Preset them under key|3 |.
@ Press the MEMORY key. ® Press numeric key/ 3 |.
pe CHET _O3 CBE |
MEMORY ; | 2 3 4 |
Lights up. = Cc goes off
Press while [MEMORY is lighted.
(End of preset)
20 xr-ve0a0 (En)
