Kenwood KR-V80 User manual

KR-V8030
INSTRUCTION
MANUAL
(
rT]
KENWOOD
CORPORATION
<<
.
0
@Dkevmy
B

introduction
Your choice of this product indicates that you are a devotee
to excellence in sound reproduction. :
We appreciate your patronage and take pride in the long
tradition of quality components that our company
represents.
So that you can get the most out of your unit, we suggest
that you take the time to read through this manuai before
you hook up and operate your system. This will acquaint
you with operating features and system-connection
considerations so that your listening pleasure will be
enhanced right from the start. You will notice that in all
aspects of planning, engineering, styling, operating
convenience and adaptability we have sought to anticipate
your needs and desires.
Keep this manual handy for future reference.
For your records
Record the serial number, found on the back of the unit, in
the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your dealer for
information or service on this product.
Model Serial Number
Unpacking
Unpack the unit carefully and make sure that all accessories
are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If
your unit is damaged or fails to operate, notify your dealer
immediately. If your unit was shipped to you directly, notify
the shipping company without delay. Only the consignee
(the person or company receiving the unit) can file a claim
against the carrier for shipping damage.
We recommend that you retain the original carton and pack-
ing materials for use should you transport or ship the unit in
the future.
Before operating the unit, remove packing material as
shown below.
Contents
Introduction
A\ Before applying power
Safety precautions
R IMPORTANT SAFEGUARDS
System connections
FM DE-EMPHASIS/CHANNEL SPACE switch
Control and indicators
2 KR-V8030 {En}
For the USA
Note to CATV system installer:
This reminder is provided to cali the CATV system installer's
attention to Article 820-44 of the NEC that provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Accessories
FM indoor antenna ..............
Batteries
{RG or AA) ooo eesceeeeceecee
Bide Sota’ AC plug adaptor ........cc eee
(except for some areas)
For the unit with a European
AC plug in areas other than
Europe.
Caution: Read the pages marked /\ carefully to ensure safe operation.
Basic operation
Listening to broadcasts
Operation with video components
DOLBY 3 STEREO
DOLBY SURROUND
In case of difficulty
A Specifications

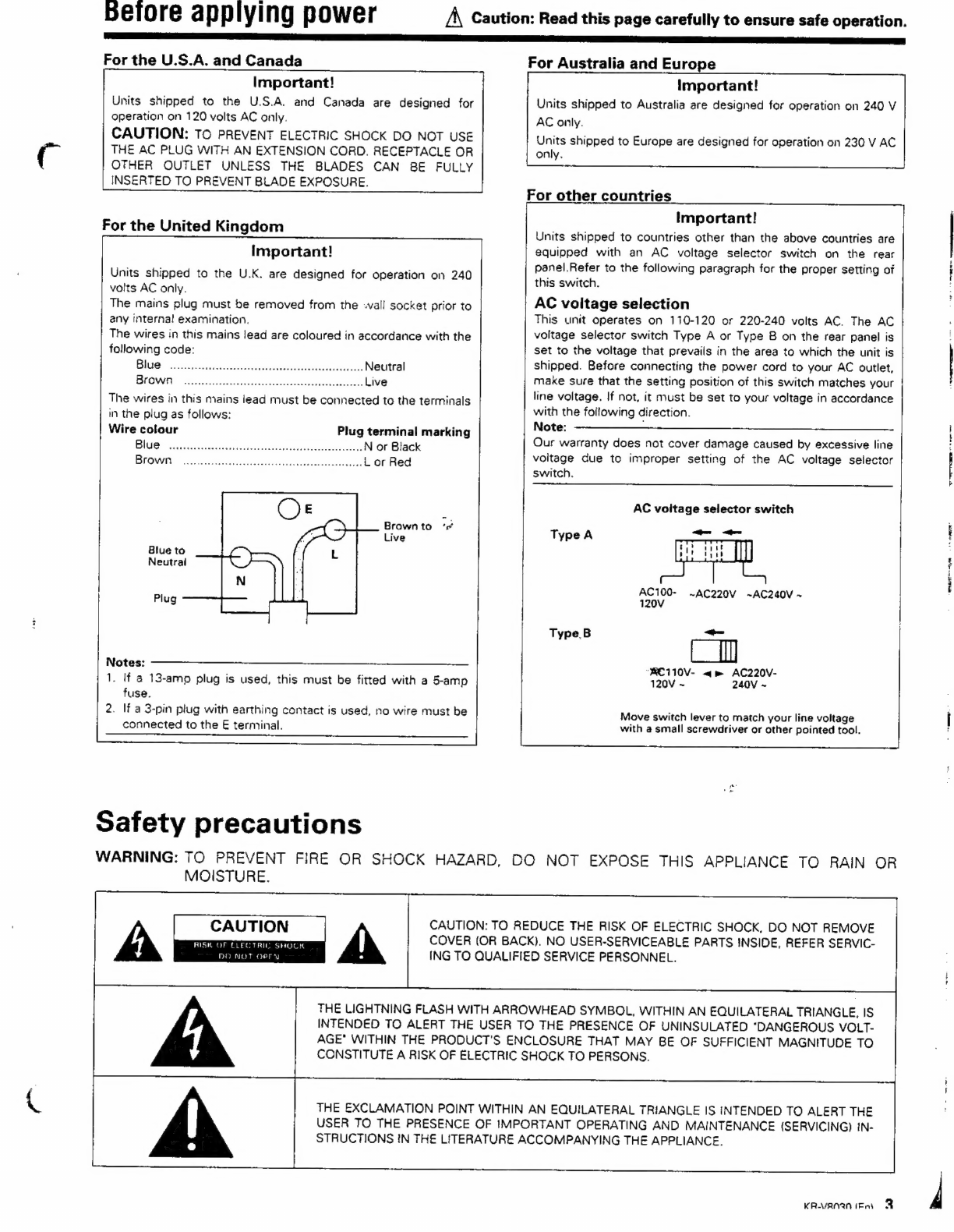

belo
rea
pp
lying
power
A\
Caution:
Read
this
page
carefully
to
ensure
safe
operation.
iri
eet
|
For
the
U.S.A.
and
Canada
For
Australia
and
Europe
Important!
operation on 120 volts AC only.
CAUTION: To PREVENT ELECTRIC SHOCK DO NOT USE
THE
AC
PLUG
WITH
AN
EXTENSION
CORD.
RECEPTACLE
OR
INSERTED TO PREVENT BLADE EXPOSURE.
For the United Kingdom
important!
Units shipped to the U.K. are designed for operation on 240
volts AC only.
The
mains
plug
must
be
removed
from
the
wall
socket
prior
to
any interna! examination.
The
wires
in
this
mains
jead
are
coloured
in
accordance
with
the
following code:
PO ches Secreta elated ty asain he Gate cantante Neutral
The
wires
in
this
mains
iead
must
be
connected
to
the
terminals
in
the
plug
as
follows:
Wire
cofour
Plug
terminal
marking
1
(2
TR
er
ate
re
U
Sa
Creme
N
or
Black
BGOWT
ssreca
Sedetetsteceenaat
cn
ivenietn
tens
L
or
Red
(> Brownto ‘e
Live
Blue to L
Neutral C)
Plug
Notes:
1. If a 13-amp plug is used, this must be fitted with a 5-amp
fuse.
2.
If
a
3-pin
plug
with
earthing
contact
is
used,
no
wire
must
be
connected
to
the
E
terminal.
Safety precautions
WARNING:
TO
PREVENT
FIRE
OR
SHOCK
HAZARD,
DO
NOT
EXPOSE
THIS
APPLIANCE
TO
RAIN
OR
MOISTURE.
CAUTION
RISK OF CLECTRIC SHOCK
DO NOT OPFN
Units shipped to the U.S.A. and Canada are designed for
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY
For other countries
important!
Units shipped to Australia are designed for operation on 240 V
AC only.
Units shipped to Europe are designed for operation on 230 V AC
only.
Important!
Units shipped to countries other than the above countries are
equipped with an AC voltage selector switch on the rear
panel.Refer to the following paragraph for the proper setting of
this switch.
AC voitage selection
This unit operates on 110-120 or 220-240 volts AC. The AC
voitage selector switch Type A or Type B on the rear panel is
set to the voltage that prevails in the area to which the unit is
shipped. Before connecting the power cord to your AC outlet,
make sure that the setting position of this switch matches your
line
voltage.
If
not,
it
must
be
set
to
your
voltage
in
accordance
with the following direction.
Note:
Our warranty does not cover damage caused by excessive line
voltage due to improper setting of the AC voltage selector
switch.
AC voltage selector switch
Type
A
anand
Fm
III
AC100-
~AC220V
~AC240V
~
120V
Type
B
=
mall
“REV1OV- «qm AC220V-
120V ~ 240V ~
Move switch lever to match your line voltage
with a small screwdriver or other pointed tool.
CAUTION:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK,
DO
NOT
REMOVE
COVER
(OR
BACK).
NO
USER-SERVICEABLE
PARTS
INSIDE,
REFER
SERVIC-
ING
TO
QUALIFIED
SERVICE
PERSONNEL.
THE
LIGHTNING
FLASH
WITH
ARROWHEAD
SYMBOL,
WITHIN
AN
EQUILATERAL
TRIANGLE,
IS
INTENDED
TO
ALERT
THE
USER
TO
THE
PRESENCE
OF
UNINSULATED
‘DANGEROUS
VOLT-
AGE"
WITHIN
THE
PRODUCT'S
ENCLOSURE
THAT
MAY
BE
OF
SUFFICIENT
MAGNITUDE
TO
CONSTITUTE
A
RISK
OF
ELECTRIC
SHOCK
TO
PERSONS.
THE
EXCLAMATION
POINT
WITHIN
AN
EQUILATERAL
TRIANGLE
IS
INTENDED
TO
ALERT
THE
USER
TO
THE
PRESENCE
OF
IMPORTANT
OPERATING
AND
MAINTENANCE
(SERVICING)
IN-
STRUCTIONS
IN
THE
LITERATURE
ACCOMPANYING
THE
APPLIANCE.
KR-vananitn &
oe meng aten
tome
Stee. de
eat en

WIFURITANT oAFEU VARS A Caution: Read this page carefully to ensure safe operation.
Please read ail of the safety and operating instructions
before operating this unit. For best results, follow ail
warnings placed on the unit and adhere to the operating and
use instructions. These safety and operating instructions
should be retained for future reference.
1. Power sources ~ The unit should be connected to a
power supply only of the type described in the
operating instructions or as marked on the appliance.
2. Power-cord protection —- Power-supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, pay
particular attention to cords at plugs, convenience
receptacles, and.the point where they exit from the
unit.
Never pull or stretch
the cord.
3. Grounding or polarization — The precautions should
be taken so that the grounding or polarization means of
this unit is not defeated.
4. Ventilation - The unit should be situated so that its
location or position does not interfere with its proper
ventilation.
To maintain good ventilation, do not put records or a
table-cloth on the unit. Place the unit at feast 10 em
away from the walls.
Do not use the unit on a bed, sofa, rug or similar
surface that may block the ventilation openings.
5. Water and moisture -—The unit should not be used
near water ~for example, near a bathtub, washbow/l,
kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, etc.
6. Temperature - The unit may not function property if
used at extremely low, or.freezing temperatures. The
ideal ambient temperature is above +5°C (41°F).
4 kR-V8030 (En)
7. Heat= The unit should be situated away from heat
sources such as radiators, heat registers, stoves, or
other units (including amplifiers) that produce heat.
8. Electric shock — Care should be taken so that objects
do not fall and liquid is not spilled into the enclosure
through openings. If a metal object, such as a hair pin
or a needle, comes into contact with the inside of this
unit, a dangerous electric shock may result. For families
with children, never permit children to put anything,
especially metal, inside this unit.
9. Enclosure removal — Never remove the enclosure. If
the internal parts are touched accidentaily, a serious
electric shock might occur.
10. Magnetic fields — Keep the unit away from sources of
magnetic fields such as TV sets, speaker systems,
radios, Motorized toys or magnetized objects.
11. Cleaning — Do not use volatile solvents such as alcohol,
paint thinner, gasoline, or benzine, etc. to clean the
cabinet. Use a clean dry cloth.

C
12.
13.
14.
15.
Notes:
1. Item 3 is not required except for grounded or polarized equipment.
2. Item 17 and 18 are not required except for units provided with antenna terminals.
A Caution: Read this page carefully to ensure safe operation.
Carts and stands — An appliance and cart combination
should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance
and cart combination to overturn.
Vs ai
~~
Nonuse periods —7The power cord of the unit should
be unpiugged from the outlet when left unused for a
jong period of time.
Abnormal smell—-If an abnormal smeil or smoke is
detected, immediately turn the power OFF and pull out
the power cord. Contact your dealer or nearest service
center.
POWER OFF!
Damage requiring service-The unit should be
serviced by qualified service personnel when:
A. The power-supply cord or the plug has been
damaged; or
B. Objects have failen, or liquid has been spilled into
the unit; or
C. The unit has been exposed to rain; or
D. The unit does not appear to operate normally or
exhibits a marked change in performance; or
E. The unit nas been dropped, or the enclosure
damaged.
. Servicing — The user should not attempt to service the
unit beyond that described in the operating instructions.
All other servicing should be referred to qualified
service personnel.
. Outdoor antenna grounding - |f an outside antenna is
connected to the receiver, be sure the antenna system
is grounded so as to provide some protection against
voltage surges and built up static charges. Section 810
of the National Electrical Code, ANSI/NFPA No. 70 -
1984, provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding
electrode. See Figure.
3. item 17 complies with UL in the U.S.A.
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
ANTENNA
ANTENNA
DISCHARGE UNIT
{NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
(NEC SECTION B10-21)
GROUND CLAMPS
aaate————— POWER SERVICE GROUNDING
ELECTRODE SYSTEM
NEC — NATIONAL ELECTRICAL CODE (NEC ART 250, PART H)
18. Power lines —- An outdoor antenna should be located
away from power lines.
19. AC outlets -—Do not connect other audio equipment
with @ power consumption larger than that specified to
the AC outlet on the rear panel. Never connect other
electrical units, such as an iron or toaster, to it to
prevent fire or electric shock.
KR-vg030 (En) 5
i

System connections

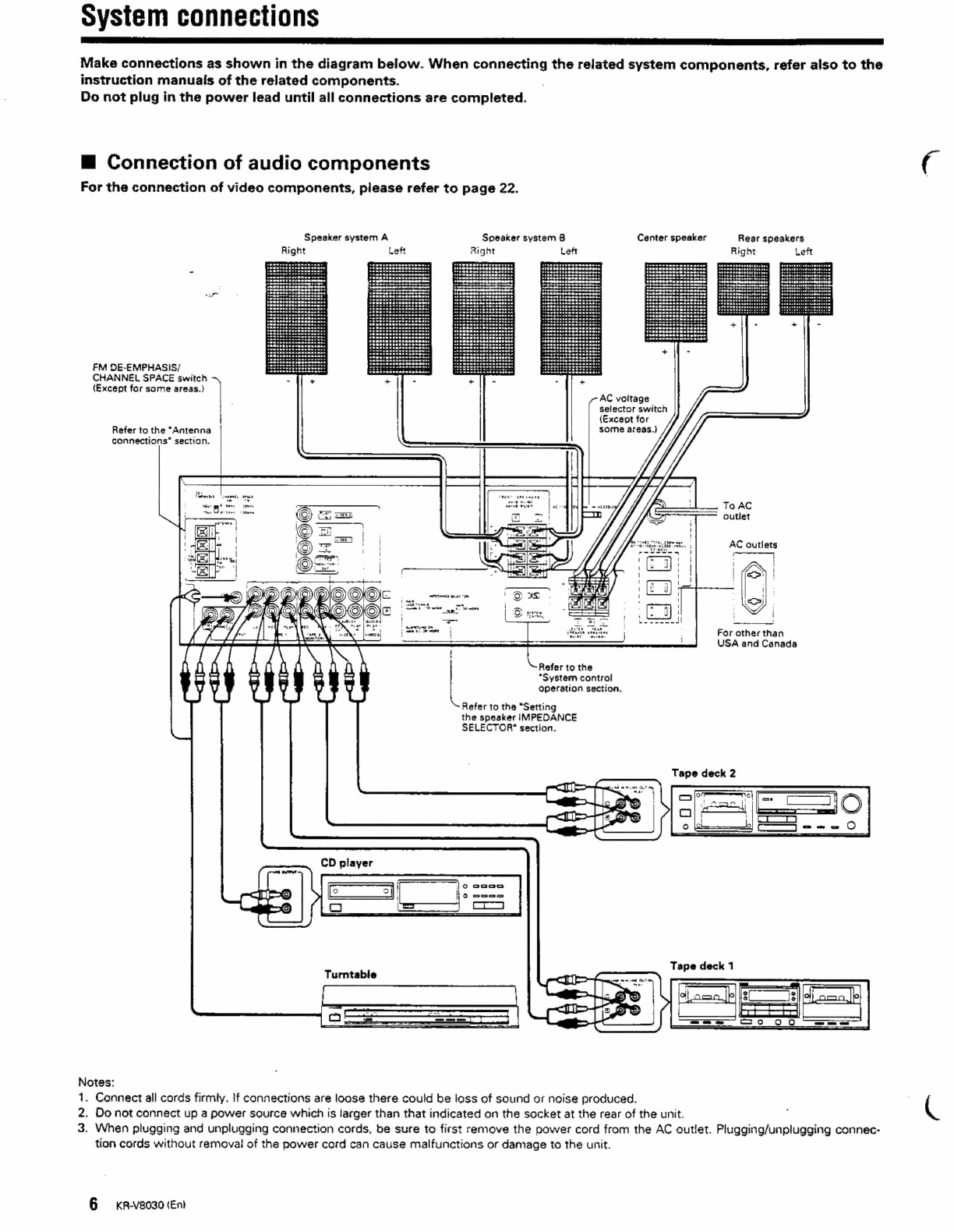

Make connections as shown in the diagram below. When connecting the related system components, refer also to the
instruction manuals of the related components.
Do not plug in the power lead until all connections are completed.
HM Connection of audio components
For the connection of video components, please refer to page 22.
Speaker system A Speaker system 8 Center speaker Rear speakers
Right Left Right Left Right Left
FM DE-EMPHASIS/
CHANNEL SPACE switch ~
{Except for same areas.}
77 AC voltage
selector switch
(Except for
some areas.)
Refer to the “Antenna
connections" section.
To AC
outlet
AC outlets
a
5500
OOO
OE
2.
sees
Weick
Aff
8
a:
dil
oe
[Ser
\ Refer to the
“System control
operation section.
; For other than
: USA and Canada
Refer to the "Setting
the speaker IMPEDANCE
SELECTOR™ section.
Tape deck 2
Tape deck 1
Notes:
1. Connect all cords firmly. If connections are loose there could be loss of sound or noise produced.
2. Do not connect up a power source which is larger than that indicated on the socket at the rear of the unit.
3. When plugging and unplugging connection cords, be sure to first remove the power cord from the AC outlet. Plugging/unplugging connec-
tion cords without removal of the power cord can cause malfunctions or damage to the unit.
6 KR-V8030 (En)

Connection of antennas
@ Push the lever.
@ Insert the conductor. @) Return the lever.
@ Never short-circuit the + and - speaker cords.
@ If the feft and right speakers are connected inversely or if
the speaker cords are connected with reversed polarity,
the sound becomes unnatural with ambiguous acoustic
image positioning. Be sure to connect the speakers and
speaker cords correctly.
Setting the SPEAKER IMPEDANCE SELECTOR
IMPEDANCE SELECTOR
AorB:
LESS THAN 8 > Aor®
Aand®-8~ OR MORE 8° OR MORE
— be
—?
SURROUND ON
AorB& > OR MORE
@ When Surround speakers are not connected
Selector
position
Usable speaker
impedance
When speakers A and B are connected
The impedance of both speakers
should be 8Q- 162
When speakers A or B are connected
When the impedance of the
speakers is 8Q-1602
When the impedance of the
speakers is 42-6 Q
FM DE-EMPHASIS/CHANNEL SPACE switch
{Except for some areas}
The FM DE-EMPHASIS/CHANNEL SPACE switch on the rear panel
is set to the correct setting that prevails in the area to which the
unit is shipped. However, if the FM DE-EMPHASIS/CHANNEL
SPACE setting is not matched to the area where the unit is to be
used; for instance, when you move from area 1 to area 2 or vice
versa, desired reception of AM/FM broadcasts is not expected. !n
this case, change the FM DE-EMPHASIS/CHANNEL SPACE setting
in accordance with the area corresponding to the table. The FM
DE-EMPHASIS is switched over at the same time.
@ When changing the setting of the FM DE-EMPHASIS/CHANNEL
SPACE switch, first disconnect the power cord, then reset the
channel space switch, connect the power cord again during
pressing the TUNER key of the input selector, and turn the pow-
eron.
When activating the CHANNEL SPACE switch, the preset mem-
ory contents of the tuner and the set up memory contents of
the SURROUND function will be lost.
According to the impedance of the speakers used, set the
SPEAKER IMPEDANCE SELECTOR on the rear panel as shown
in the table.
@ During speaker system connection and operation of the
SPEAKER IMPEDANCE SELECTOR, set the POWER switch to
OFF.
@ When the IMPEANCE SELECTOR is in §) position, sound
is Not output from the center and rear speakers.
@ When Surround speakers are connected
Selector
position
Usable speaker
impedance
The impedance of the front speakers
A and B, center speaker and rear
speakers should be 8 Q2-16Q.
When both of SPEAKERS A and 8 keys are ON, pressing
the PRO LOGIC key or 3 STEREO key switches the speak-
ers key setting to A ON alone. If the B key is pressed now,
the SPEAKERS key setting will be switched to B ON
alone.
U.S.A., Canada, and FM : 100 KHZ
South American AM : 10KHZ
countries.
Other countries FM :50 KHZ
AM :3 KHZ
DE-
EMPHASIS CHANNEL SPACE
AM FM
50us a A 9KHz SOKHz
75y5 FicKkHz 100KHz
et ae
= Feb

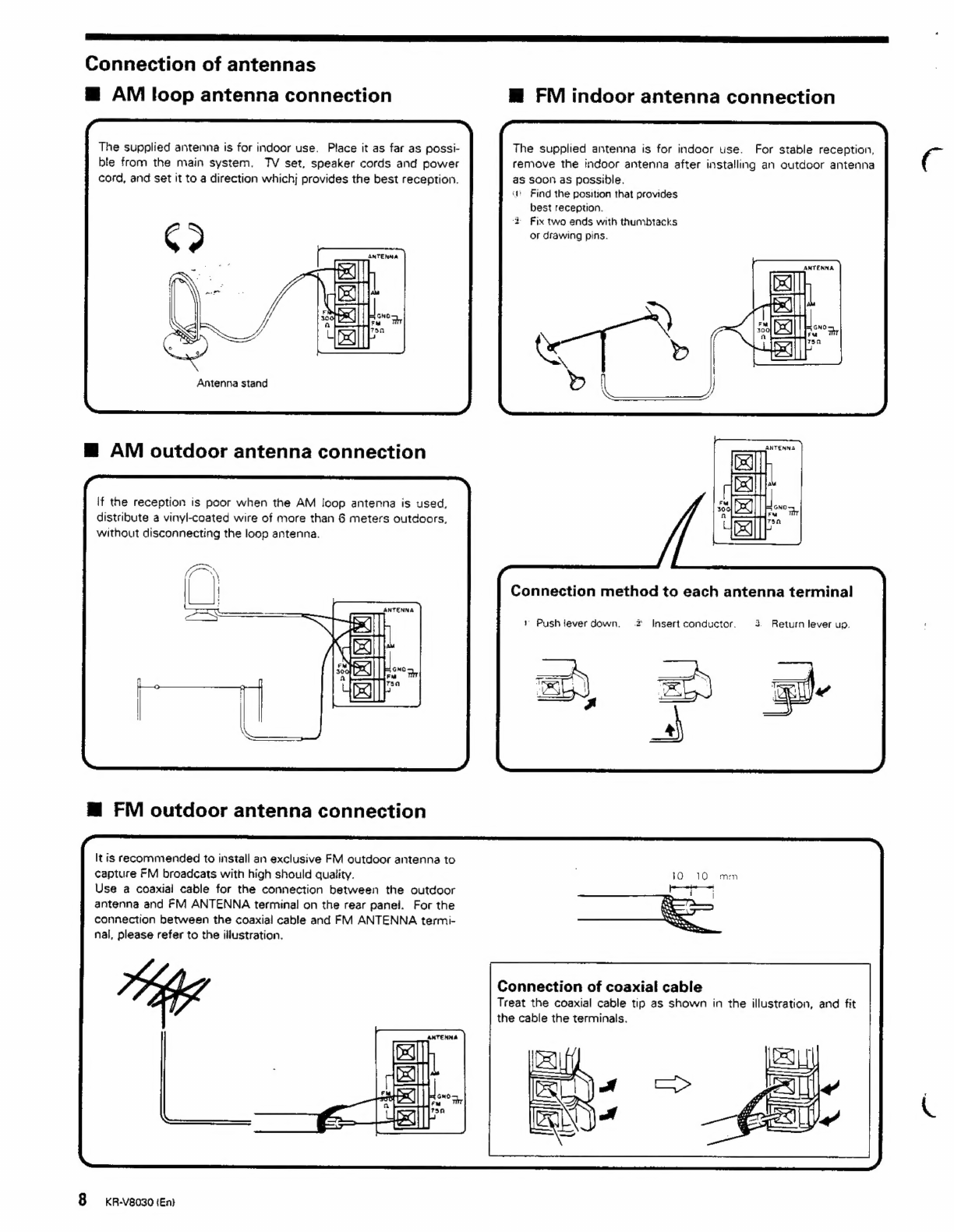

Connection of antennas
@ AM loop antenna connection @ FM indoor antenna connection
The supplied antenna is for indoor use. For stable reception,
remove the indoor antenna after installing an outdoor antenna
as soon as possible.
i Find the position that provides
best reception.
‘2 Fix two ends with thumbtacks
or drawing pins.
The supplied antenna is for indoor use. Place it as far as possi-
ble from the main system. TV set, speaker cords and power
cord, and set it to a direction whichj provides the best reception.
Antenna stand
B AM outdoor antenna connection
if the reception is poor when the AM loop antenna is used,
distribute a vinyl-coated wire of more than 6 meters outdoors,
without disconnecting the loop antenna.
Connection method to each antenna terminal
1 Push lever down. 2 Insert conductor. 3. Return lever up.
@ FM outdoor antenna connection
It is recommended to install an exclusive FM outdoor antenna to
capture FM broadcats with high should quality.
Use a@ coaxial cable for the connection between the outdoor
antenna and FM ANTENNA terminal on the rear panel. For the
connection between the coaxial cable and FM ANTENNA termi-
nal, please refer to the iliustration.
Connection of coaxial cable
Treat the coaxial cable tip as shown in the illustration, and fit
the cable the terminals.
8 KR-v8030 (En)

=
System control operation
Connection
Using the system control cords provided with KENWOOD system component models, make connections as shown
below.
Turntable
eR) To AC
S== = outlet
Ss 1
For a cassette deck to
be
subject
to
system
=
|
control operation, it |
must be connected to
the TAPE 1 jacks.
|
¥ Cassette deck
Operation
By connecting this unit to KENWOOD cassette deck CD player,
and turntable modeis equipped with system control jacks, the
foilowing integrated operation features become available.
1. Automatic play operation e
When starting play with the turntable, cassette deck, or CD
player connected to the receiver, press the desired input se-
lector keys on the receiver. The turntable, cassette deck, or
CD player will autornaticlaly enter play mode.
In the same way, pressing the pLay key of turntable, cas-
sette deck, or CD player will automatically switch the input
selector on the receiver to the component on which the
Play key is pressed.
. Synchro recording
To record the sound from the CD player or tumtable on to a
tape with the cassette deck, press the CD or PHONO of the
input selector keys and load a CD or record. Set the cas-
sette deck to rec pause mode, then press the PLAY
(START) key of theCD player or tumtable. The cassette
deck will start recording automatically, synchronized with
the CD player or turntable starting play.
@ Be sure to insert the system control cord plugs fully into the
SYSTEM CONTROL terminals.
@ If the system control cord and audio cords are not connected
properly, the automatic system governing remote control and
system functions will not noperate.
. Remote control
The remote control unit provided with this unit, to which a
KENWOOD system turntable, cassette deck, or CD player is
connected, is equipped with reiated control keys. The relat-
ed components can be controlled used these keys.
KR-vg030 {En} 9
d

Controls and indicators
Remote sensor
PRO -LOGIC key BAND key
STAND
BY
indicator
SPEAKER
A,
B
indicators
TUNING
key
BY
PASS
key
CENTER
MODE
key
LINE
STRAIGHT,
CD
DIRECT
indicators
3 STEREO key REAR LEVEL keys + 10 key
POWER key CENTER LEVEL VOLUME CONTROL
keys with point indicator
KENWOOD
¥DLUME FONTROL
—_—_—_—_—_—_— eee ee ee ee eee
FOWER
omsatann er
; 38 eS ip
SPEAKERS
[MONTOm)
VIOEO 2 | wOEG rope z | rap Ture aug LINE
LOUDNESS BALANCE
HIGH PERFORMANCE O+GITAL SURROUND
Input
select
keys
CD
DIRECT
key
BALANCE
knob
LINE
STRAIGHT
key
PHONES
jack
Numeric
keys
LOUDNESS
control
knob
SPEAKER A and 8B keys
A,.BOFF @ This position silences all speakers to permit pri-
vate use of headphones.
AON @ Activates speakers connected to the SPEAK-
ERS A terinals on the rear panet.
BON @ Activates the speakers connected to the
SPEAKERS B terminals on the rear panel.
A.BON @ Activates the speakers connected to the
SPEAKERS A and B terminals simultaneously.
SPEAKERS
A
O
©)
A SPEAKERS B
STAND BY mode of POWER switch
When the power cord of this system is plugged into an Ac out-
let, the STAND BY indicator lights up regardless of the ON/OFF
setting of the POWER switch. This indicates that a small
amount of current is being supplied to the unit to back up the
memory contents. This mode is referred to as the Stand By
mode. While the STAND BY indicator is lit, the power of the
system can be switched ON/OFF from the remote control unit.
@ When both of SPEAKERS A and 8B keys are ON, pressing the
PRO LOGIC key or 3 STEREO key switches the SPEAKERS
key setting to A ON alone. If the B key is pressed now, the
SPEAKERS key setting will be switched to B ON alone.
10 kr-vs030 (En)

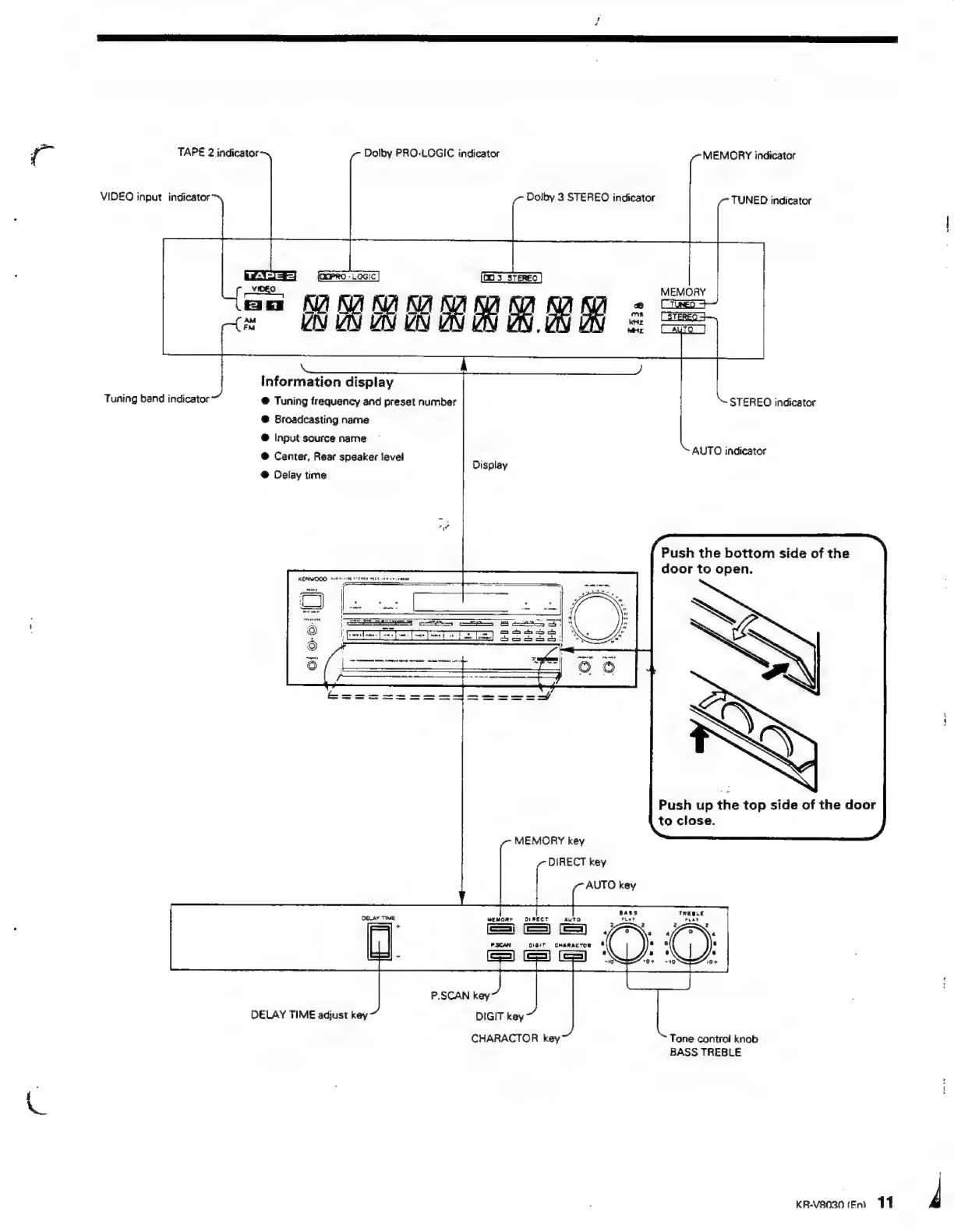

TAPE 2 indicator Dolby PRO-LOGIC indicator
VIDEO input indicator
TAPE
information display
Dolby 3 STEREO indicator
C3 STEREO
TEETER:
Tuning
band
indicator
@
Tuning
frequency
and
preset
number
@ Sroadcasting name
® Input sources name
@ Center, Rear speaker level
@ Delay time
Display
i
wae}
|
7
==
See
ch
|
*
ty
Lemeebowe
[ove]
[mer
Teer
fe
7,
[cio
SoSca5)
:
ms
MHZ
MEMORY key
DIRECT key
AUTO key
MEMORY GiRecT auTo
SS =)
MEMORY indicator
TUNED indicator
MEMORY
L_TUNED =
L_AUTO J
STEREO indicator
AUTO indicator
Push the bottom side of the
door to open.
Push up the top side of the door
to close.
DELAY TIME adjust key
P.SCAN key
DIGIT key
CHARACTOR key
Tone control knob
BASS TREBLE
KR-va030 (En) 11
t
l

Operation of remote control unit
In addition to the remote control of the receiver unit, the provided remote
control unit can control a KENWOOD cassette tape deck, CD player, turnta-
ble, graphic equalizer, etc., connected via the KENWOOD system control EB Loading batteries
cords.
1 Remove the cover.
Double
cassette
deck
Turn
table
Insert two AA-size (R6/SUM-
3) batteries as indicated by
the polarity marking.
CD player
1
ay a —— ee t=
3 Close the cover.
2
L
@ Operation procedure
Plug the power cord of the system into an AC wall outlet, and
press the [POWER] key on the remote control unit to turn the ace cone ee stad
on e main system
power on.
When the power is turned on, press the key of the source com-
ponent to be operated.
@ When two operation keys on the remote control unit are
pressed successively, press each key securely reserving an
interval of more than 1 second for each press.
@ Be sure to read the instruction manuals of the components
connected via the system control cords.
Remote control unit
Operating range
Notes:
1. The supplied batteries are intended for use in operation checks. Therefore, their lives may be shorter than ordinary batteries.
2. When the remote-controllable distance gets oter than before, replace both batteries with new ones.
3. Malfunction may occur if direct sunlight or the fight of a high-frequency lighting fluorescent lamp enters the remote control light sensor. In
such a case, change the system installation position to prevent the malfunction.
12 KR-vgoa0 (En)

ow
POWER key
Press to switch the power ON/OFF.
Tape deck operation keys
Two sets of operation keys, the TAPE A
and TAPE B keys, allow to operate a dou-
ble-deck type cassette tape deck. Use
the TAPE A keys if your cassette tape
deck is of the single-deck type.
CD player operation keys
Operate the CD player.
DISC: The DISC key can be used as the
disc selector key of a multi-disc
player wit a disc changer.
For details, read the instruction
manual provided with the CD
player.
Surround operation keys
the functions of the keys marked
= jin the following illustration can
Be operated from the remote control
unit only. Read page 26 for details.
BYPASS PRO LOGIC 3 STEREO
eURROUN? oes
EMORY mo
TEST TONE
M.CALL ON/OFF MODE
Input selector keys
Switches the input selector
COGIC te
TYUNER/CD
Moos
Dome
Py ES) =) C=
Ca] Ge) SENOS) Ce
GYP4SS PROWCGIC 3 STEREO
i SURROUND CENTER
H MEMORY MOSE
| TEST TONE
TAPE + | M.CaLL ONSOFF MOE MUTE
aa fa | a A ||
so oe \
VIDEO 1 PHONO _ LEVEL
¥IDEO 2 TUNER . CONTROL
KENWOOD
REMOTE CONTROL UNIT
Surround level control
keys
CENTER LEVEL
REAR LEVEL
DELAY TIME
TUNER operation keys
BAND: Switches the bands.
P. SCAN: Scans the preset stations.
DIRECT: In conjunction with the numeric
keys, tunes stations directly.
Numeric keys
When the CD source is selected, these
keys can be used as the numeric keys of
the CD player.
When the TUNER source is selected,
they can be used as the nmeric keys of
the tuner.
How to enter numerals:
For 23 press twice and 3
For 40 press four times and 0
Turntable operation keys
Contro} the start/stop of turntable.
Graphic equalizer operation keys
~M.CALL: Every time the key is pressed,
the equalizer patterns are re-
called from memory.
MUTE key
Press to reduce the volume temporary.
During operation, the indicator on the
VOLUME CONTROL knob blinks.
VOLUME CONTROL keys
Adjust the volume. During operation, the
VOLUME CONTROL knob on the front
panel turns and the indicator on the knob
blinks at high speed.
KR-vg030 (En) 13

Basic operation
~
@ Basic operation
1 Press the POWER key to ON.
POWER
2? Select an input source.
The source name characters appear on the display
@ When the cassette deck, CD player and turntable are connected
via the system control cord, any of these source components
Starts to be played automatically when the corresponding input
selector switch is pressed.
3 Play the source component.
14 kR-vgo30 (En)
VOLUME CONTROL
Display
BALANCE control
LOUDNESS control
Tone controls BASS TREBLE
PHONES jack
Input select keys
4 Adjust the volume.
Main unit Remote control unit
VOLUME CONTROL
[A]
VOLUME
CONTROL
(v7)
@ When the volume is adjusted from the remote control unit, the
VOLUME CONTROL knob on the main unit rotates while the
point indicator is blinking.
5 Adjust the left and right volume balance.
BALANCE
§ Adjust the tone.
TREBLE
> FLAT »

soe
Fi

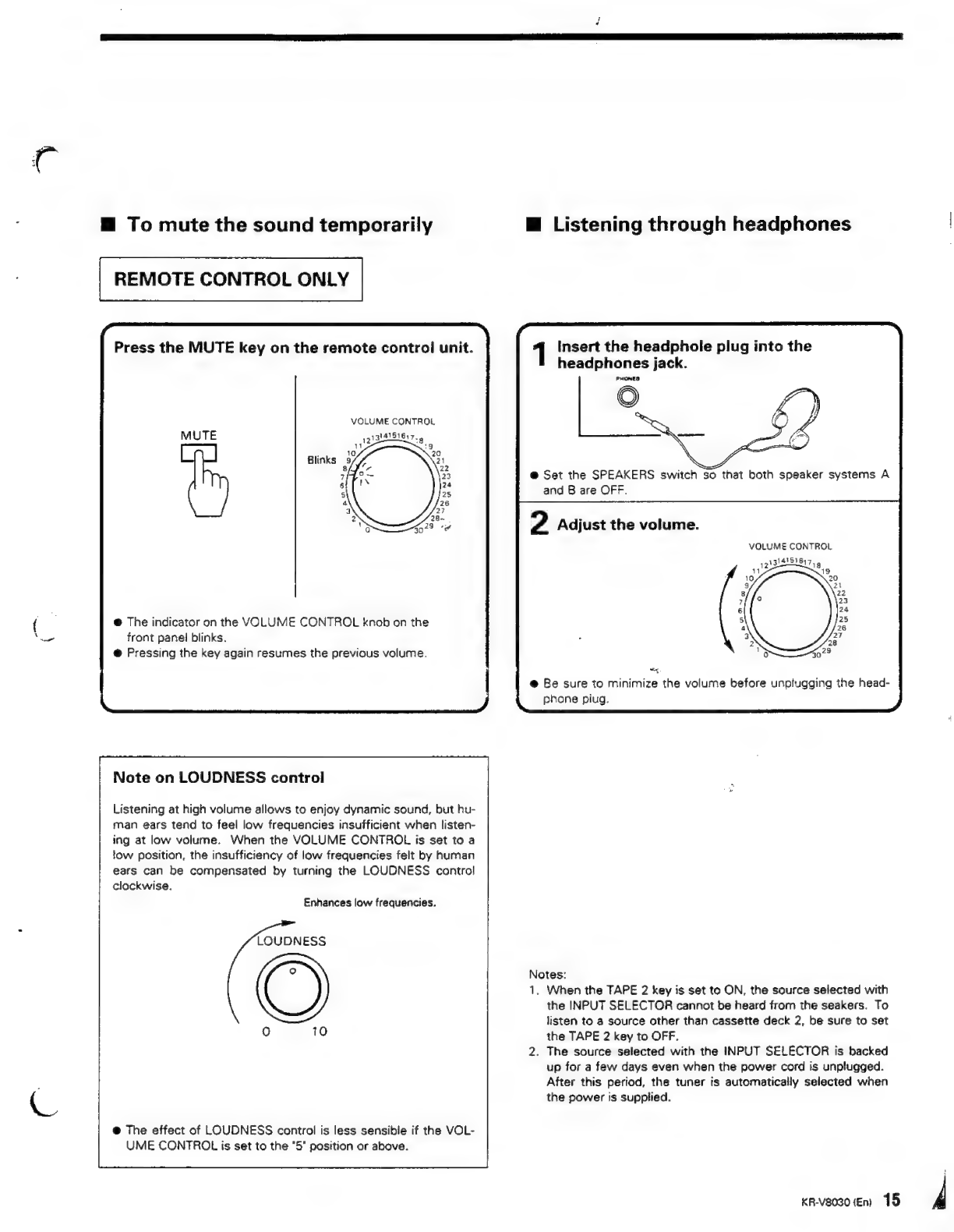

—@ To mute the sound temporarily M@ Listening through headphones
REMOTE CONTROL ONLY
Press the MUTE key on the remote control unit. 1 Insert the adel plug into the
headphones jack.
4151617.,
@ Set the SPEAKERS switch so that both speaker systems A
and 8B are OFF.
2 Adjust the volume.
VOLUME CONTROL
@ The indicator on the VOLUME CONTROL knob on the
front panel blinks.
@ Pressing the key again resumes the previous volume.
me.
@ Be sure to minimize the volume before unplugging the head-
phone piug.
Note on LOUDNESS control
Listening at high volume allows to enjoy dynamic sound, but hu-
man ears tend to feel low frequencies insufficient when listen-
ing at low volume. When the VOLUME CONTROL is set to a
tow position, the insufficiency of low frequencies felt by human
ears can be compensated by turning the LOUDNESS control
clockwise.
Enhances low frequencies.
LOUDNESS
Notes:
1. When the TAPE 2 key is set to ON, the source selected with
the INPUT SELECTOR cannot be heard from the seakers. To
listen to a source other than cassette deck 2, be sure to set
the TAPE 2 key to OFF.
2. The source selected with the INPUT SELECTOR is backed
up for a few days even when the power cord is unplugged.
After this period, the tuner is automatically selected when
the power is supplied.
@ The effect of LOUDNESS control is less sensible if the VOL-
UME CONTROL is set to the "5" position or above.
KR-v8030 (En) 15 y

Basic operation
i Operation of CD DIRECT playback
The digital sound of Compact Disc features an ideal re-
production characteristics, and the sound quality pro-
vided by CD can be reproduced with least degradatin by
means of the CD direct playback function.
1 Press the CD DIRECT key.
CD
DIf CT
Lights up
oO
CO DIRECT LINE STRAIGHT
? Play the CD player.
PLAY/PAUSE
> /Il
@ The CD DIRECT selection is given priority to any other source
betng selected by the INPUT SELECTOR.
To cancel the CD DIRECT playback function.
Press the CD DIRECT key again, or select the INPUT
SELECTOR.
CD
@ CD DIRECT indicator goes off.
Note:
Input select keys
CD DIRECT indicator
LINE STRAIGHT indicator
LINE STRAIGHT key
CD DIRECT key
M Operation of LINE STRAIGHT
playback
This CD, with least degradation of sound quality.
1 Select an input source.
2 Press the LINE STRAIGHT key.
0 o
CD DIRECT LINE STRAIGHT
3 Play the input source.
To cance! LINE STRAIGHT playback
Press the LINE STRAIGHT key again.
LINE
STRJ |GHT
@ LINE STRAIGHT indicator goes off.
During CD DIRECT or LINE STRAIGHT playback, the tone controls do not function.
16 KR-vg030 (En)

ae a

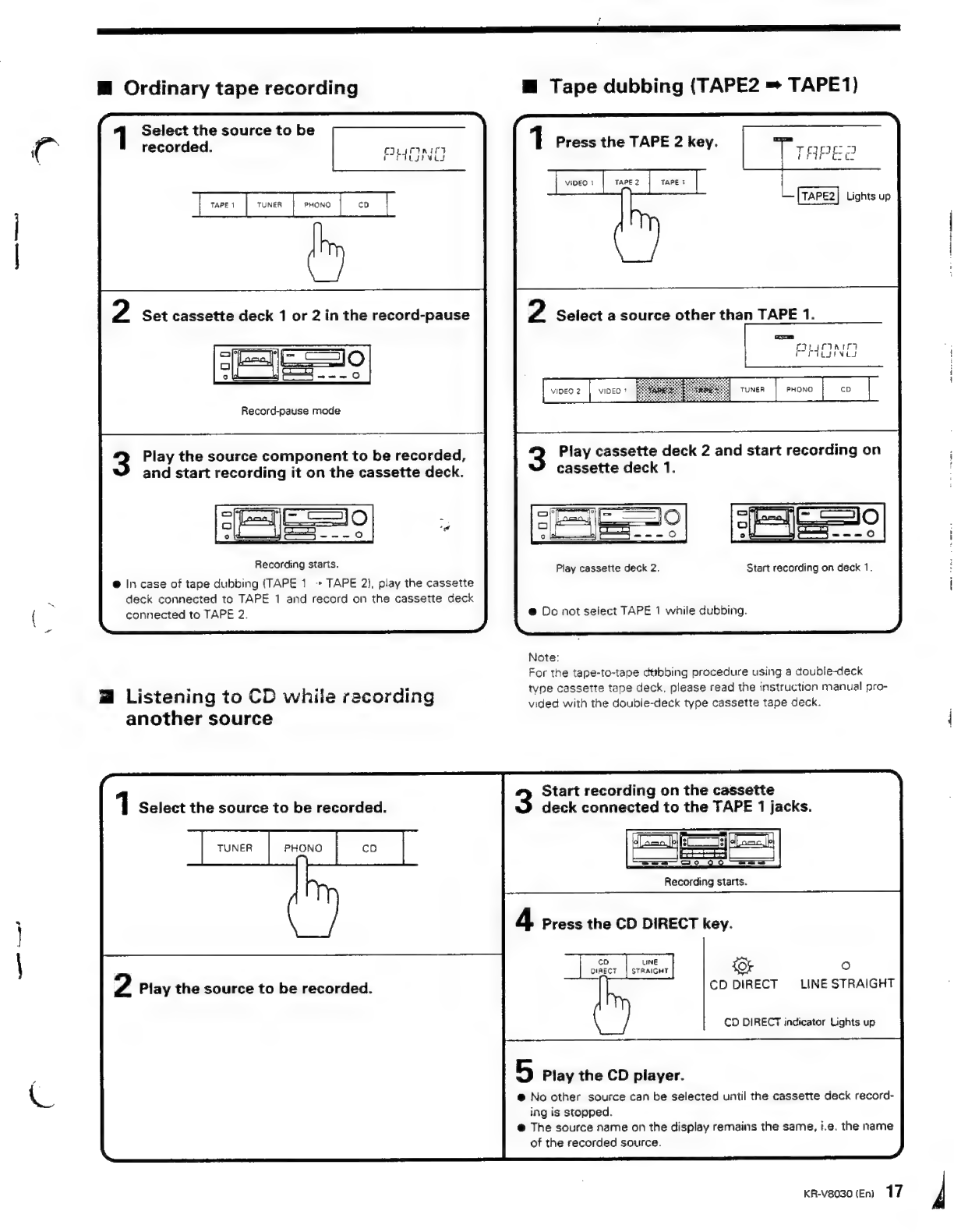

mM Ordinary tape recording
Select the source to be
recorded.
Record-pause mode
Play the source component to be recorded,
and start recording it on the cassette deck.
Recording starts.
@ In case of tape dubbing (TAPE 1 + TAPE 2}, play the cassette
deck connected to TAPE 1 and record on the cassette deck
connected to TAPE 2.
M@ Listening to CD while recording
another source
1 Select the source to be recorded.
runen | pugno | co |
2 Play the source to be recorded.
m@ Tape dubbing (TAPE2 = TAPE1)
1 Press the TAPE 2 key.
TAPE
Lights up
2 Select a source other than TAPE 1.
3 Piay cassette deck 2 and start recording on
cassette deck 1.
Play cassette deck 2, Start recording on deck 1.
@ Do not select TAPE 1 while dubbing.
Note:
For the tape-to-tape dtrbbing procedure using a double-deck
type cassette tape deck. please read the instruction manual pro-
vided with the double-deck type cassette tape deck.
Start recording on the cassette
3 deck connected to the TAPE 1 jacks.
4 Press the CD DIRECT key.
co LINE oO
DIRECT STRAIGHT
CD DIRECT LINE STRAIGHT
CD DIRECT indicator Lights up
5 Play the CD player.
@ No other source can be selected until the cassette deck record-
ing is stopped.
@ The source name on the display remains the same, t.e. the name
of the recorded source.
KR-V8030 (En) 17

Listening to broadcasts

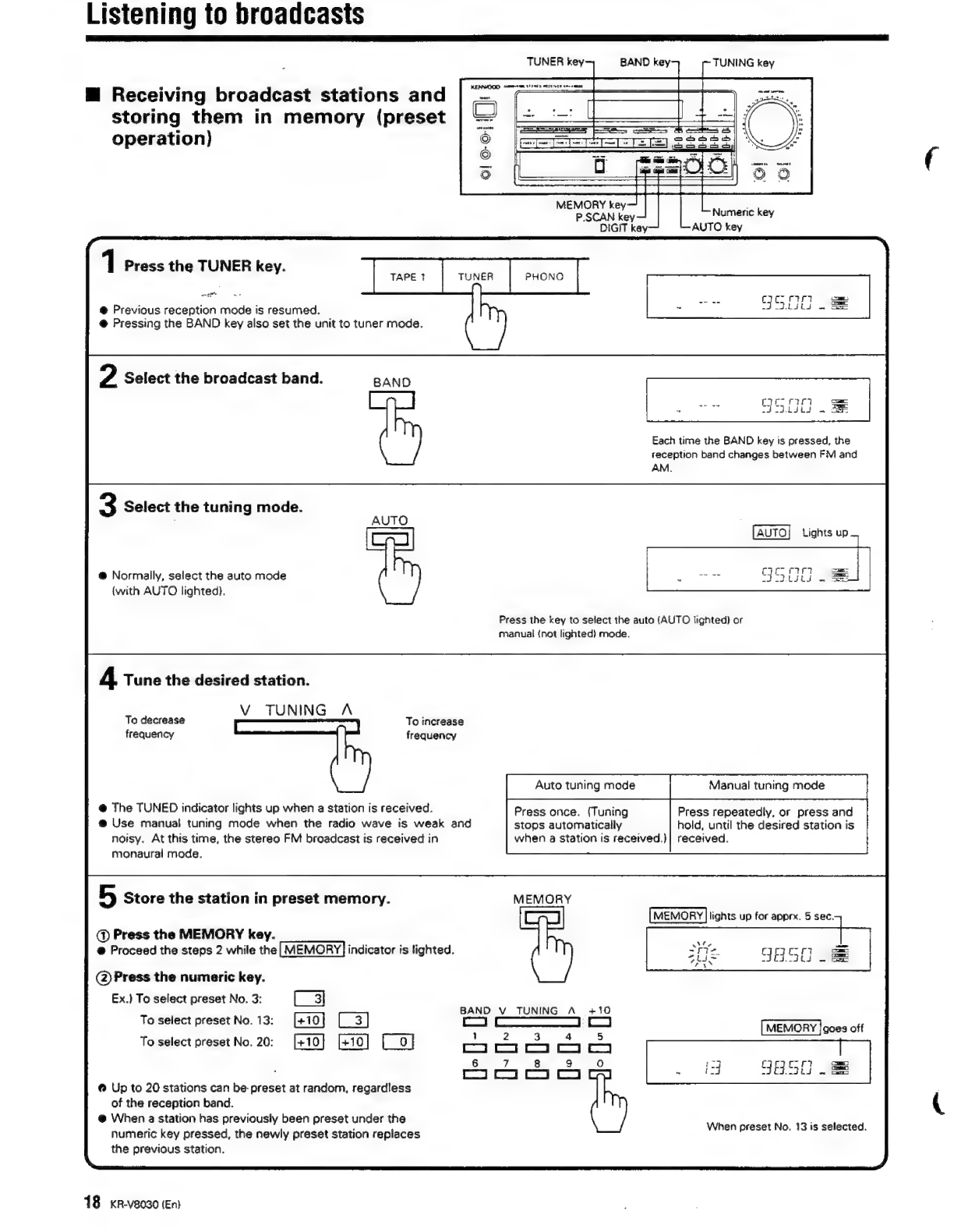

M@ Receiving broadcast stations and
storing them in memory (preset
operation)
Numeric key
adele
@ Previous reception mode is resumed.
@ Pressing the BAND key also set the unit to tuner mode.
rqrt
J at tLjitu . Se
Each time the BAND key is pressed, the
reception band changes between FM and
AM.
3 Select the tuning mode.
Lights up
@ Normally, select the auto mode
(with AUTO lighted).
Press the key to select the auto (AUTO lighted} or
manual (not lighted) mode.
4 Tune the desired station.
V TUNING A
To decrease To increase
frequency frequency
Auto tuning mode Manual tuning mode
@ The TUNED indicator lights up when a station is received. Press once. (Tuning Press repeatedly, or press and
@ Use manual tuning mode when the radio wave is weak and stops automatically hold, until the desired station is
noisy. At this time, the stereo FM broadcast ts received in when a Station is received.)| received.
monaural mode,
5 Store the station in preset memory. MEMORY
lights up for apprx. 5 sec.
@ Press the MEMORY key.
@ Proceed the steps 2 while the | MEMORY} indicator ts lighted. gas
(2) Press the numeric key.
Ex.) To select preset No. 3: [3]
BAND V_TUNING A_ +30
To select preset No. 13: [3] a | es 0 oe EMORY looes off
: 2 4 5
To select preset No. 20: E20}
; 95 . =
@ Up to 20 stations can be- preset at random, regardless
of the reception band.
@ When a station has previously been preset under the
numeric key pressed, the newly preset station replaces
the previous station.
When preset No. 13 is selected.
18 Kr-vs030 (En)

@ Receiving a preset station
Select the desired station.
Ex.) To select preset No. 3:
>L 3]
10) 9]
To select preset No. 13:
To select preset No. 20:
BAND v_ TUNING A_ +10
a) ed)
1 2 3 4 5
CS CS 6 Eo ES)
6 7 8 9g oO
ty
@ The frequency of the station received will be displayed.
@ Listening to all preset stations in
sequence (PRESET SCAN)
Press the P.SCAN key
Main unit
@ preset Stations are received in ordertoi1 »>2 °3...10...
20 every time the key is pressed.
Remote control unit
@ preset stations are received in order to1 —-2-->3...10...
a 20 every time the (UP) key is pressed, or in order of 20
*19 > 18...10... 1 every time [v] (0OWN) key is
pressed,
HM Direct tuning of radio stations
if you know the frequency of the desired station, it can
be received directly by inputting the frequency using
the numeric keys.
1
Select
the
broadcast
band.
BAND
Each time the BAND key is pressed,
the reception band changes between
FM and AM.
2 Press the DIRECT key.
3 input the frequency of the desired station
by pressing the numeric keys.
BAND V_TUNING A +10
ea
1 2 3 4 5
Cc GLa - CS Eo
6. 7 8 9 0
dh
Example of input
Desired station
Order of pressing numeric keys
FM 90 MHZ
Last channel memory
When the tuner’s band selector is switched or when the input
selector is switched from another source to TUNER, the fast re-
ceived station is recaled for each of FM, AM when the receiver
power is switched ON.
KR-vgoz0 (En 19
}

Listening to broadcasts
| ee

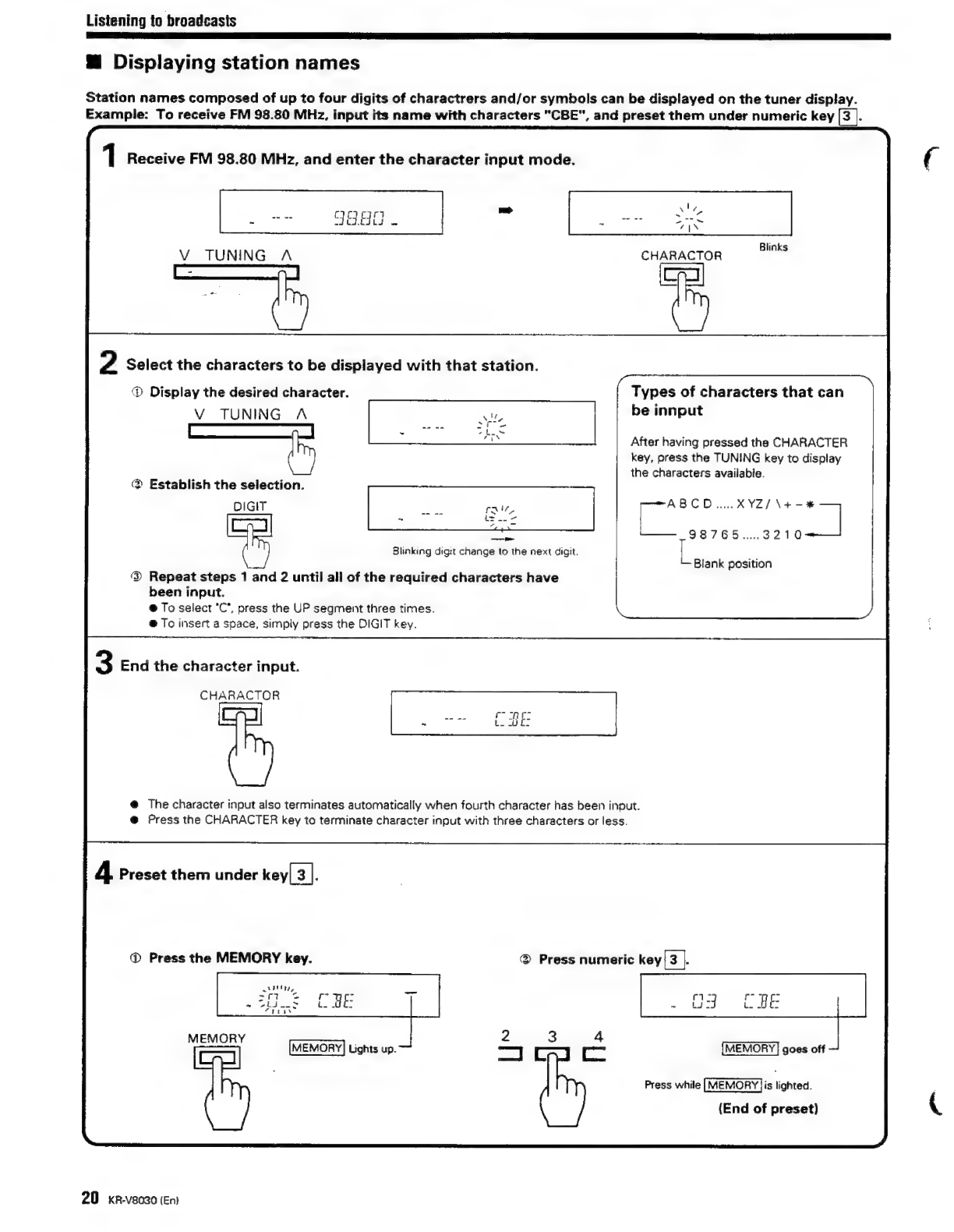

@ Displaying station names
Station names composed of up to four digits of charactrers and/or symbols can be displayed on the tuner display.
Example: To receive FM 98.80 MHz, input its name with characters "CBE", and preset them under numeric key [3].
1 Receive FM 98.80 MHz, and enter the character input mode.
ry ee
9880 - ee
Blinks
V TUNING A CHARACTOR
2 Select the characters to be displayed with that station.
® Display the desired character. Types of characters that can
V TUNING A be innput
After having pressed the CHARACTER
key, press the TUNING key to display
the characters availabie.
ee PATE oan
98765 3210
@ Establish the selection.
DIGIT
Blinking digit change to the next digit.
Biank position
® Repeat steps 1 and 2 until all of the required characters have
been input.
@ To select ’C’, press the UP segment three times.
@ To insert a space, simply press the DIGIT key.
3 End the character input.
CHARACTOR
@ The character input also terminates automatically when fourth character has been input.
@ Press the CHARACTER key to terminate character input with three characters or less.
4 Preset them under key| 3 |.
@® Press the MEMORY key. @® Press numeric key/3 |.
wtillee,
MEMORY) goes off
Press while [MEMORY |is lighted.
(End of preset)
20 «R-vg030 (En?
