Kenwood TH-415A User manual

GOO/ANA»
430/440MHz FM TRANSCEIVER
TH-415A
H-415E
220MHz FM TRANSCEIVER
144MHz FM TRANSCEIVER
TH-215A
TH-215E
INSTRUCTION MANUAL
KENWOOD CORPORATION

Thank you for purchasing this new transceiver.
IMPORTANT
Please read this instruction manual carefully before placing
your transceiver in service.
This Instruction Manual covers the following models:
TH-415A: 430/440 MHz FM transceiver with DTMF.
TH-415E: 430 MHz FM transceiver with Tone.
(with Tone Burst for U.K. version)
TH-315A: 220 MHz FM transceiver with DTMF.
TH-215A: 144 MHz FM transceiver with DTMF.
TH-215E: 144 MHz FM transceiver with Tone.
(with Tone Burst for U.K. version)
SAVE THIS INSTRUCTION MANUAL.
Under normal circumstances, the transceiver will operate in
accordance with these operating instructions. The
transceiver was preset at the factory and should only be
readjusted by a qualified technician with proper test equip-
ment.
Attempting service or alignment without factory authoriza-
tion can void the transceiver’s warranty.
CAUTION:
Long transmission or extended operation in the 5 watt
mode might cause the rear of this transceiver to get warm.
Do not place the transceiver where the heat sink (rear
panel) might come in contact with plastic or vinyl surfaces.
Use of an external antenna for fixed station is recommend-
ed.
CONTENTS
JAE CESSORIES .....- 2nnnncibse+--Becencccenessecessessssedgecseess 3
SRECIFIGATIONS ©... 5.0... so sonageseveesssececeannennnnngnaesnnnn 4
BATTERY PACK .icivssc isso gs -apuisgnaanvaaviea ed canceLcommenet son 5
Ni-Cd battery
Recharging the battery pack
Manganese/Alkaline batteries
Operating time
CONTROLS AND FUNCTIONS ..
OPERATION...
Receive
Transmit
Frequency selection ..
Repeater operation....
Transmitter offsets
Reverse function
Tone operation
Auto patch operations .
Sean
Memory channels
Memory entry
Memory recall
Odd Split memory channel
Memory channel lockout ...........cssceeeeeeeeeeeeenee 16
Clearing a specific memory channel
Clearing all memories
Memory back-up battery
Priority alert channel check
Battery: Saver. cd 232i sks. see aces esiecewssc'scvecdaneTye semen sone 17

MAINTENANCE 32.5. vcccscccseseeecsceseissneussseisencasaccceaced 18
In case of difficulty
Service
OPTIONAL ACCESSORIES .............ccccceeceeesceeeeeeeeeeeees 19
Programmable tone decoder unit TSU-4
BLOCK DIAGRAM..............:00ecceseeeeeeeeeeeeees another sheet
SCHEMATIC DIAGRAM ...........-.2:csecreeeeeeees another sheet
Illustrations show the TH-215A.

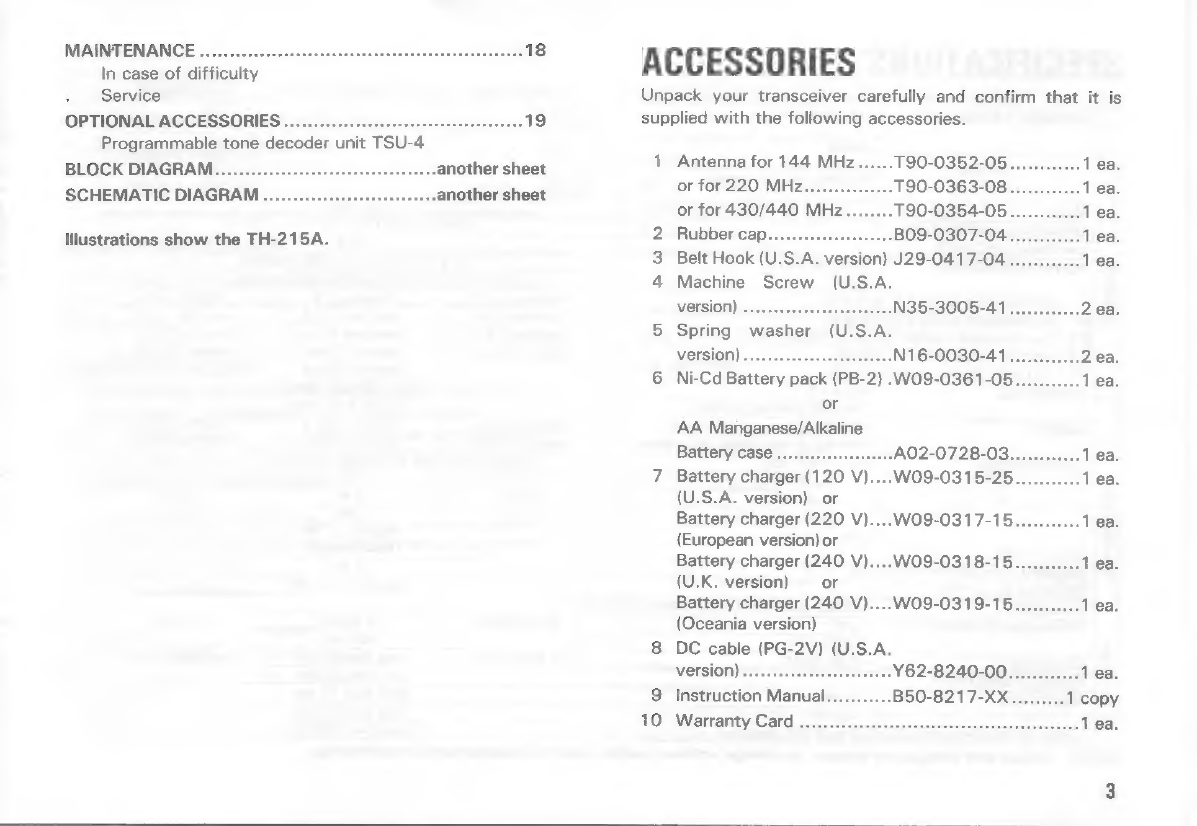

ACCESSORIES
Unpack your transceiver carefully and confirm that it is
supplied with the following accessories.
1 Antenna for 144 MHz...... T90-0352-05...
or for 220 MH Zee8 rect ecncee T90-0363-08.
or for 430/440 Mbz........ T90-0354-05.
2 Rubber cap -BO9-0307-04 .
3 Belt Hook (U.S.A. version) J29-0417-04....
4 Machine Screw (U.S.A.
MATSION )npesioocasssiandcencomsetes N35-3005-41............ 2 ea.
5 Spring washer (U.S.A.
VEFSION)...:05.0..2005..desbeuieee N16-0030-41............ 2 ea.
6 Ni-Cd Battery pack (PB-2) .W09-0361-05........... lea
or
AA Manganese/Alkaline
Battery CaSe@ .............ceeeeeee A02-0728-03............ 1 ea.
7 Battery charger (120 V)....WO9-0315-25........... lea.
(U.S.A. version) or
Battery charger (220 V)....WO9-0317-15...
(European version) or
Battery charger (240 V)....WO9-0318-15........... 1 ea.
(U.K. version) or
Battery charger (240 V)....WO9-0319-15........... 1 ea.
(Oceania version)
8 DC cable (PG-2V) (U.S.A.
version) «--¥62-8240-00............
9 Instruction Manual -B50-8217-XX.
10 Warranty Card

SPECIFICATIONS
TH-415A/415E TH-315A TH-215A/215E
FREQUENCY RANGE (MHz) U.S.A.Version TH-415A TH-215A
440.000 ~ 449.995 220.000 ~ 224.995 144.000 ~ 147.995
Others TH-415A TH-215A
430.000 ~ 439.995 = 144.000 ~ 147.995
European and U.K. version TH-415E TH-215E
430.000 ~ 439.995 a 144.000 ~ 145.995
MODE F3 (FM)
OPERATING TEMPERATURE —20°C v +50°C (—4°F ~ +122°F)
ANTENNA IMPEDANCE 502
z POWER REQUIREMENT BATTERY PACK 6.3 V~15 VDC (8.4 VDC nominal)
& DC IN 7.2 V~16 VDC (13.8 VDC nominal)
a Hi TRANSMIT MODE 2.5 W (8.4 V) Approx. 1.2 A Approx. 1 A Approx. 1 A
2 A Hi TRANSMIT MODE 5 W (13.8 V) Less than 2A Less than 1.7 A Less than 1.7 A
ae Low TRANSMIT MODE Less than 0.9 A Less than 0.7 A Less than 0.7 A
Fa} . RECEIVE MODE WITH NO SIGNAL Approx. 55 mA Approx. 55 mA Approx. 50 mA
BATTERY SAVER MODE (At 1 : 2) Approx. 20 mA
DIMENSIONS WxHxD 67x 173 x37 (mm)
(PROJECTIONS INCLUDED) 70x 181 x 40 (mm)
WEIGHT With Ni-Cd battery and antenna Approx. 560 g Approx. 550 g Approx. 540 g
With manganese battery and antenna Approx. 540 g Approx. 530 g i Approx. 520 g
OUTPUT POWER Hi 13.8 VDC 5W
= with PB-1 5 W
FE with PB-2 2W 2W 2.5 W
Ss with PB-3, PB-4 1W 1W 1.5 W
By Low Approx. 0.5 W.
<t |_ MODULATION REACTANCE
= | MAXIMUM FREQUENCY DEVIATION +5 kHz
SPURIOUS RADIATION Less than —60 dB
CIRCUITRY DOUBLE CONVERSION SUPERHETERODYNE
INTERMEDIATE FREQUENCY 1st IF 30.825 MHz 16.9 MHz 16.3 MHz
g 2nd IF 455 kHz
2 | SENSITIVITY 12 dB SINAD Less than 0.25 pV. Less than 0.2 uV Less than 0.2 nV
© |_SQUELCH SENSITIVITY Less than 0.16nV
| SELECTIVITY —6 dB More than 12 kHz
| —40 dB Less than 24 kHz
AUDIO OUTPUT POWER (across 8 2 load 10% distortion) More than 350 mW.
NOTE: Circuit and ratings are subject to change without notice, due to development in technology.
4

BATTERY PACK
Installing the battery pack
Match the concave part at the
bottom of the radio to the
convex part at the top of the
battery pack.
Turn the battery pack clock-
wise until it clicks.
Be sure the pack and trans-
ceiver are locked together.
Removing
Pressing the battery release
button, turn the battery pack
counterclockwise.
Ni-Cd BATTERY PACK (PB-2)
NOTE:
This battery pack has not been charged at the factory in order to pro-
vide you with the greatest number of charge/discharge cycles. You
must charge the battery before use. The battery pack will require
several charge/discharge cycles before you can expect to see the
maximum operating period between charges. If the battery will be
stored for greater than 2 months it should be recharged before use.
Battery release button
Battery pack
RECHARGING THE BATTERY PACK
Insert the charge plug from the BC-2 into the receptacle on the
rear of the battery pack. Then plug the BC-2 into the AC line.
The LED on the BC-2 will illuminate to show that the pack is
charging. The LED will remain on as long as the BC-2 is con-
nected to the AC power source and the battery, indicating
that the pack is still being charged. Do not allow the battery to
charge for greater than 15 hours. The useful life and battery
performance will be reduced if you exceed the recommended
charge period.
NOTES:
Turn off the power switch before charging.
° Recharging should be done within an ambient temperature bet-
ween 10°C ~40°C (50°F~104°F). Recharging performed out
of this range may not fully charge the battery.
MANGANESE or ALKALINE BATTERIES
Load 6 x R6 (AA) manganese or
alkaline batteries in series in the
supplied battery case. (Be sure to
observe the polarities.)
(We recommend use of high-
perfomance manganese batteries.)
Battery pack (1) can be inserted in-
to the case (2) only in a specific
direction. Check the shape (top and
bottom) after moving the stopper case (2)
on the rear side, then insert the bat-
tery correctly. Inserting the battery
by force without checking the
shape may damage the case.
OPERATING TIME
Batt voltage
(vy)
14
Stopper
Transmitting
Receiving
AF OUTPUT
“Battery voltage is measured at transmis-
Ni-Cd
battery
12y
800mAh
(PB-1)
vA
Ni-Cd
battery
8.4y
(Manganese
500m,
battery
Low
<
Power)
Ni-Cd battery 7.2V
1600mAh (PB-4)
‘Ah
Ni-Cd
battery
7.2V
{800m
\
BATT
)
lit
voltage
indicator
KA manasa ——— | a
Menganese Bagign~ Lower limit voltage range for transmission |
30 60 90 120 240 270
(minutes)
Manganese battery (except Alkaline manganese battery) is
suitable only for LOW power transmission. v2
Recharge the Ni-Cd battery pack when the BATT indicator
comes on. :
We recommend use of the PB-3 or PB-4 Ni-Cd battery pack
for long transmission or extended operation.
5

CONTROLS AND FUNCTIONS
(@ Antenna connector
This jack is used to connect the supplied antenna.
Twist to lock with the BNC connector.
@ DC IN terminal
This terminal is used for an external power supply. Input
voltage is 13.8 VDC nominal. The center is the (+) side
and the sleeve is (—) side.
You should turn the power switch OFF when connecting
this terminal. Pay attention to the polarity.
@ <)) © CAUTION: ————___—________
As a precaution, do not remove the
battery pack when an external power
supply is used. Use the KENWOOD
PG-2V (supplied with the U.S.A ver-
Eo) oS sion) or PG-3D optional cable for the
9.5 mm connection.
(3) MIC jack
This jack is used for connection of an external microphone.
The use of an electret type microphone is recommended.
Input impedance is 2 kQ and the DC voltage on this ter-
minal is 4 V.
@SP jack
This jack is used for an earphone or external speaker. The
recommended impedance is 8 2 nominal.
©) TONE switch
U.S. version:
61.55 mm
5.5 mm
This switch is used to activate the
sub-audible tone encoder.
European version: This switch is used to transmit a
TONE signal. When the switch is
pressed the repeater control signal
of 1750 Hz is activated.
@®HI(# )/LOW ( = )switch
This switch is used to select the transmit output power.
(® SQL control
The SQL control is used to eliminate noise during no signal
periods. Normally, this control is adjusted clockwise until
the noise just disappears and the BUSY indicator goes OFF
(Threshold level). For scan operation, this control must be
set to the threshold point. When an incoming signal is weak
or unstable, readjust the squelch for optimum reception.
For tone squelch operation with TSU-4, this control must
be set to the T.SQ position. (TH-415A/315A/215A)
(8) VOL control
Volume control with power ON/OFF switch.

KENWOOD UHF
@ MONITOR switch
Pressing this key will open squelch.
(0 PTT (Push To Talk) switch
For transmission, press this switch and speak into the
microphone.
(1) RELEASE button
Used to release the battery.
Depress this button, and turn the battery counterclockwise.
(2) LAMP key
This key controls the lamp on the LCD display.
NOTE:
When the LAMP is on battery drain will be accelerated. Do not use
this feature unnecessarily.
(3) OFFSET/F key
The OFFSET/F key is used to select the desired transmitter
offset for repeater operation. Each time the key is pressed,
the mode cycles from + shift, to — shift, to simplex, and
back to + shift. When the offset function is ON, the sym-
bol “+” or ‘*—"' is displayed.
Pressing the [F_] and the OFFSET/F key in order is used to
change the desired offset frequency.
(4 R/TONE. F (or REVERSE) key
This key is used to reverse the transmit/receive frequencies
during repeater operation.
TONE. F: TONE FRQUENCY key (with the TH-415A/215A)
Pressing the [F_| and the R/TONE. F key in order is used
to change the frequency of the tone encoder.
(5) SAVE key
The SAVE key is used to select the power save condition
during the receive mode.
Pressing the [F_]| and the SAVE key in order is used to
change the battery saver on/off ratio.
d§ SPEAKER
(7) MICROPHONE
(8) BATTERY CASE

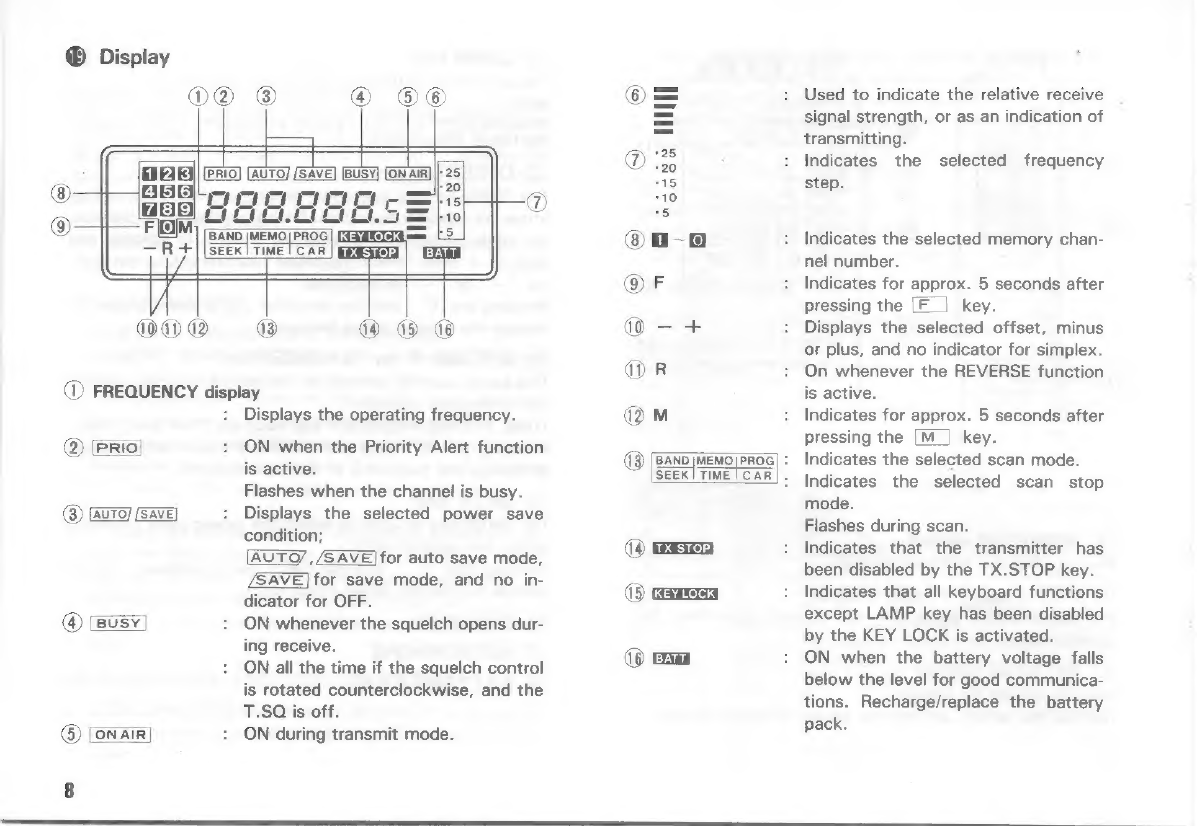

@® Display
O®
® ® ©©
PRIO AUTO] [SAVE] [BUSY]
Hob.oo00.5 sh
= —
OOK?)
@) FREQUENCY displ:
@ [PRIO
(3) (AUTO) [SAVE
BAND |MEMO|PROG cu
SEEK! TIME | CAR tesa ai
a) OY ®
ay
Displays the operating frequency.
ON when the Priority Alert function
is active.
Flashes when the channel is busy.
Displays the selected power save
condition;
[AUTO/,/SAVE]for auto save mode,
for save mode, and no in-
dicator for OFF.
ON whenever the squelch opens dur-
ing receive.
ON all the time if the squelch control
is rotated counterclockwise, and the
T.SQ is off.
ON during transmit mode.
@M
qa i
13) [BAND |MEMO|PROG| =
® SEEK! TIME! CAR :
) aS
(EB Key Lock]
(6 Ema
Used to indicate the relative receive
signal strength, or as an indication of
transmitting.
Indicates the selected frequency
step.
Indicates the selected memory chan-
nel number.
Indicates for approx. 5 seconds after
pressing the [F_| key.
Displays the selected offset, minus
or plus, and no indicator for simplex.
On whenever the REVERSE function
is active.
Indicates for approx. 5 seconds after
pressing the [M_| key.
Indicates the selected scan mode.
Indicates the selected scan stop
mode.
Flashes during scan.
Indicates that the transmitter has
been disabled by the TX.STOP key.
Indicates that all keyboard functions
except LAMP key has been disabled
by the KEY LOCK is activated.
ON when the battery voltage falls
below the level for good communica-
tions. Recharge/replace the battery
pack.

@ DOUBLE ROLE KEYS
PRIORITY BEEP
CARRIER KEY LOCK
[=] [ere]
These
13
keys
except
the
[F_]
[SCAN],
and
[0]
keys,
have
two
functions.
The 1st function is printed on the key.
The 2nd function is printed above the key.
All
these
2nd
functions
are
active
for
approx.
5
seconds
after
pressing
the
[F_|
key.
@ Numeric keys:(1_ |.(9_|, (0 _|
These
keys
are
used
to
select
the
desired
operating
fre-
quency
and/or
memory
channel
number.
Memory
channel
1,
8,
and
9
also
serve
additional
functions
as
discribed
below.
M.
channel
1
is
used
to
store
the
Priority
Alert
channel
in-
formation.
M.
channel
8
is
used
to
store
the
lower,
and
M.
channel
9
the
upper
limit
frequency
for
the
programmable
band
scan.
@ UP/DOWN keys: [4], [¥ |
These
keys
are
used
to
increase
or
decrease
the
operating
frequency,
offset
frequency,
tone
frequency,
or
the
power
saver
circuit
rate.
@ F: Function exchange key
The [F_] key is used to activate the 2nd function.
The F indicator is displayed for approx. 5 seconds after
pressing the [F_] key.
CAUTION:
You must press the 2nd function while the F indicator is lit, or the
radio will perform the function printed on the key, rather than the
function printed above it.
@ M: Memory key
The [M_] key is used to select the desired memory chan-
nel.
The operation is similar to that of the [F_] key, in that, the
M
indicator
will
illuminate
for
5
seconds
in
the
LCD
display.
CAUTION:
The memory channel must be selected within 5 seconds of press-
ing the [M_| key.
@ ENTER key
The key is used to enter a frequency selected by
the numeric keys.
@ SCAN key
The
[SCAN]
key
is
used
to
start
or
stop
the
scan
function.
@
PRIORITY
CHANNEL
CHECK
key:
[F_]
then
1/PRIO
These
keys
are
used
to
monitor
whether
the
priority
chan-
nel
(CH
1)
is
busy
or
not.
When
this
function
is
activated,
the
radio
will
switch
to
CH
1
approximately
once
every
10
seconds.
To cancel this function, press these keys again.

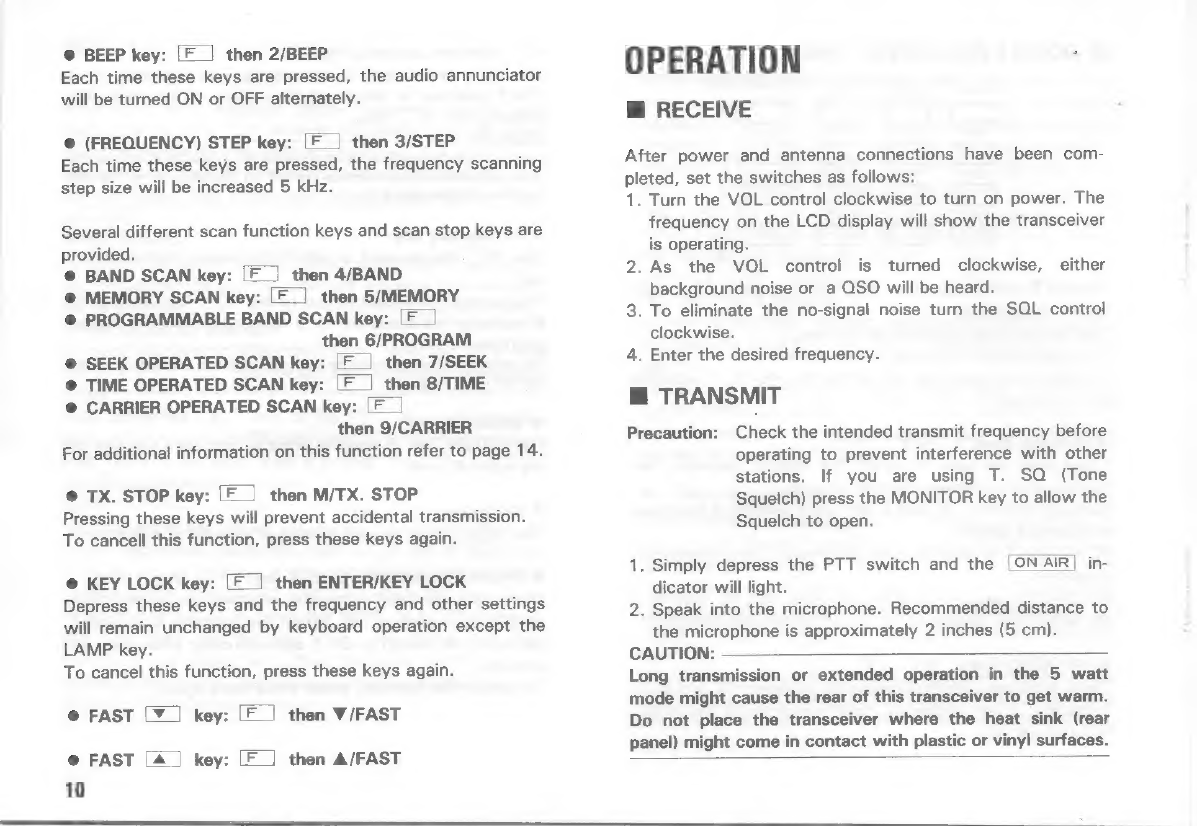

@ BEEP key: |F | then 2/BEEP
Each time these keys are pressed, the audio annunciator
will be turned ON or OFF alternately.
@ (FREQUENCY) STEP key: [F_| then 3/STEP
Each time these keys are pressed, the frequency scanning
step size will be increased 5 kHz.
Several different scan function keys and scan stop keys are
provided.
@ BAND SCAN key: [F_| then 4/BAND
@ MEMORY SCAN key: [F_| then 5/MEMORY
@ PROGRAMMABLE BAND SCAN key: [F_|
then 6/PROGRAM
@ SEEK OPERATED SCAN key: [F_| then 7/SEEK
@ TIME OPERATED SCAN key: |F | then 8/TIME
@ CARRIER OPERATED SCAN key: [F_|
then 9/CARRIER
For
additional
information
on
this
function
refer
to
page
14.
@ TX. STOP key: [F_| then M/TX. STOP
Pressing these keys will prevent accidental transmission.
To cancell this function, press these keys again.
@ KEY LOCK key: [F_] then ENTER/KEY LOCK
Depress these keys and the frequency and other settings
will remain unchanged by keyboard operation except the
LAMP key.
To cancel this function, press these keys again.
@ FAST [¥_| key: [F _] then W/FAST
@ FAST [4_] key: [F_| then A/FAST
10
OPERATION
RECEIVE
After power and antenna connections have been com-
pleted, set the switches as follows:
1. Turn the VOL control clockwise to turn on power. The
frequency on the LCD display will show the transceiver
is operating.
2. As the VOL control is turned clockwise, either
background noise or a QSO will be heard.
3. To eliminate the no-signal noise turn the SQL control
clockwise.
4. Enter the desired frequency.
@ TRANSMIT
Precaution: Check the intended transmit frequency before
operating to prevent interference with other
stations. If you are using T. SQ (Tone
Squelch) press the MONITOR key to allow the
Squelch to open.
1. Simply depress the PTT switch and the [ON AIR] in-
dicator will light.
2. Speak into the microphone. Recommended distance to
the microphone is approximately 2 inches (5 cm).
CAUTION:
Long transmission or extended operation in the 5 watt
mode might cause the rear of this transceiver to get warm.
Do not place the transceiver where the heat sink (rear
panel) might come in contact with plastic or vinyl surfaces.
ee
en

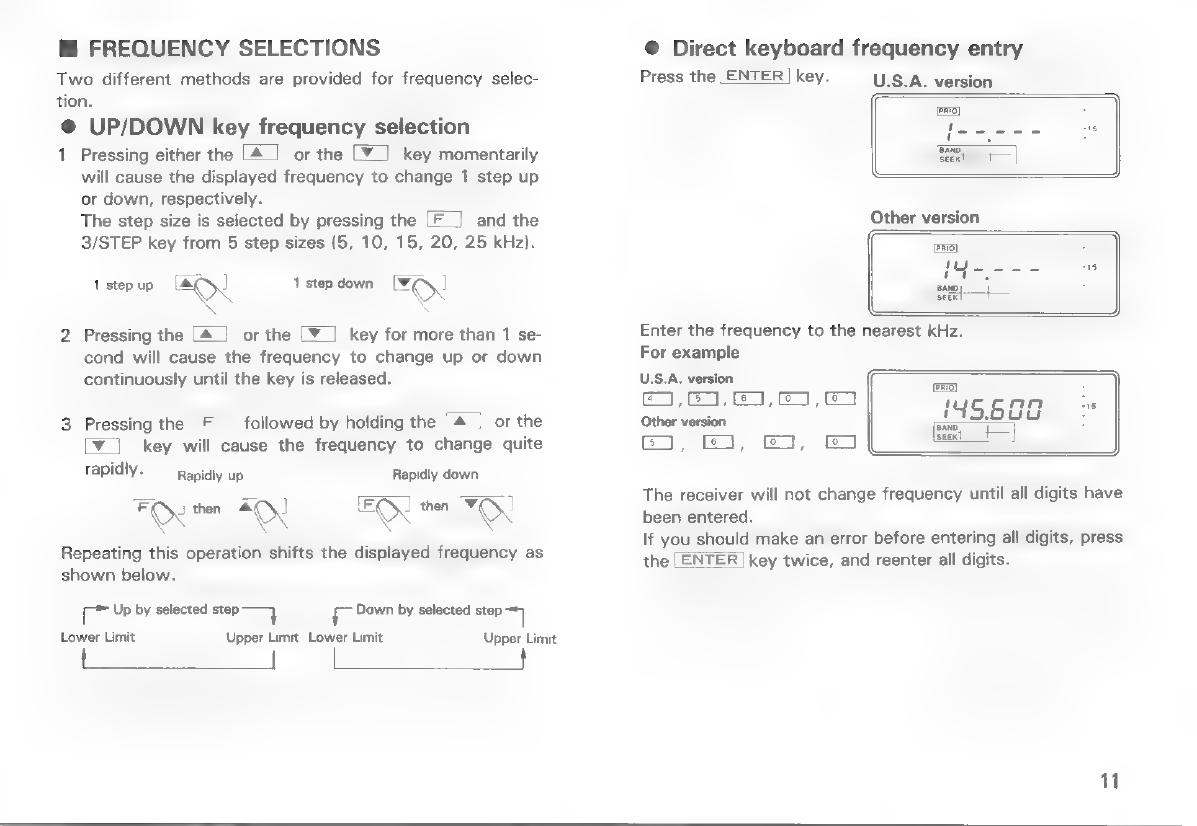

lM FREQUENCY SELECTIONS
Two different methods are provided for frequency selec-
tion.
@ UP/DOWN key frequency selection
1 Pressing either the |4 | or the [¥] key momentarily
will cause the displayed frequency to change 1 step up
or down, respectively.
The step size is selected by pressing the [F_| and the
3/STEP key from 5 step sizes (5, 10, 15, 20, 25 kHz).
1 step up 2X 1 step down “OX
2 Pressing the [4 |] or the [¥_| key for more than 1 se-
cond will cause the frequency to change up or down
continuously until the key is released.
3 Pressing the [F_| followed by holding the [4 | or the
v key will cause the frequency to change quite
rapidly.
Rapidly up Rapidly down
EO then 40) EOS then *Ox
\
Repeating this operation shifts the displayed frequency as
shown below.
(ia Up by selected Step at
Lower Limit Upper Limit Lower Limit Upper Limit
we | |
‘fx Down by selected Step=]
®@ Direct keyboard frequency entry
Press the [ENTER] key.
U.S.A. version
peat oe Hole
Pee
Enter the frequency to the nearest kHz.
For example
U.S.A.
version
>
:
C1,40,20,00,29
45599
hs
Other version ae bese =
wwe, wo ea
The receiver will not change frequency until all digits have
been entered.
If you should make an error before entering all digits, press
the [ENTER] key twice, and reenter all digits.
11

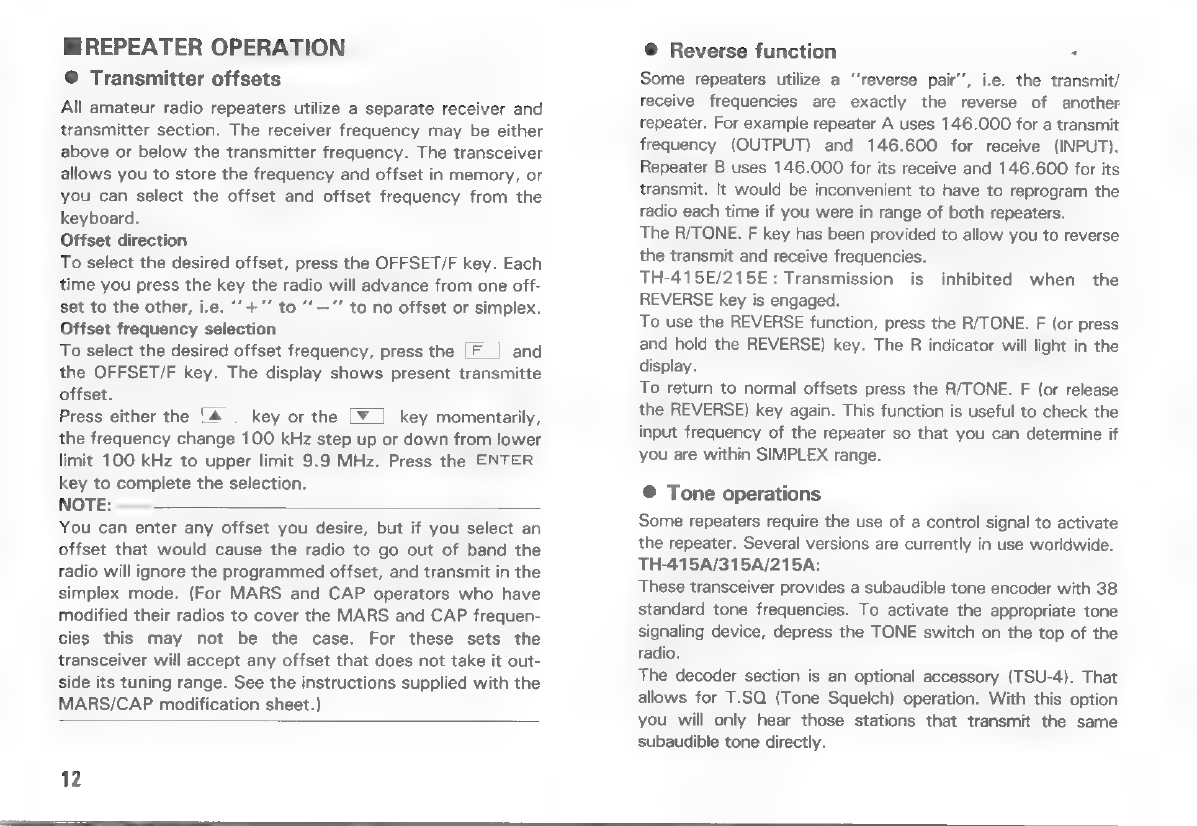

HREPEATER OPERATION
@ Transmitter offsets
All amateur radio repeaters utilize a separate receiver and
transmitter section. The receiver frequency may be either
above or below the transmitter frequency. The transceiver
allows you to store the frequency and offset in memory, or
you can select the offset and offset frequency from the
keyboard.
Offset direction
To select the desired offset, press the OFFSET/F key. Each
time you press the key the radio will advance from one off-
set to the other, i.e. ‘’+’’ to ‘‘—"’ to no offset or simplex.
Offset frequency selection
To select the desired offset frequency, press the [F_] and
the OFFSET/F key. The display shows present transmitte
offset.
Press either the [4 _] key or the [¥_] key momentarily,
the frequency change 100 kHz step up or down from lower
limit 100 kHz to upper limit 9.9 MHz. Press the [ENTER]
key to complete the selection.
NOTE:
You can enter any offset you desire, but if you select an
offset that would cause the radio to go out of band the
radio will ignore the programmed offset, and transmit in the
simplex mode. (For MARS and CAP operators who have
modified their radios to cover the MARS and CAP frequen-
cies this may not be the case. For these sets the
transceiver will accept any offset that does not take it out-
side its tuning range. See the instructions supplied with the
MARS/CAP modification sheet.)
12
® Reverse function .
Some repeaters utilize a ‘‘reverse pair’’, i.e. the transmit/
receive frequencies are exactly the reverse of another
repeater. For example repeater A uses 146.000 for a transmit
frequency (OUTPUT) and 146.600 for receive (INPUT).
Repeater B uses 146.000 for its receive and 146.600 for its
transmit. It would be inconvenient to have to reprogram the
radio each time if you were in range of both repeaters.
The R/TONE. F key has been provided to allow you to reverse
the transmit and receive frequencies.
TH-415E/215E: Transmission is inhibited when the
REVERSE key is engaged.
To use the REVERSE function, press the R/TONE. F (or press
and hold the REVERSE) key. The R indicator will light in the
display.
To return to normal offsets press the R/TONE. F (or release
the REVERSE) key again. This function is useful to check the
input frequency of the repeater so that you can determine if
you are within SIMPLEX range.
@ Tone operations
Some repeaters require the use of a control signal to activate
the repeater. Several versions are currently in use worldwide.
TH-415A/315A/215A:
These transceiver provides a subaudible tone encoder with 38
standard tone frequencies. To activate the appropriate tone
signaling device, depress the TONE switch on the top of the
radio.
The decoder section is an optional accessory (TSU-4). That
allows for T.SQ (Tone Squelch) operation. With this option
you will only hear those stations that transmit the same
subaudible tone directly.

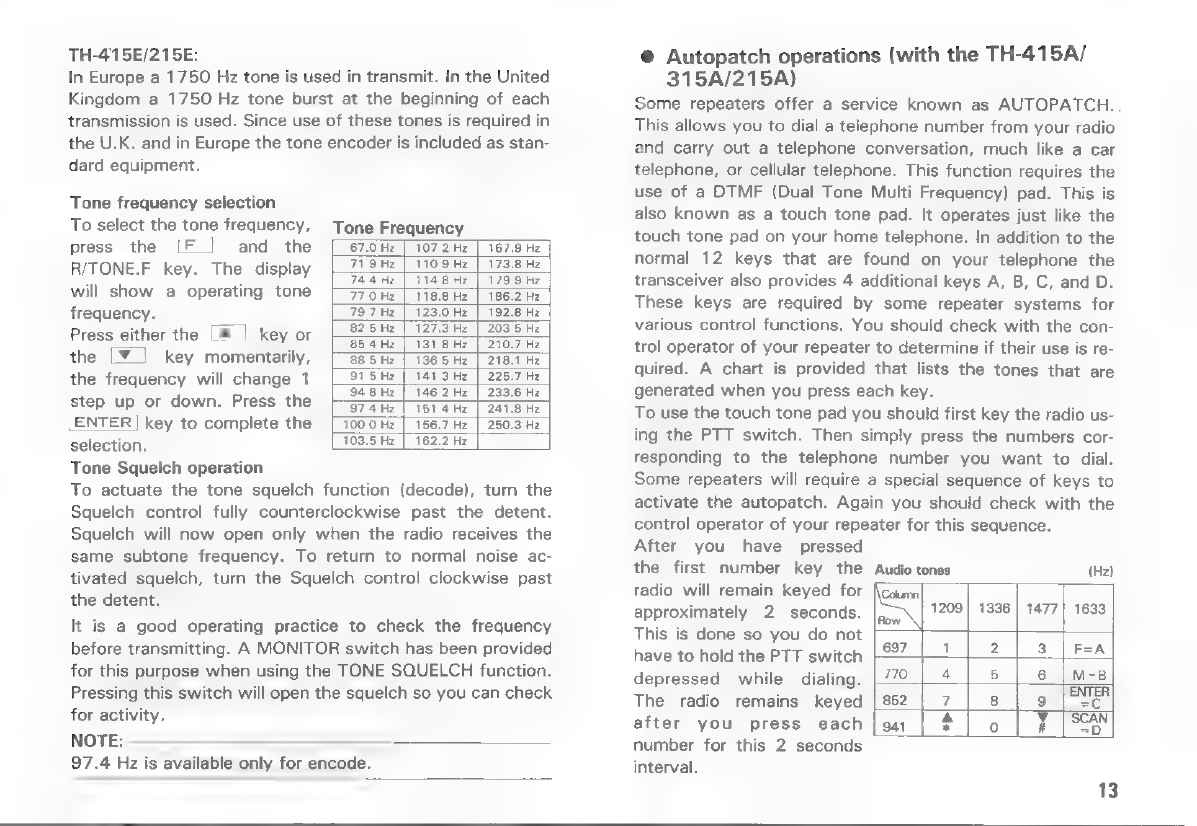

TH-415E/215E:
In Europe a 1750 Hz tone is used in transmit. In the United
Kingdom a 1750 Hz tone burst at the beginning of each
transmission is used. Since use of these tones is required in
the U.K. and in Europe the tone encoder is included as stan-
dard equipment.
Tone frequency selection
To select the tone frequency, Tone Frequency
press the |F | and the 67.0 Hz | 107.2 Hz | 167.9 Hz
: T ispl 71.9 Hz | 110.9 Hz | 173.8 Hz
R/TONE: Bukey: he display 74.4 Hz | 114.8 Hz | 179.9 Hz
will show a operating tone 77.0 Hz | 118.8 Hz | 186.2 Hz
frequency. 79.7 Hz | 123.0 Hz | 192.8 Hz
S mo 82.5 Hz | 127.3 Hz | 203.5 Hz
A
Press either the las key; RE 85.4 Hz | 131.8 Hz | 210.7 Hz
the [¥ | key momentarily, 88.5 Hz | 136.5 Hz | 218.1 Hz
the frequency will change 1 abies [sl eI 2827 He
P h 94.8 Hz | 146.2 Hz | 233.6 Hz
step up or down. Press the 97.4 Hz | 151.4 Hz | 241.8 Hz
[ENTER] key to complete the 100.0 Hz | 156.7 Hz | 250.3 Hz
selection. 103.5 Hz | 162.2 Hz
Tone Squelch operation
To actuate the tone squelch function (decode), turn the
Squelch control fully counterclockwise past the detent.
Squelch will now open only when the radio receives the
same subtone frequency. To return to normal noise ac-
tivated squelch, turn the Squelch control clockwise past
the detent.
It is a good operating practice to check the frequency
before transmitting. A MONITOR switch has been provided
for this purpose when using the TONE SQUELCH function.
Pressing this switch will open the squelch so you can check
for activity.
NOTE:
97.4 Hz is available only for encode.
@
Autopatch
operations
(with
the
TH-415A/
315A/215A)
Some
repeaters
offer
a
service
known
as
AUTOPATCH..
This
allows
you
to
dial
a telephone
number
from
your
radio
and
carry
out
a telephone
conversation,
much
like
a
car
telephone,
or
cellular
telephone.
This
function
requires
the
use
of
a
DTMF
(Dual
Tone
Multi
Frequency)
pad.
This
is
also
known
as
a
touch
tone
pad.
It operates
just
like
the
touch
tone
pad
on
your
home
telephone.
In
addition
to
the
normal
12
keys
that
are
found
on
your
telephone
the
transceiver
also
provides
4 additional
keys
A,
B,
C,
and
D.
These
keys
are
required
by
some
repeater
systems
for
various
control
functions.
You
should
check
with
the
con-
trol
operator
of
your
repeater
to
determine
if
their
use
is re-
quired.
A
chart
is
provided
that
lists
the
tones
that
are
generated
when
you
press
each
key.
To
use
the
touch
tone
pad
you
should
first
key
the
radio
us-
ing
the
PTT
switch.
Then
simply
press
the
numbers
cor-
responding
to
the
telephone
number
you
want
to
dial.
Some
repeaters
will
require
a
special
sequence
of
keys
to
activate
the
autopatch.
Again
you
should
check
with
the
control
operator
of
your
repeater
for
this
sequence.
After
you
have
pressed
the first number key the Audio tones (Hz)
radio will remain keyed for {\coumn
approximately 2 seconds. |,.)\ | 1209} 1336 | 1477} 1633
This is done so you do not
have to hold the PTT switch |927 | 1 | 2 | 3 | F=A
depressed while dialing. | 770 | 4 5_| 6 Aes.
The radio remains keyed | 852 7 8 9 =C
after you press each | ga41 a oO Y iad
number for this 2 seconds
interval.

Hm SCAN
Scan is initiated by pressing the SCAN |key.
The transceiver will stop on a busy channel. When an in-
coming signal is detected during scanning, the BUSY in-
dicator will light. In order for this function to operate the
SQL control must be adjusted to the threshold point. Scan
direction can be selected by either the [4 | or the [¥ |
key before initiating scan.
The selected scan mode and scan stop mode indicators will
flash ON and OFF during scanning.
@ SCAN MODES
1. BAND SCAN MODE: Scans the entire band.
2. MEMORY SCAN MODE: Scans the memory channels
repeatedly, skipping the vacant channels.
3. PROGRAMMABLE BAND SCAN MODE: Scans between
the frequencies stored in memory channels 8 and 9.
If the frequency stored in memory channel 8 is the same
or greater than in memory 9, or if either or both channels
are vacant, scan will proceed over the entire band.
If SCAN is initiated while the displayed frequency is out-
side the range specified in memory channels 8 and 9,
scan will proceed outside of the programmed limits.
In the BAND SCAN and PROGRAMMABLE BAND SCAN
MODE, scan proceeds according to the selected step
size.
@ SCAN STOP AND RESUME MODES
1. SEEK OPERATED SCAN: Scan will stop on a busy chan-
nel. Scan will not resume until the[ SCAN |key is pressed
again.
14
2. TIME OPERATED SCAN: Scan will stop on a busy chan-
nel and resume approx. 5 seconds afterwards. Scan will
resume even if the station is still present. <
3. CARRIER OPERATED SCAN: Scan will hold as long as
the signal is present and resume scan after a 2 second
delay if the signal drops out.
Releasing scan: Press one of the following keys during
scanning to clear the scan mode.
a) SCAN |key b) [PTT] switch
@ BEEP TONE
Audible confirmation of microprocessor function is provid-
ed in the form of a series of audio beeps.
To activate beep tones, press the [F_| key and 2/BEEP
key.
The radio will then supply audio confirmation according to
the chart below.
Scale al Key operation
A 440.00 | MRO
A# 466.16 | MR1
8 493.88 | MR2
c 523.25 | MR3, SAVE ON
C# 554.37 | MR4, OFFSET
D 587.33 | MIR5, To select OFFSET Frequency.
D# 622.26 | MIR6, REV, To select Tone Frequency
E 659.25 | MR 7, TXSTOP, SAVE AUTO
698.46 | MIR 8, To change the rate of Power Save time, ENTER
F# 739.98 | MR 9, KEYLOCK
G 783.98 | DOWN, SAVE OFF
G# 830.61 | UP
A 880.00 | F
At 932.33 | M
B 987.77 | Stopping scanning
F 1396.91_| Key operation without effect.

H MEMORY
@ MEMORY CHANNELS
The 10 memory channels (1 through 9, and 0) are available
for data entry. Channel 1, 8 and 9 have the following func-
tions in addition to its ordinary function.
Channel 1 is the Priority Alert Channel.
Channel 8 is the lower, and channel 9 is the upper limit fre-
quency for the programmable band scan operation.
Channel 0 is the Odd Split channel.
Each memory channel can store RX Frequency, F. STEP
status, OFFSET, REVERSE switch status and TONE Fre-
quency (TH-415A/315A/215A).
@ MEMORY ENTRY
1. Press the [M_| key. The display will A
indicate M and any memory channels 71819)
that contain data. (Ex. 1, 4, 7, 8, 9) M
2. Press the desired memory channel
number (Ex. 5) within 5 seconds of a
pressing the |M_| key. This will ac- |
tually store the information into
memory.
@ MEMORY RECALL
Simply press the desired memory channel key and the radio
will switch to this frequency.
To return to the original operating frequency, press the
same memory channel key again.
@ ODD SPLIT MEMORY CHANNEL
Memory channel O stores both a transmit and a receive fre-
quency. This channel will allow operation on ‘‘Odd Split’’
repeater channels.
1.
Select
the
desired
receiver
frequency,
tone
frequency,
etc.
2. Press the [M_] and then the [0 | key to store this part
of the data into memory.
3. Select the desired transmitter frequency.
4. Press the [M_] key.
5. Within 5 seconds of pressing the [M_| key press and
hold the PTT switch. The PTT switch will not initiate
transmit during the programming of this channel.
6. Press the [0 | key within 5 seconds of pressing the
PTT switch to complete the operation. After you have
pressed the [0 | key in this step you may release the
PTT key.
To operate on memory channel O you
need only press the [0 | key. The —
and the + indicators will turn on to in-
dicate that this memory channel now
contains odd split frequency data.
To cancel this odd split data simply store a new frequency
into the memory channel.
15

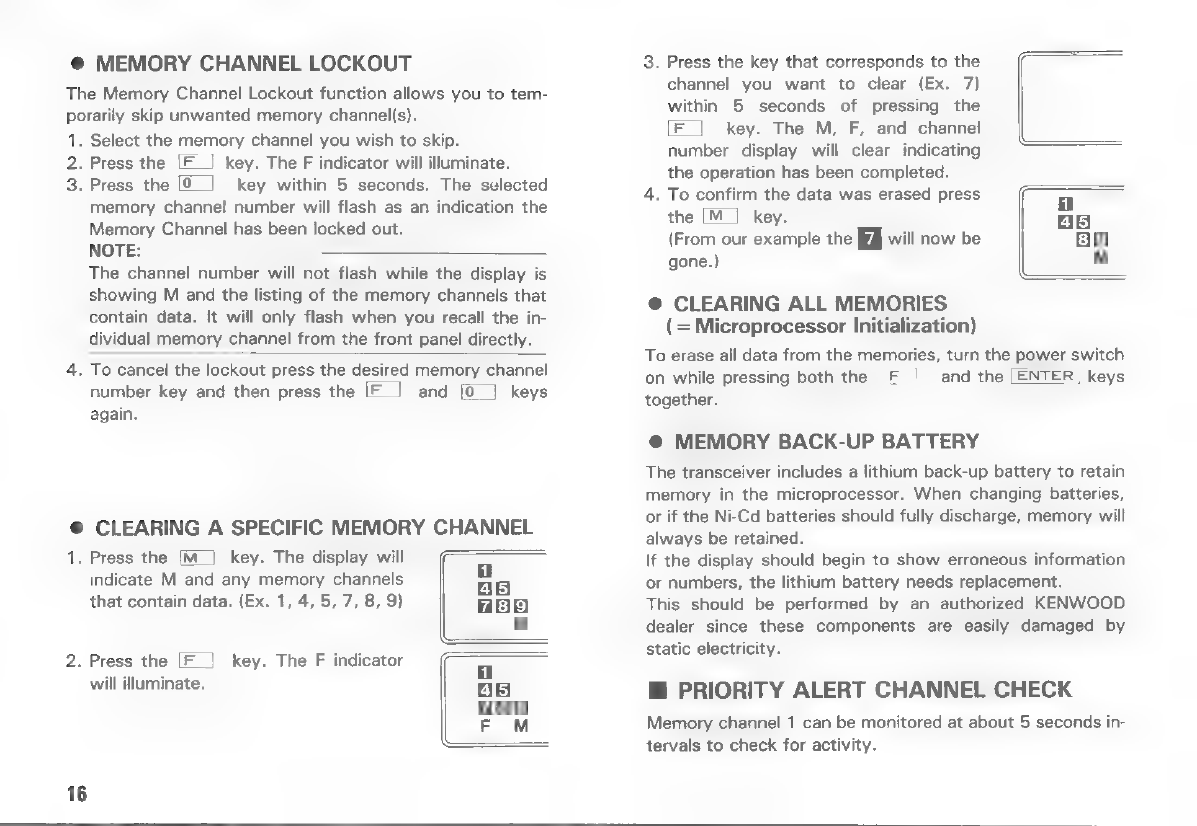

@ MEMORY CHANNEL LOCKOUT
The Memory Channel Lockout function allows you to tem-
porarily skip unwanted memory channel(s).
1. Select the memory channel you wish to skip.
2. Press the [F_| key. The F indicator will illuminate.
3. Press the [0] key within 5 seconds. The selected
memory channel number will flash as an indication the
Memory Channel has been locked out.
NOTE:
The channel number will not flash while the display is
showing M and the listing of the memory channels that
contain data. It will only flash when you recall the in-
dividual memory channel from the front panel directly.
4. To cancel the lockout press the desired memory channel
number key and then press the [F | and [0 | keys
again.
@ CLEARING A SPECIFIC MEMORY CHANNEL
1. Press the [(M_] key. The display will
indicate M and any memory channels i
that contain data. (Ex. 1, 4, 5, 7, 8, 9) 71819]
M
2. Press the [F | key. The F indicator
will illuminate. a
171819)
FM
3. Press the key that corresponds to the
channel you want to clear (Ex. 7)
within 5 seconds of pressing the
{F |] key. The M, F, and channel
number display will clear indicating
the operation has been completed.
4. To confirm the data was erased press
the [M_] key. 8
(From our example the will now be 8
gone.)
@ CLEARING ALL MEMORIES
(= Microprocessor Initialization)
To erase all data from the memories, turn the power switch
on while pressing both the [F | and the [ENTER] keys
together.
=0
@ MEMORY BACK-UP BATTERY
The transceiver includes a lithium back-up battery to retain
memory in the microprocessor. When changing batteries,
or if the Ni-Cd batteries should fully discharge, memory will
always be retained.
If the display should begin to show erroneous information
or numbers, the lithium battery needs replacement.
This should be performed by an authorized KENWOOD
dealer since these components are easily damaged by
static electricity.
@ PRIORITY ALERT CHANNEL CHECK
Memory channel 1 can be monitored at about 5 seconds in-
tervals to check for activity.

Press the |F key and then the 1/PRIO key, [PRIO] will
appear on the display.
If the channel is busy, the | PRIO | indicator blinks, and if the
BEEP function is ON, a beep will sound.
To stop the function, press the [F_] and 1/PRIO keys
again.
The function does not operate during scan or transmission.

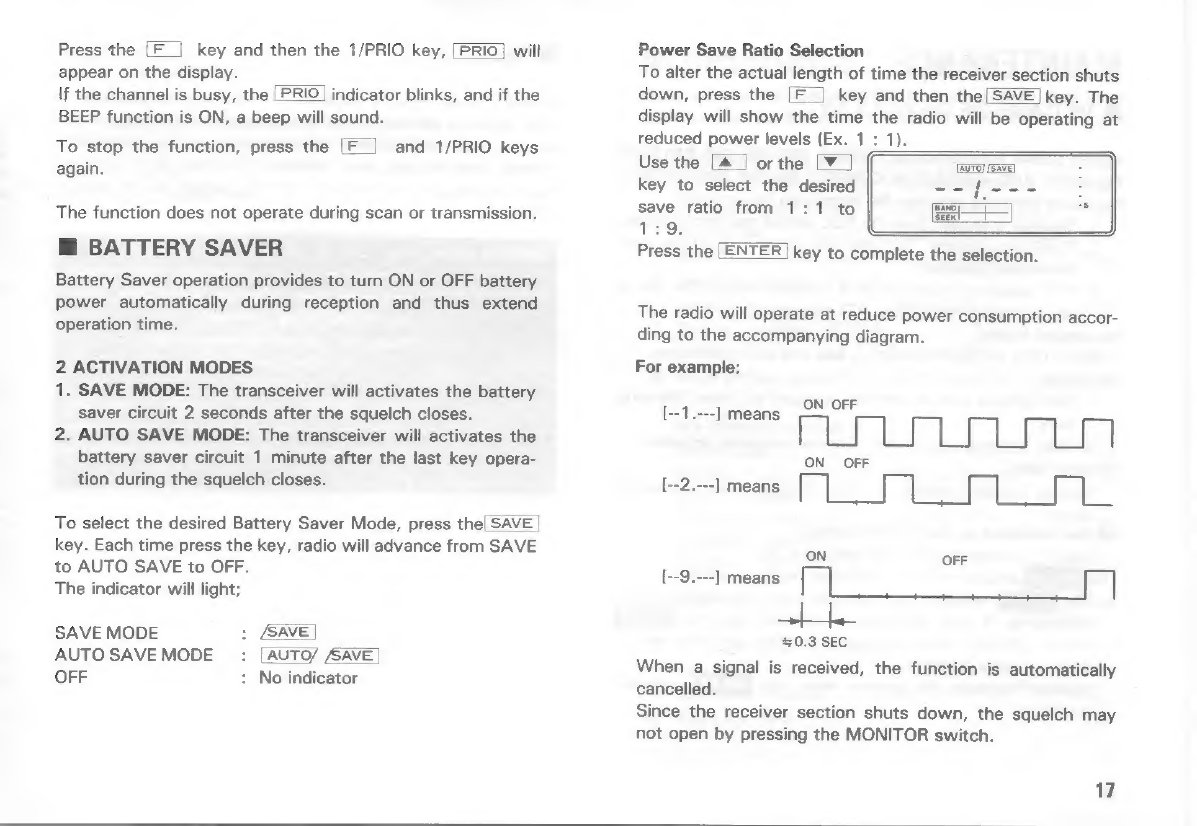

lH BATTERY SAVER
Battery Saver operation provides to turn ON or OFF battery
power automatically during reception and thus extend
operation time.
2 ACTIVATION MODES
1. SAVE MODE: The transceiver will activates the battery
saver circuit 2 seconds after the squelch closes.
2. AUTO SAVE MODE: The transceiver will activates the
battery saver circuit 1 minute after the last key opera-
tion during the squelch closes.
To select the desired Battery Saver Mode, press the| SAVE
key. Each time press the key, radio will advance from SAVE
to AUTO SAVE to OFF.
The indicator will light;
SAVE MODE : (SAVE)
AUTO SAVE MODE [AUTO/ SAVE
OFF : No indicator
Power Save Ratio Selection
To
alter
the
actual
length
of
time
the
receiver
section
shuts
down,
press
the
[F_]
key
and
then
the[SAVE]key.
The
display
will
show
the
time
the
radio
will
be
operating
at
reduced
power
levels
(Ex.
1
:
1).
Use
the
[4
]
or
the
[¥
(ROTO)
(SAVE)
key
to
select
the
desired
--f---
save
ratio
from
1:1
to
[ss
gee
5
Press
the
[ENTER]
key
to
complete
the
selection.
The
radio
will
operate
at
reduce
power
consumption
accor-
ding
to
the
accompanying
diagram.
For example;
ON OFF
Se oe PO fd
ON OFF
[--2.---] means | i | |
ON OFF
[--9.---] means |
elem lege
0.3 SEC
When
a
signal
is
received,
the
function
is
automatically
cancelled.
Since
the
receiver
section
shuts
down,
the
squelch
may
not open by pressing the MONITOR switch.
17

MAINTENANCE
IN CASE OF DIFFICULTY
WHEN USING SUM-3/AA BATTERIES, ENSURE THE BATTERY
POLARITY AND VOLTAGE IS CORRECT BEFORE PROCEEDING.
No sound from the speaker. No signal can be received.
1. Squelch is closed. Turn the SQL control counterclockwise.
2. T.SQ is activated. Turn the SQL control clockwise past
the detent position.
3. PTT switch of microphone is pressed setting the unit in
the transmit mode. Turn PTT switch off.
No control works.
KEY LOCK is ON. Press [F
No output
1. Microphone jack is not fully plugged in. Insert the plug
* fully.
2. Poor antenna connection. Connect antenna securely.
Memory loss.
Backup
battery
voltage
is
low.
Contact
your
authorized
dealer.
All the indicators go out on the display.
Turn the power switch OFF and then ON.
The and/or [ONAIR] indicator begins to blink.
The indicator will come on when the battery needs
recharging. If you continue to operate and. the
and/or [ONAIR] indicator begins to blink the radio will no
langer operate properly.
Replace/Recharge the battery when the indicator
comes on.
key and KEY LOCK key.
18
@ SERVICE
Should it ever become necessary to return the equipment to
your dealer or service center for repair, pack in its original box
and packing, and include a full description of the problems in-
volved. Also include your telephone number. You need not
return accessory items unless directly related to the service
problem.
Service note: Dear OM, if you desire to correspond on a
technical or operational problem, please make
your note short, complete, and to the point.
And PLEASE make it readable.
Please list: Model and serial number.
The question or problem you are
having.
When claiming warranty service, a photocopy
of the bill of sale, or other proof of purchase
showing the date of sale must accompany the
radio.

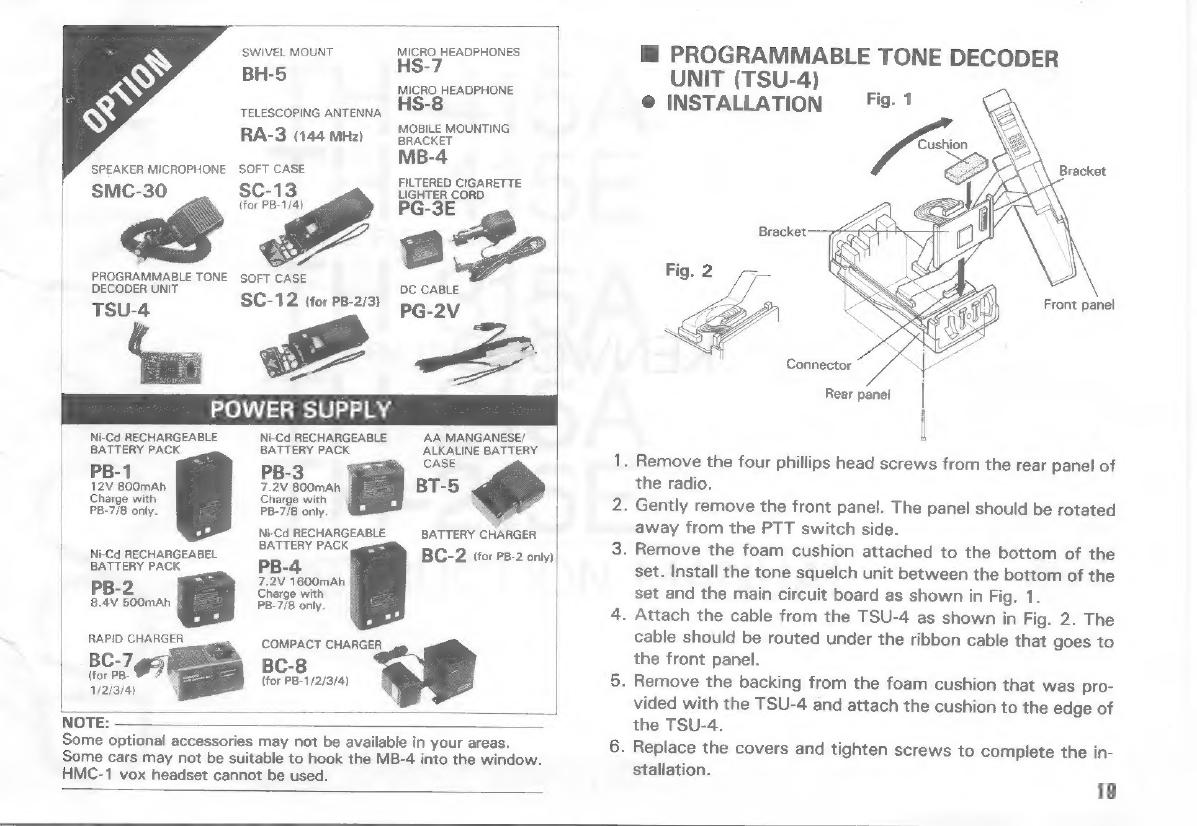

SWIVEL MOUNT ce HEADPHONES
BH-5
MICRO HEADPHONE
TELESCOPING ANTENNA
MOBILE MOUNTING
RA-3 (144 MHz) BRACKET
MB-4
SPEAKER MICROPHONE SOFT CASE seca acer
if ‘'D
| SMC-30 SC-13 LIGHTER CORD
S (for PB-1/4) PG-3E
PROGRAMMABLE TONE SOFT CASE
DECODER UNIT DC CABLE
SC-12 (for PB-2/3)
TSU-4 PG-2V
oe
SS
|
POWERSUPPLY
POWER SUPPLY
| Ni-Cd RECHARGEABLE
BATTERY PACK
Ni-Cd RECHARGEABLE
BATTERY PACK
AA MANGANESE/
ALKALINE BATTERY
CASE
PB-1 PB-3
12V 800mAh 7.2V 800mAh BT-5
Charge with Charge with 4 |
PB-7/8 only. PB-7/8 only. |
Ni-Cd RECHARGEABLE BATTERY CHARGER |
| BATTERY PACK |
Ni-Cd RECHARGEABEL BC-2 (for PB-2 only)
BATTERY PACK PB-4 |
7.2V 1600mAh
| PB-2 Charge with
8.4V 500mAh PB-7/8 only.
RAPID CHARGER
| COMPACT CHARGER
BC-7,
BC-
(for
PB-
«
(for
PB-1/2/3/4)
1/2/3/4)
1
NOTE:
Some optional accessories may not be available in your areas.
Some cars may not be suitable to hook the MB-4 into the window.
HMC-1 vox headset cannot be used.
@
PROGRAMMABLE
TONE
DECODER
UNIT
(TSU-4)
;
@
INSTALLATION
Fig.
1
Pee Bracket
Connector
Rear panel |
1.
Remove
the
four
phillips
head
screws
from
the
rear
panel
of
the
radio.
2.
Gently
remove
the
front
panel.
The
panel
should
be
rotated
away
from
the
PTT
switch
side.
3.
Remove
the
foam
cushion
attached
to
the
bottom
of
the
set.
Install
the
tone
squelch
unit
between
the
bottom
of
the
set
and
the
main
circuit
board
as
shown
in
Fig.
1.
4.
Attach
the
cable
from
the
TSU-4
as
shown
in
Fig.
2.
The
cable
should
be
routed
under
the
ribbon
cable
that
goes
to
the
front
panel.
5.
Remove
the
backing
from
the
foam
cushion
that
was
pro-
vided
with
the
TSU-4
and
attach
the
cushion
to
the
edge
of
the
TSU-4.
6.
Replace
the
covers
and
tighten
screws
to
complete
the
in-
stallation.
19

KENWOOD
