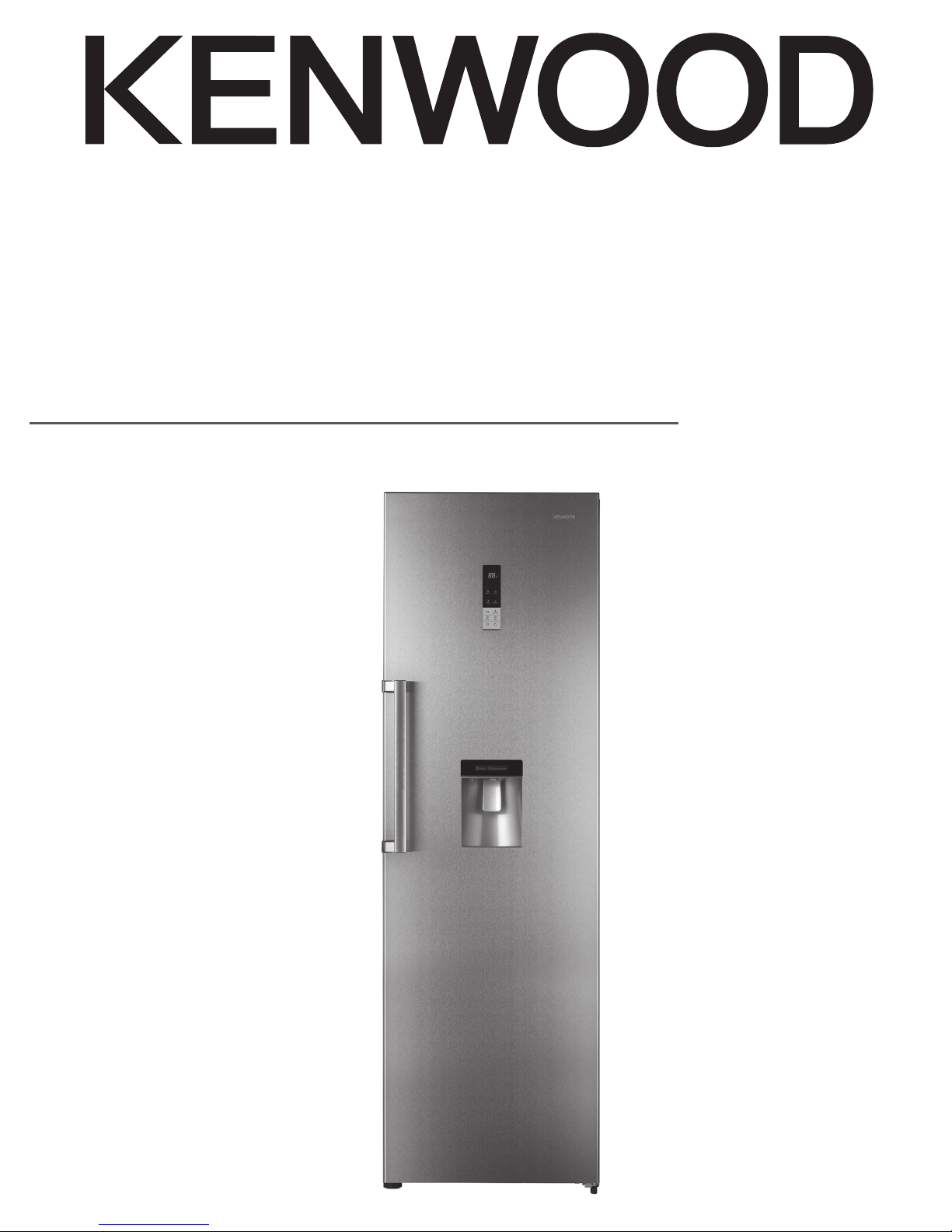

Kenwood KTLD60X15 Service manual

60cm Frost Free Tall Fridge with
Water Dispenser
KTLD60X15 / KTLD60B17
installation / instructions manual
KTLD60X15/B17_IB_161216_grace.indd 1 16/12/16 2:09 pm

Contents
safety warnings .................................................................................................................. 3
unpacking............................................................................................................................ 5
installation........................................................................................................................... 6
location ............................................................................................................................ 6
levelling the unit............................................................................................................... 6
free space requirements.................................................................................................. 6
installing the door handle ................................................................................................ 6
installing the water tank................................................................................................... 7
reversing the door swing ................................................................................................. 7

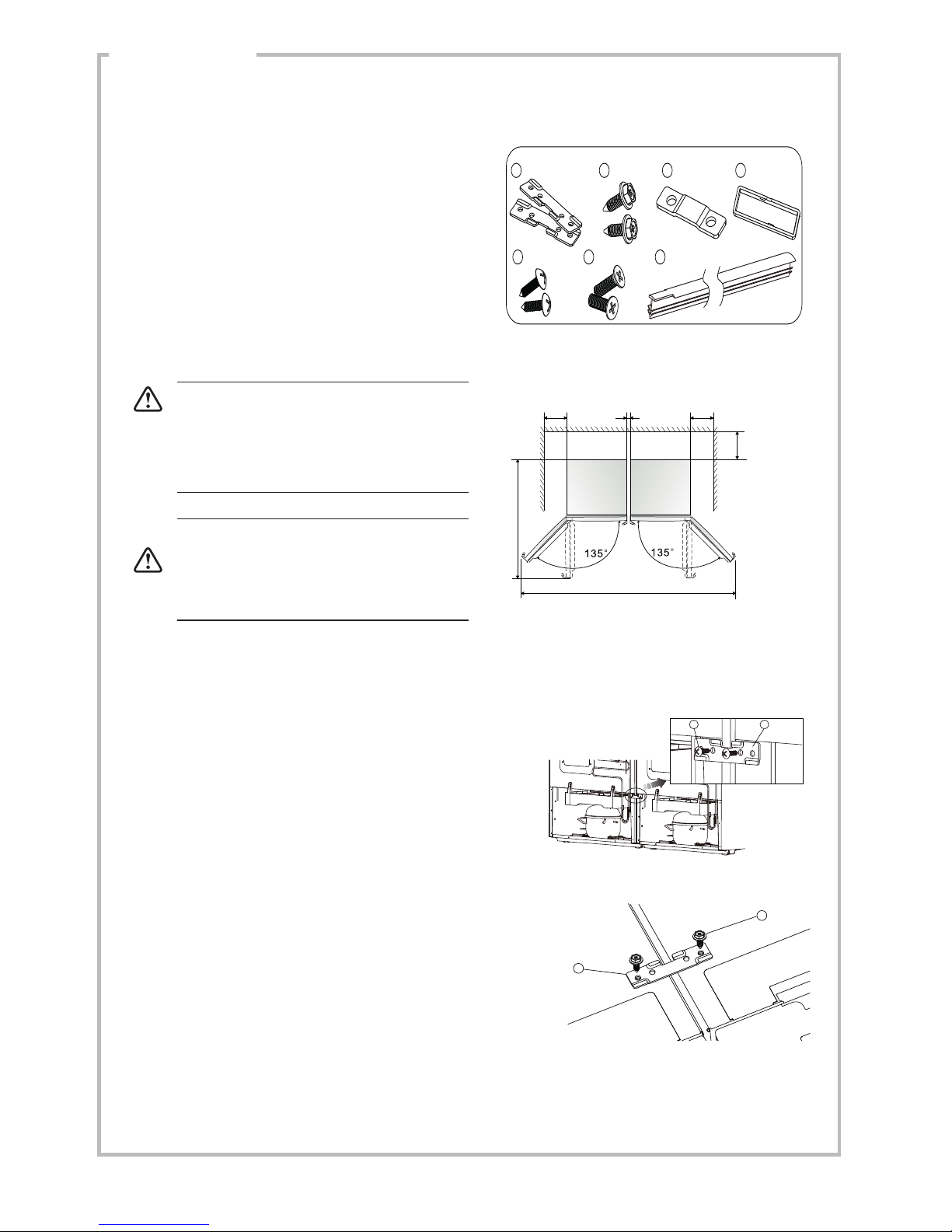

installing in pairs with freezer unit (optional) ..................................................................11
cleaning before use ....................................................................................................... 12
before using your unit.................................................................................................... 12
product overview.............................................................................................................. 13
main unit........................................................................................................................ 13
operation ........................................................................................................................... 14
switching on your unit.................................................................................................... 14
super cool mode............................................................................................................ 14
holiday mode ................................................................................................................. 14
door alarm ..................................................................................................................... 15
child lock........................................................................................................................ 15
lling the water tank....................................................................................................... 15

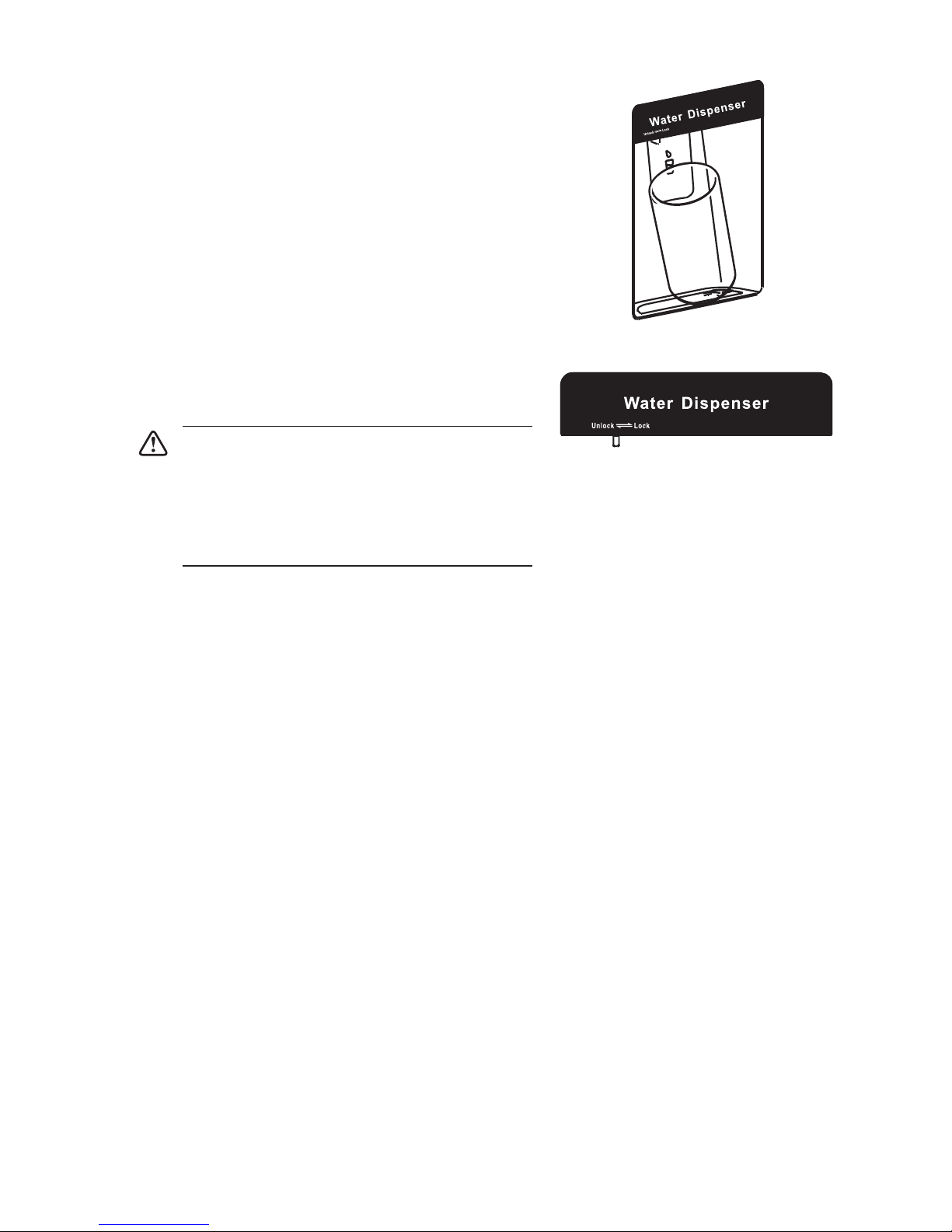

receiving water from the water dispenser...................................................................... 16
noises inside the unit!.................................................................................................... 16
tips for keeping food in the unit ..................................................................................... 17
cleaning the interior and the exterior of the unit........................................................... 17
cleaning the water tank and water dispenser ................................................................ 17
maintenance...................................................................................................................... 18
changing the internal LED light ..................................................................................... 18
care when handling / moving your unit.......................................................................... 18
servicing ........................................................................................................................ 18
switching off for long periods of time ............................................................................. 18
condensation ................................................................................................................. 18
disposal............................................................................................................................. 18
specications.................................................................................................................... 19
KTLD60X15/B17_IB_161216_grace.indd 2 16/12/16 2:09 pm

3
safety warnings
For your continued safety and to reduce the risk of injury or electric
shock, please follow all the safety precautions listed below.
• Read all instructions carefully before using the unit and keep them
for future reference.
• Retain the manual. If you pass the unit onto a third party, make
sure to include this manual.
• This appliance is intended for indoor household use and similar
applications such as:
– farm houses and by clients in hotels, motels and other residential
type environment;
– bed and breakfast type environment;
– staff kitchen areas in shops, offices and other working
environment;
– catering and similar non-retail applications.
• Ensure that the plug is easily accessible to enable disconnection
from the mains supply.
• If the mains cable is damaged, it must be replaced by the
manufacturer, its service agent or a qualified technician in order to
avoid a hazard.
• Choose a location for your unit away from heat sources such as
radiators or fires as refrigerant and vesicant are burnable.
• The unit must be manoeuvred by a minimum of 2 persons.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• Children should be supervised to ensure that they do not play with
the unit.
• If your unit is fitted with a lock to prevent children being trapped
inside, keep the key out of reach and not in the vicinity of the unit.
KTLD60X15/B17_IB_161216_grace.indd 3 16/12/16 2:09 pm

4
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN
AUTHORISED SERVICE PERSONNEL TO CARRY OUT
SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL
OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.
WARNING
• Keep ventilation openings in the unit enclosure or in the built-
in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• Do not use electrical appliances inside the food storage
compartments of the unit, unless they are of the type
recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a
very environmental-friendly gas but is also combustible. Take
care when transporting or moving the unit to ensure that the
refrigeration circuit is not damaged. In the event of damage
avoid naked flames or ignition sources and ventilate the room
in which the unit is placed for a few minutes.)
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• Do not store bottles or glass containers in the freezer
compartment. Contents can expand when frozen (fizzy
drinks) which may break the bottle and damage your freezer
compartment. (If applicable)
KTLD60X15/B17_IB_161216_grace.indd 4 16/12/16 2:09 pm

5
unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.

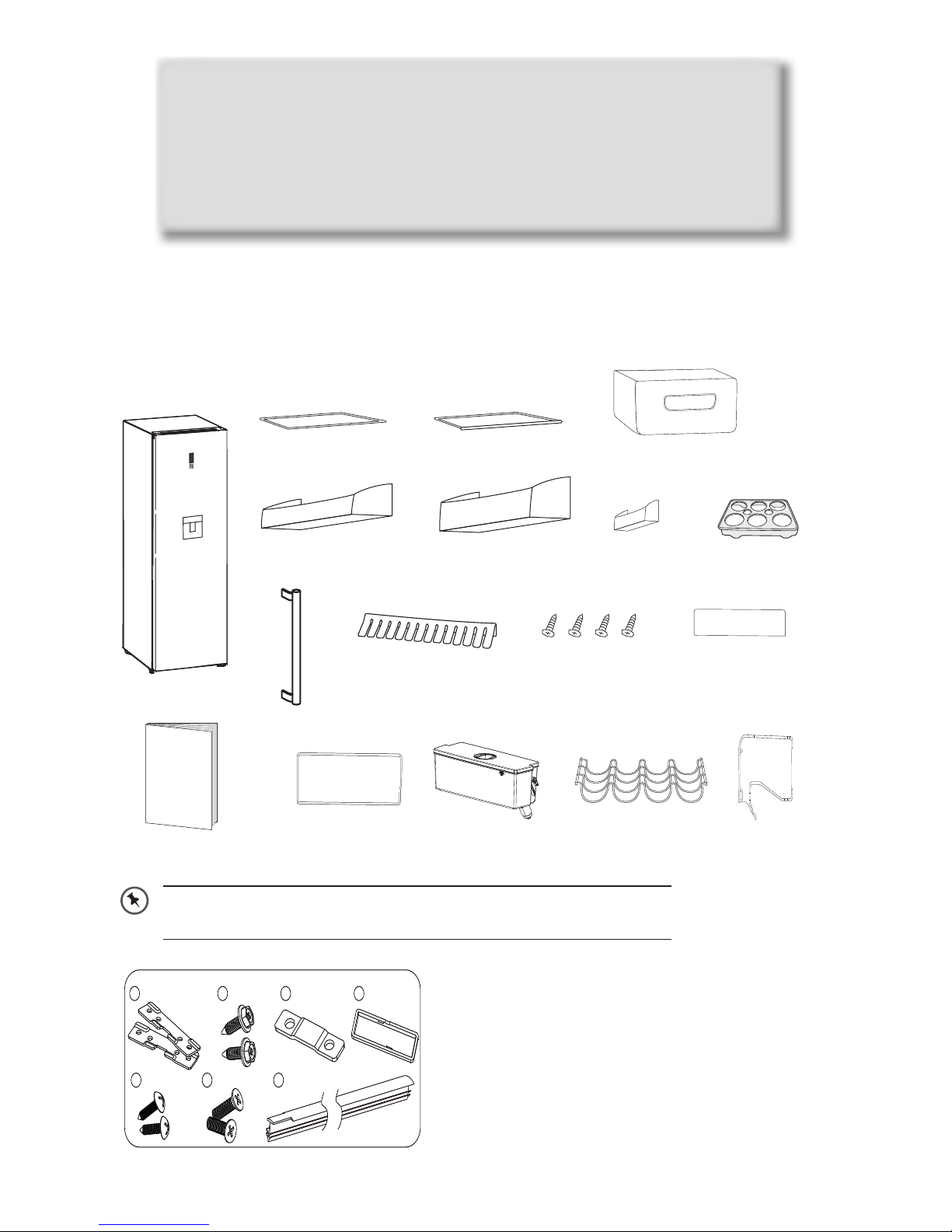

The following items are included:
Thank you for purchasing your new Kenwood Fridge.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this installation/instruction
manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
The Main Unit
Salad Bin Cover Shelf x 2
Wine Rack
Glass Shelf x 4 Salad Bin x 2
Upper Door Shelf x 2 Egg Tray
Bottle Stopper
Instruction Manual
Lower Door Shelf x 2
Instruction
Manual
Upper Left
Hinge Cover
Upper Right
Corner Cover
Door Handle
Door Handle Screw
x 4
Door Handle Screw
Cover x 2
Half Door Shelf
Water Tank
765
4321
(not included, need to purchase
separately).
KTLD60X15/B17_IB_161216_grace.indd 5 16/12/16 2:09 pm

6
installation
installation
location
When selecting a position for your unit you should make sure the floor is flat and firm, and the
room is well ventilated with an average room temperature of between 10°C and 43°C. Avoid
locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight
as it may increase the electrical consumption. Extreme cold ambient temperatures may also
cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor
installation. Do not drape the unit with any covering.
Max. 160°
Y mm
X mm
levelling the unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the doors and magnetic seal alignments
will not be covered properly.
free space requirements
When installing the unit, ensure that 25 mm of
free space is left at both sides, 50 mm at the
rear of the unit and 25 mm at the top of the unit.
The door can be opened to the right or the left,
depending on which best suits the location.
Please ensure there is more than twice the width
and depth distance space of the unit to fully open
the door to a maximum angle of 160°.
installing the door handle
Remove the screw hole plugs. Place the door handle in place and screw tightly. Cover the screw
holes with the door handle screw covers. Button the buckle between the handle and cover, then
snap to close the cover from the inside until a ‘pop’ sound is heard.
This is an easy-to-open door handle. No hard pull is required, instead just twist the handle gently
and the door can be pulled open easily.
KTLD60X15/B17_IB_161216_grace.indd 6 16/12/16 2:09 pm

7
installation
• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit
on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
• If you want to have the door swing reversed, we recommend that you contact a
qualified technician. You should only try to reverse the door yourself if you believe that
you are qualified to do so.
reversing the door swing
tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

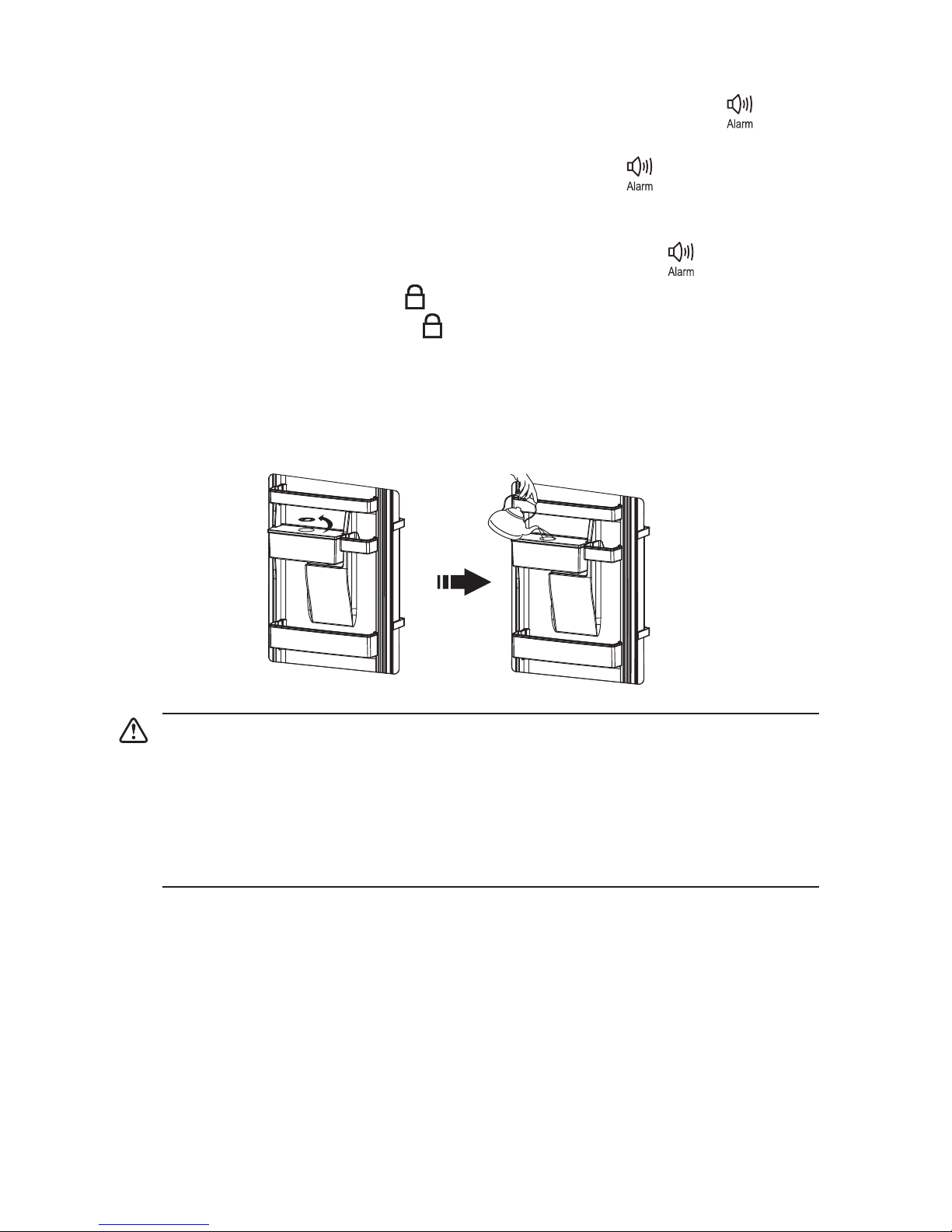

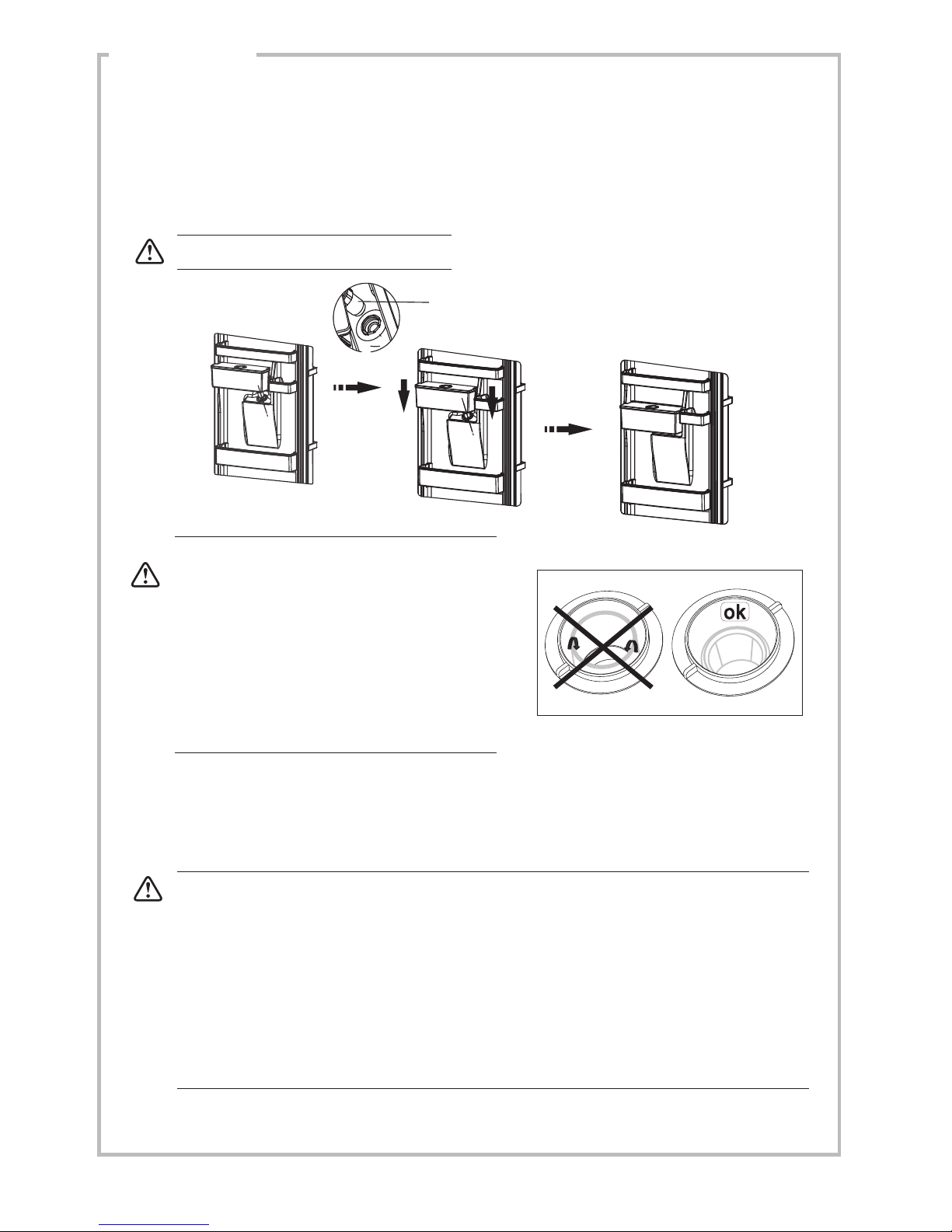

installing the water tank
• Insert the valve of the water tank into the hole of the water dispenser and push down the
water tank to attach securely with the water dispenser.
• To remove the water tank, hold firmly on both sides and bottom of the water tank then push
up.
Valve
Be careful not to press on the valve.
• Make sure the rubber seal inside the hole
is in proper position before installing the
water tank. This is because the rubber
seal may turn inside out when removing
the water tank.
• A tiny part of the rubber seal will appear
torn. This is not a damage. On the
contrary, it helps to prevent the rubber
seal from turning inside out when
removing the water tank.
KTLD60X15/B17_IB_161216_grace.indd 7 16/12/16 2:09 pm

8
installation
2. Unplug the electrical cord. Remove the
upper corner cover.
Upper corner cover has left and right
side. There is the letter “L” and “R”
at the back to identify which side it
belongs to. The upper corner cover
packed as an accessory is for the
right side.
3. Remove the screws and loosen the wire
from the hinge. Remove the upper hinge.
Lift the door and place it on a padded
surface to prevent from being scratched.
4. Remove the stopper and stop block from
the bottom of the door and move them to
the opposite side. Screw tightly.
1. Remove all door shelves and water tank.
Remove the upper cover, upper hinge
cover, upper door cover and upper door
corner block.
Upper hinge cover has left and right
side. The upper hinge cover packed
as an accessory is for the left side.
KTLD60X15/B17_IB_161216_grace.indd 8 16/12/16 2:09 pm

9
installation
5. Lay down the unit. Remove both levelling
feet, levelling feet fix board and bottom
hinge.
6. Swap the position of the levelling feet fix
board with the bottom hinge. On the bottom
hinge, move the position of the bottom hinge
pin to the other hole. Tighten the pin securely.
7. Screw the levelling feet fix board, bottom
hinge and levelling feet tightly on their
new position.
8. Stand the unit. Swap the position of the
wires between the left and right slots on
top of the unit.
KTLD60X15/B17_IB_161216_grace.indd 9 16/12/16 2:09 pm

10
installation
10. Plug the electrical cord. Cover the upper
hinge with the upper hinge cover.
11. Reverse the upper door corner block and
attach on the door. Put back the upper door
cover.
12. Move the magnet cord to the opposite side
and attach the corner cover. Put back the
upper cover.
13. Move the door handle to the other side of
the door accordingly.
9. Reverse the upper hinge and place it on
its new position. Fix the wire on the hinge.
Place the bottom hole of the door onto
the bottom hinge pin. Insert the upper
hinge pin into the upper hole of the door.
Tighten the pin securely. Screw the upper
hinge tightly.
Ensure the door is aligned horizontally
and vertically, so that the seals are
closed on all sides before finally
tightening the pin.
KTLD60X15/B17_IB_161216_grace.indd 10 16/12/16 2:09 pm
