KERONG KR-S80-A User manual

Technology Change Life
User manual

Technology Change Life
Preface
Dear Customers:
Thanks for choosing card cabinet lock offered by Kerong
Industry (HK) Co ., Limited . Please read this 《User Manual 》
carefully before using.
Thanks for your kind understanding and support!

Technology Change Life
Contents
1. Product....................................................................................................................................1
2. Product Appearance...............................................................................................................2
2.1 Lock body...........................................................................................................................2
2.2 Lock hook...........................................................................................................................2
2.3 Card....................................................................................................................................2
2.4 Screws................................................................................................................................2
2.5 External power supply........................................................................................................3
3. Product Installation Dimensions...........................................................................................4
4. Installation Drawings.............................................................................................................6
5. Product Functions..................................................................................................................7
5.1 Functions & Features..........................................................................................................7
5.2 Parameters..........................................................................................................................7
6. Operations...............................................................................................................................9
6.1 Public Mode......................................................................................................................9
6.1.1 Mode introduction...........................................................................................................9
6.1.2 Set lock into public mode...............................................................................................10
6.1.3 Set manager card............................................................................................................10
6.1.4 Set user card...................................................................................................................10
6.1.5 How to use user card......................................................................................................10
6.1.6 Set delete card................................................................................................................10
6.2 Private Mode....................................................................................................................11
6.2.1 Mode introduction..........................................................................................................11
6.2.2 Set lock into private mode..............................................................................................11
6.2.3 Set manager card............................................................................................................12
6.2.4 Set user card...................................................................................................................12
6.2.5 How to use user card......................................................................................................12
6.2.6 Set delete card................................................................................................................12
6.3 Limited Public Mode.......................................................................................................13
6.3.1 Mode introduction..........................................................................................................13
6.3.2 Set lock into limited public mode..................................................................................13
6.3.3 Set manager card............................................................................................................13
6.3.4 Set user card...................................................................................................................14
6.3.5 How to use user card......................................................................................................14
6.3.6 Set delete card................................................................................................................14
7. Reset Lock..............................................................................................................................15
8. Warm Tips.............................................................................................................................15

Technology Change Life
- 1 -
1. Relative Products

Technology Change Life
- 2 -
2. Product Appearance
2.1 Lock body
Material: ABS
Size: 80*80*27mm
2.2 Lock hook
Different hook types suit for various application
Hook A suits for both vertical and horizontal installation
Hook D and Hook E suit for horizontal installation
2.3 Card
Different shapes of cards available:
wrist band, tag fob, rectangle card and so on.
2.4 Screws
Suitable screws for different material cabinets
(wooden/metal) and different door thickness.
2.5 External power supply
With external battery box and power adaptor
to work with lock body or front panel for
emergency power supply.

Technology Change Life
- 3 -

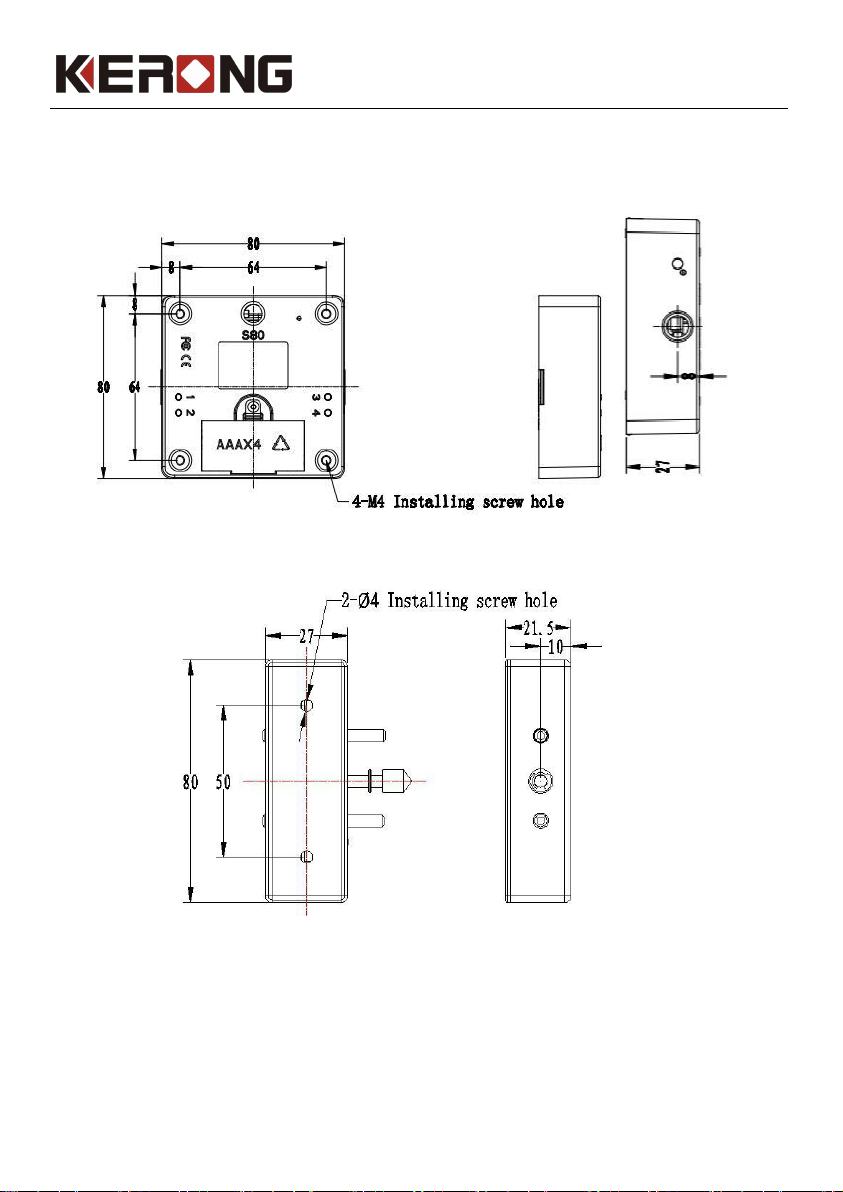

3. Product Installation Dimension
Lock body
Hook A

Technology Change Life
- 4 -
Hook E
Hook

Technology Change Life
- 5 -

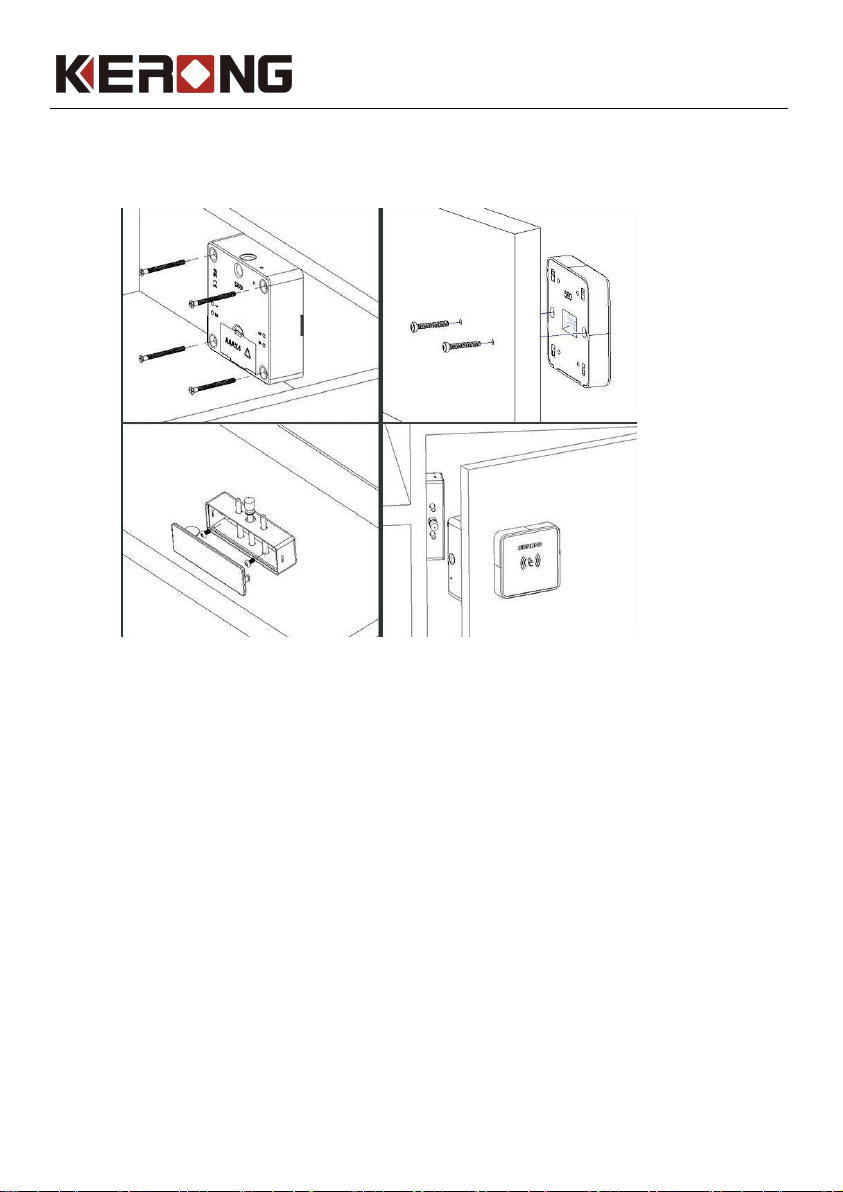

4.Installation Drawing

Technology Change Life
- 6 -
5. Product Functions
5.1 Parameters
Material
ABS for lock body shell, Acrylic & PC for panel
Power consumption
Static power consumption <100uA
dynamic power consumption<200mA
Working voltage
DC6V(4*AAA 1.5V)
Batteries can standby for around 1 year
Working environment
Working temperature -15℃~ +65℃
Working humidity 10% ~ 90%RH
Anti-static
Air static 15KV
Touch static 8KV
5.2 Functions & Features
Functions
Features
Sound prompt
Lock will prompt with sound when swipe correct/wrong card,
battery is in low voltage, unlocking for a long time
Light prompt
Green: correct operation
Red: wrong operation
Blue: low voltage
White: standby status
Low voltage alarm:
1.When battery’s voltage is lower than 4.5V, light will shine
in blue and lock sounds “di di” on every opening or alarm
automatically when lower than 4.5V to remind user change new
batteries

Technology Change Life
- 7 -
Alarm functions
2. When voltage is less than 4V, lock can’t be locked until
change new batteries.
3. Lock can work normally 1000 times after low voltage
warning
Lock status alarm:
1. Lock will keep warning for 10s if it keeps unlocking status
more than 30s.
2. ※Lock status alarming function only exists in private mode.
Press button 1+2 can enable/disable this function.
3. If you have a handset machine, you also can set a card to
enable/disable this function.
Locking protection:
Input wrong code/card, lock will shine in red twice and prompt
with “di di”.Wrong for 5 times continuously, lock will be
unavailable for 5mins.
During unavailable period:
1. Use manager card/code can make it available.
2. Input user code/card lock will prompt with “di di di di di”
and light shines in red.
Card functions
1. Manager card: For setting user card, also can be used for
emergency unlock in public mode.
2. User card: Only be used for unlocking.
3. Delete card: For deleting all user cards at one time, or delete
a specific card.
4. Master card: For emergency unlocking.
Button functions
Button 1: Set manager card and user card.
Button 2: Set delete card.
Button 3: Change working mode.
Button 4: Change to single key mode or double key mode.
Reset: Reset the lock.
If you don’t want to set lock and card by these four buttons, we
also can disable them, and set all with handset machine.
Functional cards
1. Change working mode by card.
2. Enable & disable lock status alarm function by card.
3. Enable & disable lock sound by card.

Technology Change Life
- 8 -
4. Function cards can be encrypted. Only these encrypted
function cards can set the lock.
5. Users can use their own cards that are compatible with our
lock, but function cards only can be Mifare 1 card.
6. Operations

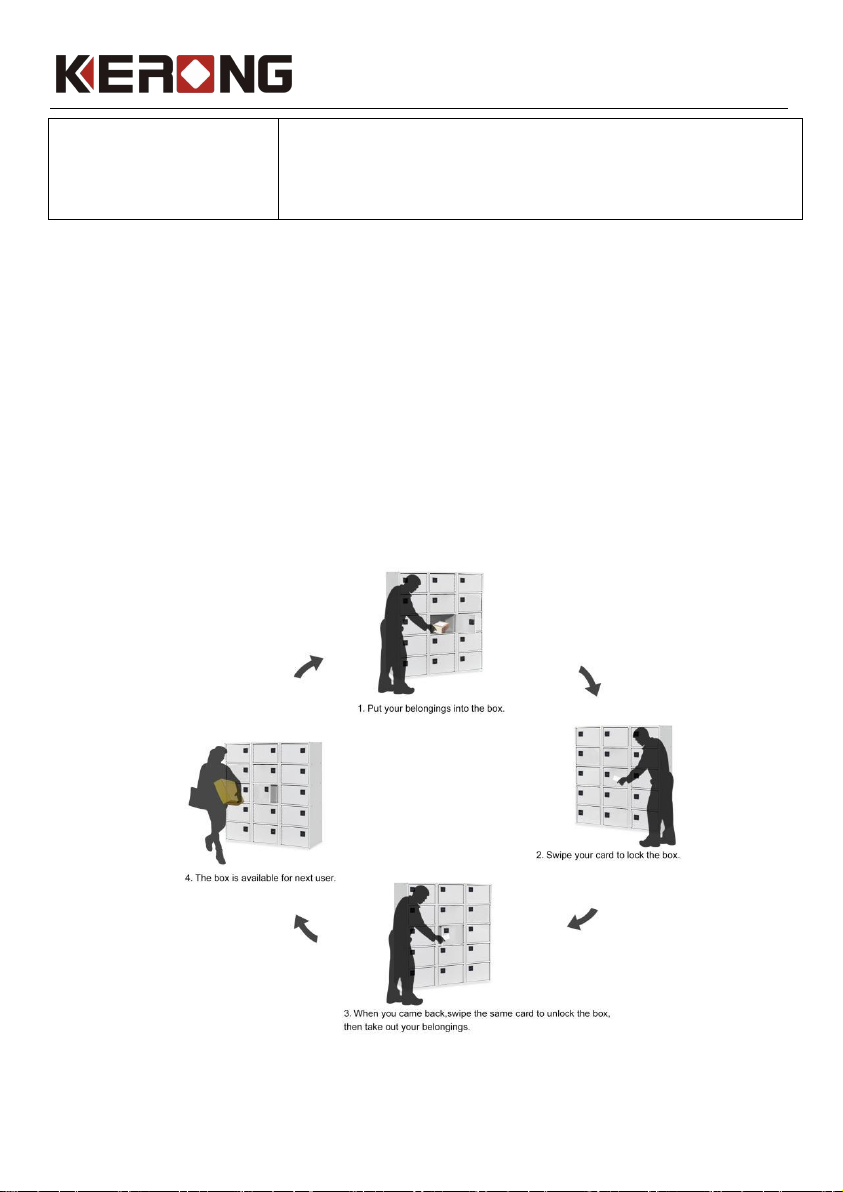

6.1 Public Mode
6.1.1 Mode introduction
Lock keeps unlocking under public mode, manager card should be programmed first(manager
card can use for emergency unlock). Any card to lock and same card to unlock.

Technology Change Life
- 9 -

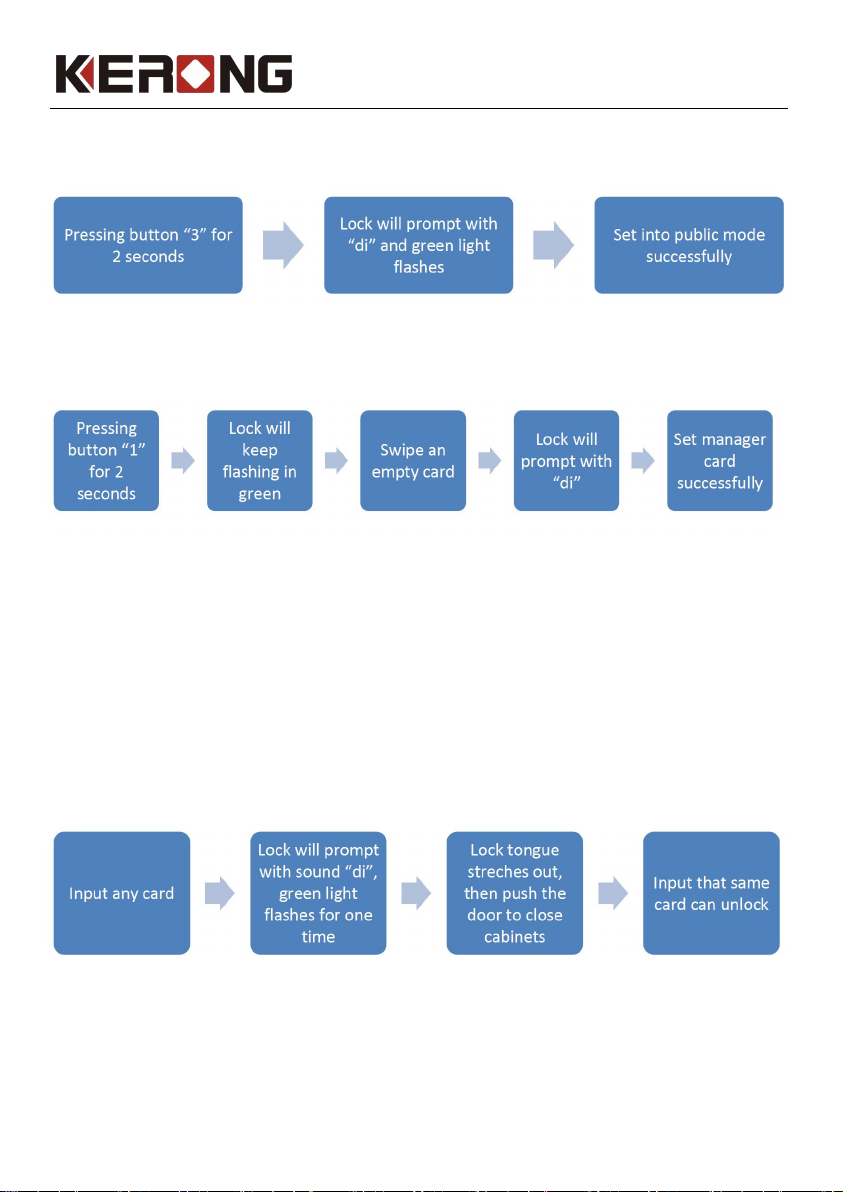

6.1.2 Set lock into public mode
6.1.3 Set manager card
Notice:
1. While green light is flashing, user can set manager card continuously.
One lock can have max 10pcs manager cards.
2. Manager card can be used for emergency unlock in public mode.
6.1.4 Set user card
※In public mode, no need to set user card. Input any card can lock, then same card to unlock.
6.1.5 How to use user card
6.1.6 Set delete card

Technology Change Life
- 10 -
Notice:
1. While green light is flashing, user can set delete card continuously.
One lock can have max 10pcs delete cards.
2. Swipe the delete card, all user cards will be invalid, then need to set again.
3. If you want to delete one user card at one time, please let us know in advance.
6.2 Private Mode
6.2.1 Mode introduction
Lock keeps locking under private mode, manager card and user card should be programmed
first(manager card only for programming user card). Push the door to close, and use the user
card to unlock.

Technology Change Life
- 11 -
6.2.2 Set lock into private mode
6.2.3 Set manager card
Notice:
1. While green light is flashing, user can set manager card continuously.
One lock can have max 10pcs manager cards.
2. Manager card cannot use for emergency unlock, just for setting user card.
6.2.4 Set user card
Notice:
1. While green light is flashing, user can set user card continuously.
One lock can have max 30pcs user cards.
6.2.5 How to use user card
6.2.6 Set delete card

Technology Change Life
- 12 -
Notice:
1. While green light is flashing, user can set delete card continuously.
One lock can have max 10pcs delete cards.
2. Swipe the delete card, all user cards will be invalid, then need to set again.
3. If you want to delete one user card at one time, please let us know in advance.
6.3 Limited Public Mode
6.3.1 Mode introduction
Lock keeps locking first under limited public mode, manager card and user card should be
programmed first(manager card only for programming user card). Lock will keep unlocking
after unlocked, then swipe user card, push the door can close the box.

Technology Change Life
- 13 -
6.3.2 Set lock into limited public mode
6.3.3 Set manager card
Notice:
1. While green light is flashing, user can set manager card continuously.
One lock can have max 10pcs manager cards.
2. Manager card cannot be used for emergency unlock, just for setting user card.
6.3.4 Set user card
Notice:
1. While green light is flashing, user can set user card continuously.
One lock can have max 30pcs user cards.
2. If user card is lost, you can use manager card to set a new user card to unlock.
6.3.5 How to use user card

Technology Change Life
- 14 -

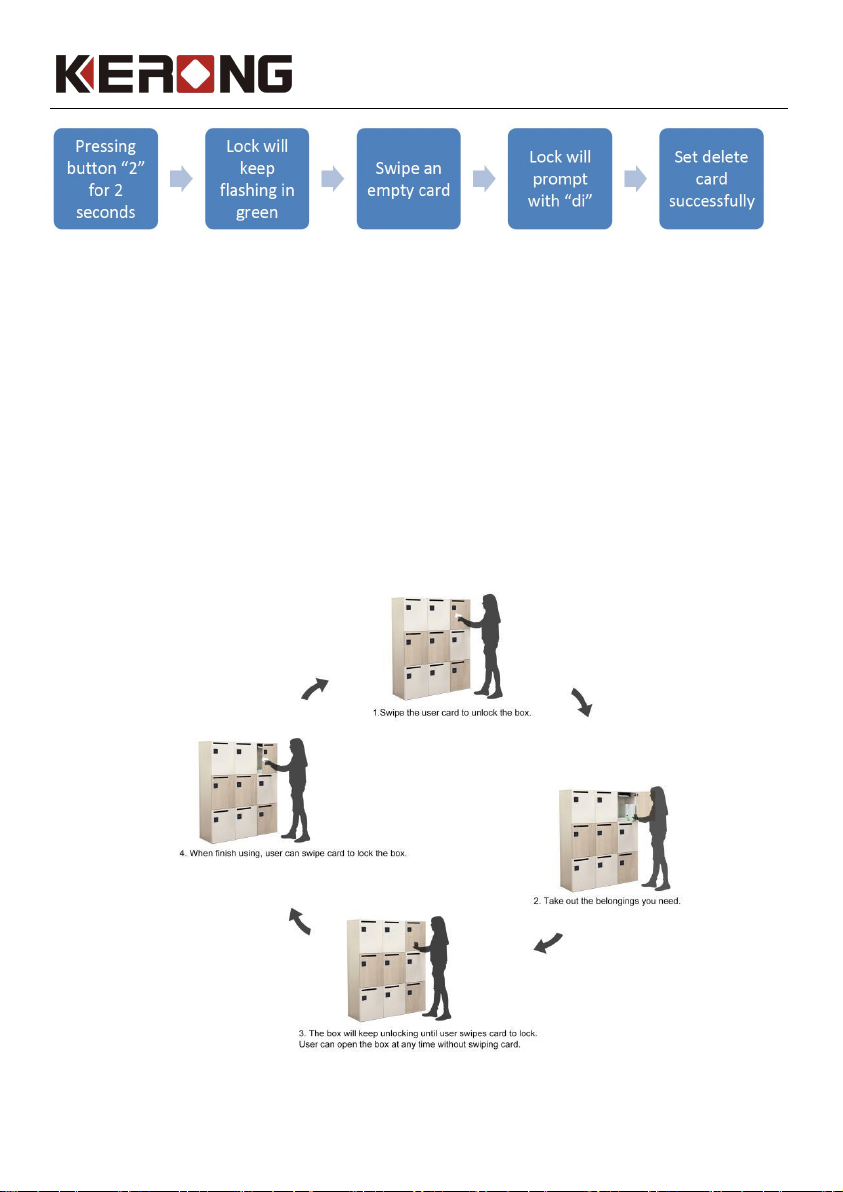

6.3.6 Set delete card
Notice:
1. While green light is flashing, user can set delete card continuously.
One lock can have max 10pcs delete cards.
2. Swipe the delete card, all user cards will be invalid, then need to set again.
3. If you want to delete one user card at one time, please let us know in advance.
7. Reset lock
Notice:
After resetting, the lock will be factory setting and all card are invalid, need to set cards again.
8. Warm Tips
1. Light shines in blue means batteries are nearly run out, please change new batteries in time.
2. One lock can have max 10pcs manager cards, 10pcs delete cards and 30pcs user cards.
3. Please make sure the lock can work, batteries are included and all CARDS are set before
installation.
