Keyscan CA250B Owner's manual

Copyright © 2001 - 2015 Keyscan Inc. All rights reserved.
Information and specifications in this document are subject to change without notice.
Except for the benefit of installation and operation of the Keyscan access control system, no part of this
documentation may be reproduced or transmitted in any form or by any means without the expressed written
permission of Keyscan Inc.
Keyscan Inc.
901 Burns Street East
Whitby, Ontario
Canada
L1N 0E6
Phone: [phone] (Toll Free Canada/USA)
Phone: [phone]
Fax: [phone]
Web Site: www.keyscan.ca
Keyscan technical support is available to dealers and installers Monday to Friday 9:00 A.M. to 6:30 P.M.
Eastern Time at the above listed telephone numbers or web address.

Keyscan Inc. –Technical Guide (PC109x - 04.15)
4
Table of Contents
List of Figures ................................................................................................................................... 7
List of Tables................................................................................................................................... 10
Foreword ........................................................................................................................................ 11
Approved Standards..................................................................................................................... 11
Product Listings ........................................................................................................................... 11
About This Guide ......................................................................................................................... 11
Installation Requirements .............................................................................................................. 12
Power......................................................................................................................................... 12
Electrical Precautions ................................................................................................................... 12
Tools.......................................................................................................................................... 12
Cables........................................................................................................................................ 13
Grounding .................................................................................................................................. 13
Mount the Enclosure & Components................................................................................................ 15
UL STD 294, CSA STD C22.2 (No. 205), CE, FCC 15 Subpart B.......................................................... 15
Mounting the Metal Enclosure........................................................................................................ 16
Mounting the PC109x Control Board to Metal Standoffs .................................................................... 18
Mounting Power Supplies .............................................................................................................. 20
Grounding Communication Cable Shield.......................................................................................... 22
Control Board –Mounting Locations ............................................................................................... 22
Connect Enclosure Tamper Switch to TB3 ....................................................................................... 25
Connect Enclosure Ground Strap ................................................................................................... 26
Typical Door Layout and Hardware ................................................................................................. 27
Door Lock Hardware..................................................................................................................... 28
Door Contacts, Exit Buttons, Auxiliary Inputs .................................................................................. 29
Readers...................................................................................................................................... 30
Terminate Wiring at the ACU........................................................................................................... 31
OCB-8 Relay Board ...................................................................................................................... 31
Terminate Lock Wiring.................................................................................................................. 31
Terminate Input Wiring ................................................................................................................ 37
Terminate Elevator Floor Wiring..................................................................................................... 43
Terminate Reader Wiring at ACU.................................................................................................... 47
Terminate Auxiliary Outputs with Hardware/Alarms.......................................................................... 49

Keyscan Inc. –Technical Guide (PC109x - 04.15)
5
S2 DIP Switches.............................................................................................................................. 52
S2 DIP Switch Functions ............................................................................................................... 52
S2 Dip Switch Settings ................................................................................................................. 54
Important - Circuit Board Function Revisions................................................................................... 56
S1 - System Reset / S3 - Restore Factory Defaults ......................................................................... 57
S1 –System Reset ...................................................................................................................... 57
S3 –Restore Factory Defaults (Clear Memory) ................................................................................ 57
Single ACU Communication ............................................................................................................. 59
Multiple Building Communication on a WAN..................................................................................... 59
Keyscan RS-232 Data Cable.......................................................................................................... 59
CIM Communication........................................................................................................................ 65
CIM Conventions ......................................................................................................................... 65
CIM Module Requirements ............................................................................................................ 66
CIM Specifications ....................................................................................................................... 66
BPS/CAN Bus Distance Chart......................................................................................................... 67
CIM Jumper Settings .................................................................................................................... 68
CIM Installation Guidelines............................................................................................................ 70
CIM Connection Diagrams............................................................................................................. 70
Serial Communication .................................................................................................................. 73
Network Communication via Optional NETCOM2P or NETCOM6P (Encrypted)....................................... 74
Network Communication via Optional NETCOM2 or NETCOM6 (Encrypted) .......................................... 76
CIM Diagnostic LEDs B3 –B0 ........................................................................................................ 78
Power-up & Test Voltages............................................................................................................... 80
Power Supply Specifications .......................................................................................................... 80
DPS-15 Dual Power Supply –Current Calculation............................................................................. 80
System Power-up ........................................................................................................................ 82
Control Board Voltage Test Points .................................................................................................. 84
Test Points –Communication Terminals.......................................................................................... 86
Communication Diagnostics ............................................................................................................ 87
Communication Status LEDs ......................................................................................................... 87
System Status LED ...................................................................................................................... 89
Card Diagnostics - LED Wiegand Bit Counters.................................................................................. 90
Appendix A –Keyscan & HID Readers............................................................................................. 91
Power Specifications .................................................................................................................... 91
Appendix B –Indala Readers ........................................................................................................ 112
Power Specifications ...................................................................................................................112
Appendix C –WSSKP-1 Keypad..................................................................................................... 117

Keyscan Inc. –Technical Guide (PC109x - 04.15)
6
Appendix D –WIEEX2 ................................................................................................................... 120
Appendix E –Accessibility HC Relay.............................................................................................. 125
Accessibility HC Output Relays .....................................................................................................125
Appendix F –Pre-alert Relay......................................................................................................... 129
Pre-alert....................................................................................................................................129
Appendix G –Global Output Relay ................................................................................................ 133
OCB-8/Global IO Assignments ......................................................................................................133
Current Ratings............................................................................................................................. 135
Relay States.................................................................................................................................. 136
Warranty....................................................................................................................................... 138
Index ............................................................................................................................................ 139

Keyscan Inc. –Technical Guide (PC109x - 04.15)
7
List of Figures

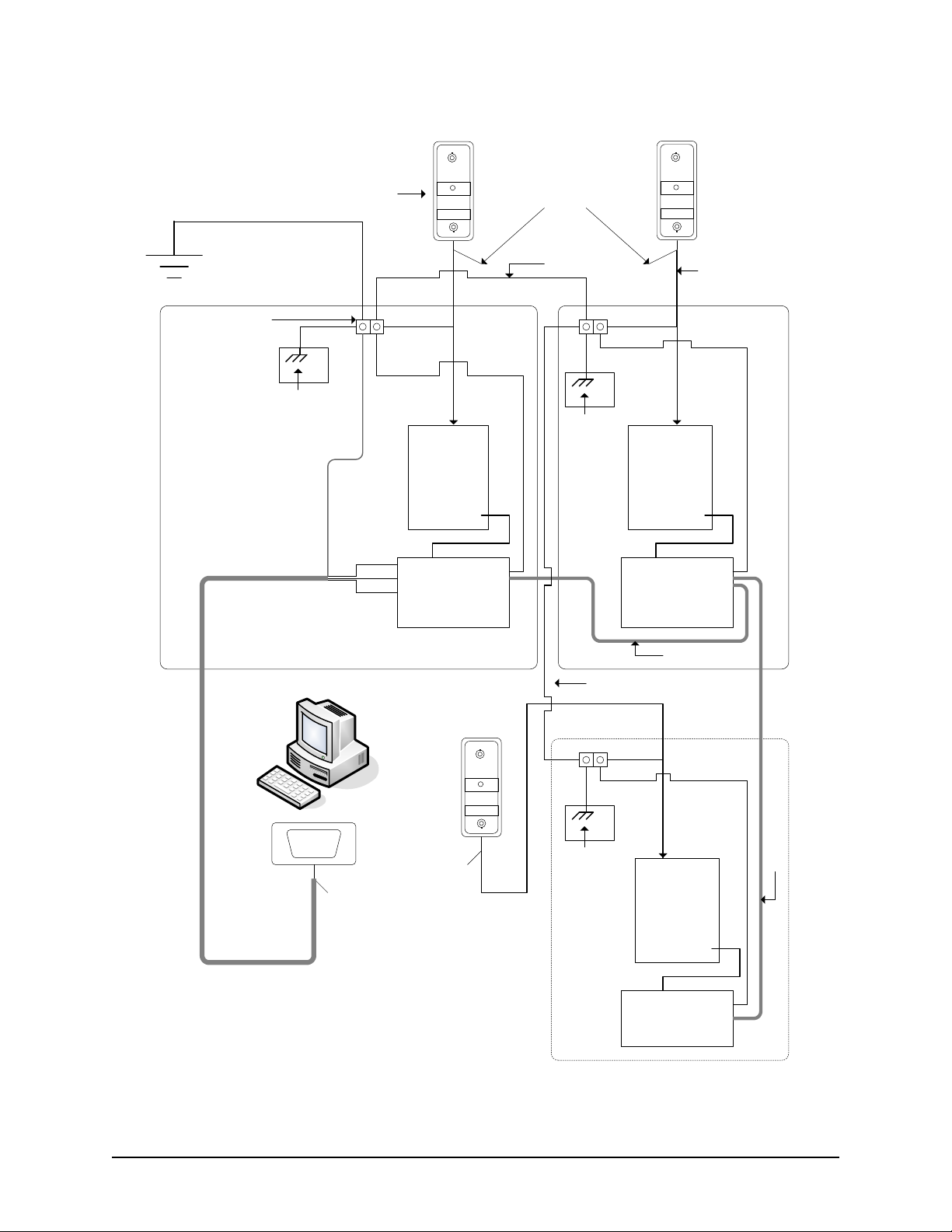

Figure 1 - Grounding Access Control Units and Cables with CIMs.............................................................. 14
Figure 2 –Mounting the Metal Enclosure............................................................................................... 16
Figure 3 –Enclosure Knockout & Mounting Hole Locations/Dimensions ..................................................... 17
Figure 4 –Mount and Fasten PC109x Control Board to 3/8" Male/Female Standoffs.................................... 19
Figure 5 –Plastic Stand Off ................................................................................................................. 21
Figure 6 –Mounting Power Supplies ..................................................................................................... 21
Figure 7 –CA250 with Board Mounting Positions.................................................................................... 23
Figure 8 –CA4500 with Board Mounting Positions .................................................................................. 23
Figure 9 –CA8500 with Board Mounting Positions .................................................................................. 24
Figure 10 –EC1500 with Board Mounting Positions ................................................................................ 24
Figure 11 –EC2500 with Board Mounting Positions ................................................................................ 25
Figure 12 –Enclosure Tamper Switch Connected to TB3 Terminal ............................................................ 25
Figure 13 –Enclosure Ground Strap Connection..................................................................................... 26
Figure 14 –Securing the Enclosure Cover ............................................................................................. 26
Figure 15 –Typical Door Layout........................................................................................................... 27
Figure 16 –Typical Door Strike Connection ........................................................................................... 28
Figure 17 –Typical Magnetic Lock Connection ....................................................................................... 28
Figure 18 –Door Contacts, Exit Buttons, PIRs, & Auxiliary Inputs ............................................................ 29
Figure 19 –Typical Door Reader Connection.......................................................................................... 30
Figure 20 –Lock State - Fail Safe Device .............................................................................................. 33
Figure 21 –Lock State - Fail Secure Device........................................................................................... 33
Figure 22 –Terminate Lock Wiring CA250B ........................................................................................... 34
Figure 23 –Terminate Lock Wiring CA4500B ......................................................................................... 35
Figure 24 –Terminate Lock Wiring CA8500B ......................................................................................... 36
Figure 25 –Terminate Input Wiring –Door Inputs (Contacts).................................................................. 38
Figure 26 –Terminate Input Wiring –RTE Push Button........................................................................... 39
Figure 27 –Terminate Input Wiring –RTE PIR Motion Sensor .................................................................. 40
Figure 28 –Terminate Input Wiring RTE - PIR & Push Button .................................................................. 41
Figure 29 –Terminate Input Wiring –AI/SI Inputs................................................................................. 42
Figure 30 –Terminate Floor Wiring EC1500B......................................................................................... 44
Figure 31 –Terminate Floor Wiring EC2500B......................................................................................... 45

Keyscan Inc. –Technical Guide (PC109x - 04.15)
8
Figure 32 –Terminate Floor Input Wiring EC1500B ................................................................................ 46
Figure 33 –Terminate Floor Input Wiring EC2500B ................................................................................ 47
Figure 34 –Terminate Reader Wiring ................................................................................................... 48
Figure 35 –Terminate Auxiliary Outputs CA250B ................................................................................... 49
Figure 36 –Terminate Auxiliary Outputs CA4500B ................................................................................. 50
Figure 37 –Terminate Auxiliary Output CA8500B................................................................................... 51
Figure 38 –S2 DIP Switch Legend ....................................................................................................... 52
Figure 39 –Location of S2 DIP Switches ............................................................................................... 55
Figure 40 –S3 Restore Default Settings (Clear Memory) & S1 System Reset Locations............................... 58
Figure 41 –RS-232 Data Cable Connections.......................................................................................... 60
Figure 42 –Communication - Direct Serial ............................................................................................ 61
Figure 43 –Single ACU Communication - USB Adaptor ........................................................................... 62
Figure 44 - Communication - NETCOM2P or NETCOM6P/ACU ................................................................... 63
Figure 45 –Communication - NETCOM2 or NETCOM6 ............................................................................. 64
Figure 46 –CIM Overview ................................................................................................................... 65
Figure 47 –CIM Jumper Locations........................................................................................................ 68
Figure 48 –CIM to ACU Connections .................................................................................................... 71
Figure 49 –CIM to CIM CANBUS Connections ........................................................................................ 72
Figure 50 –PC Serial Connection with multiple CIMs/ACUs...................................................................... 73
Figure 51 –Network Connection with Multiple CIMs/ACU ........................................................................ 75
Figure 52 –Network Connection with NETCOM2 or NETCOM6 with Multiple CIMs/ACUs............................... 77
Figure 53 - CIM Diagnostic LEDs - B3 - B0 ............................................................................................ 79
Figure 54 –Power Supply Wiring ......................................................................................................... 83
Figure 55 –Control Board Test Points –Voltages ................................................................................... 85
Figure 56 –Control Board Communication Test Points ............................................................................ 86
Figure 57 - Communication LEDs - CA & EC Control Boards..................................................................... 89
Figure 58 - Location of System Status LED............................................................................................ 90
Figure 59 –Location of Wiegand Bit Counter LEDs ................................................................................. 90
Figure 60 –Keyscan K-PROX2 (125 kHz) .............................................................................................. 94
Figure 61 –Keyscan K-VAN Proximity Reader (125 kHz) ......................................................................... 95
Figure 62 –Keyscan K-KPR Keypad / Proximity Reader (125 KHz) ........................................................... 96
Figure 63 –Keyscan K-SMART Reader .................................................................................................. 97
Figure 64 –HID-5395 Wiring............................................................................................................... 98
Figure 65 –HID 5365 / 6005 Wiring..................................................................................................... 99
Figure 66 –HID 5355 Wiring ..............................................................................................................100

Keyscan Inc. –Technical Guide (PC109x - 04.15)
9
Figure 67 –HID 5375 Wiring ..............................................................................................................101
Figure 68 –HID 5355KP Wiring ..........................................................................................................102
Figure 69 –HID iClass KEYR10 ...........................................................................................................103
Figure 70 –HID iClass KEYR40 ...........................................................................................................104
Figure 71 –HID iClass KEYRW400.......................................................................................................105
Figure 72 –HID iClass KEYRK40 .........................................................................................................106
Figure 73 –HID iClass R90 Long Range Reader ....................................................................................107
Figure 74 –HID iClass R10 Series .......................................................................................................108
Figure 75 –HID iClass R15 Series .......................................................................................................109
Figure 76 –HID iClass R40 Series .......................................................................................................110
Figure 77 –HID iClass RK40 Series .....................................................................................................111
Figure 78 –Indala PX 603 and PX 605 Wiring.......................................................................................113
Figure 79 –Indala PX610 Wiring.........................................................................................................114
Figure 80 –Indala PX 620 Wiring ........................................................................................................115
Figure 81 –Indala PXK 501 Wiring ......................................................................................................116
Figure 82 –WSSKP-1 Keypad Connection ............................................................................................118
Figure 83 –WSSKP-1 Keypad/Reader Combination Connections .............................................................119
Figure 84 –Wiegand Extender Overview..............................................................................................122
Figure 85 –WIEEX2 RS485 Connections –(Firmware 6.00 or Higher)......................................................123
Figure 86 –WIEEX2 to OCB-8 Cable Connection ...................................................................................124
Figure 87 –Accessibility HC Output Relay CA250B/OCB-8 Connections ....................................................126
Figure 88 –Accessibility HC Output Relay CA4500B/OCB-8 Connections ..................................................127
Figure 89 –Accessibility HC Output Relay CA8500B/OCB-8 Connections ..................................................128
Figure 90 –Pre-alert Relay CA250B/OCB-8 Connections ........................................................................130
Figure 91 –Pre-alert Relay CA4500B/OCB-8 Connections.......................................................................131
Figure 92 –Pre-alert Relay CA8500B/OCB-8 Connections.......................................................................132
Figure 93 –Global OCB-8 Ribbon Cable Connection with CA4500 & CA8500 .............................................134

Keyscan Inc. –Technical Guide (PC109x - 04.15)
10
List of Tables
Table 1 –Cable Requirements ............................................................................................................. 13
Table 2 –Battery Duration Times......................................................................................................... 20
Table 3 –OCB-8 Specifications ............................................................................................................ 31
Table 4 –OCB-8 to EC1500B Ribbon Cable Connections.......................................................................... 43
Table 5 –OCB-8 to EC2500B Ribbon Cable Connections.......................................................................... 43
Table 6 –S2 DIP Switch Settings ......................................................................................................... 54
Table 7 –CIM Specifications................................................................................................................ 67
Table 8 –BPS/CANBUS Distance Chart ................................................................................................. 67
Table 9 –CIM Global Master Jumper J3 ................................................................................................ 68
Table 10 –CIM 0 –Jumper J4 ............................................................................................................. 68
Table 11 –CIM CAN Bus Termination Jumpers J5 –J8 ............................................................................ 69
Table 12 –CIM Serial Bit Rate Jumpers J9 –J11 .................................................................................... 69
Table 13 –CIM Diagnostic LED Codes................................................................................................... 78
Table 14 - ACU Supply - Current Calculation Table ................................................................................. 81
Table 15 - AUX RDR Supply - Current Calculation Table .......................................................................... 81
Table 16 –Control Board Test Points - Voltages..................................................................................... 84
Table 17 –Communication Voltage Test Points ...................................................................................... 86
Table 18 –Communication Status LEDs ................................................................................................ 87
Table 19 - System Status LED ............................................................................................................. 89
Table 20 –Keyscan & HID Reader Power Specifications .......................................................................... 91
Table 21 –Indala Reader Power Specifications .....................................................................................112
Table 22 –Keypad Power Specifications...............................................................................................117
Table 23 –WIEEX2 ...........................................................................................................................120
Table 24 –WIEEX2 Power Requirements..............................................................................................120
Table 25 –WIEEX2 Cables and Distances.............................................................................................120
Table 26 –Accessibility HC Relay/ Door Assignment ..............................................................................125
Table 27 –Pre-alert Relay to Door Assignments....................................................................................129
Table 28 - OCB-8 Global Output Relay #/ Client Relay Assignments ........................................................133
Table 29 –Circuit Board Current Ratings..............................................................................................135
Table 30 –List of Relay States............................................................................................................136

Keyscan Inc. –Technical Guide (PC109x - 04.15)
11
Foreword
Keyscan systems are designed for use in various environments and applications. As such, ensure correct cable,
power, ground, and environment specifications are followed for reliable and safe operation of the equipment.
Approved Standards
Keyscan CA250, CA4500, CA8500, EC1500 and EC2500 series control units conform to the following approved
standards:
UL STD 294 –Access Control Systems Units
CSA STD C22.2 No. 205-M1983 –Signal Equipment
CE Standards
EN 55022 RF Emissions
EN 55024 RF Immunity
EN 60950-1 Equipment Safety
FCC Subpart B RF Emissions
Industry Canada ICES 003 Emissions
Product Listings
The CSA/UL certification record can be viewed at http://directories.csa-international.org.
Enter 110441_0_000 in the File Number box.
About This Guide
This technical guide outlines general information for installing Keyscan access control systems. The guide
assumes the installer has knowledge of electrical, electronic, mechanical, and computer concepts, as well as
having familiarity with access control systems and associated components.

Keyscan Inc. –Technical Guide (PC109x - 04.15)
12
Installation Requirements
The following reviews power, tools, cables, and ground requirements for the access control system.
Power
Each access control unit requires two dedicated Class 2 transformers. The following transformers are
acceptable:
16V 40VA transformer
16.5V 37VA transformer
Do not mount the transformers inside the ACU metal enclosure.
Any deviation from a specified transformer or the use of a single transformer to power multiple access control
units will cause faulty system operation. All warranties voided if non-compliant transformers or incorrect
voltages are used.
Standby batteries with their duration times for access control and reader power are listed on page 20.
Important
The power supply included is for the exclusive use of the access control unit and the readers. Do not use it
to power external devices such as door strikes or magnetic locks.
Electrical Precautions
Be sure that all circuit breakers powering the system are switched off before commencing installation or
modifying wiring connections. Do not apply power before the installation is completed otherwise the equipment
may be damaged. Ensure all enclosures are connected to earth grounds for proper and safe system operation.
Tools
We recommend having the following tools on hand to install the access control system:
Digital voltmeter
Wire cutters & needle nose pliers
Soldering iron & tape
Set of screwdrivers
Drill & drill bits
Laptop computer (optional)

Keyscan Inc. –Technical Guide (PC109x - 04.15)
13
Cables
The following table outlines system cable requirements. Please be sure to review grounding guidelines for safe
system operation. Avoid running access control cables parallel with AC wires or across fluorescent light
fixtures. This can cause AC induction or transmission interference.
Table 1 –Cable Requirements
Device / Circuit
Board
Signal
Protocol
Maximum Distance
Cable Type
Notes
Readers to ACU
(includes HID iClass
–Rev B & Rev C)
Wiegand
500 ft / 152.4 m
6 conductors
shielded 22 AWG
Overall shielded cable
accepted. CAT5 cable not
acceptable with Wiegand
signal protocol.
Exception Readers to
ACU –PX-620, HID-
5375, MR-10, MR-
20, HID-iClass (Rev
A), iClass KEYRK40
and elevator readers
Wiegand
500 ft / 152.4 m
6 conductors
shielded 18 AWG
Overall shielded cable
accepted. CAT5 cable not
acceptable with Wiegand
signal protocol.
Door strikes &
electro magnets to
ACU
n/a
500 ft / 152.4 m
1 pair 18 AWG
Shielded wire not required.
Contacts & exit
devices
n/a
500 ft / 152.4 m
1 pair 22 AWG
Shielded wire not required.
Motion sensors (PIR)
n/a
500 ft / 152.4 m
2 pairs 22 AWG
Shielded wire not required
CIM
CAN Bus 1
3280 ft / 1000 m @ 9600 BPS
3280 ft / 1000 m @ 19,200 BPS
984 ft / 300 m @ 57,600 BPS
262 ft / 80 m @ 115,200 BPS
CAT 5 –2
twisted pairs
Maximum overall distance
between first and last CIM
units
PC to ACU or
NETCOM (direct
serial)
RS-232
100 ft / 30 m @ 9600 BPS
49 ft / 14.9 m @ 19,200 BPS
26 ft / 8 m @ 57,600 BPS
9.8 ft / 3 m @ 115,200 BPS
5 conductors 22
AWG shielded
Overall shielded cable
accepted. CAT 5 cable not
acceptable with RS-232
signal protocol.
WIEEX2 (Wiegand
protocol extender)
n/a
4000 ft / 1219.2 m
CAT 5 –1
twisted pair
communication.
1 pair 18 AWG
power to TX.
If powering transmitter
locally, 18 AWG power
wiring is not required. Kit
includes 1 transmitter & 1
receiver.
Grounding
Ground all access control units and shielded cables to a cold water pipe. For multiple access control units, all
shields should be connected to a single point earth ground.
It is important to ground the shields of the readers and communication cables to a single point cold water pipe
at the access control unit. Failing to ground the shields or using incorrect cables may cause noise or
interference and result in improper card reads.
Important
Ensure the chassis ground (GND) on the DPS-15 is connected to the metal enclosure ground lug.

Keyscan Inc. –Technical Guide (PC109x - 04.15)
14
Figure 1 - Grounding Access Control Units and Cables with CIMs
40-2322
Data Cable
Note
Connect ground lug
to single cold water
pipe ground point
Tape
back
shield
Reader
Wiegand
Reader
Signal
ACU 1
RS232
Control Board Control Board
ACU 2
Shield Shield
Green
Black
Red
ACU 3
Control Board
Shield
CIM 0
EGND EGND
CIM
CIM
EGND
Tape
back
shields
CAT 5
Ground
Lug
RS-232**
Common Ground Wire
CAT 5
Common Ground
Wire
Tape
back
shield
KEYSCAN KEYSCAN
KEYSCAN
Earth GND
on DPS15 Earth
GND
on
DPS15
Earth
GND
on
DPS15
KI-00470E-07-12
Shield*
* Insulate shield with
PVC tubing such as
Alpha (p/n PVC10516
16 AWG) or
comparable insulator.
** RS-232 connections at
CIM 0 do not apply when
using a NETCOM2P/6P.

Keyscan Inc. –Technical Guide (PC109x - 04.15)
15
Mount the Enclosure &
Components
The following sub-sections review mounting metal enclosures, control boards, communication boards, output
control boards and power supplies.
UL STD 294, CSA STD C22.2 (No. 205), CE, FCC 15
Subpart B
To be compliant with UL STD 294, CSA STD C22.2, CE, or FCC 15 Subpart B standards, please adhere to the
following practices:
use the Keyscan metal enclosure with the CSA, CE, FCC label on the inside of the panel cover
mount control boards with the standoffs supplied as instructed
secure the enclosure cover with the 4 screws supplied
connect the tamper switch to the TB3 terminal block on the control board
use the Keyscan DPS-15 to power the control board and readers
ensure 2 x 16V 40VA transformers or 2 x 16.5V 37VA transformers are connected to the Keyscan DPS-15
power supply
locate the transformers within 30 feet (9.144 m) of the Keyscan DPS-15 power supply - do not mount the
transformers inside the ACU metal enclosure
do not use the Keyscan DPS-15 power supply to power door strikes or auxiliary equipment
use a standby battery with sufficient amp hours (minimum is 12V 7.0 Ah) connected to the Keyscan DPS-
15 power supply
connect a proper ground wire from the ground lug inside the metal enclosure to a cold water pipe ground
(earth ground)
connect the enclosure ground strap to the designated studs on the metal enclosure and the enclosure
cover
Any deviations or alterations will result in non-compliance of these standards.

Keyscan Inc. –Technical Guide (PC109x - 04.15)
16
Mounting the Metal Enclosure
The metal enclosure has four (4) pre-drilled holes for mounting to the wall. Connect the ground lug to a true
earth ground. When locating mounting areas, ensure the metal enclosure is not close to high voltage
equipment and the cable lengths are within their maximum allowable distances.
For knockout and mounting hole locations/dimensions, see the diagram on the next page.
Figure 2 –Mounting the Metal Enclosure
Ground
Lug
Side ViewFront View –Cover removed (diagram not to scale)
Enclosure
Single locking CEMA/NEMA Type 1 box
Height - 20" (50.8 cm)
Width - 16" (40.64 cm)
Depth - 5 1/2" (13.97 cm)
Wall
Knockouts
Large - 1 3/4" (4.5 cm)
Small - 7/8" (2.0 cm)
Alternate
ground
lug
mounts
Alternate
ground
lug mount
Do not mount enclosure near
high-voltage equipment.
KI-00104E-07-11

Keyscan Inc. –Technical Guide (PC109x - 04.15)
17
Figure 3 –Enclosure Knockout & Mounting Hole Locations/Dimensions
1.45"
(3.683 cm)
1.45" (3.683 cm)
1.50"
(3.81 cm)
5.475"
(13.91cm)
2.50"
(6.35 cm)
1.50" (3.81 cm)
16.00" (40.64 cm)
1.45"
(3.683 cm)
1.50"
(3.81 cm)
14.55" (36.957 cm)
1.45"
(3.683 cm)
1.50"
(3.81 cm)
20.00" (50.80 cm)
0.188 " Dia.
0.750" Dia. Extrusion
0.218" Depth
4 Places
1.375"/1.750" Dia.
Knockout
7 Places
5.50" (13.97 cm)
1.50"
(3.81 cm)
3.75" (9.525 cm)
Front
1.50" (3.81 cm)
1.50"
(3.81 cm)
3.75" (9.525 cm)
1.50" (3.81 cm)
5.50" (13.97 cm)
1.50" (3.81 cm)
1.50"
(3.81 cm)
3.75" (9.525 cm)
Front 1.50"
(3.81 cm)
3.75" (9.525 cm)
1.50" (3.81 cm)
Front
Front
10.25" (26.035 cm)
11.75" (29.845 cm)
5.50" (13.97 cm)
13.75" (34.925 cm)
1.00" (2.54 cm) 1.50"
(3.81 cm)
10.25" (26.035 cm)
11.75" (29.845 cm)
13.75" (34.925 cm)
1.00" (2.54 cm)
5.50" (13.97 cm)
1.50"
(3.81 cm)
Front View Right Side ViewLeft Side View
Top View
Bottom View
0.875" Dia.
Knockout
8 Places
KI-00462E-06-12

Keyscan Inc. –Technical Guide (PC109x - 04.15)
18
Mounting the PC109x Control Board to Metal Standoffs
Use the eight (8) enclosed ¼” screws to secure the PC109x control board to the 3/8” metal standoffs mounted
inside the metal enclosure. Be sure the internal tooth star washers are placed between the control board and
the screw as shown in Figure 4 –Mount and Fasten PC109x Control Board to 3/8" Male/Female Standoffs.
Important
Finger-tighten the ¼” screws with a screwdriver. Do not use a power screwdriver or apply excessive force
tightening screws into the metal standoffs when mounting control boards. Ensure the control board is
disconnected from the power when mounting; otherwise, the control board may be damaged from a
potential short-circuit.
Rev 11, Rev 10 & Rev 9 Control Boards
If installing a Rev.11, Rev.10, or Rev. 9 control board in a metal enclosure with the pre-mounted metal
standoffs, you require an adaptor kit - P/N –AK2005.

Keyscan Inc. –Technical Guide (PC109x - 04.15)
19
Figure 4 –Mount and Fasten PC109x Control Board to 3/8" Male/Female Standoffs
Ground Lug
Side View
Self-clinching
nut on back of
enclosure. Split Ring
Lock-
washer
3/8" Male/
Female
Hex
Standoff
Internal
Tooth
Star
Washer
¼” Long Screw
Control Board
Stand-off
locations on
PC109x control
board
Ground Lug
Front View –
Cover removed
(diagram not to scale)
Alternate
Ground
Lug
Mounts
3/8" male/female hex
standoff locations for
mounting PC109x
control board.
Front View –
Cover removed
(diagram not to scale)
Alternate
Ground Lug
Mount
Alternate
Ground
Lug
Mounts
Alternate
Ground Lug
Mount
PC109x
Spacer
PC109x
KI-00105E-04-13

Keyscan Inc. –Technical Guide (PC109x - 04.15)
20
Mounting the DPS-15 Power Supply
The Keyscan DPS-15 is a 13.5 VDC dual linear regulated power supply for powering the ACU circuit boards and
the readers with the following outputs:
ACU output 12 VDC @ 1.2 Amperes
AUX/RDR output 12 VDC @ 1.2 Amperes
Maximum Current Draw
The total current draw on each output should not exceed 1 Amp with 200mA in reserve for accommodating
peak current operating demands. Refer to DPS-15 Dual Power Supply –Current Calculation on page 80 and
use the calculation tables to determine the total current demand of the all the devices connected to the DPS-
15.
CSA/UL Approved Transformers
The DPS-15 power supply requires either of the following class 2 CSA/UL approved transformers and a standby
battery with sufficient amp hours.
2 x 16 V 40 VA
2 x 16.5 V 37 VA
The purpose of two transformers is to comply with UL STD 294, CSA STD C22.2, and charge the battery
circuit. The transformers must be located within 30 feet of the Keyscan power supply. Do not mount the
transformers inside the ACU metal enclosure. All warranties are voided if non-compliant transformers or
incorrect voltages are used. The system may operate erratically if the voltage is lower than 12 VDC.
Power supplies are mounted as shown on page 21. For power supply connections refer to Figure 54 on page
83.
Important
Do not use the DPS-15 to power door strikes or auxiliary equipment.
Backup Batteries
Select a battery with enough amp hours to operate the system for the total hours specified. The following table
lists power duration times:
Table 2 –Battery Duration Times
Amp-hour Battery
Amps
Power Duration
8.0
1.4
5.71 hours
7.5 *
1.4
5.36 hours
7.0 *
1.4
5.00 hours
* Indicates the two most commonly used backup batteries.
Plastic Stand Offs
Plastic stand offs are pre-mounted on most power supplies, relay and communication boards. In cases where
stand offs are not pre-mounted, insert the double pronged end of the stand off in the metal enclosure hole
first. Then mount the circuit board to the stand offs.
