Keysight Technologies 16192A Operation manual

Keysight 16192A Parallel
Electrode SMD Test Fixture

Operation and
Service Manual
Agilent 16192A Specs
Provided by www.AAATesters.com

Agilent 16192A P
arallel Electrode SMD T
est Fixture
Operation and Service Manual
Agilent Part No. 16192-90040
Printed in JAPAN May 2003
Seventh Edition

Notice
The information contained in this document is subject to change without notice
.
This document contains proprietary information that is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced, or translated to another
language without the prior written consent of the Agilent T
echnologies.
Agilent T
echnologies Japan, Ltd.
Component T
est PGU-Kobe
1-3-2, Murotani, Nishi-ku, Kobe-shi,
Hyogo
,651-2241 Japan
c
 Copyright Agilent Technologies Japan, Ltd. 1993, 1996, 1999, 2000, 2001, 2003

Manual Printing History
The manual printing date and part number indicate its current edition. The printing date
changes when anew edition is printed. (Minor corrections and updates that are incorporated
at reprint do not cause the date to change.) The manual part number changes when extensive
technical changes are incorporated.
December 1993
::::
::
::
:::::::::::::::::::::::
::
::
::::::::::::::::::::: ::::
:::::::::
First Edition
June 1996
::::::::
::
::::::::::::::::::::: :: :: :::::::::::::::::::
::
:::: ::::::::::::
Second Edition
October 1996
::::
::
::
::
::::::::::::::::::::: ::::
:::::
Third Edition (part number: 16192-90010)
December 1999
::::::
::
::
::::::::::::::::::::: :: :::
F
ourth Edition (part number: 16192-90010)
September 2000
::
::
:::::::::::::::::::::::
::
::
::::::
Fifth Edition (part number: 16192-90020)
A
ugust 2001
:::
::
:::::::::::::::::::::::
::
:::::::::::
Sixth Edition (part number: 16192-90030)
May 2003
::::
::
::::::::::::::::::::::: ::::::::::::
Seventh Edition (part number: 16192-90040)
iii

Safety Summary
The following general safety precautions must be observed during all phases of operation,
service
,and repair of this instrument. F
ailure to comply with these precautions or with specic
W
ARNINGS
given elsewhere in this manual violates safety standards of design, manufacture,
and intended use of the instrument.
The A
gilent T
echnologies assumes no liability for the customer's failure to comply with these
requirements
.
DO NOT Operate In An Explosive Atmosphere
Do not operate the instrument in the presence of ammable gasses or fumes
.Operation of any
electrical instrument in such an environment constitutes asafety hazard.
K
eep A
way From Live Circuits
Operating personnel must not remove instrument covers
. Component replacement and internal
adjustments must be made by qualied maintenance personnel. Do not replace components
with the power cable connected. Under certain conditions
, dangerous voltages may exist even
with the power cable removed. T
oavoid injuries
,always disconnect power and discharge
circuits before touching them.
DO NOT Service Or A
djust Alone
Do not attempt internal service or adjustment unless another person, capable of rendering rst
aid and resuscitation, is present.
DO NOT Substitute P
arts Or Modify Instrument
Because of the danger of introducing additional hazards
,do not substitute parts or perform
unauthorized modications to the instrument. Return the instrument to aAgilent T
echnologies
Sales and Service Oce for service and repair to ensure the safety features are maintained.
Dangerous Procedure Warnings
Warning
s, such as the example below
,precede potentially dangerous procedures throughout
this manual. Instructions contained in the warnings must be followed.
Warning
Dangerous voltages
,capable of causing death, are present in this
instrument. Use extreme caution when handling, testing, and adjusting
this instrument.
The voltage levels found in this test xture when used with the intended instruments do not
warrant more than normal safety precautions for operator safety
.
iv

Operating Precaution
Do not exceed the operating input power, voltage, and current level and signal type
appropriate for the instrument being used, refer to your instrument's operation manual.
Caution
Electrostatic discharge (
esd
)candamage the highly sensitive microcircuits in
your instrument. ESD damage is most likely to occur as the test xtures are
being connected or disconnected. Protect them from ESD damage by wearing a
grounding strap that provides ahigh resistance path to ground. Alternatively
,
ground yourself to discharge any static charge built-up by touching the
outer shell of any grounded instrument chassis before touching the test port
connectors
.
Never touch the test clip contacts
.
Use awork station equipped with an anti-static work surface
.
Certication
Agilent T
echnologies certies that this product met its published specications at the time
of shipment from the factory
.Agilent T
echnologies further certies that its calibration
measurements are traceable to the United States National Institute of Standards and
T
echnology
,to the extent allowed by the Institution's calibration facility
,or
to the calibration
facilities of other International Standards Organization members
.
W
arranty
This Agilent T
echnologies instrument product is warranted against defects in material and
workmanship for aperiod of one year from the date of shipment, except that in the case of
certain components listed in
Instrument Specications
of this manual, the warranty shall be
for the specied period. During the warranty period, Agilent T
echnologies will, at its option,
either repair or replace products which prove to be defective
.
For warranty service or repair
, this product must be returned to aservice facility designated by
Agilent T
echnologies. Buyer shall prepay shipping charges to Agilent T
echnologies and Agilent
T
echnologies shall pay shipping charges to return the product to Buyer
.However
,Buyer shall
pay all shipping charges
, duties
, and taxes for products returned to Agilent T
echnologies from
another country
.
Agilent T
echnologies warrants that its software and rmware designated by Agilent
Technologies for use with an instrument will execute its programming instruction when
property installed on that instrument. Agilent T
echnologies does not warrant that the operation
of the instrument, or software
,orrmware will be uninterrupted or error free
.
v

Limitation Of Warranty
The foregoing warranty shall not apply to defects resulting from improper or inadequate
maintenance by Buyer
,Buyer-supplied software or interfacing, unauthorized modication or
misuse
,operation outside of the environmental specications for the product, or improper site
preparation or maintenance
.
No other warranty is expressed or implied. A
gilent T
echnologies specically disclaims the
implied warranties of merchantability and tness for a particular purpose
.
Exclusive Remedies
The remedies provided herein are buyer's sole and exclusive remedies. Agilent T
echnologies
shall not be liable for any direct, indirect, special, incidental, or consequential damages
,
whether based on contract, tort, or any other legal theory
.
Assistance
Product maintenance agreements and other customer assistance agreements are available for
Agilent T
echnologies products.
F
or any assistance
,contact your nearest Agilent T
echnologies Sales and Service Oce
.
A
ddresses are provided at the back of this manual.
vi

Safety Symbols
General denitions of safety symbols used on equipment or in manuals.
Instruction manual symbol: the product is marked with this symbol when it is
necessary for the user to refer to the instruction manual in order to protect
against damage to the instrument.
Indicates dangerous voltage (terminals fed from the interior by voltage
exceeding 1000 volts must be so marked).
Protective conductor terminal. F
or protection against electrical shock in case
of afault. Used with wiring terminals to indicate the terminal which must be
connected to ground before operating equipment.
Low-noise or noiseless, clean ground (earth) terminal. Used for asignal
common, as well as providing protection against electrical shock in case of
fault. Aterminal marked with this symbol must be connected to ground in the
manner described in the installation (Operation) manual, and before operating
the equipment.
Frame or chassis terminal. Aconnection to the frame (chassis) of the
equipment which normally includes all exposed metal structures
.
Alternating current (power line).
Direct current (power line).
Alternating or direct current (power line).
W
arning
denotes ahazard. It calls attention to aprocedure, practice
,condition
or the like
,which, if not correctly performed or adhered to,could result in
injury or death to personnel.
Caution
sign denotes ahazard. It calls attention to aprocedure
,practice
,
condition or the like
, which, if not correctly performed or adhered to
,could
result damage to or destruction of part or all of the product.
Note
denotes important information. It calls attention to a procedure
,practice
,
condition or the like
,which is essential to highlight.
vii

APC-7
R

is a U.S. registered trademark of the Bunker Ramo Corporation.
viii

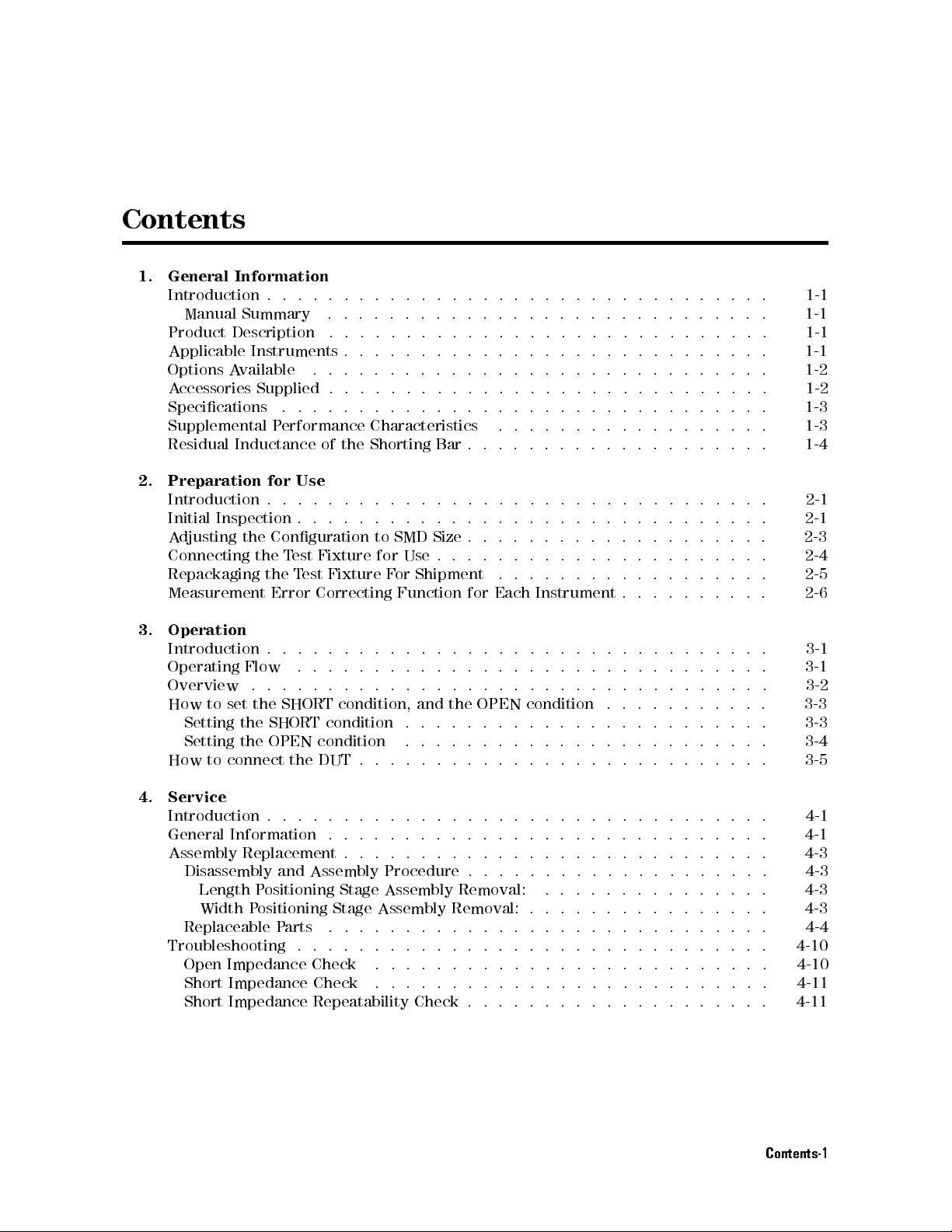

Contents
1. General Information
Introduction ..................
..
..
..
.........1-1
Manual Summary ................... .. .. ......1-1
Product Description ................... ..
..
......1-1
Applicable Instruments .....................
..
.....1-1
Options A
vailable .................... .. ........1-2
A
ccessories Supplied ..............
..
..
...........1-2
Specications ................
..
..
............1-3
Supplemental P
erformance Characteristics ...............
..
.1-3
Residual Inductance of the Shorting Bar ..................
..1-4
2. Preparation for Use
Introduction ................
..
..
..
...........2-1
Initial Inspection ................... ............2-1
A
djusting the Conguration to SMD Size .............. ......2-3
Connecting the T
est Fixture for Use .............. ........2-4
Repackaging the T
est Fixture F
or Shipment .....
.............2-5
Measurement Error Correcting Function for Each Instrument ..........2-6
3. Operation
Introduction ..............
...................3-1
Operating Flow ....... ....................... . 3-1
Overview ........ ....................... .. .3-2
How to set the SHORT condition, and the OPEN condition ...........3-3
Setting the SHORT condition . .... .. .................3-3
Setting the OPEN condition ...
.....................3-4
How to connect the DUT .... .. ..................... 3-5
4. Service
Introduction ..
..
..
..
............... .. .. .. .. .. 4-1
General Information .......
............
..........4-1
Assembly Replacement . . . . . . . . . . . . ................ 4-3
Disassembly and Assembly Procedure . . . . . . . . . . . . . . . . . . . . 4-3
Length P
ositioning Stage Assembly Removal: .... .. .. .. .. . .. 4-3
Width P
ositioning Stage Assembly Removal: . . . . . . . . . . . . . . . . 4-3
Replaceable Parts ......................... .. .. 4-4
Troubleshooting .........................
...... 4-10
Open Impedance Check ........
.................. 4-10
Short Impedance Check .......................... 4-11
Short Impedance Repeatability Check . . . . . . . . . . . . . . . . . . . . 4-11
Contents-1

Figures
1-1. Applicable DUT Size .................
..
..
..
.....1-4
1-2. Simulation Setup ..................
..
..
..
.....1-5
2-1. 16192A Product Overview .................
..
..
..
..2-2
2-2. Electrodes conguration and SMD Size ...............
..
.. 2-3
2-3. Connecting the T
est Fixture with APC-7
R

Connector (4291B) ........2-4
3-1. 16192A T
est Fixture Overview ............... .. ......3-2
4-1. 16192A Product Overview ...............
..
..
......4-2
4-2. Replaceable P
arts for Main Assembly ............
..
..
....4-4
4-3. Replaceable P
arts for Length P
ositioning Stage Assembly ........... 4-5
4-4. Replaceable P
arts for Insertion Clip Assembly ................4-6
4-5. Replaceable P
arts for Width P
ositioning Stage Assembly ...........4-7
4-6. Replaceable P
arts for T
est Stage Assembly ............
..
..
..4-8
4-7. Obsolete parts manufactured earlier than 1996 ...............4-9
4-8. Shorting Device P
osition ..................
..
......4-10
T
ables
1-1. Furnished A
ccessories ...........................1-2
1-2. Option 701 Shorting Device Residual Inductance (Typical) .......... 1-4
1-3. Option 010 Shorting Device Residual Inductance (Typical) .......... 1-5
2-1. 16192A Contents .................. ...........2-2
2-2. Measurement Error Correcting Functions for Each Instrument ........ 2-6
4-1. 16192A Product Overview ...............
..
..
......4-2
4-2. Replaceable P
arts for Main Assembly ....
..
..
............4-4
4-3. Replaceable P
arts for Length P
ositioning Stage Assembly . ...... ....4-5
4-4. Replaceable P
arts for Insertion Clip Assembly ..... .. .. .......4-6
4-5. Replaceable P
arts for Width P
ositioning Stage Assembly . ..
..
..
..
.. 4-7
4-6. Replaceable P
arts for T
est Stage Assembly ............
......4-9
4-7. Open Impedance V
alue Guideline . . . . . . . .. .. .. .. .. .. . .. 4-11
4-8. Short Impedance V
alue Guideline . . . . . . . . . . . . . . . . .. .. .. 4-11
4-9. Short Impedance Repeatability Guideline .... .. .. .. .. .. .. .. 4-11
Contents-2

1
General Information
Introduction
The purpose of this manual is to enable you to use your 16192A P
arallel Electrode SMD T
est
Fixture eciently and condently.
Manual Summary
This manual contains the following:
The specications of the 16192A (see this chapter).
Installing the 16192A (see Chapter 2).
Operating the 16192A (see Chapter 3).
Ordering replaceable parts for the 16192A (see Chapter 4).
Product Description
The 16192A is used to measure aparallel electrodes surface mount device (SMD) with high
repeatability
.
Applicable Instruments
The 16192A has been designed to operate specically with the following LCR meters and
impedance analyzers:
Y
ou can directly connect the 16192A to: 4191A, 4291B
, E4991A
Y
ou can use the 16192A with 43961A: 4395A (option 010),
4396A/B (option 010)
You can use the 16192A with 41951A: 4195A
You can use the 16192A with RF adapter 42942A: 4294A
You can use the 16192A with RF adapter 16085B: 4284A
1
You can use the 16192A with RF adapter 16099A: 4194A with 41941A
23
1 The 4284A is a typical instrument. Other 4-terminal pair instruments that can be used with the 16085B are
also applicable
.
2 The 4194A with 41941A is a typical instrument. Other instruments that can be used with the 16099A are also
applicable.
3 The 16192A is not adapted by some old type 16099A. For detail, please contact your Agilent Technologies sales
oce.
General Information 1-1

Options A
vailable
The following option is supplied for the 16192A:
Option 010 A
dd industry standard size short bar set
Option 701 Short bars set (1x1x2.4, 1.6x2.4x2, 3.2x2.4x2.4, 4.5x2.4x2.4)mm
Option 710 A
dd the magnifying lens and tweezers
A
ccessories Supplied
The following accessories are supplied with the 16192A:
T
able 1-1. Furnished A
ccessories
Description Part Number Quantity
Operation and Service Manual P/N 16192-90040 1
Option 701 P/N 16191-29001 1
P/N 16191-29002 1
P/N 16191-29003 1
P/N 16191-29004 1
Case for shorting devices P/N 1540-0692 1
Option 010
*1
P/N 16191-29005 1
P/N 16191-29006 1
P/N 16191-29007 1
P/N 16191-29008 1
Magnifying lens
*2
P/N 16193-60002 1
Tweezers
*2
P/N 8710-2081 1
Insulator P/N 16192-09002 1
*1
Option 010 sizes are the same as industry standard (EIA/EIAJ) SMD sizes
.This short bar
set has the following SMD sizes included :1005(mm)/0402(inch), 1608(mm)/0603(inch),
2012(mm)/0805(inch), 3216(mm)/1206(inch). Order option 010 if the SMD that is to be measured
has the same size as the EIA/EIAJ sizes.
*2
Furnished with the option 710
1-2 General Information

Specications
This section lists the complete 16192A specications. These specications are the performance
standards and limits against which the 16192A is tested. When shipped from the factory
,the
16192A meets the following specications:
Maximum DC Bias V
oltage
::::::: :: :::::::::::::::::::::
::
:::::::::::::::::::::::
::
::
::::
6
40V
Operating T
emperature
::::: :: :::::::::::::::::::::
:::: :: :::::::::::::::::::
::
::
: 0
55 to +85

C
Operating Humidity
(@wet bulb temperature
<
40

C)
:::::::: ::::
::::::::::::::::::::: :: :: :::::::::::::::::::
::
:::: ::::::::::::::::
15 %to95 % RH
Non-operating T
emperature
:::::::
::
::::::::::::::::::::: :: :::::::::::::::::::::
0 55 to +85

C
Non-operating Humidity
(@wet bulb temperature
<
65

C)
::::::
::
::::::::::::::::::::: :: :::::::::::::::::::::
:::: :: :::::::::::::::::::
::
::
Up to 90 %RH
W
eight
:::: ::::::::::::::::::::::: :: :: :::::::::::::::::::::
::
:::::::::::::::::::::::
::
::
::::
400 g
Dimension
:::
::
::
:::::::::::::::::::::
::
::
::::::::::::::::::::::: :
150(W)
2
70(H)
2
90(D) [mm]
Supplemental P
erformance Characteristics
This section lists supplemental performance characteristics
.Supplemental performance
characteristics are not specications, but are typical characteristics included as additional
information for the operator. Supplemental performance characteristics are not guaranteed.
Frequency Range
:::
:::::::::::::::::::::::::
::::::::::::::::::::::::: :::::::::::::
DC to 2GHz
Applicable DUT size
(see Figure 1-1)
::::::::::::::::::::::::::::::::::::::::::
1mm to 20 mm
Option 701 shorting device size
P/N 16191-29001
:::::::::::::::::::::
:::::::::::::::::::::::::
::::::::::::::
1
2
1
2
2.4 [mm]
P/N 16191-29002
:::::::::::::::::::::
:::::::::::::::::::::::::
::::::::::::
1.6
2
2.4
2
2[mm]
P/N 16191-29003
::::::::::::::::::::::::::::::::::::::::::::::: :::::::::
2.4
2
2.4
2
3.2 [mm]
P/N 16191-29004
::::::::::::::::::::::::::::::::::::::::::::::: :::::::::
2.4
2
2.4
2
4.5 [mm]
Option 010 shorting device size
P/N 16191-29005
:::::::::::::::: :::::::::::::::::::::::
::
:::::
1.0(L)
2
0.5(W)
2
0.5(H) [mm]
P/N 16191-29006
::::::::::::
:::: :: :::::::::::::::::::
::
::
:::::
1.6(L)
2
0.8(W)
2
0.8(H) [mm]
P/N 16191-29007
::::::::::::
:::: :: :::::::::::::::::::
::
::
:::::
2.0(L)
2
1.2(W)
2
0.8(H) [mm]
P/N 16191-29008
:::::::::::::::: :: :::::::::::::::::::::
::
:::::
3.2(L)
2
1.6(W)
2
0.8(H) [mm]
Electrical length
(when the length between electrodes is 2mm)
:::::::: :: :::::::::::::
11 mm
A
dditional Error
3
::::::::::::::::::::
::
::::::::::::::::::::: :: :: :::::::::::::::::::
1.5 2
f
2
[%]
Repeatability
3
(for inductive component)
::::: :: :: :: ::::
:::::::::::::
::
:::: :: :: :: :::::::::
30 +250
2
f [m]
(impedance of 30 m, 40 pH)
:::::::
::: :: ::: :: :: :: :: ::: :: :: :: ::: :: :: :: ::: :: :: :: :: ::: :: ::::::::::::::::::::::: 2+30
2 f[
 S]
(admittance of 2
 S, 5 fF)
3
f: frequency (GHz)
General Information 1-3

Figure 1-1. Applicable DUT Size
Residual Inductance of the Shorting Bar
The usual method to compensate the test xture's residual inductance is to let SHORT =0H.
In this method, the measurement result is the relative value of the measured impedance to the
shorting bar's impedance
.The short bar's residual inductance as aresult of its size and shape is
not estimated.
On the other hand, there is adenition method to let SHORT =xH. In this method, the
measurement result is the absolute value of the device's impedance
.The short bar's residual
inductance as aresult of its size and shape is estimated under specic conditions and is used as
areference value
.This method, is useful for devices with values which are close to the short
conditions of the measurement system.
The reference inductance values presented T
able 1-2 and T
able 1-3 were simulated as the
relative dierence to adisk-type 0termination on either the 7 mm or the 3.5 mm connector
.
The measurement of these short bars under other conditions than shown below cannot
reproduce the reference inductance values
.
T
able 1-2. Option 701 Shorting Device Residual Inductance (Typical)
Shorting Bar l[mm] d[mm] h[mm] Oset [mm] Connector Inductance
(Typical)
P/N 16191-29001 1 2.4 1 0.75 3.5 mm 0.2 nH
P/N 16191-29002 1.6 2.4 2 0.45 3.5 mm 0.2 nH
P/N 16191-29002 2 2.4 1.6 0.25 3.5 mm 0.2 nH
P/N 16191-29002 2.4 21.6 1.3 7mm 0.7 nH
P/N 16191-29003 3.2 2.4 2.4 0.9 7mm 0.6 nH
P/N 16191-29004 4.5 2.4 2.4 07mm 0.6 nH
1-4 General Information

T
able 1-3. Option 010 Shorting Device Residual Inductance (Typical)
Shorting Bar l [mm] d [mm] h [mm] Oset [mm] Connector Inductance
(Typical)
P/N 16191-29005 1.0 0.5 0.5 0.75 3.5 mm 0.5 nH
P/N 16191-29006 1.6 0.8 0.8 0.45 3.5 mm 0.4 nH
P/N 16191-29007 2.0 1.2 0.8 1.5 7mm 0.9 nH
P/N 16191-29008 3.2 1.6 0.8 0.9 7 mm 0.8 nH
Figure 1-2. Simulation Setup
General Information 1-5

2
Preparation for Use
Introduction
This chapter explains how to install the 16192A. The topics include the following:
Initial inspection.
Connecting the test xture for use.
Repackaging the test xture for shipment.
Measurement error correcting function for each instrument.
Initial Inspection
The parallel electrode SMD test xture has been carefully inspected before being shipped
from the factory
.It should be in perfect physical condition, no scratches
,dents or the like
.It
should also be in perfect electrical condition. V
erify this by carefully performing an incoming
inspection to check the parallel electrode SMD test xture set for signs of physical damage and
missing contents
.If any discrepancy is found, notify the carrier and Agilent T
echnologies .Y
our
Agilent T
echnologies sales oce will arrange for repair and replacement without waiting for
the claim to be settled.
Inspect the shipping container for damage
. Keep the shipping materials until the inspection is
completed.
V
erify that the shipping container contains everything shown in Figure 2-1 and listed in
T
able 2-1.
Inspect the exterior of the 16192A for any signs of damage
.
Preparation for Use 2-1

Figure 2-1. 16192A Product Overview
T
able 2-1. 16192A Contents
Description Agilent Part
Number
Quantity
1
 T
est xture 16192A 1
2
 Operation and Service Manual
1
P/N 16192-90040 1
3
 Shorting device
2
(1
2 1 2 2.4[mm]) P/N 16191-29001 1
(1.6 2 2.4 2 2[mm]) P/N 16191-29002 1
(2.4 2 2.4 2 3.2[mm]) P/N 16191-29003 1
(2.4 2 2.4 2 4.5[mm]) P/N 16191-29004 1
4  Case for shorting device P/N 1540-0692 1
5  Magnifying lens
34
P/N 16193-60002 1
6  Tweezers
4
P/N 8710-2081 1
7  Insulator P/N 16192-09002 1
1 Operation and Service Manual is not shown in Figure 2-1 .
2 Contained if you ordered the 16192A option 701.
3 The magnifying lens is packed separately from the 16192A body. Connect it as shown in
Figure 2-1 .
4 Contained if you ordered the 16192A option 710.
2-2 Preparation for Use
