Keysight Technologies 16454A Operation manual

Operation and
Service Manual
Keysight 16454A
Magnetic Material Test
Fixture

Keysight 16454A MAGNETIC MATERIAL TEST FIXTURE
Operation and Service Manual
Manual Change
Keysight Part No. N/A
January 2015
Change 1
Change the part number in Table 2-1 in Page 2-2 as follows.
Table 2-1. 16454A Contents
Reference
Designator
Description
Keysight Part
Number
Quantity
1 Tweezers 8710-2081 1
2 Fixture Holder 16454-00601 1
3 Screw, Hex Recess 0515-1050 2
4 Test fixture (Large) (not assigned) 1
5 Test fixture (Small) (not assigned) 1
6 Holder A 16454-25002 1
7 Holder B 16454-25001 1
8 Holder C (WITHOUT HOLE) 16454-25004 1
9 Holder D (WITH HOLE) 16454-25003 1
10 Holder Case 1540-0622 1
11 Hex Key, 2.5 mm Across Flats 5188-4452 1
- Carrying Case116454-60101 1
- Operation and Service Manual116454-90020 1
1 These parts are not shown in this figure.
○
CCopyright 2015 Keysight Technologies

Change 2
Change the part number in Table 5-1 in Page 5-2 as follows.
Table 5-1. Replaceable Parts List
Reference
Designator
Keysight Part Number
Quantity
Description
1 16454-00601 1 Fixture Holder
2 0515-1050 2 Screw, Hex Recess
3 16454-23004 1 Fixture Flange (Large)
4 1250-0816 2 Conn-RF Conn
5 16454-2300511 Center Pin
6 16454-2300311 Fixture Cap (Large)
7 16454-23002 1 Fixture Flange (Small)
8 16454-2300111 Fixture Cap (Small)
9 16454-25002 1 Holder A
10 16454-25001 1 Holder B
11 16454-25004 1 Holder C (WITHOUT HOLE)
12 16454-25003 1 Holder D (WITH HOLE)
13 1540-0622 1 Holder Case
14 5188-4452 1 Hex Key, 2.5 mm Across Flats
15 8710-2081 1 Tweezers
16 0470-0013 1 Thread Sealant
- 16454-60101 1 Carrying Case2
- 16454-90020 1 Operation and Service Manual2
1 Keysight internal-only part number.
2 These parts are not shown in this figure.
○
CCopyright 2015 Keysight Technologies

Agilent 16454A Magnetic Material T
est Fixture
Operation and Service Manual
Agilent Part No. 16454-90020
Printed in JAPAN July 2001
Fifth Edition

Notice
The information contained in this document is subject to change without notice
.
This document contains proprietary information that is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced, or translated to another
language without the prior written consent of the Agilent T
echnologies .
Agilent T
echnologies Japan, Ltd.
Component T
est PGU-Kobe
1-3-2, Murotani, Nishi-ku, Kobe-shi,
Hyogo
,651-2241 Japan
c
 Copyright 1993, 1999, 2000, 2001 Agilent Technologies Japan, Ltd.

Manual Printing History
The manual printing date and part number indicate its current edition. The printing date
changes when anew edition is printed. (Minor corrections and updates that are incorporated
at reprint do not cause the date to change.) The manual part number changes when extensive
technical changes are incorporated.
December 1993
::::::
::
::
::::::::::::::::::::: ::::
:::
First Edition (part number: 16454-90000)
F
ebruary 1999
:::::
::
::
::::::::::::::::::::: :: :::::
Second Edition (part number: 16454-90000)
January 2000
:::::: ::::
::::::::::::::::::::: :: :: :::::
Third Edition (part number: 16454-90000)
April 2001
::::::::
::
::::::::::::::::::::: :: :::::::::
F
ourth Edition (part number: 16454-90010)
July 2001
::
::
:::::::::::::::::::::::
::
::
:::::::::::::
Fifth Edition (part number: 16454-90020)
iii

Safety Summary
The following general safety precautions must be observed during all phases of operation,
service
,and repair of this instrument. F
ailure to comply with these precautions or with specic
W
ARNINGS
given elsewhere in this manual violates safety standards of design, manufacture,
and intended use of the instrument.
The A
gilent T
echnologies assumes no liability for the customer's failure to comply with these
requirements
.
DO NOT Operate In An Explosive Atmosphere
Do not operate the instrument in the presence of ammable gasses or fumes
.Operation of any
electrical instrument in such an environment constitutes asafety hazard.
K
eep A
way From Live Circuits
Operating personnel must not remove instrument covers
. Component replacement and internal
adjustments must be made by qualied maintenance personnel. Do not replace components
with the power cable connected. Under certain conditions
, dangerous voltages may exist even
with the power cable removed. T
oavoid injuries
,always disconnect power and discharge
circuits before touching them.
DO NOT Service Or A
djust Alone
Do not attempt internal service or adjustment unless another person, capable of rendering rst
aid and resuscitation, is present.
DO NOT Substitute P
arts Or Modify Instrument
Because of the danger of introducing additional hazards
,do not substitute parts or perform
unauthorized modications to the instrument. Return the instrument to aAgilent T
echnologies
Sales and Service Oce for service and repair to ensure the safety features are maintained.
Dangerous Procedure Warnings
Warnings
,suchas the example below
,precede potentially dangerous procedures throughout
this manual. Instructions contained in the warnings must be followed.
Warning
Dangerous voltages
,capable of causing death, are present in this
instrument. Use extreme caution when handling, testing, and adjusting
this instrument.
The voltage levels found in this test xture when used with the intended instruments do not
warrant more than normal safety precautions for operator safety
.
iv

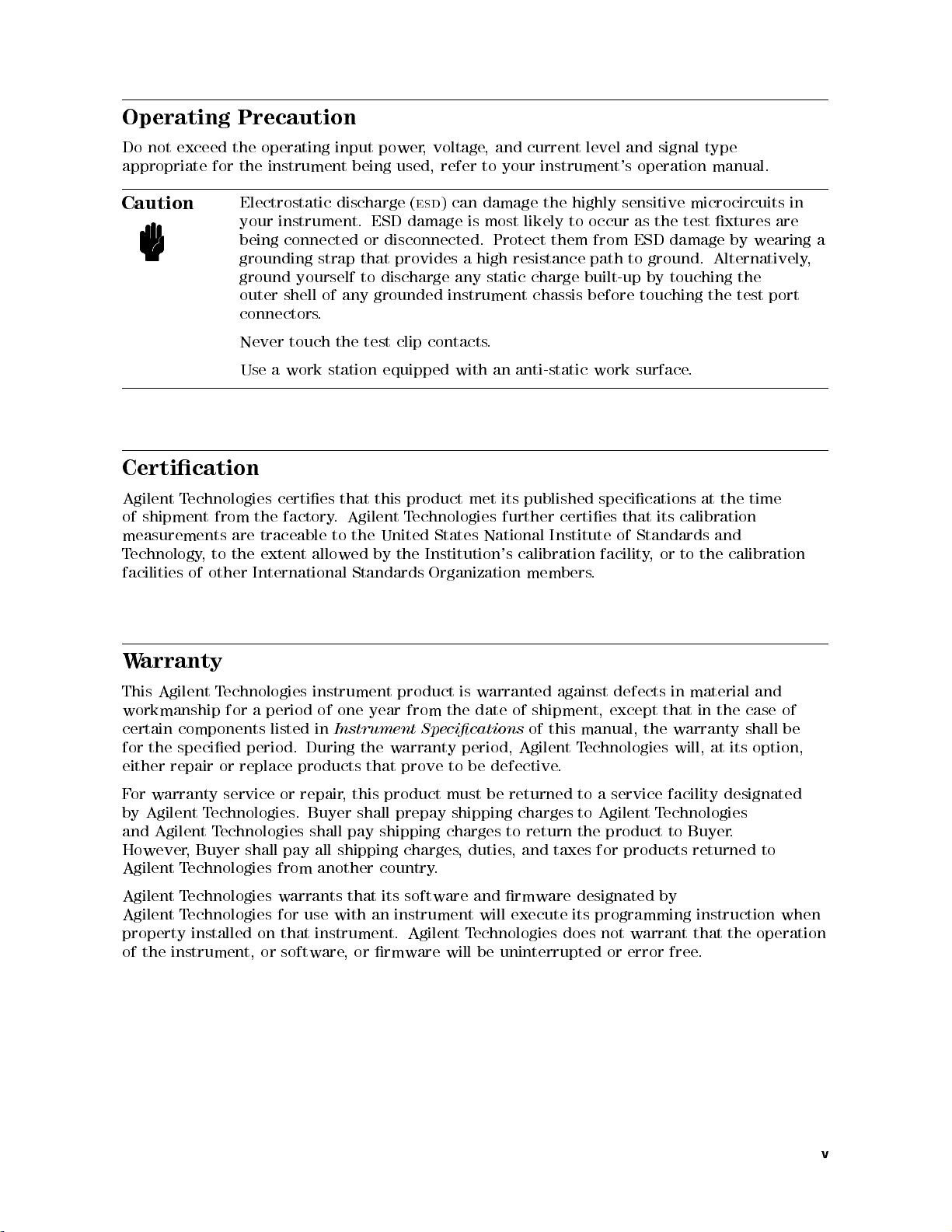

Operating Precaution
Do not exceed the operating input power, voltage, and current level and signal type
appropriate for the instrument being used, refer to your instrument's operation manual.
Caution
Electrostatic discharge (
esd
)candamage the highly sensitive microcircuits in
your instrument. ESD damage is most likely to occur as the test xtures are
being connected or disconnected. Protect them from ESD damage by wearing a
grounding strap that provides ahigh resistance path to ground. Alternatively
,
ground yourself to discharge any static charge built-up by touching the
outer shell of any grounded instrument chassis before touching the test port
connectors
.
Never touch the test clip contacts
.
Use awork station equipped with an anti-static work surface
.
Certication
Agilent T
echnologies certies that this product met its published specications at the time
of shipment from the factory
.Agilent T
echnologies further certies that its calibration
measurements are traceable to the United States National Institute of Standards and
T
echnology
,to the extent allowed by the Institution's calibration facility
,or
to the calibration
facilities of other International Standards Organization members
.
W
arranty
This Agilent T
echnologies instrument product is warranted against defects in material and
workmanship for aperiod of one year from the date of shipment, except that in the case of
certain components listed in
Instrument Specications
of this manual, the warranty shall be
for the specied period. During the warranty period, Agilent T
echnologies will, at its option,
either repair or replace products that prove to be defective
.
For warranty service or repair
, this product must be returned to aservice facility designated
by Agilent Technologies. Buyer shall prepay shipping charges to Agilent T
echnologies
and Agilent T
echnologies shall pay shipping charges to return the product to Buyer
.
However, Buyer shall pay all shipping charges
, duties
, and taxes for products returned to
Agilent T
echnologies from another country
.
Agilent T
echnologies warrants that its software and rmware designated by
Agilent T
echnologies for use with an instrument will execute its programming instruction when
property installed on that instrument. Agilent T
echnologies does not warrant that the operation
of the instrument, or software
,orrmware will be uninterrupted or error free
.
v

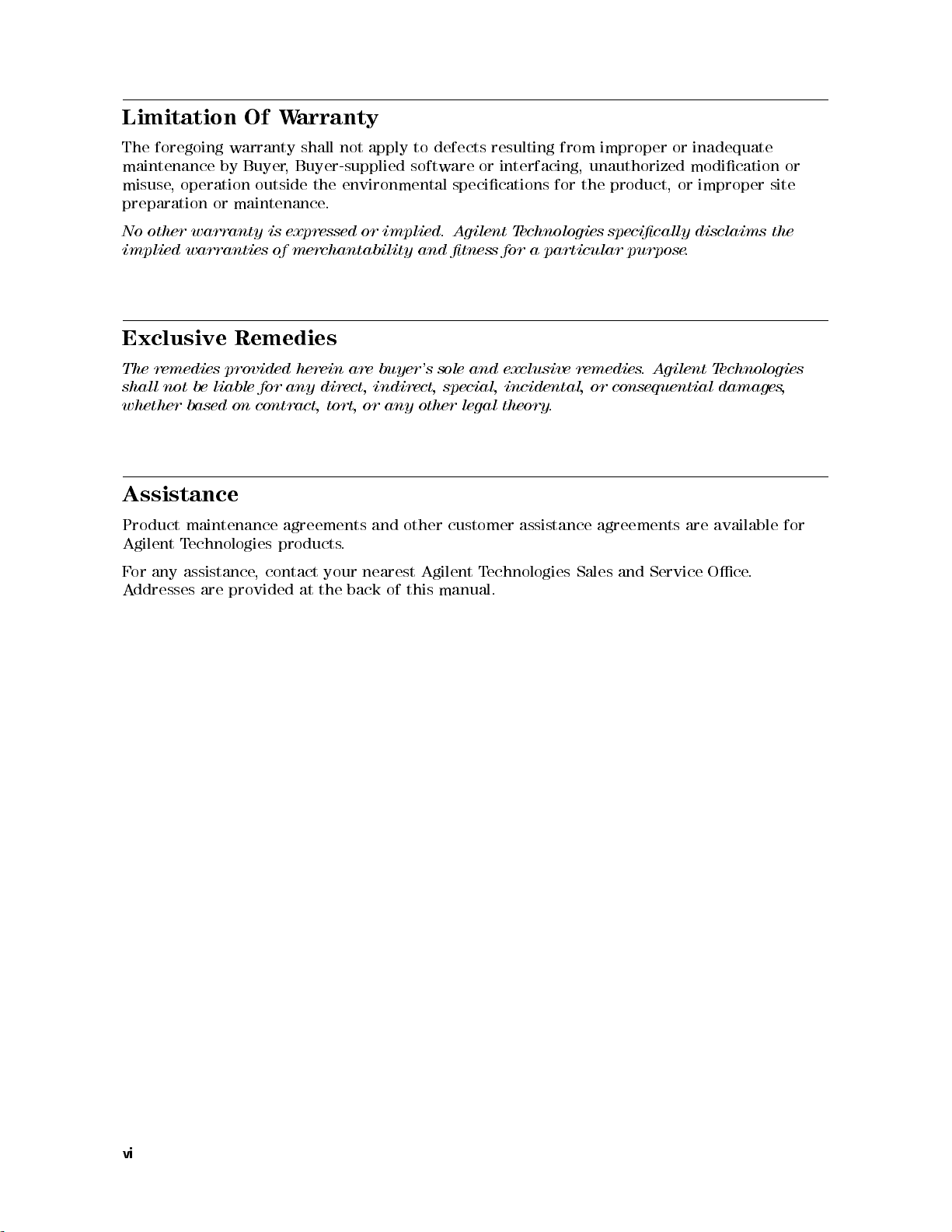

Limitation Of Warranty
The foregoing warranty shall not apply to defects resulting from improper or inadequate
maintenance by Buyer
,Buyer-supplied software or interfacing, unauthorized modication or
misuse
,operation outside the environmental specications for the product, or improper site
preparation or maintenance
.
No other warranty is expressed or implied. A
gilent T
echnologies specically disclaims the
implied warranties of merchantability and tness for a particular purpose
.
Exclusive Remedies
The remedies provided herein are buyer's sole and exclusive remedies. Agilent T
echnologies
shall not be liable for any direct, indirect, special, incidental, or consequential damages
,
whether based on contract, tort, or any other legal theory
.
Assistance
Product maintenance agreements and other customer assistance agreements are available for
Agilent T
echnologies products.
F
or any assistance
,contact your nearest Agilent T
echnologies Sales and Service Oce
.
A
ddresses are provided at the back of this manual.
vi

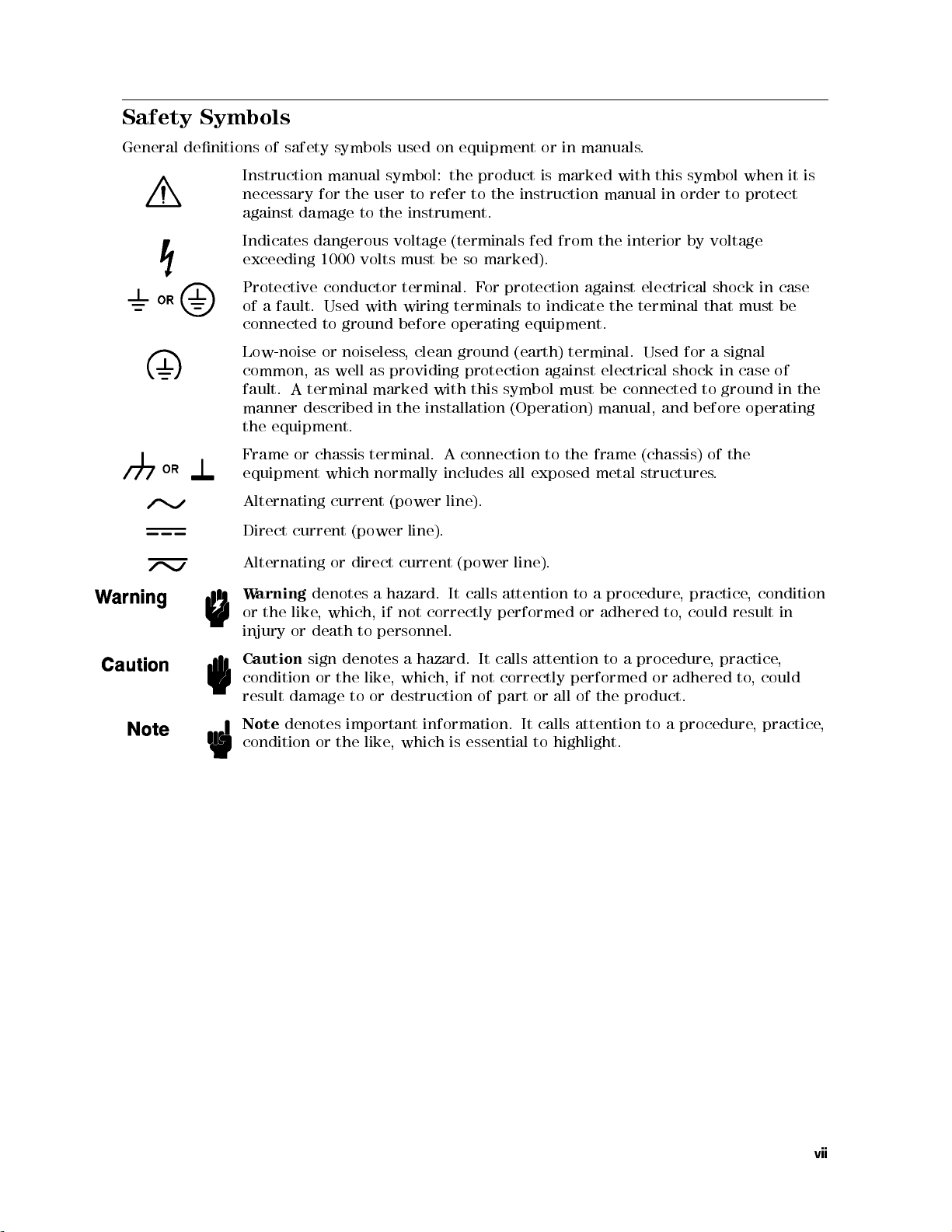

Safety Symbols
General denitions of safety symbols used on equipment or in manuals.
Instruction manual symbol: the product is marked with this symbol when it is
necessary for the user to refer to the instruction manual in order to protect
against damage to the instrument.
Indicates dangerous voltage (terminals fed from the interior by voltage
exceeding 1000 volts must be so marked).
Protective conductor terminal. F
or protection against electrical shock in case
of afault. Used with wiring terminals to indicate the terminal that must be
connected to ground before operating equipment.
Low-noise or noiseless, clean ground (earth) terminal. Used for asignal
common, as well as providing protection against electrical shock in case of
fault. Aterminal marked with this symbol must be connected to ground in the
manner described in the installation (Operation) manual, and before operating
the equipment.
Frame or chassis terminal. Aconnection to the frame (chassis) of the
equipment which normally includes all exposed metal structures
.
Alternating current (power line).
Direct current (power line).
Alternating or direct current (power line).
W
arning
denotes ahazard. It calls attention to aprocedure, practice
,condition
or the like
,which, if not correctly performed or adhered to,could result in
injury or death to personnel.
Caution
sign denotes ahazard. It calls attention to aprocedure
,practice
,
condition or the like
, which, if not correctly performed or adhered to
,could
result damage to or destruction of part or all of the product.
Note
denotes important information. It calls attention to a procedure
,practice
,
condition or the like
,which is essential to highlight.
vii

APC-7
R

is a U.S. registered trademark of the Bunker Ramo Corporation.
viii

Contents
1. General Information
Introduction ..................
..
..
..
.........1-1
Product Description ................... ..
..
......1-1

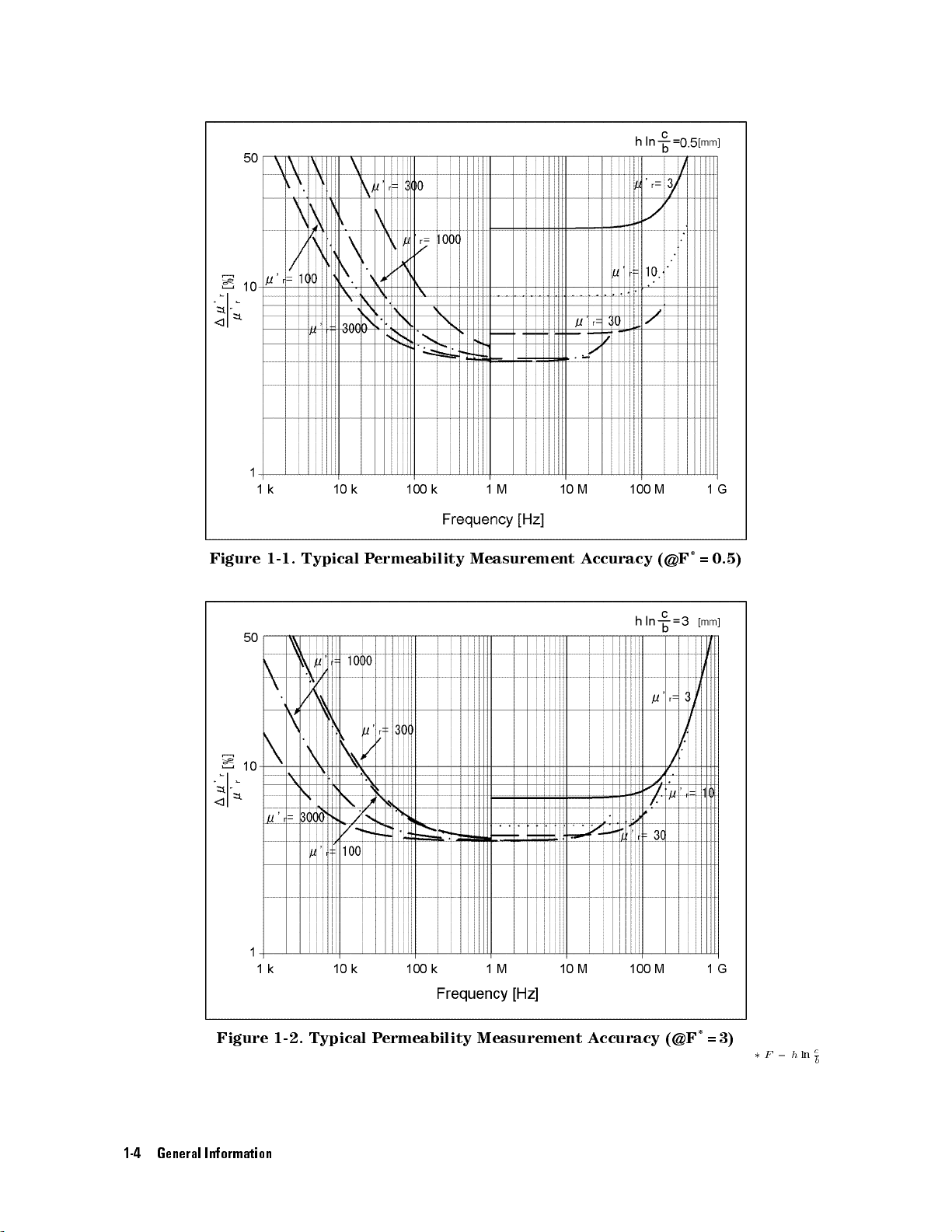

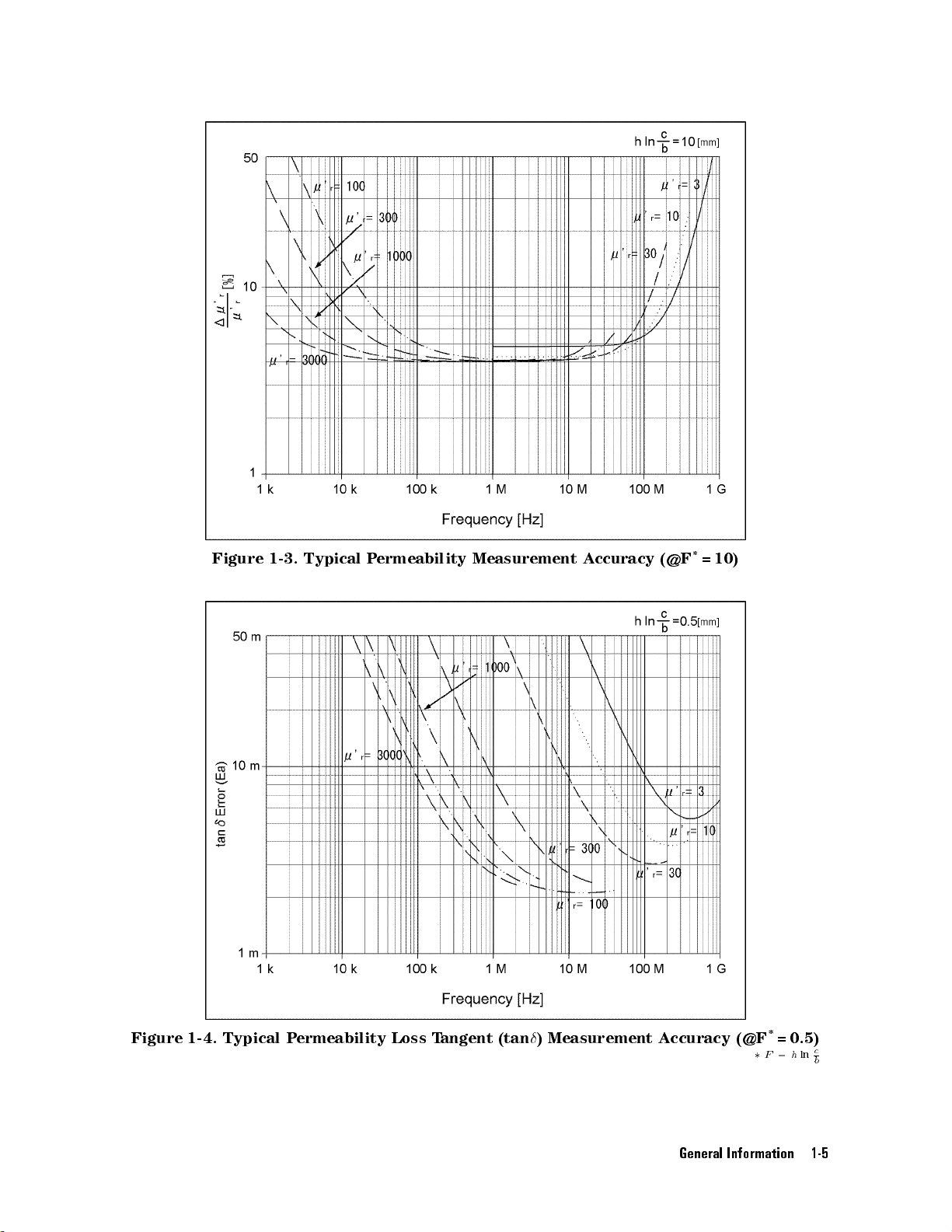

Specications ..................
..
..
..
........1-2
Supplemental P
erformance Characteristics .................
.1-3
Typical Measurement A
ccuracy ................... .. ..1-3
2. Initial Inspection
Introduction ..................
..
.............2-1
Initial Inspection ......................
.........2-1
Repackaging the Test Fixture F
or Shipment .................
.2-3
3. Theory on Material Measurement
Magnetic Material Measurement .................. .....3-1
P
ermeability Denition .................. .........3-1
Measurement Principle of Magnetic Material ..............
..
.3-1
Structure of 16454A T
est Fixture .......
...............3-4
4. Operation
Connecting the T
est Fixture ..........
...............4-1
Selecting Fixture and Holder ........................4-1
Connecting the T
est Fixture to the Test Head ................4-2
P
erforming SHORT Compensation ..... .................4-3
Placing the MUT into the Test Fixture . ....................4-3
5. Service
Introduction ..
....................... .. ......5-1
Replaceable Parts .. ...................
..
..
..
...5-1
Functional Test ..
...................
..
..
..
....5-3
Contents-1

Figures
1-1. Typical P
ermeability Measurement A
ccuracy (@F
*
=0.5) . ..........1-4
1-2. Typical P
ermeability Measurement A
ccuracy (@F
*
=3) ............1-4
1-3. Typical P
ermeability Measurement A
ccuracy (@F
*
=10) . ...........1-5
1-4. Typical P
ermeability Loss T
angent (tan

)Measurement A
ccuracy (@F
*
=0.5) . .1-5
1-5. Typical P
ermeability Loss T
angent (tan

)Measurement A
ccuracy (@F
*
=3) . ..1-6
1-6. Typical P
ermeability loss T
angent (tan

)Measurement A
ccuracy (@F
*
=10) ..1-6
1-7. Typical P
ermeability Measurement A
ccuracy (

r
v
.s
.Frequency
,@F
*
=0.5) ..1-7
1-8. Typical P
ermeability Measurement A
ccuracy (

r
v
.s
.Frequency
,@F
*
=3) ...1-7
1-9. Typical P
ermeability Measurement A
ccuracy (

r
v
.s
.Frequency
,@F
*
=10) ...1-8
3-1. V
ector Diagram of Complex Relative P
ermeability and Loss T
angent ......3-1
3-2. Relationship among Current, Magnetic Flux, and Magnetic Flux Density ....3-2
3-3. Measurement Principle When Using 16454A T
est Fixture ...........3-2
3-4. Loss of Magnetic Material ................
..
..
..
...3-3
3-5. 16545A Residual Impedance ...................
..
...3-4
4-1. Dimensions of the MUT Holder ................... ....4-1
4-2. ......................
..
..............4-2
4-3. ................
......................4-2
4-4. Connecting the T
est Fixtures (16454A Small) ................4-2
T
ables
1-1. Applicable MUT Size ............... .. .. .........1-2
2-1. 16454A Contents ................
..
..
.........2-2
4-1. MUT Size F
or T
est Fixtures ...
..
..
..................4-1
5-1. Replaceable P
arts List ......
..
..
..
...............5-2
5-2. Fixture Impedance Check Guideline ......
..
..
..
.........5-3
Contents-2

1
General Information
Introduction
This manual contains the following information:
The specications of the 16454A (in this chapter).
Initial inspection of the 16454A (see Chapter 2).
Ordering replaceable parts for the 16454A (see Chapter 5).
F
or measurement procedures using the 16454A ,see the
4291B RF Impedance/Material
Analyzer User's Guide
.
Product Description
The 16454A is used to measure the permeability of atoroidal core
.
General Information 1-1

Specications
This section lists the complete 16454A specications. These specications are the performance
standards and limits against which the 16454A is tested. When shipped from the factory
, the
16454A meets the following listed specications
.
Supplemental characteristics are intended to provide information that is useful in applying the
instrument by giving non-warranted performance parameters
. These are denoted as
typical,
typically
,nominal
or
approximate .
Applicable MUT (Material Under Test) Size
:::
::
::::::::::::::::::::: :: ::::::::
See T
able 1-1
Maximum DC Bias Current
::
::
:::: :::::::::::::::::::
::
::
::
:::::::::::::::::::::::
: 6
500 mA
Frequency Range
:::::: :: ::::::::::::::::::::: :: :: :: ::::::::::::::::
1kHz to 1.0 GHz typically
Operating T
emperature :::
::
:::::::::::::::::::::::
::
::::::::::::::::::::: ::
0 55

Cto+200

C
Operating Humidity
(@ wet bulb temperature
< 40

C)
::::: :: ::::::::::::::::::
Up to 95% RH
Non-operating T
emperature ::::: :::::::::::::::::::::
::
::
::::::::::::::::::
0
55

Cto +200

C
Non-operating Humidity
(@ wet bulb temperature
< 65

C)
:::::::
:::::::::::::
Up to 90% RH
W
eight
(Large T
est Fixture)
:::::::::::::::::::::::::::::::::::::::::::::::: :: ::::::::::
140 gtypically
(Small T
est Fixture)
::::::::::::::::::::::::::::::::::::::::::::::::::::: :::::::
120 gtypically
Dimension
(Large T
est Fixture)
::::::::::::::::
::::::::::::::::::::::: :: ::
30 mm
2
35 mm Htypically
(Small T
est Fixture)
::::::::::::
::
::
::
:::::::::::::::::::::
::
::
:
24 mm
2
30 mm Htypically
T
able 1-1. Applicable MUT Size
Fixture Small Large
Holder A B C D
b 

3.1 mm


3.1 mm


6mm


5mm
c 

8mm


6mm


20 mm


20 mm
h 
3mm

3mm

8.5 mm

8.5 mm
Applicable Instruments
:::::::::::::::::::::::: :: :::::::::::::::::::::
::
::::::
4291B RF Impedance/Material Analyzer
:::::::::::::::: :: :: :::::::::::::::::::
::
:::: ::::::::::::
4294A Precision Impedance Analyzer
::::::::::::::
::
::
:::::::::::::::::::::::
::
::
::::::::
E4991A RF Impedance/Material Analyzer
Model Necessary options
4291B Option 002
Option 012/014
1
4294A I-BASIC sample program disk
2
E4991A Option 002
1 Used for temperature characteristics
measurement.
2 Furnished with 4294A manual set
1-2 General Information

Supplemental P
erformance Characteristics
This section shows supplemental performance characteristics data. This supplemental
performance characteristics is not specication. Magnetic Material Measurement Accuracy used
with High T
emperature Test Head of 4291B, see the
4291B RF Impedance/Material Analyzer
Function R
eference
.
Typical Measurement A
ccuracy

r
0
Accuracy
(
1

0
rm

0
rm
)
@tan <
0.1
f
<
1MHz
:::::::::::::: :: :::::::::::::::::::::
:::: :::::
4+
25
F
0
rm
+
0
0
:
1
F
0
rm
f
1
[%] (Typical)
f

1MHz
:::::::::::::::: ::::::::::::::::::
4+
25
F
0
rm
+
F
0
rm
0
1+
15
F
0
rm
1
2
f
2
[%] (Typical)
Loss T
angent A
ccuracy of
_

r
(1tan 
)
@tan <
0.1
:::::::::::::::::::
::
::
:::::::::::::::::::::::
::
::
:::::::::::::::::E
a
+ E
b
(Typical)
f
<
1MHz
:::::::::::::::::::::::
:::::::::::::::::::::::::
::::::::::::
E
a
=0
:
002 +
0
:
001
F
0
rm
f
(Typical)
::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::
E
b
=
1

0
rm

0
rm
tan

100
(Typical)
f

1MHz
:::: :::::::::::::::::::::::
::
:::::::::::::::::::::
E
a
=0
: 002 +
0
: 001
F
0
rm
f
+0
: 004
f
(Typical)
::::::::::::::
::::::::::::::::::::::: :: :::::::::::::::::::::
:::: :
E
b
=
1

0
rm

0
rm
tan

100
(Typical)
Where
,
f
is measurement frequency [GHz]
F
=
h
ln
c
b
[mm]
h is the height of MUT [mm]
b is the inner diameter of MUT
c is the outer diameter of MUT
tan  is the measured value of loss tangent

rm
0
is the measured value of permeability
Conditions of accuracy characteristics
Use the Low Z Test Head for permeability measurement
OPEN/SHORT/50  calibration must be done. Calibration ON.
Averaging (on point) factor is larger than 32 at which calibration is done if Cal points is set to USER DEF.
Measurement points are same as the calibration points if Cal point is set to USER DEF.
Environment temperature is within 6 5

C of temperature at which calibration is done, and within 13

Cto33

C.
Beyond this environmental temperature condition, accuracy is twice as bad as specied.
General Information 1-3

Figure 1-1. Typical P
ermeability Measurement Accuracy (@F
*
=0.5)
Figure 1-2. Typical Permeability Measurement Accuracy (@F
*
=3)
3 F = h ln
c
b
1-4 General Information

Figure 1-3. Typical P
ermeability Measurement Accuracy (@F
*
=10)
Figure 1-4. Typical Permeability Loss Tangent (tan  ) Measurement Accuracy (@F
*
=0.5)
3 F = h ln
c
b
General Information 1-5

Figure 1-5. Typical P
ermeability Loss Tangent (tan

)Measurement A
ccuracy (@F
*
=3)
Figure 1-6. Typical Permeability loss Tangent (tan  ) Measurement Accuracy (@F
*
=10)
3 F = h ln
c
b
1-6 General Information
