Keysight N5225-60107 User manual

Installation Note
Keysight Add Source and Receiver
Attenuators Upgrade Kit
To Upgrade PNA N5224A/B or N5225A/B Option 401 to Option 417 or
PNA-X N5244A/B or N5245A/B Option 401 to Option 417
For Analyzers with Serial Numbers Prefixed MY/SG/US5150 and Below
Upgrade Kit Order Numbers: N5224AU-417, N5225AU-417,
N5224BU-417, N5225BU-417, N5244AU-417, N5245AU-417,
N5244BU-417, and N5245BU-417
Keysight Kit Number: N5225-60107

Notices
© Keysight Technologies, Inc.
2009-2019
No part of this manual may be
reproduced in any form or by any
means (including electronic storage
and retrieval or translation into a
foreign language) without prior
agreement and written consent from
Keysight Technologies, Inc. as
governed by United States and
international copyright laws.
Trademark Acknowledgments
Manual Part Number
N5225-90107
Edition
Edition 2, June 2019
Supersedes: July 2017
Printed in USA/Malaysia
Published by:
Keysight Technologies
1400 Fountaingrove Parkway
Santa Rosa, CA 95403
Warranty
THE MATERIAL CONTAINED IN THIS
DOCUMENT IS PROVIDED “AS IS,”
AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN
FUTURE EDITIONS. FURTHER, TO
THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, KEYSIGHT
DISCLAIMS ALL WARRANTIES,
EITHER EXPRESS OR IMPLIED WITH
REGARD TO THIS MANUAL AND
ANY INFORMATION CONTAINED
HEREIN, INCLUDING BUT NOT
LIMITED TO THE IMPLIED
WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
KEYSIGHT SHALL NOT BE LIABLE
FOR ERRORS OR FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES IN
CONNECTION WITH THE
FURNISHING, USE, OR
PERFORMANCE OF THIS
DOCUMENT OR ANY INFORMATION
CONTAINED HEREIN. SHOULD
KEYSIGHT AND THE USER HAVE A
SEPARATE WRITTEN AGREEMENT
WITH WARRANTY TERMS
COVERING THE MATERIAL IN THIS
DOCUMENT THAT CONFLICT WITH
THESE TERMS, THE WARRANTY
TERMS IN THE SEPARATE
AGREEMENT WILL CONTROL.
Technology Licenses
The hardware and/or software
described in this document are
furnished under a license and may be
used or copied only in accordance
with the terms of such license.
U.S. Government Rights
The Software is “commercial
computer software,” as defined
by Federal Acquisition Regulation
(“FAR”) 2.101. Pursuant to FAR
12.212 and 27.405-3 and
Department of Defense FAR
Supplement (“DFARS”) 227.7202,
the U.S. government acquires
commercial computer software
under the same terms by which
the software is customarily
provided to the public.
Accordingly, Keysight provides
the Software to U.S. government
customers under its standard
commercial license, which is
embodied in its End User License
Agreement (EULA), a copy of
which can be found at
http://www.keysight.com/find/sweula
The license set forth in the EULA
represents the exclusive authority
by which the U.S. government
may use, modify, distribute, or
disclose the Software. The EULA
and the license set forth therein,
does not require or permit,
among other things, that
Keysight: (1) Furnish technical
information related to
commercial computer software
or commercial computer
software documentation that is
not customarily provided to the
public; or (2) Relinquish to, or
otherwise provide, the
government rights in excess of
these rights customarily provided
to the public to use, modify,
reproduce, release, perform,
display, or disclose commercial
computer software or
commercial computer software
documentation. No additional
government requirements
beyond those set forth in the
EULA shall apply, except to the
extent that those terms, rights, or
licenses are explicitly required
from all providers of commercial
computer software pursuant to
the FAR and the DFARS and are
set forth specifically in writing
elsewhere in the EULA. Keysight
shall be under no obligation to
update, revise or otherwise
modify the Software. With
respect to any technical data as
defined by FAR 2.101, pursuant
to FAR 12.211 and 27.404.2 and
DFARS 227.7102, the U.S.
government acquires no greater
than Limited Rights as defined in
FAR 27.401 or DFAR 227.7103-5
(c), as applicable in any technical
data.
Safety Notices
A CAUTION notice denotes a hazard. It
calls attention to an operating
procedure, practice, or the like that,
if not correctly performed or adhered
to, could result in damage to the
product or loss of important data. Do
not proceed beyond a CAUTION
notice until the indicated conditions
are fully understood and met.
A WARNING notice denotes a hazard.
It calls attention to an operating
procedure, practice, or the like that,
if not correctly performed or adhered
to, could result in personal injury or
death. Do not proceed beyond a
WARNING notice until the indicated
conditions are fully understood and
met.

1
Keysight Add Source and Receiver Attenuators Upgrade Kit
Upgrade Kit Number: N5225-60107
Installation Note
Description of the Upgrade
This upgrade adds the following items to your N5224A/B Option 401 or
N5225A/B Option 401 or N5244B Option 401 or N5245B Option 401 network
analyzer:
— a 60-dB source attenuator in each source port channel
— a 35-dB receiver attenuator in each receiver channel
— front panel overlay replacement
— new cables
After installation of this upgrade, your analyzer will be an N5224A/B Option
417 or N5225A/B Option 417 or N5244B Option 417 or N5245B Option 417.
Some of the assembly drawings in this document may be different from
your instrument, but the process is similar for both an "A" model and "B"
model instruments.
If you had an A model PNA-X with Option 219/419 with Option H85 that
was upgraded to a B model, please refer to Options 217/417. If you had an
A model PNA-X with Option 224/423 with Option H85 that was upgraded
to a B model then refer to Option 222/422.

2 Installation Note N5225-90107
Description of the Upgrade
Getting Assistance from Keysight
-
Getting Assistance from Keysight
By internet, phone, or fax, get assistance with all your test and measurement
needs.
Contacting Keysight
Assistance with test and measurements needs and information on finding a
local Keysight office are available on the Web at:
http://www.keysight.com/find/assist
If you do not have access to the Internet, please contact your Keysight field
engineer.
If You Have Problems With the Upgrade Kit Contents
Keysight stands behind the quality of the upgrade kit contents. If you have
problems with any item in the kit, refer to www.keysight.com and the Contact
Keysight link.
In any correspondence or telephone conversation, refer to the Keysight
product by its model number and full serial number. With this information,
the Keysight representative can determine whether your product is still
within its warranty period.

Installation Note N5225-90107 3
Description of the Upgrade
Getting Prepared
Getting Prepared
To successfully install this upgrade kit, you will need the following:
—Alicensekey-referto“License Key File Redemption” below.
— A PDF copy or a paper copy of the PNA Service Guide - refer to
“Downloading the Online PNA Service Guide” below.
— An ESD-safe work area - refer to “Protecting Your Workspace from
Electrostatic Discharge” below.
— Correct tools - refer to “Tools Required for the Installation” on page 6.
— Enough time - refer to “About Installing the Upgrade” on page 6.
— Test equipment for the post-upgrade adjustments and full instrument
calibration. To view the equipment list, click the Chapter 3 bookmark “Tests
and Adjustments” in the PDF Service Guide1.
The PNA contains extremely sensitive components that can be ruined if
mishandled. Follow instructions carefully when making cable connections,
especially wire harness connections.
The person performing the work accepts responsibility for the full cost of
the repair or replacement of damaged components.
1. See “Downloading the Online PNA Service Guide” on page 5.

4 Installation Note N5225-90107
Description of the Upgrade
Getting Prepared
-
License Key File Redemption
To enable the option product, you must request license key(s) (A models) or
license key files(s) (B models) from the Keysight Software Manager:
http://www.keysight.com/find/softwaremanager.
To complete the request, you will need to gather the following information:
— From the certificate
— Order number
— Certificate number
— From your instrument
(Instrument information is available in the network analyzer - on the
toolbar, click Help, then click About Network Analyzer.)
— Model number
— Serial number
—A models ONLY: From the online Keysight HostID utility
Part of the OEC procedure to obtain the 12-digit license key online requires
you to provide the HostID number of the PNA. This HostID number is NOT
the one currently shown on the PNA. To find your new HostID, go to
http://www.na.support.keysight.com/pna/upgrades.html and, using the
HostID utility, enter the PNA serial number and your new, upgraded PNA-X
model number - N5224A, N5225A, N5244A, or N5245A.
—HostID
The only difference between an A model license key redemption and a B
model is that the A model uses a 12-character license key and the B model
uses a license key file.
Ensure that you are connected to an external server, before attempting to
download your email and license key file.
If you are unfamiliar with the licensing process:
For A models: Refer to
http://literature.cdn.keysight.com/litweb/pdf/N5225-90110.pdf.
For B models: Refer to
http://literature.cdn.keysight.com/litweb/pdf/N5242-90024.pdf.
The enclosed Software Entitlement Certificate is a receipt, verifying that
you have purchased a licensed option for the analyzer of your choice. You
must now use a Keysight Web page to request a license key email that
contains the license key files for the instrument that will receive the
option.

Installation Note N5225-90107 5
Description of the Upgrade
Getting Prepared
Using the information just gathered, you must request license key(s) for your A
model or for your B models, a license key file(s) from the Keysight Software
Manager: http://www.keysight.com/find/softwaremanager.
You will need to provide an email address, Keysight will promptly email your A
model license key(s) or a for a B model, license key file(s) attachment message.
Refer to “License Key File Redemption” on page 4.
Verify the License Contents
Refer to the license message you received from Keysight:
If the model number, serial number, or option number do not match those on
the license message you received from Keysight, you will not be able to install
the license key file. If this is the case, contact Keysight for assistance. Refer to
“Getting Assistance from Keysight” on page 3.
Downloading the Online PNA Service Guide
To view the online Service Guide for your PNA model number, use the following
steps:
1. Go to www.keysight.com.
2. In the Search box, enter the model number of the analyzer (Ex: N5242A)
and click Search.
3. Click Technical Support > Manuals.
4. Click Service Manual.
5. Click the service guide title to download the PDF file.
6. When the PDF of the Service Guide is displayed, scroll through the
Contents section bookmarks to locate the information needed.
Protecting Your Workspace from Electrostatic Discharge
For information, click on the Chapter 1 bookmark, “Electrostatic Discharge
Protection” in the PDF Service Guide.
ESD Equipment Required for the Installation
Description Keysight Part Number
ESD grounding wrist strap 9300-1367
5-ft grounding cord for wrist strap 9300-0980
2 x 4 ft conductive table mat and 15-ft grounding wire 9300-0797
ESD heel strap (for use with conductive floors) 9300-1308

6 Installation Note N5225-90107
Description of the Upgrade
Getting Prepared
-
Tools Required for the Installation
About Installing the Upgrade
Description Qty Part Number
T-10 TORX driver - set to 9 in-lbs (1.02 N.m) 1 N/A
T-20 TORX driver - set to 21 in-lbs (2.38 N.m) 1 N/A
5/16-in (8 mm) nutsetter or open end torque wrench - set to
10 in-lbs (1.13 N.m)
1N/A
Use a 5/16-in torque wrench set to 10 in-lbs on all cable connections.
Products affected N5224A/B, N5225A/B, N5244B, and N5245B Option 401
Installation to be performed by Keysight service center or personnel qualified by Keysight
Estimated installation time 2 hours
Estimated adjustment time 0.5 hour
Estimated full instrument calibration time 4.5 hours

Installation Note N5225-90107 7
Description of the Upgrade
Items Included in the Upgrade Kit
Items Included in the Upgrade Kit
Check the contents of your kit against the following list. If any part is missing or
damaged, contact Keysight Technologies. Refer to “Getting Assistance from
Keysight” on page 2.
Table 1 Contents of Upgrade Kit N5225-60107
Ref
Desig. Description Qty Part Number
-- Installation note (this document) 1 N5225-90107
-- Software Entitlement Certificate 1 5964-5145
A38–
A41 0–60 dB source step attenuator 4 33325-60022
A46–
A49 0-35 dB receiver step attenuator 4 33325-60023
-- Attenuator bracket (For A47 port 3 & A48 port 4 rcvr attenuators & all src
attenuators.) 6 N5245-00015
-- Attenuator bracket (For A46 port 1 and A49 port 2 receiver attenuators.) 2 N5225-00001
-- Lower Front panel overlay — PNA A models (N5224/5A) 1 N5225-80003
-- Lower Front panel overlay — PNA B models (N5224/5B) 1 N5225-80006
-- Lower Front panel overlays — PNA-X models (N5244/5B) 1 N5242-80031
-- Machine screw, M3 x 8, pan head (to attach brackets to attenuators; to attach port 1
and port 2 receiver attenuators to deck) 27 0515-0372
-- Machine screw, M3 x 6, pan head (to attach source attenuators and port 3 and port 4
receiver attenuators to deck) 15 0515-0430
-- Machine screw, M3.0 x 6, flat head (to attach front frame to coupler
plate) 2 0515-1946
-- Cable tie wrap 6 1400-0249
-- Cable clamp 11 1400-1334
-- Protective caps 4 1401-0214
W12 A29 port 1 receiver coupler to W11 1 N5245-20050
W18 A32 port 2 receiver coupler to W17 1 N5245-20049
W21 A29 port 1 receiver coupler to A37 reference mixer switch 1 N5245-20008
W25 A30 port 3 receiver coupler to front-panel REF 3 SOURCE OUT 1 N5245-20116
W29 A31 port 4 receiver coupler to front-panel REF 4 SOURCE OUT 1 N5245-20117
W33 RF cable, A32 port 2 receiver coupler to front-panel REF 2 SOURCE OUT 1 N5245-20010
W47 REF 2 RCVR R2 IN to A27 mixer brick (R2) 1 N5245-20115

8 Installation Note N5225-90107
Description of the Upgrade
Items Included in the Upgrade Kit
-
W81 RF cable, A29 test port 1 receiver coupler to A38 test port 1 source attenuator 1 N5245-20029
W82 RF cable, A38 test port 1 source attenuator to front-panel Port 1 SOURCE OUT 1 N5245-20077
W85 RF cable, A30 test port 3 receiver coupler to A39 test port 3 source attenuator 1 N5245-20026
W86 RF cable, A39 test port 3 source attenuator to front-panel Port 3 SOURCE OUT 1 N5245-20027
W89 RF cable, A31 test port 4 receiver coupler to A40 test port 4 source attenuator 1 N5245-20026
W90 RF cable, A40 test port 4 source attenuator to front-panel Port 4 SOURCE OUT 1 N5245-20028
W93 RF cable, A32 test port 2 receiver coupler to A41 test port 2 source attenuator 1 N5245-20029
W94 RF cable, A41 test port 2 source attenuator to front-panel Port 2 SOURCE OUT 1 N5245-20031
W97 RF cable, front-panel Port 1 RCVR A IN to A46 port 1 receiver attenuator 1 N5245-20054
W98 RF cable, A46 port 1 receiver attenuator to A27 mixer brick (A) 1 N5245-20056
W99 RF cable, front-panel Port 3 RCVR C IN to A47 port 3 receiver attenuator 1 N5245-20073
W100 RF cable, A47 port 3 receiver attenuator to A28 mixer brick (C) 1 N5245-20066
W101 RF cable, front-panel Port 4 RCVR D IN to A48 port 4 receiver attenuator 1 N5245-20074
W102 RF cable, A48 port 4 receiver attenuator to A28 mixer brick (D) 1 N5245-20075
W103 RF cable, Port 2 RCVR B IN to A49 port 2 receiver attenuator 1 N5245-20055
W104 RF cable, A49 port 2 receiver attenuator to A27 mixer brick (B) 1 N5245-20057
-- Ribbon cable, A23 test set motherboard J205 to A46 port 1 receiver attenuator
4 N5245-60026
-- Ribbon cable, A23 test set motherboard J206 to A47 port 3 receiver attenuator
-- Ribbon cable, A23 test set motherboard J207 to A48 port 4 receiver attenuator
-- Ribbon cable, A23 test set motherboard J208 to A49 port 2 receiver attenuator
-- Ribbon cable, A23 test set motherboard J549 to A38 test port 1 source attenuator
4 N5245-60006
-- Ribbon cable, A23 test set motherboard J547 to A39 test port 3 source attenuator
-- Ribbon cable, A23 test set motherboard J548 to A40 test port 4 source attenuator
-- Ribbon cable, A23 test set motherboard J546 to A41 test port 2 source attenuator
Extra quantities of items such as protective plastic caps, screws, cable ties,
and cable clamps may be included in this upgrade kit. It is normal for some
of these items to remain unused after the upgrade is completed.
Table 1 Contents of Upgrade Kit N5225-60107
Ref
Desig. Description Qty Part Number

Installation Note N5225-90107 9
Description of the Upgrade
Installation Procedure for the Upgrade
Installation Procedure for the Upgrade
The network analyzer must be in proper working condition prior to installing
this option. Any necessary repairs must be made before proceeding with this
installation.
Overview of the Installation Procedure
“Step 1. Obtain a Keyword and Verify the Information.”
“Step 2. Remove the Outer Cover.”
“Step 3. Remove Some Bottom-Side (Test Set) Cables.”
“Step 4. Assemble the Port 1 and Port 2 Receiver Attenuator Assemblies.”
“Step 5. Install the Port 1 and Port 2 Receiver Attenuator Assemblies.”
“Step 6. Assemble the Port 3 and Port 4 Receiver Attenuator Assemblies.”
“Step 7. Install the Port 3 and Port 4 Receiver Attenuator Assemblies.”
“Step 8. Assemble the Source Attenuator Assemblies.”

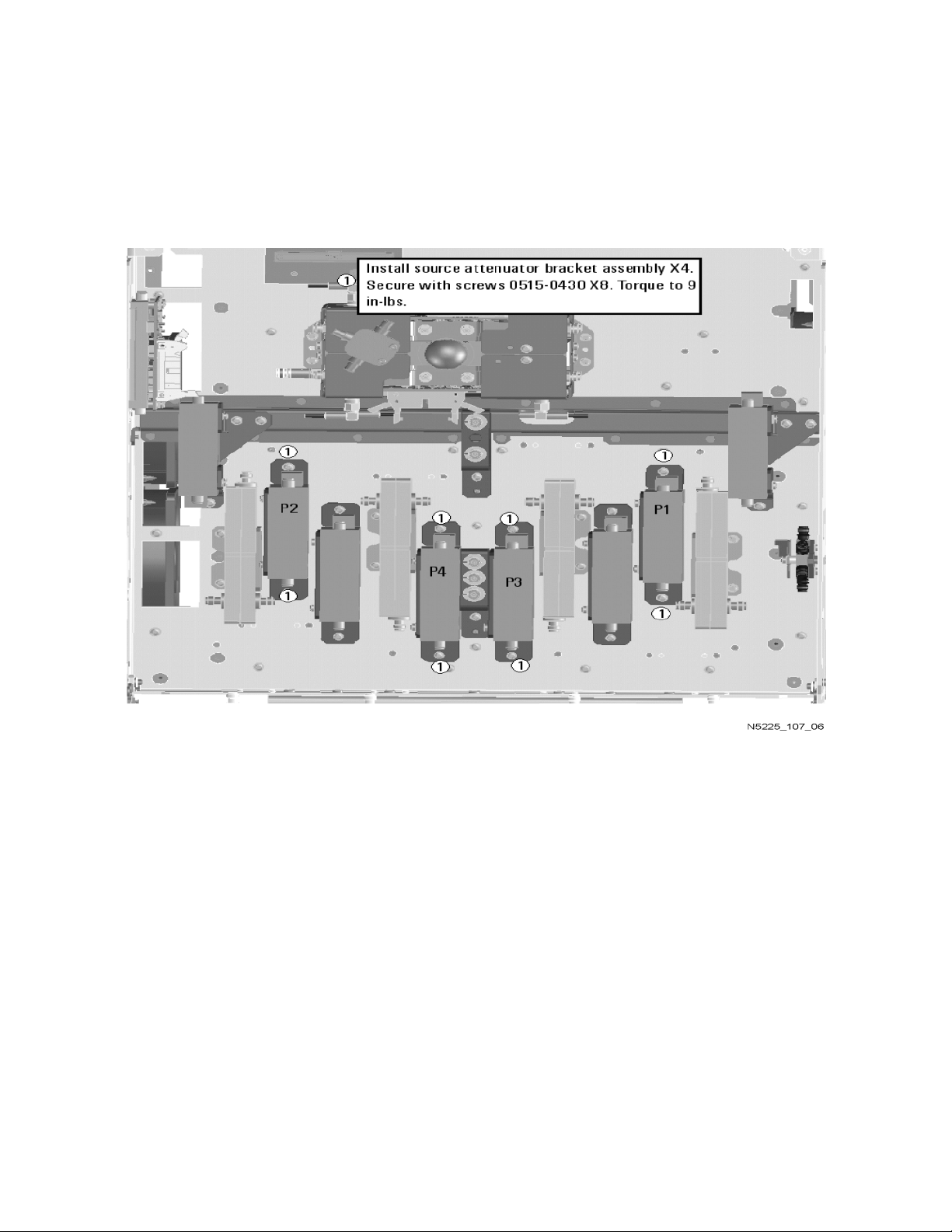

“Step 9. Install the Source Attenuator Assemblies.”
“Step 10. Install Some Bottom-Side (Test Set) Cables.”
“Step 11. Remove the Old Lower Front Panel Overlay.”
“Step 12. Reinstall Front Panel Assembly.”
“Step 13. Install the New Lower Front Panel Overlay.”
“Step 14. Reinstall Front Panel Jumpers.”
“Step 15. Install the Second Source Boards.”
“Step 16. Reinstall the Outer Cover.”
“Step 17. Remove Option 401 License.”
“Step 18. Enable Option 417.”
“Step 19. Perform Post-Upgrade Adjustments and Calibration.”
“Step 20. Prepare the PNA for the User.”
This installation requires the removal of the analyzer’s protective
outer covers. The analyzer must be powered down and
disconnected from the mains supply before performing this
procedure.
Some of the following figures provided in this procedure contain bias tees.
Bias tees are included in the Option 219/419 upgrade kits and can be
ignored for Options 217/417 and 222/422.

10 Installation Note N5225-90107
Description of the Upgrade
Installation Procedure for the Upgrade
-
Step 1. Obtain a Keyword and Verify the Information
Follow the instructions on the Software Entitlement Certificate supplied to
obtain a license key for installation of this upgrade. Refer to “License Key File
Redemption” on page 4.
Verify that the model number, serial number, and option number information
on the license key match those of the instrument on which this upgrade will be
installed.
If the model number, serial number, or option number do not match those on
your license key, you will not be able to install the option. If this is the case,
contact Keysight for assistance before beginning the installation of this
upgrade. Refer to “Contacting Keysight” on page 2.
Once the license key (A models) or license key file (B models) has been
received and the information verified, you can proceed with the installation at
“Step 2. Remove the Outer Cover” on page 10.
Step 2. Remove the Outer Cover
For instructions, click the Chapter 7 bookmark “Removing the Covers” in the
PDF Service Guide.
Step 3. Remove Some Bottom-Side (Test Set) Cables
1. Place the analyzer bottom-side up on a flat surface.
2. Remove the following cables. To see an image showing the location of
these cables, click the Chapter 6 bookmark “Bottom RF Cables, Standard
4-Port Configuration, Option 401” in the PDF Service Guide1.
These cables may be discarded - they will not be reinstalled.
— W12 (N5245-20109) A29 port 1 receiver coupler to W11
If the model number, serial number, or option number do not match those
on your license key (A models) or license key file (B models), you will not
be able to install the option. If this is the case, contact Keysight for
assistance before beginning the installation of this upgrade. Refer to
“Contacting Keysight” on page 2.
Leave the gray flexible cables, the wire harnesses, and the ribbon cables
connected where possible. Any that are removed should be labeled for
reconnection later.
Be careful not to damage the center pins of the semirigid cables. Some
flexing of the cables may be necessary but do not over-bend them.
1. See “Downloading the Online PNA Service Guide” on page 5.

Installation Note N5225-90107 11
Description of the Upgrade
Installation Procedure for the Upgrade
— W18 (N5245-20111) A32 port 2 receiver coupler to W17
— W19 (N5245-20039) A29 test port 1 receiver coupler to front-panel
Port 1 SOURCE OUT
— W21 (N5245-20110) A29 port 1 receiver coupler to A37 reference
mixer switch
— W23 (N5245-20051) A30 test port 3 receiver coupler to front-panel
Port 3 SOURCE OUT
— W25 (N5245-20016) A30 port 3 receiver coupler to front-panel REF 3
SOURCE OUT
— W27 (N5245-20052) A31 test port 4 receiver coupler to front-panel
Port 4 SOURCE OUT
— W29 (N5245-20017) A31 port 4 receiver coupler to front-panel REF 4
SOURCE OUT
— W31 (N5245-20040) A32 test port 2 receiver coupler to front-panel
Port 2 SOURCE OUT
— W33 (N5245-20108) A32 port 2 receiver coupler to front-panel REF 2
SOURCE OUT
— W37 (N5245-20041) Front-panel Port 1 RCVR A IN to A27 mixer brick
(A)
— W38 (N5245-20037) Front-panel Port 3 RCVR C IN to A28 mixer brick
(C)
— W39 (N5245-20038) Front-panel Port 4 RCVR D IN to A28 mixer brick
(D)
— W40 (N5245-20042) Port 2 RCVR B IN to A27 mixer brick (B)
— W46 (N5245-20011) Front-panel REF 2 RCVR R2 IN to A27 mixer brick
(R2)
These cables must be saved - they will be reinstalled.
— W14 (N5245-20043) A30 port 3 receiver coupler to W13
— W16 (N5245-20044) A31 port 4 receiver coupler to W15
— W44 (N5245-20020) REF 3 RCVR R3 IN to A28 mixer brick (R3)
— W45 (N5245-20021) REF 4 RCVR R4 IN to 3 dB pad on A28 mixer brick
(R4)
— W36 (N5245-20155) Front panel jumpers (quantity = 12)
NOTE: Remove and save the cable guards for the front panel jumpers.

12 Installation Note N5225-90107
Description of the Upgrade
Installation Procedure for the Upgrade
-
Step 4. Assemble the Port 1 and Port 2 Receiver Attenuator
Assemblies
Refer to Figure 1 for this step of the procedure. New parts are listed in Table 1
on page 7. Use a T-10 TORX driver to tighten all screws.

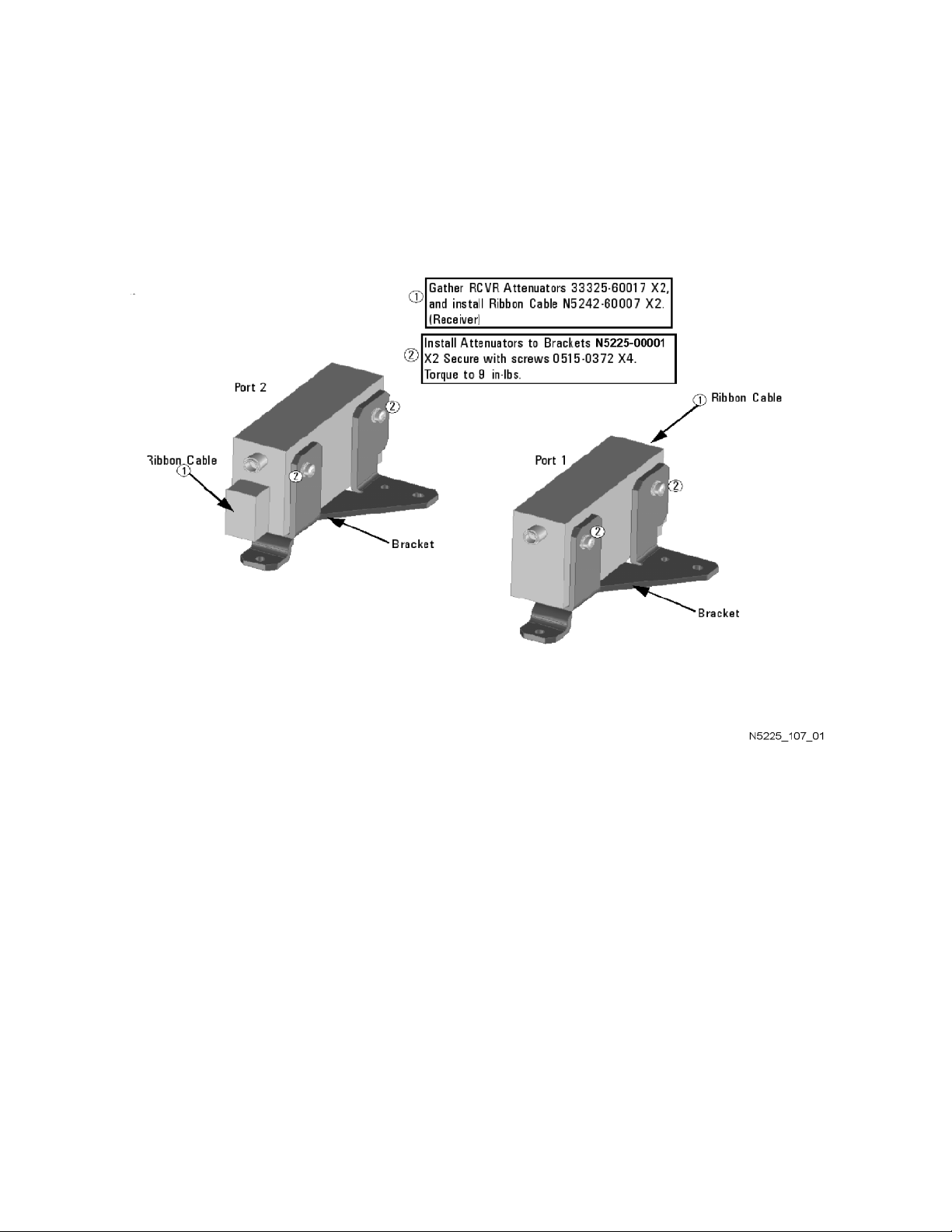

Figure 1 Port 1 and Port 2 Receiver Attenuator and Bracket Assembly
Step 5. Install the Port 1 and Port 2 Receiver Attenuator Assemblies
Refer to Figure 2 for this step of the procedure. New parts are listed in Table 1
on page 7. Use a T-10 TORX driver to tighten all screws.

Installation Note N5225-90107 13
Description of the Upgrade
Installation Procedure for the Upgrade
Figure 2 Port 1 and Port 2 Receiver Attenuator Assemblies Installation

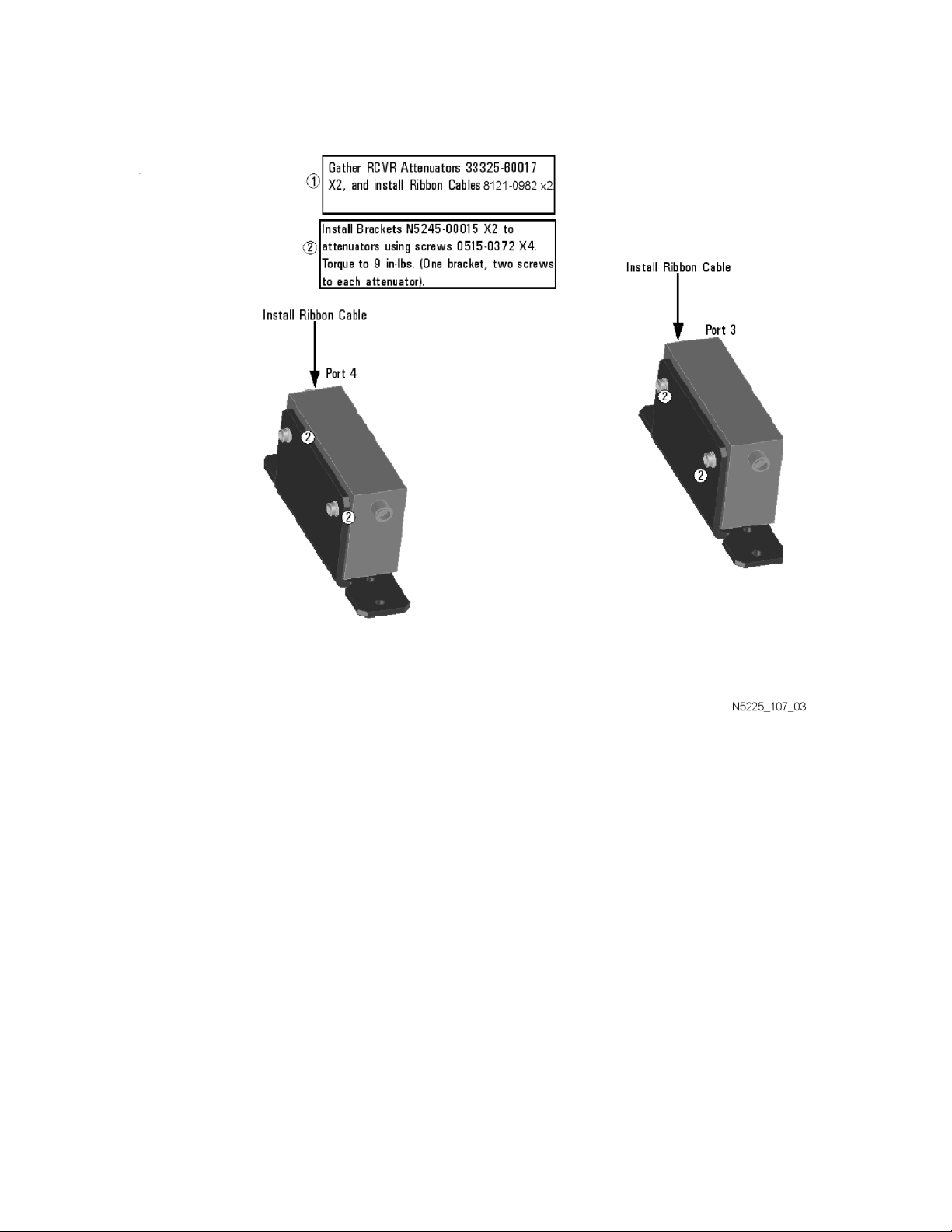

Step 6. Assemble the Port 3 and Port 4 Receiver Attenuator
Assemblies
Refer to Figure 3 for this step of the procedure. New parts are listed in Table 1
on page 7. Use a T-10 TORX driver to tighten all screws.

14 Installation Note N5225-90107
Description of the Upgrade
Installation Procedure for the Upgrade
-
Figure 3 Port 3 and Port 4 Receiver Attenuator and Bracket Assembly
Step 7.Install the Port 3 and Port 4 Receiver Attenuator Assemblies
Refer to Figure 4 for this step of the procedure. New parts are listed in Table 1
on page 7. Use a T-10 TORX driver to tighten all screws.

Installation Note N5225-90107 15
Description of the Upgrade
Installation Procedure for the Upgrade
Figure 4 Port 3 and Port 4 Receiver Attenuator Assemblies Installation

16 Installation Note N5225-90107
Description of the Upgrade
Installation Procedure for the Upgrade
-
Step 8.Assemble the Source Attenuator Assemblies
Refer to Figure 5 for this step of the procedure. New parts are listed in Table 1
on page 7. Use a T-10 TORX driver to tighten all screws.
Figure 5 Source Attenuator and Brackets Assembly

Installation Note N5225-90107 17
Description of the Upgrade
Installation Procedure for the Upgrade
Step 9. Install the Source Attenuator Assemblies
Refer to Figure 6 for this step of the procedure. New parts are listed in Table 1
on page 7. Use a T-10 TORX driver to tighten all screws.
Figure 6 A26 and A27 Test Port Bridge Assembly

18 Installation Note N5225-90107
Description of the Upgrade
Installation Procedure for the Upgrade
-
Step 10. Install Some Bottom-Side (Test Set) Cables
Follow the two instructions shown in Figure 5 in this document. New parts are
listed in Table 1 on page 7 of this document.
Install the Semirigid Cables
To see an image showing the location of these cables, click the Chapter 6
bookmarks “Bottom RF Cables, 4-Port Configuration, Option 417” in the PDF
Service Guide1. New parts are listed in Table 1 on page 7.
Install the following new cables in the order listed.
— W103 (N5245-20055) Port 2 RCVR B IN to A49 port 2 receiver
attenuator
— W94 (N5245-20031)
A41 port 2 source attenuator to front-panel Port 2
SOURCE OUT
— W33 (N5245-20010) A32 port 2 receiver coupler to front-panel REF 2
SOURCE OUT
* As shown in Figure 7, install four clamps (part number 1400-1334) to
secure W33.
Follow instructions carefully when making cable connections, especially
wire harness connections. Incorrect connections can destroy components,
resulting in additional customer costs.
1. See “Downloading the Online PNA Service Guide” on page 5.
