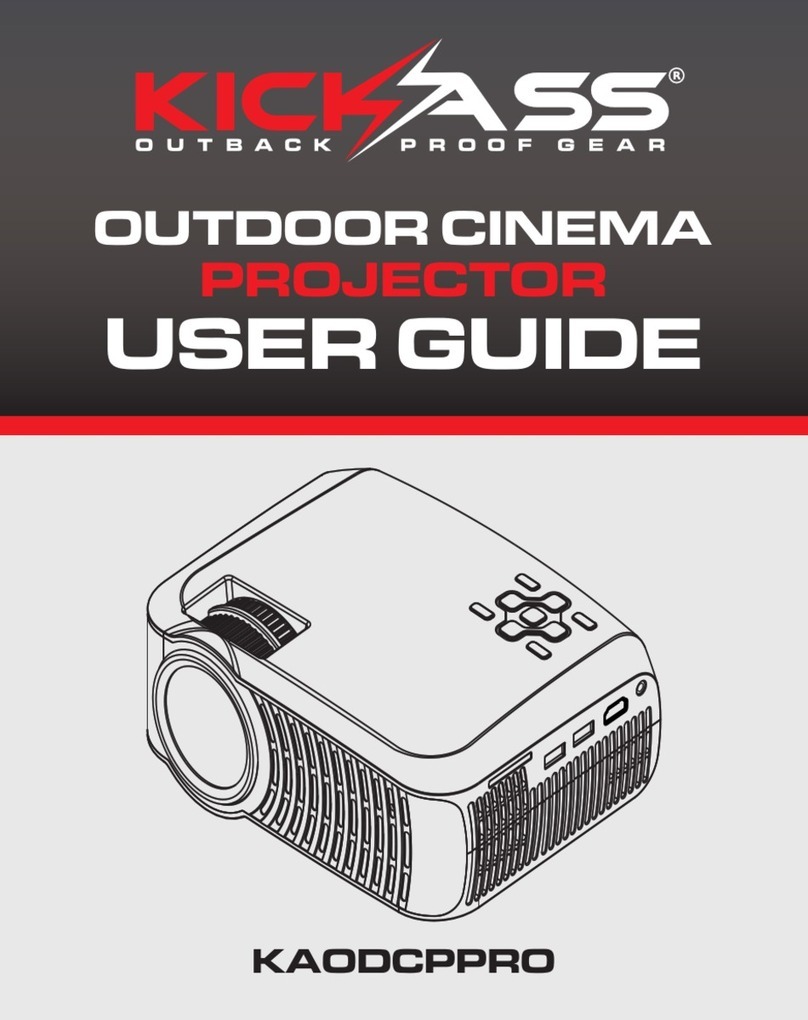

KICK ASS KAODCPPROV4 User manual

PORTABLE
CINEMA PROJECTOR
USER MANUAL
KAODCPPROV4
VER 5.2

TABLE OF CONTENTS
1
1
2
4
5
6
7
8
9
10
11
12
13
15
16
17
18
..................................................................
.............................................................................
.....................................................................
................................................................................
...........................................................................
.................................................
...................................................
.......................................................................
......................................................................
........................................................
.......................................................................
......................................................................
......................................................................................
.................................................................
..........................................................................
...............................................................................
.........................................................................................
IMPORTANT SAFEGUARDSIMPORTANT SAFEGUARDS
ACCESSORIES LISTACCESSORIES LIST
PROJECTOR OVERVIEWPROJECTOR OVERVIEW
SPECIFICATIONSSPECIFICATIONS
REMOTE CONTROLREMOTE CONTROL
SWITCHING MACHINE OPERATIONSWITCHING MACHINE OPERATION
FOCUS/KEYSTONE CORRECTIONFOCUS/KEYSTONE CORRECTION
STANDARD SETTINGSSTANDARD SETTINGS
SOURCE SETTINGS SOURCE SETTINGS
BLUETOOTH CONNECTION BLUETOOTH CONNECTION
SCREEN MIRRORINGSCREEN MIRRORING
ANDROID SCREEN ANDROID SCREEN
IOS SCREEN IOS SCREEN
SYNCSCREEN SETTING SYNCSCREEN SETTING
WIFI CONNECTIONWIFI CONNECTION
MORE SETTINGSMORE SETTINGS
WARRANTY WARRANTY
IMPORTANT SAFEGUARDS
ACCESSORIES LIST
PROJECTOR OVERVIEW
SPECIFICATIONS
REMOTE CONTROL
SWITCHING MACHINE OPERATION
FOCUS/KEYSTONE CORRECTION
STANDARD SETTINGS
SOURCE SETTINGS
BLUETOOTH CONNECTION
SCREEN MIRRORING
ANDROID SCREEN
IOS SCREEN
SYNCSCREEN SETTING
WIFI CONNECTION
MORE SETTINGS
WARRANTY

1
IMPORTANT SAFEGUARDS
1. Please read the manual carefully before operating projector. To ensure stable
power supply, please use standard power cord.
2. Please use the power supply and cable indicated on the rating label. The
projector should be kept away from cloths, sofas and anything that may block the
ventilation scoop. Please keep the unit away from flammable and explosive
materials.
3. Please do not disassemble the unit by yourself as this will invalidate the warranty
service. To protect your eyes, do not stare directly at the lens when the projector
is on. The projector must be kept away from water and any other liquids.
4. To prevent electric shock, please keep the projector out of the rain and away from
moisture. It is recommended to switch off the projector after it has run for 6 hours
non-stop. Please use the original foam and other cushioning materials when
transporting the projector.
5. If the projector does not work, please contact the authorized service agent
ACCESSORIES LIST
AV Signal Cable X 1
Remote Control X 1
Power Cable X 1
User Manual X 1

2
PROJECTOR OVERVIEW
1. Lens
2. IR for Remote Control
3. Speaker
4. IR for Remote Control
5. Air Intake
6. Power Input
7. Cooling Window
8. Headphone Jack
9. AV Port
10. USB Port
11. USB Port / Wired SyncScreen Port
12. HDMI Port

3
PROJECTOR OVERVIEW
1. Arrow Keys
2. Return
3. Enter
4. Power Key
5. Power Indicator:
Standby: red
Power On: blue
6. Focusing
7. Keystone Correction
8.Bottom Label
(Tear off the bottom sticker, you can
remove the bottom dust cover to clean
up the dust)
9.Machine Foot Pad
10.Hole for Stand(1/4 inch)
11.Height Adjustment Machine Feet

4
SPECIFICATIONS
Model
Lamp
Image System
Language
Resolution
Input Voltage
Weight
Working Temp
Input Port
Output Port
Aspect Ratio
Size
Operation Mode
Mini projector
LED
LCD
English, 23 languages
1280 x 720, support 1080P
12V 4A
1 KG
0~35°C
HDMI / USB / AV
Headphone
16:9 / 4:3
218 x 174 x 96mm
Manual / Remote control
Image Format
Video Format
Audio Format
File Format
BMP/JPG/PNG/JPEG
3GP/AVI/FLV/MKV/MP4/MPG/WMV/RMVB/RM/
TRP/VOB/DIVX/TP/TS/DAT
MP3/AAC/FLAC/OGG/MAV/WMA/M4A
TXT
Multimedia Supported Formats

5
REMOTE CONTROL
1. Power
2. Aspect Ratio
3. Arrow Keys
4. Home
5. Menu
6. Volume Down
7. Menu
8. Screen Flip
9. Source
10. Enter
11. Return
12. Volume Up
13. Mute

6
SWITCHING MACHINE OPERATION
Power Indicator
Power Key
Power On:
Step 1: Press the power button on the body or the power button on the remote
control, the indicator light will turn blue and steady.
Step 2: After 2 seconds, the projector starts to start, the image appears on the
screen, and the unit enters the normal working state.
Step 3: If the projector is newly installed, the image may be blurred or trapezoidal
distortion when it is turned on for the first time. Please refer to the “Focus/Keystone
Correction” section for calibration.
Step4: After the image is adjusted clearly, it can be viewed normally.
Power Off:
Step 1: In the working state, press the power button of the body or the power
button on the remote control to switch the projector to the standby state.
Step 2: After the projector enters the standby state, the machine is in the process of
automatic heat dissipation, and the indicator light changes from blue to red.
Connect the power cord to the projector before connecting
the power cord to an electrical outlet.

7
FOCUS / KEYSTONE CORRECTION
Image Focusing
Place the projector lens perpendicularly to the projection screen or curtain
wall, and adjust the focus dial until the image is clear, that means the
image focusing is finished.
During the focusing process, you can play the programs or pick up the
product menu images to match the focusing adjustment.
Keystone Correction
Please turn the trapezoidal adjustment dial until the image is displayed
normally.
Note: The projector has only mechanical trapezoidal correction in the
vertical direction and there is no horizontal correction. Make sure the
projector is level with the projected image.

8
STANDARD SETTINGS
Refer to the data in the table below to place the projector away from the
projection screen according to the preset graphic size. When installing,
place the projector on a solid, stable countertop . The airframe should be
well ventilated. Do not cover or block the vents. There should be no
obstructions within 30cm of the vents.
Aspect Ratio
Picture Size (inch)
50
70
100
120
16:9
Projection Distance(m)
1.55
2.17
3.10
3.72
Note: The above data is for reference only, please refer to the physical
measurement.

9
Source Settings
In the main interface (or press the signal source key on the remote
control), select the signal source you want to connect.
Signal Source: HDMI / AV.

10
Bluetooth Connection
Step 1: On the main page, select "Settings", and then select OPTION
after entering the interface
Step 2: Select BT Setting and press the OK key to enter the next
interface.
Step 3: Turn on BT Mode,search for Bluetooth, and select the Bluetooth
connection that needs to be paired.

11
Step 1: Select Screen Mirroring in the main interface.
Step 2: Press the OK key to enter the interface.
Step 3: After entering into the interface, select the function you need.
SCREEN MIRRORING

12
Android Screen
Step 1: Select Android Screen in the Syncscreen interface.
Step 2: Turn on the wifi of mobile phone, choose the screen mirroring
function of the phone, search for the device name of the projector and
click connect. Mirroring will begin in a few seconds.
Note: Different mobile phones have different positions and names for the
screen mirroing function, please refer to the manual of the phone.
① The SSID is the name of the current screen-mirroring device.
② The instructions of Android Screen.

13
iOS Screen
Method 2: No WiFi connection required
Step 1: Turn on Wi-Fi on your iPhone and search for the device name of
the projector. For
example: Display_ XXXX, select it and enter the password “12345678”,
then your iPhone will be connected to the Wi-Fi from the projector.
Step 2: Turn on Airplay on your iPhone, select the device name of the
projector.
① The name and password of the current device.When the projector
doesn’t connect to Wi-Fi, you will find a “X”.
② The instruction of iOS Screen.
iOS Screen has three connection methods:
Method 1: Wired Connection for improved quality
Step 1: Select iOS screen from syncscreen.
Step 2: Enter iOS screen, connect your iPhone with the projector via
Wired SyncScreen port with USB cable. Your iPhone will receive a trust
prompt, confirm "trust", then mirroring will begin.
Note: If your iPhone doesn’t receive a trust prompt after connecting with
the projector, please use the original iPhone cable and try again.

14
iOS Screen
Method 3: WiFi Connection Required
Step 1: Connect your projector to the Wi-Fi from a router, you will find the
name of the router and a ”√” on iOS screen.
Step 2: Connect your iPhone to the same Wi-Fi with the projector.
Step 3: Turn on Airplay on your iPhone, select the device name of the
projector. You will get your iPhone screen projected.

15
SyncScreen Setting
Step 1: Select SyncScreen Setting from syncscreen.
Step 2: Choose the setting you want.
The settings include three functions: WIFI / System Upgrade / More
Setting.
WIFI: Search and Cormect WiFi.
System Upgrade: OTA Upgrade / USB Upgrade.
More Setting: System Reset / Mirror Mode / Airplay Mode / Language.

16
Step 1: Select WIFI and press the OK key to enter the next interface.
Step 2: Select the WiFi that you want to connect from the Wi-Fi list.
Step 3: Enter the correct password through the virtual keyboard.
Select the WiFi that has been connected, press the OK key, and three
options will pop up:
Disconnect: Disconnect the Wi-Fi connection this time, but it will be
automatically connected after restarting.
Forget: Forget the password. After restarting, it will not automatically
connect. The password must be entered again for re-connection.
Cancel: Exit the menu.
WIFI CONNECTION

17
Step 1: Select More Setting, press OK key to enter the interface.
Step 2: Choose the setting you want.
System Reset:
Click to return back interface, yes is to confirm the restoration, No is to exit
the selection. Mirror Mode: Smooth /Standard / Quick.
1) Smooth Mode: Requires higher network to optimize the effect of
playing video, and caches the video to ensure smooth pictures during
playback.
2) Standard Mode: Reduces the cache and delay of the mirroring.
3) Quick Mode: No video caching function. When the network
environment is poor, the clarity of the mirroring will be lower to ensure
smooth playback and reduce delay.
Airplay Mode: Can set the channels for 1, 6 and 11 routers. When the
network is poor, you can set other channels to avoid the jam and delay.
MORE SETTINGS

18
