KICK ASS OUTBACK Series User manual

KAF-48UZ | KAF-42DZ | KAF-95DZ
OUTBACK SERIES
FRIDGES
TM

-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------
Please read all instructions carefully
before using the refrigerator.
TABLE OF CONTENTS
1
1
1
2
2
2
3
3
4
5
5
6
7
FeaturesFeatures
Safety InstructionsSafety Instructions
Notes on using the productNotes on using the product
OperationOperation
Power Power
Cable Specification Cable Specification
Using The Fridge Using The Fridge
Single Zone Single Zone
Dual Zone Dual Zone
USB Charging Port & Thermostat Override Switch USB Charging Port & Thermostat Override Switch
Cleaning and MaintenanceCleaning and Maintenance
TroubleshootingTroubleshooting
Error CodesError Codes
Features
Safety Instructions
Notes on using the product
Operation
Power
Cable Specification
Using The Fridge
Single Zone
Dual Zone
USB Charging Port & Thermostat Override Switch
Cleaning and Maintenance
Troubleshooting
Error Codes

Features
ŸReliable cooling system with Danfoss designed compressor manufactured by SECOP
ŸEfficient electronic technology, low energy consumption
ŸMulti-voltage system (DC 12-24 Volt) and (AC 100-120/220-240 Volt)
ŸDigital Battery Protection - protects your vehicle battery effectively
Safety Instructions
ŸWarning: Do not touch exposed cables.
ŸWarning: Do not use fridge if you suspect any connections could be wet.
ŸWhen using the fridge please ensure the circuit being used is fused.
ŸAny installation of DC power sources should be handled by a qualified professional.
ŸMake sure the source voltage is correct. Please refer to the technical data label for the
voltage data.
ŸDo not place any electrical devices inside the refrigerator as moisture could harm these
devices.
Notes On Using The Product
ŸYour refrigerator requires good ventilation, especially around the vents of the
refrigerator; allow a gap of at least 200mm around the vents and 100mm around the
rest of the unit.
ŸAvoid humidity: humidity inside the appliance can form frost and impair cooling. Do
not allow frost to build up.
ŸDo not wash the appliance using a hose or running water and do not submerge the
unit, as water will damage the electronics.
ŸAvoid placing your refrigerator near a heat source. A cooler environment helps the
refrigerator work more efficiently and keep the contents cool.
ŸPlace the refrigerator on a flat surface and away from any edges. When using the fridge
in a vehicle, please use a fastening device to secure it.
1

The Danfoss compressor requires approximately 11.0 Volts (12 Volt System) or 23.0 Volts
(24V System) to operate. If the voltage drops below this, the fridge will stop running.
Cable Specification
The DC cables must have a suitable cross-section for their length, according to this table:
*Note: The length is from the battery to the refrigerator.
Cable Area 12V Max Cable Length* 24V Max Cable Length*
[mm2] AWG [m] [ft.] [m] [ft.]
2.5 13 2.5 8516
411 413 826
69620 12 39
10 710 33 20 66
2

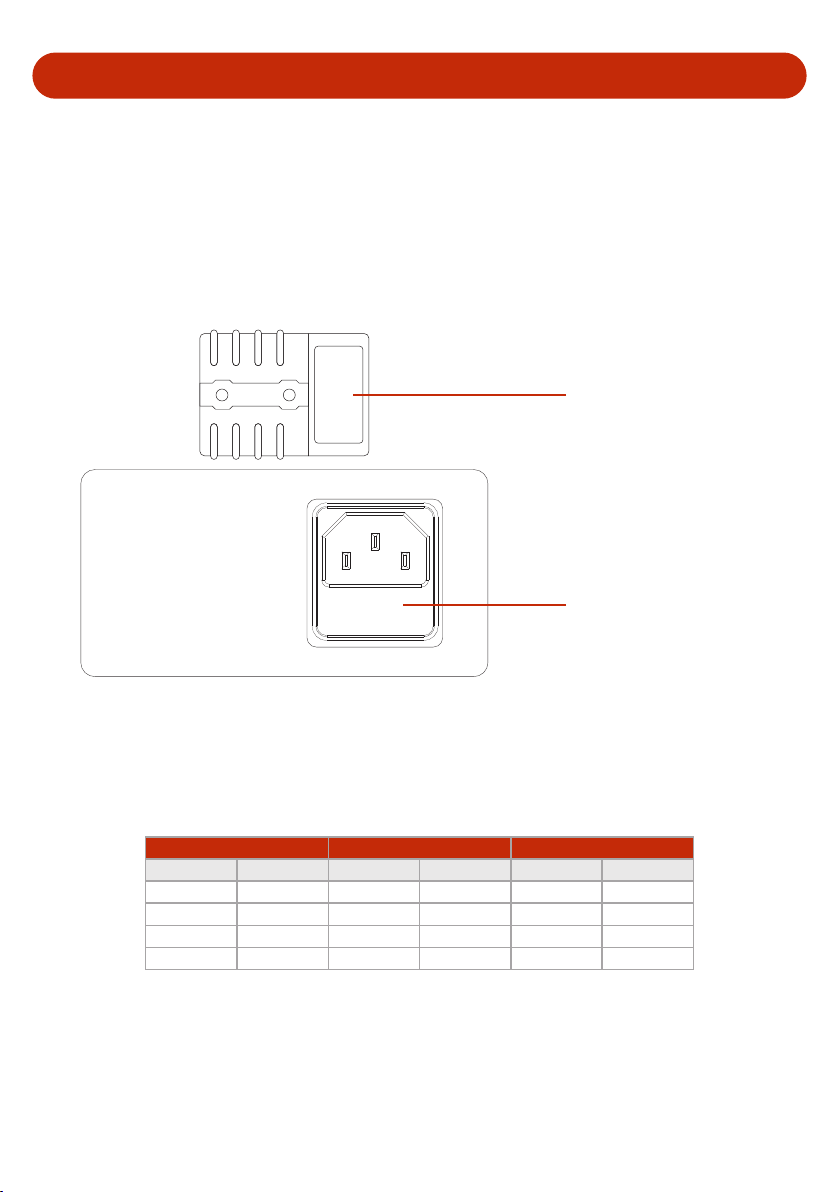

DC SOCKET
AC
~
100-240V
12V ANDERSON SOCKET
Operation
Power
The electronic control module powers the compressor motor and has the function of a
three stage battery protection. When the input voltage drops below the minimum, the
compressor will cut out; when the voltage comes back up to the cut-in value, the
compressor will restart automatically.

Using The Fridge
3
Press
The TEMPERATURE SETTING MENU will open. Within this menu you can use the or
buttons to change the setting.
If you want to continue normal operation, wait 5 seconds for the fridge to return to the
home screen or press again to enter the TEMPERATURE TYPE MENU.
Within the TEMPERATURE TYPE MENU you can use the or buttons to change the
setting from CELSIUS to FAHRENHEIT.
If you want to continue normal operation, wait 5 seconds for the fridge to return to the
home screen or press again to enter the BATTERY PROTECTION MENU
Within the BATTERY PROTECTION MENU you can use the or buttons to change the
setting from Low (LO) to Medium (NE) to High (HI).
The three voltage settings are as follows :
(KickAss recommends you keep the setting on HI)
SET
SET
SET
Setting Cut Out Voltage Cut In Voltage
LO
NE
HI
10.1
11.4
11.8
11.1
12.2
12.6
ON/OFF button
+ Button
- Button
Set button Digital display
Single Zone:
To Turn ON:
1. Plug in the AC or DC power cable.
2. Hold the button for 4 seconds, until the green LED is illuminated.
* When the unit is plugged in and OFF, an orange LED will be illuminated.

Press
The left room TEMPERATURE SETTING MENU will open. Within this menu you can use the
or buttons to change the setting.
If you want to continue normal operation, wait 5 seconds for the fridge to return to the
home screen or press again to enter the RIGHT ROOM TEMPERATURE SETTING MENU.
The RIGHT ROOM TEMPERATURE SETTING MENU will open. Within this menu you can use
the or buttons to change the setting.
If you want to continue normal operation, wait 5 seconds for the fridge to return to the
home screen or press again to enter the TEMPERATURE TYPE SCREEN.
Within the TEMPERATURE TYPE MENU you can use the or buttons to change the
setting from CELSIUS to FAHRENHEIT.
If you want to continue normal operation, wait 5 seconds for the fridge to return to the
home screen or press again to enter the BATTERY PROTECTION MENU.
Within the BATTERY PROTECTION MENU you can use the or buttons to change the
setting from Low (V ) to Medium (V ) to High (V ).
L M H
The three voltage settings are as follows :
(KickAss recommends you keep the setting on V )
H

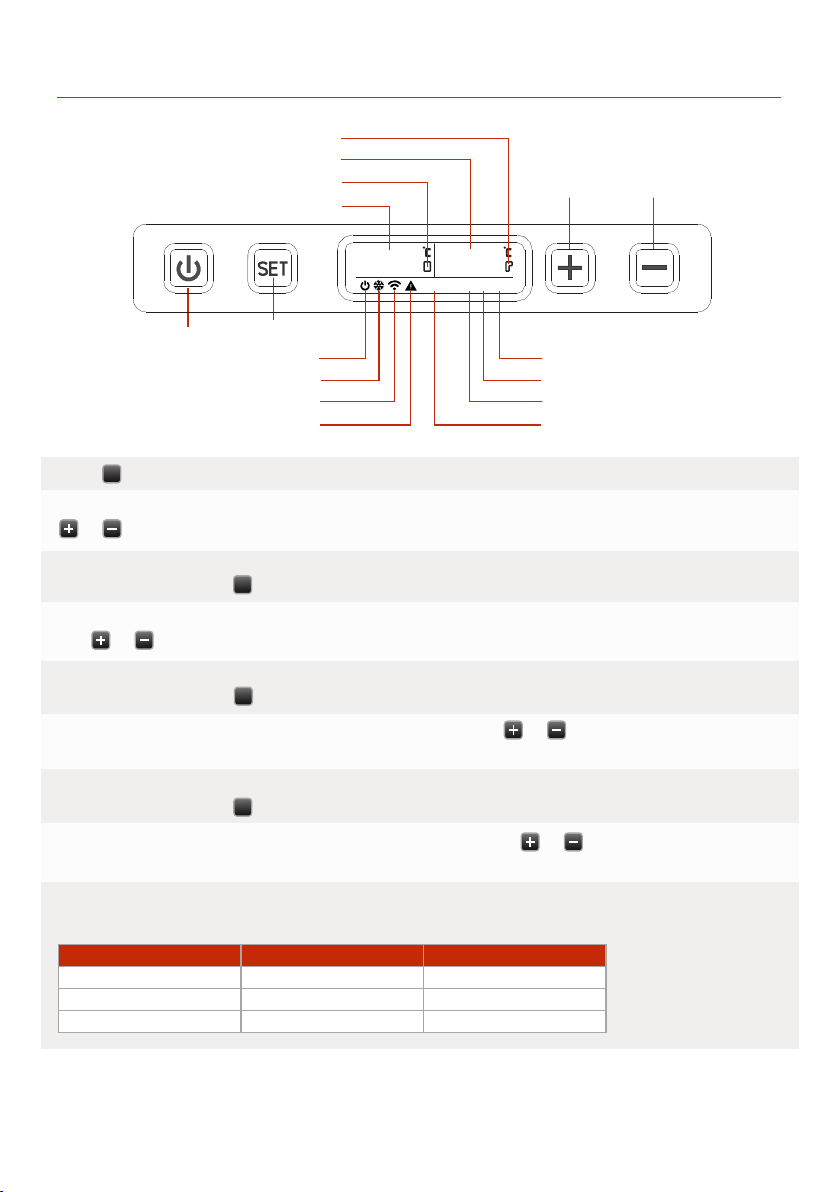

Dual Zone
ON/OFF button
+ Button
Set button
VLVMVH
V
888
888 888
Left Room Compressor Running
Power
Compressor Running
WiFi Indicator (App)
Fault Notification
Battery Protection High
Battery Protection Medium
Battery Protection Low
Source Voltage
Left Room Temp
Right Room Temp
Right Room Compressor Running
- Button
SET
SET
SET
SET
Setting Cut Out Voltage Cut In Voltage
VL
VM
VH
10.1
11.4
11.8
11.1
12.2
12.6
4

USB Charging Port and Thermostat Override Switch
Thermostat Override Switch USB Charging Outlet
ŸUSB Port – This USB port can be used to charge small devices. E.g. mobile phones and
remote controllers. The socket is rated to 500mA / 5 Volts.
ŸThermostat Override Switch – If your digital thermostat fails and you are unable to set
the temperature, turn this switch to Emergency override. This enables the fridge to run
until you reach a service centre to replace the faulty component.
Please Note: If emergency override is enabled the compressor will attempt to run 100% of the time.
This removes the ability to set the internal temperature and will increase power usage (Total
consumption) and is not recommended for everyday use.
5
Cleaning and Maintenance
ŸClean the appliance inside and out with a damp cloth every week. If it is dirty, use
sodium bicarbonate dissolved in lukewarm water to clean the unit.
ŸDo not use abrasive products, detergents or soap. After washing, rinse with clean water
and dry carefully.
ŸDo not leave the refrigerator off with food inside or lid closed.
ŸNever clean the appliance under running water.

Troubleshooting
ŸCheck the power supply
ŸCheck if the plug and the socket have a good connection
ŸCheck if the fuse has been burned out
ŸCheck if the appliance has been turned on (Press and hold button for 4 seconds)
The appliance is not turning on
ŸToo much food inside the refrigerator
ŸThe lid is unlocked/or open
ŸThe lid seal is broken, obstructed or deformed
ŸProblems arising from poor ventilation
ŸThere is too much warm product inside
ŸThere is no room around the fridge and vents
ŸThere is a heat source near the unit
ŸThe temperature setting is inappropriate
Bad performance in refrigeration
ŸThis is normal, due to the flow of the refrigerant.
Sound of water from inside the unit
ŸThe setting temperature is too low
ŸThermostat override switch is enabled
The food inside is frozen
ŸThe refrigerator is not placed on a level surface
ŸSome part has come loose inside the refrigeration compartment
(contact KickAss Products)
Unusual noise when refrigerator is working
6

Error Codes
The error codes are depicted by a number of flashes by the error light in a sequence every
four seconds.
Code Reason / Solution
ERR1 or ERR2 (On Display
instead on temperature)
Faulty temperature probe
ŸContact KickAss
1 Flash Low Voltage
§Please check the source voltage to ensure it is above
the cut out. Try lowering the voltage cut out setting to LO.
§The vehicle cabling may be inadequate or unsuitable, please
refer to cable specifications table for correct cable thickness.
§Try the refrigerator on a different power source.
2 Flashes Fan or compressor running issue
§Fan is drawing too many Amps (Over 1 Amp) – Replace Fan.
§The compressor is drawing too many Amps (Over 12 Amps).
§Possible Electronic Box or compressor fault
§Contact KickAss
3 Flashes The compressor speed is too low
§Reduce products / items inside unit
§Move unit to a lower ambient temperature
§Clean vents and ensure clear air flow over compressor
4 Flashes Ambient Temperature too high
§Clean vents and ensure clear air flow
§Fan Fault – Replace fan
7
