Kicker PSC57 User manual

PSC57
Coaxial Speaker
Altavoz coaxial
Haut-parleur coaxial
Koaxiallautsprecher
Installation Manual
Manual de Instalación
Manuel d’installation
Benutzerhandbuch

2
Contents
Disassembly................... 3
Installation ...................... 5
Warranty ........................ 8
Important: Over-tightening mounting
fasteners may result in damage to your
motorcycle. Please refer to your
service manual for proper procedures
and torque specifications. KICKER is not
responsible for damage resulting from
improper installation techniques.

3
Light Kit
Delete Plugs
Disassembly
1. Before you begin, make sure the
motorcycle and radio are in the OFF
position.
2. From inside the saddlebag, remove the
four grille retaining screws, or remove the
grille from the saddlebag according to the
manufacturer’s guidelines.

4
3. Disconnect the speaker leads from the
speaker to be replaced. If equipped with
Harley-Davidson Plugs, unplug them from
the speaker.
4. Remove the speaker to be replaced
by removing the four mounting screws
securing it to the bag lid. Remove the
speaker.

5
Installation
5. From inside the saddlebag, feed the
speaker leads into the top of the saddlebag
speaker cavity to the positive and negative
terminals of the PSC57, or simply connect
the Harley-Davidson Plugs if available.

6
6. Install and mount the PSC57 speaker
with the four screws removed in Step
4. Make sure the tweeter and speaker
are oriented towards the front of the
motorcycle.
7. Replace the grille and reinstall using the
grille retainer screws removed in Step 2, or
as necessary for your make and model of
motorcycle.

7

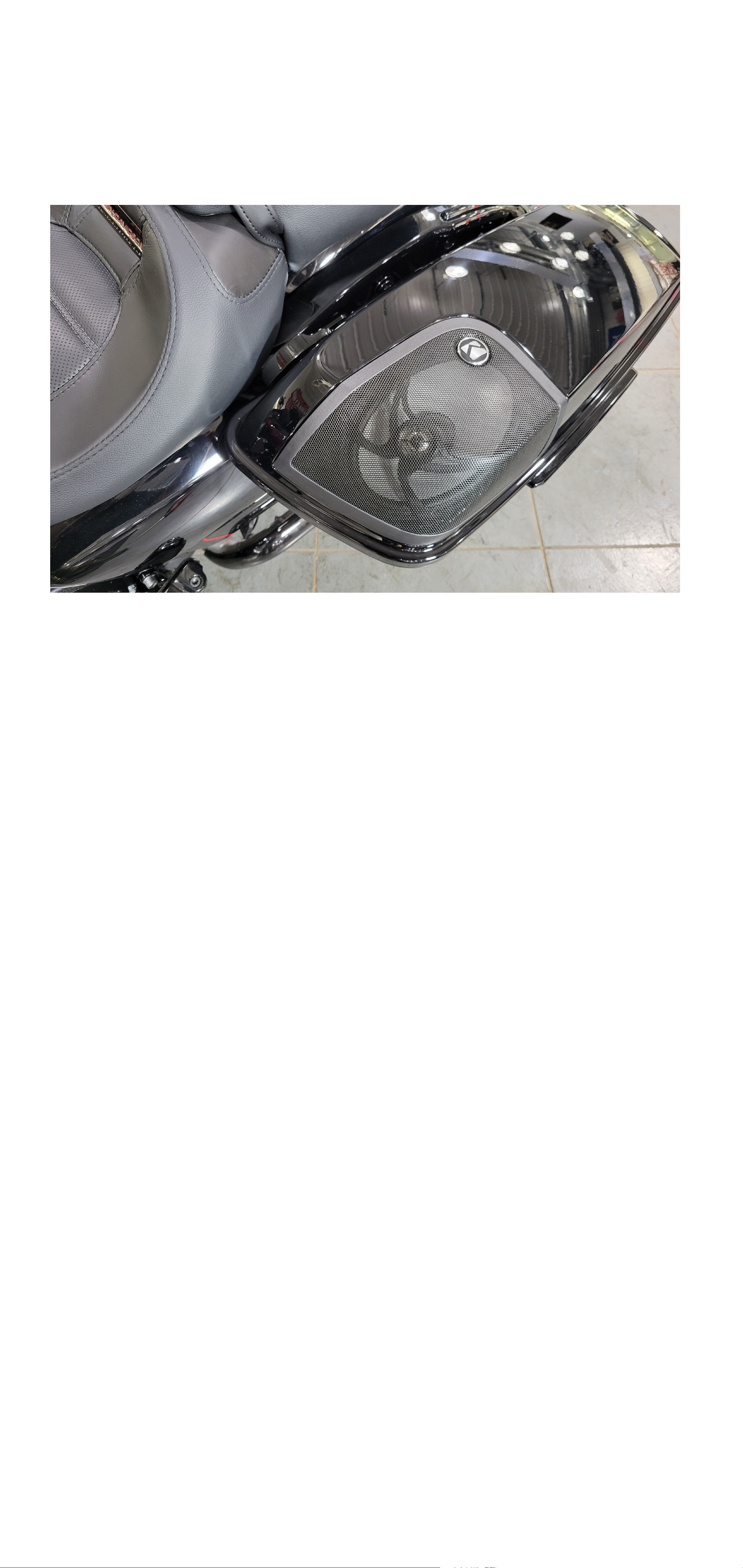

Optionally, you may replace the HD logo on
the grille with the KICKER logo. Now enjoy
your new coaxial speaker upgrade!

8
Warranty
When purchased from an Authorized KICKER Dealer, KICKER
warrants this product to be free from defects in material and
workmanship under normal use for a period of TWO (2) YEARS from
date of original purchase with receipt. If this product is identified as
“Refurbished” or “B Goods”, the warranty is limited to a period of
THREE (3) MONTHS from the date of original purchase. In all cases
you must have the original receipt. Should service be necessary
under this warranty for any reason due to manufacturing defect
or malfunction during the warranty period, KICKER will repair or
replace (at its discretion) the defective merchandise with equivalent
merchandise. Warranty replacements may have cosmetic scratches
and blemishes. Discontinued products may be replaced with more
current equivalent products. This warranty is valid only for the original
purchaser and is not extended to owners of the product subsequent
to the original purchaser. Any applicable implied warranties are limited
in duration to a period of the express warranty as provided herein
beginning with the date of the original purchase at retail, and no
warranties, whether express or implied, shall apply to this product
thereafter. Some states do not allow limitations on implied warranties;
therefore, these exclusions may not apply to you. This warranty gives
you specific legal rights; however you may have other rights that vary
from state to state.
WHAT TO DO IF YOU NEED WARRANTY OR SERVICE:
Defective merchandise should be returned to your local Authorized
Stillwater Designs (KICKER) Dealer for warranty service. Assistance
in locating an Authorized Dealer can be found at www.KICKER.com
or by contacting Stillwater Designs directly. You can confirm that
a dealer is authorized by asking to see a current authorized dealer
window decal.
If it becomes necessary for you to return defective merchandise
directly to Stillwater Designs (KICKER), call the KICKER Customer
Service Department at [phone] for a Return Merchandise
Authorization (RMA) number. Package only the defective items in a
package that will prevent shipping damage, and return to:
Stillwater Designs
3100 North Husband St
Stillwater, OK 74075

9
The RMA number must be clearly marked on the outside of the
package. Please return only defective components. The return
of functioning items increases your return freight charges. Non-
defective items will be returned freight collect to you. For example,
if a subwoofer is defective, only return the defective subwoofer, not
the entire enclosure. Include a copy of the original receipt with the
purchase date clearly visible, and a “proof-of-purchase” statement
listing the Customer’s name, Dealer’s name and invoice number, and
product purchased. Warranty expiration on items without proof-of-
purchase will be determined from the type of sale and manufacturing
date code. Freight must be prepaid; items sent freight-collect, or
COD, will be refused.
WHAT IS NOT COVERED?
This warranty is valid only if the product is used for the purpose for
which it was designed. It does not cover:
o Damage due to improper installation
o Subsequent damage to other components
o Damage caused by exposure to moisture, excessive heat,
chemical cleaners, and/or UV radiation
o Damage through negligence, misuse, accident or abuse. Repeated
returns for the same damage may be considered abuse
o Any cost or expense related to the removal or reinstallation of
product
o Speakers damaged due to amplifier clipping or distortion
o Items previously repaired or modified by any unauthorized repair
facility
o Return shipping on non-defective items
o Products with tampered or missing barcode labels
o Products with tampered or missing serial numbers
o Products returned without a Return Merchandise Authorization
(RMA) number
o Products purchased from an UNAUTHORIZED dealer
o Freight Damage
o The cost of shipping product to KICKER
o Service performed by anyone other than KICKER
HOW LONG WILL IT TAKE?
KICKER strives to maintain a goal of one-week service for all
acoustics (subwoofers, midrange drivers, tweeters, crossovers, etc)
returns. Delays may be incurred if lack of replacement inventory or
parts is encountered. Failure to follow these steps may void your
warranty. Any questions can be directed to the KICKER Customer
Service Department at [phone]. Contact your International
KICKER dealer or distributor concerning specific procedures for your
country’s warranty policies.

10
stillwaterdesigns
P.O. Box 459
Stillwater, Oklahoma 74076
USA
(405) 624–8510
Garantía | Garantie
Contact your International KICKER dealer or distributor concerning specific procedures for your
country’s warranty policies.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
GARANTÍA INTERNACIONAL Versión Español
Comuníquese con su concesionario o distribuidor KICKER internacional para obtener infor ación
sobre procedimientos específicos relacionados con las normas de garantía de su país.
La frase “combustible para vivir la vida Livin’ Loud™ a todo volumen” se refiere al entusiasmo por la
vida que la marca KICKER de estéreos de automóvil representa y a la recomendación a nuestros
clientes de que vivan lo mejor posible (“a todo volumen”) en todo sentido. La línea de altavoces y
amplificadores KICKER es la mejor del mercado de audio de automóviles y por lo tanto representa el
“combustible” para vivir a todo volumen en el área de “estéreos de automóvil” de la vida de nuestros
clientes. Recomendamos a todos nuestros clientes que obedezcan todas las reglas y reglamentos
locales sobre ruido en cuanto a los niveles legales y apropiados de audición fuera del vehículo.
INTERNATIONALE GARANTIE Deutsche Version
Nehmen Sie mit Ihren internationalen KICKER-Fachhändler oder Vertrieb Kontakt auf, um Details über
die Garantieleistungen in Ihrem Land zu erfahren.
Der Slogan “Treibstoff für Livin’ Loud” bezieht sich auf die mit den KICKER-Autostereosystemen
assoziierte Lebensfreude und die Tatsache, dass wir unsere Kunden ermutigen, in allen Aspekten
ihres Lebens nach dem Besten (“Livin’ Loud”) zu streben. Die Lautsprecher und Verstärker von
KICKER sind auf dem Markt für Auto-Soundsysteme führend und stellen somit den “Treibstoff” für
das Autostereoerlebnis unserer Kunden dar. Wir empfehlen allen unseren Kunden, sich bezüglich der
zugelassenen und passenden Lautstärkepegel außerhalb des Autos an die örtlichen Lärmvorschriften
zu halten.
GARANTIE INTERNATIONALE Version Française
Pour connaître les procédures propres à la politique de garantie de votre pays, contactez votre
revendeur ou distributeur International KICKER.
L’expression “ carburant pour vivre plein pot “ fait référence au dynamisme de la marque KICKER
d’équipements audio pour véhicules et a pour but d’encourager nos clients à faire le maximum
(“ vivre plein pot “) dans tous les aspects de leur vie. Les haut-parleurs et amplificateurs KICKER
sont les meilleurs dans le domaine des équipements audio et représentent donc pour nos client
le “ carburant pour vivre plein pot “ dans l’aspect “ installation audio de véhicule “ de leur vie. Nous
encourageons tous nos clients à respecter toutes les lois et réglementations locales relatives aux
niveaux sonores acceptables à l’extérieur des véhicules.

KICKER® PSC57™
Info Card ITarjeta de lnformaci6n ICarte Info Ilnfokarte {fKICKER
IMPORTANT: KICKER recommends a
professional installation performed by authorized
retailers, You are solely responsible for safely
mounting and v-,inng your products.
IMPORTANTE: KlCKER recomienda que se
realice una instalaci6n profesional con
proveedores con licencia. Usted es el unico
responsable por la instalaci6n segura y el
cableado de sus productos.
IMPORTANT : KICKER recommande une
installation professionnele effectuee par des
foumisseurs agrees. Vous etes !'unique
responsable du montage et du ciiblage de vos
produits en toute securite.
WICHTIG: KICKER empfiehlt eine
professionelle Montage durch lizenzierte
Arlbieter. Sie haben die alleinige Verantwortung
fur die sicrere Montage und Verl<abeung lhrer
Gerate.
Thank you and congratulations on your purchase of the KICKER
PSC57 speaker! This 2-way coaxial speaker upgrade was designed
specifica/fy for use with compatible Harley-Davidson saddlebag lids,
but can be used for any powersports oroutdoor application where the
music and gear need to meet the challenge. Get the most out of your
new speakers by combining them with KICKER's award - winning line of
powersports amplifiers and accessories.
Sincerefy g ~
Steve Irby ~
President/CEO
Merci et felicitations pour votre achat du haut-parleur KICKER PSC57 I
Cette mise a niveau du haut-parleur coaxial a2 voles a ete speciale-
ment conr;ue pour etre utilisee avec !es couvercles de sacoches
Harley-Davidson compatibles, ma/s peut etre utilisee pour taus /es
sports motorises au applications en p/ein air ou la musique et
/'equipement do/vent re/ever le def/. Tirez le meilleur part/ de vos
nouve//es enceintes en Jes combinant avec la gamme primee
d'amplificateurs et d'accessoires pour sports motorises de KICKER.
Cordia/ement, g ~
Steve Irby
President/PDG ~
Scan here for
owner 's manual
Escanee aquf para manual
del Propietario
Scannen Sie hier nach
benutzerhandbuch
Scannez ici pour manuel
d'utilisation
iGracias y felicitaciones par su compra de/ altavoz PSC57 de KICKER!
Esta actualizaci6n de altavoz coaxial de 2 vias fue disenada especifica-
mente para usarse con tapas de alforjas Harley-Davidson compatibles,
pero se puede usar para cualquier deporte motorizado o ap/icaci6n al aire
fibre donde la mus/ca y el equipo deben enfrentar el desafio. Aproveche al
maxima sus nuevos altavoces combinandolos con la galardonada linea de
amp/ificadores y accesorios para deportes de motor de KICKER.
Atentamente, g ~
Steve Irby ~
Presidente/CEO
Vie/en Dank und Gratulation zu lhrem Kaut des KICKER PSC57 !autspre-
cher! D/eses 2-Wege-Koaxia!-Lautsprecher-Upgrade wurde spezie/1 fur die
Verwendung mit kompatiblen Harley-Davidson-Satteltaschendeckeln
entwickelt, kann Jedoch tar }eden Powersport oder jede Outdoor-Anwend-
ung verwendet werden, bei der Musik und Ausrustung die Heraus-
forderung erfullen mussen. Holen Sie das Beste aus lhren neuen
Lautsprechern heraus, indem Sie sie mit der preisgekronten Reihe van
Powersport-Verstarkern und Zubehor van KICKER kombinieren.
Mit freundlichen GrOBen g ~
Steve Irby
. ~
President/CEO
WARNING: KICKER products are capable of producing sound levels that can permanently damage your hearing! Please use common sense when
controlling volume.
ADVERTENCIA: Los excitadores KICKER son capaces de producir niveles de sonido que pueden danar permanentemente el oido. Subir el
volumen del sistema hasta un nivel que produzca distorsi6n es mas danino para el oido que escuchar un sistema sin distorsi6n al mismo volumen .
El dolor es siempre una indicaci6n de que el sonido es muy fuerte y que puede danar permanentemente el oido. Sea precavido cuando controle el
volumen.
WARNUNG: KI CKER-Treiber kbnnen einen Schallpegel erzeugen, der zu permanenten Gehbrschaden fuhren kann! Wenn Sie ein System auf einen
Pegel stellen, der hbrbare Verzerrungen erzeugt, schadet das lhren Ohren mehr, als ein nicht verzerrtes System auf dem gleichen Lautstarkepegel.
Die Schmerzschwelle ist immer eine Anzeige dafur, dass der Schallpegel zu laut ist und zu permanenten Gehbrschaden fuhren kann. Seien Sie bei
der Lautstarkeeinstellung bitte vernunftig!
AVERTISSEMENT: Les haut-parleurs KICKER ont la capacite de produire des niveaux sonores pouvant endommager l'ou'i'e de fa9on irreversible!
L'augmentation du volume d'un systeme jusqu'a un niveau presentant une distorsion audible endommage davantage l'ou· 1e que l'ecoute d'un
systeme sans distorsion au meme volume. Le seuil de la douleur est toujours le signe que le niveau sonore est trop eleve et risque d'endommager
l'ou'ie de fa9on irreversible. Reglez le volume en faisant prevue de bon sens!

1998-2013
Positive and negat ive t erminals
Terminales positivas y negativas
Bomes positives et negatives
Positive und negative anschlusse
H arley -Davidson plug
Enchufe Harley-Davidson
H arley -Davidson-Stecker
P rise H arley -Da vi dson
Scan here for owner's manual
Escanee aqur para manual del Propietario
Scannen Sie hier nach benutzerhandbuch
Scannez ici pour manuel d'utilisation
l l
I
[!]
KICKER products are warranted against defects. Duration and terms of warranty depend on the laws in the country in which it was purchased. For details see
your local KICKER Dealer or www.kicker.com/ warranty.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a major failure .
Los productos KICKER estan garantizados contra defectos. La duraci6n y los terminos de la garantfa dependen de las leyes del pafs en donde se realiz6 la
c ompra. Para mas detalles consulte a su distribuidor local de KICKER o visite www.kicker.com/ warranty.
KICKER-Produkte haben eine Garantie gegen Material- und
Verarbeitungsfehler. Dauer und Bedingungen der Garantie hangen von den Gesetzen des Landes ab , in dem sie erworben wurden . Bzgl.
Einzelheiten wenden Sie sich bitte an lhren ortlichen KICKER-Handler oder besuchen Sie www.kicker.com/warranty
Les produits KICKER sont garantis contre Jes defauts. La duree et Jes modalites de la garantie dependent des lois du pays dans lequel le produit a ete achete.
Pour plus d'information veuillez verifier aupres de votre distributeur local KICKER ou visiter le site :
www.kicker.com/ warranty.
48psc57·C
