Kicker 48BTCAN65 User manual

1English
Contents
Overview........................2
Package Contents:................ 2
Specifications........................ 3
Installation ......................5
Power & Auxiliary Wiring......... 5
Switch Install ......................... 6
LED Grille Wiring.................... 7
Speaker Wiring...................... 7
Mounting............................... 9
Operation.....................11
Multi-Function Button........... 11
Status LED.......................... 12
Setting Input Source ............ 13
Line Output & AUX IN .......... 13
Remote Control Install.......... 14
Remote Control Operation ... 16
Troubleshooting............17
Warranty ......................18
Int. Warranty.................71

2English
Overview
IMPORTANT SAFETY WARNING
PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER, SPEAKER, OR
SUBWOOFER IN A DISTORTED, CLIPPED OR OVER-POWERED MANNER
CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING
FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS
AND/OR VEHICLE. AMPLIFIERS REQUIRE UP TO 4 INCHES (10CM) OPEN
VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1
INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND
ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND
LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A
SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING
TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE
SAME VOLUME LEVEL. THE THRESHOLD OF PAIN IS ALWAYS AN INDICATOR
THAT THE SOUND LEVEL IS TOO LOUD AND MAY PERMANENTLY DAMAGE
YOUR HEARING. PLEASE USE COMMON SENSE WHEN CONTROLLING
VOLUME.
The PowerCans are the next generation in mobile
audio systems, combining the innovations of new
transfer protocols with KICKER’s finest speaker and
amp performance. This audio system has everything
you need ready to roll right out of the box. Bluetooth
5.0 and AUX Input, integrated amplifier, RGB lighting,
line output, and a wired remote control built to mount
in a standard marine panel. And at its heart, the high-
powered amp and 6.5” speakers pack a punch with
KICKER signature quality audio.
Use the following instructions to install and operate
your PowerCan and PowerCan Remote.
Package Contents:
(4) M6*14 Screws (8) Washers for mounting rings
(4) M8*16 Screws (4) Washers for mounting base
(2) 1.5” Round Rings (2) 1.75” Round Rings
(2) 2” Round Rings (2) Mounting Bracket Base
(2) 6-inch Rubber Strips for mounting rings
(1) RGB LED Pigtail (1) Ring Terminal – Black
(1) Wired Remote Control
(1) Fuse Accessory Wire with 15A ATC fuse

3English
Model: BTCAN65
Power Output
@ 14.4V, <10% THD+N
75W x 2
Height [in, mm] 6-5/8, 168
Width [in, mm] 6-5/8, 168
Depth [in, mm] 7-7/8,200
Weight [lbs, kg] 13.6, 6.2
Woofer [in, mm] 6-1/2, 160
Tweeter [in, mm] 1, 25
Wiring Harness Length [ft, m] 12, 3.66
Frequency Response [Hz] 80-20K
Signal-to-Noise Ratio >102, A-weighted,
re: rated power
Tweeter Magnet Material Neodymium
Tweeter Dome Material Titanium
Tweeter Design Dome
Woofer Cone Material Polypropolene
Woofer Surround Material Santoprene
Aux Input Stereo 3.5mm Female
1.0 V Sensitivity
Line Output Stereo 3.5mm Female
Buffered, 1V
Specifications

4English
Primary
(Right)
Secondary
(Left)

5English
Installation
Power & Auxiliary Wiring
Disconnect the vehicle’s battery to avoid an electrical
short. Run the black ground wire to a paint-and-
corrosion-free, solid, metal area of the vehicle’s
chassis or the negative battery terminal. Crimp the
provided 5/16” ring terminal to the ground wire. The
ring terminals have been left off so that power and
ground wires may be run through vehicle tubing. Do
not install the ring terminals until all wires have been
run to their final location.
Run the yellow +12V constant wire to the battery
location. Crimp the provided 15A ATC fuse to
the yellow wire, which includes a heat-shrink butt
connector. Once mechanically crimped, apply
heat to the connector to create a secure, insulated
connection. Then securely connect the fuse’s 5/16”
ring terminal to the positive battery terminal. Note that
while the ring terminals can be cut off if necessary,
the fuse should always be kept within 18 inches of
the battery.

6English
12V
15A ATC fuse
+12V
Ignition
(red)
+12V Constant
(yellow)
battery
wired
remote
ground
(black)
LINE OUT (1V,
3.5mm - grey)
AUX IN (1V,
3.5mm - black)
≤18”
(45cm)
Connect the Red +12V Ignition Wire to the switched
ignition power source, dash-mounted switch,
accessory or relay switch.
12V
Switch Install
If you’d like to use a switch to control power to your
PowerCan, wire it according to the following diagram.
battery
fuse
15A ATC
fuse
2A (sold
separately)
ground (black)
+12V Ignition (red)
+12V Constant (yellow)

7English
Speaker Wiring
The speaker wiring for the PowerCan comes pre-
installed with heat-shrink butt connectors on the
Right PowerCan for a fast and secure connection.
Connect the Right PowerCan’s speaker wire to the
left PowerCan’s speaker wire, then crimp and apply
heat.
Speaker wires
Speaker wires
LED Output &
Input wires
LED Grille Wiring
1. Connect the LED Output of the Right PowerCan
(female plug), located on the smaller wire loom, to the
LED Input (male plug) of the Left PowerCan.
2. To control LED Grille behavior, install the KICKER
KMLC (sold separately) by connecting the male LED
plug of the Right PowerCan, located on the larger
wire loom, to the KMLC female plug.

8English
12V
Ground
+12V
Switch 2A fuse ≤7”
(17.5cm)
battery
3. If you’re not using the KMLC, use the included
RGB Pigtail to hard-wire your LED. Connect the RGB
Pigtail to the male LED plug of the Right PowerCan.
When hard-wiring the LED lighting, the black lead is
+12V and the blue, red and green leads are ground.
Connect the black LED wire to the positive terminal of
the battery.
a. Place a 2-amp fuse (not included) no further than
7” away from the battery terminal.
b. Install a switch (not included) on the black LED
wire between the fuse and the speaker, so the LED’s
can be turned off. Without a switch to turn them off,
they will always be on.
Red Red
Green Green
Blue Blue
Red/Green Yellow
Red/Blue Magenta
Blue/Green Cyan
Red/Green/Blue White
Connect the red, blue and/or green LED wires to the
negative terminal of the battery. See the Venn diagram
below for available combinations.
Red
Yellow
Green BlueCyan
White
Magenta

9English
Mounting
The PowerCans mount out-of-the-box to round bars
with the included 1.5”, 1.75”, and 2” diameter Bar
Clamps. Use the KPB Square Clamps (47KPBSQ),
sold separately, to mount your PowerCans to square
bars. Choose a structurally sound location to mount
the PowerCans. The Mounting Base may be rotated
±30° to accommodate some curved bars. Make sure
there are no items interfering with the route of the
wiring. Installation tools are not provided. 5mm and
6mm Allen Wrenches are required. Using mounting
hardware, including clamps and screws, not
provided by KICKER will result in a voided
warranty.

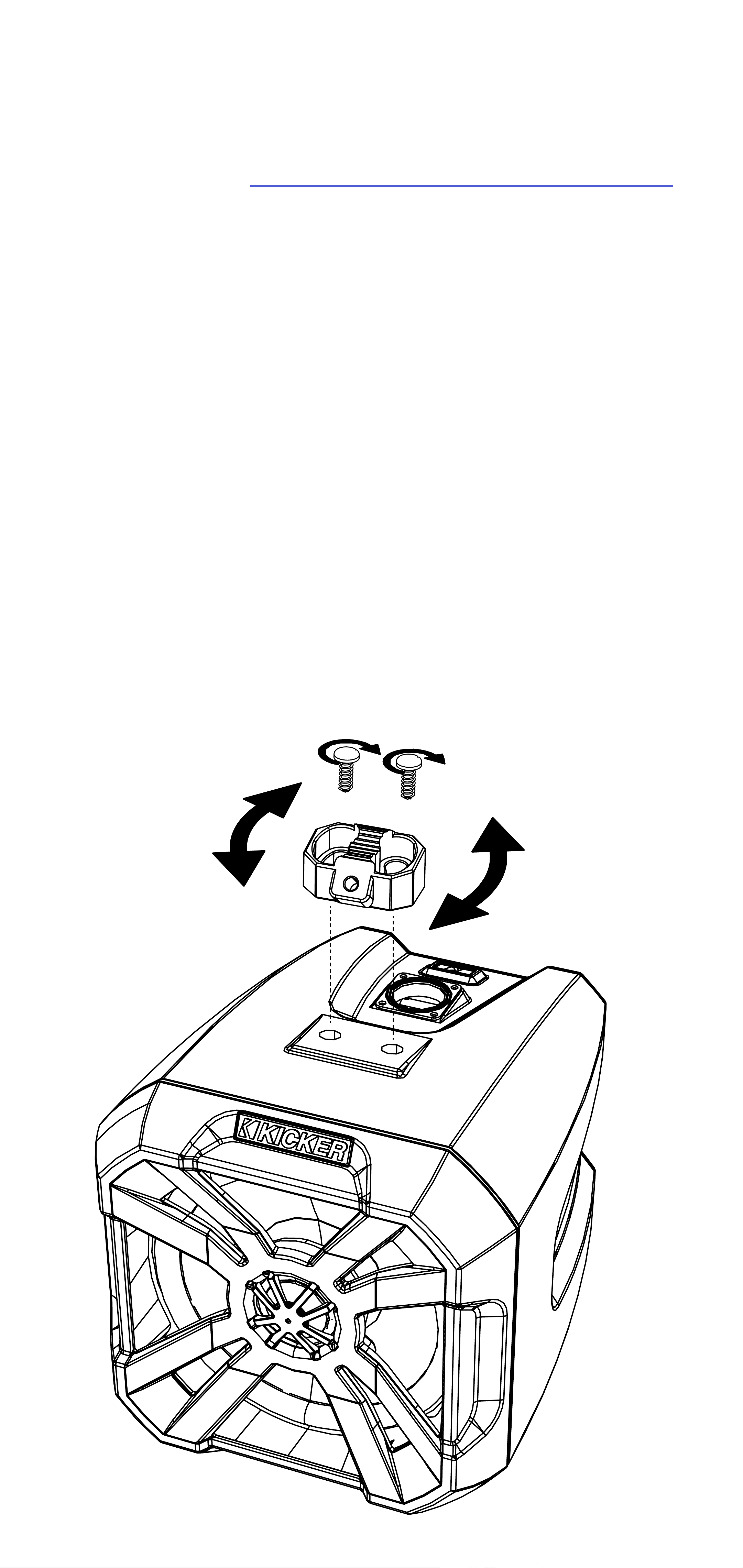

1. Screw the Mounting Bases to the PowerCans
using the Mounting Screws.
±30°
6mm Allen
Wrench required

10English
2. Place the included rubber inserts in the Clamp
Rings for improved vibration dampening, then install
the Clamp Rings around your bar, securing them to
the Mounting Bases using the Clamp Screws.
5mm Allen
Wrench required

11English
Operation

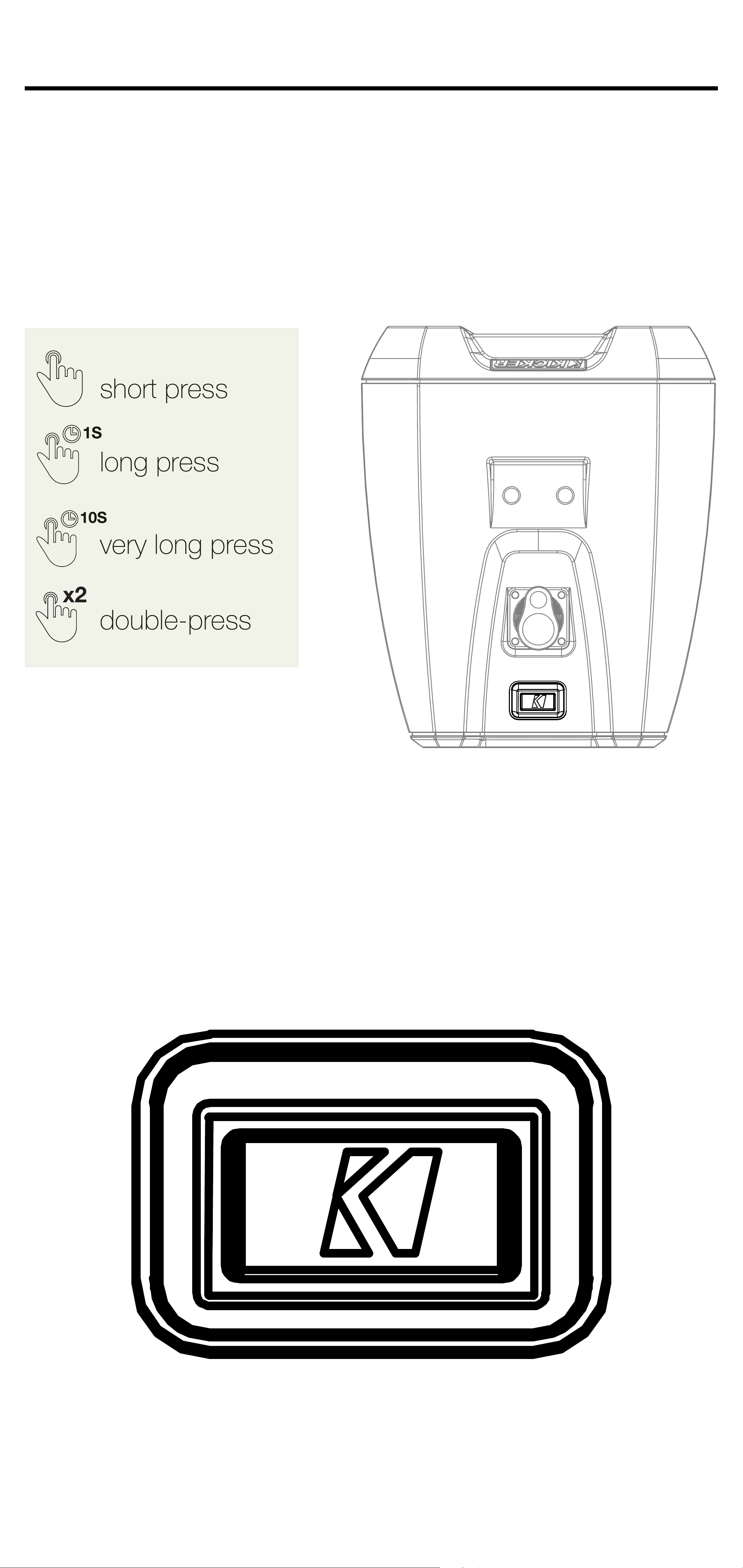

Use the multi-function button on top of the Right
PowerCan for basic controls.
A Software Reset will restore the PowerCans to
factory settings and erase the Bluetooth device list.
Multi-Function Button
1S
10S
short press
long press
very long press
double-press
Short Press - Change Input Source
Long Press - Enter Pairing Mode
Very Long Press - Software Reset
Double-Press - Play/Pause

12English
Status LED
The LED color displays audio source, pairing status,
and warnings:
Off Remote Input wire is low
Blue Bluetooth Mode
Blue Blinking Bluetooth Pairing Mode
Red AUX Mode
Red Constant Blinking
Red Double Blinking
Red Triple Blinking
Over-Temperature / Amp Error
Under Voltage
Over Voltage

13English
Setting Input Source
Short Press the Multi-Function button to switch
between Bluetooth (blue) and AUX IN (red) input
sources.
To enter Bluetooth Pairing Mode, Long Press the
Multi-Function button. The STATUS LED will begin to
flash blue. You may exit pairing mode at this stage by
short pressing the Multi-Function button.
To finish pairing, from your audio device select ‘BT
CANS KICKER’. When successfully connected, the
STATUS LED will be solid blue. When the PowerCan
powers on in, or enters, Bluetooth mode, it will
automatically begin to search for and connect with
the last connected device.
Line Output & AUX IN
To use an external audio device as your input source,
connect it to the AUX IN jack using a 1/8” (3.5mm)
AUX cable, then set your input source to AUX IN. If
the Wired Remote is not installed, use your audio
device to control volume.
To send a line-level signal, connect a 1/8” (3.5mm)
AUX cable from the Line Output of the PowerCan to
your external audio device’s line-level input.
LINE-OUT (grey)
AUX IN (black)

14English
Remote Control Install
The PowerCans Remote installs seamlessly into
Carling-style cutouts. If performing a custom install,
make sure there are no electronics or mechanisms
behind the surface area into which you will cut. The
mounting hole dimensions are H37mm X W22mm.
Remote Cutout Dimensions:
H: 1.45 inches, 36.83mm
W: .85 inches, 21.59mm
1.45"
36.83mm
.85"
21.59mm
IMPORTANT: If the wired remote is not used, keep
the cap on the plug to prevent water from damaging
the system
The Wired Remote is not required to use the
PowerCans. If the remote isn’t connected, volume
levels will be controlled from your audio device.

15English
Push the PowerCans Remote into the cutout,
depressing the tabs on the top and bottom, until the
PowerCan Remote is secured in the mounting hole
cutout (you may not hear a click).
Route the PowerCans remote wire to the remote input
from the Right PowerCan’s larger wire loom.

16English
Remote Control Operation
Short Press - Increase Volume by 1 step
Long Press - Raise Volume until max
Short Press - Decrease Volume by 1 step
Long Press - Lower Volume until muted
Short Press - Previous Track
Long Press - Rewind
Long Press (AUX) - Decrease LED Brightness
Short Press - Next Track
Long Press (Bluletooth) - Fast Forward
Long Press (AUX) - Raise LED Brightness
Short Press - Change Input Source
Long Press - Enter Pairing Mode
Very Long Press - Software Reset
Double-Press - Play/Pause
1S
10S
short press
long press
very long press
double-press

17English
Troubleshooting
If the PowerCan becomes frozen or stuck, does not appear to be working,
or gives an error code, check the obvious things first such as blown fuses,
poor or incorrect wiring connections, etc.
No power? With a Volt Ohm Meter (VOM) check the following: +12 volt
power terminal (should read +12V to +16V) Check for reversed power
and ground connections Check Ground terminal for proper conductivity.
Check fuses. Check that red & yellow ignition wire both have +12V.
Power on, no signal? Check the following: AUX In/Out connections
and cables Test audio source signal, either with a “known good” output
device or other means. Audio source volume & PowerCan output volume
are increased.
Bluetooth device will not connect? On your mobile device: Turn
Bluetooth off, then on again. Remove ‘BT CANS KICKER’ from the
Bluetooth menu. Then pair again (see page 11). Move your mobile
device closer to the speaker. Avoid obstacles that may block the wireless
signal. Perform a software reset by pressing and holding the PLAY/
PAUSE button for 10 seconds (Bluetooth devices must be re-paired after
software reset).
No or low output? Check the settings on the audio source. Check
the speaker wiring, including AUX input and Line-level connections.
PowerCan frozen or stuck in operating procedure? Perform a
software reset on the PowerCan Cycle the power.
No Remote Function? Check wiring. Cycle the power.
CAUTION: When jump starting the vehicle, be sure that connections
made with jumper cables are correct. Improper connections can result in
blown fuses as well as the failure of other critical systems in the vehicle.
If you have more questions about the installation or operation of your new
KICKER product, see the Authorized KICKER Dealer where you made your
purchase. For more advice on installation, click on the SUPPORT tab on
the KICKER homepage, www.KICKER.com. Choose the TECHNICAL
SUPPORT tab, choose the subject you are interested in, and then
download or view the corresponding information. Please E-mail support@
KICKER.com or call Technical Services (405) 624-8583 for unanswered or
specific questions.

18English
Warranty
When purchased from an Authorized KICKER Dealer, KICKER
warrants this product to be free from defects in material and
workmanship under normal use for a period of TWO (2) YEARS from
date of original purchase with receipt. If this product is identified as
“Refurbished” or “B Goods”, the warranty is limited to a period of
THREE (3) MONTHS from the date of original purchase. In all cases
you must have the original receipt. Should service be necessary
under this warranty for any reason due to manufacturing defect
or malfunction during the warranty period, KICKER will repair or
replace (at its discretion) the defective merchandise with equivalent
merchandise. Warranty replacements may have cosmetic scratches
and blemishes. Discontinued products may be replaced with more
current equivalent products. This warranty is valid only for the original
purchaser and is not extended to owners of the product subsequent
to the original purchaser. Any applicable implied warranties are limited
in duration to a period of the express warranty as provided herein
beginning with the date of the original purchase at retail, and no
warranties, whether express or implied, shall apply to this product
thereafter. Some states do not allow limitations on implied warranties;
therefore, these exclusions may not apply to you. This warranty gives
you specific legal rights; however you may have other rights that vary
from state to state.
WHAT TO DO IF YOU NEED WARRANTY OR SERVICE:
Defective merchandise should be returned to your local Authorized
Stillwater Designs (KICKER) Dealer for warranty service. Assistance
in locating an Authorized Dealer can be found at www.KICKER.com
or by contacting Stillwater Designs directly. You can confirm that
a dealer is authorized by asking to see a current authorized dealer
window decal.
If it becomes necessary for you to return defective merchandise
directly to Stillwater Designs (KICKER), call the KICKER Customer
Service Department at (405) 624-8510 for a Return Merchandise
Authorization (RMA) number. Package only the defective items in a
package that will prevent shipping damage, and return to:
Stillwater Designs
3100 North Husband St
Stillwater, OK 74075

19English
The RMA number must be clearly marked on the outside of the
package. Please return only defective components. The return
of functioning items increases your return freight charges. Non-
defective items will be returned freight-collect to you. For example,
if a subwoofer is defective, only return the defective subwoofer, not
the entire enclosure. Include a copy of the original receipt with the
purchase date clearly visible, and a “proof-of-purchase” statement
listing the Customer’s name, Dealer’s name and invoice number, and
product purchased. Warranty expiration on items without proof-of-
purchase will be determined from the type of sale and manufacturing
date code. Freight must be prepaid; items sent freight-collect, or
Cash-On-Demand, will be refused.
WHAT IS NOT COVERED?
This warranty is valid only if the product is used for the purpose for
which it was designed. It does not cover:
o Damage due to improper installation
o Subsequent damage to other components
o Damage caused by exposure to moisture, excessive heat,
chemical cleaners, and/or UV radiation
o Damage through negligence, misuse, accident or abuse. Repeated
returns for the same damage may be considered abuse
o Any cost or expense related to the removal or reinstallation of
product
o Speakers damaged due to amplifier clipping or distortion
o Items previously repaired or modified by any unauthorized repair
facility
o Return shipping on non-defective items
o Products with tampered or missing barcode labels
o Products with tampered or missing serial numbers
o Products returned without a Return Merchandise Authorization
(RMA) number
o Products purchased from an UNAUTHORIZED dealer
o Freight Damage
o The cost of shipping product to KICKER
o Service performed by anyone other than KICKER
HOW LONG WILL IT TAKE?
KICKER strives to maintain a goal of one week turnaround for
all electronics (amplifiers, crossovers, equalizers, etc.) returns.
Delays may be incurred if lack of replacement inventory or parts is
encountered. Failure to follow these steps may void your warranty.
Any questions can be directed to the KICKER Customer Service
Department at (405) 624-8510. Contact your International KICKER
dealer or distributor concerning specific procedures for your country’s
warranty policies.
47BTCAN-e-23
Table of contents
Languages:
Other Kicker Speakers manuals

Kicker
Kicker KPW2 User manual

Kicker
Kicker DS350 User manual

Kicker
Kicker KM6LC User manual

Kicker
Kicker 41KM604W User manual

Kicker
Kicker KSC350 User manual

Kicker
Kicker 45KM604 User manual

Kicker
Kicker PSM3 User manual

Kicker
Kicker KS Series User manual

Kicker
Kicker KM6000 User manual

Kicker
Kicker BT Cans User manual

Kicker
Kicker Separates Series User manual

Kicker
Kicker 48KSS269 User manual

Kicker
Kicker KM4 User manual

Kicker
Kicker KMFC8 User manual

Kicker
Kicker PowerBar KPB1 User manual

Kicker
Kicker KMTC9 User manual

Kicker
Kicker KM604 User manual

Kicker
Kicker KS Series User manual

Kicker
Kicker CSS65 User manual

Kicker
Kicker KSS50 User manual
