KID Trax KT1058WM User manual

The owner’s manual contains assembly, use and maintenance
instructions. The Kid Trax Motorcycle must be assembled by an adult
who has read and understands the instructions in this manual. Keep the
packaging away from children and dispose all packaging before use.
4902 Hammersley Rd.
Madison, WI 53711
United States of America
Phone: [phone]
www.kidtraxtoys.com
Model Number: KT1058WM
Owner’s Manual
Keep instructions for future reference. Styles and Colors may vary
Made in China
TM
Honda Official Licensed Product. Designed and manufactured by Paragon Child
Products Company Ltd. (GOODBABY GROUP). These products are for purchase
only in the United States and its territories. Honda , the Wing logo, and Honda
vehicle model names and their trade dress are trademarks and intellectual property
of Honda Motor Co., Ltd., used under license from American Honda Motor Co.,
Inc. Many Honda vehicle model names and trade dress may be seen at
www.honda.com. All rights reserved.

For purchasing this Kid Trax Motorcycle. We expect your child will have
fun and enjoy riding for years to come.
Features on the vehicle include lights and sounds, forward/reverse
and a rechargeable battery.
Please call us at Kid Trax Toys Consumer Relations at 877-741-6154
with comments or questions.
Thank You
ii

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
User Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts . . . . . . . . . . . . . . . . . ....... . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Charge the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connect the Battery to the Motor . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Attach the Handle bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Attach the Front Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Attach the Training Wheels . . . . . . . . . . . . . . . . . . . . . . . . 10
Attach the Windscreen. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Attach the License Plate . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Attach the Rear View Mirrors . . . . . . . . . . . . . . . . . . . . . . 12
Attach the Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the Kid Trax Motorcycle . . . . . . . . . . ........ . . . . . . . . . . 13
Operating the Kid Trax Motorcycle . . . . . . . . . . . . . . . . . . 13
Re-Charge Interval and Time . . . . . . . . . . . . . . . . . . . . . . 14
Battery Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Battery Replacement and Disposal . . . . . . . . . . . . . . . . . 15
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Services, Repairs and Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Contents
iii
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

WARNING!
The following safety hazards may result in serious injury or death to the
user of the Kid Trax Motorcycle:
•This product contains small parts that are for adult assembly only.
Keep small children away when assembling. Remove and dispose
of all protective material and poly bags before assembly. Be sure
to remove all packaging materials and parts from underneath the
motorcycle.
•
complies with U.S. Consumer Product Safety Commission (CPSC)
Standard CFR 1203.
helmet that
•WARNING: Battery posts, terminals and related accessories contain
lead and lead compounds (acids) chemicals known to the state of
California to cause cancer, reproductive harm, and are toxic and
corrosive. Never open the battery.
•Body parts such as hands, legs, hair and clothing can get caught in
moving parts. Never place hair or any body part near a moving part
or wear loose clothing while using the vehicle. Always wear shoes
when using the vehicle.
•Using the vehicle near streets, motor vehicles, drop-offs such as:
steps, water (swimming pools) or other bodies of water, sloped
dark could result in an unexpected accident. Always use the vehicle in
a safe, secure environment with continuous adult supervision.
•Using the vehicle in unsafe conditions such as snow, rain, loose dirt,
over and skidding.
•Using the vehicle in an unsafe manner. Examples include but are not
limited to:
a. Pulling the vehicle with another vehicle or similar device
b. Allowing more than one rider
c. Pushing the user from the back
d. Traveling at an unsafe speed
Always use common sense and safe practices when using the vehicle.
This product contains or emits chemicals known to the state of
California to cause cancer or birth defects or other reproductive harm.
Safety
1

•Use of a battery or charger other than the supplied Kid
Trax Toys 6V rechargeable battery and charger may cause
rechargeable battery and charger with the vehicle.
•Using the Kid Trax Toys 6V rechargeable battery and
or explosion. Never use the Kid Trax Toys 6V rechargeable
battery and charger with another product.
•Explosive gases are created during charging. Charge the
battery in a well ventilated area. Do not charge the battery
•Contact between the positive and negative terminals may
terminals. Picking up the battery by the wires or charger can
pick up the battery by it’s case or handles.
•
Always keep all liquids away from the battery and keep the
battery dry.
•Contact or exposure to battery leakage (lead acid) may
cause serious injury. If contact or exposure occurs
immediately call your physician. If the chemical is on the skin
chemical was swallowed, immediately give the person water
or milk. Do not give water or milk if the patient is vomiting or
has a decreased level of alertness. Do not induce vomiting.
The following safety hazards may result in serious injury or death to the
user of the Kid Trax Motorcycle:
•Battery posts, terminals and related accessories contain lead
and lead compounds (acid), chemicals known to the State of
California to cause cancer, reproductive harm and are toxic
and corrosive. Never open the battery.
•Tampering or modifying the electric system may cause
system. Exposed wiring or circuitry in the charger may cause
electric shock. Always keep the charger housing closed.
The following safety hazards may result in serious injury or death to the
user of the Kid Trax Motorcycle:
Battery Warnings
WARNING!
2

Parts
Hardware
3
Front axle
Training wheel
screws (2)
Wheel
washers (2)
Wheel
nuts (2)
Training wheel
nuts (2)
Front bumper
screws (2)
Handle bar
long bolt
Handle bar
washer
Handle bar
nut
Metal wrench
for Handle bar
assembly
Plastic
wrench for
front wheel (2)
User Requirements
The suitable age range for a child using the Kid Trax Motorcycle is three
years and up. The maximum weight of the child is 50 lbs (22.7 kg).
Before using the Kid Trax Motorcycle the child must understand the vehicle
controls and safety issues. They must also demonstrate the capability to
handle the vehicle and operate its controls. It is the responsibility of the
and supervise the vehicle’s use.
Here are basic safe riding rules you should read aloud to your child and
anyone who may ride the Kid Trax Motorcycle:
•An adult must always supervise a child that is riding the Honda
Motorcycle.
•Children under three years should not be allowed to use the vehicle.
•Always sit in the seat when using the motorcycle.
•Keep your hands, hair and clothes away from moving parts. Always
wear shoes when riding the motorcycle.
•Only one rider is allowed at a time. Never allow the rider to carry a
passenger.
•
damage the chain mechanism inside the vehicle.
•Only drive on level ground. Don’t go near water, drop-offs or up and
down steep slopes.
•Do not drive the vehicle indoors or around obstructions.
•Do not drive the vehicle on streets or near cars.

Motorcycle Body Parts
4
Windscreen assembly
Kid Trax Motorcycle
Body Includes:
Main body, Kid Trax
6V 7AH battery, back
wheels, and foot pedal.
Seat
Rear view mirrors (2)
Battery charger
Disc brake (2)
Front wheel
Front fender
License
plate
Support wheels (2)
Handle bar
assembly

Charge the Battery
The battery can be charged at any time during the assembly
process; however, it’s best to do it at this time since you will be
installing the motorcycle seat over the battery. The rst charge
will take twenty four hours.
1. Disconnect the the red connectors by pressing on the tab on the side
of the connector.
2. Plug the charger connector into the battery connector on the
battery. Only use the Kid Trax toys 6V charger included with the Kid Trax
Motorcycle (Input: AC 120V, 60Hz Output: DC 6V).
3. Plug the charger into a standard 120V wall outlet.
Note: The charger may feel warm during charging. This is normal and
not a cause for concern.
4. After charging is complete (at least eight hours, but not more than
sixteen hours, with the rst charge taking twenty four hours) unplug
the charger from the wall outlet.
5. Unplug the battery connector from the charger connector.
Connect the Battery to the Motor
Whether this is your rst use, or you are re-charging after your child has
been riding, you will need to re-connect the charger connector to the
motor by doing the following:
6. Connect the red connectors together.
7. Store the wires and connectors down next to the battery.
8. Place the seat back onto the battery compartment and lock the seat into
place. See page 12 for locking instructions.
Tip!
5

6
1
2
3
6
8
7

Attach the Handle bars
1. Insert the Handle bar assembly down through the top of the Motorcycle
body hole, sliding the metal plate on the handle bar assembly under
the white stop of the handle bar tube.
For easy alignment there is a peg in the middle of the metal plate
that will t into the inset of the white stop on the handle bar tube.
2. Align the hole on the top of the handle bar assembly with the hole on
the top of the handle bar tube. Also align the hole on the metal plate
with the hole on the bottom of the handle bar tube.
3. Insert the long bolt through the top of the handle bar assembly
through to the end of the handle bar tube. The top of the long bolt will
t into the inset of the handle bar assembly
4. Insert the washer over the end of the long bolt.
5. Using the small end of the wrench (provided with hardware bag), fasten
the nut onto the end of the long bolt.
Assembly
Tip!
7
handle bar
tube
1
peg
white
stop
handle bar
assembly top hole
metal
plate
3
long bolt
5
2
body
hole
nut
washer
4
wrench

Attach the Front Fender
1. Slide the front fender up into the handle bar assembly steering rods.
Each steering rod will slide though the pockets of the front fender.
2. Using a phillips head screwdriver fasten a small screw into the hole on
the side of the front fender and through the steering rod.
3. Repeat step two on the opposite side of the front fender .
Tip!
It may be easier to perform the front fender and wheel attachments
with the motorcycle upside down, however, it is not necessary.
8
2
3
Front
fender
1
steering rod
small screw
pocket

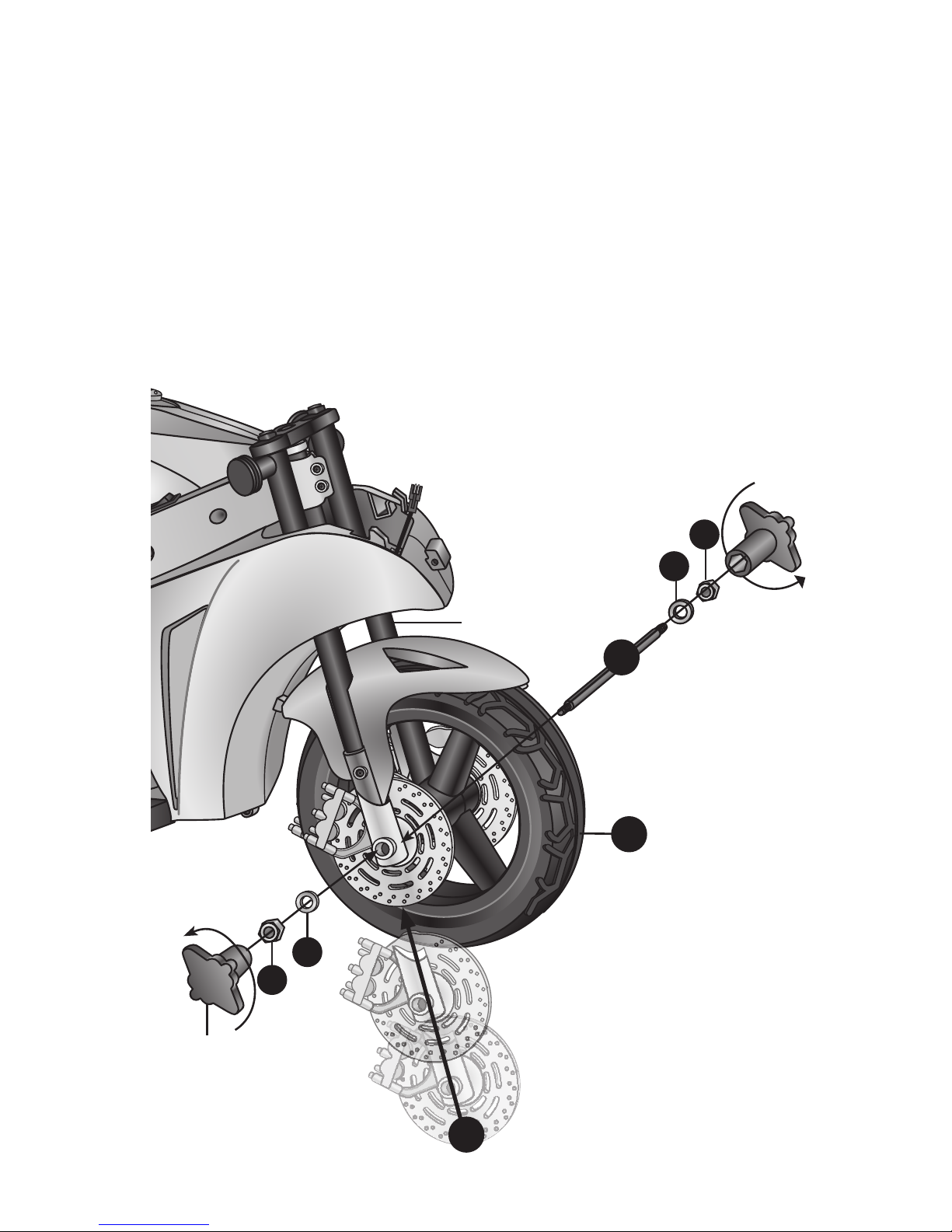

Attach the Front Wheel
1. Slide the disc brake onto the end of each steering rod as far as they
will go, making sure the holes on the steering rods are aligned with the
holes in the hubcap.
2. Place the front wheel in between the steering rods, making sure the
holes on the wheel is aligned with the holes of the steering rods.
3. Insert the axle through the disc brake, front wheel and steering rods.
4. Slide a washer over each end of the axle.
5. Fasten a nut at the end of each axle.
Tip!
To securely fasten the nuts, hold
one nut in place with the plastic
hex wrench while fastening the
opposite nut with the second
plastic hex wrench
9
1
2
4
3
5
4
nut
washer
axle
disc brake
5
plastic hex
wrench
steering rod

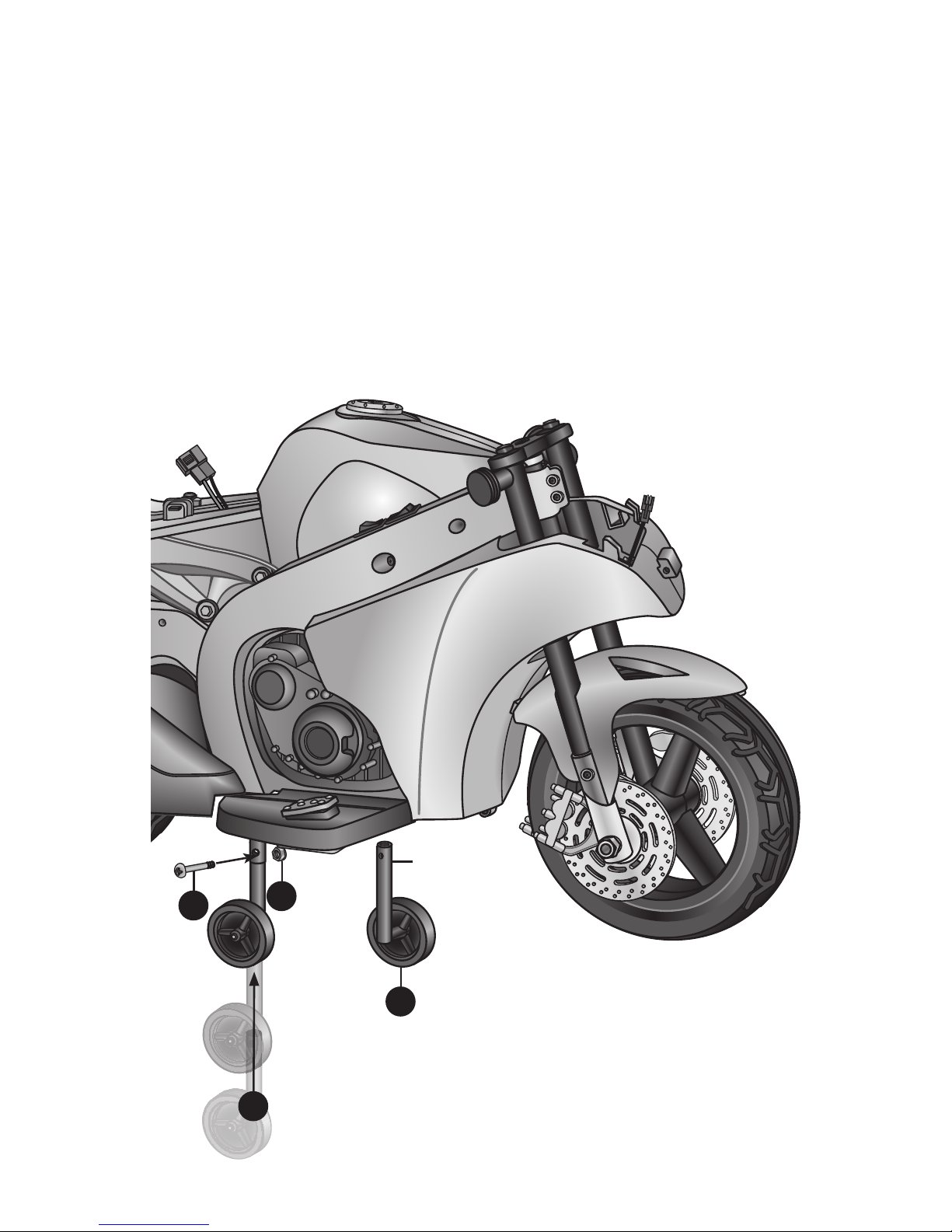

Attach the Support Wheels
1. Slide the end of the support wheel post into the support wheel
holder located below the foot rest. Be sure the holes of the insert align
with the holes at the top of the support wheel.
2. Insert a screw through both the support wheel holder and support
wheel post.
3. Fasten a nut on the opposite end of the screw, and tighten.
4. Repeat steps 1 - 3for the opposite support wheel.
10
23
4
1
nut
screwsupport wheel
post

Attach the Windscreen
1. Connect the wires coming
from the front corner of
the motorcycle body with
the wires coming from the
bottom of the windscreen.
2. Insert the long snap
lock on the front of the
motorcycle body into the
slot on the bottom of the
windscreen.
3. Rotate the windscreen
down towards the
handlebars. The two snap
locks on the sides of the
windscreen will snap into
the holes on the sides of
the motorcycle body.
Attach the Licence Plate
Snap the licence plate into the
plastic bracket located under
the back end of the motorcycle.
11
1
2
3
2
snap
lock
hole
Underside of
windscreen
plastic
bracket
license
plate

Attach the Rear View Mirrors
1. Position each rear
view mirror with the
mirror end facing out.
2. Snap the tabbed
end of each rear view
mirror into the holes
located on the front of
the windscreen until
they snap into place.
Attach the Seat
1. Align the tab on the front
of the seat with the slot in
the seat opening.
2. Align the lock tab on the
back of the seat with the
hole in the back of the
seat opening. Be sure
the lock is oriented in the
unlock position so it will
t into the slot.
3. Lower the seat over the
seat opening, inserting
the seat tab into the slot
and the lock into the main
body hole.
4. Using a coin or large
screwdriver turn the lock
on the top of the seat
counter-clockwise to
secure the seat to the
main body.
12
2
1
4
1
2
2
1

Important! Before using the Kid Trax Motorcycle for the rst time the battery
needs to be charged for at least twenty four hours. Only an adult who
has read and understands the safety warnings (see Assembly) should
handle, charge or recharge of the battery. Read the Assembly and
Maintenance sections before use of the vehicle.
Operating the Kid Trax Motorcycle
Using the Kid Trax Motorcycle
1. Horn: Press for electronic sounds.
2. Handlebars: Use to steer the
Motorcycle right or left.
Hold onto the handlebars
at all times.
3. Power switch: Turns the vehicle
on and off. The power switch
must be turned on in order to
drive the motorcycle and for the
headlight to function. When the
motorcycle is turned on the user
will hear a runtime engine noise
that will play constantly in the
background to signal adults
that the unit is operating.
• ON: Turns the vehicle on
• OFF: Turns the vehicle off
4. Forward/Reverse Switch: Toggle
switch forward (up arrow) to move
forward or toggle the switch back
(down arrow) to move backward.
5. Foot Pedal: The foot pedal
controls forward/reverse motion.
• To move: Press the foot pedal
down. The front headlight will
turn on.
• To stop or slow down: Release
the foot pedal. Front headlight
will turn off.
Note: When the foot pedal is released,
the Motorcycle will coast slightly before
coming to a complete stop.
13
2
1
3
2
4
5

Re-Charge Interval and Time
Important!
•Damage to the battery may occur if it is allowed to drain completely. Do
not allow the battery to drain completely.
•Check the battery and charger (supply connector) for wear and
damage before charging. Do not charge the battery if damage has
occurred. Only replace with a Kid Trax Toys 6V rechargeable battery
and charger.
The battery should be charged after each use, or if not used regularly,
once a month at a minimum. Charge the battery between 8 and 10 hours.
Do not charge the battery for more than sixteen hours. Unless it has been
over six months since the battery’s last use. Then you may charge up to
twenty-four hours. Failure to charge the battery as directed would cause
permanent damage to the battery and void the warranty.
Battery Storage
Do not leave the battery connected in the vehicle for long periods of time
while not being used. This may drain the battery completely and cause
permanent damage. Disconnect the battery connectors from the battery
when the vehicle is not going to be used for a long period of time.
Follow these guidelines if the battery is to be stored.
•Store the battery where temperatures are between -10° F (-24° C
and 75° F (24° C)
•Store the battery on a wood surface. Do not place the battery
discharge.
•Wipe the battery clean with a dry cloth prior to storage.
•Charge the battery once every month for eight to sixteen hours.
14

Battery Replacement and Disposal
The Kids Trax Toys 6V battery will eventually lose the ability to hold a charge.
Depending on the amount of use, and varying conditions, the battery should
operate for one to three years. Follow these steps to replace and dispose the
battery:
1. Remove the Motorcycle seat, as described on page 12.
2. Disconnect the red battery connectors.
3. Remove the scew on the battery bracket and remove the bracket.
4. Carefully lift the battery out of the battery compartment.
• Depending on the condition of the battery (i.e.: leakage) you may
want to wear protective gloves before removal.
• Do not lift the battery by its connectors or cables
5. Place the dead battery in a plastic bag.
Important! Recycle the dead battery responsibly. The battery contains
lead acid (electrolyte) and must be disposed of properly and legally. It
is illegal in most areas to incinerate lead acid batteries or dispose of
them in landlls. Take it to a federal or state-approved lead acid battery
recycler, such as a Kid Trax Toys authorized service center or your local
automotive battery retailer. Do not throw the battery away with your
regular household trash!
6. Replace the battery
with a Kid Trax
Toys 6V battery.
Replacement batteries
are available
through Kid Trax
customer service
center.
7. Reconnect the
battery connectors.
8. Place the battery
bracket over the
battery and fasten
with the screw you
removed in step 3.
9. Replace the seat
and lock it into place.
2
15
1
3
4

Maintenance
The Kid Trax Motrocycle should be checked for damage, missing or badly
worn parts before use.
•Check the tightness of the fasteners before each use.
•Ensure the battery is securely in place before use
•Occasionally use lightweight oil to lubricate moving parts such as
wheels and steering linkage. Do not use oil on plastic or nylon parts.
No lubrication is required.
•Store the vehicle indoors or cover it with a tarp to protect it from the wet
weather. Keep it away from sources of heat, such as stoves and heaters.
•Clean the vehicle with a soft, dry cloth. To restore shine to plastic
parts, use a non-wax furniture polish. Do not use car wax, abrasive
cleaners or wash the vehicle with soap and water. Water will damage
the motor, electrical system and battery.
•Kid Trax Toys recommends that you take the vehicle to an authorized
service center for periodic maintenance and service. Call Kid Trax Toys
Consumer Relations at 877-741-6154 for an authorized service center.
16
FCC Information
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Consult dealer or an experienced radio/TV technician for help.
•
•
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Caution: Changes or not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
Check the state or local requirementsfor the product before using the
product.

Troubleshooting Guide
The following are examples of potential problems. Completely read
through this manual and the troubleshooting guide table before calling Kid
Trax Toys Consumer Relations. If you still need help resolving the problem
please call 877-741-6154.
Kid Trax Toys recommends that you take the vehicle to an authorized
service center for periodic maintenance and service.
Call the number listed above for the center closest to you.
Problem Possible Cause Remedy
Vehicle does
not run
Battery low on power Recharge battery (see
Battery: Recharge Interval and
Time)
Thermal fuse has
tripped
Turn product off for fteen
minutes to allow thermal
fuse to cool and return to
operational status.
Wheel nuts are loose Tighten wheel nuts (see
Maintenance: General)
Battery connector or
wires are loose
Check that the battery
connectors are rmly plugged
into each other. If wires are
loose around the motor call
Consumer Relations at 877-
741-6154 for an authorized
service center
Battery is dead Replace battery (see Battery:
Replacement and Disposal)
Electrical system is
damaged
Call Consumer Relations
at 877-741-6154 for an
authorized service center
Motor is damaged Call Consumer Relations
at 877-741-6154 for an
authorized service center
Vehicle does
not run very
long
Battery is under
charged
Check that the battery
connectors are rmly plugged
into each other when
recharging (see Battery:
Recharge Interval and Time)
17
