Kidzone 060-ROT-06 User manual

This vehicle is packed with the battery disconnected.
Connect the battery before use.
This manual contains important safety, performance
and maintenance information. Read the manual before
allowing your child to ride your new electric ride-on toy.
Keep this manual properly for future reference.
Note: Product appearance and colors may vary from the photo.
Instruction Manual

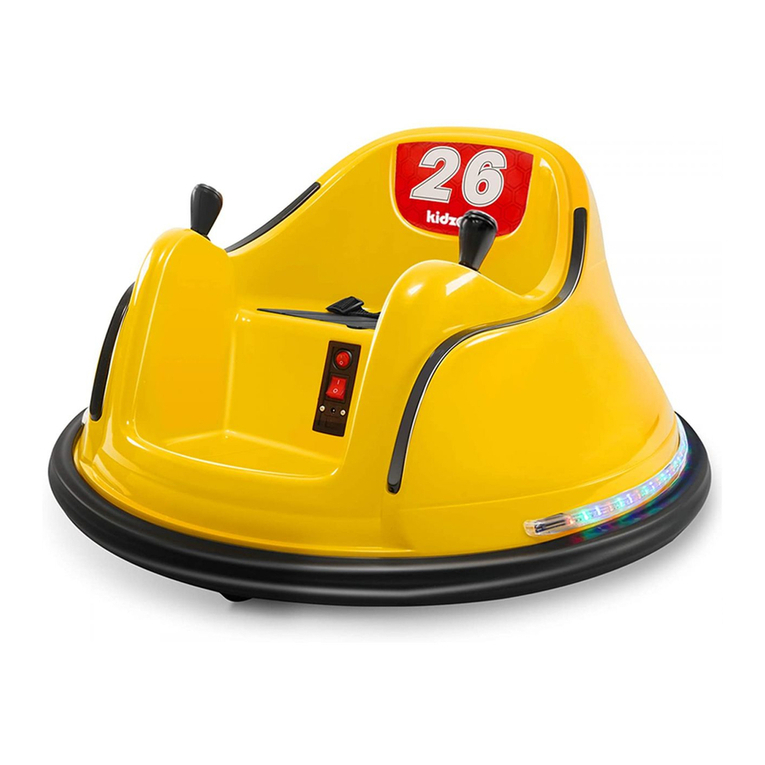

Ride on Bumper Car 360 Rotation (6V)
Item number: 060-ROT-06

Read allInstructions before operating this product
When using electrical product, basic safety precaution should always be followed including the following
To Protect against electrical shock, do not immerse cord, charger, transformer,
battery, or the product in water or other liquid.
Only use charging devices, transformer, and battery provided or recommended
by the manufacturer.
• For your children’s safety, the product should be assembled by adult.
• This toy is not intended for children under 18 months.
• Closely adult supervision is necessary when your children is operating this
product.
• Disconnect the battery if not used for a long time.
• Do not use this product as a trac tool.
To reduce the risk of injury, adult supervision is required. Never use in roadways,
near motor vehicles, on or near steep inclines or steps, swimming pools or other
bodies of water; always wear shoes, and never allow more than 1 rider.
Do not use this product on slippery surface.
Always keep hands, hair, and clothing away from moving parts.
Maximum users’ weight for this product is 66 lb/ 30 kg.
Do not change, modify or add any electrical wiring on this product.
Charge the battery at least once a month even not operating the vehicle to
maximize the battery life.
Avoid using this product in tight environment to prevent damage to the product
or injury to the user.
Do not use this product in the dark. Only operate this product during daytime
or well-lit area.
For your child’s safety, please make sure the seat belt is securely fasten when
operating this product.
Personal protective equipment such as helmet is needed when operating this
product.
WARNING:
•
•
•
•
•
•
•
•
•
•
•
•
1

PREVENT FIRE
• Never modify the electrical system. Alterations could cause a re resulting in serious
injury and could also ruin the electrical system.
• Use of the wrong type of battery or charger could cause a re or explosion resulting
in serious injury.
• The battery must be handled by adults only. The battery is heavy and contains
sulfuric acid(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults
only.
• Never lift or carry the battery by the wires or connector. This can damage the battery
and possibly cause a re resulting in serious injury. Lift and carry the battery by the
case only.
• Examine the battery, charger and their connectors for excessive wear or damage
each time you charge the battery. If damage or excessive wear is detected, do not
use the charger or the battery until you have replaced the worn or damaged part.
WARNING:
WARNING:
WARNING: Stop operating this product whenever it stuck under any
WARNING: Friction Hazards! Do not operate this product on carpets
Manufacturer and seller expressly disclaim any and all liability for personal injury,
property damage or loss, whether direct, indirect, or incidental, resulting from the
incorrect attachment, improper use, inadequate maintenance, unapproved
modication, or neglect of this product.
circumstances.
or rugs, it may cause burn or re if over run or over spin. This product
has automatic cut-o function if overcurrent, overloaded, or operated
incorrectly, wait for 10 - 15 seconds to reactivate this product
automatically.
2

WARNING
FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT
IN SERIOUS INJURY OR DEATH.
The owner’s manual contains assembly, use and maintenance instructions.
Child Safety Warnings
• Adults supervising children must read and understand this entire manual before
allowing any child to use this product.
• Adults must evaluate their own children as to maturity, strength, judgment and
ability to follow safety rules. Published age guidelines are not a substitute for
careful evaluation of your own child.
• Adults must teach children about thinking ahead while riding as this may be the
see through the child’s eyes, and verbally teach them about steering and avoiding
obstacles in the approved riding area.
• Riding a motorized ride-on toy can be a dangerous activity, even under the best
of circumstances. Good choices regarding where and when to ride, constant adult
supervision of riding, and practice and careful riding by the child can all help to
minimize risk. However this ride-on toy is intended to move and therefore it is
that no amount of care, instruction or expertise can eliminate.
• If this inherent risk is not acceptable, adults should not allow children to ride this
ride-on toy.
WARNING
Safe Riding Warnings
• Not to be used by children under 18 months or children over 72 months.
• Do not exceed the maximum weight capacity of 66 lb (30 kg).
• Do not allow more than one (1) rider.
ADULTS AND SUPERVISORS, PLEASE NOTE:
1• Always instruct all children of common sense rules and safe practices.
2• Be aware that at, hard surfaces provide the safest experience for child riders.
3• Do not allow the child rider to operate the ride-on toy near streets, roads,
sidewalks, walkways, or any other place where they may encounter other
moving vehicles.
4• Never leave children unattended with this ride-on toy. Continuous adult
supervision is required.
3

WARNING
5• If necessary, adults and supervisors are always responsible for setting up gates
and barriers to ensure a safe riding environment for the child rider.
6• Be aware that this ride-on toy does not have braking capabilities. Allowing use
of this ride-on toy in areas that require braking may cause rolls, crashes, serious
injury, or death to the child rider.
7• Teach children not to allow other children to use this ride-on toy. Communicate
this message to other adults and supervisors of fellow children with which your
child interacts.
8• Sternly alert children that hands, legs, hair, and clothing can potentially get
caught in moving parts. Ensure they never place a body part or piece of clothing
near a moving part of the ride-on toy. Avoid loose clothing.
9• Instruct children to always wear shoes when using the ride-on toy.
10• Conrm that children do not have access to the charging equipment or come
into contact with any part of the ride-on toy while it is charging.
11• Do not mix old and new batteries.
12. Do not mix alkaline, standard (carbon zinc), or rechargeable batteries.
13. Firmly instruct children to use the ride-on toy in a safe manner. Unsafe
behaviors include, but are not limited to:
• Traveling at unsafe speeds
• Not riding in the seated position
• Riding at night or in any conditions of low visibility
• Riding in any wet conditions including rain, snow, and ice
• Any kind of stunt riding: jumps, ramps, stairs, hills, sloped surfaces, or other
• Any kind of o-road riding: rough terrain, dirt, mud, gravel, or any others
that involve notable risk
actions involving any notable risk
• Riding near any pool or open body of water
• Pushing, pulling, or shoving the driver in any way while operating the ride-on
toy
• Using the ride-on toy without the battery cover or any other safety cover fully
closed
• Pulling or hitching the ride-on toy with other similar moving ride-on toys or
products
4

WARNING
Flammable and Explosive Materials Warnings
• Use of a battery or charger other than the supplied rechargeable battery and
charger may cause a re or explosion. Only use the supplied rechargeable
battery and charger with the ride-on toy.
• Do not charge the battery near heat or ammable materials.
• Using the rechargeable battery and charger for any other product many
result in overheating, re or explosion. Never use the rechargeable battery
and charger with another product.
• Contact between the positive and negative terminals may result in re or
explosion. Avoid direct contact between the terminals. Lifting the battery
by the wires or charger can cause damage to the battery and may result in a
re. Always lift the battery by its case or handles.
• Plug wall charger directly into a wall outlet. Do not use an extension cord
when charging as the use of an extension cord can cause a re.
Electric Shock / Fire Warnings
• Liquids on the battery may cause re or electric shock. Always keep all
liquids away from the battery and keep the battery dry.
• Tampering or modifying the electric circuit system may cause a shock, re
or explosion and permanently damage the system. Exposed wiring, circuitry
in the charger may cause electric shock. Always keep the charger housing
closed.
•Battery posts, terminals and related accessories contain lead and lead
compounds (acids) chemicals and are toxic and corrosive. Never open the
Contact or exposure to battery leakage (lead acid) may cause serious injury.
If contact or exposure occurs with the skin or in the eyes, or if the chemical is
swallowed, immediately call 911.
Corrosive Material Warnings
•
The following safety hazards may result in serious injury or death to the user
of the ride-on:
Battery and Charging Warnings
•
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium
batteries.)
Do not mix old and new batteries.
battery.
5

WARNING
• Regularly check charger, supply cord and connector for wear and damage.
Look for frayed or kinked wires, any exposed inner wires, any missing
insulation. If any damage is observed do not plug in the charger and do not
charge the battery.
CAUTION
WARNING
Product Warning
This product can expose you to chemicals, including Lead, whichis known to
the State of California to cause birth defects and or other reproductive harm,
andDi(2-ethylhexyl) phthalate(DEHP), which is known to the State of
California to cause cancerand birth defects or other reproductive harm. For
more information, go to www.P65Warnings.ca.gov
Assembly Warnings
• The ride-on toy must be assembled by an adult who has read and
understands the instructions in this manual.
•
This ride-on toy contains small parts that are for adult assembly only. Keep
small children away when assembling.
• Remove and dispose of all protective materials, plastic bags and packaging
before assembly.
•
•
•
Re-Charge Interval and Time
Important!
Damage to the battery may occur if it is allowed to drain completely. Do not
allow the battery to drain completely.
Check the battery and charger (supply cord, connector) for wear and damage
before charging. Do not charge the battery if damage has occurred. Do not
use an extension cord when charging the ride-on toy.
On average you will need to charge the battery for 8-12 hours and no more
than 20 hours. Failure to charge the battery as directed could cause
permanent damage to the battery and void the warranty.
Only an adult who has read and understands the safety warnings should
handle, charge and recharge the battery.
•
WARNING:

Motor: 2x15 W
Battery: DC 6V 4AH
Charger: 6V 500MA
Speed: 0.75mph(1.2km/h)
Suitable Age: 18-72 months
Maximum User Weight: 66 lb/30 kg
Dimension: 28.35”x28.35"x16.93" (72x72x43cm)
Battery Charging Time: 8-12 hours
First Charging Time : 4-5 hours
Max Charging Time : 12 hours
Battery (Temperature Tolerance):104 F

8

Before activating this vehicle
Unscrew to detach the seat cover.
Connect the battery terminal. (Red terminal connect with Red connector, Black terminal connect with
Black connector)
Attach the seat cover and tighten the screws.
The battery should only be charged by adult.
•
•
Plug the cha
The vehicle must be OFF when charging.
rger to the charging port. (the charger indicator turns red when charging, turns green after
charging completed.)
• Fully charge the battery for 8 - 12 hours.
• The battery is not replaceable.
Charge the battery at least once a month even not operating the vehicle to maximize
the battery life.
Do not charge the battery for more than 20 hours.
Make sure the battery and charger are not damaged.
Do not charge if any sign of wear or damage is found.
WARNING:
WARNING:
WARNING:

Operating this vehicle
To light on the vehicle, press light symbol switch.
To move the vehicle forward, push both control sticks forward at the same time.
To move the vehicle backward, pull both control sticks backward at the same time.
To leftturn the vehicle forward, push the right control stick forward.
To right turn the vehicle forward, push the left control stick forward.
To left turn the vehicle backward, pull the right control stick backward.
To right turn the vehicle backward, pull the left control stick backward.
To left spin the vehicle, pull the left control stick backward and push the right control stick forward at the
same time.
To right spin the vehicle, push the left control stick forward and pull the right control stick backward at the
same time.
To stop the vehicle, release both control sticks and returns them to the center position.

Using the remote control
The remote control should only be used by adult.
The remote control overrides the manual control from the vehicle.
Frequency Matching
changing the batteries is required.
• Insert batteries into the remote control.
• Turn on the power of the vehicle, the indicator changes to solid red.
If failed to match, remove and replace the batteries from the remote control and repeat the above steps.
The remote control goes into sleep mode after 10 seconds of idle time.
Change Battery
Remove the cover on the back of the controller and insert two AAA (LR03) batteries in correct polarity.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.
NOTE:
Frequency Matching
Forward
Backward
Emergency brake
Turn Right
Indicator
Turn left

• Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose
parts if necessary.
• Make sure there is no cracked or broken plastic parts.
• Keep away the product from heat and humid area, cover it with trap when not in use.
• Disconnect the battery if the product is not in use for a long period of time.
• Clean the product with a cloth. Use a furniture non-wax polish to restore the shininess of the plastic parts.
Do not use abrasive cleaner.
Do not wash the product with a hose or immerse any parts in water or other liquid.
• Occasionally use lightweight oil to lubricate moving parts
•
Control thevehicle
• For your child's safety, please make sure the seat belt is securely fastened when operating this vehicle.
• To move the vehicle forward, press the up arrow switch.
• To move the vehicle backward, press the down arrow switch.
• To left turn the vehicle forward, press the up arrow switch followed by the left arrow switch.
• To right turn the vehicle forward, press the up arrow switch followed by the right arrow switch.
• To left turn the vehicle backward, press the down arrow switch followed by the left arrow switch.
• To right turn the vehicle backward, press the down arrow switch followed by the right arrow switch.
• To left spin the vehicle, press the left arrow switch.
• To right spin the vehicle, press the right arrow switch.
• To stop the vehicle, release all switches.
Press the "P " switch again to activate the vehicle.
NOTE: The remote control goes into sleep mode after 10 seconds of idle time.
Closely adult supervision is needed when children are operating the vehicle.
WARNING:

Charger becomes warm
during charging N/A
Battery not last long

Model: TX4
FCC ID: 2AJ2H-WYTX4
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radiofrequency energy and if not installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technical for help.
Caution: Changes or modications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This product conforms to toy safety standards CPSIA and ASTM-F963.
Importer: ONE BIG OUTLET
Importer Address: 19301 E Walnut dr. N. City of industry CA91748 united states Importer
Tel.: 800 - 946 - 6151
14

V3-2021-09-23
