KIESELMANN DN 25 User manual

Operating Instructions
Translation of the original
Angle tube strainer
Type 7027
DN25 - DN150
with Slotted strainer insert
Welding end S - S
Threaded connection G - G
Union connection K/M - G
EN
ENGLISHPDF • ak • 08/08/2022

KIESELMANN GmbH
Paul-Kieselmann-Str. 4-10
D - 75438 Knittlingen
( [phone] • 7 [phone]
www.kieselmann.de • [email protected]
Copyright: © KIESELMANN FLUID PROCESS GROUP

KIESELMANN GmbH Table of Contents
7027_EN 3
Table of Contents
1 General informations ................................................................................................................................................... 4
1.1 Informations for your safety...............................................................................................................................................4
1.2 Marking of security instructions......................................................................................................................................... 4
1.3 General designated use ......................................................................................................................................................4
1.4 Personnel............................................................................................................................................................................. 4
1.5 Modifications, spare parts, accessories............................................................................................................................5
1.6 General instructions ............................................................................................................................................................5
2 Safety instructions....................................................................................................................................................... 6
2.1 Intended use ........................................................................................................................................................................ 6
2.2 General notes....................................................................................................................................................................... 6
2.3 General safety instructions.................................................................................................................................................6
3 Function and operation ................................................................................................................................................ 7
3.1 Description of function .......................................................................................................................................................7
3.2 Installation Instructions ......................................................................................................................................................7
3.3 General welding guidelines................................................................................................................................................. 7
3.4 Cleaning ...............................................................................................................................................................................7
4 Technical data ............................................................................................................................................................. 8
5 Disassembly and assembly .......................................................................................................................................... 9
5.1 Disassembly ........................................................................................................................................................................9
5.2 Assembly .............................................................................................................................................................................9
6 Drawings and dimensions .......................................................................................................................................... 10
6.1 Drawings ............................................................................................................................................................................10
6.2 Dimensions........................................................................................................................................................................10
7 Wearing parts ............................................................................................................................................................ 12
7.1 Wearing parts list ..............................................................................................................................................................12

Operating Instructions | KIESELMANN GmbH1 | General informations
4 / 12 7027_EN
1 General informations
1.1 Informations for your safety
We are pleased that you have decided for a high-classKIESELMANN product. With correct applica-
tion and adequate maintenance, our products provide long time and reliable operation.
Before installation and initiation, please carefully read this instruction manual and the security ad-
vices contained in it. This guarantees reliable and safe operation of this product and your plant re-
spectively. Please note that an incorrect application of the process components may lead to great
material damages and personal injury.
In case of damages caused by non observance of this instruction manual, incorrect initiation, hand-
ling or external interference, guarantee and warranty will lapse!
Our products are produced, mounted and tested with high diligence. However, if there is still a
reason for complaint, we will naturally try to give you entire satisfaction within the scope of our war-
ranty. We will be at your disposal also after expiration of the warranty. In addition, you will also find
all necessary instructions and spare part data for maintenance in this instruction manual. If you
don't want to carry out the maintenance by yourself, ourKIESELMANN - service team will naturally
be at your disposal.
1.2 Marking of security instructions
Hints are available in the chapter "safety instructions" or directly before the respective operation in-
struction. The hints are highlighted with a danger symbol and a signal word. Texts beside these
symbols have to be read and adhered to by all means. Please continue with the text and with the
handling at the valve only afterwards.
Symbol Signal word Meaning
DANGER Imminent danger which will result severe personal injury or
death.
WARNING Imminent danger which may result severe personal injury or
death.
CAUTION Dangerous situation which may cause slight personal injury or
material damages.
NOTICE An harmful situation which may result in damages of the product
itself or of adjacent vicinity.
INFORMATION Marks application hints and other information which is particu-
larly useful.
1.3 General designated use
The fitting is designed exclusively for the purposes described below. Using the fitting for purposes
other than those mentioned is considered contrary to its designated use. KIESELMANNcannot be
held liable for any damage resulting from such use. The risk of such misuse lies entirely with the
user. The prerequisite for the reliable and safe operation of the fitting is proper transportation and
storage as well as competent installation and assembly. Operating the fitting within the limits of its
designated use also involves observing the operating, inspection and maintenance instructions.
1.4 Personnel
Personnel entrusted with the operation and maintenance of the tank safety system must have the
suitable qualification to carry out their tasks. They must be informed about possible dangers and
must understand and observe the safety instructions given in the relevant manual. Only allow quali-
fied personnel to make electrical connections.

KIESELMANN GmbH | Operating Instructions General informations | 1
7027_EN 5 / 12
1.5 Modifications, spare parts, accessories
Unauthorized modifications, additions or conversions which affect the safety of the fitting are not
permitted. Safety devices must not be bypassed, removed or made inactive. Only use original spare
parts and accessories recommended by the manufacturer.
1.6 General instructions
The user is obliged to operate the fitting only when it is in good working order. In addition to the in-
structions given in the operating manual, please observe the relevant accident prevention regula-
tions, generally accepted safety regulations, regulations effective in the country of installation,
working and safety instructions effective in the user's plant.

Operating Instructions | KIESELMANN GmbH2 | Safety instructions
6 / 12 7027_EN
2 Safety instructions
2.1 Intended use
The elbow tube strainer is used to filter solid matter in liquids in the food and drinks industry.
2.2 General notes
NOTICE - observe the operating instructions
To avoid danger and damage, the fitting must be used in accordance with the safety instructions
and technical data contained in the operating instructions.
NOTICE
All data are in line with the current state of development. Subject to change as a result of tech-
nical progress.
2.3 General safety instructions
WARNING
Risk of injury by outflowing medium
Dismantling the valve or valve assemblies from the plant can cause injuries.
– Medias flowing through the leakage drain outlet are to be drained off without splashing
into a discharge arrangement.
– Carry the disassembling only if when the plant has been rendered pressure-less and free
of liquid and gas.
CAUTION
Steps should be taken to ensure that no external forces are exerted on the fitting.

KIESELMANN GmbH | Operating Instructions Function and operation | 3
7027_EN 7 / 12
3 Function and operation
3.1 Description of function
The elbow tube strainer is used to filter solid matter in liquids. When the liquid flows through the
strainer in the direction of the arrow (see figure), the solid matter is retained in the mesh bottom.
3.2 Installation Instructions
Fitting position
• The installation position is without importance.
CAUTION
Steps should be taken to ensure that no external forces are exerted on the fitting.
3.3 General welding guidelines
Sealing elements integrated in weld components must generally be removed prior to welding. To
prevent damage, welding should be undertaken by certified personnel (EN ISO 9606-1). Use the TIG
(Tungsten Inert Gas) welding process.
CAUTION
Damage and injuries due to high temperature supply
To avoid a distortion of the components, all welding parts must be welded to stress-relieved.
Allow all components to cool before assembling.
NOTICE
Damage due to impurities
Impurities can cause damage to the seals and seals area.
Clean inside areas prior to assembly.
3.4 Cleaning
The mesh bottom can be removed from the casing for cleaning.
NOTICE
It is also possible to clean mesh bottoms, which do not have fine wire-cloth screen, by simply rins-
ing out the strainer in the opposite flow direction.

Operating Instructions | KIESELMANN GmbH4 | Technical data
8 / 12 7027_EN
4 Technical data
Model Angle tube strainer with slotted strainer insert
• Screening direction from inside to outside
• Screening direction from outside to inside
Size DN25 - DN150
Connection type Male part DIN11851
Weld-on end DIN EN 10357
Liner / nut DIN 11851
Temperature range Operating temperature:
(depends on medium)
+0°C to +100°C
Sterilisation temperature:
(SIP 30 min)
EPDM +120 °C
HNBR +100 °C
NBR +100 °C
FKM +100 °C
Nominal pressure DN25 - DN65
DN80 - DN100
DN125 - DN 150
PN 16
PN 10
PN 8
Material
(in contact with product)
Stainless steel: • 1.4301 / AISI 304
• 1.4404 / AISI 316L
Surface: Ra ≤ 0,8µm
Sealing material: EPDM
HNBR
NBR
FKM

KIESELMANN GmbH | Operating Instructions Disassembly and assembly | 5
7027_EN 9 / 12
5 Disassembly and assembly
5.1 Disassembly
Disassembly
• Unscrew the slotted nut (1).
• Remove the strainer insert (5) from the housing (3).
• Remove seal (2) and O-ring (6).
1 2 3
4 5 6
1 Slotted nut 2 Seal
3 Housing 4 Liner
5 Strainer insert 6 O-ring
Lubricant recommendation
EPDM; HNBR; NBR; FKM; k-flex - Klüber Paraliq GTE703*
Silicone - Klüber Sintheso pro AA2*
Thread - Interflon Food*
*) It is only permitted to use approved lubricants, if the respective fitting is used for the produc-
tion of food or drink. Please observe the relevant safety data sheets of the manufacturers of lub-
ricants.
5.2 Assembly
Assembly
• Before installation, thoroughly clean and slightly lubricate mounting areas and running sur-
faces.
• Assemble in reverse order.

Operating Instructions | KIESELMANN GmbH6 | Drawings and dimensions
10 / 12 7027_EN
6 Drawings and dimensions
6.1 Drawings
1 2 3
4
5 6

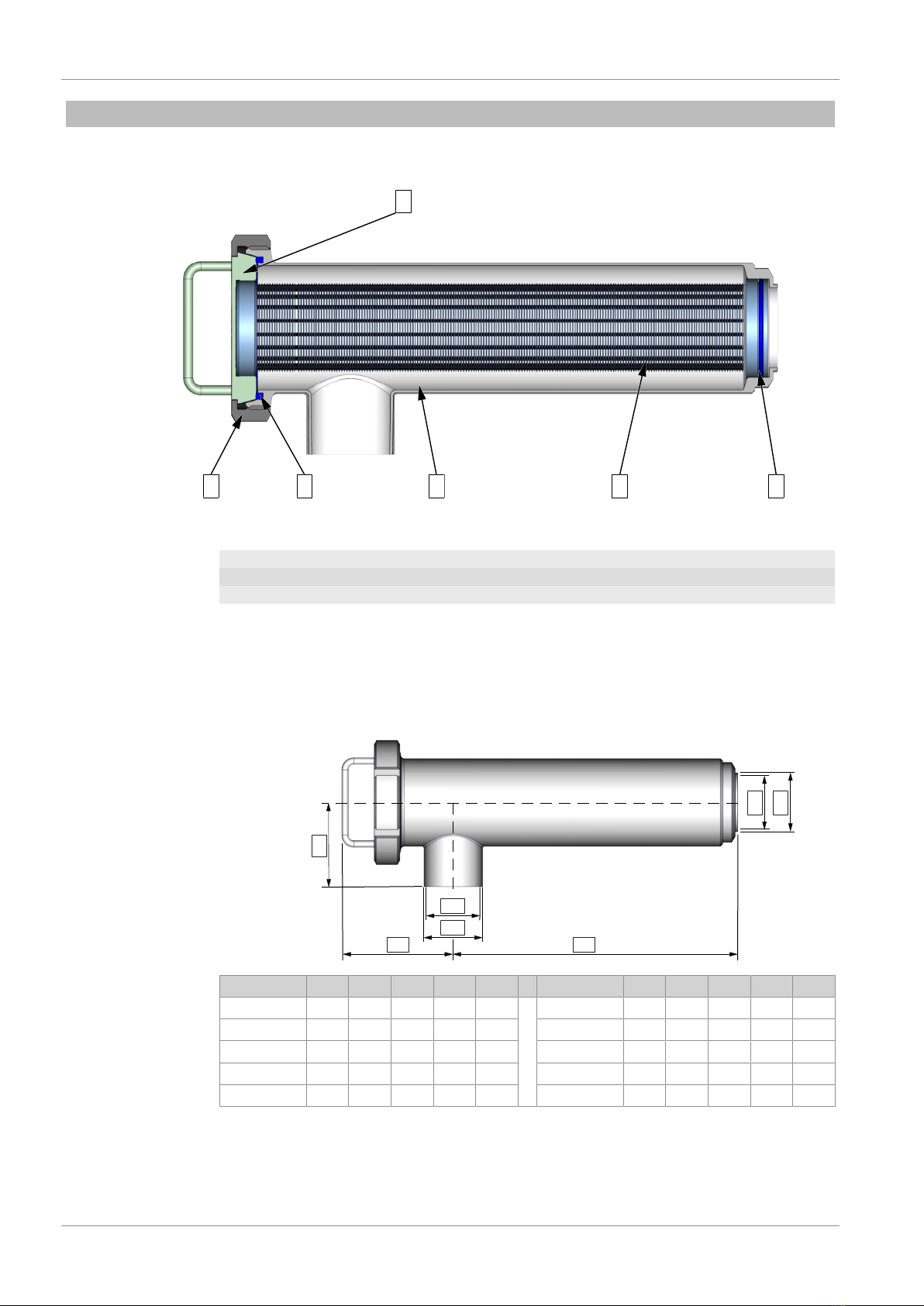

Fig. 1Example drawing with welding connection
1 Slotted nut 2 Seal
3 Housing 4 Liner
5 Strainer insert 6 O-ring
6.2 Dimensions
Angle tube strainer with welding ends ( S - S)
D1
D2
L1L2
D1 D2
L3
Nominal size Ø D1 Ø D2 L1 L2 L3 Nominal size Ø D1 Ø D2 L1 L2 L3
DN 25 26 29 319 103 67 DN 80 81 85 552 211 113
DN 32 32 35 319 104 75 DN 100 100 104 550 185 125
DN 40 38 41 309 115 77 DN 125 125 129 549 303 162
DN 50 50 53 320 119 87 DN 150 150 154 607 353 165
DN 65 66 70 337 132 100
Table1 Dimensions [mm]

KIESELMANN GmbH | Operating Instructions Drawings and dimensions | 6
7027_EN 11 / 12

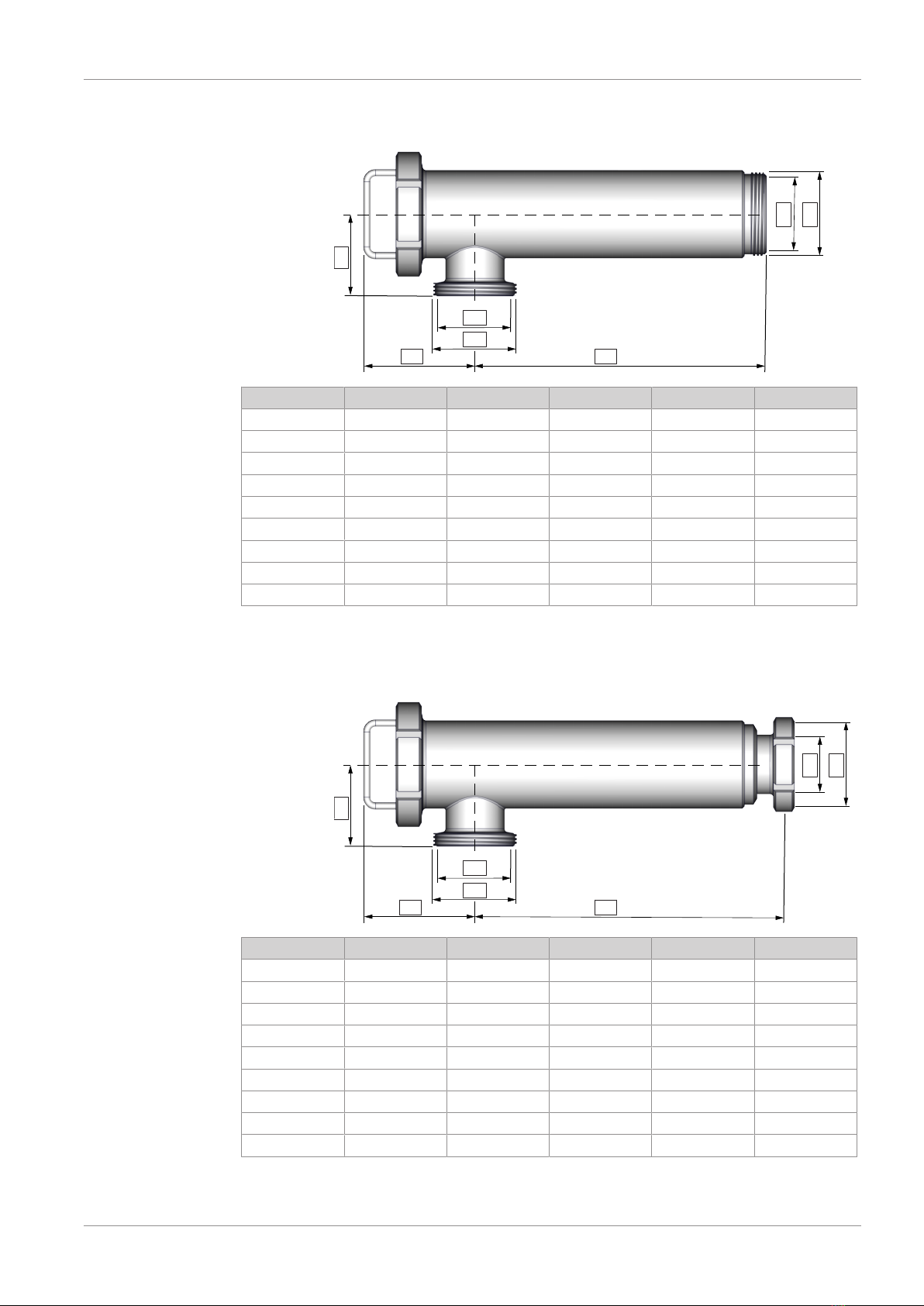

Angle tube strainer with threaded connection (G - G)
D1
D2
L1
L2
D1 D2
L3
Nominal size Ø D1 Ø D2 L1 L2 L3
DN 25 26 Rd 52 x 1/6327 103 61
DN 32 32 Rd 58 x 1/6327 104 71
DN 40 38 Rd 65 x 1/6316 115 72
DN 50 50 Rd 78 x 1/6327 119 82
DN 65 66 Rd 95 x 1/6345 132 97
DN 80 81 Rd 110 x 1/4560 211 115
DN 100 100 Rd 130 x 1/4560 185 136
DN 125 125 Rd 160 x 1/4560 303 162
DN 150 150 Rd 190 x 1/4620 353 165
Table2 Dimensions [mm]
Angle tube strainer with union connection (K/M - G)
D1
D2
L1
L2
D1 D2
L3
Nominal size Ø D1 Ø D2 L1 L2 L3
DN 25 26 Rd 52 x 1/6327 103 61
DN 32 32 Rd 58 x 1/6327 104 71
DN 40 38 Rd 65 x 1/6316 115 72
DN 50 50 Rd 78 x 1/6327 119 82
DN 65 66 Rd 95 x 1/6345 132 97
DN 80 81 Rd 110 x 1/4560 211 115
DN 100 100 Rd 130 x 1/4560 185 136
DN 125 125 Rd 160 x 1/4560 303 162
DN 150 150 Rd 190 x 1/4620 353 165
Table3 Dimensions [mm]

Operating Instructions | KIESELMANN GmbH7 | Wearing parts
12 / 12 7027_EN
7 Wearing parts
7.1 Wearing parts list
Nominal size EPDM HNBR
Pos. 2
Seal
Pos. 6
O-ring
Pos. 2
Seal
Pos. 6
O-ring
DN 25 2005 050 000-054 2304 035 030-170 2004 050 000-050 2304 036 035-050
DN 32 2005 065 000-054 2304 042 030-170 2004 065 000-050 2304 042 030-050
DN 40 2005 065 000-054 2304 042 030-170 2004 065 000-050 2304 042 030-050
DN 50 2005 080 000-054 2304 057 035-159 2004 080 000-050 2304 057 035-050
DN 65 2005 100 000-054 2304 069 035-159 2004 100 000-050 2304 066 035-050
DN 80 2005 125 000-054 2304 085 035-159 2004 125 000-050 2304 085 035-157
DN 100 2005 150 000-054 2304 104 030-170 2004 150 000-050 2304 104 030-050
DN 125 2005 125 000-054 2304 125 035-159 2004 125 000-050 2304 125 035-050
DN 150 2004 150 000-054 2304 151 030-054 2004 150 000-050 2304 151 030-050
Nominal size NBR FKM
Pos. 2
Seal
Pos. 6
O-ring
Pos. 2
Seal
Pos. 6
O-ring
DN 25 2004 050 000-056 2304 036 030-055 2008 050 000-051 2304 036 030-051
DN 32 2004 065 000-056 2304 042 030-055 2008 065 000-051 2304 042 030-051
DN 40 2004 065 000-056 2304 042 030-055 2008 065 000-051 2304 042 030-051
DN 50 2004 080 000-056 2304 059 035-055 2008 080 000-051 2304 054 035-051
DN 65 2004 100 000-056 2304 070 035-055 2008 100 000-051 2304 070 035-051
DN 80 2004 125 000-056 2304 085 035-055 2008 125 000-051 2304 085 035-051
DN 100 2004 150 000-056 2304 104 030-055 2008 150 000-051 2304 108 030-051
DN 125 2004 125 000-056 2304 125 035-055 2008 125 000-051 2304 125 035-051
DN 150 2004 150 000-056 2304 150 030-055 2008 150 000-051 2304 150 030-051
