KIFFE GOLF K7 User manual

K7
OPERATING MANUAL

5 Charging the battery
6 Fitting the drive wheels / front wheel
7 Assembly / tting the battery
8 Attaching a golf bag
9 Control unit
10 Comissioning & handling
13 Battery & charger
14 Care & cleaning
14 Guarantee conditions
15 Acceptance of guarantee claims
16 Declaration of conformity
17 KIFFE trolley inspection
[Warranty extension]
2

We believe that every golfer deserves better than mediocre
equipment. And that’s why we produce technically superior, hand-
made trolleys with outstanding workmanship here at KIFFE Golf
Manufaktur, focusing on a sophisticated feature set and simple
handling so you can concentrate on your game.
Please follow the instructions in this operating manual to enjoy
your product as long as possible. If you have any questions that
are not answered in the manual, our team will be happy to help.
You can reach them at: [e-mail].
Wishing you many special moments on the golf course with your
trolley and some great rounds!
Yours, KIFFE Golf Manufaktur
CONGRATULATIONS
ON CHOOSING A
KIFFE K7
When you receive your trolley, please check
Please report all visible defects, transport damage or incomplete deli-
veries to your specialist dealer or in writing immediately, but at the
latest within two working days of delivery:
the packaging for any damage
caused in transit
that all items that should
be included are present
the trolley for visible
defects/damage
[e-mail]
E-MAIL
Please note that we cannot accept complaints of this kind after this period.
3

6
5

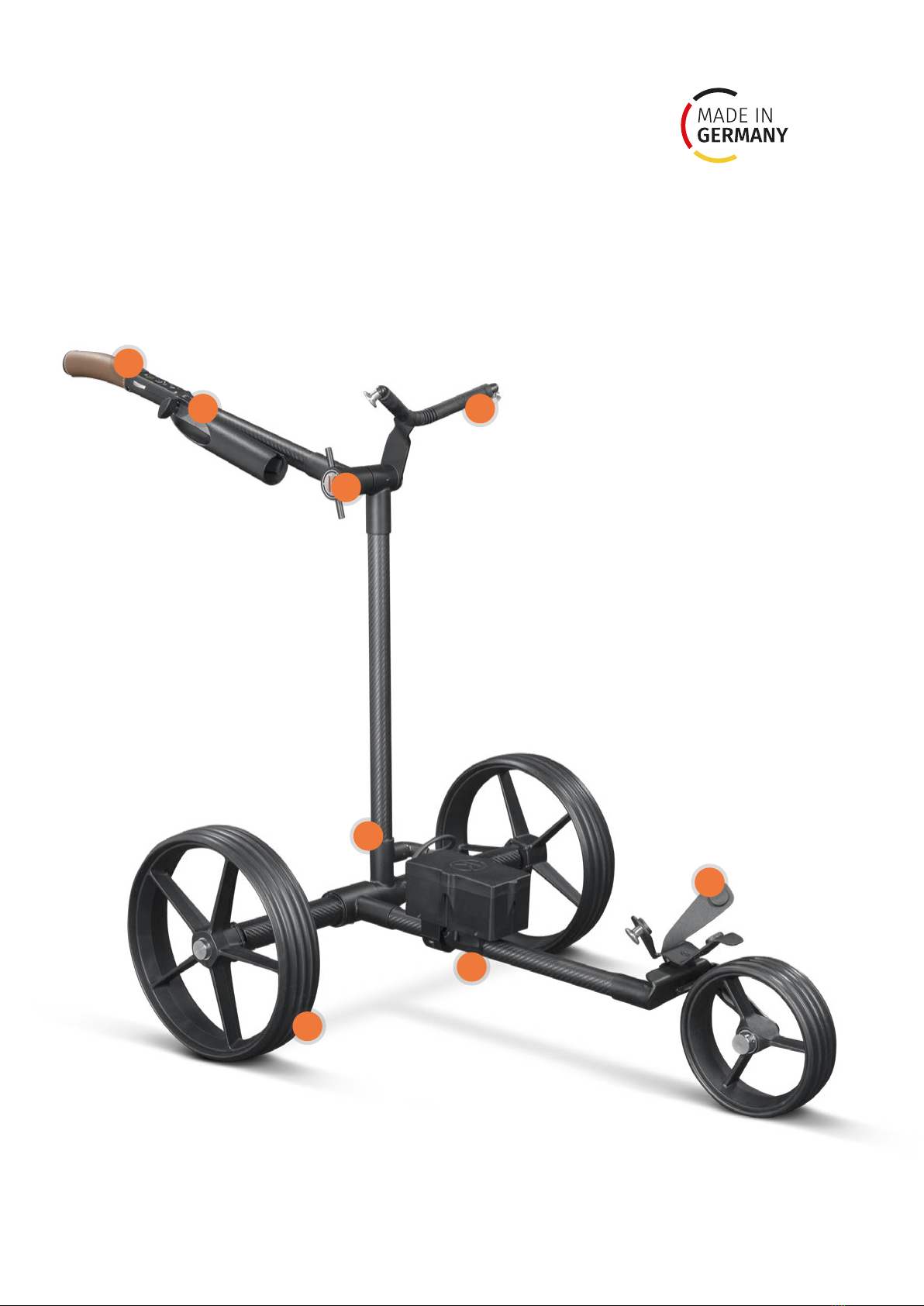

Practical battery mounting
on the lower bar.
Convenient magnetic plug
for ultra-quick and secure
battery connection.
3
7
8
4
1
2Upper bag holder
with attachment points for xing
the bag using rubber cords at top
and bottom.
Lower bag holder
Unique, clear control unit
without double assignment
of the function keys.
Secure click fastener at
the press of a button
for easy mounting of the GRP wheels
with cushioning EVA foam treads.
Height-adjustable handlebar
with wing handle for
individual ne adjustment.
Umbrella holder
4

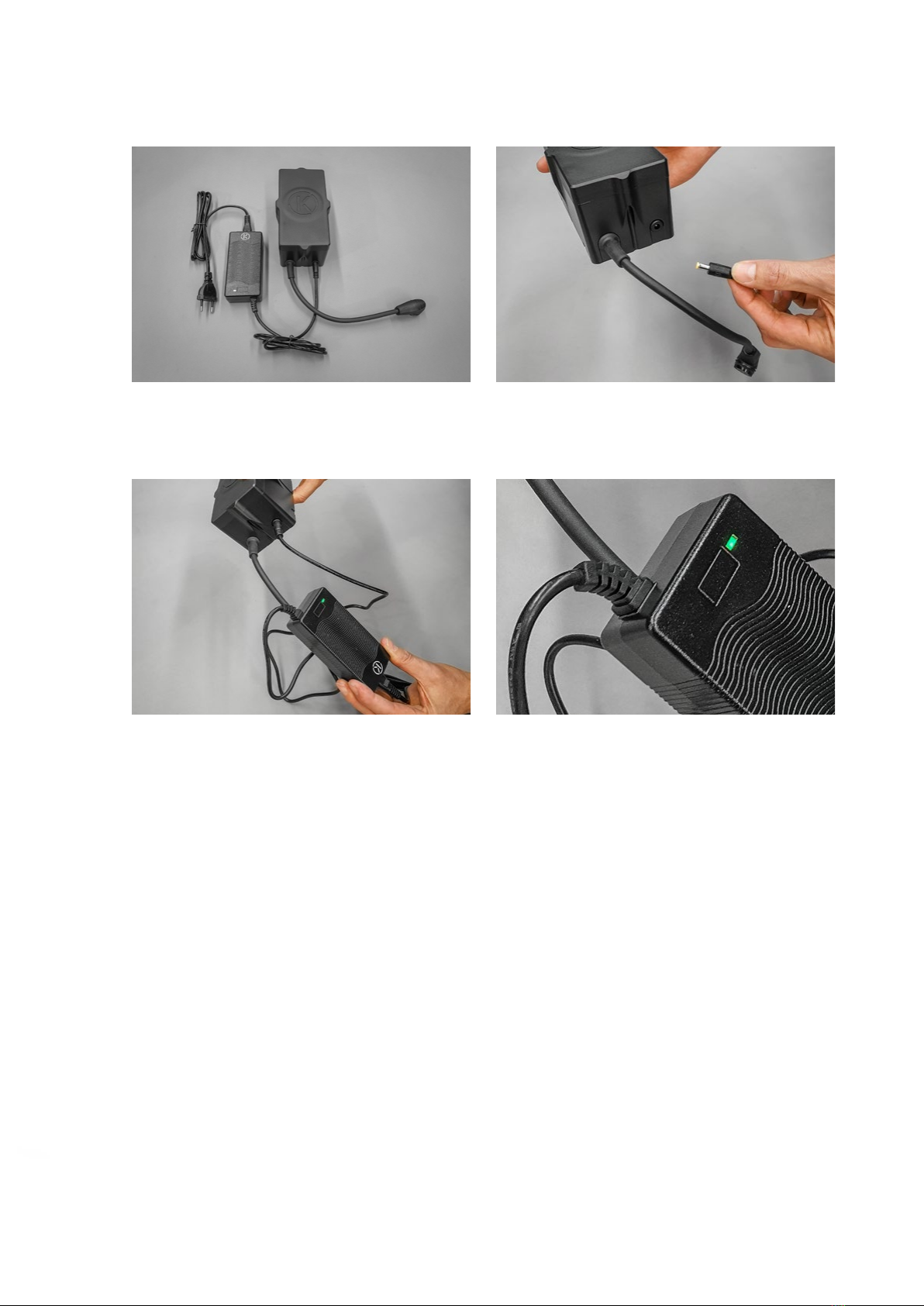

Charger connected to the mains power supply
The battery and charger are not connected properly
until a noticeable resistance at the battery connection
has been overcome. Charging can start.
Connecting the charger to the battery
Charge the battery for 24 hours non-stop before
using the trolley for the rst time.
CHARGING THE BATTERY
5

Drive pin: The engine meshes
with the wheel’s adapter plate.
Locking mechanism
Drive system
‘Freewheel’ locking
mechanism without
motor connection
FITTING THE DRIVE WHEELS
FITTING THE FRONT WHEEL
Attach the wheel. Press and hold the metal button
with the palm of your hand when attaching the
wheel. Slide in to the stop (axle groove).
Rear of drive wheel
When you release the button, the lock grips the axle.
Attach the wheels. Press and hold the metal button-
when attaching the wheel. Slide in to the stop (rear
axle groove).
When you release the button, the lock grips the axle.
The front groove on the axle is used as a locking
mechanism for freewheeling without using the motor.
6

Fastening the battery with the cable to the rear axle
on the lower bar.
Front edge ush with the permanently mounted batte-
ry support. Battery connection via magnetic plug. The plug points horizontally to the front. Flashing signal on the upper
control unit indicates successful battery connection.
Do not allow the plug to touch the oor to avoid
contamination.
Securing the upper handlebar section All trolley components
ASSEMBLY
FITTING THE BATTERY
7

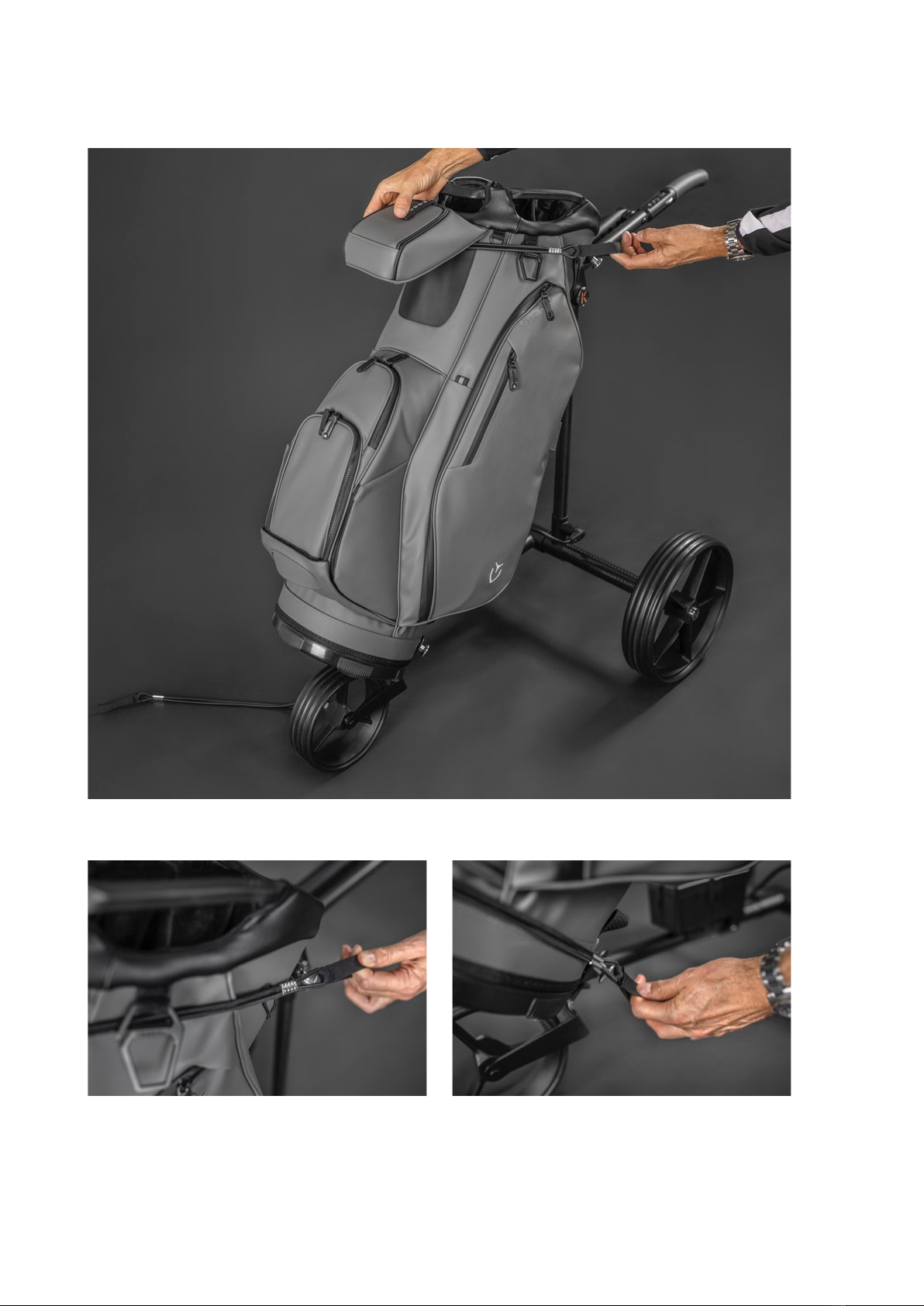

Place the golf bag on the trolley.
Secure the bag to the lower bag holder by attaching
the rubber cords to the mounting point.
Secure the bag to the upper bag holder by attaching
the rubber cords to the mounting point.
WARNING:
The bag rest is xed, i.e. it cannot be adapted to t
various bag sizes.
ATTACHING A GOLF BAG
8

VIDEO
watch on our youtube
channel

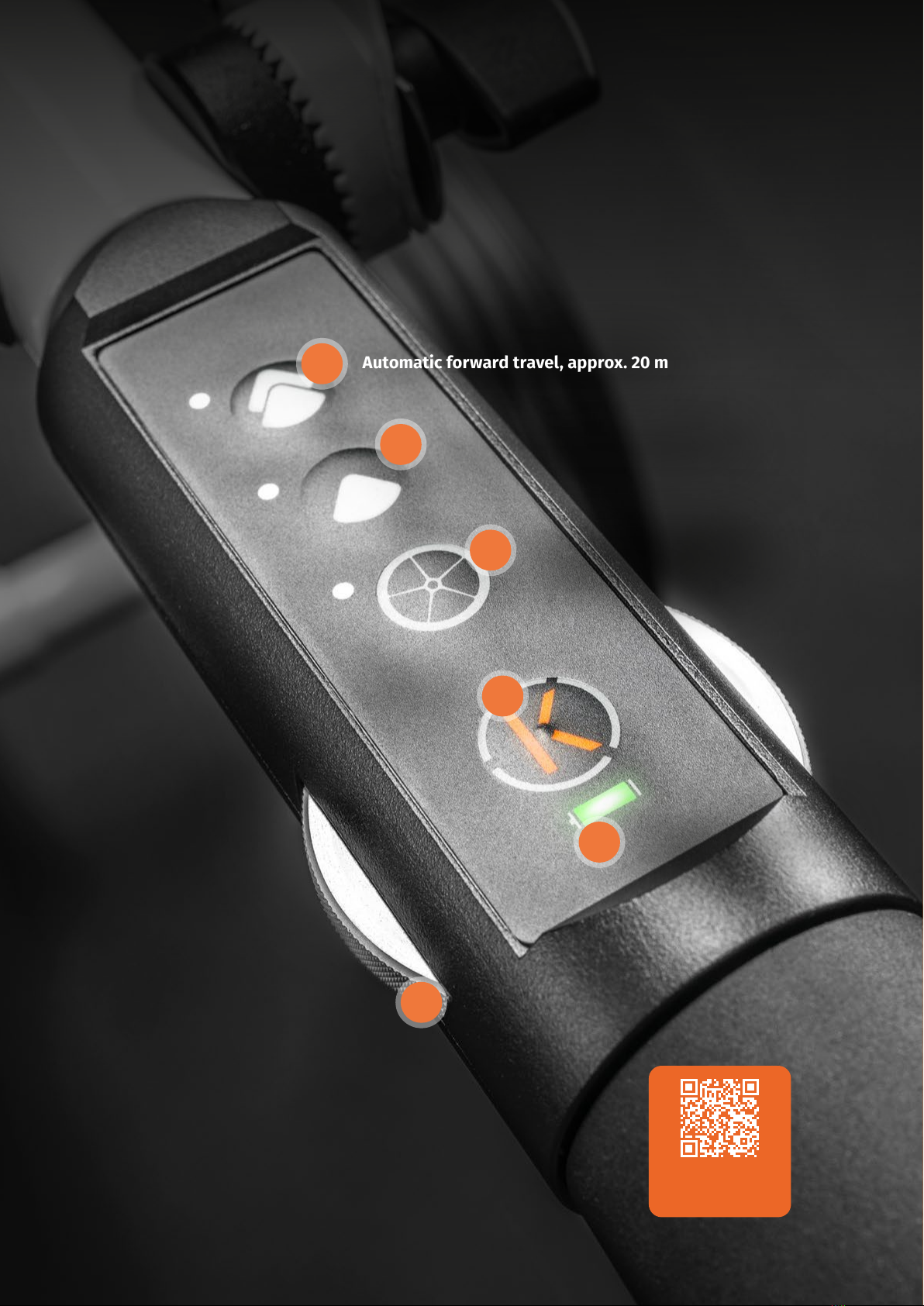

Automatic forward travel, approx. 20 m
Automatic forward travel, approx. 10 m
Electronic freewheel mode
Manoeuvre in the opposite direction
to the direction of travel
Start and stop
Battery capacity indicator
3 LEDs show the
battery charge status
Speed controller
Innitely variable and continuous
1
3
2
4
5
6
CONTROL UNIT
IN DETAIL
9

COMMISSIONING
AND HANDLING
1
3 4
2

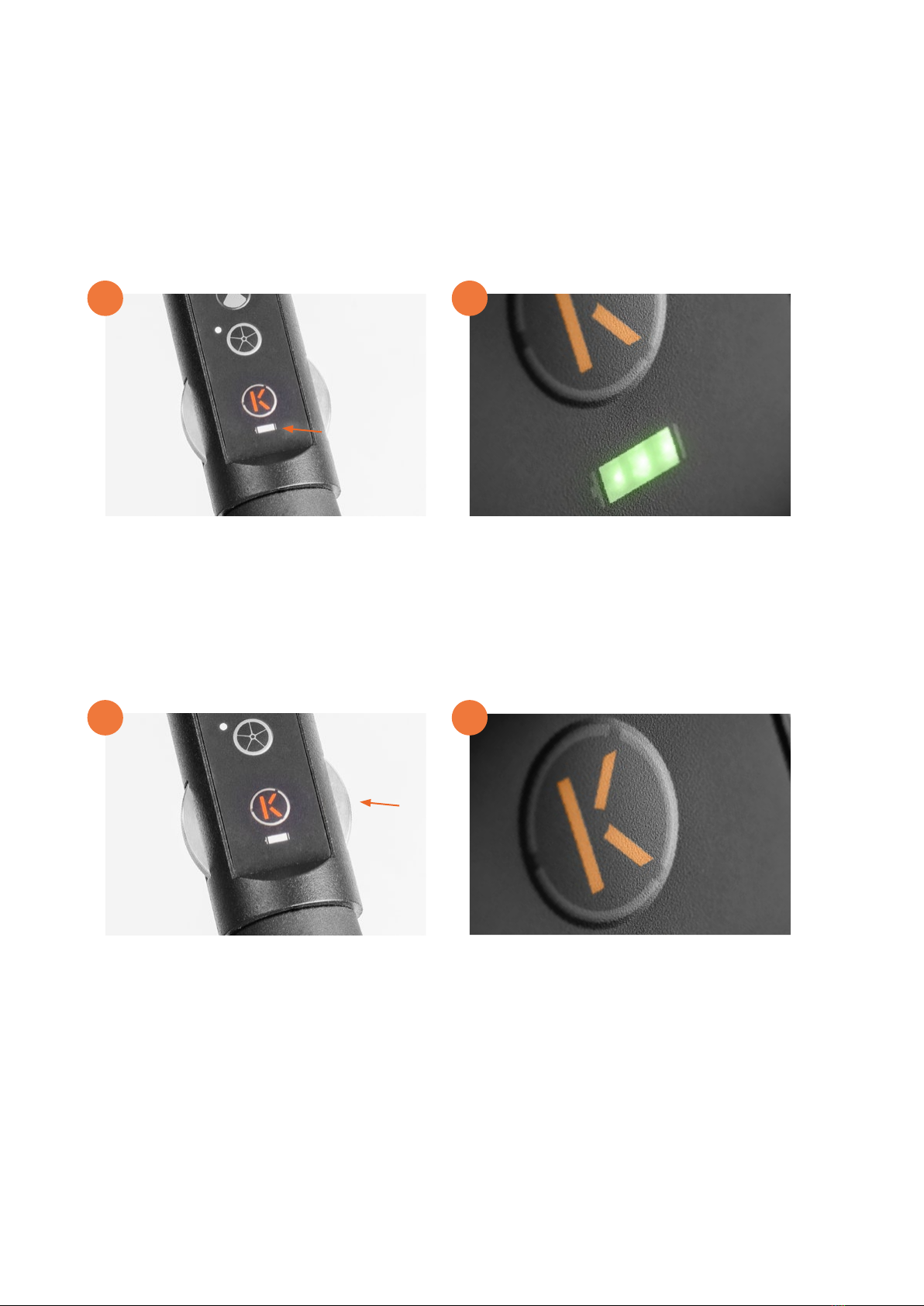

The trolley is ready to start when the LEDs under
the ‘K’ are illuminated continuously. The battery
charge status indicator has 3 LEDs.
Turn the rotary knob to start moving your trolley.
This speeds up or slows down the trolley. The
speed controller (continuous wheel) can be con-
trolled either from the left or right.
Turn clockwise to make the trolley travel faster.
Turn counter-clockwise to slow down the trolley.
The trolley has a speed memory feature, which
saves the last speed of travel (when you press the
Start/Stop button). To travel at the preset speed,
all you have to do is press the Start/Stop button.
Switch on the trolley by pressing the Start/
Stop button ‘K’ briey. The battery charge status
indicator lights up. 3 x green = full charge. As the
trolley is used, this reduces to 2 x green, 1 x green,
orange, red = almost empty.
10
