Kikusui KJM6310 User manual

KJM
6310
Part No. Z1-003-062
,
IA003161
Jan. 200
4
O
PERATI
O
N MANUA
L
Time Interval
J
itter Meter

Use of Operation Man ual
Please read through and understand this Operation Manual before operating the prod -
uct. After reading, al w ays k eep the manual nearby so that you may refer to it as
needed. When mo ving the product to another location, be sure to bring the manual as
well.
If you fi nd an y incorrectly arranged or missing pages in this manual, the y will be
replaced. If the manual it gets lost or soiled, a ne w cop y can be pro vided for a fee. In
either case, please contact Kikusui distrib utor/agent, and pro vide the “Kikusui P art
No. ” gi v en on co v er .
This manual has been prepared with the utmost care; ho we v er , if you ha v e an y ques -
tions, or note an y errors or omissions, please contact Kikusui distrib utor/agent.
Microsoft and V isual Basic are re gistered trademarks of Microsoft Corp., U.S.A.
Reproduction and reprinting of this operation manual, whole or partially , without our
permission is prohibited.
Both unit specifi cations and manual contents are subject to change without notice.
© 2004 Cop yright Kikusui Electronics Corporation
Printed in Japan

KJM6310 Safety Symbols I
Saf ety Symbols
F or the safe use and safe maintenance of this product, the
following symbols are used throughout this manual and on
the product. Understand the meanings of the symbols and
observe the instructions they indicate (the choice of sym-
bols used depends on the products).
Indicates that a high voltage (over 1000 V) is used here.
Touching the part causes a possibly fatal electric shock.
If physical contact is required by your work, start work
only after you make sure that no voltage is output here.
Indicates an imminently hazardous situation which, if
ignored, will result in death or serious injury.
Indicates a potentially hazardous situation which, if
ignored, could result in death or serious injury.
Indicates a potentially hazardous situation which, if
ignored, may result in damage to the product and other
property.
Shows that the act indicated is prohibited.
Is placed before the sign “DANGER,” “WARNING,” or
“CAUTION” to emphasize these. When this symbol is
marked on the product, see the relevant sections in this
manual.
Indicates a protective conductor terminal.
Indicates a chassis (frame) terminal.
OR
WARNING
CAUTION
DANGER

II Safety Precautions KJM6310
Saf ety Precautions
The f ollowing safety precautions must be observed to avoid
fire hazard, electrical shock, accidents, and other failures.
Keep them in mind and make sure that all of them are
observed properly.
User s
• This product must be used only by qualified
personnel who understand the contents of
this operation manual.
• If it is handled by disqualified personnel, per-
sonal injury may result. Be sure to handle it
under supervision of qualified personnel
(those who have electrical knowledge.)
• This product is not designed or produced for
home-use or use by general consumers.
Purposes of use
• Do not use the product for purposes other
than those described in the operation manual.
Input power
• Use the product with the specified input
power voltage.
•
•
Cover
• There are parts inside the product which may
cause physical hazards. Do not remove the
external cover.
Installation
• When installing products be sure to observe
"1.2 Installation" described in this manual.
Operation
Manual
Line
Voltage

KJM6310 Safety Precautions III
Relocation
• Turn off the power switch and then disconnect
all cables when relocating the product.
• Be sure the operation manual be included
when the product is relocated.
Maintenance and checking
• To avoid electrical shock, be absolutely sure
to unplug the AC power cord or stop applying
power before performing maintenance or
checking.
• To maintain performance and safe operation
of the product, it is recommended that peri-
odic maintenance, checking, cleaning, and
calibration be performed.
Service
• Internal service is to be done by Kikusui ser-
vice engineers. If the product must be
adjusted or repaired, contact Kikusui agent/
distributor.
• Do not disassemble or modify the product. If
it must be modified, contact Kikusui distribu-
tor/agent.

IV Overvoltage category KJM6310
Over v olta g e categor y
F or the safe use of equipment, IEC60664 (Insulation coordi-
nation for equipment within low-voltage systems) classifies
circuits into four categories by an occurrence level of tran-
sient voltage. When you connect equipment to a power line
or connect a measuring instrument to these places, make
sure of the applied overvoltage category. This instrument is
designed to operate from the overvoltage category II.
Overvoltage category I
• Equipment of o v erv oltage cate gory I is equipment for connec -
tion to circuits in which measures are tak en to limit transient
o v erv oltages to an appropriately lo w le v el.
Examples are protected electronic circuits.
Ov er v oltage categor y II
• Equipment of o v erv oltage cate gory II is ener gy-consuming
equipment to be supplied from the fi x ed installation.
Examples of such equipment are appliances, portable tools and
other household and similar loads.
If such equipment is subjected to special requirements with
re g ard to reliability and a v ailability , o v erv oltage cate gory III
applies.
Ov er v oltage categor y III
• Equipment of o v erv oltage cate gory III is equipment in fi x ed
installations and for cases where the reliability and the a v ail -
ability of the equipment is subject to special requirements.
Examples of such equipment are switches in the fi x ed installa -
tion and equipment for industrial use with permanent connec -
tion to the fi x ed installation.
Ov er v oltage categor y IV
• Equipment of o v erv oltage IV is for use at the origin of the
installation.
Example of such equipment are electricity meters and primary
o vercurrent protection equipment.

KJM6310 Overvoltage category V
Switchboard
Overvoltage category IV
Overvoltage category III
Overvoltage category IIOvervoltage category I
Transformer
Equipment
Drop wire
Indoor wiring
AC line
Receptacle

VI Overvoltage category KJM6310

KJM6310 Contents VII
Contents
Safety Symbols- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - I
Safety Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - II
Overvoltage category - - - - - - - - - - - - - - - - - - - - - - - - - - - IV
Preface P-1
Chapter 1 Setup 1-1
1.1 Checking the Package Contents - - - - - - - - - - - - - - - - - - - - - 1-1
1.2 Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2
1.3 Precautions When Moving the KJM6310 - - - - - - - - - - - - - - - 1-4
1.4 Connecting the DC Power Supply- - - - - - - - - - - - - - - - - - - - 1-4
Chapter 2 Names and Functions of Parts 2-1
2.1 Front Panel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1
2.2 Rear Panel- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-2
Chapter 3 Operation 3-1
3.1 Connecting the Signal - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1
3.2 Function Setup- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-5
3.3 Trigger Edge Selection - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-6
3.4 Symmetry and Slice Level - - - - - - - - - - - - - - - - - - - - - - - - - 3-8
3.5 Delay Adjustment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-11
Chapter 4 RS-232C Control 4-1
4.1 Cable Connection and Initial Setup - - - - - - - - - - - - - - - - - - - 4-1
4.2 Messages and Terminators- - - - - - - - - - - - - - - - - - - - - - - - - 4-2
4.2.1 Messages - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-2
4.2.2 Terminator - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-2
4.3 Device Messages - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-3
4.4 Sample Program- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-13
Chapter 5 Maintenance 5-1
5.1 Cleaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-1
5.2 Inspection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-1
5.3 Calibration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-1
5.4 Troubleshooting- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-2

VIII Contents KJM6310
Chapter 6 Specifications 6-1
6.1 Electrical Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - 6-1
6.2 General Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-3
6.3 External Dimensions - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-4

KJM6310 Preface P-1
Preface
About This Manual
This operation manual describes the KJM6310 Time Interval Jitter
Meter.
■ROM version of the product to which this manual
applies
• Ver. 1.0 X
The *IDN? message is used to verify the version. For a description of
the *IDN? message, see chapter 4, “RS-232C Control."
When contacting us about the product, please provide us the version
number and the manufacturing number that are attached to the rear
panel.
Product Overview
The KJM6310 is an instrument used to measure jitters of CDs. It can
measure the RF to CLOCK jitter by the time interval method.
The KJM6310 can be used for the development, adjustment, and
inspection of optical pickups.
It is a compact unit for embedded applications that is designed to
maximize the work efficiency on the production line.
To provide the KJM6310 at low cost, the item to be measured has
been limited to CDs, and meters and panel switches have been
removed. The KJM6310 is designed to be used on a single adjustment
line. However, peripheral circuits required for making measurements
such as symmetry follow-up circuit, PLL clock regeneration circuit,
and phase-difference correction circuit are equipped as standard.

P-2 Preface KJM6310

KJM6310 Setup 1-1
Chapter 1 Setup
This chapter describes the procedures of unpacking and preparation
of the KJM6310 before use.
1.1 Checking the Package Contents
When you receive the product, check that all accessories are included
and that the product and accessories have not been damaged during
transportation. Fig. 1-1 gives a list of accessories.
If any of the accessories are damaged or missing, contact your
Kikusui agent or distributor.
Fig.1-1 Accessories
•We recommend that all packing materials be saved, in case
the product needs to be transported at a later date.
Stand (2 pcs.)
[E7-000-002]
Operation manual (1 pc.)
[Z1-003-062]
Attachment screws (4 pcs.)
[M3-012-021]
DC plug (1 pc.)
[91-82-1610]
KJM6310
Part No. Z1-003-060,IA003151
Aug. 2003
OPERATION MANUAL
Time Interval Jitter Meter
NOTE

1-2 Setup KJM6310
1.2 Installation
How to install the KJM6310
■ The KJM6310 is designed for embedded application
and provides attachment screw holes on the side
and bottom panels. To fix the KJM6310 in place, use
these screw holes. If you are not fixing the KJM6310
in place, attach the stand provided to the bottom
panel and place the KJM6310 so that it stands up.
Secure adequate space around the KJM6310 so
that air can circulate around it.
Precautions concerning installation location
This section describes the precautions to be taken when installing the
KJM6310. Make sure to observe them.
■ Do not use the KJM6310 in a flammable atmosphere.
To prevent the possibility of explosion or fire, do not use the
KJM6310 near alcohol, thinner or other combustible materials, or in
an atmosphere containing such vapors.
■Avoid locations where the KJM6310 is exposed to
high temperature or direct sunlight.
Do not place the KJM6310 near a heater or in areas subject to drastic
temperature changes.
Operating temperature range: 0 °C to 40 °C
Spec guaranteed temperature range: 15 °C to 35 °C
Storage temperature range: -20 °C to 60 °C
30 mm or more 30 mm or more
30 mm or more
30 mm
or more
30 mm
or more
30 mm
or more
[When using the stand]

KJM6310 Setup 1-3
■Avoid humid environments.
Do not place the KJM6310 in high-humidity locations--near a boiler,
humidifier, or water supply.
Operating humidity range: 20 % to 85 % RH (no condensation)
Storage humidity range: 0 to 90 % RH (no condensation)
Condensation may occur even within the operating humidity range.
In such cases, do not use the KJM6310 until the condensation dries
up completely.
■ Do not place the KJM6310 in a corrosive atmosphere.
Do not install the KJM6310 in a corrosive atmosphere or in environ-
ments containing sulfuric acid mist, etc. This may cause corrosion of
various conductors and bad contacts of connectors inside the
KJM6310 leading to malfunction and failure, or in the worst case, a
fire.
■Do not place the KJM6310 in a dusty location.
Accumulation of dust can lead to electric shock or fire.
■Do not place the KJM6310 on an inclined surface
or location subject to vibrations.
The KJM6310 may fall or tip over causing damages and injuries.
■Do not use the KJM6310 in a location subject to
strong magnetic or electric fields.
The KJM6310 may malfunction and cause electric shock or fire.
■Do not place objects on top of the KJM6310.
Placing objects on top of the KJM6310 can cause failures (especially
heavy objects).

1-4 Setup KJM6310
1.3 Precautions When Moving the KJM6310
When moving the KJM6310 to the installation location or when
transporting the unit, note the following points.
■Always turn off the POWER switch.
Moving the KJM6310 with the power on may result in electric shock
or damage.
■When moving the KJM6310, remove all wires that
are connected.
Moving the KJM6310 with the cables connected can cause wires to
break or injuries due to the KJM6310 falling over.
■When transporting the KJM6310, be sure to use
the original packing materials.
If packing materials are not used, damage may result from vibrations
or from the KJM6310 falling during transportation. If you need pack-
ing materials, contact your Kikusui agent or distributor.
1.4 Connecting the DC Power Supply
Using the DC plug provided, connect a 15-V DC power supply to the
DC INPUT connector on the rear panel.
Input line voltage range 14.5 VDC to 15.5 VDC
•Be sure the polarity of the connector is correct. If the
polarity is reversed, the internal fuse will blow.
• Do not connect a power supply outside the input line
voltage range as it may cause a malfunction.
•The KJM6310 is designed to be connected to a power
supply classified as Overvoltage Category I (SELV-E).
Do not connect to a power supply classified as Over-
voltage Category II, III, or IV. For a description of the
Overvoltage Category, see “Overvoltage Category” on
page IV.
+
–
+
–
With a white line
Polarity
+
–
CAUTION
WARNING

KJM6310 Names and Functions of Parts 2-1
Chapter 2 Names and Functions of Parts
This chapter describes the names and functions of switches, displays,
connectors, and other parts of the front panel and rear panel.
2.1 Front Panel
POWER switch
IN MEAS RANGE LED
ERROR LED RF SIGNAL INPUT connector
(BNC)
CLOCK INPUT connector
(BNC)
Illuminates when
measurement can be made and
the measured value is less than
or equal to 20 %. This LED
illuminates for approximately
1 s for self-testing at power-
up.
Error detection LED. This LED
illuminates when an error
occurs such as when the RF
signal is not connected, when
the signal amplitude is
insufficient, or when the clock
frequency is not correct. This
LED illuminates for
approximately 1 s for self-
testing at power-up. If an error
is detected during the self-test,
the LED changes to blinking.
In addition, the LED
illuminates for a certain period
when a communication error
occurs on the RS-232C
interface.
Switch used to turn on/off the
power. When the power is on,
the LED at the top section of
the switch illuminates.
RF signal input.
The input impedance is
approximately 50 Ω.
Clock signal input.
The input impedance is
approximately 50 Ω.

2-2 Names and Functions of Parts KJM6310
2.2 Rear Panel

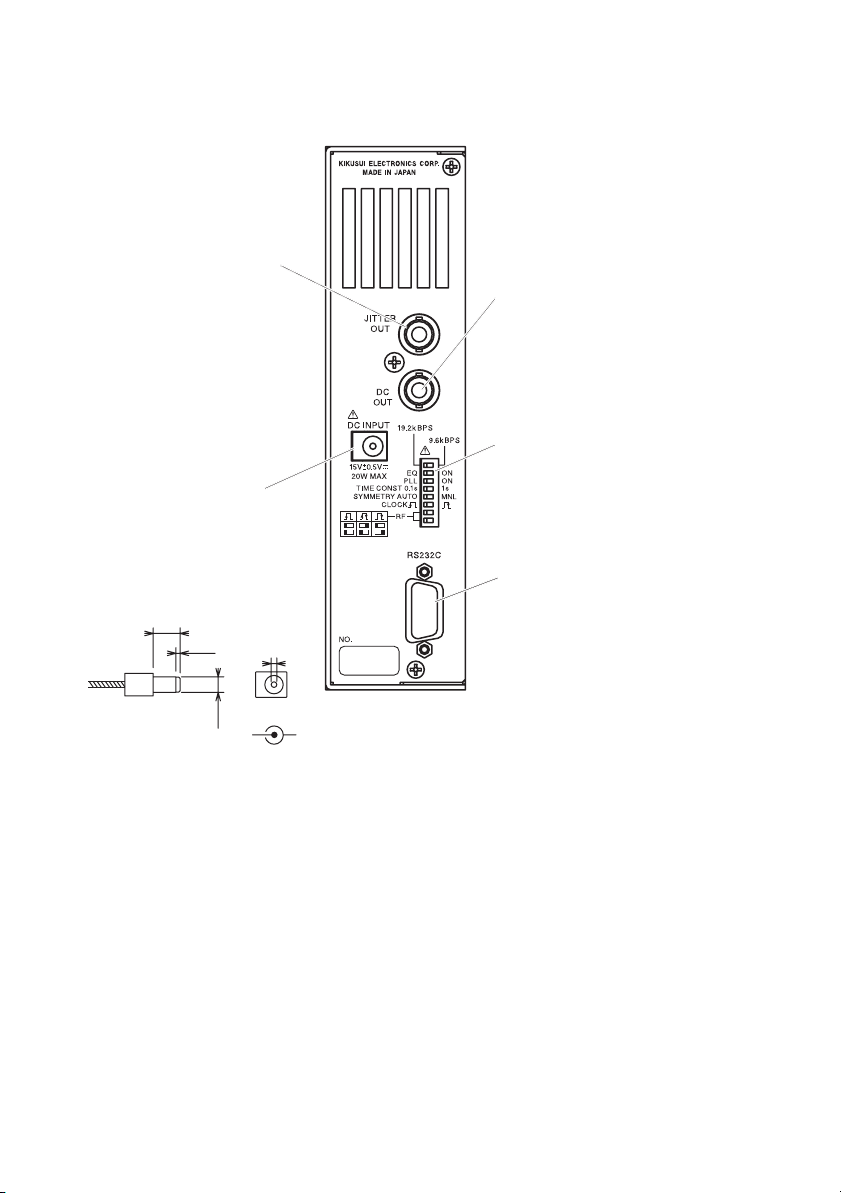

RS-232C connector
Function setup switches
DC OUT connector (BNC)
DC INPUT connector
JITTER OUT connector
(BNC)
Outputs DC voltage that is
proportional to the measured
value. (0.2 V/%)
The output impedance is
approximately 600 Ω.
Outputs the jitter sampling
waveform before it is
converted to rms values.
The output impedance is
approximately 600 Ω.
DC INPUT connector
Used to connect the input
power cable.
Compatible plug
EIAJ RC-6705
These switches are used to set
the functions of the KJM6310.
Connector for external
control.
(D-SUB 9 pin, attachment
screws M2.6).
9.5
1.5 Pin 2.0DIA
φ5.5
–
+

KJM6310 Operation 3-1
Chapter 3 Operation
This chapter describes the basic operations of the KJM6310 from the
panel.
3.1 Connecting the Signal
Connect the RF signal to the RF SIGNAL INPUT connector.
To measure time intervals using two signals, connect the clock signal
to the CLOCK INPUT connector.
Refer to the figures to connect the DUT to the KJM6310 and set the
functions according to the input signal.
1.Time interval jitter measurement using sliced RF signal and regen-
erated clock signal (measurement using two binary-coded signals)
*1 Do not turn both RF EDGE switches to (ON).
Fig.3-1
Function setup switches
PLL OFF
SYMMETRY MANUAL
CLOCK EDGE Any
RF EDGE *1
either
CD player, etc. KJM6310
Sliced RF signal
Clock signal
Clock
regeneration
circuit
SlicerPickup

3-2 Operation KJM6310
2.Time interval jitter measurement using pickup output signal and
regenerated clock signal
*1 Use RS-232C control
*2 Do not turn both RF EDGE switches to (ON).
Fig.3-2
Function setup switches
PLL OFF
SYMMETRY AUTO (or AUTO+OFST)*1
CLOCK EDGE Any
RF EDGE *2
positive either negative
CD player, etc. KJM6310
Clock signal
Clock
regeneration
circuit
SlicerPickup
Pickup
output signal
