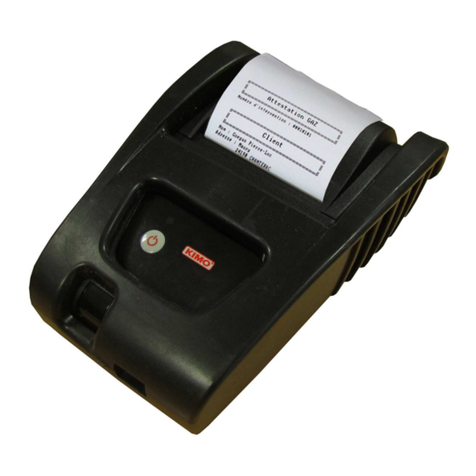

Kimo KIMP23 User manual

KIMP23 remote printer for
AMI310 portable
instrument
In order to have a correct printing, infrared sensors of the printer and AMI 310 must
be face each other (see pictures above).
➢ Press On/Off button of the printer to turn it on.
➢ Press Imprim” function key of the AMI 310 on the measurement screen.
Measurement results are printing on the ticket.
➢ Press On/Off button when printing is finished to turn the printer off.
Print values during the measurement
Infrared sensor
Infrared sensor
)))
IR
Technical features
Dimensions (without protective cover) : 85.5 mm 150 mm 55 mm
Weight (without protective cover) : 400 g
Operating temperature : from 0 to 50 °C
Storage temperature : from -20 to +60 °C
KIMP23 remote printer for
AMI310 portable
instrument
In order to have a correct printing, infrared sensors of the printer and AMI 310 must
be face each other (see pictures above).
➢ Press On/Off button of the printer to turn it on.
➢ Press Imprim” function key of the AMI 310 on the measurement screen.
Measurement results are printing on the ticket.
➢ Press On/Off button when printing is finished to turn the printer off.
Print values during the measurement
Infrared sensor
Infrared sensor
)))
IR
Technical features
Dimensions (without protective cover) : 85.5 mm 150 mm 55 mm
Weight (without protective cover) : 400 g
Operating temperature : from 0 to 50 °C
Storage temperature : from -20 to +60 °C

NTang_imprimante-KIMP23_04/12/14 – RCS (24) Périgueu 349 282 095 Non-contractual document – We reserve the right to modify the characteristics of our products without prior notice.
Changer le rouleau de papier
➢ Raise the upper part of the printer pulling up the transparent part.
➢ Put a new paper roll (Both sides of the paper are different : the brightest side is the
printed side and must faced the user).
➢ Pull up about 0.50 cm of paper.
➢ Close the upper part of the printer.
Upper part
Paper location Introduction of
the paper roll
Paper properly
introduced
Changer les piles
➢ Remove the protective cover of the printer.
➢ Remove the batteries cover.
➢ Remove the used batteries.
➢ Put some new 1.5V LR6 AA batteries observing proper polarity.
➢ Put the battery cover.
Transparent
part
Change the paper roll
Change the batteries
Batteries cover
LED indications
The LED above the On/Off button has several meanings>:
➢ Continuous green>: printer turned on and ready to operate
➢ Sequence of one flash>: paper is missing or there is not any paper out the printer → put a
paper roll or let 0.5 cm of paper out
➢ Sequence of 2 flashes>: thermal too hot → let the head cool down
➢ Sequence of 3 flashes>: discharged → change batteries
NTang_imprimante-KIMP23_04/12/14 – RCS (24) Périgueu 349 282 095 Non-contractual document – We reserve the right to modify the characteristics of our products without prior notice.
Changer le rouleau de papier
➢ Raise the upper part of the printer pulling up the transparent part.
➢ Put a new paper roll (Both sides of the paper are different : the brightest side is the
printed side and must faced the user).
➢ Pull up about 0.50 cm of paper.
➢ Close the upper part of the printer.
Upper part
Paper location Introduction of
the paper roll
Paper properly
introduced
Changer les piles
➢ Remove the protective cover of the printer.
➢ Remove the batteries cover.
➢ Remove the used batteries.
➢ Put some new 1.5V LR6 AA batteries observing proper polarity.
➢ Put the battery cover.
Transparent
part
Change the paper roll
Change the batteries
Batteries cover
LED indications
The LED above the On/Off button has several meanings>:
➢ Continuous green>: printer turned on and ready to operate
➢ Sequence of one flash>: paper is missing or there is not any paper out the printer → put a
paper roll or let 0.5 cm of paper out
➢ Sequence of 2 flashes>: thermal too hot → let the head cool down
➢ Sequence of 3 flashes>: discharged → change batteries
