kincrome K12070 User manual

VEHICLE SUPPORT STANDS
K12070
Distributed by Kincrome Tools & Equipment
www.kincrome.com.au

Owner’s Assembly and Operating Manual
SPECIFICATIONS..................................................................................................................2
IMPORTANT SAFETY INFORMATION ..................................................................................3
UNPACKING AND ASSEMBLING JACK................................................................................3
Unpacking Carton ...............................................................................................................3
Assembly.............................................................................................................................3
Preparing Work Area...........................................................................................................3
Lifting Vehicle......................................................................................................................4
Working on Vehicle .............................................................................................................5
Lowering Vehicle.................................................................................................................5
MAINTENANCE AND STORAGE...........................................................................................5
Cleaning..............................................................................................................................5
Storage................................................................................................................................5
Repairing.............................................................................................................................5
SPECIFICATIONS
Working Load Limit 1350 KG
Height Lowered 252 mm
Height Raised 370 mm
Total Weight: 3.8 KG
Base Dimensions: 195mm x 170mm
Part Number K12070

IMPORTANT SAFETY INFORMATION
The use of vehicle support stands has inherent dangers to avoid risk of personal injury or property damage
make sure you are fully aware of the operating instructions for this product, the recommendations in the
vehicle owners manual for jacking of your vehicle and the safe usage instruction for the jack you will use; all
prior to lifting the vehicle. Do not exceed maximum working load limit of these support stands. These
stands are intended for automotive use only. Be aware that large or heavy vehicles may exceed the stands
stated capacity check vehicle owners manual or contact the vehicle manufacturer. Do not use for any other
purpose except the supporting of a raised vehicle, never use to support any structure or building, do not
support any human load.
UNPACKING AND ASSEMBLING
Unpacking Carton
Place carton in a clear, open area such as garage floor. Remove
support stand bases, upper columns, and retaining clips from carton.

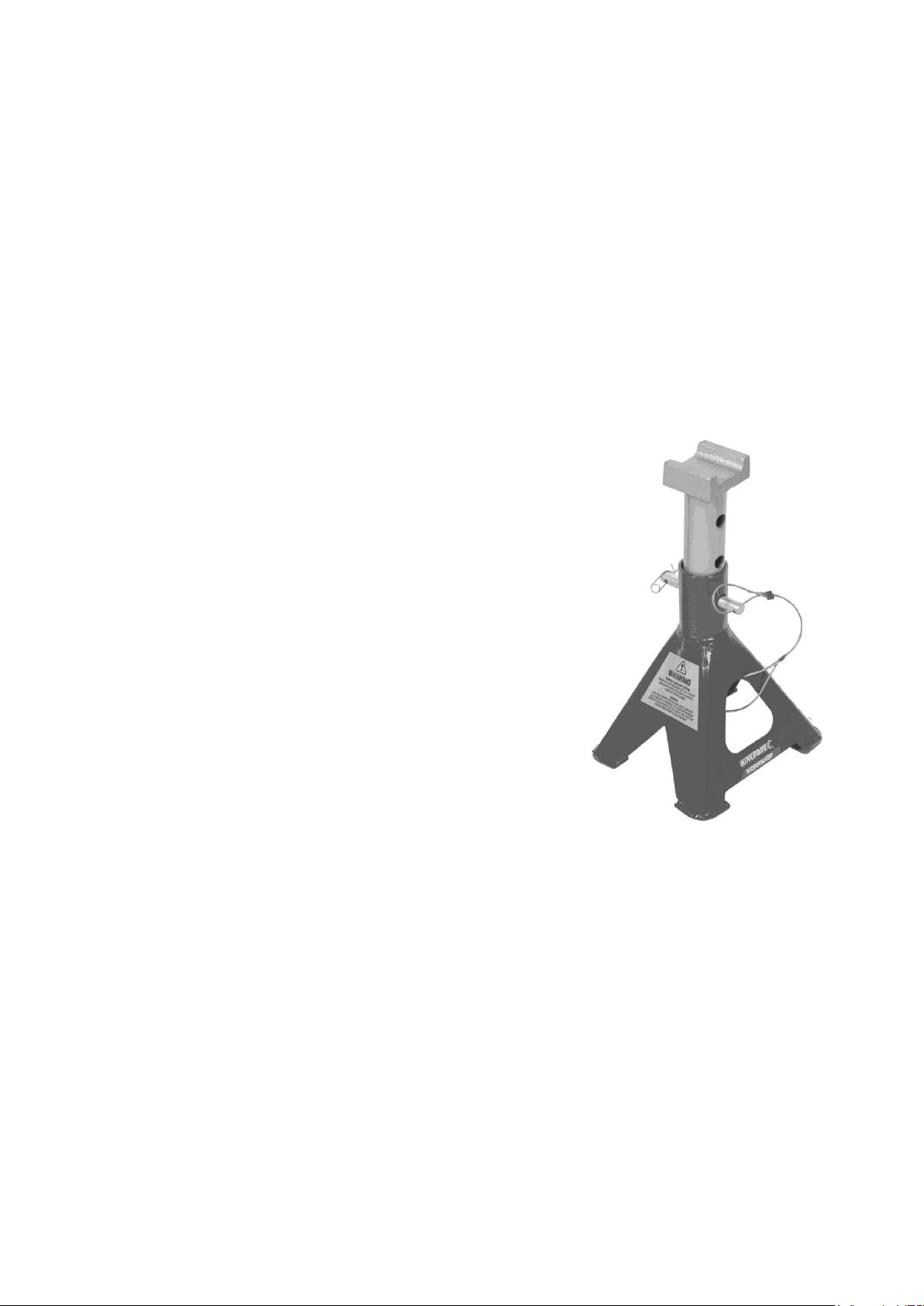

Assembly
Place a base securely on the floor. Insert the upper column into the
lower column section of base as far as it will go. While inserted
install the spring retaining clips to the upper column from the under
side of the base –the clips prevent over extension of the vehicle
support stand. Repeat for both stands
Raise the upper column until the desired height is reached and the
hole lines up with the lower column and insert the support pin –do not exceed the maximum height raised of
the vehicle support stand. Support pin’s are attached to the stand by a metal lanyard do not remove from
the stand. Do not substitute the support pin with any other material or item.
Preparing Work Area
Before using vehicle support stands and a jack to lift vehicle, it is important to prepare work area properly.
Follow this procedure each time a jack and support stands are used to help prevent property damage and or
serious injury.
1.) Thoroughly inspect vehicle support stands for damage or wear before each use. Briefly test operation of
unloaded stands before using to support any load. If vehicle support stands are damaged or are
malfunctioning DO NOT USE TO SUPPORTANY LOAD until the problem is corrected.
2.) Consult vehicle owner’s manual for safety precautions, jacking procedure, vehicle weight, recommended

jack type, and location of jack and vehicle support stands areas on vehicle. The working load limit of
these vehicle support stands is 1350 kg. NEVER EXCEED WORKING LOAD LIMIT.
3.) Clear children and others from work area before moving or lifting vehicle. Another adult should be
nearby for extra safety and assistance but must be clear of vehicle as it is moved or lifted.
4.) No person should remain in a vehicle that is being lifted by a jack or supported by vehicle support stands,
No person should enter a vehicle which is supported by a jack or by vehicle support stands. No person
should lean into a vehicle which is supported by a jack or by vehicle support stands.
5.) Clear obstructions from work area. Working in tight or cluttered work areas is dangerous.
6.) Be sure vehicle support stands and vehicle are on solid, level ground such as paved or concrete driveway
or garage floor. USE VEHICLE SUPPORT STANDS ON HARD LEVELSURFACE PREFERABLE
CONCRETE. Uneven or sloped surfaces create hazardous working conditions and dangerously
impeded the function of the vehicle support stands.
7.) With vehicle in proper position, set vehicle’s parking brake or emergency brake and put gearshift in park
(manual transmissions should be placed in lowest gear). TURN VEHICLE IGNITION OFF AND TO THE
“LOCK”POSITION making sure steering wheel locks.
8.) Do not rely on vehicle transmission or brakes to hold vehicle in position. CHOCK THE UNLIFTED
WHEELS OF THE VEHICLE. Chock any wheel not being lifted off the ground to prevent vehicle rolling.
Using wedge-shaped blocks that tyre cannot roll over, position one chock tight against the tyre in both
forward and reverse rolling paths.
9.) Vehicle support stands must be used to support vehicle once it is in raised position. USE VEHICLE
SUPPORT STANDS IN PAIRS. Have vehicle support stands capable of supporting vehicle weight ready
nearby for use. Read and understand vehicle support stands manufacturer’s instructions and safety
information before use and before lifting the vehicle with this jack.
10.) Plan location of jack and vehicle support stands beneath vehicle, making sure jack will be contacting
only a jack support area of vehicle and jacks stands are also positioned in a recommended jack support
area. Consult vehicle owner’s manual for location of jack support areas.
Lifting Vehicle
Lifting a vehicle using a jack can be dangerous. Follow all instructions and precautions provided by the jack
manufacturer. Do not lift any vehicle with its engine running or start any vehicle that is supported by jack or
vehicle support stands.
1.) With lifting arm completely lowered, roll jack into position beneath jack support area of vehicle.
2.) Inspect position of lifting saddle beneath support area, making sure it is centered and properly engaging
support area.
3.) Use jack until vehicle is lifted to desired height. Pay attention to lifting saddle position as vehicle is being
raised to be sure there is no danger of jack support area slipping off or lifting from the saddle.
4.) Place vehicle support stands under additional vehicle support areas. ALWAYS USE VEHICLE SUPPORT
STANDS IN PAIRS
5.) Ensure vehicle support stand locking mechanism is fully engaged.
6.) Do not extend the height of the stand beyond its maximum height
7.) Check that no part of the underbody of the vehicle will foul as the stands are positioned.

8.) SLOWLY lower vehicle down onto vehicle support stands.
9.) Lower jack so as saddle does not bear any weight but do not remove jack from jacking position.
Working on Vehicle
Any vehicle being supported by a jack or vehicle support stands creates a potentially hazardous working
environment.
Do not move or roll a jack that is supporting a vehicle. Never place any part of your body beneath a vehicle
supported by a jack use vehicle support stands. Be careful of forces applied to vehicle such as torque on a
nut or bolt. These forces could cause vehicle to become unstable on vehicle support stands if vehicle
support stands are not properly placed. Do not turn vehicle ignition or attempt to start any vehicle supported
by jack or vehicle support stands.
Lowering Vehicle
Before lowering vehicle, be sure area under and near vehicle is clear of all persons and obstructions.
1.) Re-position jack under same support area used to lift vehicle.
2.) Raise Jack until lifting saddle just makes contact with support area under vehicle.
3.) Check to be sure lifting saddle is centered under support area. Slowly lift vehicle off from vehicle support
stands.
4.) Remove vehicle support stands, setting them aside, well clear of vehicle.
5.) SLOWLY lower vehicle.
6.) Carefully control speed of descending vehicle. Lowering a vehicle too fast can cause property damage
or injury.
MAINTENANCE AND STORAGE
Cleaning
Vehicle support stands should be wiped clean with soft cloth only. Do not use gasoline, kerosene, or other
such solvents or any abrasive cleanser as cleaning agents and solvents will cause deterioration of the rust
protection coating.
Storage
Store vehicle support stands level, in a clean environment preferably indoors, in a dry area to protect stands
from moisture.
Repairing
There are no user serviceable parts. Only trained, licensed and certified repair personnel should attempt
any repairs or replacing of parts. Any modifications to this product, except those performed by the
manufacturer, or their designee, will void all warranties both written and implied.

Warranty given by KincromeAustralia Pty Ltd of 3 Lakeview Drive, Caribbean Park, Scoresby, Victoria (Tel [phone]). If this product has
materials or workmanship defects (other than defects caused by abnormal or non warranted use) you can , at your cost, send the product to
place of purchase, an authorized Kincrome service agent or one of Kincrome’s addresses for repair or replacement. Your rights under this
warranty are in addition to any other rights you have under theAustralian Consumer Law or other applicable laws. Our goods come with
guarantees that cannot be excluded under theAustralian Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
