kincrome K16003 User manual

Specifications

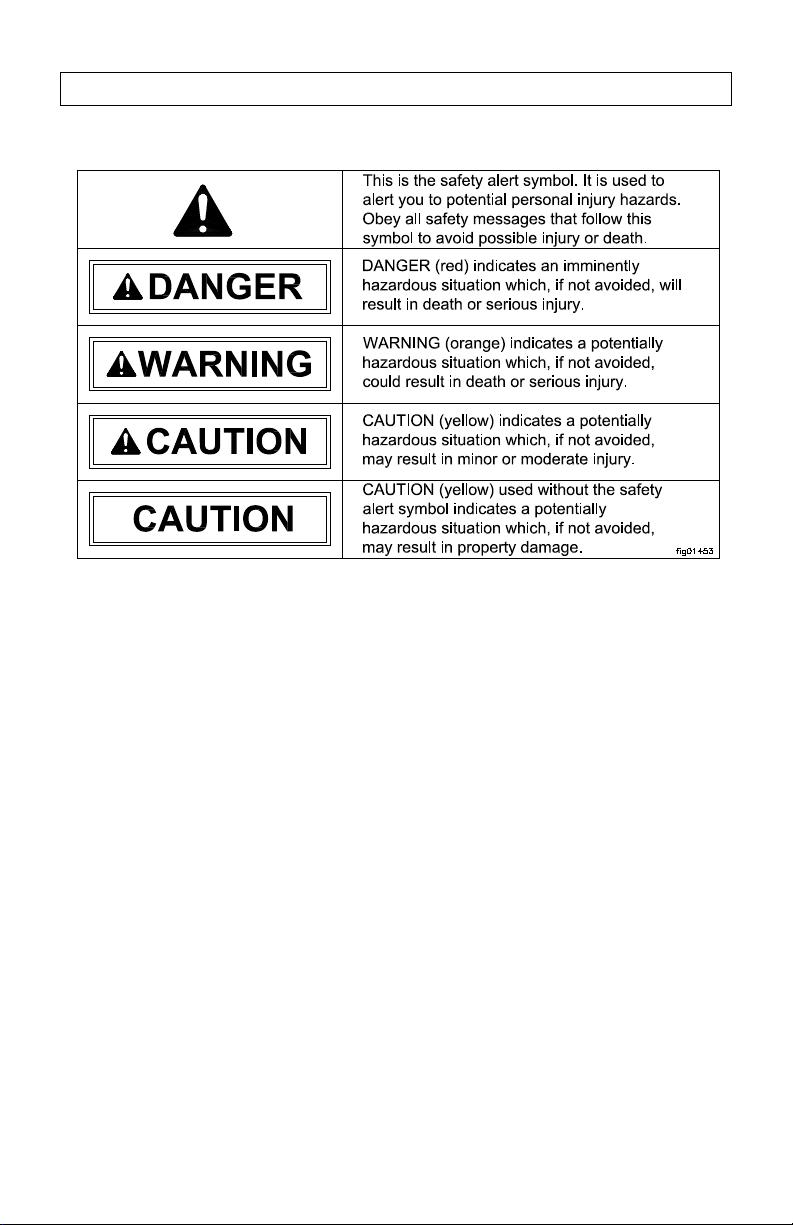

Hazard Signal Word Definitions
2
Owner’s Manual
Instructions for Assembly and Operation for sprayer models:
K16003, K16004, K16005, K16006, K16007
Pressure Regulator + Agitation Kit:
Outdoor agricultural sprayer attachment used to maintain constant pressure while
spraying, and to agitate the liquid** inside the tank and keep it well mixed.
WARNING
READ and UNDERSTAND the Owner’s Manual completely before using this item.
Assemble, test, and use only in accordance with the Owner’s Manual instructions.
READ and FOLLOW chemical safety instructions. Pesticides are hazardous chemicals.
KNOW emergency procedures BEFORE handling chemicals. Sprayer leaks, bodily
chemical contact, poisoning, and spills require immediate response.
AVOID inhaling, ingesting, or coming into contact with any chemicals.
WEAR personal protective gear when operating, cleaning, and servicing the sprayer.
KEEP pump and spray materials away from children and pets. Pesticides are especially
toxic to them.
DO NOT TURN ON POWER to sprayer until ready to spray in order to avoid
unintentional spray release.
Improper use of the sprayer or handling of chemicals could result in serious injury or
illness to the operator or nearby persons/animals, or could cause damage to the
environment.
** This regulator is recommended for use in spraying non-flammable liquids such as pesticides, water for
plants/trees or dust control, ice control chemicals, or water-based non-flammable sealants or stains for
outdoor wood surfaces. However, WE RECOMMEND THAT THE REGULATOR NOT BE USED
FOR OTHER PURPOSES ONCE IT HAS BEEN USED FOR SPRAYING PESTICIDES. Any
chemical will leave some residual in the regulator, even after the regulator has been properly cleaned.
These residual chemicals can have unexpected effects on future uses. For example, spraying water or
other liquids that are contaminated with residual pesticide may result in unforeseen hazards to plant or
animal life.
Any Questions, Comments or Parts Orders
Call Kincrome Tools + Equipment 1300 657 528
ITEM NUMBER: K16125
SERIAL NUMBER: __________

Hazard Signal Word Definitions
3

Table of Contents
4
Intended Use .................................................................................................................................... 4
Summary of Important Safety Information....................................................................................5
During Assembly
During Operation
General Chemical Safety
Chemical Applicator Safety
Chemical Accident Procedures
Unpacking and Sprayer Identification ............................................................................................ 7
Installation
K16005 ...................................................................................................................................... 10
K16006, K16007........................................................................................................................12
Checking Installation .................................................................................................................14
Operation
Preparing the Regulator for Each Use ................................................................................... 15
Using the Regulator
Step One: Assess wind conditions and clear work area....................................................... 16
Step Two: Operate the regulator .........................................................................................16
Step Three: Clean regulator and decontaminate after use ................................................... 18
Storage ............................................................................................................................................. 19
Preparing for storage
Removing from storage
Specifications................................................................................................................................... 20
Accessories.......................................................................................................................................21
Limited Warranty...........................................................................................................................22

Intended Use
5
The product is intended for use in spraying agricultural pesticides and other non-
flammable liquids.
SPRAYING PESTICIDES:
Pesticides are hazardous chemicals that must be handled with caution as directed
throughout this manual and on the pesticide label. Pesticides are regulated by the
Environmental Protection Agency (EPA) and defined as:
Any substance or mixture of substances intended for preventing, destroying, repelling, or
mitigating any pest. Though often misunderstood to refer only to insecticides, the term
pesticide is a comprehensive term that applies to insecticides, herbicides, fungicides, and
various other substances used to control pests.
The product is intended for use in spraying pesticides in liquid form only. The product is
NOT intended for use in spraying pesticides in dry or aerosolized form, or for use with
fumigants.
SPRAYING OTHER LIQUIDS:
In addition to spraying pesticides, this regulator may be used to spray other non-
flammable liquids. Example uses include: watering plants/trees or spraying water for
dust control, applying ice control chemicals, or applying water-based, non-flammable
sealant or stain to outdoor wood surfaces.
However, WE RECOMMEND THAT THE REGULATOR NOT BE USED FOR
OTHER PURPOSES ONCE IT HAS ALREADY BEEN USED FOR SPRAYING
PESTICIDES. Any chemical will leave some residual in the regulator, even after the
regulator has been properly cleaned. These residual chemicals can have unexpected
effects on future uses. For example, spraying water or other liquids that are contaminated
with residual pesticide may result in unforeseen hazards to plant or animal life.
Contact Kincrome Customer Service on 1300 657 528 for any questions
about the appropriate use of the sprayer and/or optional accessories.

Summary of Important Information
6
WARNING
Read and understand this owner’s manual completely before using the regulator. Read each
chemical label’s instructions before handling the chemical.
Improper use of the regulator or handling of chemicals could result in serious injury or
illness for the operator or nearby persons/animals, or cause damage to the environment.
LISTED BELOW is a summary of safety information of particular importance. See individual
sections of this owner’s manual for more details.
------------------------------------ DURING ASSEMBLY-------------------------------
CHECK and TEST completed assembly as directed in this manual. Serious injury could result from
chemical leaks if sprayer is improperly assembled.
DO NOT MODIFY sprayer design.
------------------------------------DURING OPERATION------------------------------
General Chemical Safety
READ and FOLLOW each chemical label’s instructions and warnings.
AVOID inhaling, ingesting, or coming into contact with any chemicals.
KNOW applicable licensing and regulatory requirements for the chemical you plan to use.
KNOW emergency procedures before handling chemicals. Carefully review “Chemical Accident
Procedures” listed below and later in this manual. Also see First Aid instructions on the chemical
label.
WEAR protective clothing, eye protection, and chemical resistant gloves when filling, using, and
cleaning the sprayer. Wear additional protective gear, such as facemask or apron, as recommended on
the chemical label.
EXERCISE EXTRA CAUTION around children and pets. Pesticides are especially toxic to them.
Keep sprayer and spray materials away from them at all times.
DO NOT MIX OR POUR chemicals in an enclosed, unventilated area
DO NOT USE flammable or corrosive chemicals in the sprayer.
FLUSH the sprayer before switching chemicals in order to prevent dangerous chemical interactions.
STORE pesticides in a correctly labeled container and in a secure location.
MONITOR the health of operators frequently exposed to pesticides, as recommended by the
chemical label or local/federal regulations.
Chemical Application Safety
Before Spraying
INSPECT and PREPARE sprayer before each use as directed in this manual.
DO NOT TURN ON POWER to sprayer until ready to spray in order to avoid unintentional spray
release.
DO NOT SPRAY when wind speed exceeds 5 KPH in order to minimize spray drift.
CLEAR work area of people/ pets and POST warning notices to restrict access for the period
recommended on chemical label.
KEEP sprayer and spray materials away from children/pets. Pesticides can be especially toxic to
children and animals.
DO NOT ALLOW anyone younger than 16 to operate the sprayer since pesticides are especially
toxic to children.
During Spraying
DO NOT OVER-APPLY pesticide. Apply at rate recommended by chemical manufacturer. Excess
pesticide can be dangerous to humans/animals, damage desirable plants, and contaminate soil and
water sources.
DO NOT EAT, DRINK, SMOKE, RUB YOUR EYES, or TOUCH YOUR BARE SKIN while
handling chemicals and spraying.
NEVER POINT A SPRAY GUN at people or animals.
EXERCISE EXTRA CAUTION when spraying near areas accessible to children and pets.

Summary of Important Information
7
CLEAN up spills immediately per instructions on the chemical label.
TURN OFF power to sprayer, and RELIEVE system pressure before leaving sprayer unattended.
SEE Troubleshooting section of this manual before attempting any repairs. Wear personal
protective equipment and follow safety instructions.
After Spraying
CLEAN immediately after use according to the directions provided in this manual.
DECONTAMINATE yourself after you are done spraying and have cleaned the spraying system.
Wash all exposed areas of the body with soap and water, and remove and launder clothing.
DISPOSE OF or STORE remaining chemicals in secure storage with correctly marked
container.
Chemical accident procedures
Immediate response is necessary in the event of sprayer leaks, bodily chemical contact, poisoning, or
spills. See instructions below:
Sprayer leak
If the sprayer develops a leak, immediately stop spraying. Turn off power to
the sprayer and follow directions below, as applicable.
Bodily
chemical
contact
Personal contamination can occur when chemicals splash, spill, or spray
directly onto a person.
1. Immediately follow First Aid instructions on chemical label.
General procedures can include:
a) Eyes – immediately flush with water.
b) Skin – wash all contaminated skin surfaces with soap and water.
c) Clothing – remove contaminated clothing. Dispose of heavily
contaminated clothing per chemical label instructions.
2. Seek medical advice if instructed on the label or the victim experiences
symptoms of harmful effects. Bring the chemical label for reference.
Poisoning by
ingestion or
inhalation
In case of poisoning from ingestion or inhalation:
If the victim has collapsed or is not breathing, call 000. Otherwise:
1. If you are the victim, immediately seek assistance from nearby personnel
because you may become incapacitated.
2. Immediately follow first aid instructions on chemical label.
3. Call a poison control center for further advice. In Australia. Call 13 11 26.
Have the chemical label available for reference.
Chemical
spills
Chemical spills must be quickly contained and properly cleaned up.
Refer to the chemical label for any specific clean-up instructions.
General procedures include:
1. Controlling the spill by stopping the source of the spill.
2. Containing the spill so that it does not spread and get into water sources.
3. Cleaning up the spill immediately.
4. Seeking additional advice from:
- Chemical manufacturer. See chemical label for contact information.
- Contact the APVMA (Australian Pesticides & Veterinary Medicines
Authority), by emailing [e-mail] or calling (02) 6210
4701.

Unpacking and Sprayer Identification
8
Unpack and inspect parts
If you have missing or damaged components, please contact Kincrome Customer Service on
1300 657 528.
Regulator
Grommet
Screw (4)
QC Clip
Pressure Gauge
QC x 3/8 HB, Elbow
QC x 3/4 HB, Elbow
QC x 1/2 HB, Elbow 50°
QC x 3/8 HB, Straight
QC x 1/2 HB, Straight
Bushing,
1/2 MPT x 3/8 FPT
Adapter,
Female QC x
3/8 MPT
Plug, 1/4 MPT
1/4 MPT x 3/8
HB, Elbow

Unpacking and Sprayer Identification
9

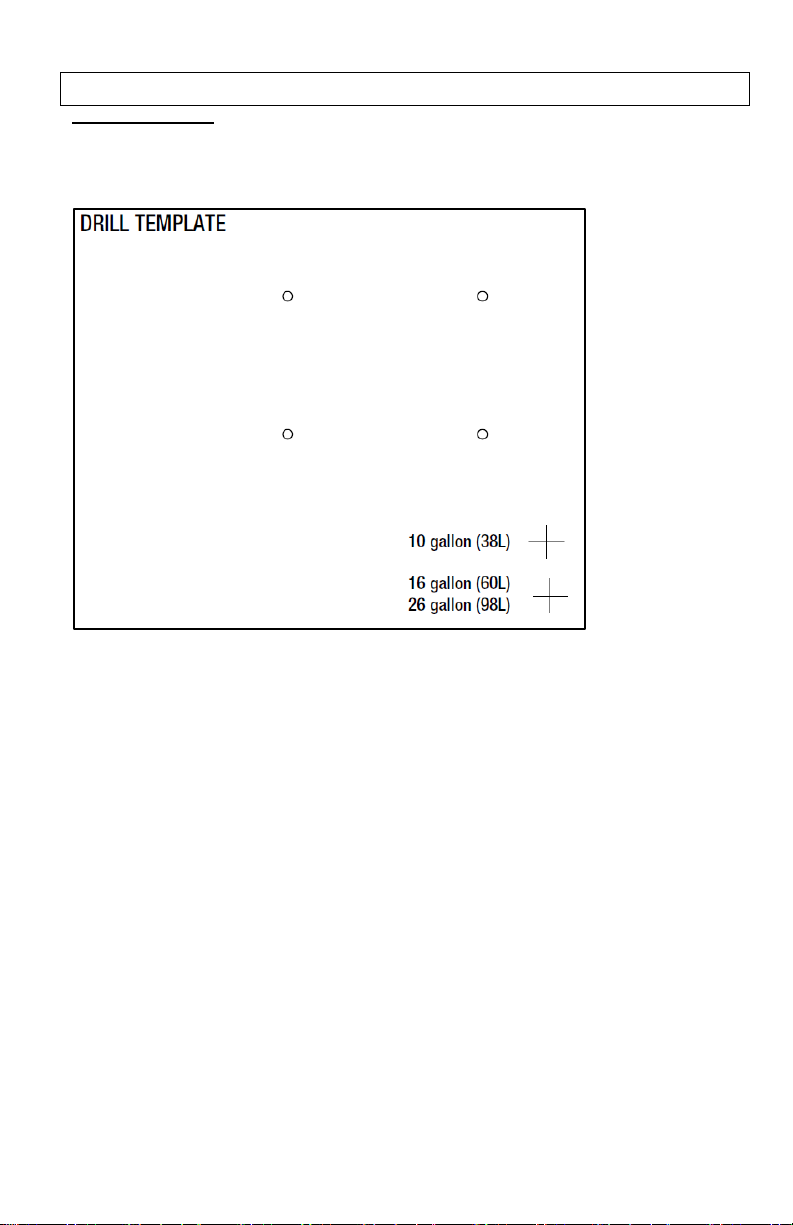

Drill Template Sheet
Use the four circle template when drilling the pump mounting holes on the sprayer tank.
The position of the holes needed for each sprayer model is indicated by an X on the
template.

Unpacking and Sprayer Identification
10
Identify your sprayer
Your sprayer model number can be found on the serial number decal located on the pump.
If you cannot locate the model number on your serial number decal, refer to the table below
to determine the model number of your sprayer. Turn to the assembly section for your
sprayer on the page number listed in the table.
Sprayer
Model
Tank size
Pump model
Defining features
K16005
38 Litre
K16102
Spot spray gun only
K16006
60 Litre
K16103
Spot spray gun and single-nozzle broadcast lance
K16007
98 Litre
K16103
Spot spray gun and single-nozzle broadcast lance
NOTE: Kincrome does not recommend the use of metal fittings or rigid pipe to plumb the inlet/outlet
ports. Standard plastic threaded fittings are available by calling Kincrome Customer Service at
1300 657 528.
In some cases, fittings may require a suitable thread sealer applied sparingly. DO NOT
over-tighten; maximum torque is 45 in.-lb [5 N-m].
Tubing should be compatible with the spraying fluid. At least 18"[450mm] length is
suggested to minimize stress on the fitting/ports and reduce noise. Allow for the shortest
possible tubing route and avoid sharp bends that may kink over time.
Installation of a 50-mesh strainer is recommended to prevent foreign debris from entering
the system. Failures due to foreign debris are not covered under the warranty.
NOTE: Restrictions on the inlet may cause a loss in performance. Inlet pressure must not exceed 30
psi [2.1 bar]
If a check valve is installed in the plumbing, it must have a cracking pressure of no more
than 2 psi [0.14 bar].
CAUTION
Sealers and Teflon tape may act as lubricant causing cracked housings or stripped threads due to
over tightening. Care should be used when applying sealers; it may enter the pump inhibiting
valve action, causing no prime or no shut-off. Failures due to foreign debris are not covered
under the warranty.

Installation—K16005
11
Step One: Disconnect pump from power supply
Step Two: Disconnect inlet and outlet fittings from pump
Remove steel clips from inlet and outlet ports of the pump.
Pull inlet and outlet fittings out of the pump. Do not disconnect hoses from
fittings.
Step Three: Remove pump from sprayer
Remove four screws from pump mounting feet.
Remove pump from sprayer.
Step Four: Assemble fittings to regulator
Remove steel clips from outlet
and bypass ports of regulator.
Install QC x 3/8" HB fitting
into bypass port of
regulator. To insert quick connect
fittings, lubricate O-ring with
water and twist fitting while
inserting into pump port. Secure
with steel clip.
Thread pressure gauge into 1/4"
NPT port on front side of
regulator (the side of the
regulator with the “BYPASS”
label).
Thread 1/4" NPT plug
into 1/4" NPT port on back side
of regulator.
Install QC x 3/8" HB, elbow
into outlet port of
regulator. To insert quick connect
fittings, lubricate O-ring with
water and twist fitting while
inserting into pump port. Secure
with steel clip.
Step Five: Assemble regulator and fittings to pump
Install inlet port of the regulator into outlet port of the pump. Secure with steel
clip.
Turn regulator to orient knob toward the top of the pump.
Step Six: Drill hole in tank
Align the four circles on the supplied drill template sheet with the pump mounting
holes on the sprayer tank.
Using a 9/16" drill bit (not included) drill a hole through the top of the tank in the
position indicated by the appropriate X on the template.
Remove plastic debris from inside the tank (if chemicals have been used inside
the tank, refer to pg. 18 step 4 for personal decontamination after removing
debris).

Installation—K16005
12
Step Seven: Install rubber grommet into hole in tank
Apply soap to rubber grommet.
Press grommet into the 9/16" hole in the sprayer
tank. Ensure the bottom lip of the grommet is fully
through the hole, and the top lip is flush with the top
of the tank.
Step Eight: Reinstall pump onto sprayer
Apply soap to bypass fitting on
regulator.
Press bypass fitting into the
grommet.
Reinstall four screws through
pump feet and into threaded holes
in the tank.
Step Nine: Reinstall hoses
Install fitting on inlet hose into
inlet port of the pump. To insert
quick connect fittings, lubricate
O-ring with water and twist
fitting while inserting into pump
port. Secure with steel clip.
Install fitting on outlet hose into
outlet port of the regulator. To
insert quick connect fittings,
lubricate O-ring with water and
twist fitting while inserting into
pump port. Secure with steel clip.
Continue to page 14.

Installation—K16006, K16007
13
Step One: Disconnect pump from power supply
Step Two: Disconnect inlet and outlet fittings from pump
Slide red QC clips open on the inlet and outlet ports of the pump.
Pull inlet and outlet fittings out of the pump.
Loosen hose clamp on outlet hose and broadcast hose and remove 1/4" NPT x
3/8" straight HB fitting from outlet fitting.
Do not disconnect inlet hose from inlet fitting.
Step Three: Remove pump from sprayer
Remove four screws from pump mounting feet.
Remove pump from sprayer.
Step Four: Assemble fittings to regulator
Remove steel clips from outlet
and bypass ports of regulator.
Install QC x 3/8" HB fitting
into bypass port of
regulator. To insert quick connect
fittings, lubricate O-ring with water
and twist fitting while inserting into
pump port. Secure with steel clip.
Thread 1/4" NPT x 3/8" straight
HB fitting (removed from outlet
fitting in Step Two) into 1/4"
NPT port on front side of
regulator (the side of the regulator
with the “BYPASS” label).
Thread pressure gauge into 1/4"
NPT port on back side of regulator.
Install QC x 3/8" HB elbow fitting
into outlet port of regulator. To
insert quick connect fittings,
lubricate O-ring with water and
twist fitting while inserting into
pump port. Secure with steel clip.
Step Five: Assemble regulator and fittings to pump
Install inlet port of the regulator into outlet port of the pump. Slide red QC clip
closed.
Turn regulator to orient knob toward the top of the pump.
Step Six: Drill hole in tank
Align the four circles on the supplied drill template sheet with the pump mounting
holes on the sprayer tank.
Using a 9/16" drill bit (not included) drill a hole through the top of the tank in the
position indicated by the appropriate X on the template.
Remove plastic debris from inside the tank (if chemicals have been used inside
the tank, refer to pg. 18 step 4 for personal decontamination after removing
debris).

Installation—K16006, K16007
14
Step Seven: Install rubber grommet into hole in tank
Apply soap to rubber grommet.
Press grommet into the 9/16" hole in the sprayer
tank. Ensure the bottom lip of the grommet is fully
through the hole, and the top lip is flush with the top
of the tank.
Step Eight: Reinstall pump onto
sprayer
Apply soap to bypass fitting on
regulator.
Press bypass fitting into the
grommet.
Reinstall four screws through
pump feet and into threaded
holes in the tank.
Step Nine: Reinstall hoses
Install fitting on inlet hose into
inlet port of the pump. To insert
quick connect fittings, lubricate
O-ring with water and twist
fitting while inserting into
pump port. Slide red QC clip
closed.
Install gun hose onto 3/8" HB
elbow fitting in the outlet port
of the regulator. Secure with
hose clamp.
Install broadcast hose onto 3/8"
straight HB fitting in the 1/4"
NPT port of the regulator.
Secure with hose clamp.
Continue to page 14.

Checking Installation
15
Step One: Connect pump to battery or 12V supply
Following the instructions in your pump or sprayer manual, reconnect the pump
to a 12V power supply.
WARNING
Batteries are hazardous because they contain caustic acid, can emit explosive gases, and can
cause electric shock.
Caution must be exercised when making connections to a battery to avoid shock and contact with
the acid, and to prevent any sparking that could lead to an explosion.
ALWAYS follow the safety instructions and steps listed in your pump or sprayer manual in exact
sequence when connecting the pump to the battery terminals.
Step Two: Check and test completed assembly
WARNING
Check and test completed assembly
Serious injury could result from chemical leaks if regulator is improperly assembled or the
design of the sprayer is modified.
Follow the steps below to ensure the regulator is properly assembled. Never modify the
sprayer design.
1. Check
assembly
Check assembly to assure the regulator is properly assembled and in safe
working condition:
2. Test with
water
Test the system for leaks with water:
a) Fill the tank with water.
b) The pump is an “on demand” pump. When turned on, the pump will
prime itself, then turn off once reaching pressure. When the flow
continues, the pump will automatically re-start.
c) Check for leaks throughout the system. If a leak is detected, fix the leak
and re-test the system with water.

Operation – Using the Regulator
16
If the regulator has been used previously, it must be prepared BEFORE EACH SUBSEQUENT USE.
WARNING
Read instructions below carefully for inspecting and preparing the regulator.
Damaged or clogged equipment could result in leaks or uncontrolled spray.
Leaks could result in injury to the operator or bystanders from chemical exposure, or cause
damage to the environment.
Important safety rules:
Power off. Make sure all power is OFF before cleaning, inspecting, or servicing the
regulator.
Guards / shields. Make sure all guards and shields are replaced after servicing the regulator.
Replacement parts. If a part needs replacement, only use parts that meet the manufacturer’s
specifications. Replacement parts that do not meet specifications may result in a safety
hazard or poor operation.
1. Ensure clean
system
Ensure the regulator has been thoroughly flushed and drained of all
residual chemicals from prior uses.
2. Inspect &
repair
Inspect and test the sprayer thoroughly:
a) Inspect hoses/ lines for exposed mesh and holes. Replace all worn
or damaged hoses/ lines.
b) Inspect fittings for cracks and leaks. Replace all damaged fittings
with original Kincrome parts.
c) Partially fill system with plain water and spray to test for leaks.
Repair as needed.
IMPORTANT: After any repair work has been done, ALWAYS test for
leaks with water one final time before using.

Operation – Using the Regulator
17
Step One: Assess wind conditions and clear work area
Before you decide to spray, you must determine whether wind conditions are suitable. You must
also restrict access to the work area to ensure the safety of bystanders.
WARNING
Do not spray if wind speeds are greater than 5 KPH or if there are bystanders in the
intended spray area.
1. Assess wind
speed
Assess weather conditions to ensure that it is not too windy to spray.
DO NOT SPRAY if wind speeds are greater than 5 KPH.
Visible indication of wind speed:
If leaves are in constant motion or there is any branch movement, DO
NOT spray because the wind is too strong.
2. Clear work area
Clear the work area of all bystanders and pets.
Restrict access by the public for the period recommended on chemical
label.
Step Two: Operate the regulator
WARNING
ALWAYS wear personal protective equipment as directed on the chemical label when spraying.
Long pants and sleeves, chemical-resistant gloves, and eye protection are strongly
recommended. Additional protective gear may be required depending on the particular
pesticide.
1. Review
safety
information
Review the “Summary of Important Information”related to Chemical
Application Safety provided in this manual.
2. Wear
personal
protective
equipment
Wear personal protective equipment as directed on the chemical label.
3. Tighten knob
Turn regulator knob clockwise until it stops.
Note: With the knob completely tightened, the regulator
will not allow any fluid through the bypass port and back
to tank. In this configuration, the pump will function in
its normal “demand” mode.

Operation – Using the Regulator
18
4. Turn pump
on
The pump will build pressure until the shut off pressure is reached. Once the
shut off pressure is reached, the pump motor will turn off.
5. Begin
spraying
Actuate the spray gun trigger or open the valve(s) to the boom nozzles.
Adjust spray gun nozzle to desired spray pattern and/or
make sure the boom nozzles are free of debris.
6. Adjust
pressure
Turn regulator knob counter-clockwise to reduce and set the desired
spraying pressure.
Note: When setting the pressure, always reduce the
pressure until the desired setting is reached.
Note: If the pressure is still too low when the regulator
knob is completely tightened, smaller or fewer nozzles
need to be used.
7. Discontinue
use if
clogged or
inoperative
If the regulator becomes clogged or inoperative during use, discontinue
use immediately.
- DO NOT attempt to service while chemicals are in the system and power is
connected.
Note: A reserve, clean container capable of holding at least the volume of the entire pump system
should be kept for use when the system needs to be emptied temporarily for repairs. It is
advisable to purchase a reserve tank suitable for pesticide storage use in these circumstances.
The container should be properly labeled as to its contents if it is used.

Operation – Using the Regulator
19
Step Three: Clean regulator and decontaminate after use
When done using the regulator, it is important to clean the regulator and decontaminate yourself.
Do not store the regulator when saturated with chemicals, as it is unsafe and could also result in
damage to the equipment.
WARNING
Cleanup and decontamination procedures must be followed after each use.
Improper equipment cleanup and disposal of chemicals can result in dangerous chemical
exposure to humans and the environment, as well as equipment damage.
Personal decontamination is required after spraying to minimize unsafe exposure to chemicals
and potential illness.
1. Drain pump
system
If there is excess pesticide left in the system, drain the system:
a) Disconnect power to the pump and relieve system pressure.
b) Find a suitable container in which to drain the unused pesticide.
c) While wearing rubber gloves, eye protection, and all other required
personal protective equipment, allow pesticide to drain into container.
2. Unused
chemical
Properly store or dispose of unused chemical:
a) If the unused pesticide is to be stored for future use:
Store all unused pesticide in its original, or a suitably marked,
container in a secure location out of the reach of children & animals.
b) If remaining pesticide is to be disposed:
Properly dispose of the remaining chemical and its container per the
chemical manufacturer’s recommendation and according to local
hazardous waste disposal regulations.
3. Flush
regulator
Flush the regulator per the chemical manufacturer’s
recommendations. A general procedure is as follows:
a) Add fresh water to the pump system.
b) Reconnect power to the pump.
c) Operate the pump system and discharge all rinse water onto an area
that can accept dilute pesticide application.
d) Add 20 litres of the chemical manufacturer’s recommended cleaning
solution. Operate the pump system, collecting the discharged solution
if recommended by the manufacturer.
e) After flushing, disconnect power to the pump and be sure all system
pressure is relieved.
f) Dispose of cleaning solution discharge as recommended by the
manufacturer of the solution.
4. Decontaminate
& launder
Decontaminate yourself after you are finished handling chemicals:
a) Remove all clothing worn during spraying and chemical handling.
b) Wash all exposed parts of the body with soap and water.
c) Launder clothing separately from other wash.

Storage
20
Prepare the regulator for end-of-season storage by running antifreeze through the system. This will
keep internal parts lubricated, protect against corrosion, and keep the unit from freezing.
CAUTION
The regulator may be damaged if it freezes.
Protect the regulator from freezing during storage by following the instructions below.
Preparing for storage:
1. Add antifreeze
Pour antifreeze into the pump system.
Some antifreeze contain Ethanol (which is alcohol based and highly
flammable.) which should not be used.
2. Spray briefly
Turn on the pump and run the pump system briefly until fluid sprays.
Removing from storage:
1. Drain
Drain the antifreeze left in the pump system into a suitable container.
2. Flush with
water
Fill the pump system with fresh water and run through the system. Operate
the pump system until the system is completely flushed. Be sure to set up
containers to capture the antifreeze flush water.
3. Disposal
Dispose of the antifreeze and flush water properly.
