kincrome KP1404 User manual

MULTI FUNCTION
POWER PAK PLUS
RECHARGE
USB POWER TOOLS
TABLETS
LAPTOPS
MOBILE PHONES
RECHARGE
ON-SITE
DEVICES
600A
PEAK
CURRENT
JUMP START
UP TO
V8
PETROL & DIESEL
VEHICLE
JUMP
STARTER
RECHARGE
USB POWER TOOLS
TABLETS
LAPTOPS
MOBILE PHONES
RECHARGE
ON-SITE
DEVICES
600A
PEAK
CURRENT
JUMP START
UP TO
V8
PETROL & DIESEL
VEHICLE
JUMP
STARTER
KP1404
ED2 (June 15)

POWER PAK PLUS
2
Table of Contents
Know Your Product................................................................................................................ 2
Jump Starter Safety Instructions......................................................................................... 3-4
Jump Starter Care & Charging............................................................................................. 5-6
Jump Starter Operation ........................................................................................................ 6-9
F.A.Q & Trouble Shooting ...................................................................................................... 10-11
Warranty................................................................................................................................. 12

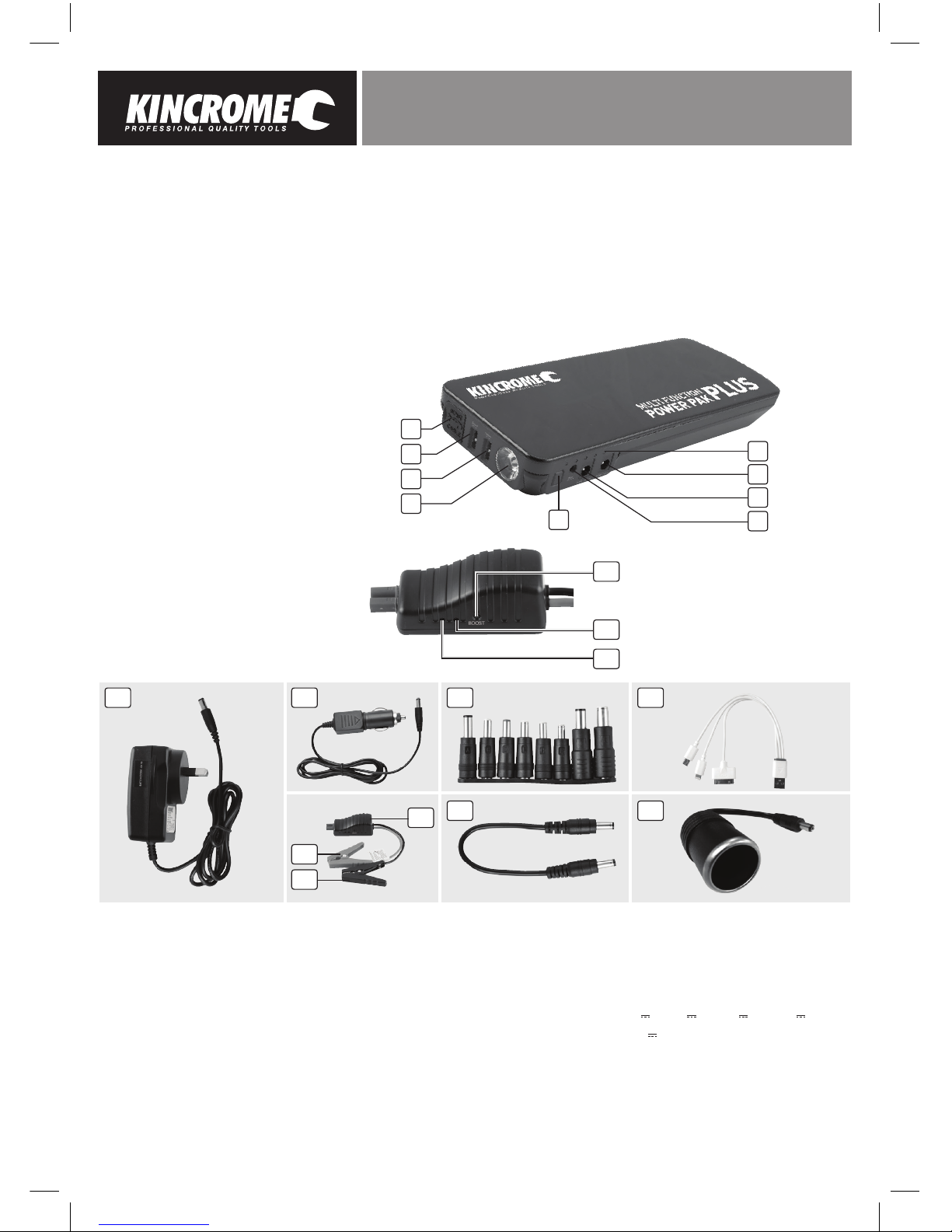

Know your product
1. LED Torch / Emergency Light
2. USB 5V 1A Output Port
3. USB 5V 2A Output Port
4. Jump Start Cable Port
5. Battery Charge LED Indicators
6. 12V DC 10A Output Port
7. 19V DC 3.5A Output Port
8. 14V DC 1A Input Charging Port
9. ON / OFF / TEST Button
10. 240V AC Charger
11. 12V DC Car Charger
12. Positive Battery Clamp (+) RED
13. Negative Battery Clamp (-) Black
14. INTELLI-CHECK Jumper Cable
15. Laptop Charger Adaptors
16. Multi Purpose Accessory Cable
17. Electronic Device Charging Cable
18. 12V DC Female Adaptor
19. BOOST Button
20. Correct Connect LED
21. Reverse Polarity LED
INTELLI-CHECK Jumper Cable
• Reverse Polarity Check
• Anti-recharge Protection
• Short Circuit Protection
• Over Discharge Protection
• Surge Protection
9
10
SPECIFICATION
Size : .................................................................................................................................................. 230 x 87 x 27mm
Weight : ............................................................................................................................................. 615g
Battery Capacity : ............................................................................................................................ 22.2Wh (6100mAh)
Battery Cells : .................................................................................................................................. 3
Output : ............................................................................................................................................. 5V 1A, 5V 2A, 12V 10A, 19V 3.5A
Input : ................................................................................................................................................ 14V 1A
Full Charging Time : ....................................................................................................................... Approx. 7-9 Hours
Starting Current : ............................................................................................................................ 300A
Peak Current : .................................................................................................................................. 600A
Operating Temperature : ............................................................................................................... -20˚C ~ 60˚C (4˚F ~ 140˚F)
Lifetime : ........................................................................................................................................... <1000 cycles
11 15
16
17
18
12
13
14
19
20
21
5
6
7
8
2
3
4
1

POWER PAK PLUS
3
General Safety Warnings
Save all warnings and instructions for future reference.
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Electrical Safety
A) Charger plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs that are earthed (grounded). Unmodified plugs and matching outlets will reduce risk of
electric shock.
B) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
C) Do not expose the POWER PAK PLUS to rain or wet conditions.
Water entering the POWER PAK PLUS will increase the risk of electric shock.
D) Do not abuse the cords. Never use the cord for carrying, pulling or unplugging the charger.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
E) If operating a charger in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
F) Do not operate powered products in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Powered products create sparks which may ignite the dust or fumes.
G) Keep children and bystanders away while operating any powered products.
Distractions can lead to injury of yourself or the bystanders.
H) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or
other small metal objects that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
I) This appliance is not intended for use by persons (including children) with reduced physical sensors or mental
capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use
of the appliance by a person responsible for their safety.
J) Children should be supervised to ensure they do not play with the appliance.
K) Always take care when using this appliance.
Additional Safety Instructions for Batteries and Chargers
• Do not modify or take the battery pack (POWER PAK PLUS) apart, re-assemble, repair battery or charger to avoid breaking
or damaging of the components.
• Do not place or allow the Lithium-Ion battery to come into contact with water, fire or high-temperature environments.
• Do not puncture, damage or deform the lithium-ion battery.
• Do not allow the + /- terminals of the battery to come in contact with each other as this could cause a short circuit
of the battery.
• Do not store in locations where the temperature may exceed 70 °C.
• Charge only at ambient temperatures between -20 °C and 60 °C.
• Charge only using the charger provided with the product.
• Do not attempt to charge damaged batteries.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with
water. If liquid contacts eyes, flush with water and seek medical attention. Liquid ejected from the battery may cause
irritation or burns.
• Use powered products only with specifically designated battery packs. Use of any other battery packs may create a risk of
injury and fire.
• Dispose of batteries in accordance with your local council regulations.

POWER PAK PLUS
4
General Safety Warning (Cont.)
Chargers
• Use your Kincrome charger only to charge the battery in the POWER PAK PLUS with which it was supplied.
Using a charger not designed for the battery it was intended for could cause battery failure,
potentially leading to personal injury and damage.
• Never attempt to charge non-rechargeable batteries.
• Have defective cords replaced immediately.
• Do not expose the charger to water.
• Do not open the charger.

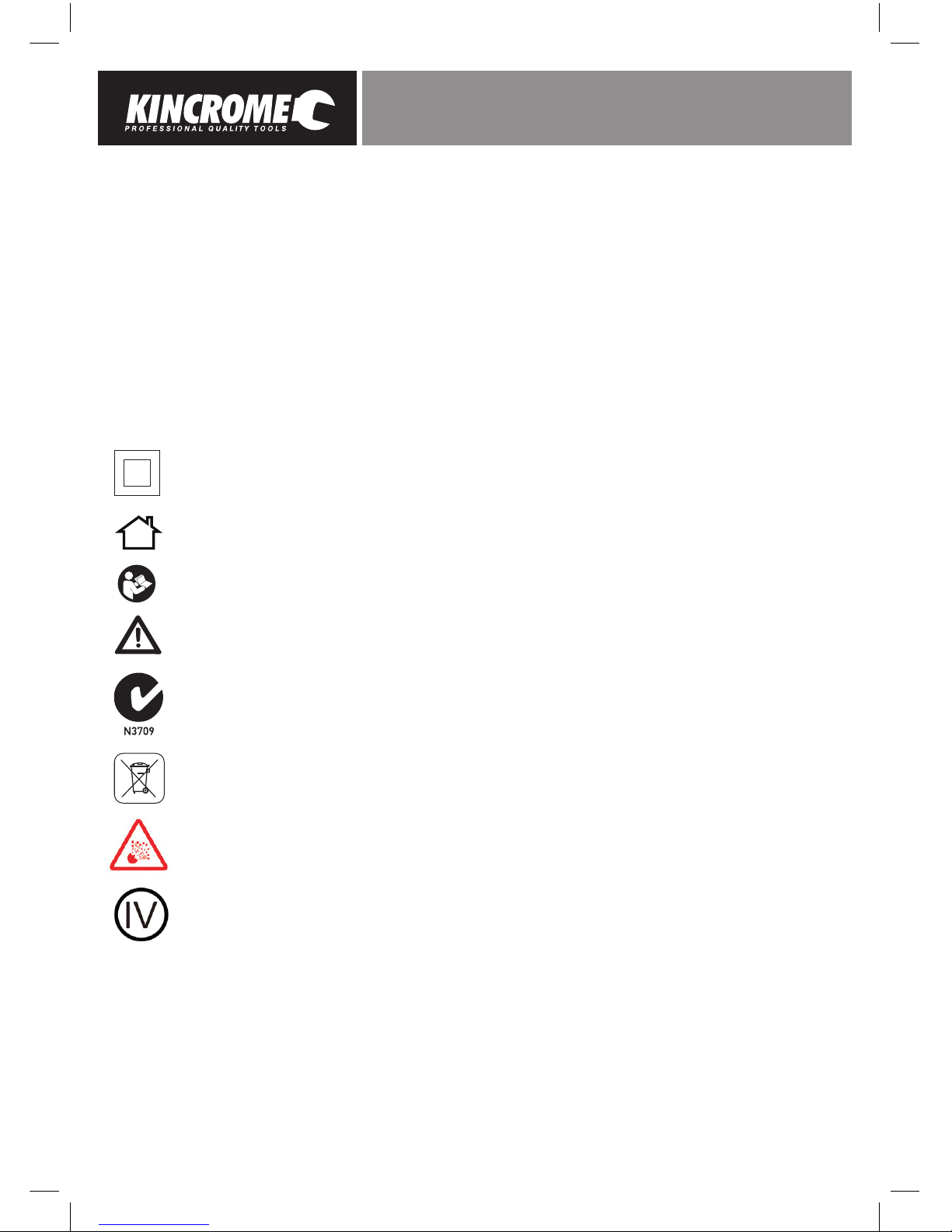

Labels on Tool
The following symbols are shown on the tool:
Your charger is double insulated; therefore no earth wire is required. Always check that the mains
voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit
with a regular mains plug.
The Charger is intended for indoor use only.
Read the instruction manual before use.
Warning
EMC (Electromagnetic Compliance) mark.
Dispose of battery as per local government requirements.
Risk of explosion
Energy efficiency rating

POWER PAK PLUS
5
Jump Starter Care and Charging
Important Notice
• If the 240V AC charger (10) supplied is damaged, it must be replaced by the manufacturer or an authorised Kincrome
service agent or similarly qualified persons in order to avoid a hazard.
• When installing or removing the charger connector plugs please hold the connectors firmly.
• Don’t stretch the wire or damage can occur to the cables & clamps plugs.
Note: For optimal performance, charge the POWER PAK PLUS every 3-6 months and keep the POWER PAK PLUS stored in a
cool dry environment to extend the life of your product.
Charging the POWER PAK PLUS Battery
Note: Charge the POWER PAK PLUS whenever the battery charge LED indicators (5) are illuminated with 2 or less bars. It is
also recommended to charge the POWER PAK PLUS periodically (approx. every 3-6 months) to keep the POWER PAK PLUS in
optimal operating condition.
To check the batteries level of charge Press the ON/OFF/TEST (9) and refer to the below chart (fig1) to confirm charge status
of the Multi-Function POWER PAK PLUS.
Battery
Charge
Indicator (5)
Unlit
LED’s
5 Flashing
LED’s
1
Illuminated
LED
2
Illuminated
LED’s
3
Illuminated
LED’s
4
Illuminated
LED’s
5
Illuminated
LED’s
Battery
Charge
Condition 0% 10% 20% 40% 60% 80% 100%

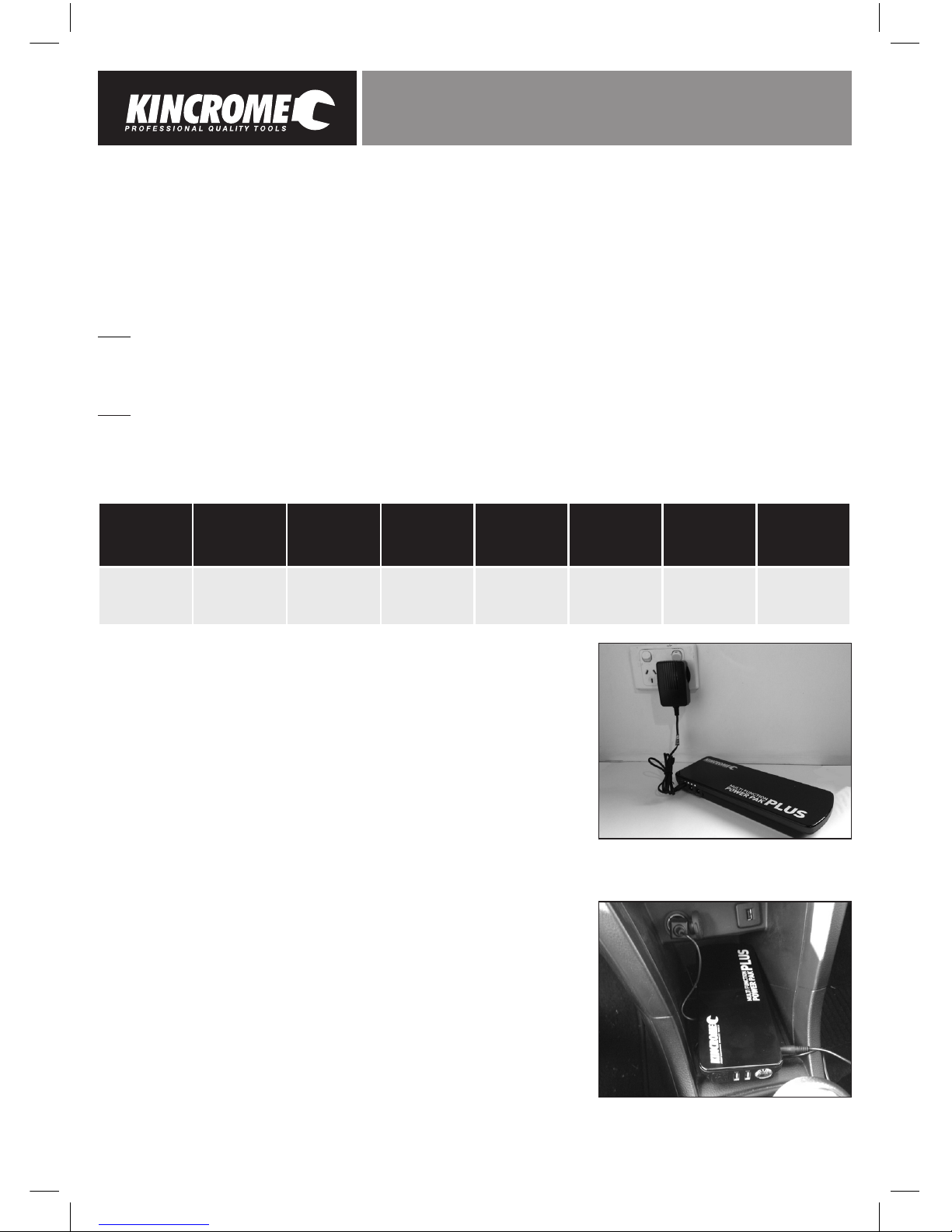

Charging with the 240V AC Charger
1. To charge the POWER PAK PLUS with the 240V AC battery charger (10)
locate the charger lead/adaptor on the end of the charging cable of the
240V AC charger (10), & plug into the POWER PAK PLUS 14V DC 1A input
charging port (8) (fig1).
2. Then plug the 240V AC adaptor (10) into your wall socket and turn ON the
mains power. When the POWER PAK PLUS is ON charge the battery charge
LED indicators (5) on the POWER PAK PLUS will illuminate and flash (ON/
OFF) BLUE. During the charge sequence each LED indicator will flash (ON/
OFF) until each and every battery charge LED indicator (5) stops flashing
and illuminates a solid BLUE. When the POWER PAK PLUS is fully charged
the battery charge indicators (5) on the POWER PAK PLUS will no longer
illuminate.
Charging with the 12V DC Car Charger
1. To charge the POWER PAK PLUS with the 12V DC car charger (11) locate
the 12V charger lead/adaptor on the end of the 12V DC car charger (11)
charging cable & plug into the POWER PAK PLUS 14V DC 1A input charging
port (8) (fig2).
2. Then plug the 12V DC car charger (11) into your 12V DC vehicle accessory
socket located within your vehicle (refer to your vehicles instruction manual
for the location of your 12V DC accessory sockets). When the POWER PAK
PLUS is on charge the battery charge LED indicators (5) will illuminate and
flash (ON/OFF) BLUE. During the charge sequence each LED indicator will
flash (ON/OFF) until each and every battery charge LED indicator (5) stops
flashing and illuminate BLUE. When the POWER PAK PLUS is fully charged
the battery charge indicators (5) on the POWER PAK PLUS will no longer
illuminate.
(fig 1)
(fig 2)

POWER PAK PLUS
6
Charging the POWER PAK PLUS Battery (Cont.)
• 240V AC Battery Charger (10) - Once fully charged the 240V AC charger (10) can be left connected to the POWER PAK
PLUS as the chargers will perform a maintenance charge.
Caution: It is recommended that the 240V AC battery charger (10) be turned off within 48 hours after charging has completed
to save electricity.
• 12V DC Car Charger (11) - It is not recommended to leave the POWER PAK PLUS connected to your vehicles 12V output
source for extended periods of time as this could potentially drain your vehicles battery.
Note: If the POWER PAK PLUS jump starter will not turn ON, the current overload or low voltage protection may have activated.
To reset the jump starter you must connect the supplied 240V AC charger (10) to your mains power, then connect the
charger lead to the 14V 1A input source & turn ON the mains power. This will reset the POWER PAK PLUS jump starter
and should now function as normal.
Jump Starter Operation
POWER PAK PLUS Pre-Operation Check
Caution: Before using the POWER PAK PLUS ensure your vehicle battery has a CCA rating of 600CCA or less.
Trying to start any vehicle with a battery rated greater than 600CCA could cause damage to the POWER PAK PLUS and void the
product warranty.
Note: Refer to your vehicles instruction manual for “connection of jumper cables” as some vehicles have specific
connection requirements.
• Follow the below instructions when your vehicle will not start due to a low voltage flat, damaged or low
temperature battery.
• Ensure the battery charge LED indicators (5) are illuminated with a minimum 3 BLUE LED’s before trying to jumpstart
your vehicle.
• Do not attempt to jumpstart your vehicle if the battery charge LED indicators (5) are illuminated with less than
3 BLUE LED’s.
• If the battery charge LED indicators (5) are showing 2 or less illuminated BLUE LED’s recharge the POWER PAK PLUS as
specified in “Charging the POWER PAK PLUS Battery”.
• Do not touch or connect the jump starter positive battery clamp (+ RED) (12) to the negative (- BLACK) (13) battery clamp
at any stage.
• Connecting the battery clamps (12 &13) together may lead to damage of the POWER PAK PLUS and/or vehicles battery
and could be dangerous.
• Always ensure you connect the jump starter clamps to the correct battery terminals, connect the positive battery clamp
(+ RED) (12) to the positive terminal (+ RED) of your vehicles battery and the negative battery clamp
(- BLACK) (13) to the negative terminal (- BLACK) of your vehicles battery otherwise you may cause damage to the
POWER PAK PLUS or your vehicle battery.
• Always check that the jump starter clamps (12 & 13) have a good connection to the vehicle battery terminals.
• Check that the vehicle battery terminals are free of corrosion and are clean to ensure a positive connection of the
POWER PAK PLUS.
• Do not try to restart the vehicle after 3 consecutive starting attempts otherwise you may cause damage to the POWER
PAK PLUS. Check your vehicle for other possible reasons prior to trying to start your vehicle again.

POWER PAK PLUS
7
POWER PAK PLUS Pre-Operation Check (Cont.)

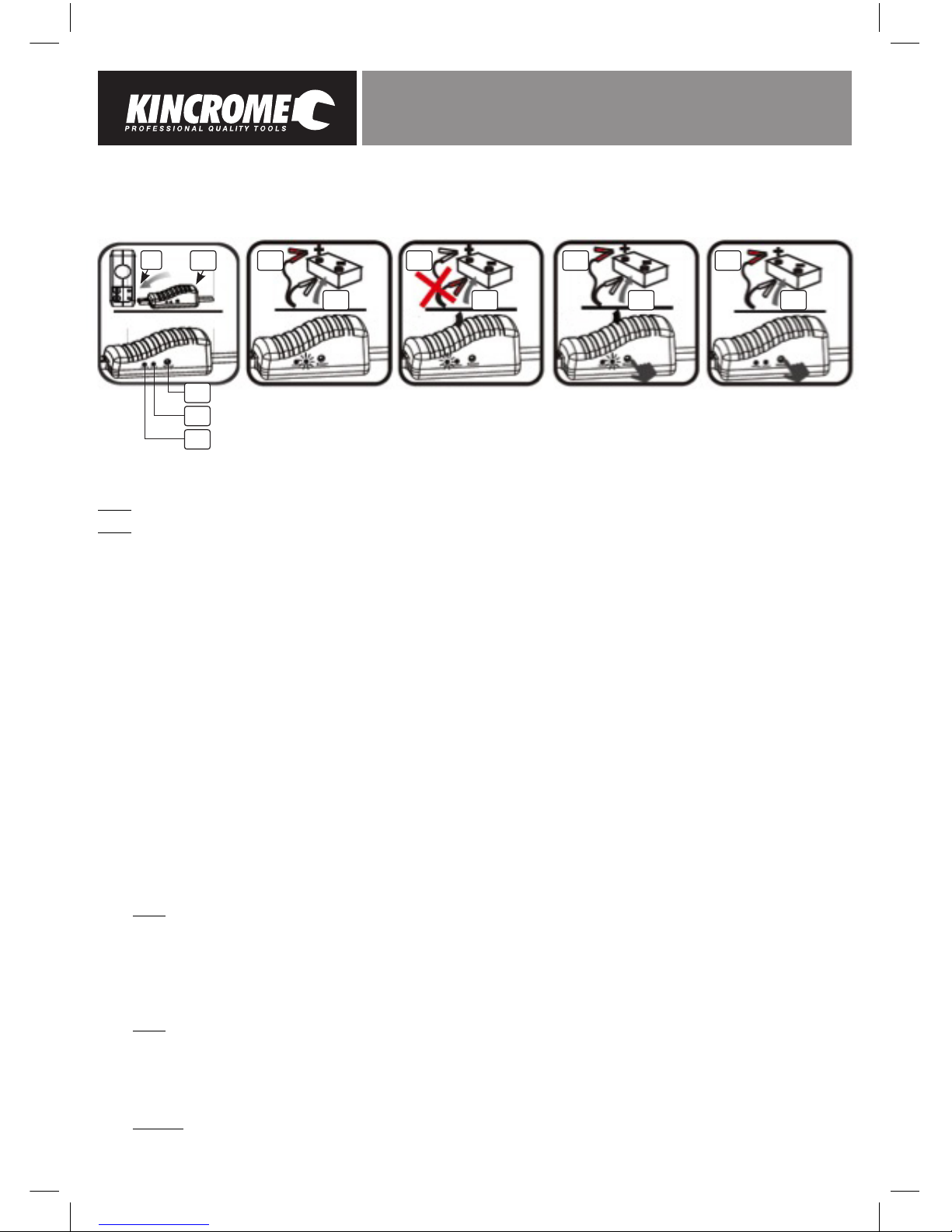

The POWER PAK PLUS is fitted with INTELLI-CHECK jumper cables. Familiarize yourself with the features of the INTELLI-
CHECK as per below once connected to your vehicles battery.
INTELLI-CHECK LED / Noise and Button Indicators
Note: Do Not press the “BOOST” Button prior to connecting the jumper cables to your vehicle.
Note: Once the POWER PAK PLUS is connected to your vehicles battery the below indications may be experienced or buttons
used when needed.
• GREEN LED Illuminated (Correct Connection LED): Indicating that the jumper cable connections are correct and the
circuit is working and ready for use, you can turn the engine ignition key to jump-start the vehicle.
• RED LED Illuminated (Reverse Polarity LED) with buzzing: Indicating that the jumper cable connections are incorrect
(wrong) and buzzing to alarm the user to disconnect the battery clamps and re-correct the clamps correctly.
• GREEN LED (Correct Connection LED) flashing with buzzing: Informing the user the vehicle battery is low, press the
“BOOST button, wait for the GREEN LED to illuminate then turn the engine ignition key within 30s.
• NO LED’s Illuminated , No buzzing: Indicates the vehicle’s battery maybe damaged or the jumper cables may have a bad
connection to the vehicles battery terminals, Check the jumper cable connections to confirm a positive connection then,
press the “BOOST” button, wait for the GREEN LED to illuminate.Then you can turn the engine ignition key to jump-start
the vehicle.
POWER PAK PLUS Jump Starter Operation
1. Press the ON/OFF/TEST button (9) and ensure that the POWER PAK PLUS battery charge LED indicators (5) are
illuminated with a minimum 3 BLUE LED’s.
2. Connect the BLUE connector plug located on the end of the INTELLI-CHECK jumper cable (14) into the
jump start cable port (4).
3. Ensure that the BLUE connector plug is firmly pushed into the jump starter cable port (4) for a positive connection and
ensure that the LED’s on the INTELLI-CHECK jumper cable (14) are NOT illuminated.
Note: Failing to securely locate the BLUE connector plug could result in a reduced electrical contact causing the plug to
melt or deform.
4. Connect the POWER PAK PLUS INTELLI-CHECK jumper cable clamps to the vehicles battery terminals correctly, connect
the positive battery clamp (+ RED) (12) to the positive terminal (+ RED) of your vehicles battery and the negative battery
clamp (- BLACK) (13) to the negative terminal (- BLACK) of your vehicles battery
5. Turn your ignition key to start the vehicle.
Note: If your vehicle does not start wait for approx. 10 seconds and repeat steps 1-5.
6. When the vehicle has started, disconnect the POWER PAK PLUS jump starter clamps from the vehicle battery within 30
Seconds, starting with the negative battery clamp (- BLACK) (13) first and then the positive battery clamp (+ RED) (12).
7. After disconnecting the POWER PAK PLUS jumper cables (12) & (13), leave the vehicle’s engine running to recharge
the battery.
Caution: Do not leave your vehicle unattended at any time.
14
412 12 1213
13 13 1312
19
18
20
Bipp Bipp Bipp Bipp

POWER PAK PLUS
8
Charging your Electronic Devices (Phone, Tablet, iPod etc.)
1. Connect the electronic device charging cable (17) into the USB 5VDC – 1A (2) or USB 5VDC- 2A (3) output ports.
2. Choose the correct electronic device adaptor located on the end of the electronic device charging cable (17) from the
choice of 3 most common available device adaptors provided with your POWER PAK PLUS kit.
3. Connect your chosen charging device adaptor into the appropriate charging input of your electronic device (fig 3).
4. Turn on the POWER PAK PLUS by pressing the ON/OFF/TEST button (9).
Your device will begin charging. Once your device is fully charged remove the charging adaptors and leads from your
device and the POWER PAK PLUS.
Charging your Laptop
Note: Ensure that the laptop is switched off and closed during the charging process as sometimes the laptops current draw
when in operation can trip the 19VDC -3.5A output ports (7) over current protection circuit.
Tripping the over current protection circuit will turn off the POWER PAK PLUS temporarily.
1. Connect the multi-purpose accessory cable (16) into the 19VDC 3.5A output port (7).
2. Choose the correct laptop charger adaptor (15) from the choice of 8 available adaptors provided with your POWER PAK
PLUS kit and plug the adaptor onto the end of the multi-purpose accessory cable (15).
3. Connect your chosen charging adaptor into the appropriate charging input of your laptop (fig4).
4. Turn POWER PAK PLUS ON the by pressing the ON/OFF/TEST button (9). Your device will begin charging. Once your
device is charged remove the charging adaptors and leads from your device and the POWER PAK PLUS.
(fig 3)
(fig 4)

POWER PAK PLUS
9
Power Supply for Your 12V DC Products
1. Connect the multi-purpose accessory cable (16) or 12V DC female adaptor (18) into the 12VDC 10A output port (6).
2. Connect the other end of the multi-purpose accessory cable (16) or 12V DC female adaptor (18) into your chosen 12V
vehicle accessory (fig5).
3. Turn the POWER PAK PLUS ON the by pressing the ON/OFF/TEST button (9).
4. Once you have finished using your 12V accessory remove the multi-purpose accessory cable (16) or 12V DC female
adaptor (18) from your accessory and the POWER PAK PLUS.
Note: Running of the your device will very depending on the devices input requirements & charge status of the
POWER PAK PLUS.
LED Torch Emergency Light
1. Press and hold the ON/OFF/TEST button (9) for approx. 3 seconds to turn ON the LED torch/emergency light (1).
2. To change the LED torch/emergency light (1) mode from torch to STROBE LED mode press the ON/OFF/TEST Button (9)
once again, and finally for SOS LED mode press the ON/OFF/TEST Button (9).
3. Turn OFF the LED torch/emergency light (1) feature by pressing the ON/OFF/TEST Button (9) again.
Composition and amount of toxic and harmful substance in POWER PAK PLUS
O: Indicate all homogeneous materials hazardous substances content are below the MCV limit specified in the
Standard 2002/95/EC (RoHs).
Pb
O
Hg
O
Cd
O
Cr(Vi)
O
PBB
O
PBDE
O
(fig 5)

POWER PAK PLUS
10
Frequently Asked Questions
Q. How do I turn ON the POWER PAK PLUS?
A. Press the ON/OFF/TEST Button (9).
Q. How do I turn OFF the multi-function POWER PAK PLUS ?
A. The POWER PAK PLUS will turn Off automatically when no load is experienced (approx. 3-4min) or the battery
charge has completed.
Q. How many times can the POWER PAK PLUS re-charge my mobile phone?
A. The POWER PAK PLUS can recharge your mobile phone Approx. 5-6 times for an iPhone 4/5/6.
The quantity of re-charges for other mobile devices could vary depending on the product and its battery capacity, also how
charged the POWER PAK PLUS is at the time.
Q. How long will the POWER PAK PLUS take to re-charge my mobile phone?
A. The POWER PAK PLUS can recharge your IPhone 4/5/6 mobile phone in Approx. 1 hour. Other mobile devices could take
longer depending on the product and its battery capacity.
Q. How long will the POWER PAK PLUS take to re-charge my laptop?
A. The POWER PAK PLUS can recharge a laptop battery up to 70-100% in Approx. 1 hour depending on the product and
battery capacity.
Q. How many times can the POWER PAK PLUS jump start my vehicle if the battery is fully charged?
A. The POWER PAK PLUS can deliver approx. 50 starts on a fully charged battery but varies depending on the vehicles starting
requirements.
Q. How long will a fully charged POWER PAK PLUS battery remain charged sitting in my vehicle?
A. The POWER PAK PLUS battery can remain fully charged for up to 6-8 months. The internal temperature of your vehicle can
affect the battery charge time so it is recommended to periodically check or recharge the POWER PAK PLUS battery every
3-6 months to ensure it is in optimal working condition.
Troubleshooting
The POWER PAK PLUS is supported with a current overload feature. This can be triggered when the current load applied to the
POWER PAK PLUS has exceeded the products specification.
Symptom Experienced
• The POWER PAK PLUS is fully charged however it will not start the vehicle.
• The POWER PAK PLUS is fully charged however the battery charge LED indicators (5) will not illuminate and the vehicle
will not start.
Resetting The Current Overload
To reset the current overload feature you MUST connect the 240V AC charger (10) to the 14V DC 1A input charging port (8) and
turn on the mains power of your power socket. This will reset the current overload feature of your POWER PAK PLUS and you
can restart your vehicle.

POWER PAK PLUS
11
Troubleshooting (Cont.)
Spare Parts
• Multi-Purpose Accessory Cable (16) KP1401-1
• Electronic Device Adaptor Cable (17) KP1401-2
• Laptop Charger Adaptors (8pce Set) (15) KP1401-3
• 240V AC Charger (10) KP1402-1
• 12V DC Car Charger (11) KP1401-5
• INTELLI-CHECK Jumper Cables (14) KP1404-1
• 12V DC Female Adaptor (18) KP1400-1
PROBLEM CAUSES SOLUTIONS
The POWER PAK PLUS battery charge
LED indicators (5) are showing 5
illuminated LED’s , but will not start the
vehicle or charge any device.
During extended periods of non use or
extreme temperatures the POWER PAK
PLUS could loose charge of up 40%, but
the unit may display a full charge.
Recharge the POWER PAK PLUS using the
240V AC charger (10) or 12V DC
car charger (11).
No response when pressing the ON/
OFF/TEST Button (9) of the
POWER PAK PLUS.
The low voltage protection circuit within
the POWER PAK PLUS has initiated.
Recharge the POWER PAK PLUS using the
240V AC charger (10) or 12V DC
car charger (11).
The POWER PAK PLUS is hot to touch
when charging laptop batteries.
The charging current of the laptop could
be a maximum capacity (3.5A)
Remove the battery from your laptop and
use the POWER PAK PLUS to power your
laptop directly or disconnect the POWER
PAK PLUS and allow the battery to cool
down . Once cool reconnect the POWER
PAK PLUS and recharge your
laptop battery.
Included Qty Included Qty
POWER PAK PLUS 1240V AC Charger (10) 1
Multi Purpose Accessory Cable (16) 112V DC Car Charger (11) 1
Electronic Device Charging Cable (17) 1INTELLI-CHECK Jumper Cables (14) 1
Laptop Charger Adaptors 8pcs (15) 1Instruction Manual 1
12V DC Female Adaptor (18) 1POWER PAK PLUS Carry Case 1
Warranty
Warranty given by Kincrome Australia Pty Ltd of 3 Lakeview Drive, Caribbean Park, Scoresby, Victoria (Tel 1300
657 528). The applicable warranty period (12 months) commences on the date that the product is purchased. If
this product has materials or workmanship defects (other than defects caused by abnormal or non warranted
use) you can, at your cost, send the product to place of purchase, an authorised Kincrome service agent or one of
Kincromes addresses for repair or replacement. Your rights under this warranty are in addition to any other rights
you have under the Australian Consumer Law or other applicable laws. Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. For further details please visit www.kincrome.com.au or call us. Due to minor changes in
design or manufacture, the product you purchase may sometimes differ from the one shown on the packaging.

POWER PAK PLUS
12
www.kincrome.com.au
