King Canada KC-15CM-2 User manual

3.5 CUBIC FEET P RTABLE CEMENT MIXER
INSTRUCTI N MANUAL
COPYRIGHT © 2014 ALL RIGHTS RESERVED BY ING CANADA TOOLS INC.
M DEL: KC-15CM-2
02/2015

WARRANTY INF RMATI N
2-YEAR LIMITED WARRANTY
FOR THIS CEMENT MIXER
KING CANADA T LS
OFFERS A 2-YEAR LIMITED WARRANTY
FOR NON-COMMERCIAL USE.
PR F F PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACEMENT PARTS
Replacement parts for this product are available at our authorized ing Canada service centers across Canada.
LIMITED T L WARRANTY
ing Canada makes every effort to ensure that this product meets high quality and durability standards. ing Canada warrants to the
original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from
defects in materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, normal wear and tear, negligence or
accidents, repairs done by an unauthorized service center, alterations and lack of maintenance. ing Canada shall in no event be liable
for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products.
To take advantage of this limited warranty, return the product at your expense together with your dated proof of purshase to an authorized
ing Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized
service centers. In cooperation with our authorized serviced center, ing Canada will either repair or replace the product if any part or
parts covered under this warranty which examination proves to be defective in workmanship or material during the warranty period.
N TE T USER
This instruction manual is meant to serve as a guide only. Specifications and references are subject to change without prior notice.
PARTS DIAGRAM & PARTS LISTS
Refer to the Parts section of the ing Canada web site for the most updated parts diagram and parts list.
KING CANADA INC. D RVAL, QUÉBEC, CANADA H9P 2Y4
www.kingcanada.com

GENERAL & SPECIFIC
SAFETY INSTRUCTI NS
V LTAGEWARNING: Before connecting the tool to a power source (receptacle, outlet, etc.) be sure the voltage supplied is the same as
that specified on the nameplate of the tool. A power source with voltage greater than that for the specified tool can result in SERIOUSIN-
JURY to the user - as well as damage to the tool. If in doubt DONOTPLUGINTHETOOL. Using a power source with less voltage is
harmful to the motor.
1. KN W Y UR T L
Read and understand the owners manual and labels affixed to the
tool. Learn its application and limitations as well as its specific po-
tential hazards.
2. GR UND THE T L.
This tool is equipped with an approved 3-conductor cord and a 3-
prong grounding type plug to fit the proper grounding type recep-
tacle. The green conductor in the cord is the grounding wire.
NEVER connect the green wire to a live terminal.
3. KEEP GUARDS IN PLACE.
eep in good working order, properly adjusted and aligned.
4. REM VE ADJUSTING KEYS AND WRENCHES.
Form habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it on.
5. KEEP W RK AREA CLEAN.
Cluttered areas and benches invite accidents. Do not leave tools
or pieces of wood on the machine while operating.
6. AV ID DANGER US ENVIR NMENT.
Don’t use power tools in damp or wet locations or expose them to
rain. eep work area well lit and provide adequate surrounding
work space.
7. KEEP CHILDREN AND VISIT RS AWAY.
All visitors should be kept a safe distance from work area.
8. MAKE W RKSH P CHILD-PR F.
Use padlocks, master switches or remove starter keys.
9. USE PR PER SPEED.
A tool will do a better and safer job when operated at the proper
speed.
10. USE RIGHT T L.
Don’t force the tool or the attachment to do a job for which it was
not designed.
11. WEAR PR PER APPAREL.
Do not wear loose clothing, gloves, neckties or jewelry (rings,
watch) because they could get caught in moving parts. Non-slip
footwear is recommended. Wear protective hair covering to contain
long hair. Roll up long sleeves above the elbows.
12. ALWAYS WEAR SAFETY GLASSES.
Always wear safety glasses (ANSI Z87.1). Everyday eye-glasses
only have impact resistant lenses, they are N T safety glasses.
Also use a face or dust mask if cutting operation is dusty.
13. D N’T VERREACH.
eep proper footing and balance at all times.
14. MAINTAIN T L WITH CARE.
eep tools sharp and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
15. DISC NNECT T LS.
Before servicing, when changing accessories or attachments.
16. AV ID ACCIDENTAL STARTING.
Make sure the switch is in the ‘’OFF’’ position before plugging in.
17. USE REC MMENDED ACCESS RIES.
Consult the manual for recommended accessories. Follow the in-
structions that accompany the accessories. The use of improper
accessories may cause hazards.
18. NEVER STAND N T L.
Serious injury could occur if the tool tips over. Do not store materials
such that it is necessary to stand on the tool to reach them.
19. CHECK DAMAGED PARTS.
Before further use of the tool, a guard or other parts that are dam-
aged should be carefully checked to ensure that they will operate
properly and perform their intended function. Check for alignment
of moving parts, breakage of parts, mounting, and any other condi-
tions that may affect its operation. A guard or other parts that are
damaged should be properly repaired or replaced.
20. NEVER LEAVE MACHINE RUNNING
UNATTENDED.
Turn power ‘’OFF’’. Don’t leave any tool running until it comes to a
complete stop.
SPECIFIC SAFETY RULES F R CEMENT MIXERS
To prevent serious injury, read and follow these safety warnings :
1. Do not attempt to use this cement mixer until you are totally familiar
with how to operate it safely. Read instruction manual for details.
2. Make sure cement mixer is properly grounded.
3. Do not insert hands or shovel into rotating drum.
4. Do not perform any setup work while cement mixer is operating.
5. Always wear safety glasses/face shield while operating this cement
mixer.
6. Always disconnect cement mixer from power source before per-
forming any maintenance or repairs.
7. perators should not wear loose clothing, jewelry or unrestrained
hair styles while using this cement mixer.
8. Do not move cement mixer while motor is running or with cement in
drum.
9. Do not exceed 220 lbs drum capacity.
10. Block tires before use.
11. Use only on flat, level surface.

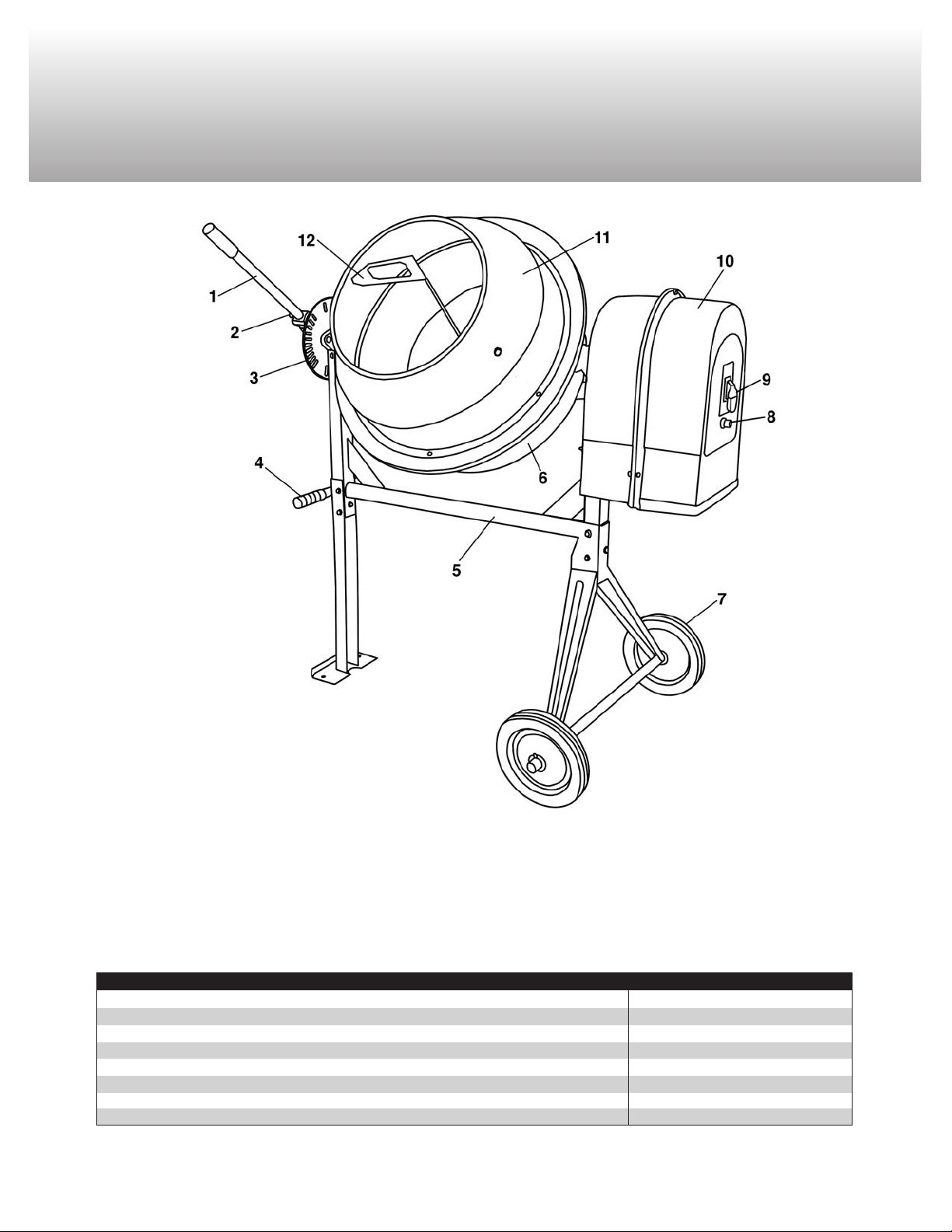

GETTING T KN W Y UR
P RTABLE CEMENT MIXER
1. Drum tilting lever
2. Tiliting lever spring tension adjustment bolt
3. Tilting lever angle control plate
4. Lifting handle (1 of 2)
5. Frame
6. Lower drum
7. 9”wheel (1 of 2)
8. Thermal overload reset
9. On/Off switch with removeable key
10. Motor housing & cover
11. Upper drum
12. Mixing paddle (1 of 2)
M DEL KC-15CM-2
Drum capacity 3.5 cu.ft.
Drum opening 15”
Drum speed 36 RPM
Motor 1/3 HP
Amperage (running/peak) 3.5 Amp. / Max. 10.7 Amp.
Voltage 120V, 1 phase, 60 Hz
Dimensions (LxWxH) 46” x 27-3/4” x 57-3/8”
Weight 115 lbs

P WER SUPPLY
WARNING: YOUR MACHINE MUST BE CONNECTED TO A 110-120V,
15-AMP CIRCUIT BREA ER. FAILURE TO CONNECT IN THIS WAY
CAN RESULT IN INJURY FROM SHOC OR FIRE.
GR UNDING
This machine must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electric current, to re-
duce the risk of electric shock. This machine is equipped with a cord hav-
ing an equipment-grounding conductor and grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Your machine must be properly grounded. Not all outlets are properly
grounded. If you are not sure if your outlet is properly grounded, have it
checked by a qualified electrician.
WARNING: TO MAINTAIN PROPER GROUNDING, DO NOT REMOVE
OR ALTER THE GROUNDING PRONG IN ANY MANNER.
WARNING: IF NOT PROPERLY GROUNDED, THIS MACHINE CAN
CAUSE ELECTRICAL SHOC , PARTICULARLY WHEN USED IN
DAMP LOCATIONS. TO AVOID SHOC OR FIRE, IF THE POWER
CORD IS WORN OR DAMAGED IN ANY WAY, HAVE IT REPLACED
IMMEDIATELY.
110-120V PERATI N
As received from the factory, your machine is ready to run for 110-120V
operation. This machine is intended for use on a circuit that has an outlet
and a plug which looks like the one illustrated in Fig.1.
WARNING: DO NOT USE A TWO-PRONG ADAPTOR FOR THEY ARE
NOT IN ACCORDANCE WITH LOCAL CODES AND ORDINANCES.
NEVER USE IN CANADA.
EXTENSI N C RDS
The use of any extension cord will cause some loss of power. Use the
following table to determine the minimum wire size (A.W.G-American Wire
Gauge) extension cord. Use only 3-wire extension cords which have 3-
prong grounding type plugs and 3-hole receptacles which accept the tool’s
plug.
For circuits that are further away from the electrical circuit box, the wire size
must be increased proportionately in order to deliver ample voltage to the
motor. Refer to Fig.2 for wire length and size.
ELECTRICAL INF RMATI N
WARNING!
ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SE-
RIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE CEMENT MIXER DISCONNECTED FROM THE
POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY!
FIGURE 1
120V GR UNDED UTLET
GR UNDING
PLUG
CURRANT
CARRYING
PR NGS
FIGURE 2
Tool’s
Amperage
Rating
3-6
6-8
8-10
10-12
12-16
Cord Size in A.W.G.
Cord Length in Feet
25 50 100 150
18 16 16 14
18 16 14 12
18 16 14 12
18 16 14 12
14 12 - -

ASSEMBLY
FIGURE 3
UNPACKING
Due to modern mass production techniques, it is unlikely that your ing Canada cement
mixer is faulty or that a part is missing. If you find anything wrong, do not operate until the
parts have been replaced or the fault has been rectified. Failure to do so could result in
serious personal injury.
Carefully lift all loose parts from the carton and place them on a level work surface.

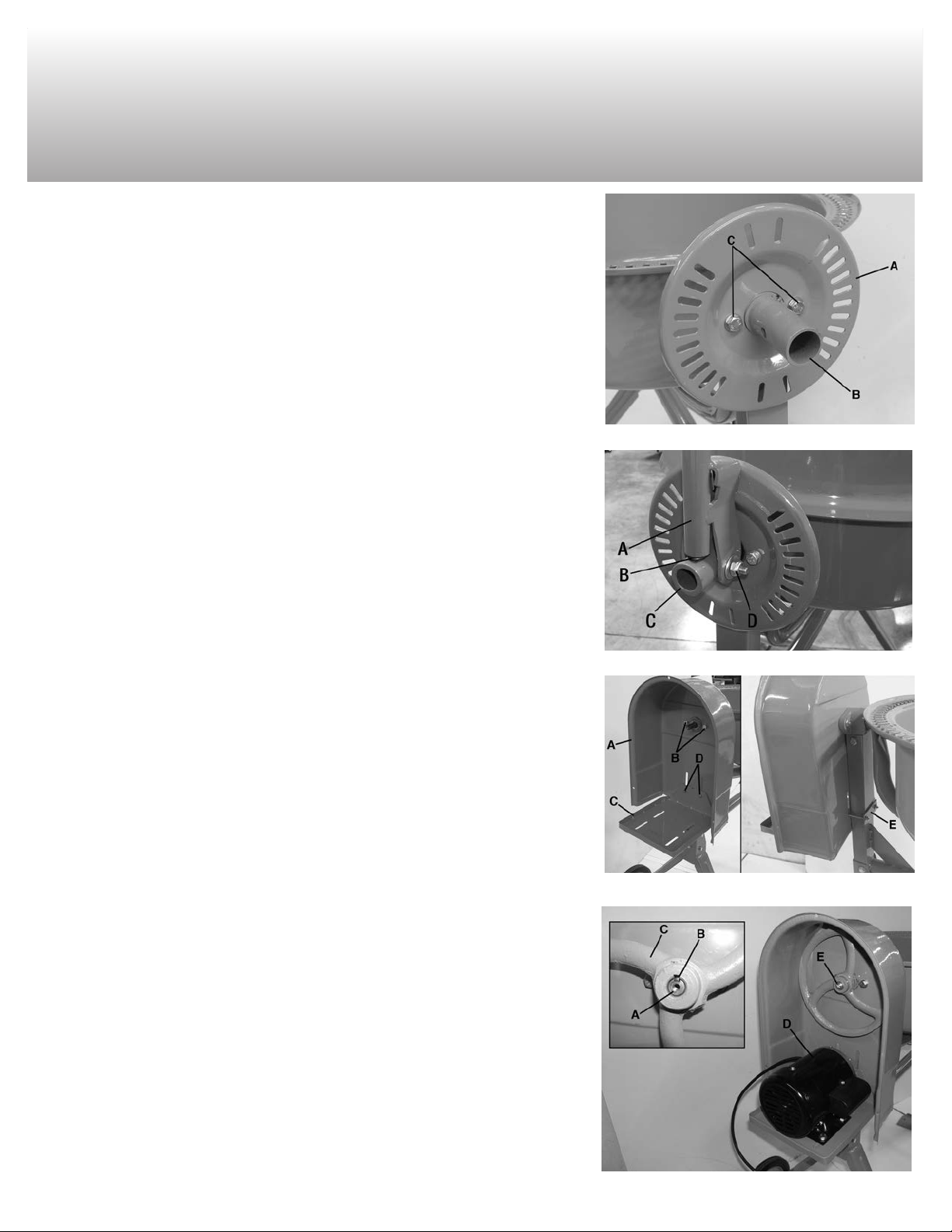

Assembling Support Stand & Wheels
1. Place the horizontal support (A) Fig.3 into the wheel bracket (B) so that the bolt holes
line up.
2. Secure the support and wheel bracket together using 3 long hex. bolts, washers and
flange hex. nuts. Tighten with a wrench (not included).
3. Place support bracket (C) Fig.3 over the horizontal support (A) so that the bolt holes
line up.
4. Secure them together using 3 long hex. bolts, washers and flange hex. nuts (A)Fig.4.
Tighten with a wrench (not included).
5. Place Stand upright.
6. To install the wheels (D) Fig.3. First slide 2 large washers onto each wheel bracket shafts,
then slide a wheel (B) Fig.5, another washer (C), then insert a cotter pin (D) into the
bracket’s axle hole and split the ends. Repeat for the second wheel.
Assembling Lower Drum to Support Stand
1. With assistance, lift the lower drum assembly (A) Fig.5 &6, insert both supporting arms
(B) into the top of the stand posts (C).
2. Secure the supporting arms to the stand posts using 2 long hex. bolts, washers and
flange hex. nuts (D) Fig.6. Tighten with a wrench (not included).
FIGURE 4
FIGURE 5
FIGURE 6

ASSEMBLY
FIGURE 7
Assembling Tilt Lever
1. Install the tilting lever angle control plate (A) Fig.7 to the support bracket shaft (B) using
2 short hex. bolts, washers and spring washers (C).
2. In order to install the tilting lever assembly, first locate the tilting lever (A) Fig.8 and insert
spring (B) inside the tilting lever.
3. Then install the tilting lever (A) to the support bracket shaft (C) using a thick and long
hex. bolt, washer and a nylon hex. nut (D). Tighten with a wrench (not included).

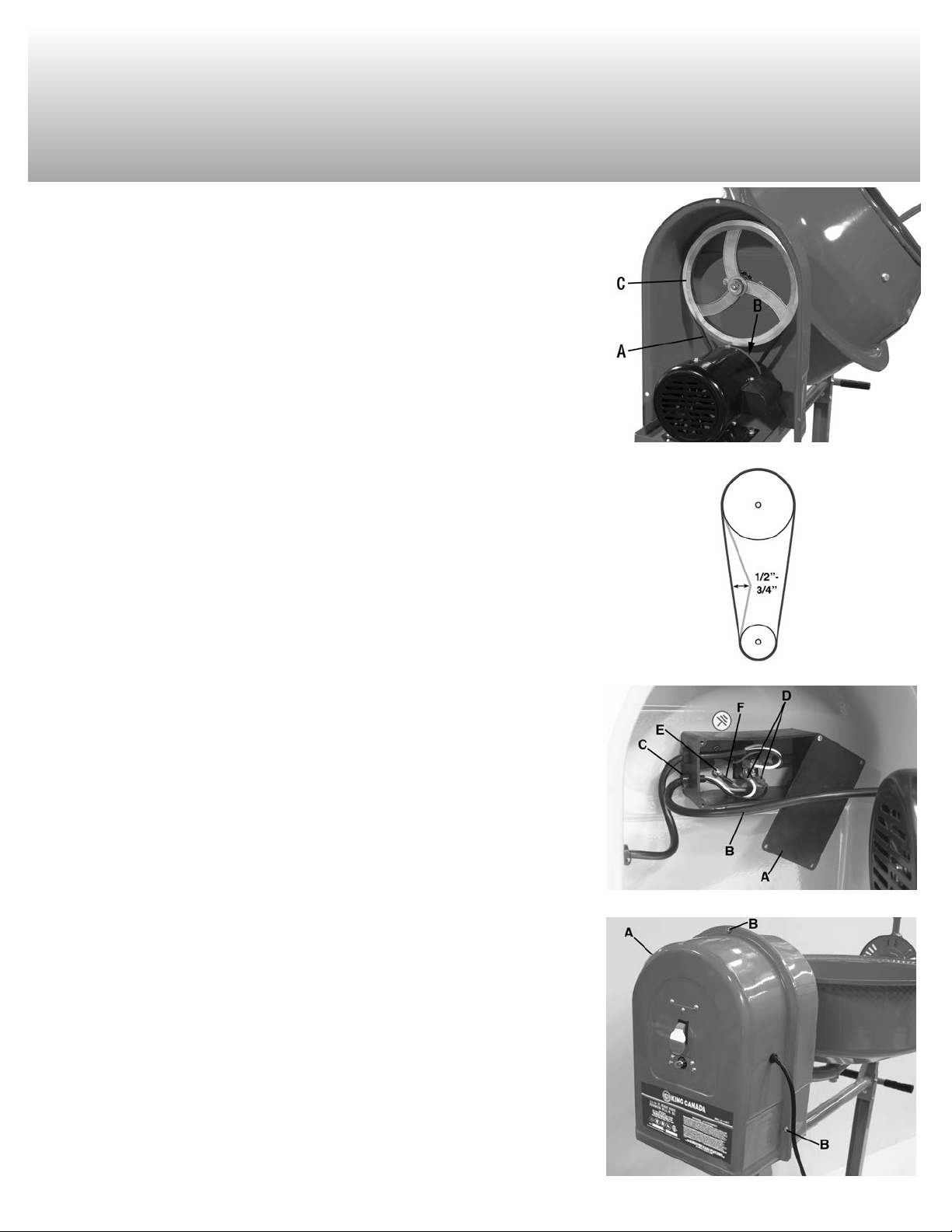

Assembling Motor Housing, Motor Plate, Drum Pulley & Motor
1. Install the motor housing (A) Fig.9 to the pinion shaft side of the support bracket using
2 short hex. bolts, washers, and spring washers (B).
2. Install the motor plate (C)Fig.9 to the motor housing (A) using 2 long thin hex. bolts,
washers, flange hex. nuts (D) and fixing plate (E) as shown in Fig.9. Only hand
tighten hardware since the motor plate will be adjusted up or down later.
3. Clean the pinion shaft (A) Fig.10 of all plastic protective material and other debris. Also
clean out any debris from the motor pulley’s hub. Position shaft retaining key (B) into
the pinion shaft slot.
4. Smear a few drops of lubricating oil on the pinion shaft and squarely push the large drum
pulley (C) onto the pinion shaft so that the groove in the pulley engages the shaft re-
taining key. The pulley should be flush with the step on the pinion shaft.
WARNING! Do not hammer the drum pulley onto the pinion shaft. Doing so can damage
the unit and possibly lead to a loose fitting belt.
5. Place the motor (D) Fig.10 onto the motor plate.
6. Loosely bolt the motor to the motor plate using 4 short hex. bolts, washers and flange
hex. nuts. Only hand tighten hardware since the motor will be adjusted forward or back-
ward later.
7. Once the drum pulley is pushed in all the way, secure the pulley to the pinion shaft using
a thin pan head screw, spring washer and washer (E) Fig.10.
FIGURE 8
FIGURE 9
FIGURE 10

ASSEMBLY
FIGURE 11
Assembling V-belt
1. Position the V-Belt (A) Fig.11 around the motor pulley (B) and then over the drum pulley
(C). It may be neccessary to lift the motor plate in order to place V-belt around the pul-
leys. Then push the motor inward until it is directly under the drum pulley. Tighten the
motor hardware to secure the motor.
2. Push the motor and motor plate downward until the v-belt tension is tight. When
proper V-Belt tension is achieved, tighten the motor plate hardware to secure the motor
position.
3. Check if motor and V-belt turns correctly. Hand turn the drum pulley and verify that motor
pulley and drum pulley do not rub against any other part. Adjust motor location as
needed.
Proper V-Belt Tension
1. Press on the centre of the longest span on the belt with moderate finger pressure. Then
measure the deflection distance, the distance that the belt moved. The belt should de-
flect anywhere from 1/2” to 3/4”. See Fig.12.
2. If the belt deflects too much, tighten belt by loosening the motor mounting bolts and
moving the motor away from the other pulley slightly. Secure motor mounting bolts and
retest tension.
3. If the belt deflects too little, loosen the motor plate bolts and lift it upward. Secure motor
mounting plate and retest tension.
Wiring Motor Cord to Switch
WARNING! Make sure power cord is disconnected from power source before attempting
to wire electrical wires to switch.
The motor cord is not wired to the switch. The motor cord black & white wire connectors
must be connected to the switch, the green ground wire must be secured to the motor
housing cover. To wire motor cord to switch, follow these instructions;
1. Locate the motor housing cover. Unscrew and remove 3 small pan head screws and
slide the switch box cover (A) Fig.13 out of the way.
2. Position the motor housing cover close enough to the motor so the motor cord (B) can
reach the switch box. Insert the 3 motor cord wires into the switch box and secure motor
cord to switch box using a strain relief wire clamp (C).
3. Then connect the black and white wire connectors (D) to the bottom terminals on the
switch. Either wire connector can be connected to either terminal.
4. Undo the top grounding hex. nut (E) and secure green ground wire (F) to screw.
5. Secure the switch box cover (A) using the same 3 pan head screws removed in step 1.
Installing Motor Housing Cover
1. Mount the motor housing cover (A) Fig.14 to the motor housing using 5 medium sized
hex. bolts, washers and flange hex. nuts (B).
CAUTI N! Make sure that the power cord from the motor to the switch does not come in
contact with any moving parts.
FIGURE 12
FIGURE 13
FIGURE 14

FIGURE 15
Assembling Drum Gasket & Upper Drum Cover
1. Place the rubber gasket (A) Fig.15 onto the lower drum (B) as shown. Line up the rubber
gasket mounting holes with the ones on the lower drum. It is recommended to use a
gasket sealer (not included) to fix the rubber gasket to the lower drum. The rubber gas-
ket must be set flat to ensure proper seal.
2. Turn the lower drum so the small A label (A) Fig.16 is facing you. Then position and align
the small A label (B) of the upper drum (C) with the small A label on the lower drum,
lower upper drum onto lower drum making sure the mounting holes align in both.
3. Insert six hex. bolts (D) into each mounting hole. Fasten drums together using washers
and flange hex. nuts.
Assembling Mixing Paddles Inside Drum
1. Mount both mixing paddles (A) Fig.17 inside the assembled drum as shown.
2. Fasten paddles to drum using 4 short hex. bolts, washers, and flange hex. nuts (B).
PERATI N
perational Guidelines
1. Place the cement mixer on a solid, even and level surface.
2. Connect the power cord to an electric outlet (or properly rated grounded three prong ex-
tension cord).
3. Fill up half of the drum with pre-mix cement and water.
4. Adjust the drum angle by pulling outward on the tilting control handle, make sure the
locking pins are no longer engaged and then pull the tilting control handle until the de-
sired angle is reached. To secure it into position, re-engage the locking pins.
5. Flip the switch (A) Fig.18 upwards to the “ON” (I) position.
6. Once the cement is mixed, tilt drum and dump material. The material gets dumped while
the drum rotates.
WARNING! Do not attempt to move the cement mixer when it is full and/or in operation.
Do not turn cement mixer “Off” while full of cement.
7. When finished, flip the switch (A) downwards to the “OFF” (O) position and disconnect
the power cord. To prevent unauthorized use, pull out the safety key (B) from the switch.
8. Tilt the drum as far down as possible to drain all fluids from drum. Clean, then store in-
doors and out of children’s reach. Refer to maintenance instructions on the following
page.
FIGURE 16
FIGURE 17
ASSEMBLY & PERATI N
FIGURE 18

MAINTENANCE & TR UBLESH TING
MAINTENANCE
1. Place the cement mixer on a solid, even and level surface.
2. Connect the power cord to an electric outlet (or properly rated grounded three prong extension cord).
3. Before each use, inspect the general condition of the cement mixer. Check for loose hardware, misalignment or binding of moving parts, cracked
or broken parts, damaged electrical wiring, damaged or cracked V-belt, and any other condition that may affect its safe operation.
4. After Use, immediately wash out all debris from the inside and outside of the cement mixer. Scrub the inside of the drum with a long handled
bristle brush for best results. Wipe external surfaces of the cement mixer with clean cloth.
5. DO NOT apply water in or around the motor housing or motor housing cover.
6. PERIODICALLY recheck all fasteners and other connections for tightness.
WARNING! If the supply cord of this power tool is damaged, it must be replaced only by a qualified service technician.
Belt Inspection & Tensioning
The V-belt must be retightened after the first 25 hours of use. To test the tension, follow these steps.
1. Remove the motor housing cover.
2. Examine V-belt for cracks, tears in the backing, or other damage. Replace V-belt if damaged.
3. Check and adjust V-belt tension. Press on the center of the longest span on the belt with moderate finger pressure. Then measure the deflection
distance, the distance that the V-belt moved. The belt should deflect anywhere from 1/2” to 3/4”. See Fig.12.
Problem
Tool will not start.
Tool operates slowly.
Excessive noise or rattling.
Overheating/Overloading.
Corrective action
1. Cord not connected.
2. No power at outlet.
3. Internal damage or wear.
1. Extension cord too long or wire size too
small.
1. Belt loose (slipping) or too tight (bearing
damage).
2. Internal damage or wear.
1. Running at 100% load for extended time.
2. Blocked motor housing vents.
3. Motor being strained by long or small
diameter extension cord.
Corrective action
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered, turn off
tool and check circuit breaker. If breaker is tripped,
make sure circuit has the correct capacity for the tool
and circuit has no other loads.
3. Have technician service tool.
1. Eliminate use of extension cord. If an extension cord is
needed, use shorter/heavier gauge cord. See
Electrical Information section.
1. Properly tension belt.
2. Have technician service tool.
1. Allow for lighter no-load intervals.
2. Wear ANSI-approved safety goggles and NIOSH
approved dust mask/respirator while blowing dust out
of motor using compressed air.
3. Eliminate use of extension cord. If an extension cord is
needed, use one with the proper diameter for its length
and load. See Electrical Information section.
