MULTIQUIP Whiteman WM45E Guide

OPERATION AND PARTS MANUAL
THIS MANUAL MUST ACCOMPANYTHE EQUIPMENT AT ALLTIMES.
SERIES
PLASTER/MORTAR MIXER
MODEL WM45H
(Honda GX160UT1HX2 Gasoline Engine)
MODEL WM45E
(1 HP Electric Motor)
Revision #1 (09/09/19)
Go to Discount-Equipment.com to order your parts

Discount-Equipment.com is your online resource for quality parts & equipment.
Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101
Need parts?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and
choose one of the options to help get the right parts and equipment you are looking
for. Please have the machine model and serial number available in order to help us
get you the correct parts. If you don’t find the part on the website or on one of the
online manuals, please fill out the request form and one of our experienced staff
members will get back to you with a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,
Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,
Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic,
Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,
Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S.
Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin,
Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,
Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air,
APT, Wylie, Ingersoll Rand / Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith
Surface Prep,Small Line, Wanco, Yanmar

PAGE 2 — WM45H/E PLASTER/MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19)

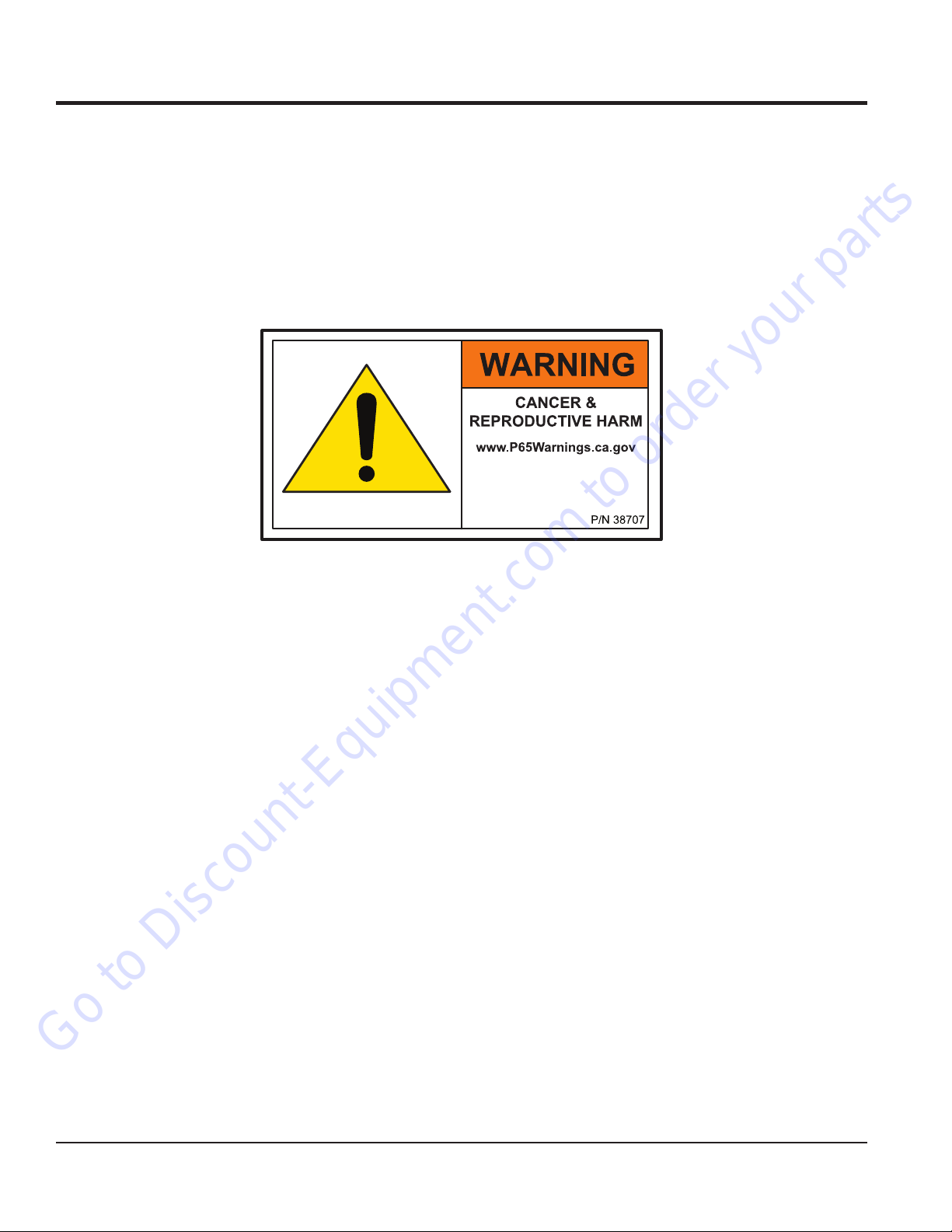

PROPOSITION 65 WARNING
Go to Discount-Equipment.com to order your parts

WM45H/E PLASTER MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19) — PAGE 3

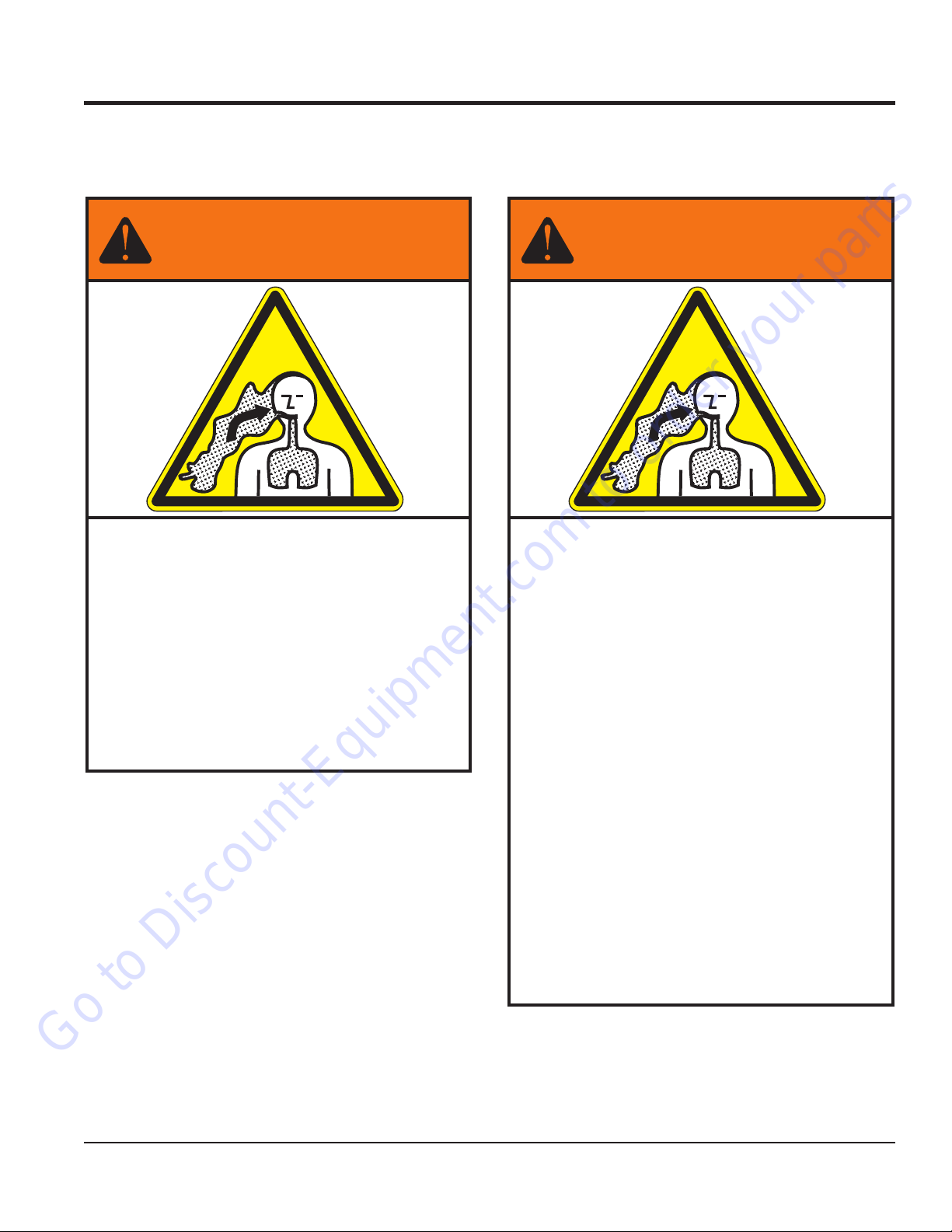

Grinding/cutting/drillingofmasonry,concrete,metaland
other materials with silica in their composition may give
off dust or mists containing crystalline silica. Silica is a
basic component of sand, quartz, brick clay, granite and
numerous other minerals and rocks. Repeated and/or
substantial inhalation of airborne crystalline silica can
cause serious or fatal respiratory diseases, including
silicosis.Inaddition, California and some other
authorities have listed respirable crystalline silica as a
substance known to cause cancer. When cutting such
materials, always follow the respiratory precautions
mentionedabove.
WARNING
Grinding/cutting/drillingofmasonry,concrete,metaland
other materials can generate dust, mists and fumes
containing chemicals known to cause serious or fatal
injury or illness, such as respiratory disease, cancer,
birth defects or other reproductive harm. If you are
unfamiliar with the risks associated with the particular
process and/or material being cut or the composition of
the tool being used, review the material safety data
sheet and/or consult your employer, the material
manufacturer/supplier, governmental agencies such as
OSHA and NIOSH and other sources on hazardous
materials. California and some other authorities, for
instance, have published lists of substances known to
cause cancer, reproductive toxicity,or other harmful
effects.
Control dust, mist and fumes at the source where
possible. In this regard use good work practices and
follow the recommendations of the manufacturers or
suppliers, OSHA/NIOSH, and occupational and trade
associations.Water should be used for dust
suppression when wet cutting is feasible. When the
hazardsfrominhalationofdust,mists and fumescannot
be eliminated, the operator and any bystanders should
always wear a respirator approved by NIOSH/MSHAfor
thematerialsbeingused.
WARNING
SILICOSISWARNING RESPIRATORY HAZARDS
SILICOSIS/RESPIRATORY WARNINGS
Go to Discount-Equipment.com to order your parts

PAGE 4 — WM45H/E PLASTER/MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19)
TABLE OF CONTENTS
WM45H/WM45E
Plaster/Mortar Mixer
Proposition 65 Warning ........................................... 2
Silicosis/Respiratory Warnings ................................ 3
Table of Contents..................................................... 4
Safety Information ............................................... 6–9
Specifications ........................................................ 10
Dimensions............................................................ 11
General Information............................................... 12
Components .......................................................... 13
Basic Engine.......................................................... 14
Electric Motor ........................................................ 15
Pre-Inspection (Engine/Mixer) ............................... 16
Initial Start-Up (Engine) ......................................... 17
Initial Start-Up (Engine/Electric Motor).................. 18
Shutdown............................................................... 19
Maintenance (Engine) ..................................... 20–21
Maintenance (Mixer)........................................ 22–23
Troubleshooting (Engine)....................................... 24
Troubleshooting (Engine/Mixer) ............................. 25
Wiring Diagram (Electric Motor) ............................ 26
Explanation of Code in Remarks Column.............. 28
Suggested Spare Parts ......................................... 29
NOTICE
Specifications and part numbers are subject to change
without notice.
Component Drawings
Nameplate and Decals Assembly.................... 30–31
Steel Tub Assembly ......................................... 32–33
Paddle Shaft Assembly.................................... 34–35
Frame Assembly.............................................. 36–37
Engine Cover Assembly .................................. 38–39
Engine/Guard Assembly.................................. 40–41
Electric Motor Assembly.................................. 42–43
Go to Discount-Equipment.com to order your parts

WM45H/E PLASTER MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19) — PAGE 5
NOTES
Go to Discount-Equipment.com to order your parts

PAGE 6 — WM45H/E PLASTER/MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19)
SAFETY INFORMATION
Do not operate or service the equipment before reading
the entire manual. Safety precautions should be followed
at all times when operating this equipment.
Failure to read and understand the safety
messages and operating instructions could
result in injury to yourself and others.

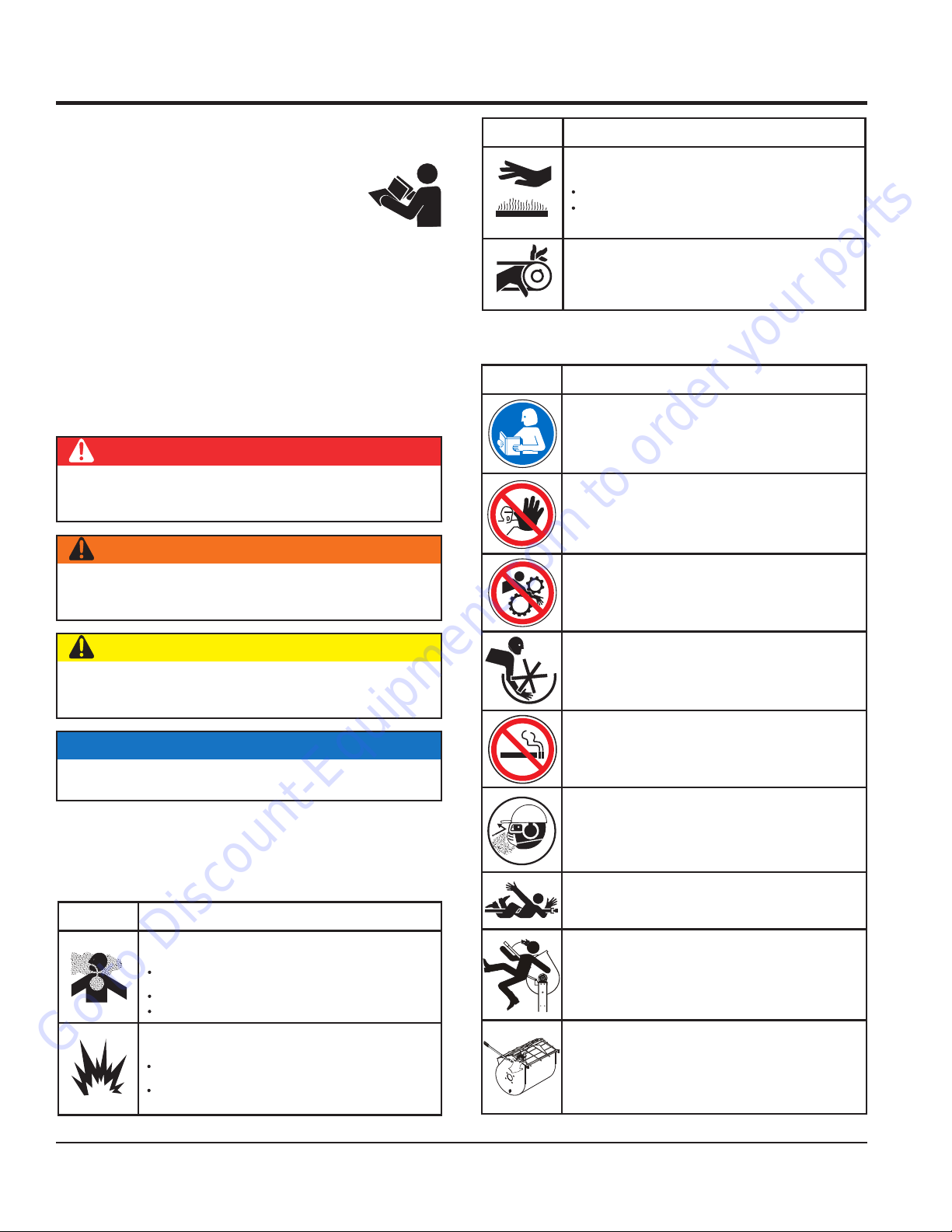

SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others.The
safety messages specifically address the level of exposure
to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION
or NOTICE.
SAFETY SYMBOLS
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
Inhaling exhaust fumes can result in severe
injury or death.
Only operate equipment in well ventilated areas.
inhale exhaust gases/fumes.DO NOT
WARNING
Lethal Exhaust Gas Hazard
Gasoline fuel can cause fire or explosion. Stop
engine before refueling.
Keep cigarettes, sparks and flames away from hot
surfaces.
WARNING
Explosive Fuel Hazard
SYMBOL SAFETY HAZARD
Warning decals
associated with the operation of this
equipment are defined below:
HOT PARTS can burn skin.
CAUTION
Burn Hazard
touch hot parts. Allow machine a sufficient
amount of time to cool before performing maintenance.
DO NOT
SYMBOL SAFETY HAZARD (CONTINUED)
NEVER operate this equipment with guards removed.
Keep hands clear.
WARNING
Guard Hazard
To avoid injury you must read and understand
operator’s manual before using this machine.
This machine to be operated by qualified personnel.
Ask for training as needed.
WARNING
WARNING
Read Manual
NEVER operate this equipment with guards removed.
Keep hands clear.
WARNING
Training
Guard Hazard
DECAL SAFETY HAZARD
smoke around or near this equipment.DO NOT
WARNING
Fire Hazard
wear appropriate dust mask along with
hearing and eye protection.
ALWAYS
WARNING
Inhalation Hazard
WARNING
Entanglement Hazard
Stand clear of rotating blades.
WARNING
Kickback Hazard
Stand clear of drum handle when blades are
rotating.
WARNING
Crush Hazard
ALWAYS keep hands clear of safety grate when
closing.
Moving blades can cut and crush. operate
equipment with hands inside drum.
NEVER
WARNING
Rotating Parts Hazard
Go to Discount-Equipment.com to order your parts

WM45H/E PLASTER MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19) — PAGE 7
SAFETY INFORMATION
GENERAL SAFETY
CAUTION

NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.

Avoid wearing jewelry or loose fitting clothes that may
snag on the controls or moving parts as this can cause
serious injury.

NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.

NEVER operate this equipment under the
influence of drugs or alcohol.

ALWAYS clear the work area of any debris, tools, etc.
that would constitute a hazard while the equipment is
in operation.

ALWAYS check the equipment for loosened threads or
bolts before starting.

DO NOT use the equipment for any purpose other than
its intended purposes or applications.
NOTICE

This equipment should only be operated by trained and
qualified personnel 18 years of age and older.

Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.

Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized
equipment modification will void all warranties.
NEVER
use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
ALWAYS know the location of the nearest
fire extinguisher.
ALWAYS know the location of the nearest
first aid kit.
ALWAYS know the location of the nearest phone or
keep
a phone on the job site.
Also, know the phone numbers
of the nearest ambulance, doctor and
fire department.
This information will be invaluable in the case of an
emergency.
Go to Discount-Equipment.com to order your parts

PAGE 8 — WM45H/E PLASTER/MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19)
SAFETY INFORMATION
MIXER SAFETY
DANGER

NEVER operate the equipment in an explosive
atmosphere or near combustible materials.An
explosion or fire could result causing severe
bodily harm or even death.

DO NOT mix flammable or explosive substances.
WARNING

NEVER place your hands inside the drum
while starting or operating this equipment.

NEVER disconnect any emergency
or safety devices. These devices are
intended for operator safety. Disconnection of these
devices can cause severe injury, bodily harm or even
death. Disconnection of any of these devices will void
all warranties.

Before operating mixer, ensure that safety grate is in
position and correctly fitted.
CAUTION

NEVER lubricate components or attempt service on a
running machine.
NOTICE

ALWAYS keep the machine in proper running condition.

ALWAYS ensure mixer is on level ground before mixing.

Fix damage to machine and replace any broken parts
immediately.

DO NOT tip mixer onto drum mouth when the drum is
rotating.

Ensure the drum is rotating while filling and emptying
the drum.

ALWAYS store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
ENGINE SAFETY
DANGER

Engine fuel exhaust gases contain poisonous carbon
monoxide. This gas is colorless and odorless, and can
cause death if inhaled.

The engine of this equipment requires an adequate
free flow of cooling air. NEVER
operate this equipment
in any enclosed or narrow
area where free flow of the
air is restricted. If the air
flow is restricted it will cause
injury to people and property
and serious damage to the
equipment or engine.
WARNING
DO NOT
place hands or fingers inside engine
compartment when engine is running.
NEVER
operate the engine with heat shields or
guards removed.
Keep fingers, hands hair and clothing away
from all moving parts to prevent injury.
DO NOT remove the engine oil drain plug
while the engine is hot. Hot oil will gush out of the oil
tank and severely scald any persons in the general area
of the mixer.
CAUTION
NEVER touch the hot exhaust manifold,
muffler or cylinder. Allow these parts to cool
before servicing equipment.

Make certain the operator knows how to and is capable
of turning the engine OFF in case of an emergency.
NOTICE
NEVER
run engine without an air filter or with a dirty air
filter. Severe engine damage may occur. Service air filter
frequently to prevent engine malfunction.
NEVER tamper with the factory settings
of the engine or engine governor. Damage
to the engine or equipment can result
if operating in speed ranges above the
maximum allowable.
DANGEROUS
GAS FUMES
Go to Discount-Equipment.com to order your parts

WM45H/E PLASTER MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19) — PAGE 9
SAFETY INFORMATION

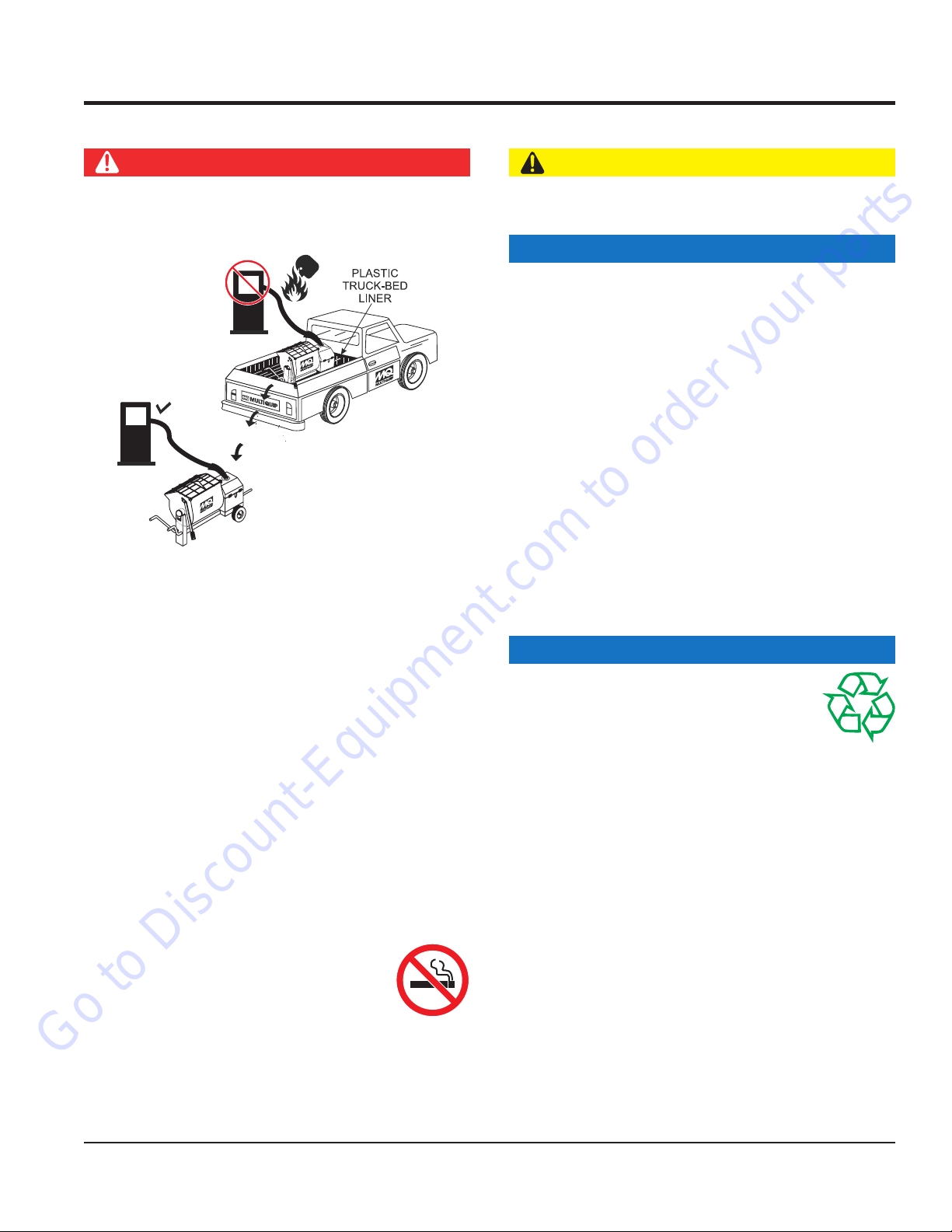

FUEL SAFETY
DANGER

DO NOT add fuel to equipment if it is placed inside truck
bed with plastic liner. Possibility exists of explosion or
fire due to static electricity.

DO NOT start the engine near spilled fuel or combustible
fluids. Fuel is extremely flammable and its vapors can
cause an explosion if ignited.

ALWAYS refuel in a well-ventilated area, away from
sparks and open flames.

ALWAYS use extreme caution when working with
flammable liquids.

DO NOT fill the fuel tank while the engine is running
or hot.

DO NOT overfill tank, since spilled fuel could ignite if it
comes into contact with hot engine parts or sparks from
the ignition system.

Store fuel in appropriate containers, in well-ventilated
areas and away from sparks and flames.

NEVER use fuel as a cleaning agent.

DO NOT smoke around or near the
equipment. Fire or explosion could result
from fuel vapors or if fuel is spilled on a
hot engine.
FUEL
FUEL
TRANSPORTING SAFETY
CAUTION
NEVER
allow any person or animal to stand underneath
the equipment while lifting.
NOTICE
ALWAYS
make sure forklift forks are inserted into pockets
(if applicable) as far as possible when lifting the mixer.
ALWAYS shutdown engine before transporting.
NEVER lift the equipment while the engine is running.

Tighten fuel tank cap securely and close fuel cock to
prevent fuel from spilling.
DO NOT lift machine to unnecessary heights.
ALWAYS
tie down equipment during transport by
securing the equipment with rope.
NEVER
tip the engine to extreme angles during lifting as
it may cause oil to gravitate into the cylinder head, making
the engine start difficult.
ENVIRONMENTAL SAFETY
NOTICE
Dispose of hazardous waste properly.
Examples of potentially hazardous waste
are used motor oil, fuel and fuel filters.
DO NOT
use food or plastic containers to dispose of
hazardous waste.
DO NOT
pour waste, oil or fuel directly onto the ground,
down a drain or into any water source.
Go to Discount-Equipment.com to order your parts

PAGE 10 — WM45H/E PLASTER/MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19)
SPECIFICATIONS
Table 1. Mixer Specifications
Capacity 4.5 cu. ft (127 liters)
Bag Capacity 1-1/2 to 2-1/2 bags
Weight 380 lbs. (172 kg.)
Height W/Dump Handle 57.5 in. (146 cm.)
Discharge Height 7.5 in. (19 cm.)
Drive V-Belt/Gear
Dump Action Manual
Table 2. Engine/Electric Motor Specifications
Engine
Model Honda GX160UT1HX2 BALDOR
35S772T980G1
Type
Air-cooled 4 stroke, Single Cylinder,
OHV, Horizontal Shaft Gasoline
Engine
1.0 HP 115/230 VAC
Single-Phase, 60 Hz
Electric Motor
Bore X Stroke 2.70 in. X 1.80 in.
(68 mm x 45 mm) N/A
Displacement 9.9 cu. in. (163 cc) N/A
Max Output 4.8 H.P./3600 R.P.M. 1.0 HP @ 1725 RPM
Fuel Tank Capacity Approx. 0.95 U.S. Gallons (3.6 Liters) N/A
Fuel Unleaded Gasoline N/A
Lube Oil Capacity 0.63 qt. (0.6 liter) N/A
Speed Control Method Centrifugal Fly-weight Type N/A
Starting Method Recoil Start N/A
Dimensions (L x W x H) 12.3 x 14.3 x 13.6 in.
(312 x 362 x 346 mm)
13.25 x 8.93 x 8.56 in.
(336 x 227 x 217 mm)
Dry Net Weight 40.8 lbs. (15 Kg.) 22 lbs. (10 Kg.)
Go to Discount-Equipment.com to order your parts

WM45H/E PLASTER MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19) — PAGE 11
DIMENSIONS
A
B
C
DTable 3. Mixer Dimensions
Reference Designator Dimension in. (cm.)
A 57.5 (146)
B 74.0 (188)
C 32.5 (82)
D 29.0 (74)
Figure 1. Dimensions
Go to Discount-Equipment.com to order your parts

PAGE 12 — WM45H/E PLASTER/MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19)
GENERAL INFORMATION
GENERAL
The MQ Model WM45H and WM45E plaster and mortar
mixers are shipped completely assembled and each mixer
has been factory tested.
The drum batch capacity of these mixers is between 1.5 and
2.5 bags. With proper care it will give continuous service
year after year.
These mixers can be powered by either a Honda GX160
gasoline engine or a 1 HP electric motor (115/230 VAC, 60
Hz). The shaft of the engine or electric motor is connected
to a drive belt pulley which is attached to a main gear. As
the main gear rotates it causes the paddle shaft to rotate.
Before Starting
Before starting if using a gasoline model mixer, read the
engine owner's manual and thoroughly understand the
safety information.
Check the items listed below:
Oil Levels (Gasoline Model Only)
Be sure to check the oil levels in the engine and engine
reduction unit before starting the unit (gasoline model only).
Hardware
Check all hardware on the mixer before starting. Periodically
inspect all hardware. Loose hardware can contribute to
early component failure and poor performance. Use the
torque chart below as a general guideline and keep all
hardware tight:
HARDWARE DIA TORQUE (lb./ft.)
5/16"- 18 24
3/8" - 24 37
1/2" - 13 39
1/2" - 13 (Grade 8) 90
Gasoline Engine Care
For care and operation of the Honda engine, refer to the
maintenance procedures in this manual and the engine
manufacturer’s operating instructions furnished with the
engine. We recommend draining and refilling the engine
crankcase at least every thirty hours of operation. Check
the engine oil level daily.
ON/OFF Switch (Gasoline Model Only)
This feature is on gasoline engine mixers only. Located on
the side of the engine cover. The purpose of this switch is
to start and stop the mixer in normal operation.
ON/OFF Switch (Electric Model Only)
This feature is on electric motor mixers only. This switch is
located on top of the motor. Lift the engine cover to gain
access to this switch. The purpose of this switch is to start
and stop the mixer in normal operation. NEVER use the
electric motor in an explosive environment.
Go to Discount-Equipment.com to order your parts

WM45H/E PLASTER MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19) — PAGE 13

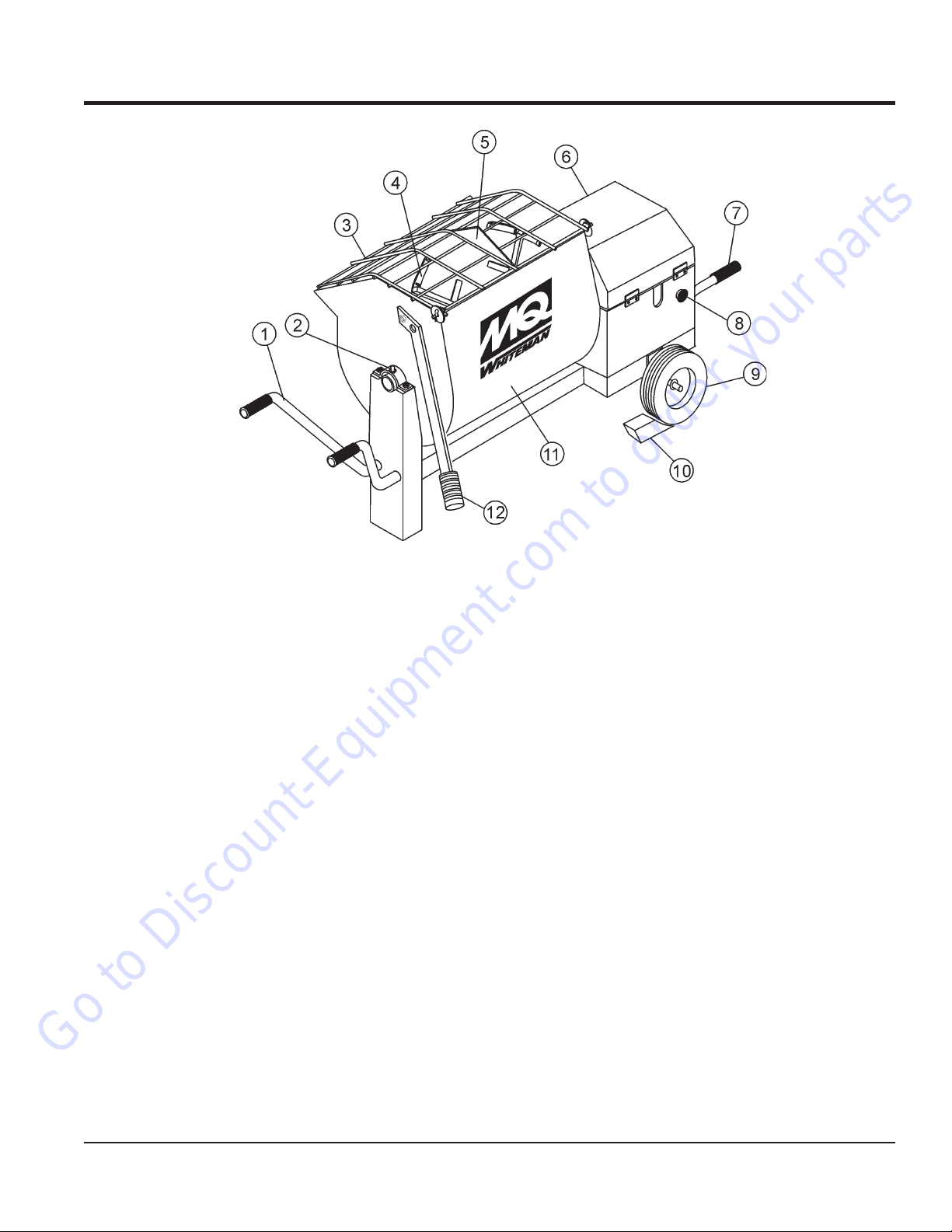

COMPONENTS
Figure 2 illustrates the basic components and controls of
the WM45H and WM45E mixer.
1. Lifting Handle Bars — Use these handle bars to lift
and maneuver the mixer.
2. Pivot Point/Zerk Fitting — There is, on each end of
the mixing drum a zerk grease fitting. These fittings
lubricate the dumping mechanism. Lubricate both
fittings at least twice a week.
3. Safety Grill — Provided for operator safety.This safety
grill is designed to keep hands and solid objects out of
the mixing drum when in use.This grill should be closed
at all times when mixer is in use. DO NOT remove the
grill or grill opening bar. Keep the grill clean by washing
it down daily.
4. Mixing Paddles — Used in the mixing of material.
This unit uses four different types of paddles to provide
a fast uniform mix.
5. Bag Cutter — This feature allows compound mixing
bags to be opened easily, therefore allowing the
contents of the bag to fall directly into the mixing drum.
6. Engine Cover — Lift this cover to gain access to the
engine compartment.
7. Lifting Handle Bars (Engine Side) — Use these
fold-down handle bars to lift and maneuver the mixer.
8. Engine ON/OFF Switch — Pull switch outward to start
engine. Push inward to stop engine. This feature is on
gasoline models only.
9. Tires — Replace tires with the recommended type
tire of 12 x 3.
10. Chock Blocks — Place these blocks (not included
as part of the mixer package) under each mixer wheel
to prevent rolling.
11. Steel Mixing Drum — Mixing materials such as mortar,
plaster are to be placed into this drum for mixing.
Always clean the drum after each use
12. Dump Handle — Pull this handle downward to dump
the contents of the drum. Push the handle upward to
return the drum to its vertical position.
Figure 2. Major Components
Go to Discount-Equipment.com to order your parts

PAGE 14 — WM45H/E PLASTER/MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19)

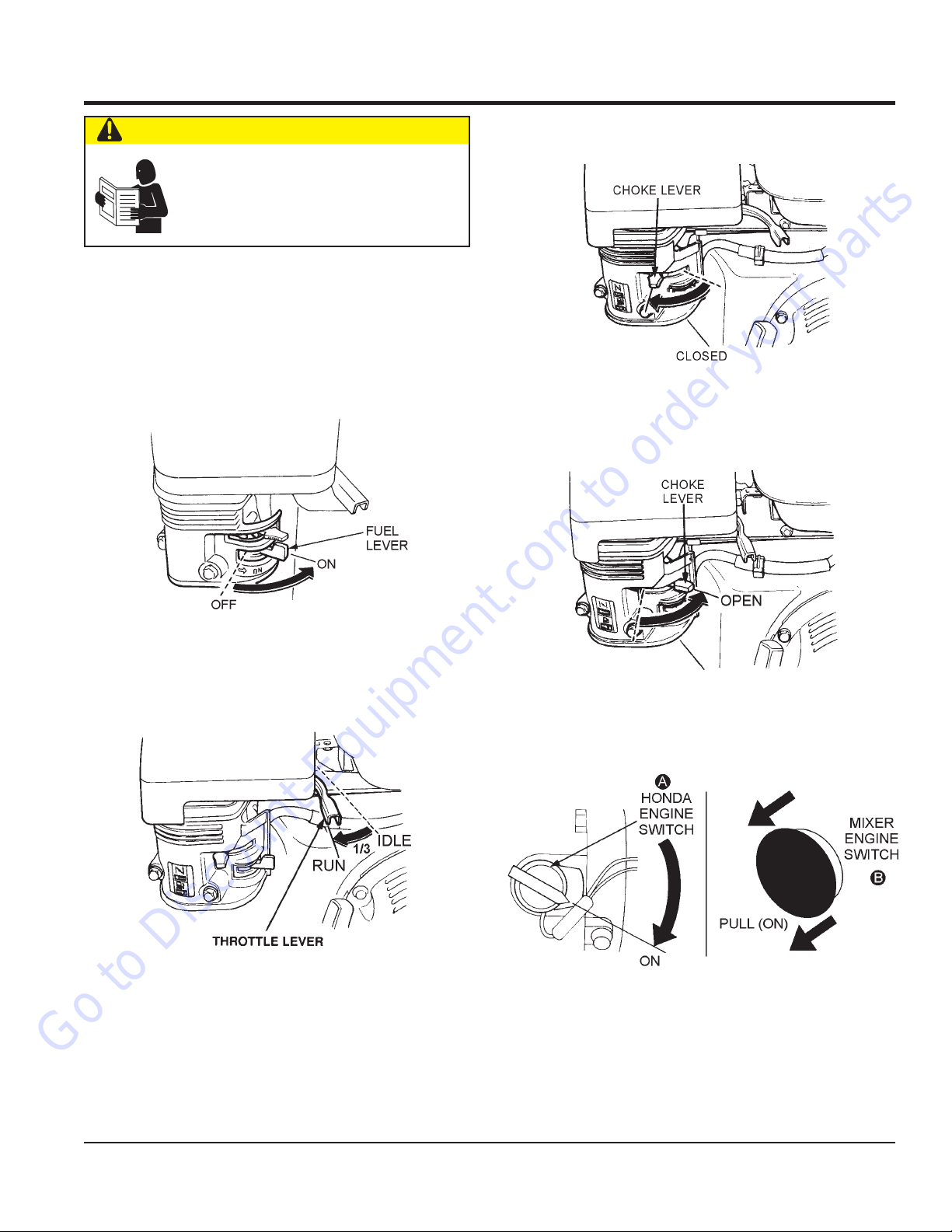

6. Choke Lever — Used in the starting of a cold engine,
or in cold weather conditions. The choke enriches the
fuel mixture.
7. Air Cleaner — Prevents dirt and other debris from
entering the fuel system. Remove wing-nut on top of
air filter canister to gain access to filter element.
8. Spark Plug — Provides spark to the ignition system.
Set spark plug gap to 0.6 - 0.7 mm (0.028 - 0.031 inch).
Clean spark plug once a week.
9. Muffler — Used to reduce noise and emissions.
10. Fuel Tank — Holds unleaded gasoline. For additional
information refer to engine owner's manual.
NOTICE
Operating the engine without an air filter, with a
damaged air filter, or a filter in need of replacement
will allow dirt to enter the engine, causing rapid engine
wear.
WARNING
Engine components can generate
extreme heat. To prevent burns,
DO NOT touch these areas while the
engine is running or immediately after
operating. NEVER operate the engine
with the muffler removed.
Figure 3. Engine Controls and Components
INITIAL SERVICING
The engine (Figure 3) must be checked for proper
lubrication and filled with fuel prior to operation. Refer to
the manufacturers engine manual for instructions and
details of operation and servicing. Fuel Filler Cap —
Remove this cap to add unleaded gasoline to the fuel tank.
Make sure cap is tightened securely. DO NOT over fill.
1. Fuel Filler Cap — Remove this cap to add unleaded
gasoline to the fuel tank. Make sure cap is tightened
securely. DO NOT over fill.
2. Throttle Lever — Used to adjust engine RPM speed
(lever advanced forward SLOW, lever back toward
operator FAST).
3. Engine ON/OFF Switch — ON position permits engine
starting, OFF position stops engine operations.
4. Recoil Starter (pull rope) — Manual-starting method.
Pull the starter grip until resistance is felt, then pull
briskly and smoothly.
5. Fuel Valve Lever — OPEN to let fuel flow, CLOSE to
stop the flow of fuel.
DANGER
Adding fuel to the tank should be done
only when the engine is stopped and has
had an opportunity to cool down. In the
event of a fuel spill, DO NOT attempt to
start the engine until the fuel residue has
been completely wiped up, and the area
surrounding the engine is dry.
BASIC ENGINE
Go to Discount-Equipment.com to order your parts

WM45H/E PLASTER MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19) — PAGE 15
ELECTRIC MOTOR
Figure 4. Single-Phase Electric Motor
18-Inch Pigtail Cable
Electric Motor
For maintenance care and operation of the electric motor,
refer to your electric motor instruction booklet furnished
with the motor.
Protect the electric motor from dust as much as possible
and keep ventilating openings clean.
The electric motor used in this mixer is a single-phase 1.0
HP motor. The input voltage requirement for this motor is
either 115 or 230 VAC only.
Electric Motor Connection
A 12 inch electrical cable (Figure 4) with a pigtail at one end
is provided with the electrical motor for hookup to a power
source. Table 4. shows the required NEMA connector for
the desired motor horsepower rating. In addition, Table 3
also shows the matching NEMA approved connector for
the required extension cord.
ALWAYS, make certain that the power source required
for the electric motor is correct and always use the correct
NEMA configuration plug. Failure to supply the correct
voltage to the motor can severely damage the motor.
The motor supplied is wired for 115 VAC grounded
operation. Make certain that the correct size grounded
(3-wires) extension cord is used. See Table .
Motors can burn out when the line voltage falls 10% below
the voltage rating of the motor. Failure to use proper voltage
will cause the motor to overheat and actuate the overload
switch.
If overload protection should activate because of improper
voltage or any other malfunction, turn the main switch on
the motor to the "OFF" position and correct the problem,
press the reset switch button, and turn the main switch to
the "ON" position.
Electric Motor Voltage Switch
1. ALWAYS make certain the electric motor switch
is "OFF" (Figure 4)and the power cord has been
disconnected from the power source.
2. Remove the voltage lock-out bolt. Change the position
of the voltage change toggle switch from 115 VAC
to 230 VAC. The mixer is factory wired for 115 VAC
operation.
3. Re-install voltage lock-out bolt.
4. Important!, when changing the electric motor input
voltage from 115 to 230 VAC the plug on the motor
power cord must also be changed. See Table 5.
Table 4. Electric Motor Wiring Information
HP/Voltage
115-230 VAC Single Phase
NEMA Plug Mating NEMA
Receptacle
1.0/115VAC L5-20P
P/N EM 940537 SAE 10W-30
1.0/230VAC L5-20P
P/N EM 940537 SAE 10W-30/20
Table 5. Recommended Extension Cord Sizes
Model Motor Voltage 50 ft.
(15 m)
75 ft.
(23 m)
100 ft.
(30 m)
200 ft.
(61m)
WM45E 1 HP
115 No. 12 No. 10 No. 8 No. 6
230 No. 14 No. 12 No. 12 No. 8
NOTICE
ALWAYS make certain that the power source required
for the electric motor is correct and always use the
correct NEMA configuration plug. Failure to supply
the correct voltage to the motor can severely damage
the motor.
Go to Discount-Equipment.com to order your parts

PAGE 16 — WM45H/E PLASTER/MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19)
PRE-INSPECTION (ENGINE/MIXER)
BEFORE STARTING
1. Read safety instructions at the
beginning of manual.
2. Clean the mixer, removing dirt and
dust, particularly the engine cooling
air inlet, carburetor and air cleaner.
3. Check the air filter for dirt and dust. If air filter is dirty,
replace air filter with a new one as required.
4. Check carburetor for external dirt and dust. Clean with
dry compressed air.
5. Check fastening nuts and bolts for tightness.
Engine Oil Check
1. To check the engine oil level, place the mixer on secure
level ground with the engine stopped.
2. Remove the filler dipstick from the engine oil filler hole
(Figure 5) and wipe clean.
Figure 5. Engine Oil Dipstick (Removal)
3. Insert and remove the dipstick without screwing it into
the filler neck. Check the oil level shown on the dipstick.
4. If the oil level is low (See Figure 6), fill to the edge of
the oil filler hole with the recommended oil type
(Table 6). Maximum oil capacity is 1.16 quarts
(1.1 liters).
Figure 6. Engine Oil Dipstick (Oil Level)
Table 6. Oil Type
Season Temperature Oil Type
Summer 25°C or Higher SAE 10W-30
Spring/Fall 25°C~10°C SAE 10W-30/20
Winter 0°C or Lower SAE 10W-10
DANGER
Motor fuels are highly flammable and can
be dangerous if mishandled. DO NOT
smoke while refueling. DO NOT attempt
to refuel the mixer if the engine is hot!
or running.
Fuel Check
1. Remove the gasoline cap located on top of fuel tank.
2. Visually inspect to see if the fuel level is low. If fuel is
low, replenish with unleaded fuel.
3. When refueling, be sure to use a strainer for filtration.
DO NOT top-off fuel. Wipe up any spilled fuel
immediately!
V-Belt Check (Electric Model Only)
A worn or damaged V-belt can adversely affect the
performance of the mixer. If a V-belt is defective or worn
simply replace the V-belt as outlined in the maintenance
section of this manual.
Blade Check
Check for worn or paddle blades. Make sure that all blades
are adjusted properly. See blade adjustment procedure
in this manual. Replace all defective or damaged blades
immediately.
Start/Stop Switch Check (Gasoline Model Only)
This switch (Figure 11B) should be tested every time the
gasoline engine is started.
Grease Fittings (Dumping Mechanism)
Check the zerk grease fittings at each end of the mixing
drum. These grease fittings lubricate the dumping
mechanism. If the dumping handle is stiff or hard to move
lubricate these fittings.
Go to Discount-Equipment.com to order your parts

WM45H/E PLASTER MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19) — PAGE 17
INITIAL START-UP (ENGINE)
This section is intended to assist the operator with the
initial start-up of the mixer. It is extremely important that
this section be read carefully before attempting to use the
mixer in the field.
1. Place the engine fuel valve lever (Figure 7) to the “ON”
position.
Figure 7. Engine FuelValve Lever (ON Position
2. Move the throttle lever (Figure 8) away from the slow
position, about 1/3 of the way toward the fast
position
Figure 8. Throttle Lever (1/3 Start Position)
CAUTION
DO NOT attempt to operate the mixer
until the Safety, General Information and
Inspection sections of this manual have
been read and thoroughly understood.
3. Place the choke lever (Figure 9) in the “CLOSED”
position if starting a cold engine.
Figure 9. Engine Choke Lever (Closed)
4. Place the choke lever (Figure 10) in the “OPEN”
position if starting a warm engine or the temperature
is warm.
Figure 10. Engine Choke Lever (Open)
5. Place both engine ON/OFF switches (Figure 11) in the
“ON” position.
Figure 11. Engine ON/OFF
Switches (ON Position)
Go to Discount-Equipment.com to order your parts

PAGE 18 — WM45H/E PLASTER/MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19)
INITIAL START-UP (ENGINE/ELECTRIC MOTOR)
STARTING THE ELECTRIC MOTOR
1. Using an adequate size extension cord (see Table 4),
connect one end of the extension cord to the plug on
the electric motor, connect the other end to the power
source. Make sure the motor is configured for the
proper operating voltage.
2. Set the electric motor's ON/OFF switch (Figure 15) to
the ON position.
Figure 15. Electric Motor ON/OFF Switch (ON)
Mixing Dumping
1. The paddle shaft inside the drum should be rotating
at this time.
2. Lift the mixing bag compound onto the steel grate over
the bag cutter and let the contents fall into the drum.
3. Add water, and mix compound to desired consistency.
CAUTION
ALWAYS run engine at full speed while mixing.
ON
OFF
CAUTION
Be sure to stand clear of the dump handle when the
mixer is operational. Any binding of material between
the mixer blades and the drum will cause the drum
handle to move to the discharge position,thus causing
bodily harm.
CAUTION
NEVER disable or disconnect the engine start/stop
switch (Figure 17). It is provided for operator safety.
Serious Injury may result if it is disabled, disconnected
or improperly maintained.
1. Grasp the starter grip (Figure 12) and slowly pull it out.
The resistance becomes the hardest at a certain
position, corresponding to the compression point. Pull
the starter grip briskly and smoothly for starting.
Figure 12. Starter Grip
2. If the engine has started, slowly return the choke lever
(Figure 13) to the "CLOSED" position. If the engine
has not started repeat steps 1 through 6.
Figure 13. Choke Lever (Closed)
3. Before the mixer is placed in to operation, run the
engine for several minutes. Check for fuel leaks, and
noises that would associate with a lose component.
4. To begin mixing, place the throttle lever (Figure 14) in
the “RUN” position.
Figure 14. Throttle Lever (Run)
Go to Discount-Equipment.com to order your parts

WM45H/E PLASTER MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19) — PAGE 19
SHUTDOWN
STOPPING THE ENGINE
Normal Shutdown
1. Move the throttle lever to the IDLE position (Figure 16)
and run the engine for three minutes at low speed.
Figure 16. Throttle Lever (Idle)
2. After the engine cools, push the engine ON/OFF switch
inward to the “OFF” position (Figure 17).
Figure 17. Engine ON/OFF Switch (OFF)
3. Place the fuel shut-off lever (Figure 18) in the "OFF"
position.
Figure 18. FuelValve Lever (OFF)
Emergency Shutdown
1. Move the throttle lever quickly to the IDLE position, and
place the engine ON/OFF switch in the OFF position.
STOPPING THE ELECTRIC MOTOR
1. Place the electric motor's ON/OFF switch (Figure 19)
in the OFF position.
Figure 19. Electric Motor ON/OFF Switch (ON)
2. Disconnect the electric motor's extension cord from
its power source.
Storage (Daily)
1. Clean drum of all debris and foreign matter.
2. Store mixer in a clean dry location.
Storage (30 days) Gasoline Models Only
1. Drain the fuel tank completely, or add STA-BIL to the
fuel.
2. Run the engine until the gasoline in the carburetor is
completely consumed.
3. Completely drain the oil from the crankcase and refill
with fresh oil.
4. Remove the spark plug, pour 2 or 3 cc of SAE 30 oil
into the cylinder and crank slowly to distribute the oil.
5. Slowly rotate the engine a few times with the starter
rope and install a new plug.
6. Pull out the starter rope slowly and stop at the
compression point.
7. Clean all external parts of the mixer with a cloth.
8. Cover the mixer and store in a clean, dry place
ON
OFF
