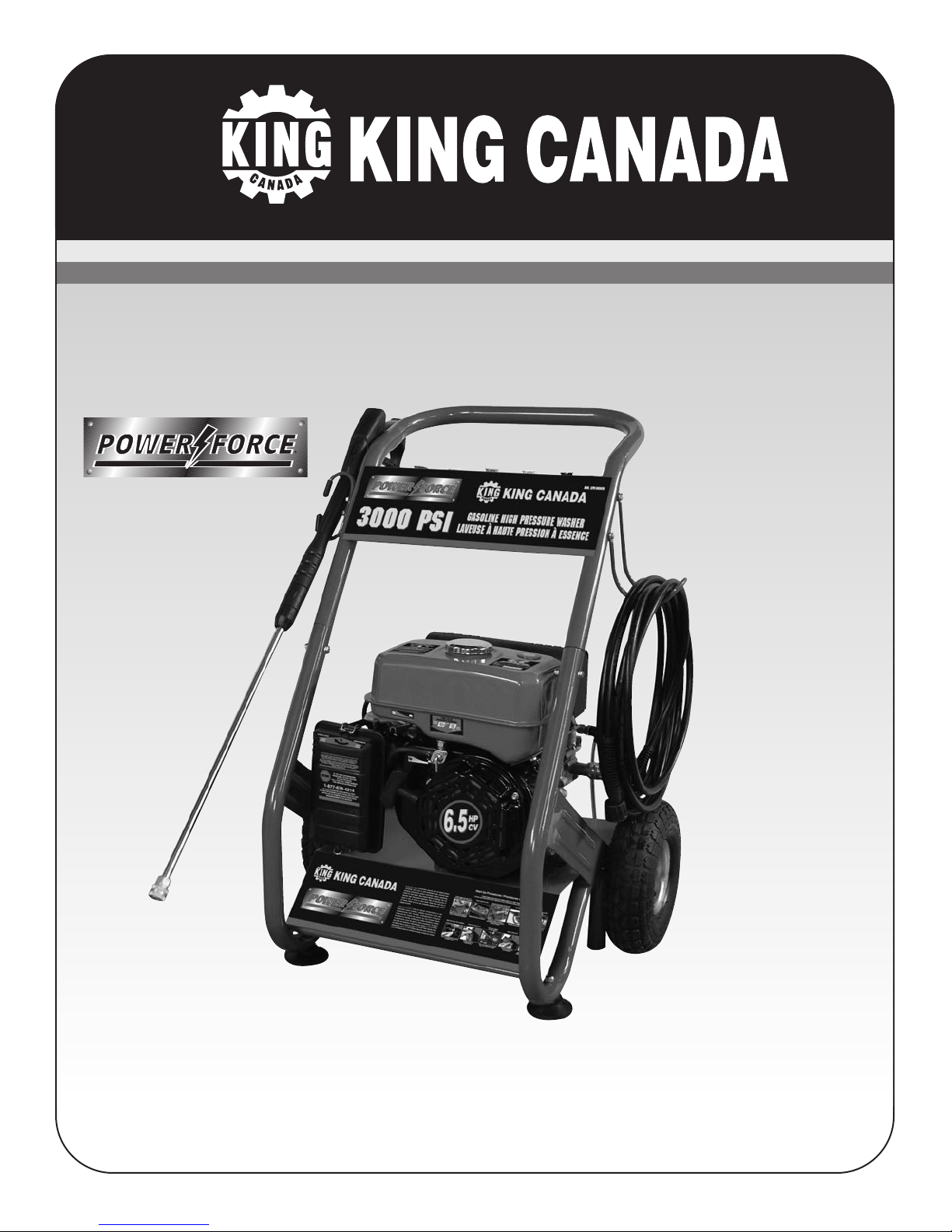

King Canada Power Force KPW-3000FM User manual

3000 PSI GASOLINE
HIGH PRESSURE WASHER
INSTRUCTION MANUAL
COPYRIGHT © 2009 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
MODEL: KPW-3000FM
Read this manual. Do not attempt to operate this pressure washer until you have
read and understood the safety, operation, and maintenance instructions

WARRANTY & SERVICE
INFORMATION
1-YEAR
LIMITED WARRANTY
FOR THIS 3000PSI GASOLINE PRESSURE WASHER
KING CANADA TOOLS
OFFERS A 1-YEAR LIMITED WARRANTY
FOR NON-COMMERCIAL USE.
BEFORE CALLING THE ABOVE TOLL-FREE NUMBER, PLEASE READ THIS MANUAL, SPECIFICALLY THE
SAFETY PRECAUTIONS, THE INSPECTION BEFORE OPERATION AND THE TROUBLESHOOTING GUIDE.
• DO NOT RETURN THE DEFECTIVE PRODUCT TO THE RETAILER.
WARRANTY INFORMATION
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACEMENT PARTS
Replacement parts are available at our authorized KING CANADA service centers across canada. For servicing, call the above toll free
number to get servicing instructions and be sure to have your proof of purchase if you are claiming warranty work.
LIMITED TOOL WARRANTY
KING CANADA makes every effort to ensure that this product meets high quality and durability standards. KING CANADA warrants to
the original retail consumer a 1-year limited warranty as of the date the product was purchased at retail and that each product is free
from defects in materials.
THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COVER
•Damage or liability caused by shipping, improper handling, improper installation, improper maintenance, improper modification, or the
use of accessories and/or attachments not specifically recommended.
•Repairs necessary because of operator abuse or negligence, or the failure to install, operate, maintain, and store
the product according to the instructions in the owner’smanual.
•Damage caused by cold, heat, rain, excessive humidity,corrosive environments and materials, or other contaminants.
•Expendable items that become worn during normal use such as fuel filters, air cleaners, spark plugs, and engine oil.
•Cosmetic defects that do not interfere with product functionality.
•Freight costs from customer to an authorized warranty service location.
•Repair and transportation costs of products or parts determined not to be defective.
•ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT,
FAILURE OR MALFUNCTION OF THE PRODUCT.
•RETAIN THE ORIGINAL CASH REGISTER SALES RECEIPT AS PROOF OF PURCHASE FOR WARRANTY WORK.
KING CANADA shall in no event be liable for death, injuries to persons or property or for incidental, special or consequential damages
arising from the use of our products. Shipping and handling charges may apply.If a defect is found, KING CANADA will either repair or
replace the product.
KING CANADA TOOLS INC. MONTREAL, QUEBEC, CANADA H9P 2Y4

BASIC SAFETY INFORMATION
EXHAUST FUMES ARE DANGEROUS
Never operate the engine in a closed area or it may cause
unconsciousness and death within a short time. Operate in a well
ventilated area.
Operate pressure washer in clean, dry, well ventilated area. Never
operate unit in enclosed areas such as garages, basements, storage,
sheds, or in any location occupied by humans or animals.
Keep children, pets and others away from area of operating unit.
Breathing exhaust fumes will cause serious injury or death. Gasoline
engines produce toxic carbon monoxide exhaust fumes.
FUEL IS HIGHLY FLAMMABLE AND POISONOUS
•Always turn off the engine when refueling.
•Never refuel while smoking or in the vicinity of an open flame.
•When operating or transporting this pressure washer, be sure to keep
it upright. If it tilts, fuel may leak from the carburetor or fuel tank.
ENGINE AND MUFFLER MAY BE HOT
•Place the pressure washer in an appropriate location, away from
children and pedestrians.
•Avoid placing any flammable materials near the exhaust outlet during
operation.
•Keep a 4ft. clearance from buildings or other equipment around the
pressure washer to prevent overheating.
WARNING! The engine muffler will be very hot after use, avoid
touching the engine or muffler while they are still hot.
ATTEMPTING TOFILL THE FUEL TANK WHILE THE ENGINE IS
RUNNING.
Gasoline and gasoline vapors can become ignited by coming in
contact with hot components such as the muffler, engine exhaust
gases, or from an electrical spark.
Turn engine off and allow it to cool before adding fuel to the tank. Equip
area of operation with a fire extinguisher certified to handle gasoline or
fuel fires.
SPARKS, FIRE, HOT OBJECTS
Cigarettes, sparks, fires, or other hot objects can cause gasoline or
gasoline vapors to ignite.
INADEQUATE VENTILATION
Materials placed against or near the pressure washer or operating it in
areas where the temperature exceeds 40° C ambient (such as storage
rooms or garages) can interfere with its proper ventilation features
causing overheating and possible ignition of the materials or buildings.
Operate pressure washer in a clean, dry, well ventilated area a
minimum of four feet from any building, object or wall. DO NOT
OPERATE UNIT INDOORS OR IN ANY CONFINED AREA.
APPLICATION
This equipment is designed for specific applications. Do not modify or
use for any application other than which it is designed.
STORAGE
Store the pressure washer in a well ventilated area with the fuel tank
empty.Fuel should never be stored or placed near the pressure
washer.
SAFETY GLASSES
Always wear safety glasses while operating.
BASIC & SPECIFIC
SAFETY PRECAUTIONS
SPECIFIC SAFETY INFORMATION
NEVER OPERATE UNDER THE FOLLOWING CONDITIONS
•When a noticeable change in engine speed occurs.
•Engine misfires.
•Loss of water pressure.
•Smoke or flammes in the area.
• Excessive vibration.
WATER SPRAY
Never direct the water spray towards ANY person, animal, electrical
wiring or the pressure washer itself. Care must be taken not to spray
too close to the surface or damage could occur. King Canada is not
responsible for damage caused during use.
HOT MUFFLER & HIGH PRESSURE HOSE
Do not touch the muffler,it becomes very hot during operation. Keep
hose away from the hot muffler or it may damage the hose. Do not use
adamaged high pressure hose. Do not kink the high pressure hose.
KEEP HANDS AWAY
Do not touch the nozzle of the water spray during operation.
COLD WEATHER STARTS
Do not operate this pressure washer in temperatures below 50C. Before
starting engine in cold weather,make sure ice has not formed in any
part of the equipment.
DETERGENTS
Only use recommended detergents for pressure washers.
PREVENT ACCIDENTAL WATER SPRAY
To prevent accidental water spray, the locking latch on the wand trigger
should be placed in the locked position when not in use.
PREVENT PUMP DAMAGE
Do not run the pressure washer engine for more than 5 minutes
without pressing the wand trigger or damage to the pump may result.
Never let the machine run unless connected to the water supply and it
is on. Never run caustic fluids or acid through this machine.
SAFETY FEATURES
Thermal relief valve-Thermal relief valve protects the pump from
overheating in case a nozzle becomes clogged. This system should not
be abused, make every effort to prevent the pump from overheating.
Low-oil auto shut-off-This pressure washer is equipped with a low oil
shut-offsystem. If the engine oil level goes below the recommended oil
level, the pressure washer will automatically shut-off. This protects your
engine and prevents operating without proper lubrication.

GETTING TO KNOW
YOUR PRESSURE WASHER
1. Stainless steel wand.
2. Trigger locking latch.
3. Spark plug wire.
4. Choke lever.
5. Air cleaner element/cover.
6. Throttle lever. Adjusts engine speed.
7. Recoil starter.Starts the engine.
8. Fuel valve. Regulates the flow of fuel to the engine. The fuel
shut-off valve must be fully opened before starting the engine.
9. 30 ft. high pressure hose.
10. Fuel level indicator window with float gauge.
11. Fuel cap. Make sure the fuel cap is always screwed on tightly.
12. Fuel tank. Unleaded gasoline only! 4 Liter capacity.
13. Muffler. Warning! Muffler gets hot.
14. Nozzles (00,150,250,400and detergent)
15. Pump.
16. Detergent injector filter and inlet hose.
17. Thermal relief cap and drain pipe.
18. Garden hose inlet with quick connect coupling.
19. Oil gauge dipstick. 0.7 Litre engine oil capacity.
20. Engine On/Offswitch.
MODEL KPW-3000FM
Maximum water pressure 3000 PSI
Maximum water volume 2.7 GPM
Maximum inlet pressure 90 PSI
Maximum temperature of pumped fluid 250C
Inlet and discharge ports 1/2” BSP (British Standard Pipe)
Engine (OHV) 6.5 HP
No load speed 3,600 RPM
Displacement (cc) 196
Fuel Unleaded Gasoline
Fuel tank (L) 4.0
Oil capacity (L) 0.7
Dimensions (LxWxH) 25” x 21” x 35”
Weight 99 lbs

ASSEMBLY & PRE-START CHECK
WARNING! Before turning on your pressure washer engine, you MUST check oil level, fuel
level and air cleaner filter.
ASSEMBLY

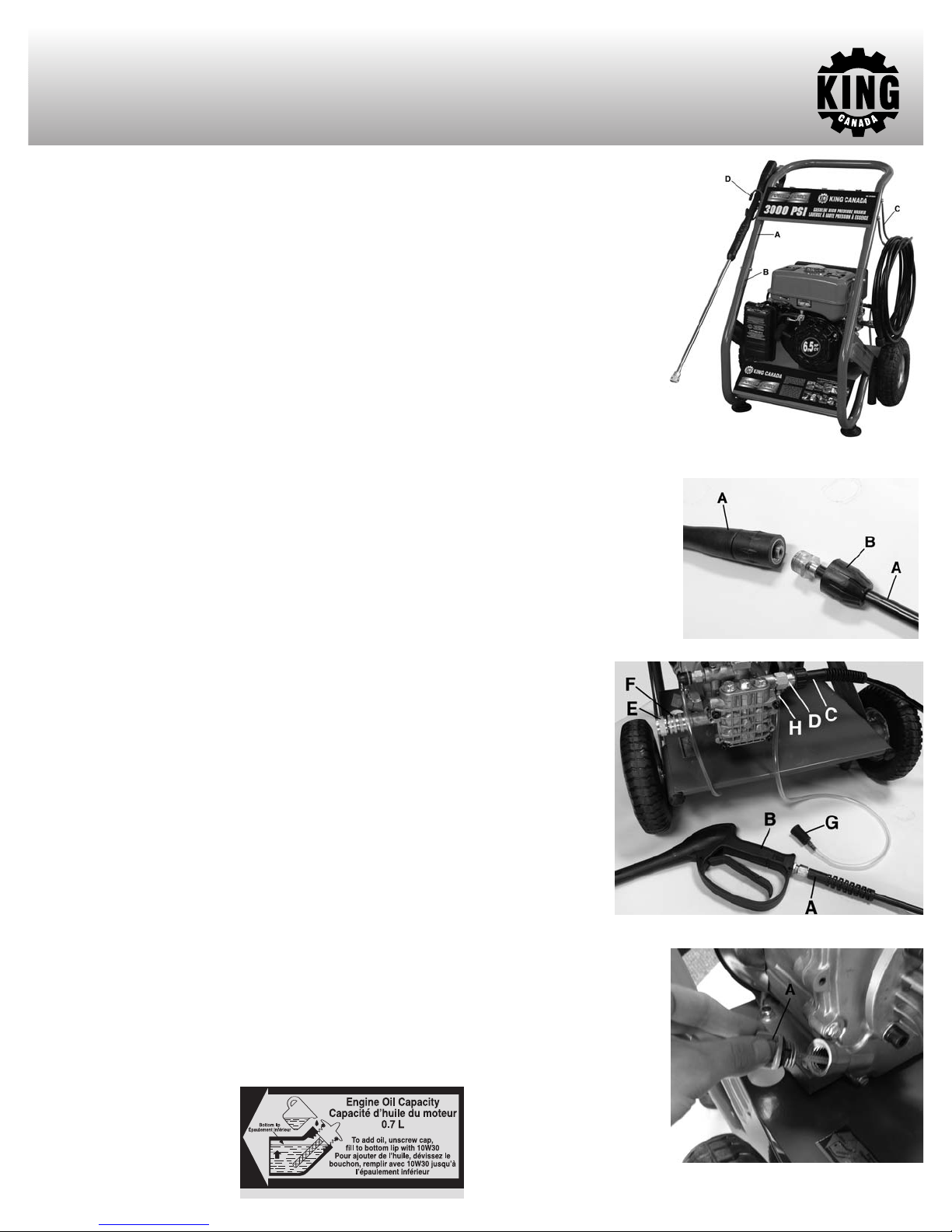

Remove all the contents from the carton and proceed to the following assembly instructions;
Top handle
Install the top handle (A) to the frame (B) by sliding the top handle posts into the frame posts and
secure them together using 2 pan head screws, 4 washers and 2 nylon hex. nuts.
Wheels
Install the wheels to the frame by first pressing its spring loaded pin, then insert wheel shaft into frame
and align spring loaded pin with hole in frame until the pin snaps. Repeat for the other wheel.
Hose and wand supports
Assemble the hose support (C) Fig.1 to the right side of the frame using 2 pan head screws,
4washers and 2 nylon hex. nuts. Then assemble the wand support (D) to the left side of the frame
again using 2 pan head screws, 4 washers and 2 nylon hex. nuts.
Wand and hose
Assemble the 2 piece stainless steel wand (A) Fig.2. Lower the rubber piece (B) to expose the
threaded fitting and screw the 2 pieces together, reposition the rubber piece. It is recommended to
install Teflon tape on the threads to prevent water leakage.
Next install the hose (A) Fig.3 to the wand (B) and install the other end of the hose (C) Fig.3 to the
pump outlet (D) as shown in Fig.3. It is recommended to install Teflon tape on the threads to prevent
water leakage.
Quick connect coupling and detergent injector
Install the quick connect coupling (E) Fig.3 to the water hose inlet (F). It is recommended to
install Teflon tape on the threads to prevent water leakage. Then install the detergent
injector tube (G) over the detergent siphon fitting (H).
PRE-START CHECK
OIL LEVEL
WARNING! This pressure washer has been shipped from the factory without oil or
very little oil in the crankcase. Operating the unit without the correct amount of oil can
damage the engine. Oil crankcase capacity: 0.7 litres.
Always check the oil level before starting the engine, make sure the pressure
washer is on a level surface. Tocheck oil level;
1) Turn the oil gauge dipstick (A) Fig.4 counterclockwise, remove it and clean it with a clean cloth.
2) Fully reinsert the oil gauge dipstick and pull it out to check the oil level.
3) If the oil level is halfway up the dipstick or below, refill with SAE 10W30 oil through the dipstick hole
until the oil level reaches 3/4 up the dipstick or until it reaches the bottom lip of the dipstick hole as
shown in illustration below.
4) Reposition the oil gauge dipstick and tighten it by turning clockwise.
Figure 1
Figure 2
Figure 3
Figure 4

PRE-START CHECK

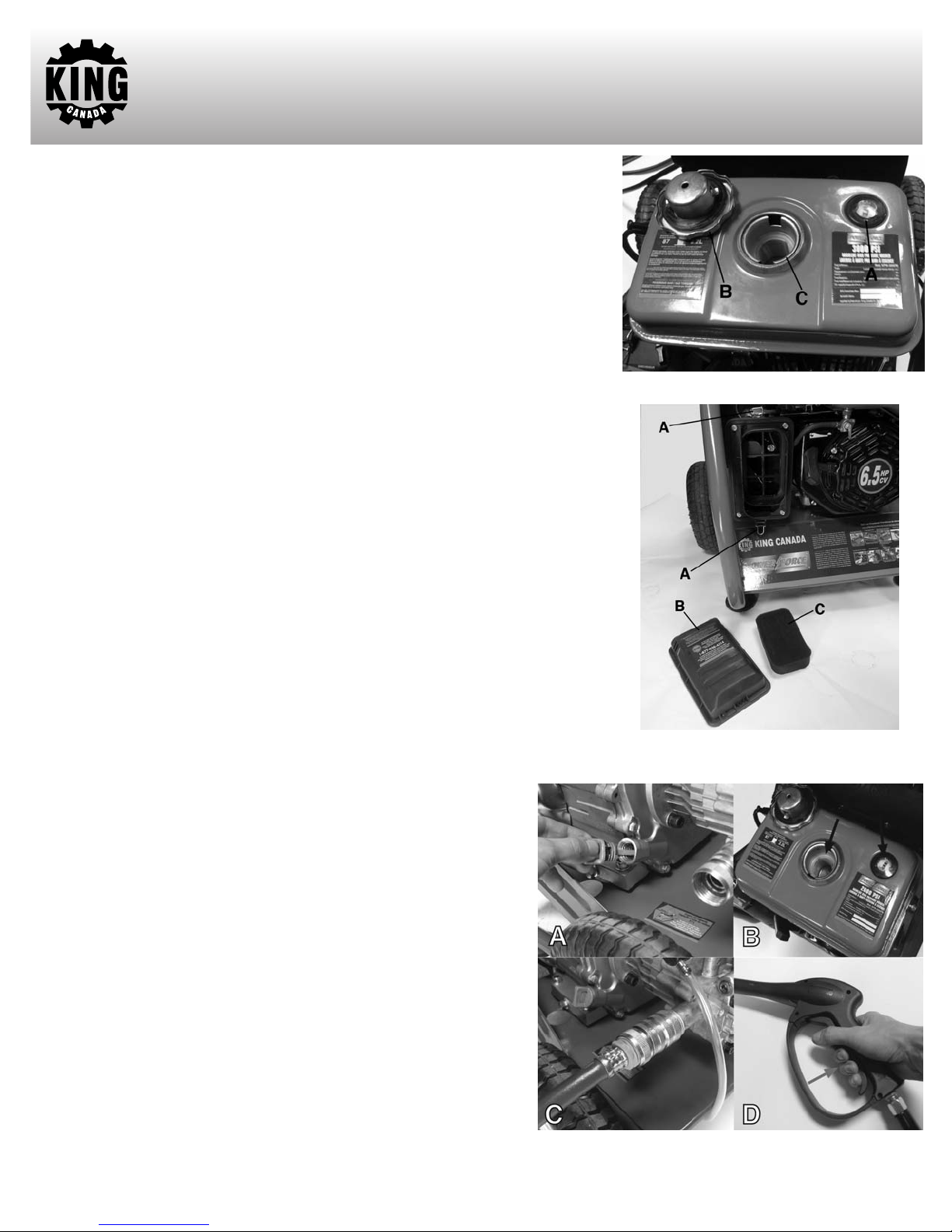

FUEL LEVEL
WARNING! Make sure there is enough fuel in the fuel tank before operating.
Check the fuel level indicator window (A) Fig.5, if the red float gauge is all the way up, it is not
necessary to add fuel. If you do not see or hardly see the red float gauge, it is necessary to add
fuel.
1) If it is necessary to add fuel, first make sure the engine is OFF, then remove the fuel cap (B)
by turning it counterclockwise.
2) When refueling, make sure the fuel filter (C) Fig.5 is in place and keep in mind all safety
precautions and make sure to add enough fuel based on usage. Use clean unleaded
gasoline with a minimum of 87 octane. Do not mix oil with gasoline.
Fuel tank capacity: 2.2 Litres.
AIR CLEANER FILTER
The air cleaner filter should be checked after prolonged storage, the following steps should be
done when checking air cleaner filter;
1) Snap the top and bottom clips (A) Fig.6 backwards and remove the air cleaner cover (B).
2) Remove the air cleaner filter (C) Fig.6, wash filter in kerosene, squeeze kerosene out, soak
filter in engine oil and squeeze engine oil out.
3) Replace filter and replace the air cleaner filter cover.
START-UP PROCEDURES
Follow these instructions to safely start your high pressure washer.
1) Check engine oil level, fill to recommended level if necessary.Fig.7A.
2) Check gasoline level, fill if necessary.Fig.7B.
3) This pressure washer comes with a pump quick connect coupling. It allows you
to quickly connect or disconnect the inlet garden hose from the pump. Pulling
the mid ring will disconnect the quick connect coupling. Connect inlet garden
hose (not supplied) to the pump quick connect coupling AND TURN WATER
ON.Fig.7C. The water supply must provide a minimum of 4 GPM at 20 PSI or
the pump may be damaged.
4) Squeeze stainless steel wand trigger. Fig.7D. This will allow air to escape
from the hose in order to prime the pump. Squeeze trigger until there is a
steady flow of water.
PRE-START CHECK &
START-UP PROCEDURES
Figure 5
Figure 6
Figure 7

START-UP PROCEDURES
&OPERATION

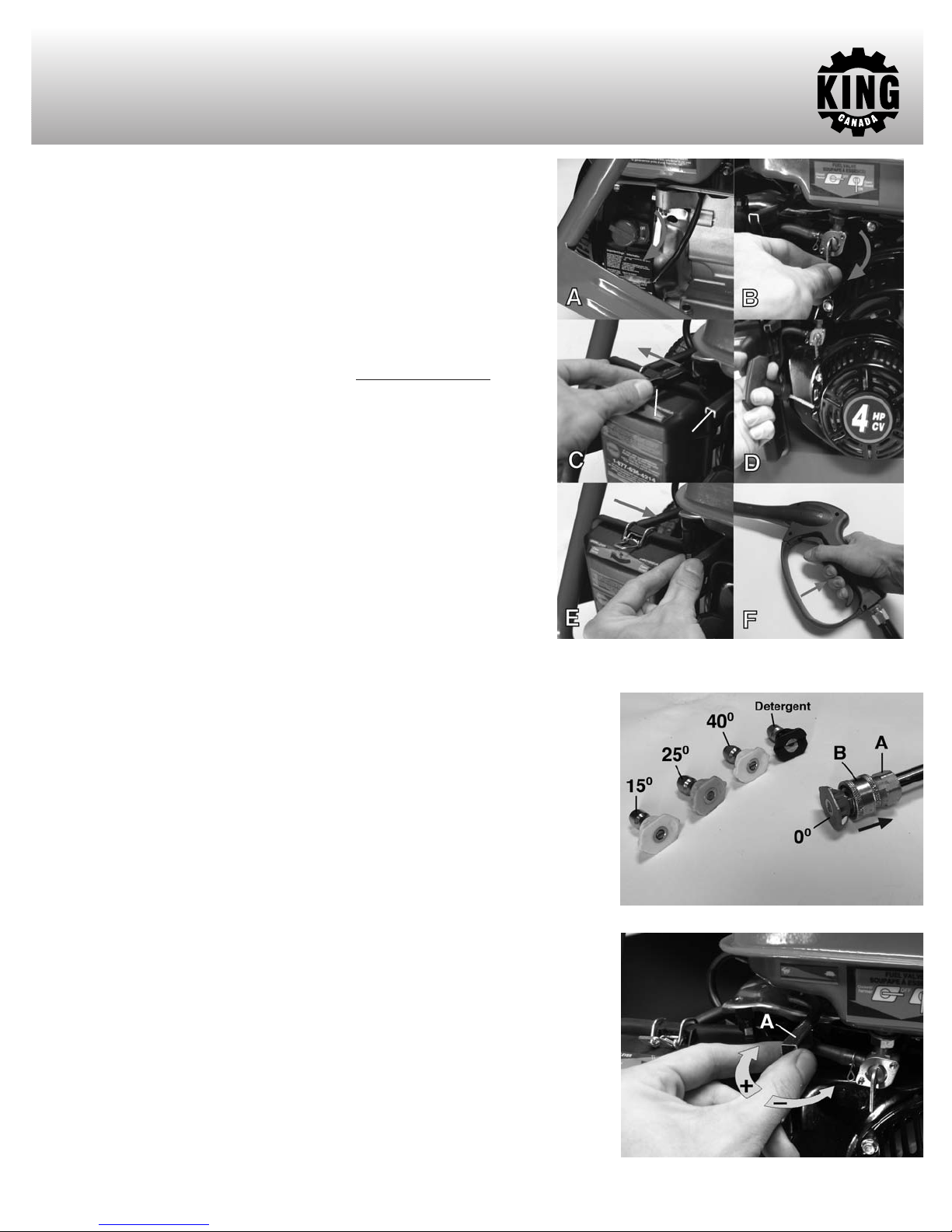

START-UP PROCEDURES continued....
Follow these instructions to safely start your high pressure washer.
5)Turn engine switch to the “On” position. Fig.8A.
6) Open fuel valve (“On” position). Fig.8B.
7)Close the Choke lever (A) by moving the lever towards the left. Also move the
throttle lever (B) to its maximum setting (towards the left) Fig.8C.
8) Pull recoil starter to start engine. Fig.8D. Pull recoil starter slowly until
resistance is felt, then pull rapidly to start engine. Repeat if necessary.
9) Once engine starts, open choke lever by moving the lever towards the right.
Fig.8E.
10) If motor fails to start, repeat steps 3-10.
11) Press trigger. Fig.8F
OPERATION
SPRAYING WATER & NOZZLE USAGE
This pressure washer comes with a stainless steel wand, its tip has a quick connect coupler
(A) Fig.9 to fit different nozzles. The spray pattern is adjusted by installing the appropriate spray
pattern nozzle to the quick connect coupler.Five nozzles are included, 00,150,250,400and a
detergent nozzle. To install a nozzle to the quick connect coupler, pull the coupler ring (B)
backwards and insert the desired nozzle (C), release the coupler ring to lock it in place.
Nozzle usage;
00(red)-Thin and powerful stream of water for difficult stains and debris removal.
150(yellow)-Thin angled spray for focused cleaning.
250(green)-Medium angled spray for focused cleaning.
400(white)-Large fan pattern for wider cleaning applications.
Detergent (black)-This nozzle must be used in conjunction with a cleaning detergent at low
pressure. Only use this nozzle when using a detergent or cleaning solution.
ADJUSTING WATER PRESSURE
The water pressure is regulated by the throttle lever (A) Fig.10. Moving the throttle lever
towards the left will increase the engine speed and thus increasing the water pressure. Moving
the throttle lever towards the right will decrease the engine speed and thus decreasing the
water pressure.
Figure 8
Figure 9
Figure 10
A
B

DETERGENT INJECTOR (LOW PRESSURE)
This high pressure washer is intended for use only with car wash or pressure washer
detergents with mild soaps. Only use detergents that are compatible with the aluminum
and brass parts of the pressure washer pump. Do not use powdered soaps, they may clog
the injection system. Follow the detergent manufacturer directions. The use of detergent
is advantageous, it ensures a quick way to soak the dirt before spraying.
To set-up the detergent injector, install it to the siphon injector fitting on the pump as
described in assembly instructions Fig.3. Then follows these instructions;
1) Pour the contents of your detergent into a container (A) Fig.11 and place it next to the
pressure washer pump.
2) When using a detergent, the stainless steel wand must be fitted with the detergent
nozzle (black). This can be done by pulling the coupler ring (B) Fig.9 backwards and
inserting the detergent nozzle, release the coupler ring to lock it in place.
3) Inspect the detergent injector filter (B) Fig.11, make sure it is not clogged. Then place
it all the way to the bottom of the container.The detergent will automatically mix with
the water.
4) If the throttle lever (A) Fig.10 is not in the fast position, the injection of the detergent
may be decreased or stop completely, in this case, move the throttle lever towards the left to increase engine speed and pressure.
Important Note:When you have finished using the detergent injector system, remove the injector filter from the detergent container and place
it in a different larger container containing only clean water and let the pressure washer run until you no longer notice detergent coming out of
the wand.
USING THE PRESSURE WASHER TO CLEAN
Most cleaning jobs can be made by using only water, but it is also advantageous to use detergent to penetrate and remove the dirt more
effectively. When using soap or a detergent, make sure the surface to clean is dry. Wetting the surface first is not recommended, it will dilute the
detergent and will reduce the cleaning effectiveness. Avoid hot surfaces or use in direct sunlight, this will minimize the chances of the detergent
damaging the painted surface. Do not let the detergent dry or it may damage the painted surface.
Allow the detergent to remain on the surface for a short time before rinsing with clean water under high pressure. Position the tip of the wand 6”
to 8” away from the surface to clean at a 450angle.
APPLYING WAX
Right after the cleaning operation is done, you can use this pressure washer to apply wax. Place the injector filter into the wax container and
apply the wax sparingly in an even pattern over the wet surface. Once done, remove the injector filter from the container and rinse off the excess
wax. Wipe dry to reduce water spotting.
MAINTENANCE
WATER SCREEN
This pressure washer is equipped with a water inlet screen (A) Fig.12. This water screen must
be kept clean at all times or else it will restrict the water flow to the pressure washer and may
damage the pump. Remove the quick connect coupling from the water inlet, remove and clean
screen. Never operate this pressure washer without the water inlet screen in place.
OPERATION & MAINTENANCE
Figure 11
Figure 12

MAINTENANCE & STORAGE
MAINTENANCE
ENGINE MAINTENANCE
Engine Oil Replacement
Engine oil should be replaced after the first 20 hours of operation or after the first month of use, it
should be replaced every 100 hours or 6 months after. To replace engine oil; Loosen the oil gauge
dipstick (A) Fig.13. Place an oil pan underneath drain hex. bolt (B), remove hex. bolt (B) and drain
oil. Once all the oil has completely drained, retighten the hex. bolt (B).
Recommended Engine Oil
It is recommended to use SAE10W30 4-stroke gasoline engine oil. Fill with clean engine oil through
the oil gauge dipstick hole to recommended level.
Inspecting, Replacing or Cleaning Spark Plug
The spark plug should be checked every 100 hours of operation or every 6 months. To replace or
clean spark plug;
1) Dismantle the spark plug wire (A) Fig.14 by pulling it off the spark plug (B). Using the supplied
spark plug wrench, undo the spark plug by turning counterclockwise.
2) Check to see if there is carbon sediment build-up, if so just remove it. If the carbon sediment is
excessive, replace the spark plug.
3) Measure the electrodes clearance using a feeler gauge. The spark plug electrode clearance
should be between 0.7-0.8mm. If the clearance exceeds 0.8mm, replace the spark plug. The
original spark plug supplied is an LD F6TC, you can replace it with an NGK BP6ES spark plug or
equivalent.
4) Reinstall spark plug in the reverse order.
PUMP MAINTENANCE
Pump Oil Replacement
Pump oil should be annually replaced with approx. 4.7 fl. oz. (138ml) of SAE 300 non detergent oil.
Toreplace pump oil, undo oil bolt (A) Fig.15, and drain pump oil. Once oil has completely drained,
fill with recommended oil. Retighten oil bolt.
Pressure Washer Storage
If you plan on storing your pressure washer for an extended period of time, the following steps
should be followed;
1) Add fuel stabilizer to fuel tank to minimize the formation of fuel gum deposits during storage.
2) Run engine at least 5 minutes after adding stabilizer to allow it to enter the fuel system.
NOTE: If a fuel stabilizer is not used, all gasoline must be drained from the tank and carburetor to
prevent gum deposits from forming on these parts and causing possible malfunction of the engine.
3) Turn fuel shut-off valve to the “OFF” position, remove drain hex. bolt (A) Fig.16 from the
carburetor (B).
4) Now turn fuel shut-off valve to the “ON” position and drain the fuel from the tank, carburetor and
hose.
5) Reposition the carburetor drain hex. bolt once the fuel is completely drained.
6) Drain engine oil from engine as described in “Engine Oil Replacement”.
7) Pour approximately one teaspoon of engine oil through the spark plug hole and pull the recoil
starter slowly until you feel increased pressure which indicates the piston is on its compression
stroke and leave it in this position. This closes both the intake and exhaust valves to prevent the
inside of the cylinder from rusting.
8) Cover the pressure washer and store it in a clean, well ventilated and dry place.
Preventing Freezing Damage
If your pressure washer is subjected to freezing temperatures, damage could occur.This type of
damage is not covered under warranty.To avoid possible damage, a small amount of antifreeze
can be used. Place the unit on its side with the water inlet facing upwards, pour 1/4 cup of antifreeze
into the water inlet. Disconnect spark plug wire, then pull recoil starter several times to circulate the
antifreeze in the pump system. Reconnect spark plug wire. It is also important to make sure the wand
and all hoses are disconnected and drained of all water or they may burst. When taking pressure
washer out of storage, run water through the system until it runs clear.
Figure 13
Figure 14
Figure 15
Figure 16

TROUBLESHOOTING
PROBLEM
Engine will not start or stops while
operating
Engine is overloaded
Pressure increases when gun is
closed
Engine is running but pump won’t
build maximum pressure or has
irregular pressure
No intake of chemicals
Trigger will not move
Water in crankcase
Noisy operation
Rough/pulsating operating with
pressure drop
High crankcase temperatures
CAUSE
1. Low-oil shutdown
2. Engine switch not in “ON” position
3. Pressure built up in the hose
1. Nozzle partially blocked
2.Excessive pressure
1. Bypass valve is blocked
1. Faucet closed
2. Unit has been stored in freezing
temperatures
3. Inadequate water supply
4. Water inlet screen clogged
5. Kink in garden hose
6. Wand tip worn or damaged
7. Air in pump
8. Engine speed not set to maximum
position
9. Suction or discharge valves
clogged or worn out
10. Bypass valve not operating
effectively
1. Injection tube not securely inserted
into unit
2. Tube cracked or split
3. Wrong nozzle
4. Injector turned off
5. Injection tube strainer clogged
6. Nozzle blocked
7. Dried chemicals injector
1. Gun safety lock engaged
1. High humidity
2. Worn seals
1. Worn bearings
2. Air mixed with water
1. Inlet restriction
2. Air mixed with water
1. Wrong grade of oil
2. Improper amount of oil in
crankcase
CORRECTION
1. Fill engine with oil
2. Turn switch “ON”
3. Squeeze trigger while starting
1. Clean nozzle
2.Shorten the spring coil of the reflux valve
1. Clean the bypass valve
1. Open faucet
2. Thaw out unit completely including hose, gun
and wand
3. Provide a minimum of 4 GPM at 20 PSI
4. Clean screen
5. Straighten garden hose
6. Replace wand
7. Let it run with gun open and wand removed
until steady stream of water is released
8. Set throttle to maximum position
9. Clean the suction or discharge valves
10. Clean the bypass valve
1. Push firmly into injector fitting
2. Replace tube
3. Switch to low pressure nozzle
4. Turn collar counter-clockwise
5. Clean strainer
6. Clean nozzle
7. Dissolve by running warm water
1. Release safety lock
1. Change oil more frequently
2. Change the oil seals
1. Change the bearing
2. Check inlet lines for restrictions and/or proper
sizing
1. Check system for stoppages, air leaks,
correctly sized inlet, plumbing to pump
2. Check inlet lines for restrictions and/or proper
sizing
1. Use SAE 10W30 oil
2. Adjust oil level to proper amount
PARTS DIAGRAM & PARTS LISTS
Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
