KING CANOPY DK1010PCS User manual
Dog Kennel Cover 10ft X 10ft
10ft Wide x 10ft Deep x 1ft10in Height
(Dimensions are of the Cover Assembly Only)
King Canopy Item #: DK1010PCS
Cover, Elastic Ball Straps & Frame
WARNING:
Keep all ame and heat sources
away from this tent fabric. Meets
the ammability requirements of
CPAI-84 Section 6 and NFPA-701.
It is not re proof. The fabric will burn if
left in continuous contact with
any ame source.
Distributed by:
PIC America, LTD.
1730 Five Points Lane • Fuquay-Varina, NC 27526
1-800-800-6296 • www.kingcanopy.com
PARTS LIST

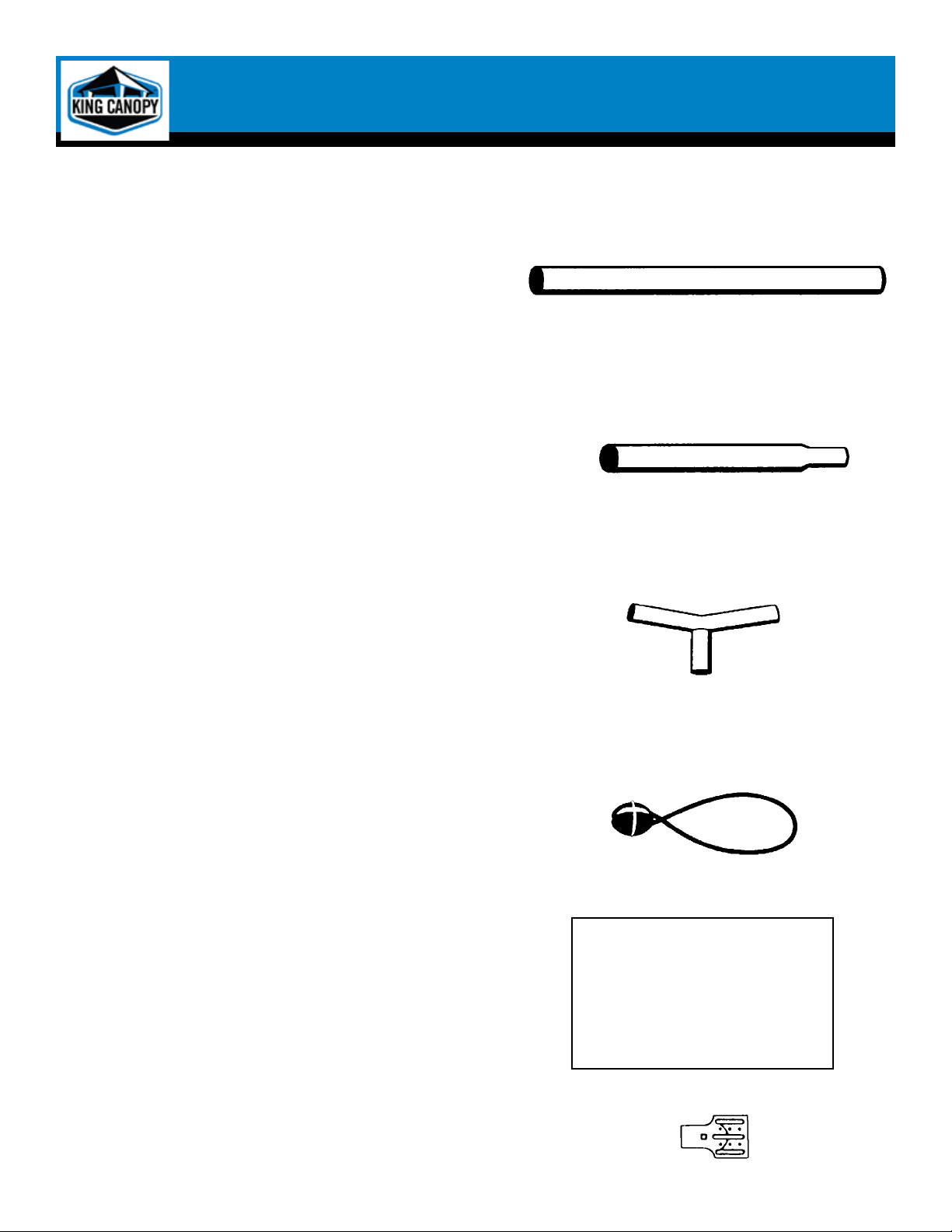

5X0PCS 5 pc 1 3/8” diameter 60” Pipe
4X6PCS 1 pc 1 3/8” diameter 52” Swaged Pipe
3WLC 2 pc 3-Way Connectors
BALL50 50 pc Elastic Ball Straps
TKC1010 1 pc Cover
SC1313 4 pc 1 3/8” Single Sided Clamps
FRAME & COVER ASSEMBLY
1. Place all 3WLC’s and pipe on the ground as shown if gure 1. There is 1 swedged end pipe that is used
with the center pipe to form the length.
2. Start by connecting the center 60” pipe to the 52” swedge pipe. Then assemble each side to complete
the framework as shown in gure 2.
3. Place tarp over the frame. Tie elastic ball straps as shown in gure 3. When tying the elastic ball straps,
alternate from one side to the other for easier installation. (2 sides of the tarp will not have ball straps.)
4. Place the framework over the kennel. Attach the frame to the kennel by using the single sided clamps.
5. Once the framework is attached, use the remaining ball straps to attach the cover to the frame of the
kennel.
Begin attaching the cover with the elastic ball straps by inserting the elastic cord of the ball strap underneath
the cover and through the grommet. Then pull cord taut until ball stops. Wrap the cord around the pole and
under the ball. This will hide the ball under the cover and provide a more nished look to your unit.
• Start by attaching 2 elastic ball straps at each of the four corners
• Continue attaching straps from left to right in a zigzag pattern down both sides of the canopy
• Attach straps at the front and back of the unit, again using a zigzag pattern until all straps are secured
Note:
The ball straps are long enough to accommodate various cover lengths. If your straps need a tighter t, they
can be shortened by making an additional knot in the cord strap. Slide the ball upward to reveal the tied knot.
Tie a new knot above the old one. The size of the knot will determine how short the strap becomes. Slip the
ball down over the new knot and secure.
Figure 1 Figure 2
Figure 3
IMPORTANT NOTICE: PLEASE READ CAREFULLY
We are condent that you will be completely satised with your King Canopy unit. Please take a moment
to read the very important information below, and call us with any questions you may have.
King Canopy/PIC America, LTD. has no control over wind, snow, ice, rain or any other weather condition and
we are in no way responsible for any damage caused by the canopy or to the canopy. We suggest you contact
your insurance carrier just as you would for any other outside structure.
OTHER PRECAUTIONS WHICH MUST BE FOLLOWED:
Keep all ame and heat sources away from this tent fabric. The tent fabric will burn if left in continuous
contact with any ame source.
DO NOT cook underneath or near canopy.
DO NOT store or use ammable liquids underneath or near canopy.
DO NOT ignite or store reworks underneath or near canopy.
DO NOT use bleach to clean cover.
DO NOT dry clean cover.
DO NOT wash cover in washing machine or dry in dryer. Hand wash with mild soap and water only.
DO NOT allow rain water, snow or ice to accumulate on top of cover.
DO NOT hang or suspend anything from the frame, grommets, truss system or ball straps of the unit.
REMOVE canopy cover before a storm, or disassemble entire canopy unit if possible.
REMOVE rain water, snow and ice from canopy cover.
This is a temporary structure and is not recommended for use as a permanent structure.
PRODUCT INFORMATION
Defective Parts
We try our best to eliminate any defective parts that are shipped with our products. If, however, you should nd
a defective part, we will replace – free of charge – any part which is defective. You will need to provide proof
of purchase showing date of purchase and provide us with detailed description of the defective component.
Your replacement will be shipped by ground shipping, freight prepaid. Next day or express shipping will
require freight collect and paid for by you, the consumer. Damages from improper anchoring, strong winds,
snow, ice or rain are not considered defects.
Improper Anchoring, Strong Winds, Rain Snow, or Ice
King Canopy/PIC America, LTD. does not guarantee these canopies under strong weather conditions. These
canopiesare designed to protectagainst damages caused by sun, rain, tree sap,birds,etc. They are not designed
to hold roof loads that accompany snow, ice or heavy rains. If your canopy is not anchored securely, it can be
lifted by the wind and will y away. If your canopy takes ight, we are not responsible for any replacement. If
you know strong weather is predicted, remove the cover or take down the canopy unit completely. The cover
is designed to be quickly and easily removed.
Warranty
All components of this canopy feature a 1-year limited warranty and are warranted to be free from defects in
material and workmanship for a period of 1-year. You must complete and return the enclosed warranty card
promptly after purchase. Please retain your proof of purchase receipt; you will be asked to provide this receipt
in order to obtain warranty service.
Non-Warranty Replacement Parts
If after expiration of the warranty period, you require replacement parts please contact us at 1-800-800-6296.
We stock replacement parts and make them available to you at discounted prices. Our customer service
department will be pleased to assist you in any way possible.
Certain regions of the country are extremely hard on covers of any kind. Normal wear and tear is not covered
under the warranty, and should be expected.
In order to receive a discounted or free replacement part, you may be asked to return the part, freight prepaid,
to our warehouse for inspection before we will send a replacement. You must, in all cases, provide a copy of
your receipt showing the date of purchase, model number and price.
For missing parts, replacement parts or any questions:
Please Call 8:00am – 5:00pm EST, Monday – Friday
1-800-800-6296 or 1-919-552-2977
Or you can fax us at: 1-919-552-5069
Replacement parts and customer service is also available through our website.
Please visit us at www.kingcanopy.com
