OPERATORS INSTRUCTIONS & PARTS LIST
MODEL # 1080-0
6” BENCH GRINDER

Thank you for purchasing your King Bench
Grinder. With the proper care and operation
you will enjoy years of trouble free service from
your King
tion manual and follow the directions
carefully. You need this instruction book for
operating instructions and the parts list. Keep it
in a safe dry place. Staple your sale receipt to
the front of the book in case you need it for
warranty reasons.
Warning:
The instructions and warnings in this
instruction book can not cover every situation.
The operator must use common sense and
caution when operating this bench grinder.
READ INSTRUCTIONS
BEFORE OPERATING
SAVE THIS INSTRUCTION BOOK
TABLE OF CONTENTS
DESCRIPTION PAGE #
WARRANTY _________________________
SPECIFICATIONS _____________________
SAFETY INFORMATION/OPERATION _____
DESCRIPTION OF PARTS ______________
ASSEMBLY __________________________
COMPONENTS ______________________
PART LIST __________________________
THIS PRODUCT IS WARRANTED AGAINST DEFECTS IN
MATERIAL AND MANUFACTURING WORKMANSHIP FOR
A PERIOD OF ONE YEAR. CONSUMABLE PARTS SUCH
AS BULBS, WHEEL ETC ARE NOT COVERED UNDER
THE WARRANTY. WE HAVE STRICT QUALITY CONTROL
STANDARDS. HOWEVER, SOMETIMES A PRODUCT
MAY GET SHIPPED THAT DOES NOT MEET OUR
QUALITY STANDARDS.
IF YOU HAVE A PRODUCT THAT DOES NOT PERFORM
PROPERLY IN THE FIRST 30 DAYS YOU CAN TAKE IT
BACK TO THE RETAIL STORE WHERE YOU BOUGHT IT
FOR A REFUND OR REPLACEMENT. AFTER 30 DAYS IT
MUST BE SHIPPED TO KING AT THE FOLLOWING
ADDRESS. BEFORE YOU RETURN THE PRODUCT CALL
FOR AN AUTHORIZATION NUMBER. IF ALL YOU NEED IS
A PART, THAT CAN BE SHIPPED TO YOU, NO CHARGE
UNDER WARRANTY. IF YOU ARE MAKING A RETURN
OR ORDERING A REPLACEMENT PART PROOF OF THE
DATE OF PURCHASE WILL BE REQUIRED. RETURN
SHIPMENTS MUST BE SENT POSTAGE OR UPS PAID.
KING T OOLS & EQUIPMEN T CUSTOMER SERVICE
800-950-5464 OR 909-930-6588
SHI P TO : KING TOOLS & EQUIPMENT
1255 ACACIA ST.
ONTARIO, CA 91761
PRODUCTS RETURNED WILL BE REPAIRED NO
CHARGE IF THEY ARE UNDER WARRANTY AND HAVE
NOT BEEN MODIFIED OR ABUSED. ONCE REPAIRED
THEY WILL BE RETURNED POSTAGE PAID. IF THERE
IS A CHARGE FOR ANYTHING YOU WILL BE
CONTACTED WITH AN ESTIMATE. REPAIRS MUST BE
PAID IN ADVANCE BY CREDIT CARD OR CHECK.
WARRANTY
SPECIFICATIONS
1
1/2 HP
3,550 RPM
3.5
120 V
60 HZ
6 X 5/8”
1/2”
Motor ________________
RPM _________________
AMPS ________________
VOLTS _______________
CYCLE _______________
WHEEL SIZE __________
BORE SIZE ___________
1
1
2
3
3
4
5
Bench Grinder. Please read this
instruc

IMPORTANT SAFETY INFORMATION
WARNING:
Certain hazards are involved with the operation of all
bench grinder. Always exercise caution and respect for
the bench grinder. Follow all the SAFETY RULES to
avoid personal injury and damage to property.
1) READ THE INSTRUCTION MANUAL CAREFULLY.
Learn the bench grinder applications and limitations
as well as the specific potential hazards unique to the
bench grinder.
2) Do not operate power tools in explosive areas,
such as in the presence of flammable liquids, gases
or dust. Power tools create sparks which may ignite
the dust or fumes.
Do not abuse the cord. Never use the cord to carry
the tool or pull the plug from an outlet. Keep the cord
away from heat, oil, sharp edges, or moving parts.
Replace damaged cords immediately. Damaged cords
increase the risk of electric shock.
Disconnect the power cord plug from the power source
before making any adjustments, changing accessories
or storing the tool. Such preventive safety measures
reduce the risk of starting the tool accidentally.
5) CLEAN IS SAFE. Keep the work area clean and
neat. Avoid culler that could case an accident.
6) DONʼT WORK IN A DANGEROUS ENVIRONMENT.
Donʼt use bench grinder in a wet, dark or slippery area.
7) CHILD PROOF THE WORKSHOP AREA. Lock the
area, turn the power off, unplug the bench grinder.
8) KEEP AWAY. Donʼt let children or visitors near the
bench grinder when they are in operation.
9) DONʼT USE FORCE. The bench grinder is design to
work at its own capacity. Donʼt force it to do
something is was not designed to do.
10) WEAR PROPER CLOTHING. Loose clothes,
gloves, neckties, bracelets may get caught in
moving parts. Non slip shoes is recommended. Long
hair should be contained.
11) WARE EYE PROTECTION. Wear impact resistant
safety glasses when operating the
Regular eye glasses are not impact resistant.
12) Wear EAR PLUGS. Protect your hearing by
wearing ear plugs when operating loud noise
13) DONʼT OVER REACH. Keep your balance at all
times.
14) KEEP TOOLS IN GOOD CONDITION. Keep the
blades sharp and clean. Follow the maintenance
instructions.
15) ALWAYS DISCONNECT THE BENCH GRINDER.
Unplug the bench grinder before servicing it or
changing the accessories.
16) DAMAGE INSPECTION. Before operating the
bench grinder check it for damage. If a guard is
damaged replace it. If a moving part or major
component is damaged have a qualified technician
inspect it and replace it if necessary.
17) DO NOT STAND ON THE BENCH GRINDER.
Do not stand on the bench grinder as it may cause
damage or tip over.
18) NEVER OPERATE THE BENCH GRINDER.
Never operate the bench grinder under the
influence of drugs or alcohol.
19) KEEP THE LIGHTS ON. Make sure the work area
is well lite, bright and not in a shadow.
SAFETY RULES
WARNING: This machine must not be modified or
used for any purpose other than for which it was
designed.
1) DO NOT OPERATE. You should not operate this
bench grinder unless you are thoroughly familiar
with Bench Grinder.
2) Do not operate the bench grinder until it is
completely assembled.
3) Read and understand the operators manual before
operating the bench grinder.
4) Make sure the proper electrical regulations are
followed and the bench grinder is grounded.
5) Before turning the bench grinder on always
a) Make sure the work piece is properly secured
b) Make sure you donʼt have clothing that may get
caught in the moving parts of the bench grinder.
6) Always use the correct speed for the type and
thickness of material when you use this grinder.
7) Make all adjustments to the bench grinder with it
turned OFF.
8) Never leave the Bench Grinder running while
unattended.
2
3)
4)
bench grinder.
bench grinder.
20) USE RIGHT TOOL. Donʼt force small tool or
attachment to do the job of a HD tools. Donʼt use
tool for purpose not intended. For example, donʼt
use circular saw for cutting tree limbs or logs.
21) AVOID UNINTENTIONAL STARTING. Donʼt carry
tool before with finger on switch.
22) REPLACEMENT PARTS. When servicing using
only identical replacement parts.
23) SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
OPERATION
1) After switching the grinder on, allow it to reach full
speed before commencing grinding operation.
2) The eyeshields are able to be adjusted and should
be positioned to allow the operator a clear view of
work through the shields.

ASSEMBLY
3
Fig. 1 (Attach eye shield bracket to the upper grinding wheel housing using hardware provided. Now attach eye shield to
bracket.) Caution! Eye shields do provide total protection for the eyes; for maximum safety,always wear safety goggles
when using this bench grinder.
Tool rests help hold your work close to the grinding wheel and give the operator much more control when the work comes
into contact with the wheel.
Fig. 2 (Attach the simple tool rest as shown to the lower portion of the wheel housing.) The tool rest should be adjusted
so that it is no more than 1/8” from the wheel. This is so the work doesnʼt slip down between the wheel and the housing.
Lights are designed to shine directly over the eye shield to light up the work area. The lights are fastened to flexible arms
so they can be adjusted to any position.
The Base is mounted to the grinder and is designed to sit on a work bench or suitable work surface. It can be mounted to
a floor base(not included) or a table. There are screw holes in the base for this purpose.
To change or replace the wheels, follow these simple steps. Disconnect the power cord from the wall outlet.
The eye shield is fastened to the grinder by a simple knurled thumb screw. Remove the eye shield by removing the screw.
Now the bracket for the eye shield can be removed. Remove the tool rests in the same manner by removing the knurled
thumb screw. Next remove the cover on the end of the grinder, this completely exposes the grinding wheels. Now the
grinding wheel can be removed with a simple adjustable wrench.
LIGHT
TOOL RESET
EYE SHIELD
Eye shields can protect your eyes from flying debris that can be
created while grinding and buffing. Keep eye shields adjusted
so that they are as close to the work as possible, but not in the way.
Tool rest and bracket
Eye Shield Bracket
Fig. 1 Fig. 2
Your new grinder comes with several accessories.
Please use only the accessories included when operating your grinder.
The box includes two tool rests, two eye shields with brackets, two work lights, and two grinding wheels; one course grit,
one medium grit. They are 6” X 5/8” grinding wheels. The 1 ¼” arbor hole is bushed down to 1/2”, 5/8”or 3/4”
depending on your grinder.
3) The appropriate adjustments of tool rests will provide the correct working angle for efficient grinding. As the diameter of
the grinding wheel is subject to wear, it will be necessary to re-adjust the tool rests positions to maintain the correct gap
of less than 1.6mm (1/6”) with the edge of the grinding wheel.

PACKAGE CONTENTS
• Bench Grinder
• 2 Grinding Wheels (One Course and One Medium)
• 2 Tool Rests
• 2 Eye Shields
COMPONENTS
A) Eye Shield
J
D
G
E
F
B
C
H
I
A
B) Power Button
C) Eye Shield Adjustment
D) Wheel Guard
E) Tool Rest
F) Tool Rest Adjustment
G) Mounting Holes
H) Bench Grinder
I) Grinding Wheel
J) Adjustable Lights
4

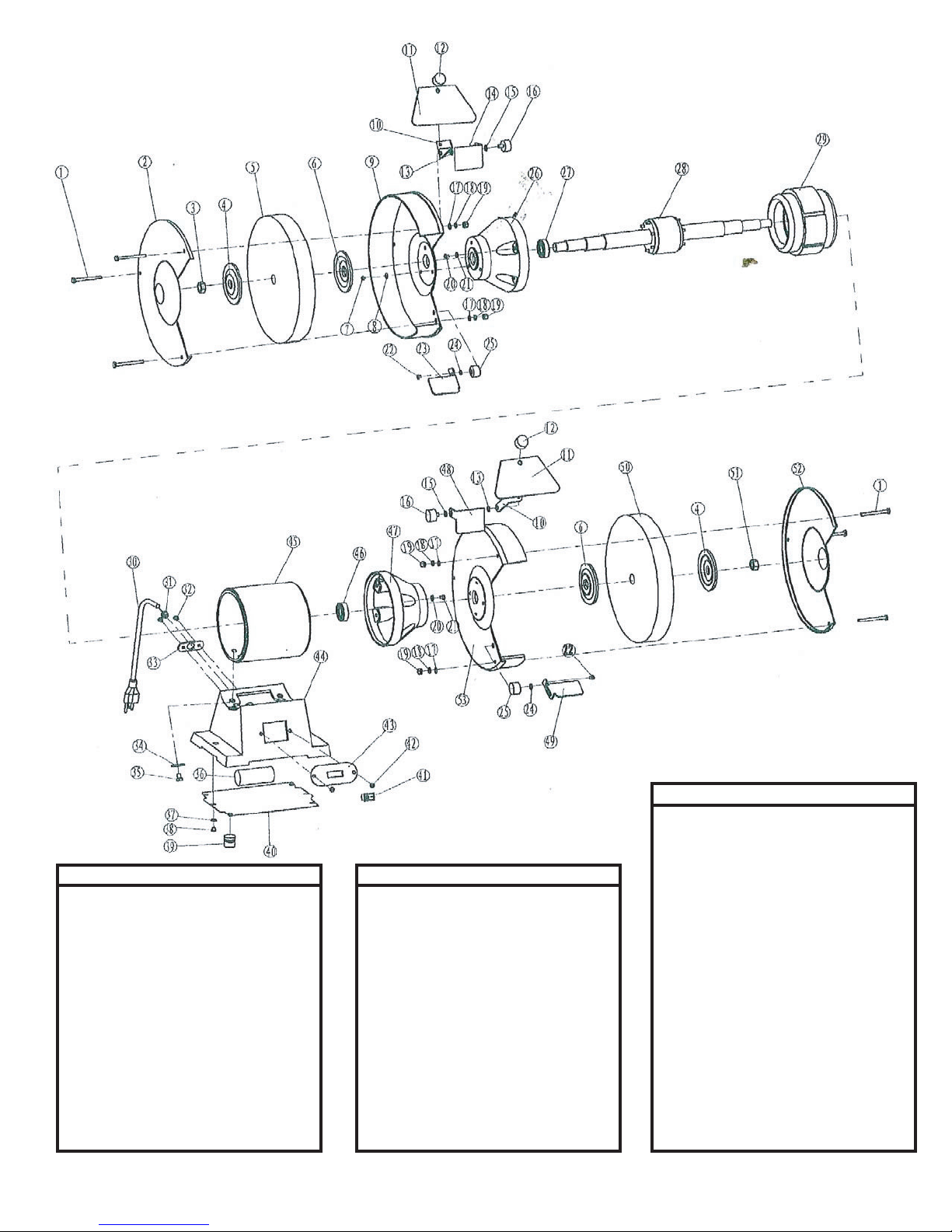

PARTS DIAGRAM
PARTS LIST
Part # Description Part # Description
0028 Rotor
0029 Stator
0030 Cord and plug
0031 Cord Bushing
0032 Screw
0033 Cord Bushing Plate
0034 Washer
0035 Screw
0036 Capacitor
0037 Washer
0038 Screw
0039 Rubber foot
0040 Base Plate
0041 Switch
0042 Screw
0043 Switch Plate
0044 Base
0045 Stator Housing
0046 Bearing
0047 End Bell
0048 Right Spark Guard
0049 Right Tool Rest
0050 Wheel
0051 Right Lock Nut
0052 Right Wheel Cover
0053 Right Wheel Guard
0001 Bolt
0002 Left Wheel Cover
0003 Left Lock Nut
0004 Outer clamp washer
0005 Wheel
0006 Inner Clamp Washer
0007 Screw
0008 Washer
0009 Left Wheel Guard
0010 Eye Shield Mount
0011 Eye Shield
0012 Knob
0013 Serrated Washer
0014 Left Spark Guard
0015 Washer
0016 Knob
0017 Flat Washer
0018 Spring Washer
0019 Nut
0020 Screw
0021 Washer
0022 Screw
0023 Left tool rest
0024 Washer
0025 Tool Rest Knob
0026 End Bell
0027Bearing
Part # Description
