KINGS AKEP-DCDC25A 01 User manual

USER MANUAL

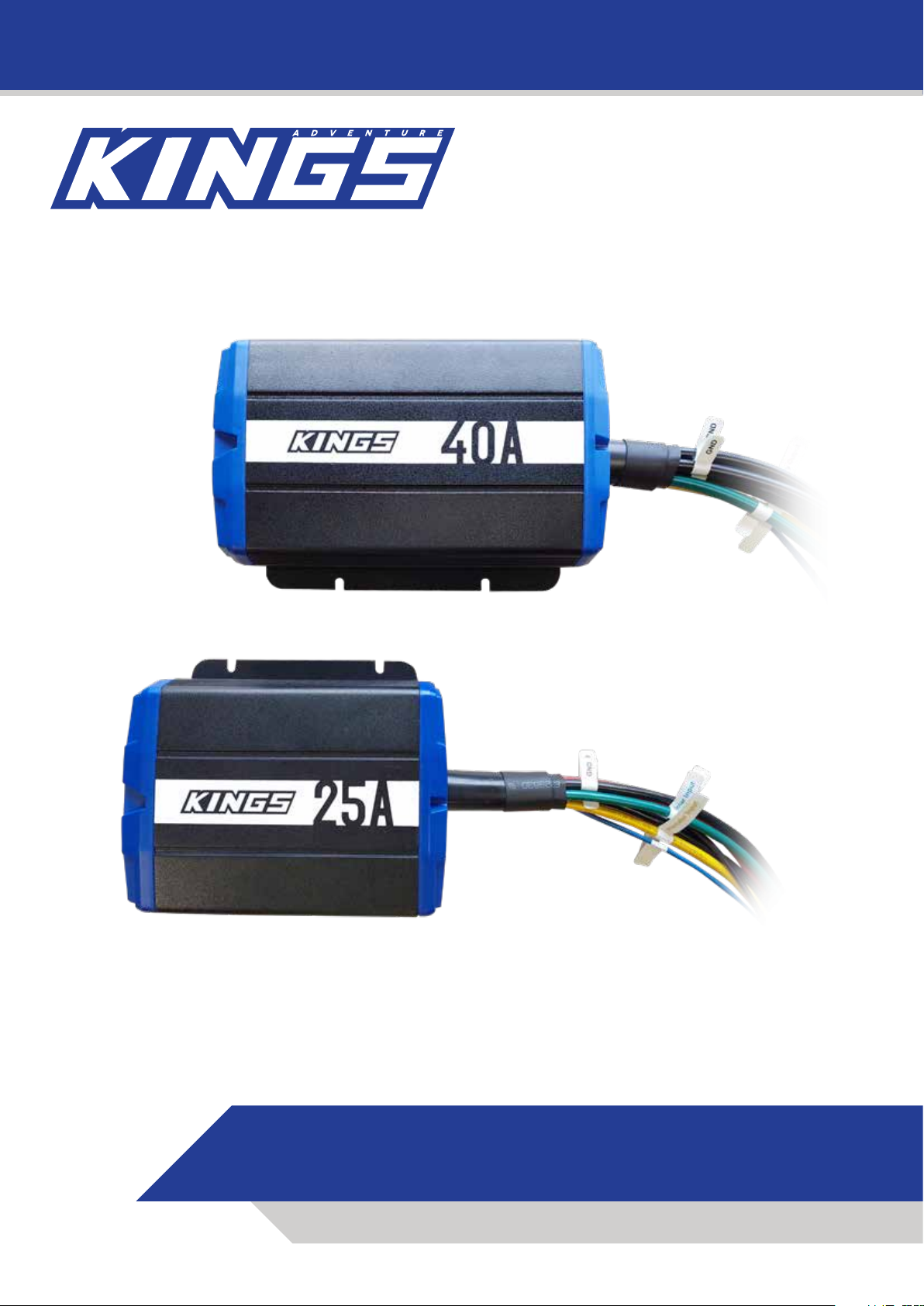

SKU: AKEP-DCDC25A_01 & AKEP-DCDC40A_01
DCDC BATTERY CHARGER
PLEASE READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE USING THIS PRODUCT.

2V1.15
2. TECHNICAL DATA
1. SAFETY INFORMATION
Please read the user manual and safety instructions carefully before using the appliance.
• For 12V Lead Acid based and Lithium LiFePO4 Batteries recommended battery capacity (25A DCDC
Model - 80 - 250 Ah) (40A DCDC Model - 120 - 400 Ah). For other Lithium-Ion batteries refer to section
“Charging Voltage Limits” to confirm if charging Voltage is applicable.
• Suitable for unregulated solar panels 10-32 Volts, up to 300 Watts for 25 Amp model and 500 Watts for
40 Amp model.
• NOT for under bonnet installation
• Install AWAY from flammable fumes, external heat sources, liquids and protected from oil, grease,
combustible material, dust & weather
• Ensure good VENTILATION around the unit
• Isolate the vehicles power source before installation of DCDC Charger
• Not recommend to cut or damage Temperature Sensor or wire, this may damage the DCDC
Charger.
• Ensure the unit is well secured to the inside of the vehicle
• Fuses are NOT supplied
• WARNING: The unit may get hot during operation
• Required minimum air gap, 150mm around unit
SPECIFICATIONS TABLE
25A DCDC Model 40A DCDC Model
Max Charging Current 25 Amps 40 Amps
Recommended Battery Capacity 60 - 250 Ah 120 - 400 Ah
Vehicle Input Voltage 9 - 32 Volts
Solar Input Voltage 10-32 Volts
Solar Input Capacity 300 Watts 500 Watts
Recommended Fuse Size 30 Amps 50 Amps
Idle Current Draw Under 15 mA
Suitable Battery Types Lead Acid, AGM, Calcium, LiFePO4, GEL
IP Rating IP66

3
V1.15
3. LEDS & FAULTS INDICATIONS
3.1 LED CHARGE INDICATOR
Alternator / Solar LED Battery Type LED Charging Stage
Short flash GREEN Solid GREEN Bulk or Absorption
Long flash GREEN Solid GREEN Float
OPERATION MODES
25A and 40A Models
Vehicle Charging System Turn On Turn Off
12 Volt Standard Alternator Above 13.1 Volts Under 12.8 Volts
24 Volt Standard Alternator Above 26.2 Volts Under 25.6 Volts
12 Volt Smart Alternator Above 12.0 Volts Under 11.8 Volts
24 Volt Smart Alternator Above 24.0 Volts Under 23.6 Volts
Long Flash = 1s off, 2s on, 2s off
Short Flash = 0.5s off, 0.5s on, 0.5s, off
SOLID ON = light on continuously

4V1.15
3.2 LED STATUS INDICATORS
Alternator
(Green)
Solar
(Green)
Battery
Type
(Green)
Fault
(Red) Trouble Solution
Quick
flash Off Quick flash Off Low voltage detected at alternator input
Vehicle is OFF, or if vehicle is ON -
check alternator input voltage
Off Quick
flash
Quick
flash Off Low voltage detected at solar input
No sun on solar, or if sun is on solar
- check solar input voltage
Quick
flash
Quick
flash
Quick
flash Off
Low voltage detected
at alternator and
solar input
Vehicle is OFF + no sun on Solar. If
vehicle is ON and sun is on Solar -
check the input voltage of both
Quick
flash Off Off Quick flash
High voltage
detected at alternator
input
Check alternator input voltage
Off Quick
flash Off Quick flash
High voltage
detected at solar
input
Check solar input voltage
Off Off Quick
flash
Quick
flash
High voltage
detected at output
Check auxiliary battery battery
voltage
Off Off Off Quick
flash Over temperature Let the unit cool down for some time or get better ventilation
Quick Flash = 1.8s off, 0.2s on, 1.8s, off
N.B. When the DCDC is on standby mode (connected but not charging from alternator or solar) the battery
type LED, Alternator LED (and Solar LED) will flash indicating the unit is connected but not actively charging.
This is normal.

5
V1.15
Cables
BATTERY TYPE CHARGING VOLTAGE
AT 25°C
FLOAT VOLTAGE
AT 25°C
STD (WET LEAD ACID)
14.4V 13.4V
GEL
14.1V 13.5V
AGM
14.7V 13.4V
CALCIUM
15.3V 13.6V
LITHIUM (LIFEPO4)
14.5V 13.6V
4. CHARGING VOLTAGE LIMITS
5. MOUNTING DIAGRAMS
25A Model
40A Model
131mm
191mm
118mm
5mm
80mm
131mm
153mm
118mm
5mm
80mm

6V1.15
6. WIRING GUIDE
Temp sensor
Plug 2
Plug 3
Ignition
Plug 1
PLUG 1 (Red and Black wires)
1. The OUTPUT (Red) is connected to the positive pole of the auxiliary battery.
2. The GROUND (Black) is connected to the negative pole (-) of the auxiliary battery.
PLUG 2 (Yellow and Black wires)
3. The ALTERNATOR (Yellow) is connected to the positive (+) pole of the starter battery.
4a.The GROUND (Black) is connected to the negative pole (-) of the starter battery.
4b. For vehicles with a smart alternator the black cable must be connected to where the negative cable from
the start battery is connected to the chassis.
PLUG 3 (Green and Black wires)
5. The SOLAR (Green) is connected to the positive pole (+) of the solar panel (if fitted).
6. The GROUND (Black) is connected to the negative pole (-) of the solar panel.
If a solar panel is not fitted, leave PLUG 3 disconnected.
7. The IGNITION (Blue) affects the cut in / cut out point of the charger and should be connected to a 12V
positive (+) ignition power source. A 12V (+) ignition source is a power source that has 12V+ when the
vehicle is ‘ON’ and no power when the vehicle is ‘OFF’. Depending on the vehicle this can be sourced
from the fuse box or an accessory socket.
8. The TEMP SENSOR (Thin Black) Should be connected to the negative terminal of the auxiliary battery for
the best and most accurate temperature reading. NOTE: If it cannot reach the terminal, the sensor can be
affixed to the battery case itself - using a small amount of removable adhesive.
In order to prevent accidental short circuit during installation, it is recommended to turn off the car during the
installation and the negative pole of the starter battery should be disconnected. Please note that disconnecting
the negative of the main battery may reset some memory functions in the vehicle and the vehicles head unit or
other functions may need a reset code once power is restored, check your vehicles manual or manufacturer
for further details.

7
V1.15
7. OPERATION
1. To change battery type, press and hold the ‘MODE’ button for 2 seconds then release to cycle through
and select different battery types.
2. Every 2 minutes the unit stops charging and measures auxiliary/second battery voltage for 2 seconds.
This is normal operation and offers precise charging. This can mean once the unit is connected, it may
take up to 2 minutes to start charging.
3. If LiFePO4 battery setting is selected the charger automatically features a lithium ‘wake’ feature - when
connected the charger will send out a pulse of power every minute - if it detects a battery, charging
will continue. If no battery is detected or a short circuit is detected, the Charger will change to standby
mode.
9. Restore the negative connection of the battery. Confirm the charger begins to operate properly. If anomalies
occur, disconnect the negative battery connection and check / confirm all other connections are correct
before starting again.

8V1.15
8. WARRANTY
WARRANTY PERIOD:
Full 12 month warranty from date of purchase against all manufacturing defects.
WHAT DOES THE WARRANTY COVER?
Under normal usage conditions, this warranty covers:
a. Any defect in design or manufacture which results in the product failing to perform substantially as described
in authorised advertising or literature.
b. We will either repair or replace the product at our discretion providing that the fault is found to have been
caused by a design or manufacturing defect and not misuse or tampering.
Our goods come with guarantees that cannot be excludedunder the Australian ConsumerLaw. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a majorfailure. The benetsprovided to you as the
consumer by this warranty are in addition to other rights and remedies available to you under the law.
THE WARRANTY DOES NOT COVER:
a. Any damage resulting from improper use
b.
c. The cost of removing and reinstalling the product
d. Travel and /or other expenses due to customer’s remote location
e. Transport charges and damage in transit. It is your responsibility to deliver and pick up your product,
including any costs associated with the postage of your repair or replacement product. If you do freight your
product we recommend that you insure against loss or damage.
f. Any loss directly or indirectly associated with the product failing to operate.
g. Damage caused by mould, insects, animals, misuse, incorrect operation, adverse weather, accidents
and fair wear and tear
TO MAKE A CLAIM, PLEASE ENSURE YOU RETAIN YOUR SALES RECEIPT OF PURCHASE
1800 88 39 64
12 MONTH LIMITED
WARRANTY
OUTDOOR SUPACENTRE PTY LTD
Level 1, Building A, 6 Figtree Drive,
Sydney Olympic Park, NSW 2127, Australia
PHONE: [phone]
www.4wdsupacentre.com.au
Faulty installation or modication made during installation
