Kinlan BE1030 User manual

Please read this manual carefully before using the product
and keep it in a safe place.
USER MANUAL
MODEL: BE1030
Wireless Earbuds with
Charging Case

Please read this manual carefully before using the product
and keep it in a safe place.
USER MANUAL
MODEL: BE1030
Wireless Earbuds with
Charging Case
1

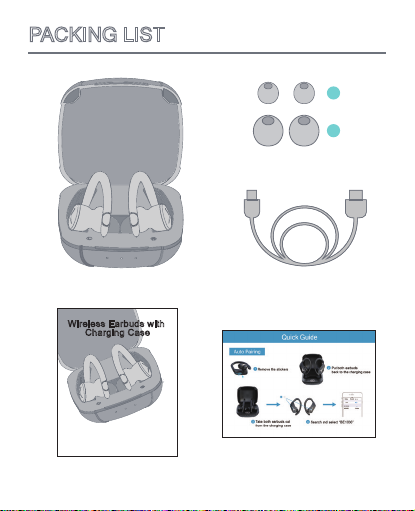

PACKING LIST
X1
(Size M is preinstalled on earbuds)
X1
X1
X1
User Manual X1 Quick Guide X1
S
L

2
DIAGRAM
LED light Type-C charging port
Touch area
LED Indicator
Charging pins
Microphone port

3
CHARGING
• Remove the protective film from the earbuds when using
for the first time.
• Fully charge both earbuds and the charging case before
the first-time using.
• To prevent damage, use the provided USB-C cable.
• Fully dry off the earbuds and the USB port before charging.

4
POWER ON
• In the shutdown status and when the earbuds are not in the
charging case.Simultaneously click and hold the MFB of both
earbuds for 3 seconds to power on and go into pairing mode
(with the white LED lights flashing).
• Take both earbuds out from the charging case the earbud wills
automatically turn on (with white LED lights flashing) and start
pairing.
x 3s
Mode 2
Mode 1
ON
ON

5
POWER OFF
•If the earbuds are not in the charging case. Pause music first,
click and hold the MFB of both earbuds for 4 seconds to turn
them off.
• Put the earbuds back to the charging case to turn them off.
x 4s
Mode 2
Mode 1
OFF
OFF

Note :The earbud will reconnect to the paired device by
priority. If you want to pair to the second smartphone.
Please disconnect name on the paired smartphone.
Mode 1
Mode 2
1.Take both earbuds out from the charging case. They will
automatically enter the pairing mode in which the LED lights
flash white, and then select "BE1030".
2. If the earbuds are not in the charging case.Click and hold the
MFB of both earbuds for 6 seconds. they will automatically enter
the pairing mode and then select "BE1030"on your phone.
6
PAIRING
Voice Prompt: pairing
BE1030
Bluetooth
Bluetooth
12:00
Settings
MY DEVICES
Connected
BE1030
Bluetooth
Bluetooth
12:00
Settings
MY DEVICES
Connected
x 6s

Click the MFB button of either earbuds 5 times while in pairing mode,
the LEDlightswill flash 3times that means it has been reset successfully
Volume UP/Down
Volume+: click and hold the MFB button of Left earbud to turn up
the volume.
Volume-: click and hold the MFB button of Right earbud to turn down
the volume.
Next / Previous Track
Next Track: double click the MFB of Right earbud.
Previous Track: double click the MFB of Left earbud.
Play / Pause
Click the MFB of either earbud once.
Answer / hang up
Click the MFB of either earbud once.
Reject a call
Double click MFB button when there is an incoming call.
Activate Siri
Triple click the MFB button of either earbud
7
TOUCH CONTROL
RESET

Earbuds
SPECIFICATION
Charging case
Wireless version: V 5.1
Working time:
4~6 hours
Battery:
50mAh
Working distance:
10M (barrier-free)
Charging time: 1.5hous
Chaging times: 2 hours
Battery:
5V 1A
Input:
Output: 5V 120mA
Li-battery 700 mAh (Extra 4 times full charge for earbuds)

FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
NOTE 2: Any changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure
requirement.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
