KitchenAid KFGS306V User guide

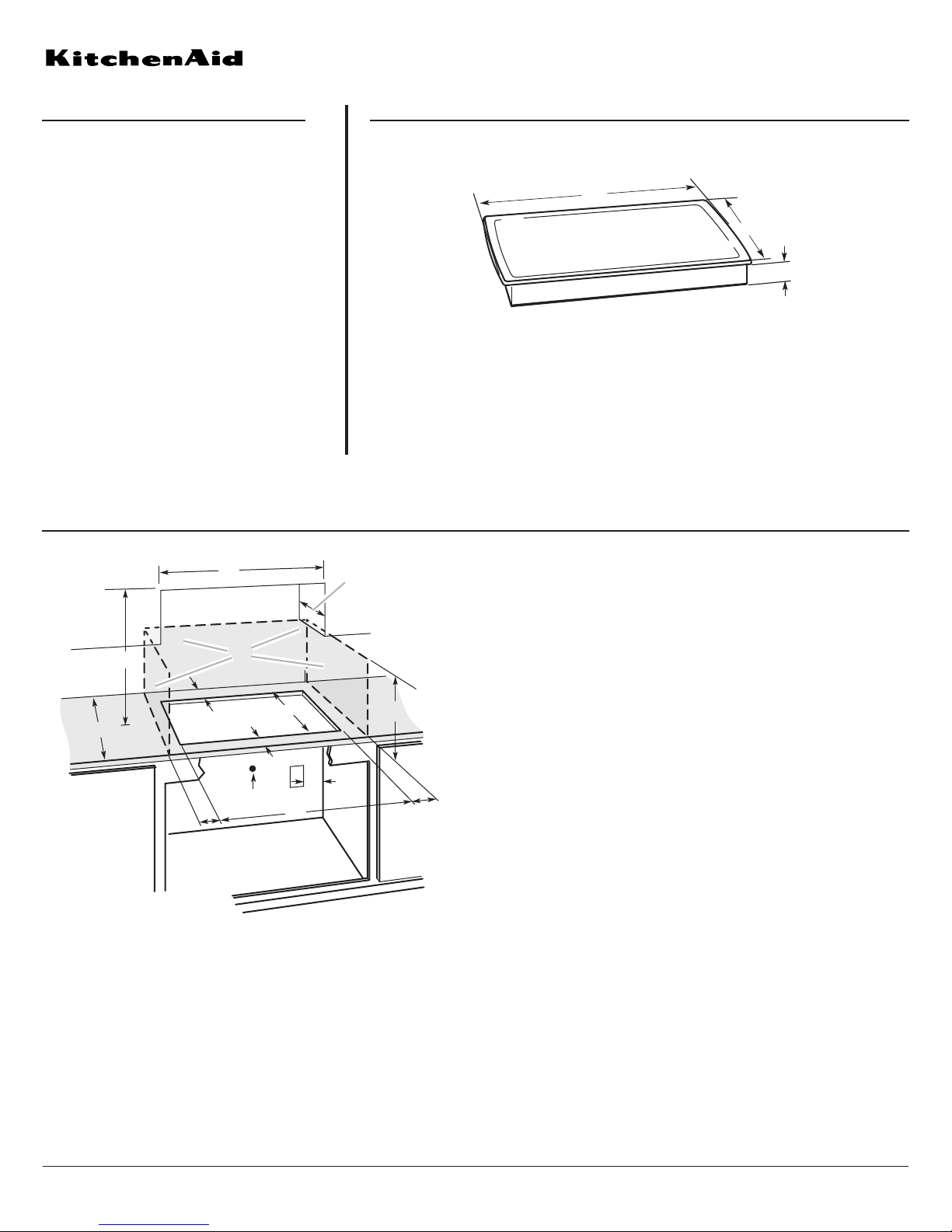

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS
CABINET OPENING DIMENSIONS
KFGS306V
KFGS366V
KFGU706V
KFGU766V
Gas Supply: This cooktop is factory set for use
with Natural gas. Cooktop can be converted to LP
gas. Provide a gas supply line of ³⁄₄" (1.9 cm) rigid
pipe to the cooktop location. A smaller size pipe on
longer runs may result in insufficient gas supply.
Pipe-joint compounds that resist the action of LP
gas must be used. Do not use TEFLON®tape. With
LP gas, piping or tubing size can be ¹⁄₂" minimum.
Usually, LP gas suppliers determine the size and
materials used in the system.
Electrical: A 120 volt, 60 Hz., AC only, 15-amp
fused, electrical circuit is required. A time-delay
fuse or circuit breaker is also recommended. It is
recommended that a separate circuit serving only
this cooktop be provided.
Gas Built-in Cooktop
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 8286867
03-25-08
®
A. 30 ³⁄₁₆ " (76.7 cm) on 30" (76.2 cm) models,
36
¹⁄₄ " (92.0 cm) on 36" (91.4 cm) models
B. 21" (53.3 cm)
C. 3
¹⁄₄ " (8.3 cm)
A
B
C
B
D
A
C
EF
H
I
J
G
K
L
M
N
A. 30"(76.2 cm) on 30"(76.2 cm) models; 36"(91.4 cm) on
36"(91.4 cm) models
B. Combustible area above countertop (shown by dashed box above)
C. 30"(76.2 cm) minimum clearance between top of cooktop platform
and bottom of unprotected wood or metal cabinet (24"[61.0 cm]
minimum clearance if bottom of wood or metal cabinet is protected by
not less than ¹⁄₄"[0.6 cm] flame retardant millboard covered with not
less than No. 28 MSG sheet steel, 0.015"[0.04 cm] stainless steel, or
0.024"[0.06 cm] aluminum or 0.020"[0.05 cm] copper). If installing a
range hood see NOTES.*
D. 13"(33.0 cm) recommended upper cabinet depth
E. 1
¹⁄₈
"(2.8 cm)
F. 2 0 "(50.8 cm)
G. 18" (45.7 cm) minimum clearance from upper cabinet to countertop
within minimum horizontal clearances to cooktop
H. Grounded outlet - Locate within 24" (61.0 cm) of right rear corner of
cutout
I. 29" (73.7 cm) on 30" (76.2 cm) models; 35¼" (89.5 cm) on
36" (91.4 cm) models
J. 24" (61.0 cm) minimum countertop depth is required
K. 2
⁷⁄₈ " (7.3 cm) minimum distance to rear combustible surface
L. Gas line opening - Wall: anywhere 5" (12.7 cm) below underside of
countertop. Cabinet floor: anywhere within 6" (15.2 cm) of rear wall is
recommended
M. 8" (20.3 cm) minimum distance to nearest left side combustible
surface.**
N. 8" (20.3 cm) minimum distance to nearest right side combustible
surface.**
30" (76.2 cm) Cooktop Overall: M + N must equal 48" (122.0 cm)
minimum + 29" (73.7 cm) cutout for cooktop or 77" (195.6 cm)
36" (91.4 cm) Cooktop Overall: M + N must equal 48" (122.0 cm)
minimum + 35¼" (89.5 cm) cutout for cooktop or 83¼" (211.5 cm)
**M + N combined must be at least 48" (122.0 cm) minimum overall
Example 1: M = 8" (20.3 cm) left side + N = 40" (101.6 cm) right side
= 48" (122.0 cm)
Example 2: M = 24" (61.0 cm) left side + N = 24" (61.0 cm) right side
= 48" (122.0 cm)
