KitchenAid KGCV566 User manual

Kitchen_kid _
GAS COOKTOP
For questions about features, operation/performance, parts accessories or service, call: 1-800-422-1230
In Canada, call for assistance 1-800-461-5681, for installation and service, call: 1-800-807-6777 or visit our website at...
www.kitchenaid.com or www.KitchenAid.ca
TABLE DE CUISSON AGAZ
Au Canada, pour assistance composez le 1-800-461-5681, pour installation ou service composez le 1-800-807-6777 ou visitez notre site web a...
www.KitehenAid.ea
Table of Contents/Table des matieres ............................................................................. 2
Models/Modeles KGCV566 KGCC566 KGCS166 KGCT055 KGCS127 KGCS105 KGCC505 KGCR055
8286640

TABLE OF CONTENTS
COOKTOP SAFETY .................................................................... 2
PARTS AND FEATURES ............................................................ 4
COOKTOP USE ........................................................................... 9
Cooktop Controls ......................................................................... 9
Surface Burners ......................................................................... 10
Surface Grates with Locater Pin................................................ 10
Ceramic Glass ............................................................................ 11
Home Canning ........................................................................... 11
Cookware ................................................................................... 11

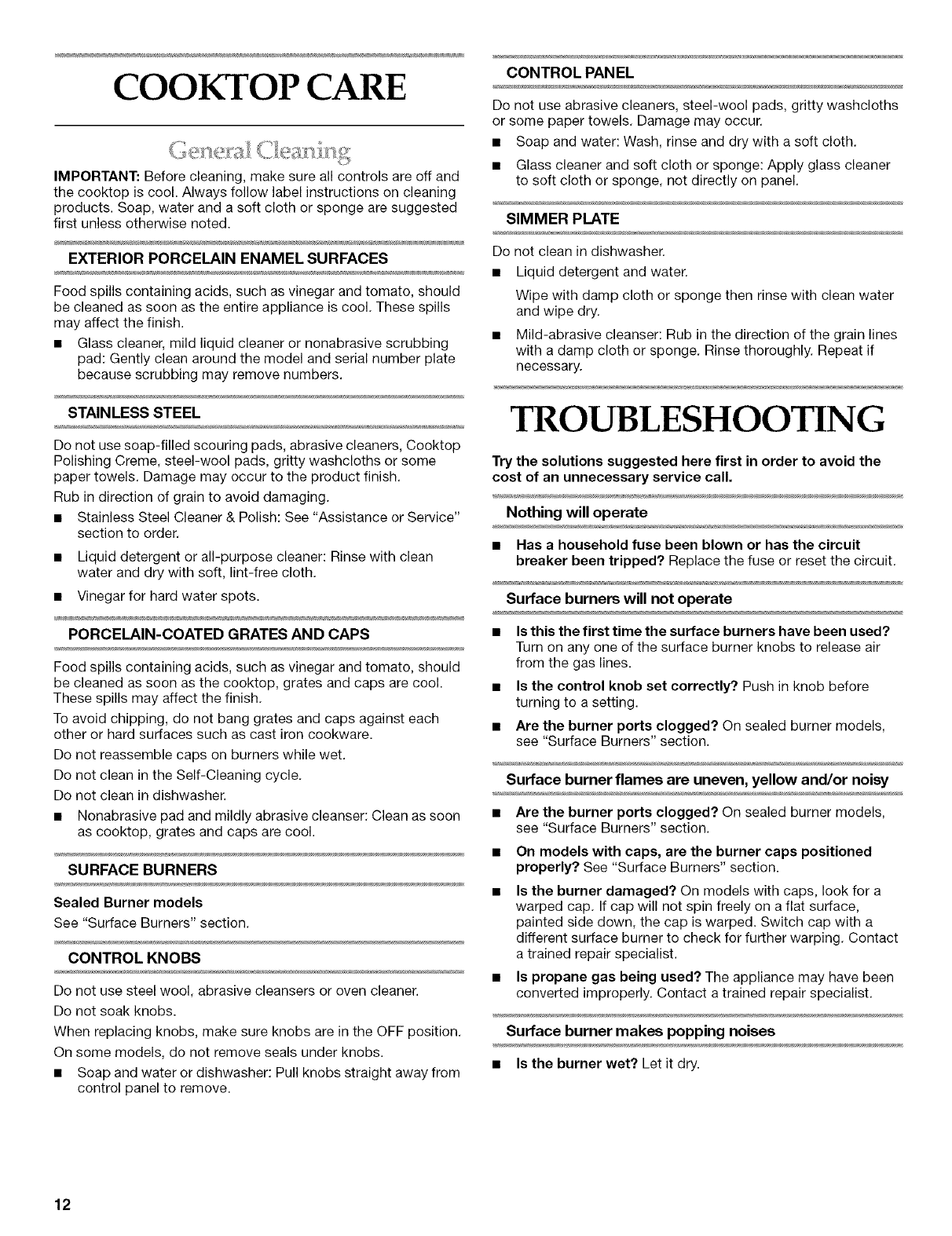

COOKTOP CARE .......................................................................... 12
General Cleaning ........................................................................ 12
TROUBLESHOOTING .................................................................. 12
ASSISTANCE OR SERVICE ......................................................... 13
WARRANTY .............................................................................. 14
TABLE DES MATIERES
SECURITr !:DE LA TABLE DE CUISSON ................................. 15
PIECES ET CARACTERISTIQUES ........................................... 17
UTILISATION DE LA TABLE DE CUISSON ............................. 22
Commandes de la table de cuisson .......................................... 22
BrQleurs de surface .................................................................... 23
Grilles de surface avec ergot de positionnement ...................... 24
Vitroceramique ........................................................................... 24
Preparation de conserves a la maison ....................................... 24
Ustensiles de cuisson ................................................................ 24
ENTRETIEN BE LA TABLE BE CUISSON .................................. 25
Nettoyage genGral ...................................................................... 25
DI_PANNAGE ................................................................................. 26
ASSISTANCE OU SERVICE ......................................................... 26
GARANTI E..................................................................................... 27
COOKTOP SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.

i WARNING: If the information in this manual is not followed exactly, a fire or explosion i
I
may result causing property damage, personal injury or death. I
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
iMPORTANT SAFETY iNSTRUCTiONS
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
cooktop, follow basic precautions, including the
following:
[] CAUTION: Do not store items of interest to
children in cabinets above the cooktop - children
climbing on the cooktop to reach items could be
seriously injured.
[] Proper installation - The cooktop, when installed,
must be electrically grounded in accordance with
local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70 or the
Canadian Electrical Code, Part 1. Be sure the
cooktop is properly installed and grounded by a
qualified technician.
[] This cooktop is equipped with a three-prong
grounding plug for your protection against shock
hazard and should be plugged directly intoa properly
grounded receptacle. Do not cut or remove the
grounding prong from this plug.
[] Disconnect the electrical supply before servicing
the cooktop.
[] Never Use the Cooktop for Warming or Heating the
Room.
[] injuries may result from the misuse of the cooktop
such as stepping, leaning, or sitting on the top
surface.
[] Maintenance - Keep cooktop area clear and free
from combustible materials, gasoline, and other
flammable vapors and liquids.
[] Storage on the cooktop - Flammable materials
should not be stored on or near surface units.
[] Top burner flame size should be adjusted so it does
not extend beyond the edge of the cooking utensil.
SAVE THESE iNSTRUCTiONS
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list
of substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and
requires businesses to warn of potential exposure to such substances.
WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or
other reproductive harm.
This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde,
carbon monoxide, toluene, and soot.

PARTS AND FEATURES
This manual covers several different models, and not all models are shown. The cooktop you have purchased may have some or all of
the items listed. The locations and appearances of the features shown here may not match those of your model. All BTU ratings shown
are for natural gas unless otherwise noted.
Model KGCV566 (36 in. [91.4 cm] shown)
OFF
Mec
OFF
UteH
Me¢
LiteH ow
OFF OFF
1.Left Front Burner Control Knob
2. Control Knob Off Position 3. Left Rear Burner Control Knob
4. Center Rear Burner Control Knob (on 36"
models only)
5. Right Rear Burner Control Knob
6. Right Front Burner Control Knob
2 ..................................
1
lO
1. 14,000 BTU Burner
2. Surface Burner Cap
3. Left Surface Burner Grate
4. 6,000 BTU Burner
11
5. Model and Serial Number Plate
(under cooktop)
6. 9,000 BTU Burner
7. Center Grate
8. !2,500 BTU Burner
9. Right Surface Burner Grate
10. 6,000 BTU Burner
1!. Control Panel

Model KGCC566 (36 in. [91.4 cm] shown)
Model KGCC505 (30 in. [76.2 cm] not shown)
4
OFF
Mod
OFF
L_teH_
Med
Lit__ ............................................. 5
Med
2
1
OFF
L_teH
Meal
Kitchen_kid
OF_
UteH_
Low
Med
1.Left Front Burner Control Knob
2. Control Knob Off Position 3. Left Rear Burner Control Knob 4. Center Rear Burner Control Knob
(on 36" models only)
5. Right Rear Burner Control Knob
6. Right Front Burner Control Knob
6
7
1. 14,000 BTU Burner
2. Surface Burner Cap
3. Left Surface Burner Grate
4. Model and Serial Number Plate
(under cooktop)
)
5. 6,000 BTU Burner (9,100 BTU Burner on 30"
models)
6. 9,100 BTU Burner
(on 36" models only)
7. Center Grate
8. 12,500 BTU Burner
9. Right Surface Burner Grate
10. 6,000 BTU Burner
1!. Control Panel
lO
11
