KitchenAid KICU265HSS1 Manual

iMPORTANT:
Read and save
these instructions.
iMPORTANT:
installer: Leave Installation instructions with
the homeowner.
Homeowner: Keep Installation Instructions for
future reference.
Save Installation Instructions for local electrical
inspector'suse.
4329223/9763387
Quick Reference
Table of Contents:
Pages
[] Before you start
[] Product dimensions
[] Cabinet dimensions
[] Venting requirements
[] Electrical requirements
[_=[] installation steps
[] Use and Care information
[] Wiring diagram
[] Accessories
[] Warranty
[_= [] Requesting Assistance
or Service

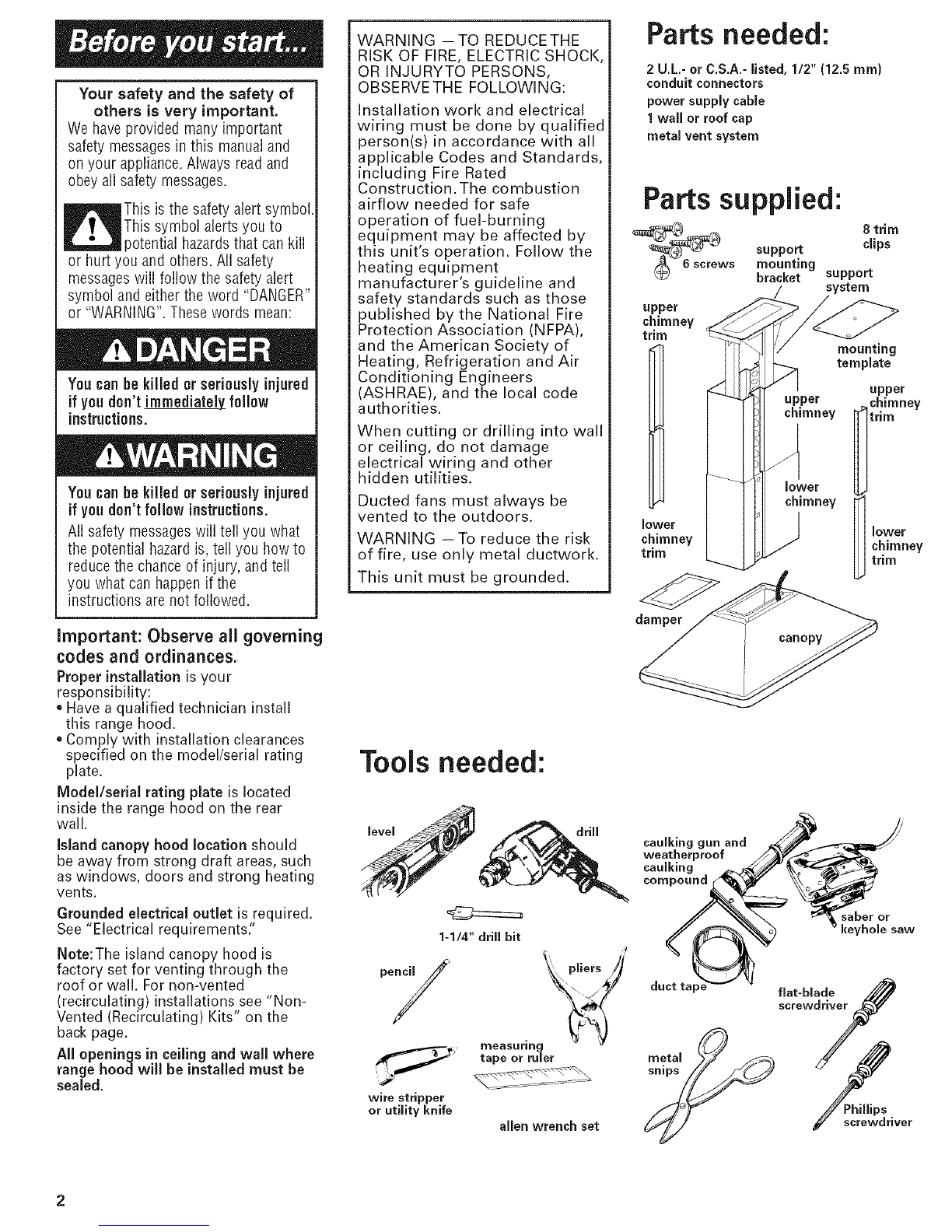

Yoursafety and the safety of
others is very important.
We haveprovided many important
safety messagesin this manualand
on your appliance. Always readand
obey all safety messages.
This is the safety alertsymbol.
This symbol alerts you to
potential hazardsthat can kill
or hurt you and others. All safety
messageswill follow the safety alert
symbol and either the word "DANGER"
or "WARNING".Thesewords mean:
Youcan be killed or seriouslyinjured
if you don'tfollow instructions.
All safety messageswill tell you what
the potential hazardis, tell you how to
reducethe chance of injury, and tell
you what can happenif the
instructions are not followed.
Important: Observe all governing
codes and ordinances.
Proper installation isyour
responsibility:
• Have a qualified technician install
this range hood.
• Comply with installation clearances
specified on the model/serial rating
plate.
Model/serial rating plate is located
inside the range hood on the rear
wall.
Island canopy hood location should
be away from strong draft areas, such
as windows, doors and strong heating
vents.
Grounded electrical outlet is required.
See "Electrical requirements;'
Note:The island canopy hood is
factory set for venting through the
roof or wall. For non-vented
(recirculating) installationssee "Non-
Vented (Recirculating) Kits" on the
back page.
All openings in ceiling and wall where
range hood wUl be installed must be
sealed.
WARNING -- TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK,
OR INJURYTO PERSONS,
OBSERVE THE FOLLOWING:
Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable Codes and Standards,
including Fire Rated
Construction. The combustion
airflow needed for safe
operation of fuel-burning
equipment may be affected by
this unit's operation. Follow the
heating equipment
manufacturer's guideline and
safety standards such as those
published by the National Fire
Protection Association (NFPA),
and the American Society of
Heating, Refrigeration and Air
Conditioning Engineers
(ASHRAE), and the local code
authorities.
When cutting or drilling into wall
or ceiling, do not damage
electrical wiring and other
hidden utilities.
Ducted fans must always be
vented to the outdoors.
WARNING --To reduce the risk
of fire, use only metal ductwork.
This unit must be grounded.
Tools needed:
level drill
1-1/4" drill bit
measuring
tape or ruler
wire stripper
or utility knife allen wrench set
Partsneeded:
2 U.L.- or C.S.A.- listed, 112" (12.5 mm}
conduit connectors
power supply cable
1 wall or roof cap
metal vent system
Partssupplied:
8trim
_w support clipss mounting
bracket support
system
upper
chimney
trim
!
lower
chimney
trim
mounting
template
upper
upper .._chimney
chimney ltri m
Jlower
chimney
11 lower
II chimney
U trim
caulking gun and
weatherproof
caulking
compound
saber or
keyhole saw
duct ta_ screwdriver
metal _'_
screwdriver

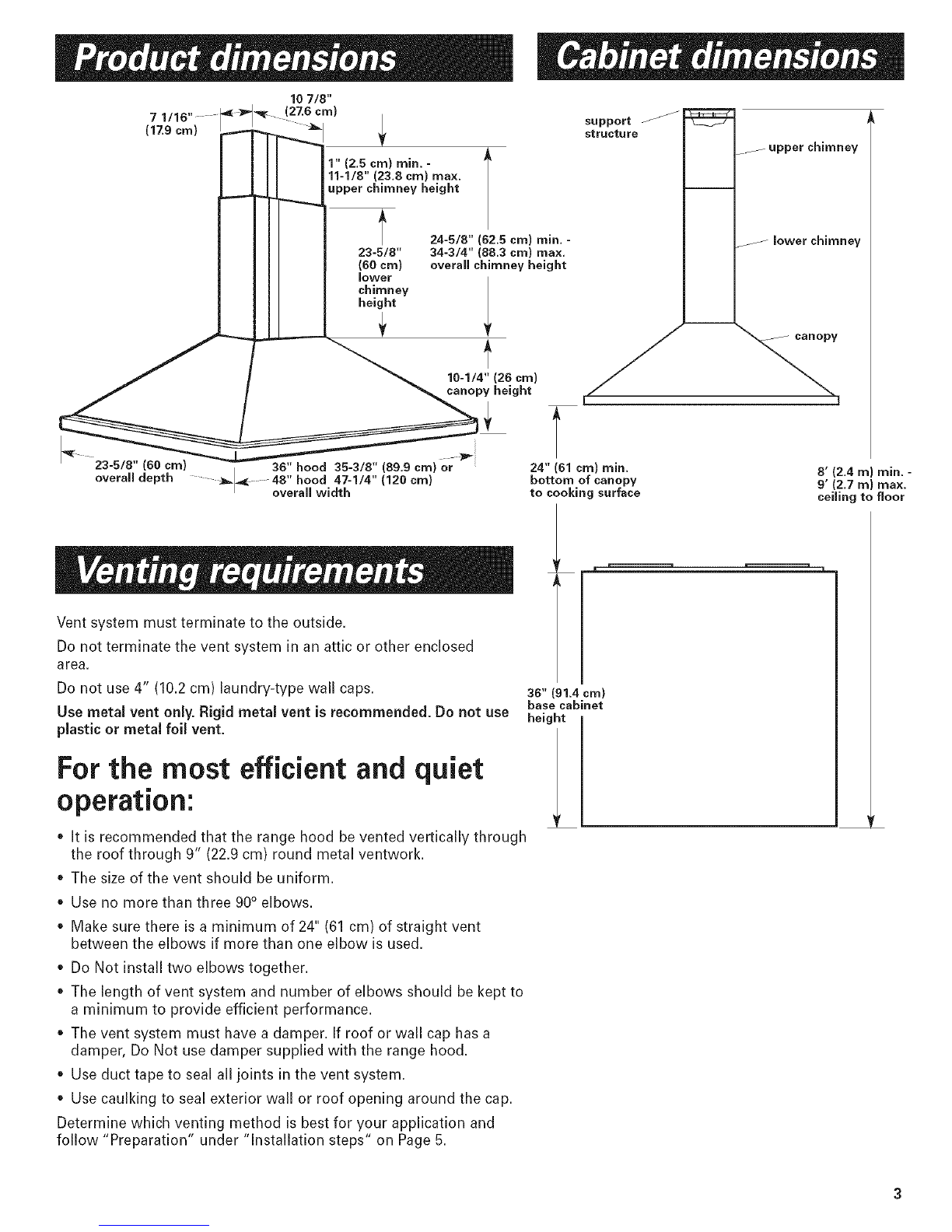

107/8"
71/16....... (27.6cm) support
(17.9 cm) structure
23-5/8" (80 cm)
overall depth
1" (2.5cm)rain.-
11-1/8" (23.8 cm) max.
upper chimney height
t
23-6/8"
(60cm)
lower
chimney
height
24-5/8" (62.5 cm) rain. -
34-3/4" (88.3 cm) max.
overall chimney height
10-1/4" (26 cm)
canopy height
38" hood 35-3/8" (89.9 cm) or
_-,_ .... 48" hood 47-1/4" (120 cm)
overa w dth
_ upper chimney
/_f lower chimney
!
24" (61 cm) rain.
bottom of canopy
to cooking surface
8" (2.4 m) rain. -
9' (2.7 m) max.
ceiling to floor
Vent system must terminate to the outside.
Do not terminate the vent system in an attic or other enclosed
area.
Do not use 4" (10.2 cm) laundry-type wall caps.
Use metal vent only. Rigid metal vent is recommended. Do not use
plastic or metal foil vent.
3
36" (91.4 cm)
base cabinet
height
For the most efficient and quiet
operation:
• it is recommended that the range hood be vented vertically through
the roof through 9" (22.9 cm) round metal ventwork.
• The size of the vent should be uniform.
• Use no more than three 90° elbows.
• Make sure there is a minimum of 24" (61 cm) of straight vent
between the elbows if more than one elbow isused.
• Do Not install two elbows together.
• The length of vent system and number of elbows should be kept to
a minimum to provide efficient performance.
• The vent system must have a damper. If roof or wall cap has a
damper, Do Not use damper supplied with the range hood.
• Use duct tape to seal all joints in the vent system.
• Use caulking to seal exterior wall or roof opening around the cap.
Determine which venting method isbest for your application and
follow "Preparation" under "Installation steps" on Page 5.

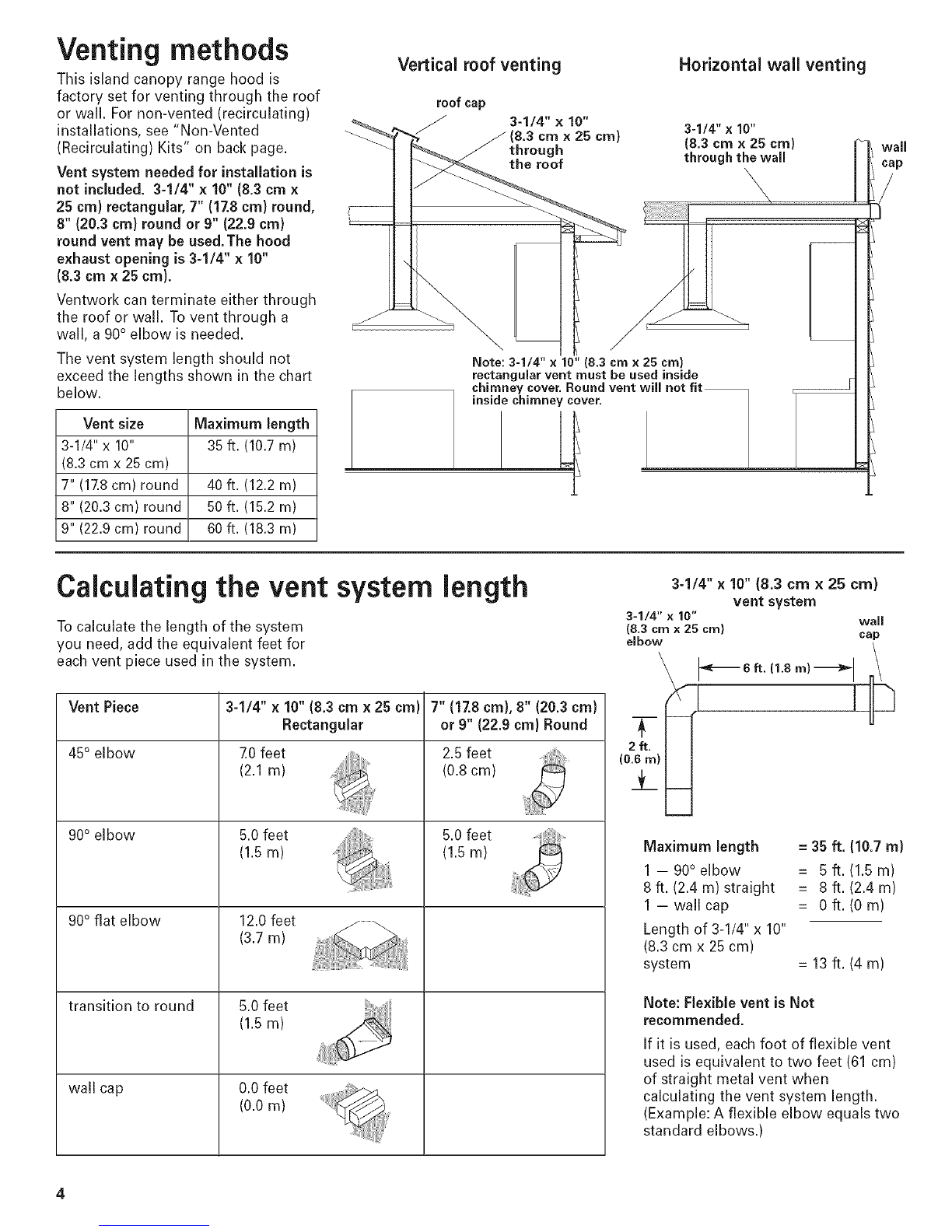

Venting methods
This island canopy range hood is
factory set for venting through the roof
or wall. For non-vented (recirculating)
installations, see "Non-Vented
(Recirculating) Kits" on back page.
Vent system needed for installation is
not included. 3-1/4" x 10" (8.3 crn x
25 crn) rectangular, 7" (178 crn) round,
8" (20.3 crn) round or 9" (22.9 crn)
round vent may be used.The hood
exhaust opening is3-1/4" x 10"
(8.3 crn x 25 crn).
Ventwork can terminate either through
the roof or wall. Tovent through a
wall, a 90° elbow isneeded.
The vent system length should not
exceed the lengths shown in the chart
below.
Vent size Maximum length
3-1/4" x 10" 35 ft. (10.7m)
(8.3 cm x 25 cm)
7" (17.8cm) round 40 ft. (12.2 m)
8" (20.3 cm) round 50ft. (15.2 m)
9" (22.9 cm) round 60ft. (18.3 m)
Vertical roof venting
roofcap
Horizontal wail venting
3-1/4" x 10"
cm x 25 cm) 3-1/4" x 10"
through (8.3 cmx 25 cm)
the roof through the wall
\
jJ
Note: 3-1/4" x 10" (8.3 cmx 25 cm)
rectangular vent must be used inside
chimney cover. Round vent wiJJ net fit
inside chimney cover.
wall
cap
Calculating the vent system length
To calculate the length of the system
you need, add the equivalent feet for
each vent piece used in the system.
Vent Piece
45° elbow
90° elbow
90° flat elbow
transition to round
wall cap
3-1/4" x 10" (8.3 cm x 25 cm}
Rectangular
7.0feet
(2.1 m)
5.0 feet
(1.5 m)
12.0 feet
(3.7 m)
5.0 feet
(1.5 m)
0.0 feet
(0.0 m)
7" (17.8crn),8" (20.3cm)
or g" (22.9 cm} Round
2.5feet
(0.8cm)
5.0feet
(1.5m)
3-1/4" x 10" (8.3 crn x 25 crn)
vent system
3-1/4" x 10" wamm
(8,3 cmx 25 cm)
embow cap
Maximum length
1 - 90° elbow
8 ft. (2.4 m) straight
1 - wall cap
Length of 3-1/4" x 10"
(8.3 cm x 25 cm)
system
=35 ft. (10.7rn)
= 5 ft. (1.5m)
= 8 ft. (2.4 m)
= 0 ft. (0 m)
= 13 ft. (4 m)
Note: Flexible vent is Not
recommended.
If it is used, each foot of flexible vent
used is equivalent to two feet (61 cm)
of straight metal vent when
calculating the vent system length.
(Example: A flexible elbow equals two
standard elbows.)

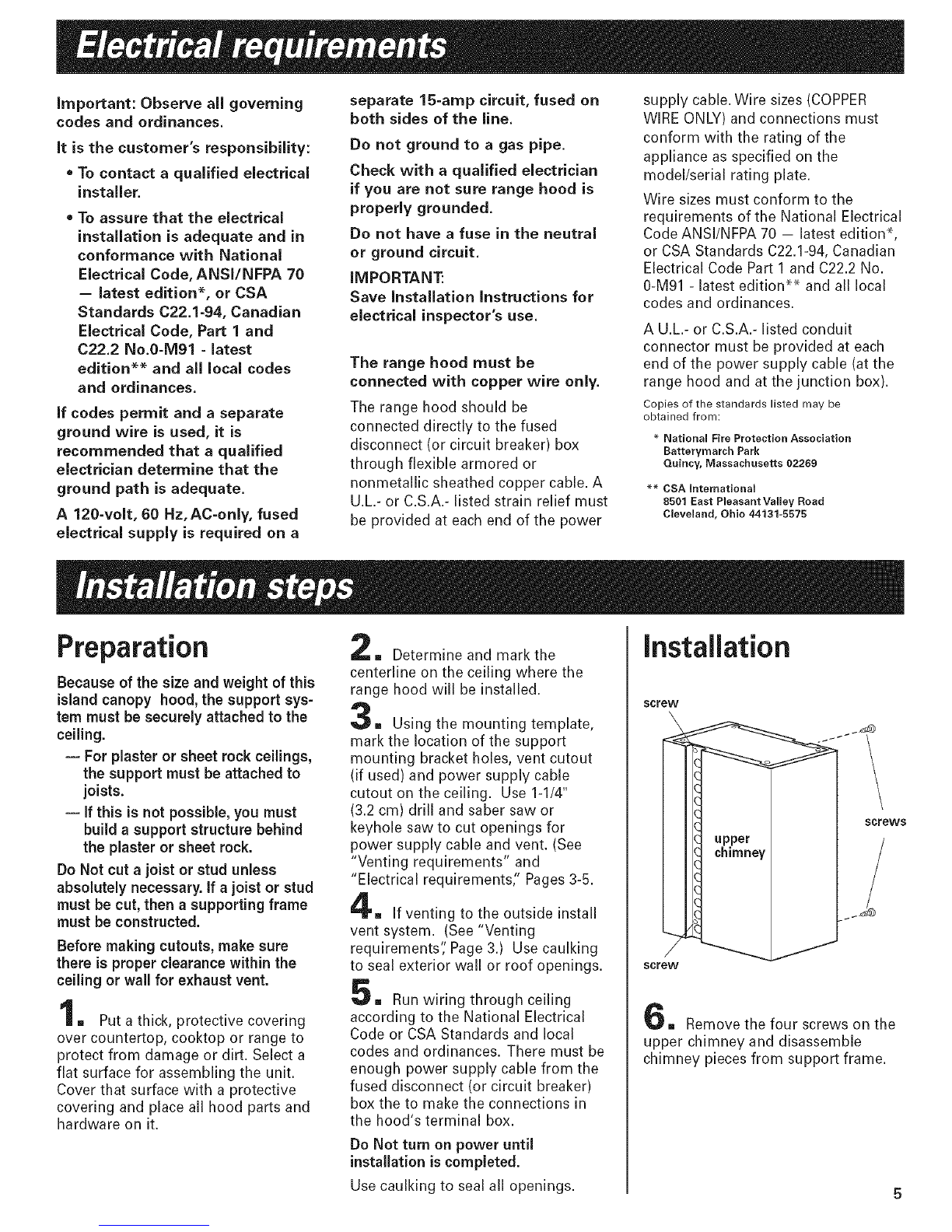

important: Observe all governing
codes and ordinances.
it is the customer's responsibility:
=To contact a qualified electrical
installer.
=To assure that the electrical
installation is adequate and in
conformance with National
Electrical Code, ANSI/NFPA 70
-- latest edition*, or CSA
Standards C22.1-94, Canadian
Electrical Code, Part 1 and
C22.2 No.0-M91 - latest
edition** and all local codes
and ordinances.
if codes permit and a separate
ground wire is used, it is
recommended that a qualified
electrician determine that the
ground path is adequate.
A 120-volt, 60 Hz, AC-only, fused
electrical supply is required on a
separate 15-amp circuit, fused on
both sides of the line.
Do not ground to a gas pipe.
Check with a qualified electrician
if you are not sure range hood is
properly grounded.
Do not have a fuse in the neutral
or ground circuit.
iMPORTANT:
Save installation instructions for
electrical inspector's use.
The range hood must be
connected with copper wire only.
The range hood should be
connected directly to the fused
disconnect (or circuit breaker) box
through flexible armored or
nonmetallic sheathed copper cane. A
U.L.- or C.S.A.- listedstrain relief must
be provided at each end of the power
supply cable. Wire sizes (COPPER
WiRE ONLY)and connections must
conform with the rating of the
appliance as specified on the
model/serial rating plate.
Wire sizes must conform to the
requirements of the National Electrical
Code ANSI/NFPA 70 - latest edition*,
or CSA Standards C22.1-94, Canadian
Electrical Code Part 1 and C22.2 No.
0-M91 - latest edition** and all local
codes and ordinances.
A U.L.- or C.S.A.- listed conduit
connector must be provided at each
end of the power supply cable (at the
range hood and at the junction box).
Copies of the standards listed may be
obtained from:
*National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
** CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
Preparation
Because of the size and weight of this
island canopy hood,the support sys-
tem must be securely attached to the
ceiling.
-- For piaster or sheet rock ceilings,
the support must be attached to
joists.
-- if this is not possible, you must
build a support structure behind
the plaster or sheet rock.
Do Not cut a joist or stud unless
absolutely necessary. If a joist or stud
must be cut, then a supporting frame
must be constructed.
Before making cutouts, make sure
there is proper clearance within the
ceiling or wall for exhaust vent.
.Put a thick, protective covering
over countertop, cooktop or range to
protect from damage or dirt. Select a
flat surface for assembling the unit.
Cover that surface with a protective
covering and place all hood parts and
hardware on it.
[] Determine and mark the
centerline on the ceiling where the
range hood will be installed.
[] Using the mounting template,
mark the location of the support
mounting bracket holes, vent cutout
(if used) and power supply cable
cutout on the ceiling. Use 1-1/4"
(3.2 cm) drill and saber saw or
keyhole saw to cut openings for
power supply cable and vent. (See
"Venting requirements" and
"Electrical requirements" Pages 3-5.
[] If venting to the outside install
vent system. (See "Venting
requirements',' Page 3.) Use caulking
to seal exterior wall or roof openings.
5_ Run wiring through ceiling
according to the National Electrical
Code or CSA Standards and local
codes and ordinances. There must be
enough power supply cable from the
fused disconnect (or circuit breaker)
box the to make the connections in
the hood's terminal box.
Do Not turn on power until
installation is completed.
Use caulking to seal all openings.
installation
screw
upper
chimney
screw
[] Remove the four screws on the
upper chimney and disassemble
chimney pieces from support frame.

7, Alignsupportmountingbracket
withholesinceiling.Attachsupport
systemframetoceilingusinganchors
recommendedforyourtypeofceiling:
• Concreteceiling -- use insertsand
screws provided.
oWood ceiling - use 4" (10.2cm)
long wood screws.
• Plaster or sheet rock ceiling -
attach support mounting bracket
to ceiling joists if possible. If
ceiling joists are not available, you
must build a supporting structure
behind the plaster or sheet rock.
Make sure the support isconnected
firmly to ceiling.
four set
screws
[] Determine the height of the
canopy. The range hood requires at
least 24" (61 cm) of clearance between
bottom of range hood canopy and
cooking surface.
The bottom of the canopy will be
approximately 9" (22.9 cm) below the
bottom of the support system. To
change the canopy height, loosen the
four set screws on the support frame.
Adjust support frame to the desired
length and tighten all four set screws
firmly in place before attaching
canopy.
If used, attach the vent damper to the
inside bottom of the chimney support
frame. Make sure damper opens to
outside.
[] Press on handle in front of
filters to release filters from range
hood canopy. Remove filters and set
aside.
'10[] Remove the terminal box
cover from the range hood. Remove
the power supply cable knockout
using a flat-blade screwdriver. Do not
remove optional remote blower
knockout. Attach conduit connector
into power supply cable opening so
that conduit connector clamping
screws are inside the terminal box.
Excessive Weight Hazard
Usetwo or more people to move
and install island canopy hood.
Failure to do so can result in back
or other injury.
slot
1/4" (6.4 ram)
1, Loosen four bolts located
next to exhaust opening so that there
is approximately 1/4" (6.4 mm) space
between bolt head and canopy. Lift
canopy and insert bolts into slots in
support system frame. Tighten bolts
to support system frame and canopy.
Electrical
connection
Electrical Shock Hazard
Disconnect power before
making electrical connections.
Connect ground wire to green
ground screw in terminal box.
Failure to do so can result in
death or electrical shock.
2m Make electrical connection:
[] Disconnect power supply,
[] Feed enough power supply cable
through conduit connector to
make electrical connections.
[]
[]
[]
Connect the power supply cable to
hood terminal box through the
U.L.- or C.S.A.-listed conduit
connector.
Connect the white wire of the
power supply cable with the white
lead in the hood using a twist-on
connector; connect the black wire
of the power supply cable with the
black lead in the hood using a
twist-on connector.
Connect the power supply green
(green and yellow) ground wire
under the green, ground screw.
[] Tighten conduit connector screws.
[] Replace the terminal box cover.

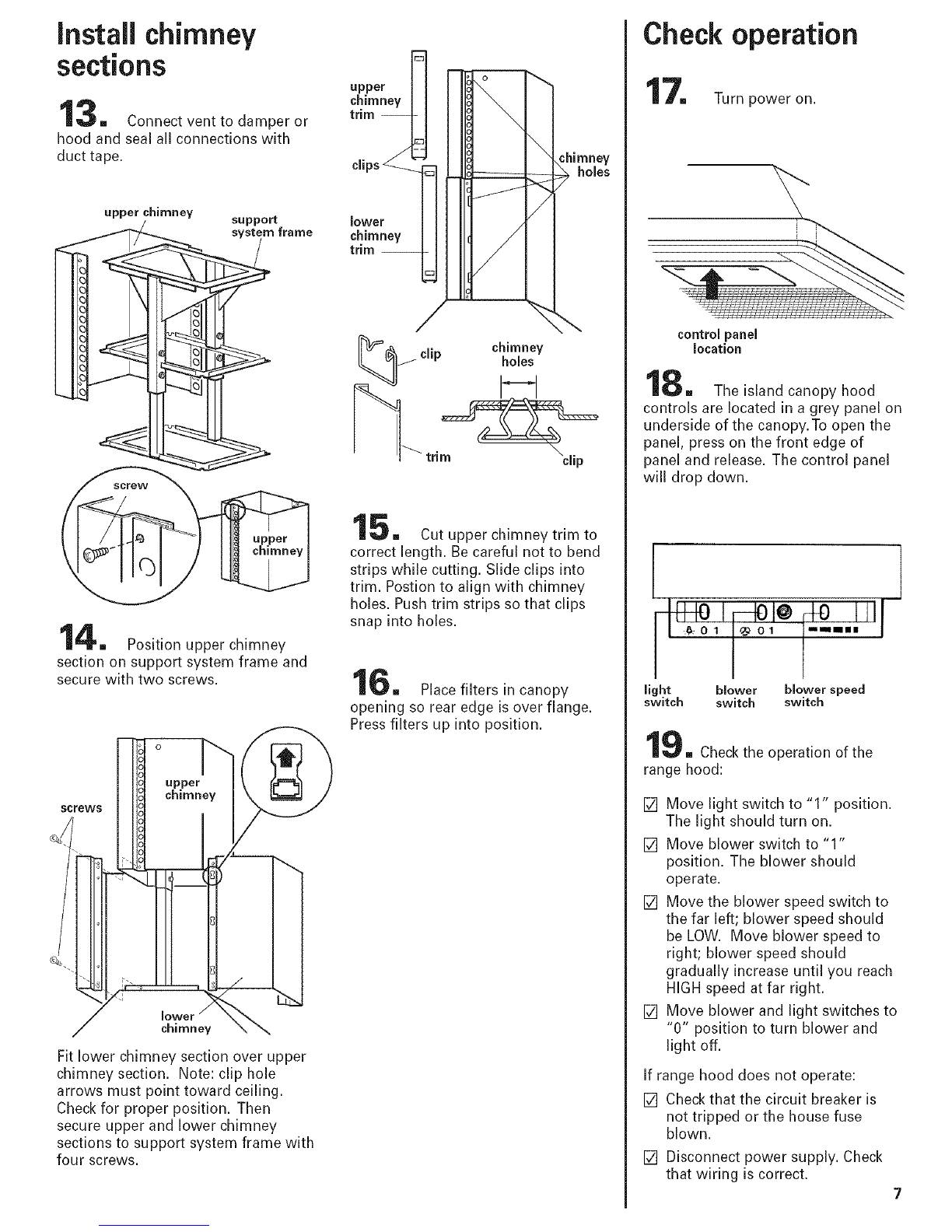

installchimney
sections
1_ , Connect vent to damper or
hood and seal all connections with
duct tape.
upper chimney support
system frame
4, Position upper chimney
section on support system frame and
secure with two screws.
upper
chimney
I--3
Io
chimney
Fit lower chimney section over upper
chimney section. Note: clip hole
arrows must point toward ceiling.
Check for proper position. Then
secure upper and lower chimney
sections to support system frame with
four screws.
upper [_]
; , neyn
clips_[_
lower
'2ney
/
chimney
holes
chimney
holes
trim \clip
5_ Cut upper chimney trim to
correct length. Be careful not to bend
strips while cutting. Slide clips into
trim. Postion to align with chimney
holes. Push trim strips so that dips
snap into holes.
o_p! ng Place filters in canopy
ni so rear edge is over flange.
Press filters up into position.
Check operation
17. Turnpoweron.
control panel
location
[] The island canopy hood
controls are located in a grey panel on
underside of the canopy. To open the
panel, press on the front edge of
panel and release. The control panel
will drop down.
o lr-4Ole
1r_01
light
switch
40 tll
11111111111111 F
blower blower speed
switch switch
[] Checkthe operation of the
range hood:
[] Move light switch to "1" position.
The light should turn on.
[] Move blower switch to "1"
position. The blower should
operate.
[] Move the blower speed switch to
the far left; blower speed should
be LOW. Move blower speed to
right; blower speed should
gradually increase until you reach
HIGH speed at far right.
[] Move blower and light switches to
"0" position to turn blower and
light off.
If range hood does not operate:
[] Checkthat the circuit breaker is
not tripped or the house fuse
blown.
[] Disconnect power supply. Check
that wiring is correct.

WARNING-- TOREDUCETHE
RISKOFFIRE,ELECTRICSHOCK,
ORINJURYTOPERSONS,
OBSERVETHEFOLLOWING:
Usethisunitonlyinthemanner
intendedbythemanufacturer.If
youhavequestions,contactthe
manufacturer.Beforeservicingor
cleaningunit,switchpoweroff
atservicepanelandlockswitch
poweroff atservicepaneland
lockservicepanelto prevent
powerfrombeingswitchedon
accidentally.Whentheservice
disconnectingmeanscannotbe
locked,securelyfastena
prominentwarningdevicesuch
asatagto theservicepanel.
CAUTION:Forgeneralventilating
useonly.Donotuseto exhaust
hazardousorexplosivematerials
andvapors.
WARNING-- TOREDUCETHE
RISKOFARANGETOPGREASE
FIRE:
Neverleavesurfaceunits
unattendedathighsettings.
Boiloverscausesmokingand
greasyspilloversthatmay ignite.
Heatoilsslowlyon lowor
mediumsettings.
AlwaysturnhoodONwhen
cookingat highheatorwhen
cookingflamingfoods.
Cleanventilatingfansfrequently.
Greaseshouldnotbeallowedto
accumulateonfanorfilter.
Useproperpansize.Alwaysuse
cookwareappropriatefor thesize
ofthesurfaceelement.
WARNING-- TOREDUCETHE
RISKOFINJURYTOPERSONS
INTHEEVENTOFARANGETOP
GREASEFIRE,OBSERVETHE
FOLLOWING:
SMOTHERFLAMESwith aclose-
fittinglid,cookiesheet,or metal
tray,thenturnoff theburner.BE
CAREFULTOPREVENTBURNS.
Iftheflamesdo notgoout
immediately,EVACUATEAND
CALLTHEFIREDEPARTMENT.
NEVERPICKUPA FLAMINGPAN
--You maybeburned.
DONOTUSEWATER,including
wetdishclothsortowels-- a
violentsteamexplosionwill
result.Useanextinguisher
ONLYif:
YouknowyouhaveaClassABC
extinguisher,andyoualready
knowhowtooperateit.
Thefireissmallandcontainedin
theareawhereit isstarted.
Thefiredepartmentisbeing
called.
Youcanfightthefirewith your
backtoanexit.
Thisfansuitableforusewithsolid-
statespeedcontrols.
Operation
The islandcanopy hood is designed
to remove smoke, cooking vapors and
odors from the cooktop area. For best
results, start the range hood before
cooking and allow it to operate
several minutes after the cooking is
complete to clear all smoke and odors
from the kitchen.
control panel
location
Opening the island canopy
hood control panel:
The hood controls are located in a
grey panel on the underside of the
canopy.To open the panel, press on
the front edge of panel and release.
The control panel will drop down.
oIr- 01e
1r'_Ol
light
switch
40 111
mllmlml |F
blower blower speed
switch switch
Operating the light:
ON: Move the light switch to the "1"
position.
OFF: Move the light switch to the "0"
position.
Operating the blower:
ON: Move the blower switch to the
"1" position.
OFF: Move the blower switch to the
"0" position.
Adjusting the blower speed:
The blower has variable speed
control.
Move the switch to the far left for
LOW speed and to the far right for
HIGH speed.
Closing the range hood control
panel:
Push up on the front edge of the
control panel.The control panel will
slide up into the canopy.
Cleaning
Filters:
The filters should be washed
frequently. Place metal filters in
dishwasher or hot detergent solution
to clean.
Exterior surfaces:
Clean the hood with a mild detergent
and soft cloth. Do Not use abrasive
cleanser or steel wool pads.

Maintenance
Replacing the light bulb:
This range hood uses fluorescent lamp type F33-15W-T8 and starter type 52.
Remove the retainer clips from both ends of the light cover. Carefully slide the
cover all the way to the right. Then lower the left end of the glass below the
support flange and remove the glass by sliding it back from the left.
Install a new fluorescent light bulb.
Position the right end of the light cover over the flange and slide the cover all the
way to the right. Position the left end of the light cover over the flange and slide
the cover back to left. Reinstall the retainer clips.
retainer
clips
support
flange
F
I
BLKI-- _I-- --
LINE IN
t2@ URC _1
6@Hz
Note: If a remote blower is used with this range hood,
current draw must not exceed 4 amps.
Note: Instructions are included with
each kit.
Utensil Bar:
Part No. 4378619 - 15" (38 cm)
long (stainless steel only).
Charcoal Filters:
Part No. 4378623 (2 per pkg.)
Non-Vented (Recirculating} Kits*:
Part No. 4378625 (stainless steel)
Part No. 8171292 (biscuit)
Part No. 4378626 (white)
*These instructionsmust be read
before starting the canopy hood
installation.

KITCHENAID ®VENTILATION WARRANTY
ONE YEAR LIMITED WARRANTY
For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or
furnished with the product, KitchenAid or KitchenAid Canada (hereafter "KitchenAid") will pay for factory specified parts and repair
labor to correct defects in materials or workmanship. Service must be provided by a KitchenAid designated service company.
ITEMS KITCHENAID WILL NOT PAY FOR
1. Service calls to correct the installation of your major appliance, to instruct you how to use your major appliance, to replace or repair
house fuses or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Those consumable parts are excluded from warranty
coverage.
3. Repairs when your major appliance is used for other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in
accordance with electrical or plumbing codes, or use of products not approved by KitchenAid.
5. Replacement parts or repair labor costs for units operated outside the United States or Canada.
6. Pickup and delivery. This major appliance is designed to be repaired in the home.
7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
8. Expenses for travel and transportation for product service in remote locations.
9. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with
published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED
HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. KITCHENAID SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE
TO PROVINCE.
Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized KitchenAid dealer to determine if
another warranty applies.
If you need service, first see the "Troubleshooting" section of the Use & Care Guide. After checking "Troubleshooting," additional help
can be found by checking the "Assistance or Service" section or by calling KitchenAid. In the U.S.A., call 1-800-422-1230. In Canada,
call 1-800-807-6777. 10/05
10

To avoid unnecessary service calls, please
check the "Check Operation" section. It may
save you the cost of a service call. If you still
need help, follow the instructions below.
if you need assistance or service in U.S.A.
Call the KitchenAid Customer Interaction
Center toll-free at 1-800-422-1230.
Our consultants are available to assist you.
When calling: Please know the purchase date, and
the complete model and serial number
of your appliance This information wi[[
help us better respond to your request.
Our consultants provide assistance with:
• Features and specifications on our full line
of appliances
• Installation information
o Use and maintenance procedures
• Accessory and repair parts sales
• Specialized customer assistance (Spanish
speaking, hearing impaired, limited vision, etc.)
• Referrals to local dealers, service companies, and
repair parts distributors
KitchenAid designated service technicians are
trained to fulfill the product warranty and provide
after-warranty service, anywhere in the United
States.
To locate the designated KitchenAid service
company in your area, you can also look in your
telephone directoryYellow Pages.
if you need replacement parts
If you need to order replacement parts, we recom-
mend that you only use factory-authorized parts.
These parts will fit right and work right, because
they are made to the same exacting specifications
used to build every new KitchenAid* appliance.
To locate factory-authorized parts in your area, call
our Customer Interaction Center telephone number,
your nearest authorized service center, or KitchenAid
Factory Service at 1-800-442-1111.
For further assistance
If you need further assistance, you can write to
KitchenAid with any questions or concerns at:
KitchenAid Brand Home Appliances
Customer Interaction Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your
correspondence.
11

Before calling for assistance or service, please
check the "Check Operation" section. It may save
you the cost of a service call. If you still need
help, follow the instructions below.
if you need assistance or service in Canada
1.if the problem is not due to one of the items
listed in "Check Operation't...
Contact the dealer from whom you
purchased your appliance, or call the
KitchenAid Canada Customer
Interaction Center toll-free,
8:30 a.m.- 6 p.m. (EST),
at 1-800-422-1230.
2. if you need servicer...
Contact your nearest KitchenAid Canada
Appliance Service branch or authorized servicing
outlet to service your appliance. (See list below.)
Make sure the service company you contact is
authorized to service your appliance during the
warranty period.
tWhen asking for assistance or service, please
provide a detailed description of the problem,
your appliance's complete model and serial
numbers, and the purchase date.This
information will help us respond properly to
your request.
KitchenAidCanada Appliance Service = Consumer Services
Direct service branches:
BRITISH COLUMBIA 1-800-665-6788
ALBERTA 1-800-661-6291
ONTARIO Ottawa area 1-800-267-3456
(except 807 area code) Outside the Ottawa area 1-800-807-6777
MANITOBA, SASKATCHEWAN 1-800-665-1683
and 807 area code in ONTARIO
QUEBEC Montreal (except South Shore) 1-800-361-3032
South Shore Montreal 1-800-361-0950
Quebec City 1-800-463-1523
Sherbrooke 1-800-567-6966
ATLANTIC PROVINCES 1-800-565-1598
For further assistance
If you need further assistance, you can write to
KitchenAid Canada with any questions or concerns at:
Consumer Relations Department
KitchenAid Canada
1901 Minnesota Court
Mississauga, Ontario L5N 3A7
Please include a daytime phone number in your
correspondence.
4329223/9763387
'_)2005 KitchenAid
Tr4
',qPRegistered trademark/ ' trademark of KitchenAid, U.S.A., KitchenAid Canada licensee in Canada Printed in Italy
10/2005
