Kiwi Camping KC077-062 User manual

SAFETY INSTRUCTIONS
• Regularly check nuts and bolts attaching the awning to your vehicle to make sure fastenings
are tight and in good condition.
• If using a commercial car wash, remove the aluminium hardshell and fixtures to avoid damage.
• Do not use awning or storage bag to hoist, lift or support yourself.
• It is important when mounting the awning to a vehicle, that all the mounting brackets supplied
are adequately spaced to support the weight of the awning.
• When mounting onto a vehicle with a rear canopy, the awning should be mounted to one or the
other, not span both vehicle roof and canopy.
• Products applied to a vehicle roof will alter vehicle handling. The manufacturer disclaims
all responsibility in relation to accidents due to improper use, incorrect maintenance, or
negligence in maintaining fastening hardware.
• This awning will support Tuatara accessory walls (KC077-067 - 2 X 2m Awning Front Wall and
Side Wall). Attaching dierent models, or inappropriate weight, could damage frame and will
not be covered by warranty.
• Do not attempt to put up in windy conditions.
• To avoid pooling of water on top of awning, always set up awning with sucient angle to allow
water to run o.
TUATARA ALUMINIUM
HARDSHELL AWNING
2 x 2m Model No. KC077-062
2.5 x 2.5m Model No. KC077-063

YOUR TUATARA AWNING INCLUDES:
1 x awning with travel cover
2 x L-brackets
4 x mounting plates
2 x guy ropes and pegs
4 x M8 x 16mm sets (bolt, nut and washer)
4 x M8 x 55mm sets (bolt, nut and washer)
4 x M8 x 35mm T-Bolt sets (bolt, nut and washer)
ATTACHMENT INSTRUCTIONS
You will also need:
1 x adjustable crescent spanner or a 10/13mm spanner
1 x person to help attach the awning to the vehicle
INSTALLATION INSTRUCTIONS

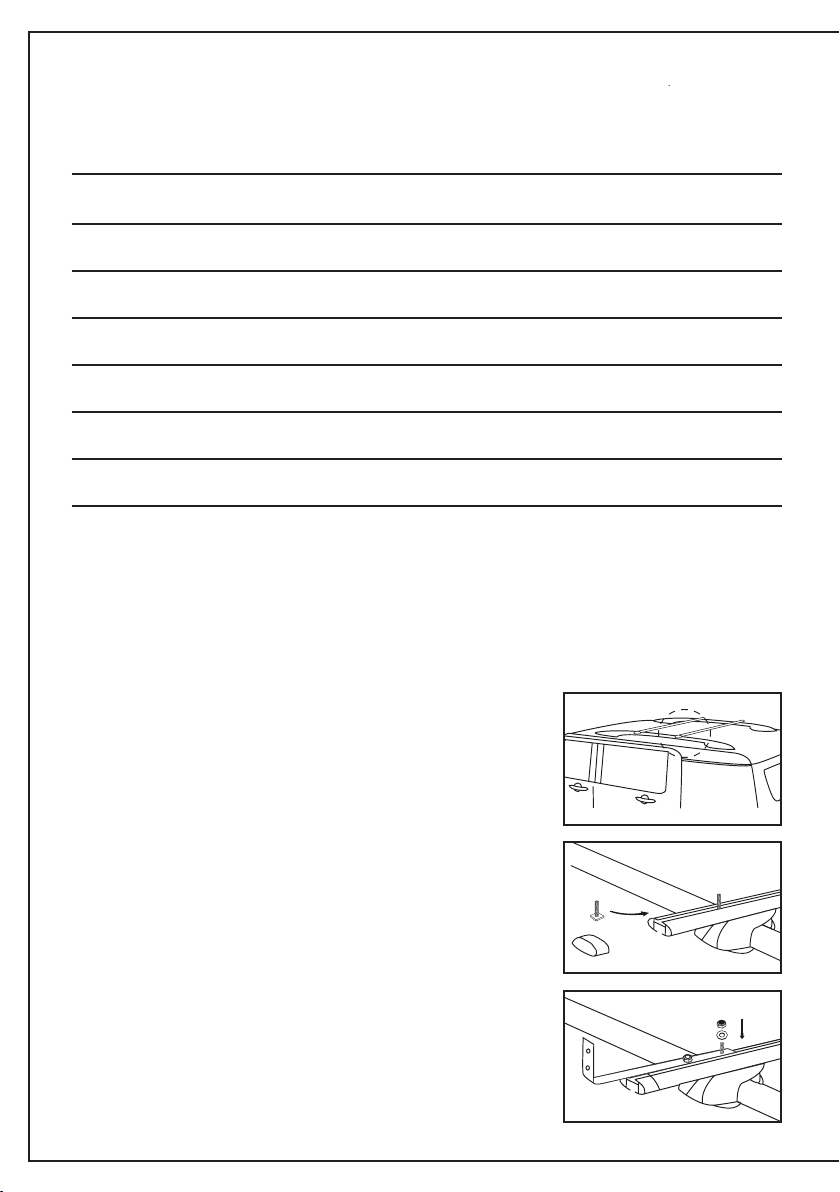

Secure L-brackets to the vehicle
To attach L-brackets to a T-slot crossbar
1. Slide two T-bolts into each crossbar. Orientate the T-bolt
base for the best fit.
2. Place the supplied L-bracket on top of your crossbars, with
the vertical end facing away from the vehicle.
3. Line up the T-bolts to the L-brackets. Once aligned, add
the washers and nuts and fully tighten. Repeat with
second bracket.
Tip - Ensure vertical faces of L-brackets are aligned before fully
tightening.

Attach your awning to the L-brackets
1. Slide the four M8 x 16mm bolts into awning channels, found
on the back side of the awning.
2. With a partner, hold awning up to L-bracket and align bolt
threads with L-bracket holes on vertical faces.
3. Insert the bolts through the L-bracket holes and tighten the
lock nuts with a few turns, without fully tightening.
Tip - The awning bolts should still be able to move back and forth
inside the awning channel.
4. Ensure the awning is centered between both crossbars, then
fully tighten all lock nuts to secure the awning.
Tip - It is recommended to take a short drive after attaching fixtures.
Check on return to see if any further tightening of brackets is
necessary. Check fixtures regularly during use.
To attach L-brackets to a crossbar
1. Place the supplied L-bracket on top of your crossbars, with
the vertical end facing away from the vehicle.
2. Secure the L-bracket with M8 x 55mm bolt set provided.
Tip - Ensure vertical faces of L-brackets are aligned before fully
tightening.
3. Place a mounting plate above and below the crossbars.
Once aligned, add the washers and nuts and fully tighten.
Repeat with second bracket.
To attach L-brackets to roof rails
Note - Not all roof rail profiles will support L-brackets. If
unsuitable, crossbars will need to be added.
1. Place the supplied L-bracket underneath the roof rail, with
the vertical end facing away from the vehicle.
2. Place a mounting plate above the roof rail. Once aligned,
add the M8 x 55mm bolt set and fully tighten. Repeat with
second bracket.
Tip - Ensure vertical faces of L-brackets are aligned before fully
tightening.

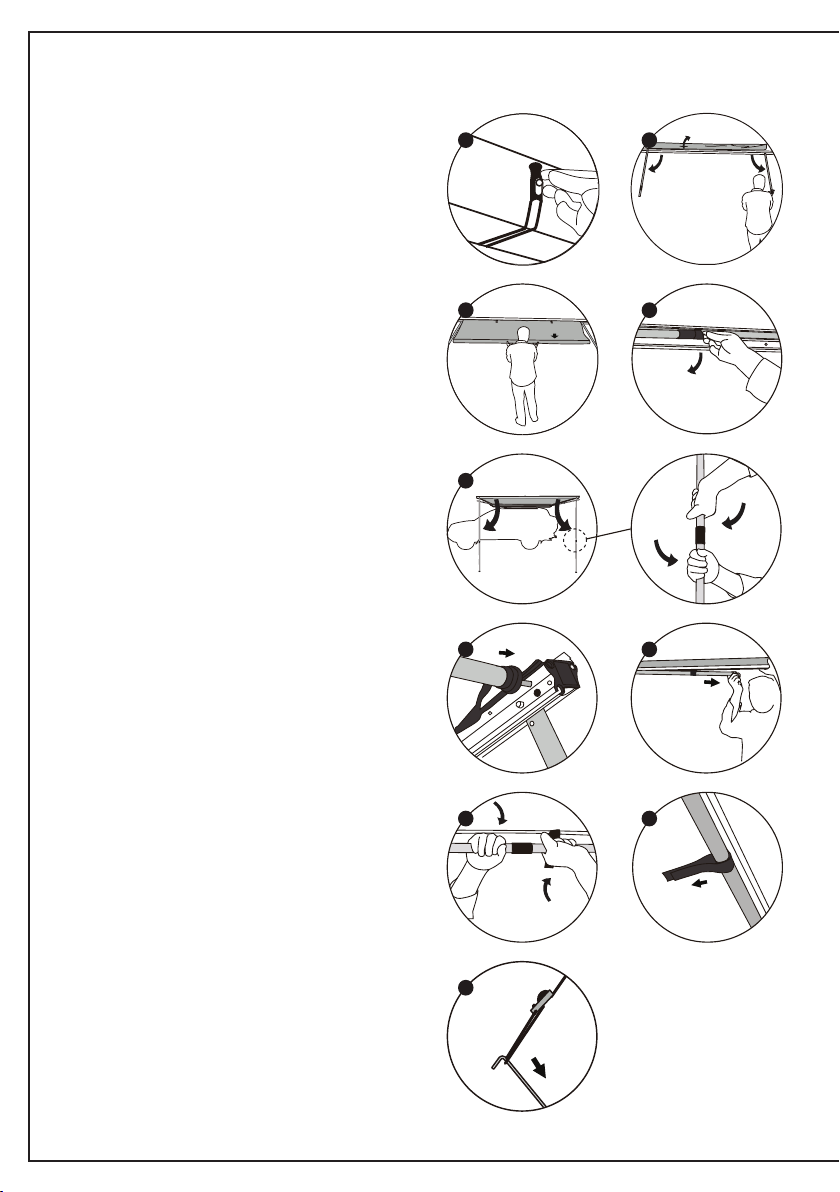

PITCHING INSTRUCTIONS
1. Release bottom elastic tabs on the aluminium
travel cover.
2. Remove the awning from the aluminium
travel cover. Lift the awning fabric to access
and release the side support poles from the
aluminium travel cover. Move the poles out to
the sides.
3. Extend the awning out fully. Have someone
support the front of the awning.
4. Release the vertical support poles from the
U-shape groove at the front of the awning.
5. Extend and twist to lock to the desired
height.
6. Insert the side support poles into the
corresponding slot on the front frame of the
awning.
7. Fully extend the side support poles.
8. Tension the poles until the fabric is taught.
Twist to lock.
9. Secure the hook and loop tabs around the
poles.
10. Peg out the guy ropes and pole bases
ensuring the awning remains securely
anchored.
Tip - Pitch the awning at a slight angle to allow rain
run-o.
Tip - To extend poles, twist the poles, not the black
joiner.
Tip - Insert pegs at a 45 ˚ angle to ensure pegs
won’t pull out.
1
8
6
5
3
2
9
7
4
10

10

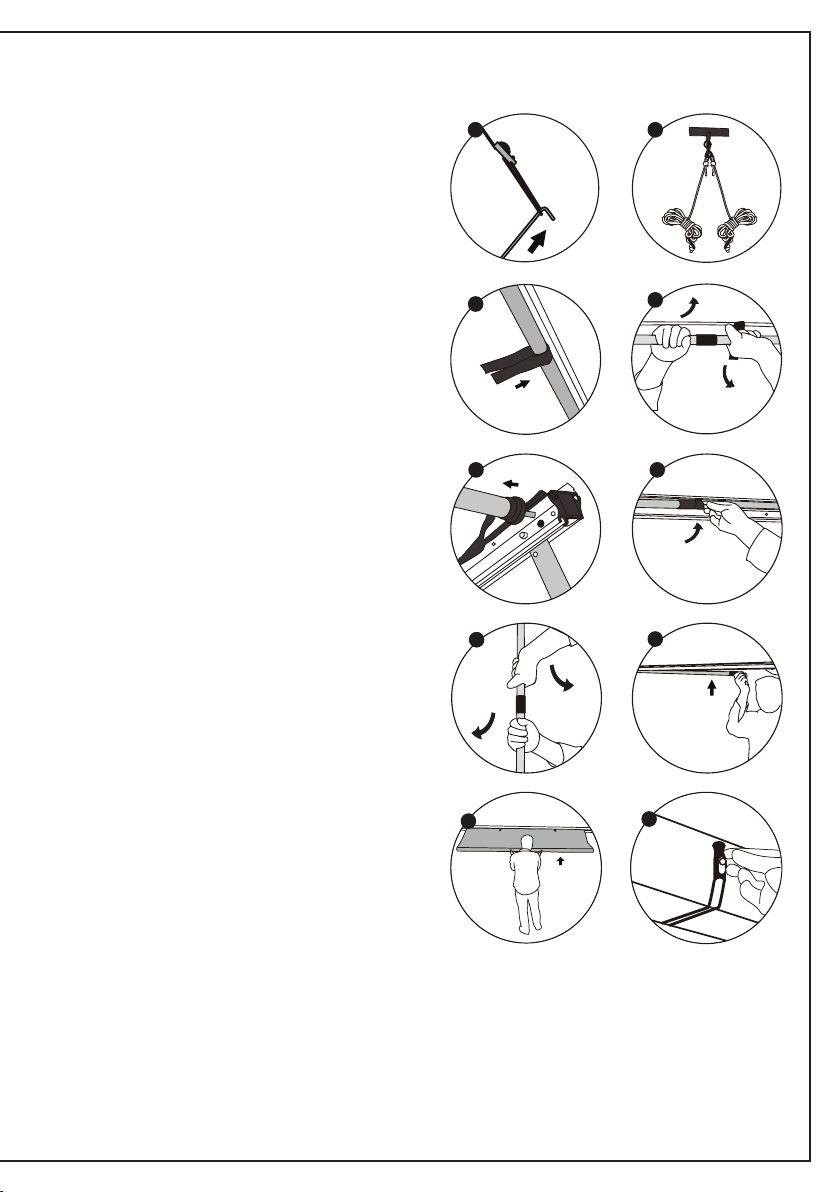

1. Carefully remove pegs, remove excess soil
and store them in their bag.
2. Roll up guy ropes and store.
3. Unfasten hook and loop tabs from the poles.
4. Have someone support the front of the
awning. Twist to unlock the side support
poles.
5. Remove the side support poles from the slot
on the front frame of the awning.
6. Store the side support poles back into the
aluminium travel cover.
7. Twist to unlock the vertical support poles.
8. Store the vertical support poles in the
U-shape groove at the front of the awning.
9. Roll up the awning and store it in the
aluminium travel cover.
10. Close the aluminium travel cover and
reattach the elastic tabs to secure.
COLLAPSING INSTRUCTIONS
9
78
21
34
5 6

1. Never store your awning away damp. Should mildew spots appear, brush them o before they
become attached. Mildew damage of any kind is not covered by our warranty. DO NOT use excess
force or other harsh tools to remove soilage from your awning.
2. Like all assets, polyoxford awnings require regular care and attention to give the life and service
expected. Regular cleaning with an abundance of clean water and a soft brush, especially after
exposure to salt water will preserve your awning’s life. Do not allow bird droppings, earth or
vegetable matter to remain in contact with the fabric. NEVER USE SOAPS OR DETERGENTS.
3. Polyoxford is not fire proof, if exposed to flame or high heat sources it can ignite and burn.
Always take care when using spirit or gas appliances such as stoves and lanterns near your
awning.
4. Some products contain chemicals, which can destroy your awnings proofing and cause it to
leak. Avoid using aerosol sprays and keep petrol, oil, solvents and other similar fluids away from
the fabric. Do not use these inside or around your awning as any damage caused by these is not
covered by our warranty.
5. Always remember that your awning is made from cloth, and should not be compared with a
house. It is waterproof under normal conditions but in severe weather conditions some water
may penetrate. If you apply water proofing to your awning check that you are applying the right
one for your awning’s polyoxford fabric type.
6. Extra pegs and ropes are recommended in stormy conditions. Please note, wind damage is not
covered by our warranty. Check and adjust guy ropes and pegs daily.
7. Awning fabrics are not 100% colourfast and some fading will occur naturally, however; this does
not aect the performance of the fabric. Do not leave your awning up and unattended for extend-
ed periods of time. Awnings are not designed as permanent dwellings. Awnings are guaranteed
for normal camping use only.
8. Check all fixtures regularly and tighten when necessary.
9. When rolling up awning, ensure there are no creases or folds in the fabric.
CARE INSTRUCTIONS
PLEASE READ ALL OF THE CARE INFORMATION AND INSTRUCTIONS INCLUDED WITH THIS AWNING
BEFORE USING IT FOR THE FIRST TIME.

Distributed by: Aber Living, Hamilton, NZ
www.kiwicamping.co.nz
5577-08/23
WARRANTY INFORMATION
The warranty period for this awning is found on the packaging and full details are on the Kiwi Camping
website - www.kiwicamping.co.nz.
The original purchaser of this product is oered a warranty if during this time period the product fails due to a fault in either materials or workmanship.Service
under this warranty is available by returning the product, with your proof of purchase, to where it was purchased. If after inspection it is determined that the
product is defective, we will repair or replace it (at our discretion) free of charge.This warranty does not cover misuse, damage caused by accident, storm or
wind damage, mildew, neglect, UV degradation and fair wear and tear. Please note, the warranty on this awning will be deemed void if the product is used for any
purpose other than a temporary shelter. If the claim is not deemed a warranty or is outside it’s warranty period, we can repair the product at a nominal cost.
