700 Serie Utility Backhoe Specification
756C 757C 758C 759C
Page 1 of 2
MODEL 756C 757C 758C 759C
Rea h from swing pivot, in. (mm) 107 (2718) 119 (3023) 132 (3353) 149 (3785)
Swing ar .................................................................................................................................................180˚ ............................................................................................................

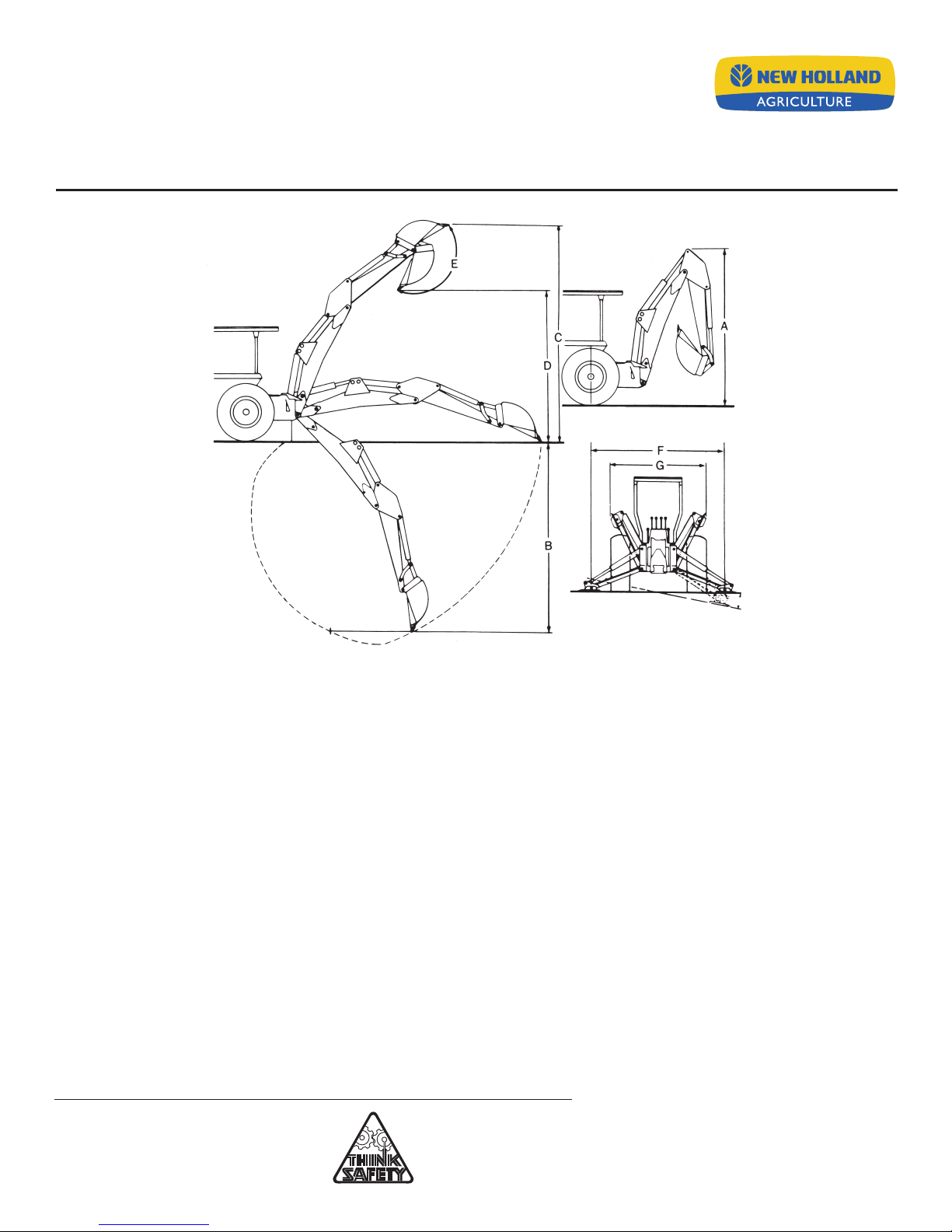

A. Transport height, in. (mm) 68.5 (1740) 75 (1905) 81 (2057) 95 (2413)
Digging depth, in. (mm)
B. 2-foot flat bottom, in. (mm) 72 (1829) 90 (2286) 102 (2591) 114 (2896)
C. Operating height, in. (mm)
(fully raised) 107 (2718) 118 (2997) 127.7 (3244) 145 (3683)
D. Loading height, in. (mm) 57 (1448) 66 (1676) 76 (1930) 92 (2337)
E. Bu ket rotation 171˚ 170˚ 170˚ 180˚
F. Stabilizer spread, in. (mm)
(working) 78 (1981) 78 (1981) 78 (1981) 117 (2972)
G. Stabilizer spread, in. (mm)
(transport) 41 (1041) 50 (1270) 50 (1270) 74 (1880)
Digging for e - bu ket, lbs. (kg) 2,875 (1304) 2,675 (1213) 3,550 (1610) 4,400 (1996)
Digging for e - dipper, lbs. (kg) 1,744 (791) 2,105 (955) 2,225 (1009) 2,800 (1270)
Operating pressure, psi (bar) 2,150 (148) 2,000 (138) 2,150 (148) 2,500 (172)
Ground learan e, in. (mm) 11 (279) 12 (305) 12 (305) 12 (305)
Swing me hanism ................................................................................................................................dbl. yl...........................................................................................................
Transport lo ks swg, boom swg, boom swg, boom, stab swg, boom
Appli able bu kets, in. (mm) 9, 12, 16, 18 9, 12, 16, 18 12, 16, 18, 24 12, 16, 18, 24
(229, 305, 406, 457) (229, 305, 406, 457) (305, 406, 457, 610) (305, 406, 457, 610)
Weight, lbs. (kg) 700 (318) 872 (396) 900 (408) 1,468 (666)

New Holland
900GH Serie Utility Backhoe Specification
920GH 930GH 940GH
Page 2 of 2
