Klark Teknik DN9650 User manual

Quick Start Guide

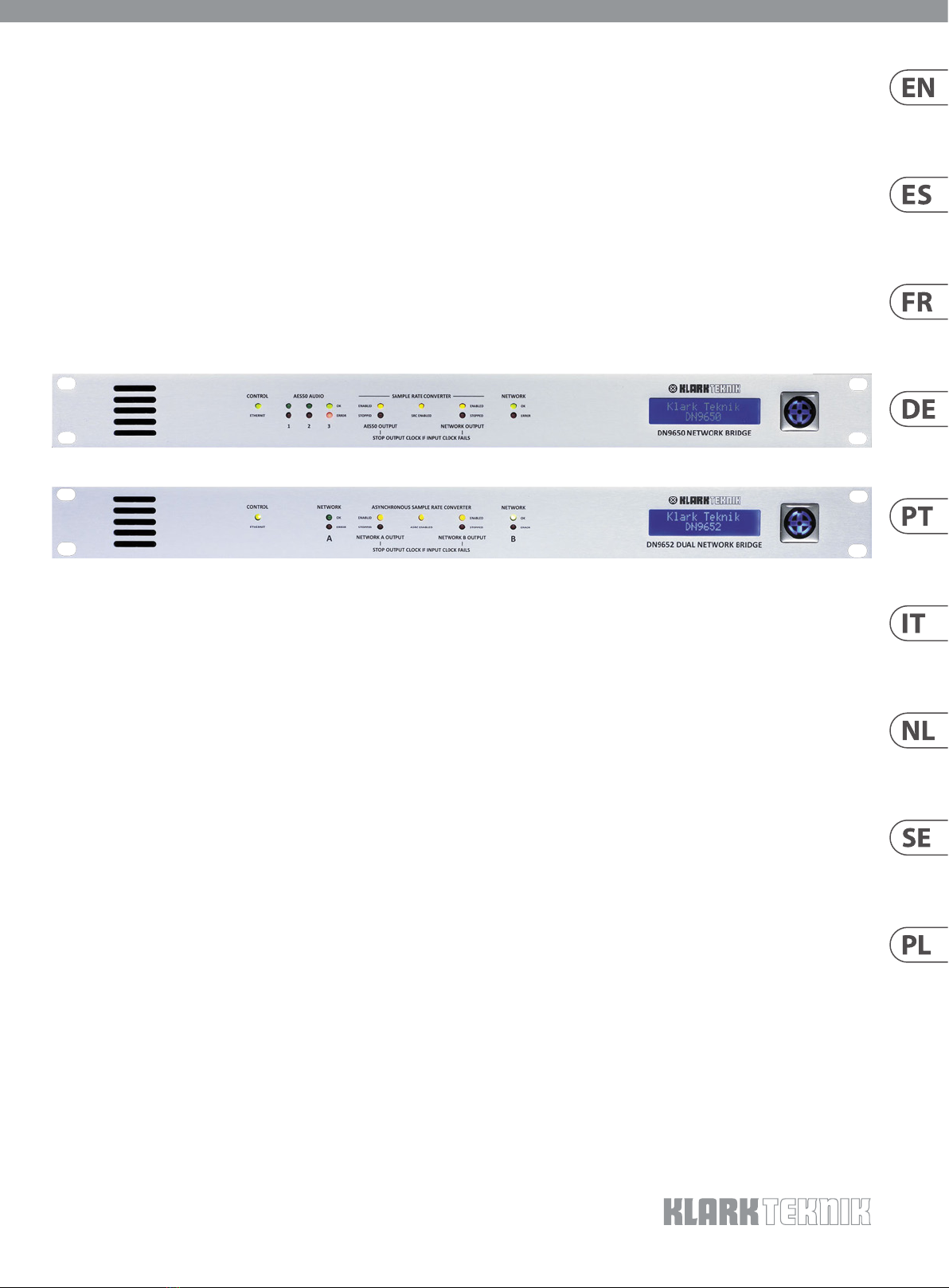

DN9650/DN9652
AES50/Dual Network Bridge Format Converter with up to
64 Bidirectional Channels and Asynchronous Sample Rate Conversion
V 2.0

2DN9650/DN9652 Quick Start Guide 3
Las terminales marcadas con este símbolo
transportan corriente eléctrica de
magnitud suciente como para constituir
un riesgo de descarga eléctrica. Utilice solo cables de
altavoz profesionales y de alta calidad con conectores
TS de 6,3 mm o de bayoneta prejados. Cualquier otra
instalación o modicación debe ser realizada únicamente
por un técnico cualicado.
Este símbolo, siempre que aparece,
leadvierte de la presencia de voltaje
peligroso sin aislar dentro de la caja;
estevoltaje puede ser suciente para constituir un riesgo
dedescarga.
Este símbolo, siempre que aparece,
leadvierte sobre instrucciones operativas
y de mantenimiento que aparecen en la
documentación adjunta. Por favor, lea el manual.
Atención
Para reducir el riesgo de descarga
eléctrica, no quite la tapa (o la parte
posterior). No hay piezas en el interior del equipo que
puedan ser reparadas por el usuario. Si es necesario,
póngase en contacto con personal cualicado.
Atención
Para reducir el riesgo de incendio o
descarga eléctrica, no exponga este
aparato a la lluvia, humedad o alguna otra fuente que
pueda salpicar o derramar algún líquido sobre el aparato.
Nocoloque ningún tipo de recipiente para líquidos sobre
el aparato.
Atención
Las instrucciones de servicio deben
llevarlas a cabo exclusivamente personal
cualicado. Para evitar el riesgo de una descarga eléctrica,
no realice reparaciones que no se encuentren descritas
en el manual de operaciones. Lasreparaciones deben ser
realizadas exclusivamente por personalcualicado.
1. Lea las instrucciones.
2. Conserve estas instrucciones.
3. Preste atención a todas las advertencias.
4. Siga todas las instrucciones.
5. No use este aparato cerca del agua.
6. Limpie este aparato con un paño seco.
7. No bloquee las aberturas de ventilación. Instale el
equipo de acuerdo con las instrucciones del fabricante.
8. No instale este equipo cerca de fuentes de calor
tales como radiadores, acumuladores de calor, estufas u
otros aparatos (incluyendo amplicadores) que puedan
producir calor.
9. No elimine o deshabilite nunca la conexión a tierra
del aparato o del cable de alimentación de corriente.
Unenchufe polarizado tiene dos polos, uno de los cuales
tiene un contacto más ancho que el otro. Una clavija con
puesta a tierra dispone de tres contactos: dos polos y la
puesta a tierra. El contacto ancho y el tercer contacto,
respectivamente, son los que garantizan una mayor
seguridad. Si el enchufe suministrado con el equipo no
concuerda con la toma de corriente, consulte con un
electricista para cambiar la toma de corriente obsoleta.
10. Coloque el cable de suministro de energía de manera
que no pueda ser pisado y que esté protegido de objetos
alados. Asegúrese de que el cable de suministro de
energía esté protegido, especialmente en la zona de la
clavija y en el punto donde sale del aparato.
11. Use únicamente los dispositivos o accesorios
especicados por el fabricante.
12. Use únicamente la
carretilla, plataforma,
trípode, soporte o mesa
especicados por el
fabricante o suministrados
junto con el equipo.
Altransportar el equipo,
tenga cuidado para evitar
daños y caídas al tropezar con algún obstáculo.
13. Desenchufe el equipo durante tormentas o si no va a
utilizarlo durante un periodo largo.
14. Confíe las reparaciones únicamente a servicios
técnicos cualicados. La unidad requiere mantenimiento
siempre que haya sufrido algún daño, si el cable de
suministro de energía o el enchufe presentaran daños,
sehubiera derramado un líquido o hubieran caído objetos
dentro del equipo, si el aparato hubiera estado expuesto
a la humedad o la lluvia, si ha dejado de funcionar de
manera normal o si ha sufrido algún golpe o caída.
15. Al conectar la unidad a la toma de corriente eléctrica
asegúrese de que la conexión disponga de una unión
atierra.
16. Si el enchufe o conector de red sirve como único
medio de desconexión, éste debe ser accesiblefácilmente.
17. Cómo debe deshacerse de
este aparato: Este símbolo indica
que este aparato no debe ser
tratado como basura orgánica,
según lo indicado en la Directiva
WEEE (2012/19/EU) y a las
normativas aplicables en su país.
En lugar de ello deberá llevarlo al
punto limpio más cercano para el reciclaje de sus
elementos eléctricos/ electrónicos (EEE). Al hacer esto
estará ayudando a prevenir las posibles consecuencias
negativas para el medio ambiente y la salud que podrían
ser provocadas por una gestión inadecuada de este tipo
de aparatos. Además, el reciclaje de materiales ayudará a
conservar los recursos naturales. Para más información
acerca del reciclaje de este aparato, póngase en contacto
con el Ayuntamiento de su ciudad o con el punto
limpio local.
18. No instale esta unidad en un espacio muy reducido,
tal como encastrada en una librería o similar.
19. No coloque objetos con llama, como una vela
encendida, sobre este aparato.
20. Tenga presentes todas las advertencias relativas
al reciclaje y correcta eliminación de las pilas. Las pilas
deben ser siempre eliminadas en un punto limpio y nunca
con el resto de la basura orgánica.
21. Puede usar este aparato en lugares con climas
tropicales y moderados que soporten temperaturas de
hasta 45°C.
MusicTribe no admite ningún tipo de responsabilidad
por cualquier daño o pérdida que pudiera sufrir
cualquier persona por conar total o parcialmente en la
descripciones, fotografías o armaciones contenidas en
este documento. Las especicaciones técnicas, imágenes
y otras informaciones contenidas en este documento
están sujetas a modicaciones sin previo aviso. Todas las
marcas comerciales que aparecen aquí son propiedad
de sus respectivos dueños. Midas, Klark Teknik,
Lab Gruppen, Lake, Tannoy, Turbosound,TC Electronic,
TC Helicon, Behringer, Bugera, Aston Microphones y
Coolaudio son marcas comerciales o marcas registradas
de MusicTribe Global Brands Ltd. © MusicTribe Global
Brands Ltd. 2023 Reservados todos los derechos.
Si quiere conocer los detalles y condiciones aplicables
de la garantía así como información adicional sobre la
Garantía limitada de MusicTribe, consulte online toda
la información en la web community.musictribe.com/
pages/support#warranty.
Instrucciones de
seguridad
NEGACIÓN LEGAL
GARANTÍA LIMITADA
Important Safety
Instructions
LEGAL DISCLAIMER
LIMITED WARRANTY
Terminals marked with this symbol carry
electrical current of sucient magnitude
to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼"TS or twist-locking plugs pre-installed. Allother
installation or modication should be performed only
by qualiedpersonnel.
This symbol, wherever it appears,
alertsyou to the presence of uninsulated
dangerous voltage inside the
enclosure-voltage that may be sucient to constitute a
risk ofshock.
This symbol, wherever it appears,
alertsyou to important operating and
maintenance instructions in the
accompanying literature. Please read the manual.
Caution
To reduce the risk of electric shock, donot
remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
qualied personnel.
Caution
To reduce the risk of re or electric shock,
do not expose this appliance to rain and
moisture.The apparatus shall not be exposed to dripping
or splashing liquids and no objects lled with liquids,
suchas vases, shall be placed on the apparatus.
Caution
These service instructions are for use
by qualied service personnel only.
Toreduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by qualied
servicepersonnel.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. Ifthe
provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Use only attachments/accessories specied by
themanufacturer.
12. Use only with the
cart, stand, tripod, bracket,
or table specied by the
manufacturer, orsold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.
15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.
16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.
17. Correct disposal of this
product:This symbol indicates that
this product must not be disposed
of with household waste,
according to theWEEE Directive
(2012/19/EU) and your national
law.This product should be taken
to a collection center licensed for
the recycling of waste electrical and electronic equipment
(EEE).The mishandling of this type of waste could have a
possible negative impact on the environment and human
health due to potentially hazardous substances that are
generally associated with EEE. At the same time, your
cooperation in the correct disposal of this product will
contribute to the ecient use of natural resources.
For more information about where you can take your
waste equipment for recycling, please contact your local
city oce, or your household waste collection service.
18. Do not install in a conned space, such as a book
case or similar unit.
19. Do not place naked ame sources, such as lighted
candles, on the apparatus.
20. Please keep the environmental aspects of battery
disposal in mind. Batteries must be disposed-of at a
battery collection point.
21.
This apparatus may be used in tropical and moderate
climates up to 45°C.
MusicTribe accepts no liability for any loss which may
be suered by any person who relies either wholly or in
part upon any description, photograph, or statement
contained herein.Technical specications, appearances
and other information are subject to change without
notice. All trademarks are the property of their
respective owners. Midas, KlarkTeknik, Lab Gruppen,
Lake, Tannoy, Turbosound,TC Electronic,TC Helicon,
Behringer, Bugera, Aston Microphones and Coolaudio
are trademarks or registered trademarks of Music
Tribe Global Brands Ltd. © MusicTribe Global Brands
Ltd. 2023 All rights reserved.
For the applicable warranty terms and conditions
and additional information regarding MusicTribe’s
LimitedWarranty, please see complete details online at
community.musictribe.com/pages/support#warranty.

12 DN9650/DN9652 Quick Start Guide 13
DN9650/DN9652 – Getting Started
This chapter shows you how to prepare the DN965X for operation, which includes unpacking, installation,
connection and conguration. Please visit klarkteknik.com and download the full Operator Manual for
more information.
Before installing, setting up or operating this equipment, make sure you have read and fully
understand all of the “IMPORTANT SAFETY INSTRUCTIONS” at the front of this document.
Important:
You must set up the IP address and netmask of your computer (PC/Mac) before using it for the
rst time.
When installing the unit, take the following into consideration.
• Do not install the equipment in places of poor ventilation.
• Do not install this equipment in a location subjected to excessive heat, dust or mechanical vibration. Allow
for adequate ventilation around the equipment, making sure that its vents are not obstructed. To prevent
excessive heating of the equipment, avoid mounting it directly above power ampliers or other devices
that radiate signicant amounts of heat, such as radiators and heaters. Keep the equipment out of direct
sunlight.
• This unit is designed for mounting in any 19” EIA standard rack. Four rack-mount holes in the front panel
are provided for rack mounting and are designed to fully support the weight of the unit in the rack. Avoid
over-tightening the rackmount screws, as this could damage the front panel.
Handling the equipment
Completely isolate the equipment electrically and disconnect all cables from the equipment before moving it.
When lifting or moving the equipment, always take its size and weight into consideration.
Radio frequency interference - Class A device
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Electric elds
Caution:
In accordance with Part 15 of the FCC Rules & Regulations, “… changes or modications not
expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.”
Should this product be used in an electromagnetic eld that is amplitude modulated by an audio
frequency signal (20Hz to 20kHz), the signal to noise ratio may be degraded. Degradation of up to 60dB
at a frequency corresponding to the modulation signal may be experienced under extreme conditions
(3V/m, 90% modulation).
Unpacking
Installation
Making sure that all equipment is switched o, connect the DN965X to the rest of your audio equipment, as
shown in the following diagrams.

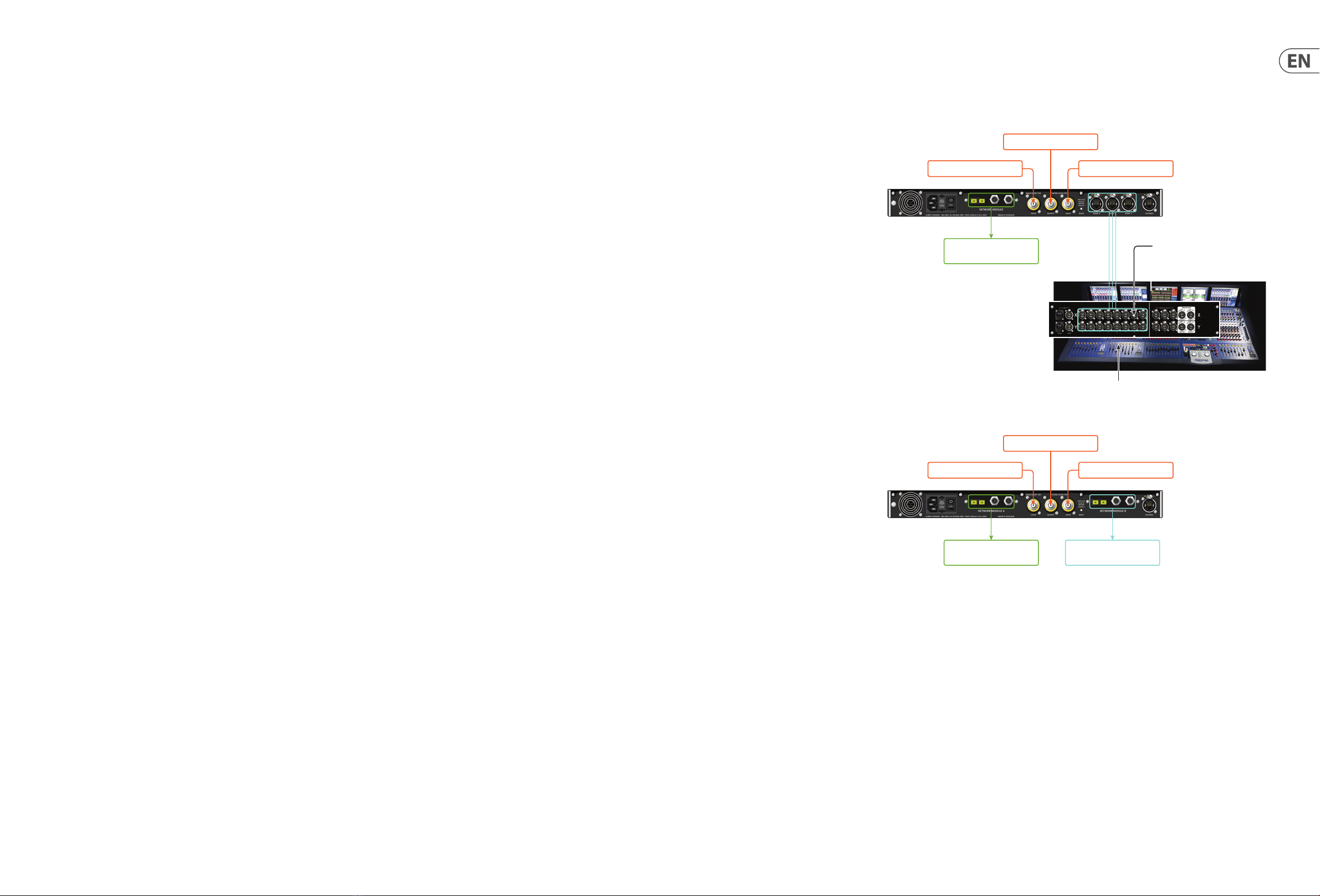

Typical DN9650 audio connection conguration
D
N9650 rear panel
AES50 connectors
(for example, on rear panel of XL8
)
Midas digital console
(for example, an XL8 control centre)
3-port AES50
Video black burst source
Networkmodule A
Third party
network module
Word clock target
Word clock source
D
N9652 rear panel
Typical DN9652 audio connection conguration
Video black burst source
Networkmodule A
Third party
network module
Networkmodule B
Third party
network module
Word clock target
Word clock source
Connecting up the
DN965X

14 DN9650/DN9652 Quick Start Guide 15
This section shows you how to connect the unit to the mains, switch the unit on/oand electrically isolate
the unit.
The internal power supplies are of the switch mode type that automatically sense the incoming mains voltage
and will work where the nominal voltage is in the range 100VAC to 240VAC.
>> To switch the unit on/o
Making sure that the mains power at the power outlet is o, connect the mains cable supplied with your
DN965X to the mains power outlet and then to the mains socket at the rear of your unit. To switch the unit
on/o, use the mains on/oswitch on the rear of the unit. The blue KT roundel on the front of the unit will
illuminate to show that power is on.
To electrically isolate the unit, switch it oand remove the mains cable from mains IEC socket on the
rear panel.
Important:
Before you use the unit for the rst time, you must congure your computer with the IP address
and netmask to suit the range used by the DN965X.
Before you can use the DN965X as a network bridge, you must rst congure it by choosing the type
of network module card(s) that are tted in the unit and then setting them up. Conguration involves
connecting the DN965X to a computer running an up-to-date web browser. To make sure your computer
is compatible with the DN965X, you will need to change its IP address and netmask. For more information
on conguration, see user manual.
>> To connect the DN965X to a computer and then open its conguration menu in the
web browser
(1) Connect an Ethernet cable to the CONTROL socket on the rear panel of the DN965X and then to the
Ethernet port of your computer.
Connecting a DN965X to a computer
Ethernet cable
Laptop PC/Mac
CONTROL
connector
(2) Switch on the DN965X and your computer. (Note the default IP address of the DN965X, which is
displayed on its LCD screen during power up.)
(3) To make sure your computer is compatible with the DN965X, we recommend that you change the IP
address and netmask of your computer to 192.168.2.1 and 255.255.0.0, respectively; for instructions,
refer to your computer’s help and support information.
(4) Open your computer’s web browser.
Note: Make sure your web browser is up-to-date.
(5) In the web browser’s address bar, type in the
following default IP address (displayed on the
unit’s LCD screen during power up) and then
press ENTER:
“http://192.168.10.10”
Powering the unit
Conguring the unit
for the rst time
Typical browser address bar
DN9650/DN9652 – Getting Started
(6) The DN965X NETWORK BRIDGE CONFIGURATION menu will open in the web browser’s Klark Teknik
DN965X Conguration tab.
>> To select which network card(s) are tted in the unit
(7) In the conguration menu, click Change Module Type in the desired network module section. If no
network module type has been set up, its section will look similar to the one shown below. On the
DN9650, network module B is always a Klark Teknik 3-Port AES50 Module.
(8) In the Change Network Module Type window, select the appropriate network module type and then
click OK.
(9) Your DN965X is now ready for use as a network bridge. However, if you want to change the settings of
the network module cards, see “Setting up a network module” on page 19
For more information about the operation of this product, visit klarkteknik.com and
download the full Operator Manual.

48 DN9650/DN9652 Quick Start Guide 49
Specications
DN9650
Inputs/outputs Three Type 3 x AES50 (24 channels of bi-directional digital audio) on etherCON XLR
Terminations Audio 3 x AES50 (24 channels of bi-directional digital audio) on etherCON XLR
Power 3-pin IEC
Power requirements
Voltage 100 VAC to 240 VAC ±10%
Frequency 50 Hz to 60 Hz
Consumption 50 W
Dimensions
Height 44.5 mm (1.75"), 1U high
Width 482.0 mm (19")
Depth 410.0 mm (16.1")
Weight Net 5.5 kg
Shipping 7.5 kg
Operation Temperature +5°C to +45°C
Storage Temperature -20°C to +60°C
DN9652
Terminations Power 3-pin IEC
Power requirements
Voltage 100 VAC to 240 VAC ±10%
Frequency 50 Hz to 60 Hz
Consumption 50 W
Dimensions
Height 44.5 mm (1.75"), 1U high
Width 482.0 mm (19")
Depth 410.0 mm (16.1")
Weight Net 5.5 kg
Shipping 7.5 kg
Operation Temperature +5°C to +45°C
Storage Temperature -20°C to +60°C
Due to a policy of continual improvement, Klark Teknik reserves the right to alter the function or specification at any time without notice.
