Klein Tools 29026 User manual

29026
Li-Ion Battery for 93PLL – Instructions
ENGLISH
MATERIAL: 1.
USB PLUG PLASTIC HOUSING: PVC. A.
B.
WIRE: 24 AWG WITH PVC INSULATION. C.
COLOR: 2.
PLASTIC HOUSING AND WIRE: . A.
METAL: BRIGHT SILVER. B.
TIE WIRE: . C.
INSPECT ALL VISIBLE COLORS. D.
SPECIFICATIONS:
WEIGHT:TBD A.
B.
C.
D.
E.
SUPPORT CHARGING VOLTAGE: 5
0.25V. F.
G.
H.
4.
PROCESSES.
REV ECO DESCRIPTION
1
FIRST RELEASE
DRAWING
NO.
.0005
FRAC.
ANG.
UNLESS OTHERWISE
SPECIFIED
NAME:
1/64
.010
.005
.000
TOLERANCES
DRAWING NO.
.0
.020
450 Bond St.
Lincolnshire, IL.
60069
NUMBER OF
CRITICAL
DIMENSIONS
CRITICAL
DIMENSION
DESIGNATION
INSPECTION
ALL
CRITICAL
ITEMS C RITICAL T O Q
TO BE INSPECTED TO STANDARD
UNLESS OTHERWISE SPECIFIED
BILL OF MATERIALS
SIZE:
UNLESS
OTHERWISE
SPECIFIED
A
WZB
DR: CH: AP:
DATE:
.5°
.00
.0000
SCALE:
1
N/A
NOTES:
3
NOTE: There are no user-serviceable parts
inside battery.
29026
Li-ion battery
1ICR19/65-4
MMYYFF-HS
WARNING:
Do not incinerate
Input:
5V 2.0A
Capacity:
10400mAh
(38.48Wh)
3.7V
4
5
2
1
GENERAL SPECIFICATIONS
• Relative Humidity:
<80% non-condensing
• Operating Temp:
20°F to 120°F (-10°C to 50°C)
• Storage Temp:
-5°F to 140°F (-20°C to 60°C)
• Battery Type:
Li-Ion, 3.7V 10400 mAh (38.5 Wh)
• Dimensions:
3" × 1.75" × 1.75" (76 × 44 × 44 mm)
• Weight:
7.84 oz. (222.2 g)
• Charging Requirements:
Maximum 5V DC, Minimum 2.0A
Specifications subject to change.
WARNINGS
To ensure safe operation and service of
the instrument, follow these instructions.
Failure to observe these warnings can
electrical shock. Retain these instructions
for future reference.
• DO NOT use battery if it appears to be damaged.
• DO NOT expose to rain, moisture, or snow.
• Risk of fire and burns. DO NOT open,crush,
heat above 140°F(60°C), or incinerate. Follow
all manufacturer's instructions.
• Use safety-rated power supply or wall adapter.
Never use a power supply or wall adapter that
exceeds the specified voltage and current.
• Use of a power supply, wall adapter, or cable
not recommended or sold by the manufacturer
may result in the risk of fire or injury to
persons.
SYMBOLS ON BATTERY
Warning or Caution
Risk of electrical shock
Read instructions
NOM-NYCE
Conformité Européenne: Conforms
with European Economic Area
directives
UKCA - United Kingdom
Conformity Assessment
Conforms with BCS regulationsof
California Energy Commission
Recyclable
WEEE – Battery disposal
CHARGING BATTERY
1. Ensure the 93PLL is turned off by locking
the
Power/Pendulum Lock/Unlock Switch
1
.
2. Loosen the screw in the 93PLL Battery Door
2
and remove battery.
3. Connect the USB-C end of the supplied
Charging Cable
3
to the battery's Charge-In
Port
4
, then connect the USB-A end to a
charging source (5.0V, min. 2.0A).
4. The Battery Charge Indicator LED
5
will blink
red while charging, and will turn solid green
when fully charged. When fully charged,
disconnect cable from battery and reinstall
the battery into the 93PLL.
5. Close the 93PLL battery door and secure with
screw. Do not over-tighten.
NOTE: Once installed, refer to the 93PLL
manual for additional operating instructions.
1390503 Rev. 04/20 A

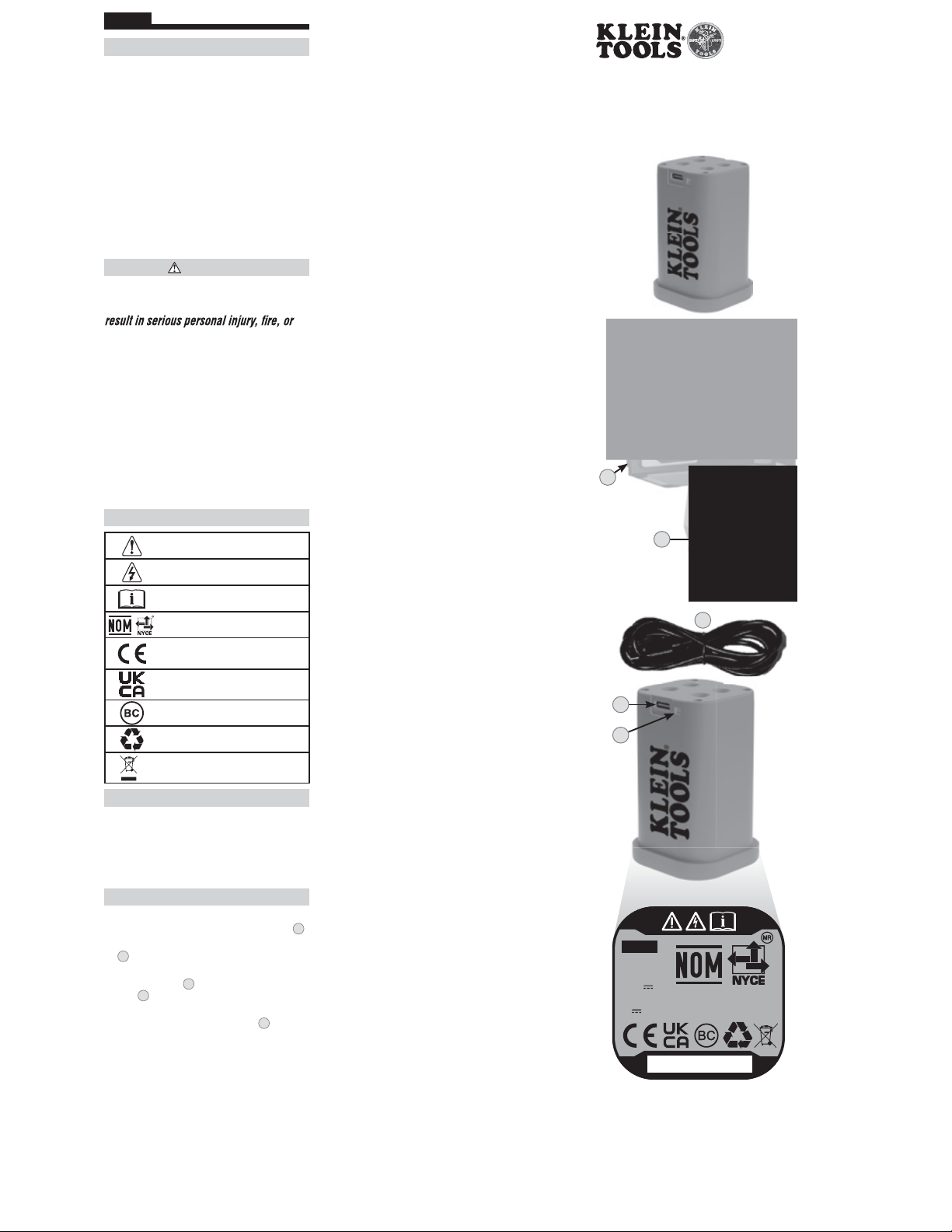

1. 93PLL Power/Pendulum Lock/Unlock Switch
2. 93PLL Battery Door
3. USB-A to USB-C Charging Cable
4. Li-Ion Battery Charge-In Port
5. Li-Ion Battery Charge Indicator LED
FEATURE DETAILS
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

CH AP DATE
WZB
10/24/201
9
DRAWING
DRAWING NO. REV
BILL OF MATERIALS
9/24/19
SHEET: DATE:
11 OF
1
ENGLISH
MAINTENANCE
• Regularly inspect ports and charging
cable for any debris, dirt, damage, and
corrosion.
• DO NOT attempt to repair device or
cable; replace as needed.
CLEANING
Be sure instrument is turned off and
disconnected from all power sources. Wipe
with a clean, dry lint-free cloth.
Do not use
abrasive cleaners or solvents.
RECHARGING
Recharge as needed. There are no pre-
designated intervals at which to recharge
as long as you are using the unit regularly.
Avoid discharging completely on a regular
basis, as this can impact overall life.
STORAGE
If storing for more than one month, charge
completely before storage, and recharge
approximately every three months to avoid
full discharge. Store in cool temperatures,
mild humidity, and away from direct
sunlight (See GENERAL SPECIFICATIONS
section).
Leaving in a vehicle or other confined
spaces in extreme hot temperatures can
lead to decrease in service life, overheating,
or fire. Extreme cold temperatures below
the specified storage range can also harm
performance and service life. Keep away
from corrosive chemicals and gases.
After taking out of storage, inspect visually
to make sure device and all accessories
look satisfactory. Allow unit to return to
ambient conditions before recharging.
DISPOSAL / RECYCLE
1390503 Rev. 04/20 A
Do not place equipment and its
accessories in the trash. Items
must be properly disposed
of in accordance with local
regulations. Please see
www.epa.gov/recyclefor
additional information.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
