KLH MUSICDOCK KE-8 User manual

OWNER’S MANUAL
MODEL: KE-8

A Consumer Guide to Product Safety
PRECAUTIONS
Please carefully read the following:
• When traveling abroad, the local power may be different from the U.S.
standard. Carefully read the rating label located on the power adapter. If
the locally available power is outside of the specified range for the
adapter, plugging the adapter in could result in failure and possibly fire.
• Do not expose this product to temperatures above 95 degrees F (35
degrees C).
• Do not leave the unit in direct sunlight for long periods of time.
• Do not place the unit on or near a heater.
• Do not block air circulation around the unit.
• Protect the unit from dust, moisture and water.
• Clean the unit only with a damp cloth and mild soap. Do not use solvents
or other cleaning products.
• There are no user serviceable parts inside. Refer all repairs to a qualified
repair facility.
• At the end of the useful life of the product, remove batteries before
discarding. Many locales prohibit disposing of electronic devices or
batteries in the trash. Please be responsible, and follow all applicable
local regulations when disposing of this or other electronic devices.

Getting Started
Thank you for purchasing the KE-8 system for your iPod. Designed specifically
to work with your docking iPod, this system provides high quality audio and
performance that brings out the best in your music.
The KE-8 can be powered by the supplied adapter or by four “AA” batteries.
NOTE: When operating on battery power, the KE-8 will NOT charge your iPod.
When operating on adapter power the KE-8 WILL charge docking iPods with the
exception of the “iPod Shuffle and 3
rd
Generation iPods”.
Batteries should be installed in the KE-8 only when portable operation is
anticipated. Batteries should not be left in the KE-8 long term. When batteries
are installed and the adapter is available, the KE-8 will take its power from the
adapter.
The KE-8 uses highly efficient class D amplification and switch mode voltage
regulation for exceptional sound quality and long battery life. At moderate
volume, four fresh “AA” alkaline cells will provide approximately 8 hours of
operation.
Rechargeable “AA” batteries can be used in the KE-8; however, the KE-8 will
NOT charge them. Different battery chemistries have different charging
requirements. Always use the correct charger for the batteries that you have.
Install or replace the batteries:
• Open the KE-8 by pressing on the friction latch and swinging the speakers
outward. Remove the two battery compartment covers located on the top
of the unit.
• Insert four “AA” cells as shown in the illustration below. Follow the polarity
marks inside the battery area.
• Never mix fresh and used batteries. Always replace all four batteries with
fresh ones.

Controls and Indicators

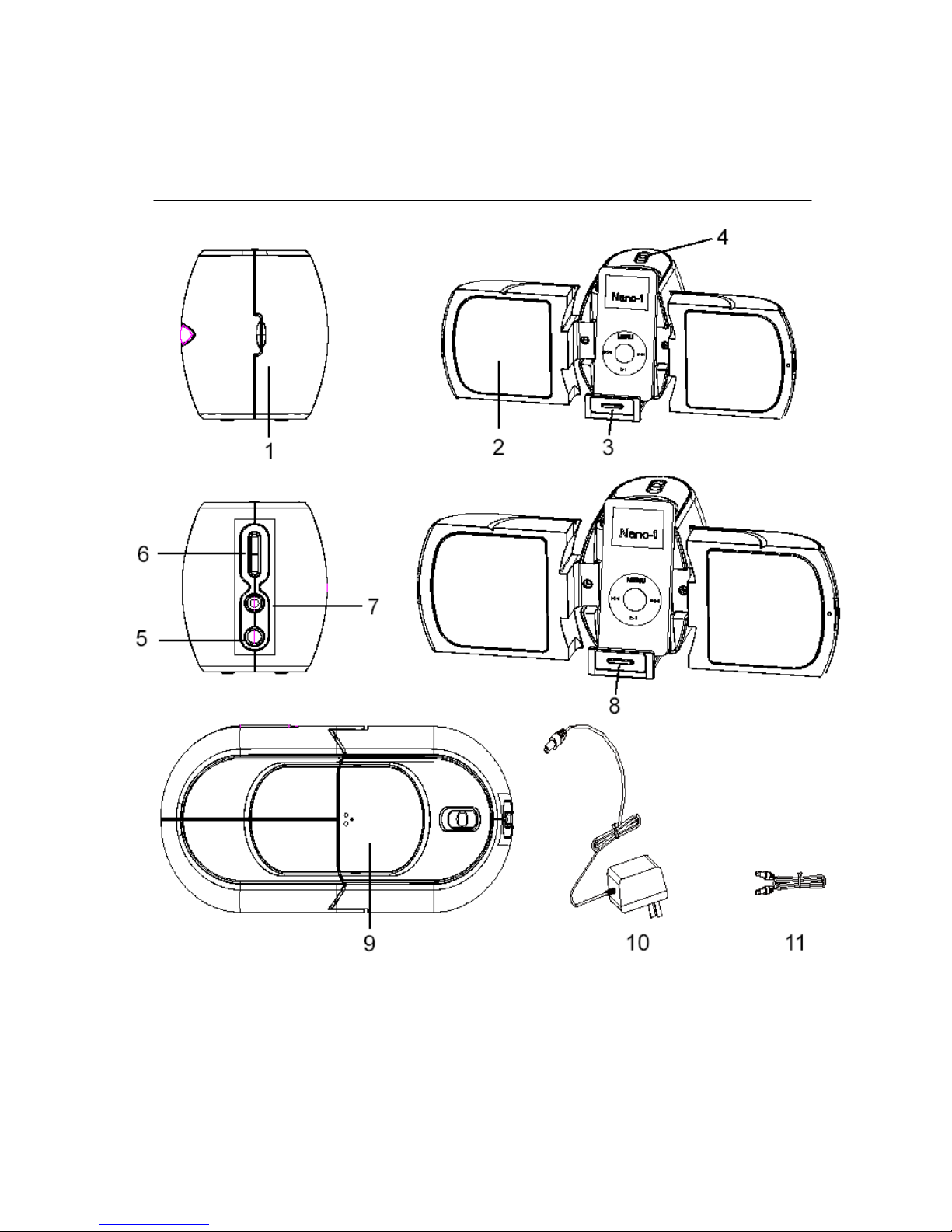

1. Open Speaker 5. AC Adapter Jack 9. Battery Compartment
2. Speaker 6. Volume Up/Down 10. AC Adapter
3. iPod Dock 7. Line-in Jack 11. Line-in Cord
4. Power On/Off 8. Power LED

Using the KE-8
To open the KE-8, grip the unit as shown. Press
outward with the right hand and pull in with the left.
Simultaneously, swing the speakers open and into
the operating position.
If you are not using battery power, connect the
adapter (10) to the power jack (5) and plug the
adapter into a power outlet.
Turn on the power switch (4). Notice that the blue
light (8) comes on.
Use your thumbnail to grip the underside of the iPod dock tray. Move it forward
to the stop.
Mount your iPod on the KE-8 and initiate play using the controls on the iPod.
Increase the volume to the desired level by pressing the top portion of the
volume control (6).
To turn the KE-8 off, slide the power switch (4) to the off position. Remember to
turn off your iPod or any device connected to the line-in jack (7).
Charging your iPod
Note: Docking iPods will only be charged when the KE-8 is powered from the
AC Adapter. (Except iPod Shuffle and 3
rd
Generation iPod)
Using the KE-8 with non-docking devices
The KE-8 can be used with any device that has a headphone output. Use the
supplied interconnect cord (11) to connect the “Line in” jack (7) to the headphone
output of the source that you wish to listen to through the KE-8.
Suitable sources are small TVs, laptop computers, generic MP3 players, non-
docking iPods, portable CD players, and headphone radios.

Troubleshooting
Symptom
No sound
from the
KE-8
Low
volume
Distorted
sound
iPod
does not
charge
Possible Problem
No power to the
system
Source turned off or
muted
Volume
misadjusted or
inadequate
recording level.
Weak or dead
batteries
Weak or dead
batteries
Original recording
may be distorted
Battery in source
may be low.
iPod bass equalizer
set too high
Unit operating on
battery power
iPod is very old
Solution
Power switch not in the on position.
Power adapter not plugged into the back of
the KE-8.
Power adapter not plugged into the wall
outlet.
Wall outlet not switched on. Test this by
plugging a working lamp into the outlet.
Bad or no batteries installed
Check that source is on and playing.
Press the top of the volume button (6) to
increase the volume.
Redo the recording with higher level.
If connected to a non-docking source, turn up
the source’s volume.
Replace the batteries
Replace the batteries in the KE-8
Check with headphones attached to the
source.
Check with headphones attached to the
source.
Reduce the setting on the iPod.
Insure that adapter is connected and plugged
into a live outlet.
3G (third generation) iPods require higher
charging voltage than the KE-8 supplies.

Specifications
Frequency range 100 Hz – 20 kHz
Power consumption 20 watts maximum
Power input 5.5V @ 1.2 amp DC
4 x AA batteries (Alkaline or NiMH)
Dimensions
Length: 6.9 inches (175.5 mm)
Width: 2.6 inches (65.5 mm)
Height: 3.12 inches (80.5 mm)
Weight: 12 oz (0.34 kg)
Notes:

WARRANTY
ONE-YEAR NEW PRODUCT WARRANTY
VALID ONLY IN THE U.S.A. ON NON-REFURBISHED PRODUCTS
This musicdock™ by KLH product is warranted to be free from defects in
workmanship and materials under normal use and service for a period of one
year from the date of original purchase. During the warranty period, KLH agrees
to repair or replace defective components without charge to the original
purchaser. To obtain service, the purchaser must return the component to KLH.
The purchaser will pay all costs incurred in returning product to KLH. KLH
assumes no risk until the product is accepted at our facility. Upon receipt and at
its sole discretion, KLH will repair or replace defective component using new or
refurbished parts. KLH agrees to return product to the purchaser prepaid, by the
shipment method of its choice. Replaced components are warranted to be free
from defects in workmanship and materials for the balance of the original
product's warranty period based on the original purchase date.
To obtain service under this warranty, a legible
copy of the original dated
purchase invoice must be included with the returned product. Do not send
the original invoice.
The liability of KLH will be limited to the purchase price of the product, and KLH
will not be liable for incidental or consequential damages. KLH limits its
obligations under any implied warranties under state laws to a length of time not
to exceed the warranty period. Some states do not allow limitations on the length
of an implied warranty. Additionally, some states do not allow the exclusion or
limitation of incidental or consequential damages. The above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights,
and you may have other rights, which vary, from state to state.
KLH Audio Systems
16250 Stagg St.
Van Nuys, CA 91406
Customer service: [phone] ext. 117
