KLH QUINCY User manual

FLOORSTANDING
LOUDSPEAKERS
KENDALL QUINCY CAMBRIDGE
MANUAL

WELCOME!
Thank you for purchasing one of the best sounding loudspeakers
ever produced. At KLH, we have been making high-quality com-
ponents since 1957, and we take pride in making your music and
movies the best experience possible.
FOR YOUR SAFETY
Important Safety Instructions!
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other heat producing appliances
9. USE ONLY attachments/accessories specified by
the manufacturer.
10. DO NOT expose to excess moisture or liquids, and do not
place containers with liquids on top of speakers.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
EU COMPLIANCE INFORMATION:
Eligible to bear the CE mark, Conforms to European Union EMC
Directive 2004/108/EC; European Union Restriction of Hazard-
ous Substances Recast (RoHS2) Directive 2011/65/EC; European
Union WEEE Directive 2002/96/EC.
KLH and the KLH logo are registered trademarks of Kelley Global
Brands Inc., registered in the U.S. and other countries.
WEEE NOTICE
Note: This mark applies only to countries within the European
Union (EU) and Norway.
This appliance is labeled in accordance with European
Directive 2002/96/EC concerning waste electrical and
electronic equipment (WEEE). This label indicates that
this product should not be disposed of with household
waste. It should be deposited at an appropriate facility
to enable recovery and recycling.
CONTENTS:
This package should contain 2 sets (4 each) of feet. The rubber feet
are used for solid flooring such as wood, tile and concrete, and the
chrome-plated spikes are used for carpet. Spikes may be used on
solid flooring when placed on chrome plated isolation discs.

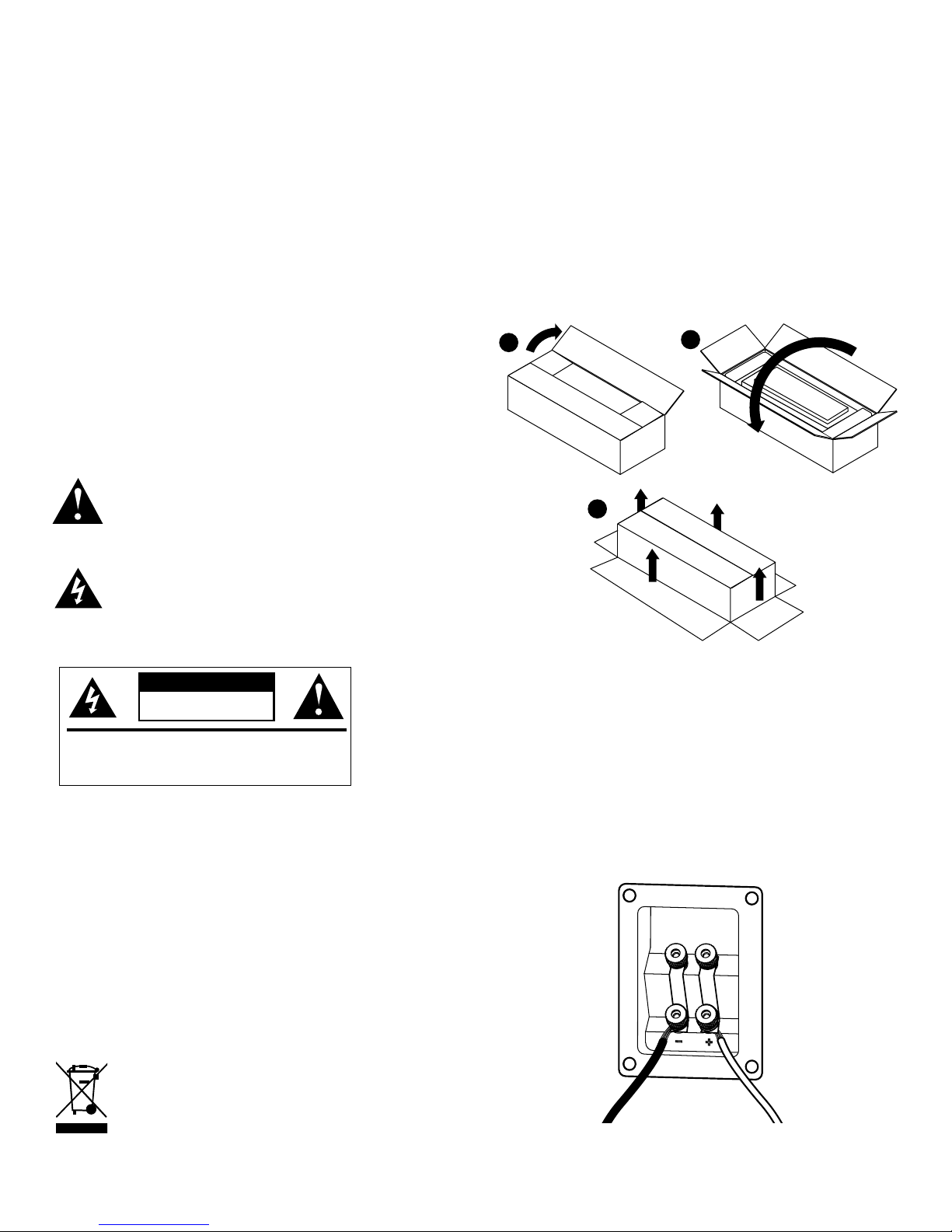

UNPACKING
Place the package on the floor with the box flaps up. Cut the tape
with a utility knife to open the package. Fold the carton flaps back
and carefully slide the speaker and packaging from the box, or turn
the box over with flaps open and remove the box. Stand the speak-
er and packing upright, making sure the loudspeaker plinth is on the
bottom, and remove the packing material.
CONNECTING YOUR
FLOORSTANDING LOUDSPEAKERS
All three floorstanding loudspeakers have the same quality nick-
el-plated binding posts that will accommodate stripped wire, spade
connectors or banana plugs. Be sure to use quality speaker cables,
up to 12 gauge (AWG). The lowest gauge possible is recommended.
Before using banana plugs, be sure to remove the black and red
inserts on the binding posts. The straps connecting the binding
posts should remain in place for conventional wiring, but may be
removed where bi-wiring is preferred. See the following diagrams
in the AMPLIFICATION section for further instruction.
C A UTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this
equipment are hazardous to life. No user-serviceable parts inside.
Refer all servicing to qualified service personnel.
C A UTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this
equipment are hazardous to life. No user-serviceable parts inside.
Refer all servicing to qualified service personnel.
C A UTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this
equipment are hazardous to life. No user-serviceable parts inside.
Refer all servicing to qualified service personnel.
1
3
2

AMPLIFICATION
Conventional amplification involves a single stereo amplifier
wired to a single set of binding posts with straps connecting the
second set of posts as seen in diagram above.
Simply attach the positive wire + to the red post, and the nega-
tive wire – to the black post.
BI-AMPLIFICATION
This connection method (see diagram above) uses two separate
two channel amplifiers to power one set of speakers. One stereo
amplifier connects to one speaker, and the other identical amplifier
powers the second speaker. This is referred to as bi-amplification.
Be sure to remove the terminal straps before using the bi-ampli-
fication method. Connect positive + and negative – cables from
the amplifier to the top terminals, and make sure the connection
is tight. Connect the second set of cables (positive and negative)
to the bottom terminals and tighten. Repeat these same steps
using the second amplifier to connect to the second terminals.
ROOM POSITION
Placement of your floorstanding loudspeakers is a personal pref-
erence, but it is recommended that speakers be placed at least 6
feet apart whether they are being used for a stereo application,
or as the main left and right channels for a home theater. For
best imaging and separation, listening distance from the speakers
should be about 1.5 times the distance the speakers are apart
from each other.
Example: If the distance between each speaker and the listening
position is 9 feet, then the speakers should be 6 feet apart from
one another.
Also be sure that loudspeakers are placed at least 12 inches away
from any wall. Further adjustments can be made to optimize your
listening experience.
NOTE: When moving floorstanding loudspeakers take extra cau-
tion to place hands in a position that will not damage the drivers.
This can best be done by placing one hand in the port at the back
of the loudspeaker, and the other hand at the either top corner.
LEFT
SUB
RIGHT
CENTER
SURROUND
LEFT
SURROUND
RIGHT
PORT TUNING
If you are placing your floorstanding loudspeakers 6 inches or
closer to a wall, bass output can be controlled by reducing the
amount of air flow from the rear ports. You can “tune” the bass
output by using the room tuning stops provided with your loud-
speaker by inserting as shown.
WARRANTY
Our 10-year parts warranty begins from purchase date of
the item (invoice date). For warranty/service issues, please
contact your place of purchase. Please keep your original
receipt. The warranty covers any production and material
defects of product. Warranty registration may be complet-
ed at klhaudio.com/warranty
The following is NOT COVERED by the warranty:
1. Accidents, misuse, poor maintenance, electrical overloads
such as lightning or voltage.
2. Repair must be performed by an authorized KLH dealer
or service center
3. Incorrect installation of product.
4. Altered serial number.
5. Transportation costs for service call.
6. Purchase of KLH products from unauthorized reseller.
Replacement item cannot exceed the cost of the item
under warranty. The supplier is responsible for only repair
or replacement.

Kendall Floorstanding Loudspeaker
Frequency response 25Hz-23kHz.+/-3dB
Sensitivity 96dB.
Power handling 250 watts.
Components 2 x 6.5” Woven Kevlar bass drivers, 1 x 5.25” Woven Kevlar mid/bass driver
and 1 high performance 1” Anodized Aluminum tweeter
Finishes Walnut Wood Veneer or Black Oak Wood Veneer
Impedance 8Ω.
Crossover points 800Hz and 2.5kHz.
Dimensions: 40” x 7.75” x 14.75” (H x W x D).
Weight: 48.7 lbs.
Quincy Floorstanding Loudspeaker
Frequency response 28Hz-23kHz.+/-3dB
Sensitivity 94dB.
Power handling 225 watts.
Components 1 x 6.5” Woven Kevlar bass driver, 1 x 5.25” Woven Kevlar mid/bass driver,
and 1 high performance 1” Anodized Aluminum tweeter
Finishes Walnut Wood Veneer or Black Oak Wood Veneer
Impedance 8Ω.
Crossover points 600Hz and 2.6kHz.
Dimensions: 37.5” x 7.75” x 14.75” (H x W x D).
Weight: 40 lbs.
Cambridge Floorstanding Loudspeaker
Frequency response 30Hz-23kHz.+/-3dB
Sensitivity 94dB.
Power handling 200 watts.
Components 2 x 5.25” Woven Kevlar bass drivers,
and 1 high performance 1” Anodized Aluminum tweeter
Finishes Walnut Wood Veneer or Black Oak Wood Veneer
Impedance 8Ω.
Crossover point 2.4kHz.
Dimensions: 35.25” x 6.5” x 11.5” (H x W x D).
Weight: 31 lbs.
