WELCOME!
Thank you for purchasing one of the best sounding loud-
speakers ever produced. At KLH, we have been making
high-quality components since 1957, and we take pride in
making your music and movies the best experience possi-
ble.
FOR YOUR SAFETY
Important Safety Instructions!
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN with dry cotton cloth. Do not use microfiber.
7. DO NOT block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other heat producing appliances
9. USE ONLY attachments/accessories specified by
the manufacturer.
10. DO NOT expose to excess moisture or liquids, and do not
place containers with liquids on top of speakers.
The exclamation point, within an equilateral trian-
gle, is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
The lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the user
to the presence of uninsulated “dangerous volt-
age” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electrical
shock to persons.
EU COMPLIANCE INFORMATION:
Eligible to bear the CE mark, Conforms to European Union
EMCDirective 2004/108/EC; European Union Restriction of
Hazardous Substances Recast (RoHS2) Directive 2011/65/
drivers.dEC; European Union WEEE Directive 2002/96/EC.
KLH and the KLH logo are registered trademarks of Kelley
Global Brands Inc., registered in the U.S. and other countries.
WEEE NOTICE
Note: This mark applies only to countries within the
European Union (EU) and Norway.
This appliance is labeled in accordance with
European Directive 2002/96/EC concerning
waste electrical and electronic equipment
(WEEE). This label indicates that this product
should not be disposed of with household
waste. It should be deposited at an appropriate facili-
ty to enable recovery and recycling.
CONTENTS:
The spike feet assemblies contain two matching powder
coated arms with two spikes and spike installation knobs
each. There are also eight installation screws with Allen
wrench.
UNPACKING
Place the package on the floor with the box flaps up. Cut
the tape with a utility knife to open the package. Fold
the carton flaps back and carefully slide the speaker and
packaging from the box, or turn the box over with flaps
open and remove the box. Stand the speaker and packing
upright, making sure the loudspeaker rubber feet are on
the bottom, and remove the packing material.
C A UTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this
equipment are hazardous to life. No user-serviceable parts inside.
Refer all servicing to qualified service personnel.
AVERTISSEMENT: ne pas ouvrir! Risque de choc électrique. Les tensions
dans cet équipement sont dangereuses pour la vie. Aucune pièce réparable
par l'utilisateur à l'intérieur. Confiez toute réparation à un personnel qualifié.
MISE EN GARDE
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR.
C A UTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this
equipment are hazardous to life. No user-serviceable parts inside.
Refer all servicing to qualified service personnel.
AVERTISSEMENT: ne pas ouvrir! Risque de choc électrique. Les tensions
dans cet équipement sont dangereuses pour la vie. Aucune pièce réparable
par l'utilisateur à l'intérieur. Confiez toute réparation à un personnel qualifié.
MISE EN GARDE
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR.
13
2
SPIKE AND RUBBER FEET

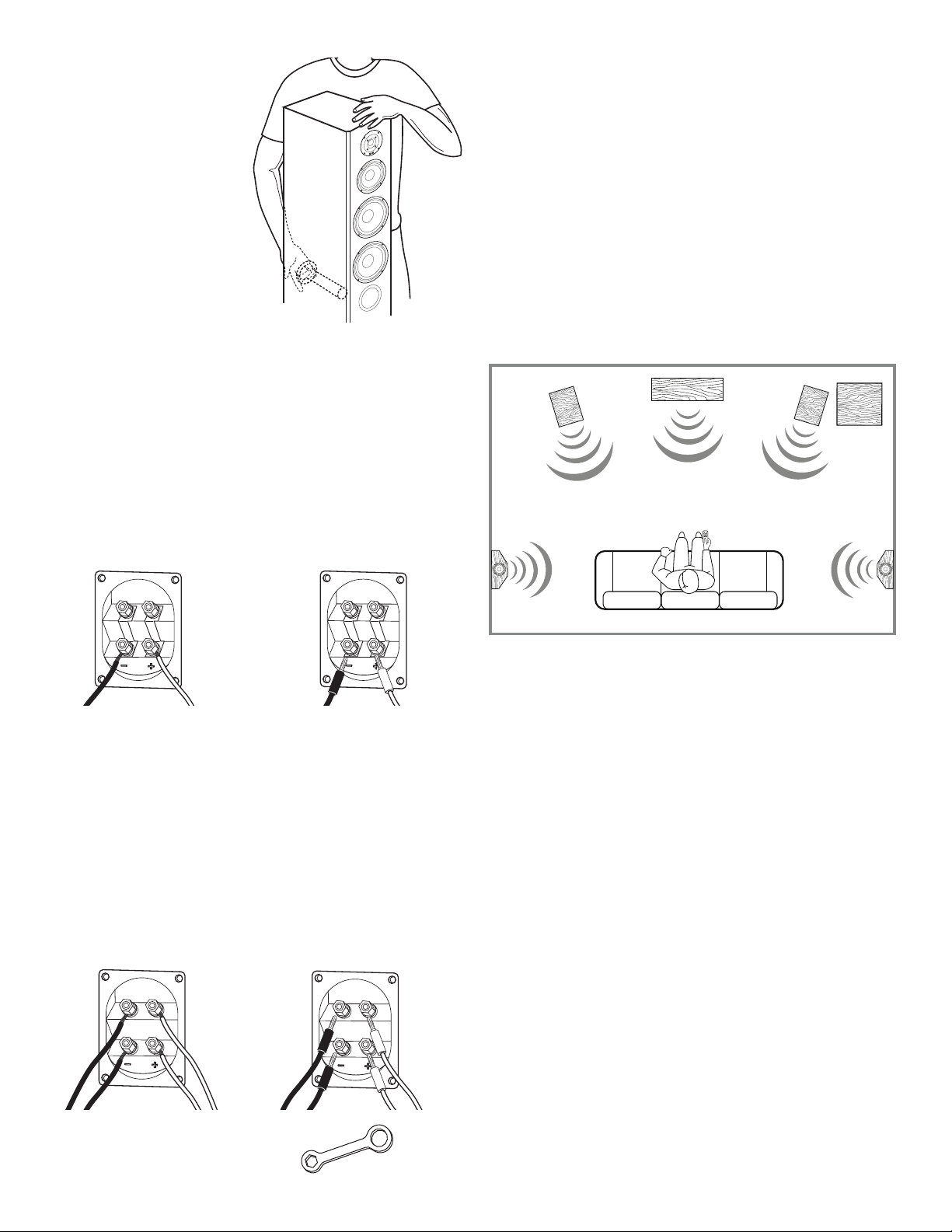

The Kendall 2F floorstanding speakers are equipped with
rubber feet, and can be removed to install spiked feet
assemblies. Spiked and rubber feet are to be used for bass
decoupling (reducing bass transmission). To install metal
spiked feet, you may place speaker on the floor on either
side. DO NOT place speaker front on floor to avoid possi-
ble damage to drivers. To intall spiked feet assembly, first
remove rubber feet, and follow instructions below:

ROOM POSITION
Placement of your floorstanding loudspeakers is a personal
preference, but it is recommended that speakers be placed
at least 6 feet apart whether they are being used for a
stereo application, or as the main left and right channels for
a home theater. For best imaging and separation, listening
distance from the speakers should be about 1.25 times the
distance the speakers are apart from each other.
Example: If the distance between each speaker and the
listening position is 10 feet, then the speakers should be 8 feet
apart from one another. Be sure that loudspeakers are placed
at least 12 inches away from any wall. Further adjustments
can be made to optimize your listening experience.
AMPLIFICATION
Conventional amplification involves a single stereo ampli-
fier wired to a single set of binding posts with straps con-
necting the second set of posts as seen in diagram above.
Simply attach the positive wire + to the red post, and the
negative wire – to the black post.
BI-AMPLIFICATION
This connection method (see diagram below) uses two sepa-
rate two channel amplifiers to power one set of speakers. One
amplifier is attached to one set of binding posts, and another
identical amplifier is attached to the other set of binding posts.
This is referred to as bi-amplification.
CONNECTING YOUR
FLOORSTANDING LOUDSPEAKERS
Both floorstanding loudspeakers have the same quality gold
-plated binding posts that will accommodate stripped wire,
spade connectors or banana plugs. Be sure to use quality
speaker cables, up to 12 gauge (AWG). The lowest gauge
possible is recommended. Before using banana plugs, be
sure to remove the black and red inserts on the binding
posts. The straps connecting the binding posts should re-
main in place for conventional wiring, but may be removed
where bi-wiring is preferred. See the following diagrams in
the AMPLIFICATION section for further instruction.
LEFT
SUB
RIGHT
CENTER
SURROUND
LEFT
SURROUND
RIGHT
NOTE:
Binding post wrench is included
NOTE:
When moving
loudspeakers take extra
caution to place hands in a
position that will not dam-
age the drivers. This can
best be done by placing
one hand in the port at the
back of the loudspeaker,
and the other hand at either
top corner.
ALWAYS KEEP HANDS AWAY
FROM DRIVERS TO AVOID
DAMAGE.
WARRANTY
Our 10 year warranty begins from purchase date of the item.
(Receipt Date) Warranty registration must be completed at
KLHAUDIO.com/warranty. Registration of the product must
be completed within 120 days of purchase for warranty
validation. Original receipt of purchase must be retained for
proof of purchase. For warranty or service issues, please con-
tact authorized KLH dealer. The warranty covers any produc-
tion and/or material defects of the product. This warranty is
non-transferable.
The following is NOT COVERED by the warranty:
1. Accidents, misuse, poor maintenance, electrical over-
loads such as lightning or voltage.
2. Incorrect use of product.
3. Altered serial number.
4. Transportation costs for service call.
5. Purchase of KLH products from unauthorized reseller.
Replacement item cannot exceed the cost of the item under
warranty. The supplier is responsible for only repair or re-
placement. KLH toll free number is 1-833-554-8326
Be sure to remove the terminal straps before using the
bi-amplification method. Connect positive + and nega-
tive – cables from the amplifier to the top terminals, and
make sure the connection is tight. Connect the second set of
cables (positive and negative) to the bottom terminals and
tighten. Repeat these same steps using the second amplifier
to connect to the second terminals.

Kendall 2F Floorstanding Loudspeaker
Enclosure 3-Way, Bass-Reflex
Power handling 250 Watts.
Peak Power Handling 1,000 Watts
Frequency Response 36Hz-20kHz.+/-3dB
Impedance 8Ω.
Crossover Frequency 800Hz & 2,500Hz
Sensitivity in Room 91dB. 2.83V/1m
Sensitivity Anechoic 88dB. 2.83V/1m
Tweeter Single 1” Titanium Dome Tweeter
Midrange Single 5.25” Aluminum Cone Woofers
Woofer Dual 6.5” Aluminum Cone Woofers
Finishes English Walnut Wood Veneer or Black Oak Wood Veneer
Dimensions: 41” x 12.75” x 19” (H x W x D). With Outrigger Feet
41” x 8.75” x 17.5” (H x W x D). Without Outrigger Feet
Weight: 59 lbs.
SPECIFICATIONS
