Klockner Moeller PS 416-TCS-200 User manual

Hardware and Engineering
PS 416-TCS-200
Telecontrol Card
08/97 AWB 27-1298 GB
1st published 1997, edition 08/97
© Klöckner-Moeller GmbH, Bonn
Author: Thomas Dahmen
Editors: Klaus Krüger, Thomas Kracht
Translators: Christopher Baker, Terence Osborn
1298u1g.fm Seite 1 Dienstag, 23. Februar 1999 12:54 12

Caution!
Dangerous electrical voltage!
Before commencing the installation
●Disconnect the power supply of the
device.
●Ensure that the device cannot be
accidentally restarted.
●Verify isolation from the supply.
●Earth and short circuit.
●Cover or enclose neighbouring units that
are live.
●Follow the engineering instructions
(AWA) of the device concerned.
●Only suitably qualified personnel may
work on this device/system.
●Before installation and before touching
the device ensure that you are free of
electrostatic charge.
●Connecting cables and signal lines
should be installed so that inductive or
capacitive interference do not impair the
automation functions.
●Install automation devices and related
operating elements in such a way that
they are well protected against
unintentional operation.
●Suitable safety hardware and software
measures should be implemented for
the I/O interface so that a line or wire
breakage on the signal side does not
result in undefined states in the
automation devices.
●Ensure a reliable electrical isolation of
the low voltage for the 24 volt supply.
Only use power supply units complying
with IEC 60 364-4-41 or HD 384.4.41 S2.
●Deviations of the mains voltage from the
rated value must not exceed the
tolerance limits given in the
specifications, otherwise this may cause
malfunction and dangerous operation.
●Emergency stop devices complying with
IEC/EN 60 204-1 must be effective in all
operating modes of the automation
devices. Unlatching the emergency-stop
devices must not cause uncontrolled
operation or restart.
●Devices that are designed for mounting
in housings or control cabinets must only
be operated and controlled after they
have been installed with the housing
closed. Desktop or portable units must
only be operated and controlled in
enclosed housings.
●Measures should be taken to ensure the
proper restart of programs interrupted
after a voltage dip or failure. This should
not cause dangerous operating states
even for a short time. If necessary,
emergency-stop devices should be
implemented.
IBM is a registered trademark of International
Business Machines Corporation.
All other brand and product names are
trademarks or registered trademarks of the
owner concerned.
All rights reserved, including those of the
translation.
No part of this manual may be reproduced in
any form (printed, photocopy, microfilm or
any otherprocess) or processed, duplicated
or distributed by means of electronic
systems without written permission of
Klöckner-Moeller GmbH, Bonn.
Subject to alterations without notice.

1
08/97 AWB 27-1298-GB
Contents
About This Manual 3
Other manuals (AWBs) 3
1 Setting Up A Telecontrol Station With
The PS 416 Controller 5
Procedure 8
2 About The Card 9
Task of the PS 416-TCS-200 9
Hardware and software requirements 9
Construction of the PS 416-TCS-200 10
Communication layers model 11
3 Engineering 13
Number of PS 416-TCS-200 cards in
the rack 13
Power supply 13
Terminal assignments 13
Selection of modem 15
Electromagnetic compatibility 15
4 Configuration 19
5 Installation 23
Installing the PS 416-TCS-200 in the rack 23
6 Operation 25
Function of the PS 416-TCS-200 card 25
Startup behaviour 26
Shutdown behaviour 27
7Diagnostics 29
Appendix 31
Technical data 31
Glossary 32
Index 35

2
08/97 AWB 27-1298-GB

3
08/97 AWB 27-1298-GB
About This Manual
This card has been developed for remote metering,
remote indication and remote control and supports
the data security protocols FT 1.2 and FT 3
(asynchronous) as per the IEC 870-5 standard for
telecontrol equipment and systems.
This manual describes the structure, planning,
configuration, installation, operation and also the
testing and diagnostics of the PS 416-TCS-200
communication processor. The PS 416-TCS-200 is a
communication processor for PS 416 programmable
logic controller. With the aid of the PS 416-TCS-200
communication processor the PS 416 can be
connected as telecontrol station to a telecontrol
network.
This documentation is intended for the project
planner, programmer and commissioning engineer.
This documentation will enable such users to
connect the PS 416 to a telecontrol system.
A general knowledge of control and communication
engineering is required for a good comprehension of
this technical documentation.
Other manuals (AWBs) The fundamentals of remote control using compact
PLCs are described in a separate manual. Each of
the individual components also has its own manual.
Guide to telecontrol, AWB 27-1299-GB
ZB 4-501-TC1:
Hardware and engineering, telecontrol card
ZB 4-501-TC1, AWB 27-1297-GB

About This Manual
4
08/97 AWB 27-1298-GB
PS 416-TCS-200:
Hardware and engineering, telecontrol card PS 416-
TCS-200, AWB 27-1298-GB
Leased line S 40-AM-TL:
Telecontrol via leased line, application module S 40-
AM-TL, AWB 27-1301-GB
Dial-up line S 40-AM-TD:
Telecontrol via dial-up line, application module
S 40-AM-TD, AWB 27-1300-GB

5
08/97 AWB 27-1298-GB
1 Setting Up A Telecontrol Station With
The PS 416 Controller
The PS 416-TCS-200 communication processor
forms part of the PS 416 modular control system.
With the PS 416-TCS-200 the individual controller
can be integrated into a telecontrol system. Here the
controller can be the central station or a substation.
Communication with the telecontrol network is
effected via modem and modem cable.
Communication is supported by task-specific
application modules (function blocks).
Figure 1: Layout of a telecontrol station with the PS 416
programmable controller
aCentral station
bModem
Either a dial-up line or a leased line can be used as the
transmission medium.
In the case of the dial-up line existing telephone
networks are used as transmission medium. All of the
modems in the central station and substations must
be modems with dialling capability. At the request of
S 40-AM-TD/TL
ZB 4-254-KB1
b
CPU PS 416
PS 416-TCS-200
a

Setting Up A Telecontrol
Station With The PS 416
Controller
6
08/97 AWB 27-1298-GB
the central station or the substation the modems set
up a connection with a specified telephone number.
In the case of the dial-up line both the central and also
the substation can take over the function of a primary
station or the function of a secondary station:
Primary station:
Station which initiates data transport
Secondary station:
Station which replies to a data request
Communication of one station with several stations
simultaneously is not possible.

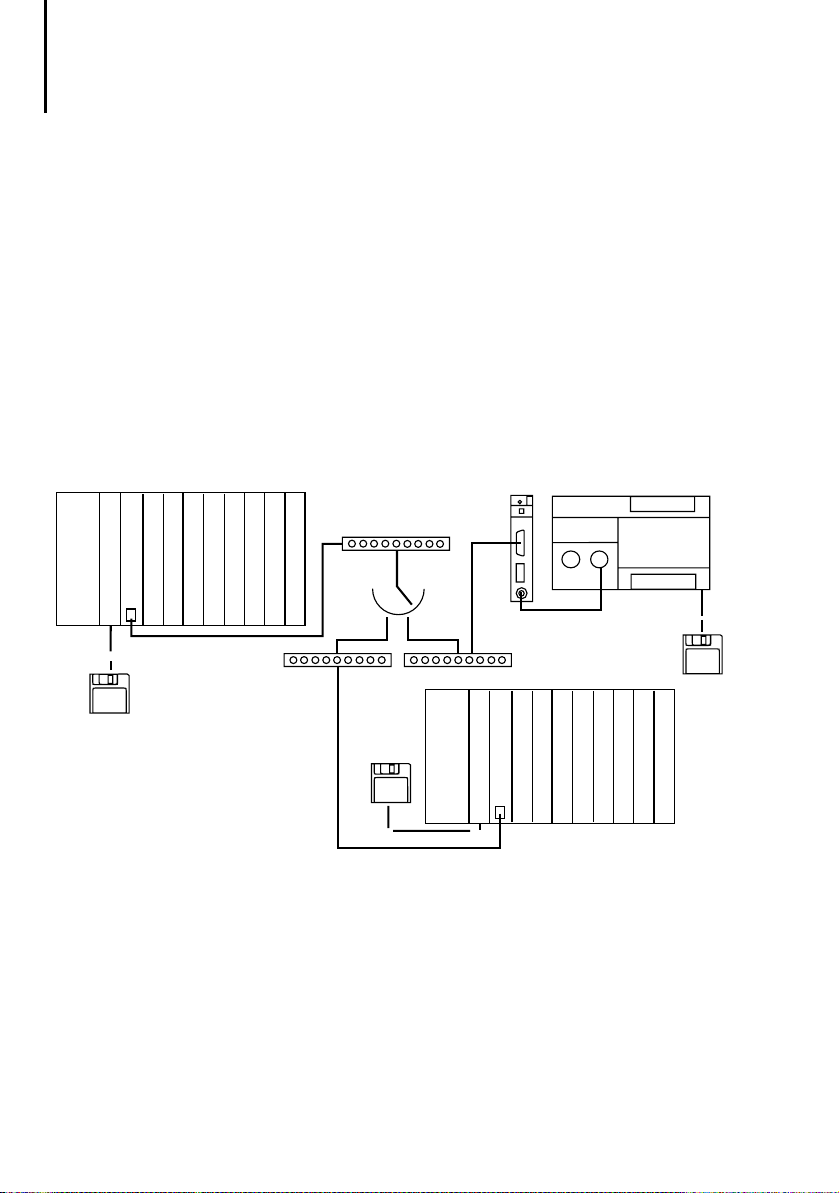

Figure 2: Telecontrol system with PS 416 components and
dial-up line configuration
aCentral station – primary station / secondary station
bDial-up modem
cDial-up line
dSubstation – primary station / secondary station
S 40-AM-TD
ZB 4-254-KB1
b
b
b
a
c
PS 4-200
d
ZB 4-501-TC1
S 40-AM-TD
S 40-AM-TD
CPU PS 416
PS 416-TCS-200
PS 416-CPU-400
PS 416-TCS-200
d

Other manuals (AWBs)
7
08/97 AWB 27-1298-GB
In the case of the leased line all substations are
permanently connected to the central station.
If more than one secondary station is addressed via
the leased line only point-to-point leased modems
(party line) may be used. The central station will in
this case always be a primary station and the
substations always secondary stations. This makes it
possible for the central station to send messages to
all substations simultaneously.
Only the central station can initiate communication.
A substation cannot autonomously initiate
communication with the central station or with
another substation.
Figure 3: Telecontrol system with PS 416 components and
leased line configuration
aCentral station – primary station
bModem (party line)
cSubstation – secondary station
S 40-AM-TL
b
bb
a
PS 4-200
c
ZB 4-501-TC1
S 40-AM-TL
S 40-AM-TL
PS 416-TCS-200
CPU PS 416
PS 416-TCS-200
c
CPU PS 416
ZB 4-254-KB1

Setting Up A Telecontrol
Station With The PS 416
Controller
8
08/97 AWB 27-1298-GB
Procedure The following procedure is recommended for
connecting the PS 416 to a telecontrol system.
EDefine all requirements made on the telecontrol
system – for example, data security, number of
stations, and so on. A detailed description will be
found in the “Guide to telecontrol” manual.
ESelect the application module which matches
your requirements. Relevant factors here include:
station type (modular – compact), station class
(primary – secondary), number of stations.
EConfigure the interface parameters for the
PS 416-TCS-200 in the application module. See
Chapter 4, Configuration.
EAdjust the transmission parameters where
necessary to match the requirements of the data
integrity class. See the “Guide to telecontrol”
manual.
EInstall the card in the rack. See Chapter 5,
Installation
EConnect the PS 416-TCS-200 to the modem via
the ZB 4-254-KB1 modem cable. See Chapter 5,
Installation
The card is now installed, programmed, configured
and is ready for operation.

9
08/97 AWB 27-1298-GB
2 About The Card
Task of the
PS 416-TCS-200
The PS 416-TCS-200 communication processor is
used for connecting the PS 416 programmable
controller via a modem to a telecontrol system. It
communicates with other telecontrol stations via a
point-to-point modem or dial-up modem.
The card has its own microcontroller. This means that
it handles the communication process autonomously
without taking up any of the capacity of the PS 416
central processing unit.
Hardware and software
requirements
Table 1 provides an overview of the hardware and
software requirements for running the
PS 416-TCS-200 within the PS 416 PLC system.
Table 1: Hardware and software requirements
Software
Programming software
Operating system
Application modules
Sucosoft S 40 Manager, Version 2.0 and
higher for PS 416-CPU-400 Version 1.13 and
higher
S 40-AM-TD Version 1.0 (dial-up line)
S 40-AM-TL Version 1.0 (leased line)
Hardware
Central processing unit
Power supply card:
Subrack
Modem cable
PS 416-CPU-400
PS 416-POW-400
PS 416-POW-410
PS 416-POW-420
PS 416-BGT-400/410/420 or 421 with
PS 416-ZBX-401/402/403 potential
equalisation rail
ZB 4-254-KB1

About The Card
10
08/97 AWB 27-1298-GB
Construction of the
PS 416-TCS-200
Figure 4: Elements of the PS 416-TCS-200
aSwitches S1 / S2
bRS 232 – modem port
cLED (error)
dLED (RxD / TxD)
eInterface module
fSystem EPROM
r
x
d
/
tx
d
error
TCS-
a
200
d
c
b
e
f

Communication layers
model
11
08/97 AWB 27-1298-GB
aSwitches S1 / S2
These switches must be left switched off at all times.
bPort
The 9-pole Sub-D connector is used for connecting
the modem cable. The modem cable is not supplied.
Pin assignments are described in Chapter 3,
Engineering.
cLED (error)
The LED indicates error messages. See Chapter 7,
Diagnostics
dLED (RxD / TxD)
The LED indicates the operating status of the card.
See Chapter 7, Diagnostics
eInterface
In order to ensure interference immunity the data
lines are optocoupled and the interface is supplied
with power via DC / DC converter with electrical
isolation.
Communication layers
model
The communication layers model describes the
relationships between programming software,
function blocks and the requisite hardware.

About The Card
12
08/97 AWB 27-1298-GB
Figure 5: Communication layers model
Application layer
The program data are processed in the application
layer.
Link layer
This layer generates the line telegrams in accordance
with the IEC 870-5 standard and synchronises data
traffic between the station and the telecontrol system.
Physical layer
The electrical signals are formed in this layer in
accordance with the transmission medium used.
Application layer
Sucosoft S 40
Applica- tion
Routing data
Event control
Data type conversion
Data
modules
Link layer
S 40-AM-TL
S 40-AM-TD
Telecontrol function blocks Application modules
Handling services
Address evaluation
Life control
Time-out monitoring
PS 416 programmable controller
PS 416-TCS-200 card
Card
IEC 870-5 primary station point-to-point modem
IEC 870-5 secondary station point-to-point modem
IEC 870-5 dial-up modem
Physical
layer
Integrated RS-232 interface
SUB D, 9-pole
Dial-up modem
Primary / secondary
Type 1
Point-to-point modem
Primary Secondary
Type 2 Type 3

13
08/97 AWB 27-1298-GB
3 Engineering
Number of PS 416-
TCS-200 cards in the
rack
The communication processor works in all PS 416
basic units. The maximum number of
PS 416-TCS-200 cards which can be operated in a
single rack depends on the power consumption. For
this reason a power requirements calculation must
be made in all cases .
Power supply The card is supplied internally with power at 5 V DC
from the PS 416-POW-400/410/420 power supply
card via the PS 416-rack. For further information
please refer to the Appendix, Technical data.
Terminal assignments The communication processor is classed as data
terminal equipment (DTE).
The interface has full duplex capability – in other
words, data can be sent and received
simultaneously.
For the connection to the modem use the
ZB 4-254-KB1 modem cable.
Figure 6 shows:
interconnections and the pin assignments for the
9-pole Sub-D front connector
signal numbering as per CCITT recommendation
V24/V28
signal designations as per RS 232C
signal flow

Engineering
14
08/97 AWB 27-1298-GB
Figure 6: Connections of the ZB 4-254-KB1 modem cable
Table 2: Meaning of the signals
Modem
D connector
25-pole plug
PS 416-TCS-200
D connector
9-pole plug
Pin Pin
1 Protective ground (screening) — Not connected
8 DCD (Data Carrier Detect) R1 DCD (Data Carrier Detect)
3 TxD (Transmit Data) R2 RxD (Receive Data)
2 RxD (Receive Data) r3TxD (TransmitData)
20 DSR (Data Set Ready) r4 DTR (Data Terminal Ready)
7 SGND (Signal Ground) — 5 SGND (Signal Ground)
6 DTR (Data Terminal Ready) R6 DSR (Data Set Ready)
4 CTS (Clear To Send) r7 RTS (Request To Send)
5 RTS (Request To Send) R8 CTS (Clear To Send)
22 RI (Ring Indicator) R9 (Signal not supported)
Signal Meaning
TxD output Transmit data, in idle state m3V
RxD input Receive data
SGND Signal ground
RTS output The modem is switched to the transmission state and remains in this
state for as long as the On state exists.
RTS is active M 3 V (Request To Send)
CTS input The modem is ready to send data signals or to receive data for setting up
the connection.
CTS is active M3 V (Clear to send)
DTR output The telecontrol card is ready for operation:
DTR is active M+3 V, CPU in RUN MODE (Data Terminal Ready)
DSR input The modem is ready for operation:
DSR is active M+3 V (Data Set Ready)
DCD input The modem reports that the transmission link is ready to receive data
(modem carrier frequency is stable).
DCD is active M3 V (Data Carrier Detection)

Selection of modem
15
08/97 AWB 27-1298-GB
Selection of modem You should select modems which have electrical
isolation between the RS 232 and the dial-up or
leased line. This prevents potential equalisation
currents occuring.
Electromagnetic
compatibility
You should note the following engineering
instructions in order to comply with the requirements
of EMC legislation:
EIf the inductive and capacitive effects of
electromagnetic fields are to be reduced you will
need to fit the screen in a thorough and careful
manner.
EConnect the screen of the data line to the
protective ground by connecting each end of the
screen to a potential equalisation rail.
EFit an RF ferrite ring of type PS 416-ZBX-405 to
the lead wire to the data line before the screen
connection.
The RF ferrite sleeve is not supplied with the card. It
can be ordered under type designation
PS 416-ZBX-405.
For the designation of the potential equalisation rail
appropriate for the rack please refer to
AWB 27-1208, PS 416 system.
The modems must also support the 11-bit
signalling format (8E1)

Engineering
16
08/97 AWB 27-1298-GB
Figure 7: Grounding the signal line of the PS 416-TCS-200
aSignal line of the PS 416-TCS-200
bScreen
a
b
PS 416-BGT-4xx
PS 416-ZBX-40x
PS 416-ZBX-404
c
M4 × 12
M4 × 8
The screen braid must not be interrupted.

Electromagnetic
compatibility
17
08/97 AWB 27-1298-GB
Figure 8: Grounding the signal lines of the modem
aTop-hat rail
bSnap fastener
cContact clamp
dScrew
eModem
a
b
d
c
M4
e
The screen braid must not be interrupted.
Items b, c, and dare constituent parts of the
ZB 4-102-KS1 screen earth kit.

18
08/97 AWB 27-1298-GB
