KLS Martin marLED X User manual

Front Cover
English
Operating Light System marLED®
X
Service Manual
90-434-62-10
Revision 02
Date of Release: 2021-01
www.klsmartin.com

2 Revision 02
Symbol Explanation
The following symbols are either part of these Instructions for Use and/or of the product label.
Safety alert symbol
CAUTION Indicates a situation which, if not avoided, could result in minor
or moderate injury.
WARNING Indicates a situation which, if not avoided, could result in death
or serious injury.
DANGER Indicates a situation which, if not avoided, will result in death
or serious injury.
medical device Medical Device
Instructions for use
Follow Instructions for use
Reference number for ordering Gebrüder Martin products (item number)
Serial number
Transport and store dry
Information on minimum and maximum temperature for storage and
transportation.
See Operating Light System marLED® X, Instructions for Use, for valid values.
Information on minimum and maximum atmospheric pressure for storage
and transportation.
See Operating Light System marLED® X, Instructions for Use, for valid values.
Information on minimum and maximum atmospheric humidity for storage
and transportation.
See Operating Light System marLED® X, Instructions for Use, for valid values.
Fragile, handle with care

Revision 02 3
Arrows pointing up, transport and store upright
Stacking height max. 2 layers, max. load 250 kg per item
yyyy-mm-dd
Manufacturer and manufacturing date
CE marking of conformity
NRTL certification mark from TÜV Rheinland
Apply screw lock to the screw, see section 3.3 “Screw Locking”, page 16.
Tighten screw/nut with specified torque, see section 3.4 “Torques for Metric
Threads”, page 17.
Grease at this location, see section 3.5 “Greasing”, page 17.
Warning: Dangerous high voltage!
Symbol for inspection work
Symbol for maintenance work
Symbol for repair work

4 Revision 02
This product may not be disposed of as normal household garbage, see
section 15.2 “Disposal of the Device”, page 137.

Operating Light System marLED® X
Service Manual
Revision 02 5
Contents
1 General Information....................................................................................................................................8
1.1 Manufacturer...................................................................................................................................8
1.2 Hotline..............................................................................................................................................8
1.3 Obligation to Report Incidents.........................................................................................................8
1.4 Notes on this Document ..................................................................................................................9
1.5 Terms & Acronyms...........................................................................................................................9
1.6 Validity of this Document.................................................................................................................9
1.7 Accompanying Documents ............................................................................................................10
1.8 Notices for Service Technicians .....................................................................................................10
1.9 Cable Colors ...................................................................................................................................10
2 Intended Use .............................................................................................................................................11
2.1 Intended Purpose...........................................................................................................................11
3 Safety Notices............................................................................................................................................13
3.1 General Information ......................................................................................................................13
3.2 Personal Protection........................................................................................................................14
3.3 Screw Locking.................................................................................................................................16
3.4 Torques for Metric Threads ...........................................................................................................17
3.5 Greasing .........................................................................................................................................17
4 Voltage supply ...........................................................................................................................................18
4.1 Power Modules of the Lights/Structure of the Ceiling Tube .........................................................18
4.2 SMPS 28/6 Power Module .............................................................................................................19

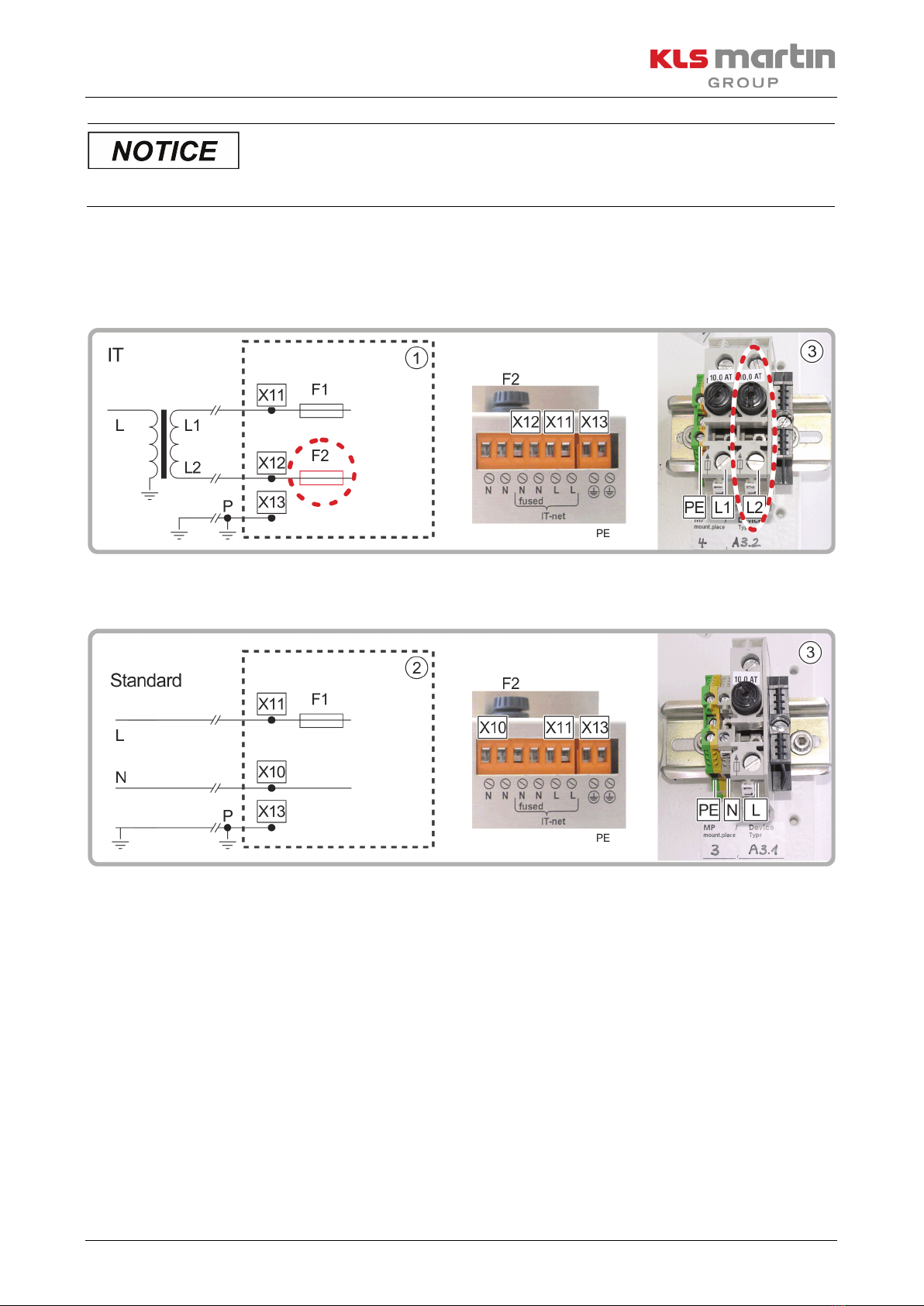

4.2.1 IT Grids and Standard Grids ..................................................................................................19
4.2.2 Circuit Diagram without ASPS Assembly ..............................................................................20
4.2.3 Circuit Diagram with Integrated ASPS Changeover Assembly..............................................21
4.2.4 Connections and Fuses .........................................................................................................22
4.2.5 Function of the Integrated ASPS Changeover Assembly (Option)........................................23
4.2.6 Connection to On-Site Power Supply ...................................................................................23
5 Bus System marLED®/RS232 .....................................................................................................................25
5.1 CAT Cabling ....................................................................................................................................25
5.1.1 Cable Specifications ..............................................................................................................27
5.1.2 Pin Assignment acc. to TIA-568 B .........................................................................................27
5.1.3 Circuit Diagram, Video Cabling, CAT Cabling ........................................................................28
5.1.4 Light System with mLB and 1 Ceiling Tube ...........................................................................30
5.1.5 marLED® Board .....................................................................................................................31
5.1.6 Wall Box Connections (Rear) ................................................................................................32
5.1.7 marTouch® Pro Wall Box Connections (Front) .....................................................................33
5.1.8 marTouch® Pro Wall Box Pin Assignment.............................................................................33
5.2 COM Interface (RS232) ..................................................................................................................34

Operating Light System marLED® X
Service Manual
6Revision 02
5.2.1 COM Interfaces for Ceiling Tube and Separate Installation .................................................35
5.2.2 Connector Assignment X2 (mLB, RS232) ..............................................................................36
5.3 Addressing of the Light (Control Electronics) ................................................................................37
5.3.1 DIP Switches for mLB Address and Terminating Resistor.....................................................37
5.4 Addressing of the Camera..............................................................................................................39
5.4.1 Camera on Separate Arm (Stand Alone)...............................................................................40
5.4.2 Terminating Resistor in the Light System .............................................................................40
5.5 Bluetooth System...........................................................................................................................42
6 Central Bearing Shaft/Tracking Arm/Spring Arm Wiring ..........................................................................43
6.1 Tracking Arm/Spring Arm...............................................................................................................43
6.1.1 Tracking Arm/Ceiling Tube ...................................................................................................43
6.1.2 Circuit Diagram for 3-Pole Tracking Arm ..............................................................................44
6.1.3 Circuit Diagram for 5-Pole Tracking Arm ..............................................................................44
6.1.4 Circuit Diagram Tracking Arm, 9-pin.....................................................................................45
6.2 Contact Block .................................................................................................................................46
6.2.1 Voltage Test/Measuring Points on the Tracking Arm...........................................................46
6.2.2 Replacing the Contact Block .................................................................................................49
6.3 Replacing the Slip Ring...................................................................................................................50
7 Video Cabling.............................................................................................................................................51
7.1 Image Transmission via Cable ........................................................................................................51
7.1.1 Video Cabling to Monitor .....................................................................................................52
7.1.2 Video Cabling to Wall Box.....................................................................................................52
7.2 Image Transmission without Cable................................................................................................53
7.2.1 mLB System...........................................................................................................................53
7.2.2 Bluetooth System..................................................................................................................53
7.2.3 Video System surgiCam® HD Wireless and surgiCam® 4K Wireless .....................................54
7.2.4 Receiver Unit surgiCam® HD Wireless..................................................................................55
7.2.5 Receiver Unit surgiCam® 4K Wireless...................................................................................57
8 Working on Light Head..............................................................................................................................59
8.1 Dismounting the Light Head ..........................................................................................................59
8.1.1 Adjusting the Height Stop on AC2000 ..................................................................................59
8.1.2 Removing the Light Head from the Spring Arm....................................................................60
8.1.3 Reinstalling the Light Head on the Spring Arm.....................................................................61
8.2 Preparatory Work on Light Head ...................................................................................................62
8.2.1 Removing the sensoGrip.......................................................................................................62
8.2.2 Light Head Overview.............................................................................................................63
8.3 Exchange Works.............................................................................................................................64
8.3.1 Opening the Light Housing ...................................................................................................64
8.3.2 Replacing the Seal of the Cover Glass...................................................................................66

Operating Light System marLED® X
Service Manual
Revision 02 7
8.3.3 Replacing the Light Engine Board .........................................................................................67
8.3.4 Replacing the Control Panel Foil...........................................................................................71
8.4 Replacing the Control Electronics ..................................................................................................73
8.5 Replacing the Cardanic System......................................................................................................74
8.6 Replacing the Lateral Bearing Sleeve.............................................................................................77
8.7 Installation of the Cover Glass .......................................................................................................79
9 marTouch® Pro 4.3" und marTouch® Pro 5".............................................................................................80
9.1 marTouch® Pro (5"/12.7 cm) .........................................................................................................80
9.2 marTouch® Pro Wall 5"..................................................................................................................81
9.2.1 Surface-Mounting Version....................................................................................................81
9.2.2 Flush-Mounting Version .......................................................................................................81
9.2.3 Panel-Mounting Version.......................................................................................................81
9.3 marTouch® Pro Table Base/Standard Rail .....................................................................................83
9.4 marTouch® Pro on the Light Head .................................................................................................84
9.5 marTouch® Pro (4.3"/10.9 cm) ......................................................................................................85
10 Description of Assemblies .........................................................................................................................86
10.1 Control Electronics Board ..............................................................................................................86
10.1.1 Design including Microfuses .................................................................................................86
10.2 Measuring Points ...........................................................................................................................88
10.2.1 Control Panel Foil Measuring Points.....................................................................................89
11 Firmware Update/Bluetooth Pairing.........................................................................................................90
12 Hardware and Firmware States.................................................................................................................90
13 marTouch® Pro – Access Service-/Admin-Menu.......................................................................................93
14 Maintenance .............................................................................................................................................99
14.1 Troubleshooting.............................................................................................................................99
14.2 Inspection and Maintenance .......................................................................................................100
14.2.1 Notices Concerning the Inspection.....................................................................................100
14.2.2 Notices Concerning the Inspection Plan.............................................................................101
14.2.3 Test Instructions .................................................................................................................106
14.3 Rating Plate and Serial Number ...................................................................................................136
14.4 Spare Parts ...................................................................................................................................136
14.5 Revision Statuses .........................................................................................................................136
15 Disposal ...................................................................................................................................................137
15.1 Packaging .....................................................................................................................................137
15.2 Disposal of the Device..................................................................................................................137
15.3 National Regulations....................................................................................................................137

Operating Light System marLED® X
Service Manual
8Revision 02
1General Information
1.1 Manufacturer
We thank you for buying one of our products.
This product bears the CE mark. This means that it meets the basic requirements on the safety and the
performance of medical devices set forth by the respective applicable European regulations.
We are the manufacturer of this product:
Gebrüder Martin GmbH & Co. KG
A company of the KLS Martin Group
KLS Martin Platz 1 · D-78532 Tuttlingen · Germany
P.O. Box 60 · D-78501 Tuttlingen · Germany
Phone [phone] · Fax [phone]
[email protected] ·www.klsmartin.com
1.2 Hotline
Should you have any questions on how to handle the device or product or use it for clinical applications,
please do not hesitate to contact the Product Management:
Phone: [phone]
Fax: [phone]
In case of technical questions and questions regarding maintenance contracts and training, please contact
our Martin Service Center:
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
To answer your technical questions as efficiently as possible, our service technicians require the catalogue
number (REF), serial number (SN) and the manufacturing date (
) of the product. All this information can
found on the rating plate; see section
14.3 “Rating Plate and Serial Number”, page 136.
1.3 Obligation to Report Incidents
All serious incidents occurring in connection with the product must be reported to Gebrüder Martin and
the respective authorities without delay.

Operating Light System marLED® X
Service Manual
Revision 02 9
1.4 Notes on this Document
Possible danger to the life of patients, users and others when this Service Manual is disregarded!
Read this Service Manual completely
and follow it carefully. In particular, be sure to note all cautionary,
warning and hazard notices.
This document refers to persons of all genders alike. Reference to various genders is avoided purely for
reasons of improved readability.
1.5 Terms & Acronyms
Acronym Description
ASPS Additional safety power supply (battery)
Cardanic system Light head suspension up to spring arm, with one or more cardan joints
Fully cardanic Cardanic system with 2 cardan joints, rotatable in 3 axes
LC cardanic Low-ceiling cardanic suspension: simplified cardanic system with one cardan joint, rotatable in 2 axes,
for use in low rooms
COM COM interface RS232 for marLED® or surgiCam®
ICA Intermediate ceiling assembly
LED Light-emitting diode(s)
Light engine LED illumination unit with 16 individual LEDs
marTouch® Pro Control unit for the operation of cameras and lights marLED® X
mLB marLED® bus (galvanically isolated bus)
PA coating Polyamide coating
PE Protective conductor (protective earth)
Power module/SMPS Switched-mode power supply for the light
sensoGrip Multifunction handle unit for sterilizable handles or sterile disposable covers
surgiCam® Camera system in variant surgiCam® HD, surgiCam® HD Wireless and surgiCam® 4K Wireless
SW Wrench size
1.6 Validity of this Document
This document applies to deliveries from the Date of Release: marLED® X from SN 89900000.

Operating Light System marLED® X
Service Manual
10 Revision 02
1.7 Accompanying Documents
•Instructions for Use Operating Light System marLED® X
•Mounting Instructions Operating Light System marLED® E9i/E15 (battery) and X
Settings or installation steps already described in the marLED® Mounting Instructions are not explained
again in the present document.
•Mounting Instructions Ceiling Anchor Plate, Intermediate Ceiling Assembly
1.8 Notices for Service Technicians
•To keep the lights as well as their mounting systems in a perfect technical condition, it is essential for
you as a service technician to perform your work with utmost precision and expertise. This service
document is intended to support you in performing your highly responsible work.
•While participation in a service training course authorizes technicians to perform mounting and service
work, it does not confer any authorization for providing user advice! Regarding the latter,
Gebrüder Martin offers special product training.
•Information on torques and screw lock for screws to be used during the service work can be found in the
text for the illustrations and in section 3.4 “Torques for Metric Threads”, page 17.
1.9 Cable Colors
Depiction Color Depiction Color
BU Blue RD Red
OG Orange SR Silver
GN Green TQ Turquoise
BN Brown VT Violet
WH White YE Yellow
BK Black OGWH* Orange-White
GD Gold GNWH* Green-White
GY Grey BUWH* Blue-White
PK Pink BNWH* Brown-White
* In case of multi-color cables, the corresponding acronyms are simply combined.

Operating Light System marLED® X
Service Manual
Revision 02 11
2Intended Use
2.1 Intended Purpose
The operating lights may be used only for illumination of a surgical or examination field.
Danger of serious
injury from electric shock!
To prevent any risk of electric shock, be sure to connect the lights only to power supply systems providing
protective grounding.
Risk of injury due to unauthorized modification of the product!
Altering the product in any
way can pose a life hazard due to electric shock caused by a defect in the light.
Moreover, it can result in the light crashing down or the spring arm snapping up violently in response to
high spring forces! Therefore, unauthorized modifications are strict
ly forbidden under any circumstances.
Danger of infection by contaminated system components!
•
Make sure that all system components have been properly cleaned and disinfected before starting any
servicing work on the light system.
Risk of
interference and malfunction
As a medical electrical device, the operating light is subject to special precautions regarding
electromagnetic compatibility (EMC).It is mandatory to install and operate the device in accordance with
the EMC Guidelines.
Operat
ing HF devices in the vicinity of the operating light may impair the function of the operating light.
•
Observe separation distances.
Using the operating light in conjunction with accessories other than those approved by the manufacturer
may lead to increase
d interference emission and reduce the immunity of the operating light.
•
The operating light should not be placed next to or onto other devices. If close proximity to other
devices cannot be avoided, be sure to verify the functional reliability of the operating light before using
the operating light in such setup.
•
Do not suspend or route any cables on or over the operating light system.

Operating Light System marLED® X
Service Manual
12 Revision 02
The operator may operate the device only if an on-site functional test has previously been performed by
Gebrüder Martin or a person authorized by Gebrüder Martin. In addition, a responsible person designated
by the operator must have been instructed in the proper handling, application and operation of the device,
as well as in its permissible combination with other medical devices, objects and accessories. This duly
instructed officer shall subsequently be responsible for familiarizing the operator’s staff with the device as
the need arises.
We recommend documenting all user instructions in a medical device logbook. A copy of the logbook is
available from Gebrüder Martin.
The operational safety of the device must be verified at regular intervals, see section 14.2 “Inspection and
Maintenance”, page 100.
If the device is not functionally reliable and/or safe to operate, it must be marked as such and withdrawn
from service. A technical check is mandatory in any such case.

Operating Light System marLED® X
Service Manual
Revision 02 13
3Safety Notices
3.1 General Information
Gebrüder Martin operating lights are quality products designed and manufactured in accordance with the
recognized technical rules. The products leave the factory in a perfectly safe working condition.
To maintain this status, you – as the user – are required to abstain from or prevent any action that might
have an adverse effect on the lights’ safety characteristics.
•Carefully read the safety instructions relating to servicing work!
•Be sure to follow the instructions provided in this document!
Should the light or any of its components become damaged or defective
•Disconnect the light from the power supply!
•Safeguard the light and its components against dangerous contact! Place warning signs where
appropriate!
•Contact the manufacturer or service technician at once!
Service work
•Any service work must be performed:
–by qualified persons specially authorized by Gebrüder Martin to perform such tasks
–in accordance with the instructions provided in this manual
–competently and with utmost precision
–in compliance with relevant technical, safety and accident-prevention regulations
•The parts to be mounted must be checked for defects and potential damage in transit immediately upon
receipt of the goods.
Inspection
•Check all safety-related parts according to the inspection plan.
•The results must be documented in the inspection plan.
The test instructions for inspection and the inspection plan can be found in section 14.2 “Inspection and
Maintenance”, page 100.
We recommend checking all functions of the light, the spring/tracking arms, the ceiling tube and the power
supply for proper working order at regular intervals.
Every 24 months, an inspection must be carried out by an authorized person. The description and
corresponding inspection plan can be found in section 14.2 “Inspection and Maintenance”, page 100.
Upon completion of any repair or service work, it is mandatory for the service technician to check all
functions of the light, the tracking and spring arms and the power supplies, thus ensuring their proper
working order and operational safety!

Operating Light System marLED® X
Service Manual
14 Revision 02
Only components or systems approved as accessories by Gebrü
der Martin may be attached, installed or
fixed to the lighting systems.
3.2 Personal Protection
Danger of serious injury from electric shock!
•
Before starting any servicing work, verify that all power supply lines are off-circuit and cannot be
energized while working on the light!
•
The building installation must include a disconnector (e.g. circuit breaker) allowing all-pole and
simultaneous disconnection of all electric circuits of the light (100–240 V mains supply, 24–36 V direct
voltage supply) from the power source to which the light is connected. The switch or circuit breaker
used must comply with IEC 61058-1 requirements regarding creepage distances and clearances or must
be UL-listed.
•
To prevent any risk of electric shock, be sure to connect the lights only to power supply systems
providing protective grounding.
•
For mobile lights with detachable mains plug (power supply cable), free access to the socket-outlet
must be possible at any time to ensure that the light can be easily disconnected from the power
supply.
•
The DC voltage supply of the light must meet the requirements of safety extra-low voltage (SELV)
according to IEC 60601-1.
•
Be sure to switch off the building-side circuit breaker before performing any servicing work on the light
system!
•
The mains connecting wires must be protected against accidental loosening or fracture at the terminal
(strain relief)!
Danger of serious injury from defective lights!
Defective operating lights can damage the health or even threaten the lives of users and/or
patients!
•
Therefore, never operate defective lights!

Operating Light System marLED® X
Service Manual
Revision 02 15
Danger of explosion!
The operating light may be used only at a safe distance from openings or surfaces emitting or releasing
anesthetic gases, oxygen or other flammable or oxidizing gases.
Danger of damage or injury due to high weight!
Some components of the lighting system are heavy!
Falling system components can lead to personal injury and property damage.
•
Never attempt alone to replace heavy system components to be disassembled, but do this always
together with an assistant and, if required, support such components with a lifting device.
Danger of injury due to high spring forces!
Spring arms whose loads (light heads or light head subassemblies) are detached, or whose transport
protection is removed, can snap upwards quickly and with great strength and thus cause severe injuries!
•
Before removing a load from a spring arm, always block the spring arm vertically or tie it down first!
Danger of injury and risk of damage caused
by defective service tools!
•
Verify that the mounting and service aids used – such as ladders, mounting scaffolds and lift frames –
comply with valid safety standards!
Observe national/local safety guidelines and regulations!
The Medical Devices Act
(MPG) and accident prevention regulations (BGV) are essential parts of the legal
framework to be respected in Germany. Be sure to observe your applicable local laws, directives and
regulations as well!

Operating Light System marLED® X
Service Manual
16 Revision 02
3.3 Screw Locking
All screws that are mounted during initial installation or replaced in the context of inspection or conversion
measures must be original spare screws equipped with threadlocker.
Spare screws supplied by Gebrüder Martin come with a PA coating (blue polyamide coating) as
threadlocker.
Risk of loosening of non
-secured screw connections!
If screws are mounted without threadlocker (thread
-locking fluid/compound), they may break loose over
time in the course of using the light.
•
Observe “Secure screws using threadlocker”.
•
If dismounted screws are reinserted, a thread-locking fluid must be used.
Screws affected by this risk are marked in this document with the following symbol.
Secure screws using threadlocker!
•Always secure screws when re-inserting them, using suitable (medium-strength)
threadlocker (e.g. DELO-ML® 5249).
•Alternatively, use a spare screw with PA coating.

Operating Light System marLED® X
Service Manual
Revision 02 17
3.4 Torques for Metric Threads
Danger of injury from falling parts!
Parts of the system may fall down if safety
-relevant screws are not tightened with the correct tightening
torque.
•
Always tighten screws/nuts with the specified tightening torque!
Components affected by this are highlighted with the following symbol in this document.
Tighten screw/nut with correct torque!
•
If no torque is specified for service work, although it is required, please refer to the following table for
the required torque.
Dimension Torque in Nm Dimension Torque in Nm
M4 3.5 M12 93
M5 6.5 M16 195
M6 11.5 M20 280
M8 27 M50x1.5 160 (groove nut for central bearing shaft)
M10 54
Screws of strength class 8.8 with friction factor µk = µG = 0.14
3.5 Greasing
Potential premature wear of safety
-relevant components!
Locking segments and other components are subject to increased wear if they are not greased regularly.
Components affected by this are highlighted with the following symbol in this document.
Grease with RENOLIT AS at this location!
•Order RENOLIT AS grease tube under REF 08-699-04-04.

Operating Light System marLED® X
Service Manual
18 Revision 02
4Voltage supply
4.1 Power Modules of the Lights/Structure of the Ceiling Tube
The ceiling tube offers altogether 6 mounting positions (MP1–MP6).
Rules
•The numbering of the mounting locations starts clockwise on the right with MP1, next to the central
equipotential bonding terminal.
•MP1 contains the power supply unit of the consumer at the lowest tracking arm. In the example, this
could be a marLED® E9i, E15 or X operating light, or a surgiCam® camera on a separate arm.
•If the configuration includes additional arm systems (example: MP2 with a light), the power modules of
their consumers are assigned to the following mounting positions (MP2–MP4).
•MP3 contains the input terminals (120-230 V) for power supply to a device that is powered by mains
voltage (e.g. marLED® E3, heat radiator or surgiCam® HD Wireless receiver unit).
•MP4 includes a preparation for installation of a monitor power supply unit.
•MP5 always contains the COM interface or the CAN board.
•MP6 always includes the central equipotential bonding terminal.
The plug connections from the ceiling tube to the lights are coded with the same color as the mounting
locations: MP1: RD, MP2: YE, MP3: BU, MP4: GN.
•If the configuration includes TFT Duo monitors (with through-cabling, which is only possible for the
lowest (MP1) or uppermost (MP4) tracking arm), their PSUs are distributed to 2 mounting positions as
follows:
–With the bottom-most tracking arm, use MP1 and the 1st unoccupied MP (e.g. MP3 if only 2 tracking
arms are involved).

Operating Light System marLED® X
Service Manual
Revision 02 19
On
-site connection requires the supply lines to be fused separately for each mounting position.
4.2 SMPS 28/6 Power Module
4.2.1 IT Grids and Standard Grids
For IT grids (power supply: Insulated, consumer protection: grounding (French: Terre)) the input N fused
(X12) is used.
In case of standard grids with grounded neutral conductor, the unprotected N-input (X10) is used.
The serial terminals (3) are used for connection of monitor power supply units.

Operating Light System marLED® X
Service Manual
20 Revision 02
4.2.2 Circuit Diagram without ASPS Assembly
Power module SMPS 28/6 S1.8 U
100–240 VAC 50–60 Hz
Input current 2–1 A
Output Power max. 180 VA (30 ± 0.75 VDC)
Input N fused only for IT grids (floating power supply)
Connector Connector designation Fuse rating
X1 Input 100–240 VAC, 50–60 Hz F1/F2
X3 Output 30 ± 0.75 VDC T 5 AH, 250 V
Terminal connection X1 X3
Conductor cross-section, flexible leads: max. 2.5 mm 16 mm
Conductor cross-section w. connector sleeve: max. 2.5 mm 16 mm
For IT grids (power supply: Insulated, consumer protection: grounding (French: Terre)) the input N fused is
used. In case of standard grids with grounded neutral conductor, the unprotected N-input is used.
