Klutch 103263 User manual

READ & SAVE THESE INSTRUCTIONS
Klutch 100ft. 1/2in. O.D. Nylon Tubing Master Kit with 3/8in. I.D.
Owner’s Manual
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #103263

Page 2 of 11
Thank you very much for choosing a Klutch product!
For future reference, please complete the owner’s record below:
Serial Number/Lot Date Code (if applicable): _____________________
Purchase Date: ____________________________________________
Save the receipt, warranty, and this manual. It is important that you read
the entire manual to become familiar with this product before you begin
using it.
This product is designed for certain applications only. Northern Tool &
Equipment is not responsible for issues arising from modification or
improper use of this product such as an application for which it was not
designed. We strongly recommend that this product not be modified
and/or used for any application other than that for which it was designed.
For technical questions, please call 1-800-222-5381.

Page 3 of 11
Table of Contents
Intended Use..........................................................................................................................................4
Packaging Contents..............................................................................................................................4
Technical Specifications ......................................................................................................................4
Important Safety Information...............................................................................................................4
Operating Instructions..........................................................................................................................6
Maintenance ..........................................................................................................................................8
Parts Diagram........................................................................................................................................9
Parts List................................................................................................................................................9
Replacement Parts................................................................................................................................9
Limited Warranty.................................................................................................................................10

Page 4 of 11
Intended Use
The air piping system allows you to design and install your own personalized air system any way you
want. The hose fits easily into the included connectors. No special skills or equipment are needed.
Just push the tubing into the fitting until fully seated. The nylon hose is flexible enough to get around
large radius corners without special fittings. The system can be mounted on the surface of a wall or
behind the wall with flexible clamps that allow the tubing to move.
Packaging Contents
•100ft. of 1/2in. O.D. with
3/8in. I.D. nylon tubing
(1)
•Aluminum outlet blocks
3/8in. NPT (1)
•Aluminum outlet blocks
3/8in. NPT,1/4in. NPT (2)
•Drain Valve 3/8in. NPT
(2)
•1/4in. NPT Male adaptor
Nipple (2)
•3/8in. NPT plug (3)
•1/4in. NPT 45°fitting (2)
•3/8in. NPT straight fittings
(6)
•Union elbow (4)
•Cutter (1)
Technical Specifications
Property
Specification
Number of Pieces
24pcs
Tube Length
100 ft.
Tube Inside Diameter
3/8 in.
Tube Outer Diameter
1/2 in.
Max. Pressure
150PSI
Material
Nylon
Temperature Range
-4F to 140°F
Important Safety Information
⚠WARNING
•Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
•The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this tool. Always be
aware of the environment and ensure that the tool is used in a safe and responsible manner.
•Do not allow persons to operate or assemble the product until they have read this manual and
have developed a thorough understanding of how it works.
•Do not modify this product in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the product. There are specific applications for which the product

Page 5 of 11
was designed.
•Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. It will
be a safer experience and do the job better at the capacity for which it was intended. DO NOT use
this equipment for a purpose for which it was not intended.
•Industrial or commercial applications must follow OSHA requirements.
⚠WARNING
WORK AREA SAFETY
•Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas
may put you dangerously close to cutting tools and rotating parts.
•Do not use the product where there is a risk of causing a fire or an explosion; e.g., in the presence
of flammable liquids, gases, or dust. The product can create sparks, which may ignite the
flammable liquids, gases, or dust.
•Do not allow the product to come into contact with an electrical source. The tool is not insulated
and contact will cause electrical shock.
•Keep children and bystanders away from the work area while operating the tool. Do not allow
children to handle the product.
•Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your
work area. Some of these hazards may be hidden from your view and may cause personal injury
and/or property damage if contacted.
⚠WARNING
PERSONAL SAFETY
•Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use
the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of
inattention while operating the tool may result in serious personal injury.
•Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving
parts. Air vents on the tool often cover moving parts and should be avoided.
•Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety
goggles (not safety glasses) with side shields, or when needed, a face shield. Use a dust mask in
dusty work conditions. Also use non-skid safety shoes, hardhat, gloves, dust collection systems,
and hearing protection when appropriate. This applies to all persons in the work area.

Page 6 of 11
•Do not overreach. Keep proper footing and balance at all times.
⚠CAUTION
PRODUCT USE AND CARE
•Do not force the product. Products are safer and do a better job when used in the manner for
which they are designed. Plan your work and use the correct product for the job.
•Check for damaged parts before each use. Carefully check that the product will operate properly
and perform its intended function. Replace damaged or worn parts immediately. Never operate the
product with a damaged part.
•Store the product when it is not in use. Store it in a dry, secure place out of the reach of children.
Inspect the tool for good working condition prior to storage and before re-use.
•Use only accessories that are recommended by the manufacturer for use with your product.
Accessories that may be suitable for one product may create a risk of injury when used with
another tool. Never use an accessory that has a lower operating speed or operating pressure than
the tool itself.
•Keep guards in place and in working order. Never operate the product without the guards in place.
Operating Instructions
⚠WARNING
Do not over tighten. Damage may occur to the pipe if nut is over tightened.
The tool may contain high pressure. Wear safety goggles. Wear gloves that provide protection based
on the work materials or to reduce the effects of tool vibration.
Wear protective clothing designed for the work environment and tool.
Non-skid footwear is recommended to maintain footing and balance in the work environment.
Keep hands clear of the exposed rubber portions of the hose.
Never point the air stream or tool at any point of your body, other people or animals. Debris and dust
ejected at high speed can cause an injury.
Serious injury or death may occur from inhaling compressed air. The air stream may contain carbon
monoxide, toxic vapors or solid particles. Never inhale compressed air directly from the pump or air
tool.
Do not let comfort or familiarity with product (gained from repeated use) replace strict adherence to
the tool safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal
injury.
Use the correct tool for the job. This tool was designed for a specific function. Do not modify or alter

Page 7 of 11
this tool or use it for an unintended purpose.
Do not use the tool if any parts are damage broken or misplaced. Repair or replace the parts.
Check the air pressure at the terminal point for each tool, to make sure the pressure does not
exceed the tool’s maximum PSI. Consult the tool’s specifications for this rating.
Never yank on the air flow hose system. Keep the air flow hoses away from heat, oil and sharp
edges.
Do not use the air flow system to spray corrosive materials, toxic chemicals, fertilizers or pesticides.
Make sure to close or shut off the air supply and drain the remaining air in the system before
maintenance and configuration changes.
Use only clean and dry compressed air as a power source. Contaminated or moist air will gradually
damage the tool.
Install an in-line shutoff valve or regulator to allow immediate control over the air supply in an
emergency, even if a hose is ruptured.
Check the manufacturer’s maximum pressure rating for air tools and accessories. Compressor outlet
pressure must be regulated to never exceed the maximum pressure rating of the tool (see
Specifications). Exceeding the maximum PSI rating can create a bursting hazard, causing injury and
property damage.
Attach all accessories properly to the tool before connecting the air supply. A loose accessory may
detach or break during operation.
Never use oxygen, combustible gas or any other bottled gas as a power source. Any power source
other than an air compressor could cause an explosion and serious personal injury.
Turn OFF the valve and discharge any remaining air pressure after each use or before adjusting the
tool.
Inspect the air hose for cracks, fraying or other faults before each use. Discontinue use if the air
hose is damaged or hissing is heard from the air hose or couplers. Replace the defective air hose.
Do not allow people, mobile equipment or vehicles to pass over the unprotected air hose.
Remove the parts and accessories from the packaging and inspect for damage. Make sure that all
items in the Identification Key are included. Your installation may not use all the components in this kit.
Sketch out the layout with measurements to make sure you have enough hose length and
components to create the system you want.
Assembly of threaded components
Assemble all NPT threads with teflon tape and then pipe paste/sealant which prevents thread galling.
The Nylon tubing will expand and contract slightly with changes in temperatures. For the in-wall
system allow slack between studs/fittings. Before installation, unroll the tubing and allow it relieve for
several hours, putting it in sunlight helps this process. Only cut tubing with the supplied cutter. Tools
such as side cutters leave a jagged edge which does not allow the tubing to seal properly in the fitting.
1.To install tubing into fittings cut tubing squarely using supplied cutter.
2.Insert tubing into fitting until it bottoms, a slight twisting motion will ease insertion.

Page 8 of 11
3.Pull on tubing to verify it is properly seated in fitting.
4.To disassemble, simply push the release button against the body and remove tubing.
5.For re-insertion, cut off marred end of tubing and repeat process.
6.Tubing must be inserted 3⁄4” into fitting to seal properly
Maintenance
Maintain the product by adopting a program of conscientious repair and maintenance in accordance
with the following recommended procedures. It is recommended that the general condition of any tool
be examined before it is used. Keep your tool in good repair. Keep all cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to
control. Keep handles dry, clean, and free from oil and grease. Also refer to the engine manufacturer’s
instruction manual for additional information about engine maintenance. The following chart is based
on a normal operation schedule.
Maintenance Interval
Maintenance Point
Every month
Keep every part clean.
Inspect the tool fittings, alignment, hoses and power supply
cord periodically. Have damaged or worn components
repaired or replaced by an authorized technician. Only use
identical replacement parts when servicing.

Page 9 of 11

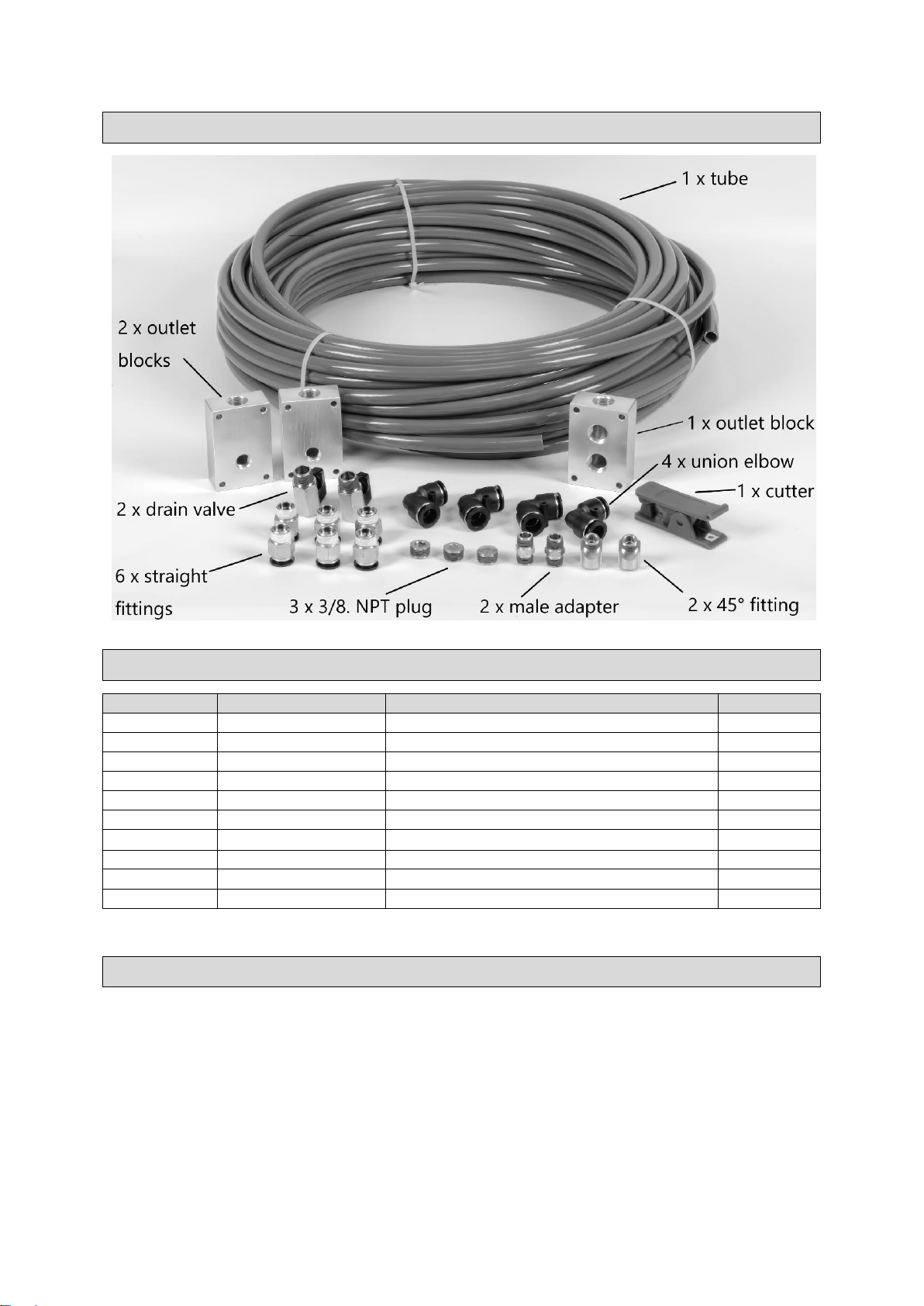

Parts Diagram
Parts List
Reference
Part Number
Part Description
Quantity
1
1
100 feet of 3/8in. nylon tubing
1
2
2
Aluminum outlet blocks 3/8in. NPT
1
3
3
Aluminum outlet blocks 3/8in. NPT,1/4in. NPT
2
4
4
Drain Valve 3/8in.NPT
2
5
5
1/4in. NPT Male adaptor Nipple
2
6
6
3/8in. NPT plug
3
7
7
1/4in. NPT 45°fitting
2
8
8
3/8in. NPT straight fittings
6
9
9
Union elbow
4
10
10
Cutter
1
Replacement Parts
•For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.
•Not all product components are available for replacement. The illustrations provided are a
convenient reference to the location and position of parts in the assembly sequence.
•When ordering parts, the following information will be required: item description, item model
number, item serial number/item lot date code, and the replacement part reference number.
•The distributor reserves the rights to make design changes and improvements to product lines
and manuals without notice.

Page 10 of 11
Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or "Us'') warrants to the original purchaser only
("You'' or "Your") that the Klutch product purchased will be free from material defects in both materials
and workmanship, normal wear and tear excepted, for a period of one year from date of purchase.
The foregoing warranty is valid only if the installation and use of the product is strictly in accordance
with product instructions. There are no other warranties, express or implied, including the warranty of
merchantability or fitness for a particular purpose. If the product does not comply with this limited
warranty, Your sole and exclusive remedy is that We will, at our sole option and within a commercially
reasonable time, either replace the product or product component without charge to You or refund the
purchase price (less shipping). This limited warranty is not transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect,
misuse, or as a result of any accident or in any other manner; (c) damage from misapplication,
overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration
in any manner by anyone other than Us, with the sole exception of alterations made pursuant to
product instructions and in a workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the original
purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the product by make
and model number, and follow the claim instructions that will be provided. The product and the
purchase receipt must be provided to Us in order to process Your warranty claim. Any returned
product that is replaced or refunded by Us becomes our property. You will be responsible for return
shipping costs or costs related to Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited warranty
or any other warranty related to the product. We shall not be liable for: service or labor charges or
damage to Your property incurred in removing or replacing the product; any damages, including,
without limitation, damages to tangible personal property or personal injury, related to Your improper
use, installation, or maintenance of the product or product component; or any indirect, incidental or
consequential damages of any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the specified
use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which vary
from state to state. Some states do not allow limitations or exclusions on implied warranties or
incidental or consequential damages, so the above limitations may not apply to You. This limited
warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to
conflicts of law. The state courts located in Dakota County, Minnesota shall have exclusive jurisdiction
for any disputes relating to this warranty.

Page 11 of 11
Distributed by:
Northern Tool & Equipment Company, Inc.
Burnsville, Minnesota 55306
www.northerntool.com
Made in Vietnam
