MANUAL 20428408(R08)

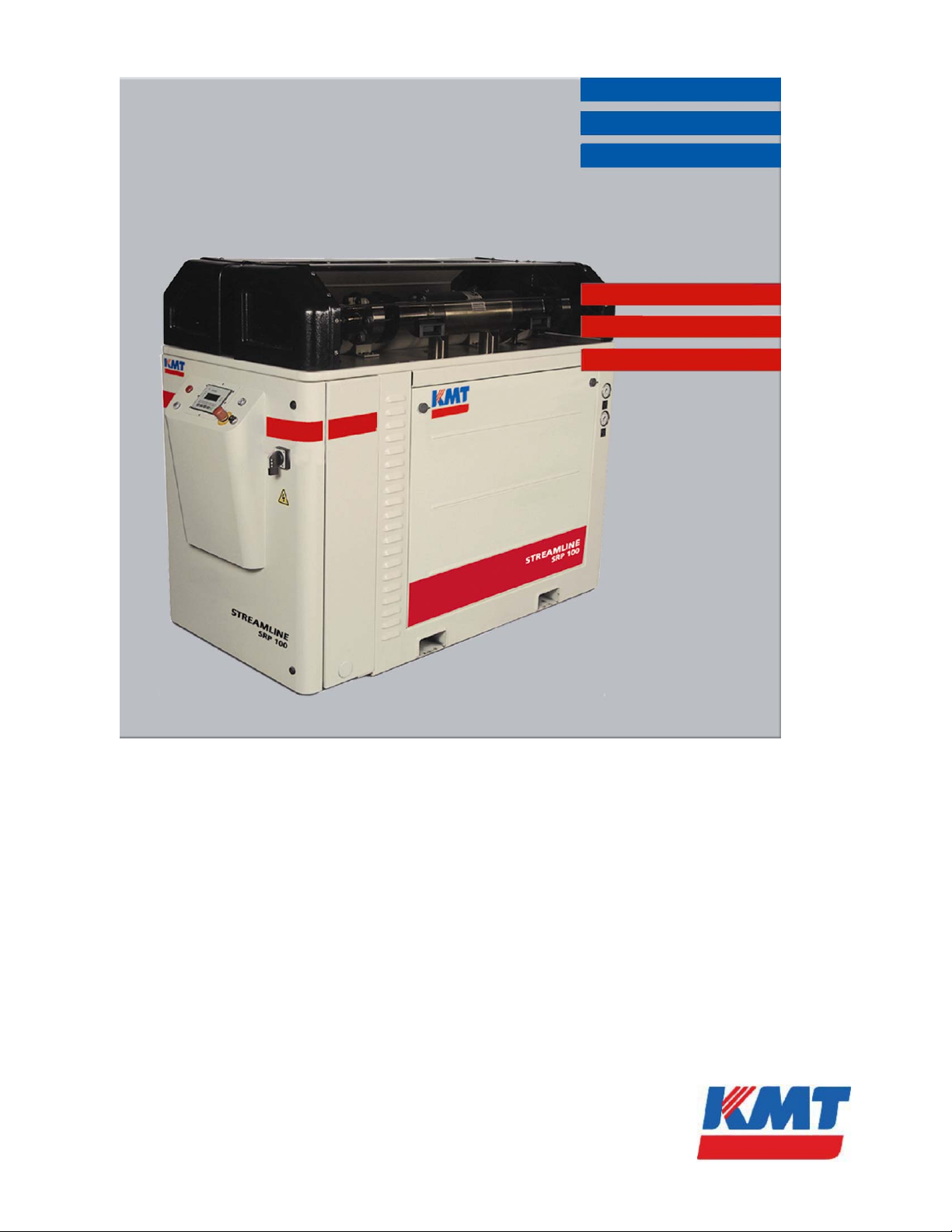

STREAMLINE SL-V SRP 100
WATERJET INTENSIFIER
OPERATION AND MAINTENANCE MANUAL

20428811
7-2007/Rev 03
NOTICE
This document contains subject matter in which KMT Waterjet Systems has
proprietary rights. Recipients of this document shall not duplicate, use or disclose
information contained herein, in whole or in part, for other than the purpose for
which this manual was provided.
KMT Waterjet believes the information described in this manual to be accurate and
reliable. Much care has been taken in its preparation; however, the Company cannot
accept any responsibility, financial or otherwise, for any consequences arising out of
the use of this material. The information contained herein is subject to change, and
revisions may be issued advising of such changes and/or additions.
KMT WATERJET SYSTEMS 2007
KMT Waterjet Systems
635 West 12th Street
POB 231
Baxter Springs, KS 66713-0231
Phone:
Fax: [phone] [phone]

20428811
7-2007/Rev 03 i
TABLE OF CONTENTS
Title Page
Notice
Table of Contents
Appendix
Section Page
1Introduction.......................................................................................................1-1
1.1 Overview................................................................................................1-1
1.2 Performance Features and Options........................................................1-1
1.3 Operational Overview............................................................................1-3
Low Pressure Water System..................................................................1-3
Recirculation System.............................................................................1-3
Hydraulic System...................................................................................1-3
High Pressure Water System .................................................................1-4
Operating System...................................................................................1-4
1.4 Safety .....................................................................................................1-5
Lockout/Tagout Procedure.....................................................................1-5
Warning Labels......................................................................................1-6
Emergency Medical Treatment..............................................................1-8
1.5 Worldwide Product Support ..................................................................1-9
1.6 Spare Parts .............................................................................................1-9
1.7 Manual Organization .............................................................................1-9
1.8 Equipment and Service Manual Questionnaire......................................1-10
Terms and Conditions of Sale
Terms and Conditions, Part Sales
Terms LD-146, Domestic Service Supervisor
Terms LD-147, International Service Supervisor
2Installation.........................................................................................................2-1
2.1 Overview................................................................................................2-1
2.2 Installation Summary.............................................................................2-1
2.3 Site Requirements..................................................................................2-2
Transporting...........................................................................................2-2
2.4 Power Requirements..............................................................................2-4
2.5 Service Connections...............................................................................2-4
Cooling Water........................................................................................2-5
Cutting Water.........................................................................................2-6
Drain ......................................................................................................2-6
Plant Air.................................................................................................2-6

20428811
7-2007/Rev 03 ii
Contaminated Waste Drain....................................................................2-6
2.6 Flow Requirements................................................................................2-7
2.7 High Pressure Piping..............................................................................2-8
Measurements and Dimensions .............................................................2-9
Hand Coning..........................................................................................2-10
Power Coning.........................................................................................2-11
Hand Threading .....................................................................................2-12
Power Threading....................................................................................2-12
2.8 High Pressure Connections....................................................................2-13
Standard Connections ............................................................................2-13
Anti-Vibration Connections...................................................................2-14
2.9 Commissioning......................................................................................2-15
2.10 Decommissioning ..................................................................................2-19
3Maintenance ......................................................................................................3-1
3.1 Overview................................................................................................3-1
3.2 Maintenance...........................................................................................3-1
Daily Inspection.....................................................................................3-1
Periodic Maintenance.............................................................................3-1
High Pressure System Maintenance.......................................................3-2
3.3 Maintenance Precautions.......................................................................3-3
4Operation...........................................................................................................4-1
4.1 Overview................................................................................................4-1
4.2 Startup Sequence....................................................................................4-2
Startup after Motor Stop ........................................................................4-2
Startup after Emergency Stop................................................................4-2
4.3 Display Controls ....................................................................................4-3
4.4 Main Menu.............................................................................................4-4
4.5 Run Screens ...........................................................................................4-4
4.6 Pressure Control Screen.........................................................................4-5
4.7 Setup Screens.........................................................................................4-6
4.8 Stroke Rate Screen.................................................................................4-8
4.9 Hours Screen..........................................................................................4-9
4.10 Run Screen Alarms................................................................................4-10
4.11 Alarm Banners.......................................................................................4-12
4.12 Alarms Screen........................................................................................4-13
Installing a New Battery ........................................................................4-15
4.13 Alarm History ........................................................................................4-16
Changing the Date and Time .................................................................4-16
4.14 Configuration Screen.............................................................................4-16
4.15 Maintenance Screen...............................................................................4-17
4.16 Language Screen....................................................................................4-18
4.17 Configuration II Screen..........................................................................4-18

20428811
7-2007/Rev 03 iii
5Low Pressure Water System............................................................................5-1
5.1 Overview................................................................................................5-1
5.2 Cutting Water Supply ............................................................................5-2
5.3 Operation................................................................................................5-2
5.4 Service and Maintenance Procedures ....................................................5-4
Filter Assembly and Strainer Maintenance............................................5-4
Booster Pump Adjustment.....................................................................5-5
6Recirculation System ........................................................................................6-1
6.1 Overview................................................................................................6-1
6.2 Operation................................................................................................6-2
6.3 Service and Maintenance Procedures ....................................................6-3
Hydraulic Oil Maintenance....................................................................6-3
Oil Filter Maintenance...........................................................................6-6
Operating Temperature Adjustment ......................................................6-7
7Hydraulic System..............................................................................................7-1
7.1 Overview................................................................................................7-1
7.2 Optional System Components................................................................7-2
7.3 Operation................................................................................................7-2
7.4 Service and Maintenance Procedures ....................................................7-4
Hydraulic Operating Pressure................................................................7-4
Motor Maintenance................................................................................7-6
Flexible Coupling Replacement.............................................................7-6
Hydraulic Compensator Maintenance....................................................7-8
Hydraulic Pump or Electric Motor Replacement...................................7-11
Hydraulic Oil Replacement....................................................................7-17
8Electrical System...............................................................................................8-1
8.1 Overview................................................................................................8-1
8.2 Optional System Components................................................................8-1
8.3 Operation................................................................................................8-2
Sensors and Solenoids............................................................................8-4
8.4 Service and Maintenance Procedures ....................................................8-9
Proximity Switch Maintenance..............................................................8-9
Optical Relay Maintenance....................................................................8-10
9High Pressure Water System...........................................................................9-1
9.1 Overview................................................................................................9-1
9.2 Operation................................................................................................9-2
9.3 System Components...............................................................................9-4
9.4 Service and Maintenance Overview ......................................................9-5
Torque Specifications ............................................................................9-6
Specialized Maintenance Tools .............................................................9-8
9.5 High and Low Pressure Water Piping....................................................9-9
9.6 High Pressure Cylinder Assembly.........................................................9-9

20428811
7-2007/Rev 03 iv
High Pressure Cylinder Assembly Removal..........................................9-10
High Pressure Cylinder Assembly Installation......................................9-11
High Pressure Cylinder Maintenance ....................................................9-12
9.7 Hard Seal End Caps...............................................................................9-13
Hard Seal End Cap Removal .................................................................9-13
Hard Seal End Cap Installation..............................................................9-14
9.8 Sealing Head..........................................................................................9-15
High Pressure Discharge Check Valve..................................................9-15
Low Pressure Inlet Check Valve............................................................9-17
Sealing Head Maintenance ....................................................................9-18
9.9 High Pressure Seal Assembly................................................................9-19
9.10 Hydraulic Cartridge Seal and Plunger Removal....................................9-21
Plunger Maintenance .............................................................................9-24
Plunger Installation................................................................................9-24
Hydraulic Cartridge Seal........................................................................9-25
9.11 Hydraulic Piston.....................................................................................9-26
Hydraulic Piston Removal.....................................................................9-27
Bearing Rings and Seal Assembly.........................................................9-29
Plunger Button Sockets, Seals and Retainer Pins..................................9-30
Internal Check Valves............................................................................9-30
Hydraulic Piston Installation..................................................................9-31
9.12 Hydraulic Cylinder Maintenance...........................................................9-32
9.13 High Pressure Attenuator.......................................................................9-32
9.14 High Pressure Dump Valve ...................................................................9-33
Pneumatic Control Valve.......................................................................9-34
Pneumatic Actuator................................................................................9-38
9.15 Weep Holes............................................................................................9-39
10 Troubleshooting ................................................................................................10-1
10.1 Overview................................................................................................10-1
10.2 Troubleshooting Guide ..........................................................................10-2
11 Specifications.....................................................................................................11-1
11.1 Overview................................................................................................11-1
11.2 Installation Specifications......................................................................11-1
Environment...........................................................................................11-1
Sound Level...........................................................................................11-1
Equipment Dimensions and Weights.....................................................11-2
Service Connections...............................................................................11-2
11.3 Water Specifications..............................................................................11-2
Cutting Water Supply ............................................................................11-2
Cooling Water Supply............................................................................11-3
Water Quality Standards........................................................................11-3
11.4 Electrical Specifications.........................................................................11-6
Electrical System ...................................................................................11-6
Ampacity and Power Voltage Requirements.........................................11-6

20428811
7-2007/Rev 03 v
11.5 Hydraulic and High Pressure Water System Specifications..................11-6
Hydraulic System...................................................................................11-6
High Pressure Water System .................................................................11-7
Orifice Capacity.....................................................................................11-7
Torque Specifications ............................................................................11-9
12 Parts List............................................................................................................12-1
12.1 Overview................................................................................................12-1
12.2 Part Nomenclature .................................................................................12-2
12.3 Index ......................................................................................................12-3
APPENDIX
Exhibit
System Schematic
Electrical Schematics
Material Safety Data Sheets

20428681
7-2007/Rev 02 1-1
SECTION 1
INTRODUCTION
1.1 Overview
The SL-V SRP 100 intensifier combines all the unique capabilities and advantages of waterjet
cutting systems with the reliability, ease of operation and service support that have made KMT
Waterjet Systems a leader in waterjet technology.
Table 1-1
SL-V SRP 100
Motor
Horsepower
Rating
HP Kw
Maximum
Operating
Pressure
Maximum
Flow Rate
(at full pressure)
Maximum Single
Orifice Diameter
(at full pressure)
100 75 35,000 psi (2,413 bar) 2.8 gpm (10.6 L/min) 0.026 inch (0.66 mm)
1.2 Performance Features and Options
The SL-V SRP 100 intensifier is designed with the same convenience and ease of access for
maintenance and service you have come to expect from KMT Waterjet. The hydraulic cylinder
head simply bolts to the hydraulic cylinder; each high pressure assembly can be removed and
serviced independently, and the hydraulic seal cartridge can be quickly replaced as a single unit.
The robust performance and standard features are the result of aggressive development and
decades of experience.
•Continuous operation at 35,000 psi (2,413 bar).
•The innovative hard seal end cap provides a metal-to-metal seal against the sealing head,
totally, eliminating the potential for leaks.
•While dramatically increasing seal life, the unique design of the patented HyperLifeTM
seal conforms to the cylinder bore as it expands under pressure, creating an absolute seal.
•The quick release design of the plunger greatly simplifies removal and installation.
•Comprehensive fault detection and troubleshooting logic monitor crucial pressure,
temperature and fluid levels.
•Warning and shutdown sensors guard against potential equipment damage.

Section 1
Introduction
20428681
7-2007/Rev 02 1-2
Performance options are available at the time of purchase, or as upgrades for existing equipment.
•The KMT Customer Service Department can provide real time diagnostics,
troubleshooting and data analysis through a modem interface for remote monitoring of the
programmable logic controller (PLC).
•Proportional pressure control allows the operator to select or vary the operating pressure
from the control display or remote console.
•The current operating pressure can be viewed from the control display with an optional
pressure transducer.

Section 1
Introduction
20428681
7-2007/Rev 02 1-3
1.3 Operational Overview
The following provides a brief overview of the function and primary components associated with
the individual systems. A detailed discussion of each system is provided in Sections 4 through 9.
Low Pressure Water System
The low pressure water system supplies the cutting water flow to the intensifier. Major system
components include the water filter assembly and the booster pump.
Figure 1-1: System Components
Recirculation System
The recirculation system is a cooling and filtration system that provides properly conditioned oil
to the main hydraulic system. Major system components include the recirculation pump, heat
exchanger, oil filter assembly and the hydraulic oil reservoir.
Hydraulic System
The hydraulic system supplies the intensifier with the hydraulic oil required to produce high
pressure water. Major system components include the electric motor, hydraulic pump, 4-way
directional control valve mounted on the hydraulic manifold.
LOW PRESSURE WATER SYSTEM
OIL FILTER
ASSEMBLY
HEAT
EXCHANGER
RECIRCULATION
PUMP
HYDRAULIC
MANIFOLD
HYDRAULIC
PUMP
ELECTRIC
MOTOR
RECIRCULATION SYSTEM
HYDRAULIC SYSTEM BOOSTER PUMP
WATER FILTER
ASSEMBLY
HYDRAULIC OIL
RESERVOIR

Section 1
Introduction
20428681
7-2007/Rev 02 1-4
High Pressure Water System
The high pressure water system is the heart of the waterjet system. Water is pressurized and
continuously delivered to the cutting head. As water passes through a tiny hole in the orifice,
water pressure is converted to water velocity capable of cutting most any material.
The major components include the high pressure cylinder assemblies, hydraulic cylinder
assembly, hydraulic piston, attenuator and the safety dump valve.
Figure 1-2: High Pressure System Components
Operating System
A programmable logic controller (PLC) provides basic intensifier shift control and monitors out
of limit conditions. Operator interface is through the control panel display where operating
parameters are set and monitored.
Figure 1-3: Control Panel Main Menu
HIGH PRESSURE
CYLINDER
ASSEMBLY
ATTENUATOR
HYDRAULIC
PISTON
HYDRAULIC
CYLINDER
ASSEMBLY
HIGH PRESSURE
CYLINDER
ASSEMBLY
SAFETY DUMP
VALVE

Section 1
Introduction
20428681
7-2007/Rev 02 1-5
1.4 Safety
The high pressure waterjet cutting system is a high energy cutting tool capable of cutting many
dense or strong materials. Do not touch or be exposed to high pressure water. High pressure
water will penetrate all parts of the human body. The liquid stream and the material ejected by
the extreme pressure can result in severe injury.
All personnel operating, servicing or working near the waterjet cutting equipment shall adhere to
the following safety precautions, as well as the applicable plant safety precautions.
•Only KMT factory trained, qualified personnel shall service and maintain the
equipment.
•The operator shall practice and promote safety at all times to avoid potential
injury and unnecessary downtime.
•The work area around the equipment shall be clean and free of debris and oil
spills.
•All protective guards, shields or covers shall be in place on the equipment at all
times.
•
Safety glasses and ear protection shall be worn when operating or
working near the equipment.
Lockout/Tagout Procedure
This lockout/tagout procedure is designed to protect all employees from injuries caused by the
unexpected energizing or startup of the machine, or the release of stored energy during service
and maintenance.
This is accomplished with energy isolating devices that prevent the transmission or release of
energy. An energy source is any source of electrical, mechanical, hydraulic, pneumatic,
chemical, thermal, or other energy source that could cause injury to personnel.
A lockout device utilizes a lock and key to hold an energy isolating device in the safe position
and prevents the machine from being energized. A tagout device is a prominent warning device
that can be securely attached to the machine warning personnel not to operate the energy isolating
device. This procedure requires the combination of a lockout device and a tagout device.
The lockout/tagout procedure applies to any employee who operates and/or performs service or
maintenance on the machine. Before any maintenance or repairs are performed, the machine
shall be isolated, and rendered inoperative as follows.
1. Shut down the machine by pressing the STOP button, and open the high pressure cutting
water valve to bleed the water and hydraulic pressure from the system.
2. Disconnect, lockout and tag the main, customer supplied, power source.

Section 1
Introduction
20428681
7-2007/Rev 02 1-6
3. Lockout and tag the circuit breaker/disconnect on the electrical enclosure door.
4. Close, lockout and tag the manual shutoff valves for all service connections: cutting water
in, cooling water in and out, and air.
Warning Labels
Warning labels are posted on the machine to indicate potential hazards. The operator and service
personnel shall pay particular attention to these warning labels. Table 1-2 describes the necessary
precautions and provides the part number required to order replacement labels.
Table 1-2
Warning Label Precautions
1
P/N 05114962
The electrical enclosure and motor junction box can
present an electrical shock hazard. Always disconnect
and lockout the main power before opening the
enclosure.
Always disconnect and lockout the main power and the
circuit breaker/disconnect on the electrical enclosure
door before performing any type of maintenance
2
P/N 05114970
The surface of high pressure water and hydraulic
components becomes hot during normal operation.
Failed, or failing components, can become extremely
hot during operation.
3
P/N 80082209
Ensure that all protective guards, shields or covers are
in place on the equipment at all times. Never operate
the pump with the guards removed.

Section 1
Introduction
20428681
7-2007/Rev 02 1-7
Table 1-2
Warning Label Precautions
P/N 05098017
4
High pressure water and/or hydraulic pressure can
remain in the system even when the pump has been shut
off. All pressure can be safely bled from the system by
opening the high pressure cutting water valve for a few
seconds after shutting off the pump.
Pressing the EMERGENCY STOP button turns the control
power to the intensifier off, stops the pump and bleeds
the high pressure water through the safety dump valve.
Depressurization of the high pressure system creates a
loud hissing sound when the dump valve opens. The
sound fades quickly as the pressure drops.
5
P/N 20415794
All personnel involved in the installation, operation
and/or service of the intensifier must carefully read,
understand and follow the procedures in this manual to
avoid creating unsafe conditions, risking damage to the
equipment, or personal injury.
Safety precautions and warnings for specific procedures are emphasized throughout this manual
as illustrated in the following examples. These precautions must be reviewed and understood by
operating and maintenance personnel prior to installing, operating or servicing the machine.
Adherence to all Warnings, Cautions and Notes is essential to safe and efficient service and
operation.
Warnings emphasize operating or service procedures, or conditions that can result
in serious personal injury or death.
Cautions emphasize operating or service procedures, or conditions that can result in
equipment damage or impairment of system operation.

Section 1
Introduction
20428681
7-2007/Rev 02 1-8
NOTE
Notes provide additional information that can expedite or improve operating or
service procedures.
Emergency Medical Treatment
An emergency medical card is included in the binder of this manual. This information should be
used to aid in the treatment of a waterjet injury. Additional cards may be obtained by contacting
KMT Waterjet Systems using the address or telephone number shown on the card.
Medical Alert
This card is to be carried by personnel working
with high pressure waterjet equipment. Obtain
medical treatment immediately for ANY high
pressure waterjet injuries.
KMT Waterjet Systems
635 West 12th Street
Baxter Springs, KS 66713
[phone]
This person has been working with water jetting at
pressures to 60,000 psi (374MPa, 4,137 bar, 3867
Kg/cm2) with a jet velocity of 3,000 fps (914 mps).
Foreign material (sand) may have been injected with
water. Unusual infections with microaerophilic
organisms occurring at lower temperatures have been
reported, such as gram negative pathogens as are
found in sewage. Bacterial swabs and blood cultures
may therefore be helpful. This injury must be treated
as an acute surgical emergency and be evaluated by a
qualified surgeon. Circulation may be compromised,
therefore, DO NOT APPLY HEAT TO INJURED
PART. For first aid: (1) Elevate injured part (2)
Antibiotics (3) Keep injured person NPO.

Section 1
Introduction
20428681
7-2007/Rev 02 1-9
1.5 Worldwide Product Support
The KMT Waterjet Customer Service Department is available to answer your questions regarding
equipment installation and service. Technical assistance is available by phone and on-site support
is available on request.
On-site technical assistance is available during equipment installation and startup. Additionally,
technical support for service and maintenance issues and training of operators and maintenance
personnel is available. Periodic training sessions are also conducted at KMT Waterjet and
customer facilities.
Contact the KMT Waterjet Customer Service Department for additional information.
USA Customer Service Department Europe Technical Manager
KMT Waterjet Systems
PO Box 231
635 West 12th Street
Baxter Springs, KS 66713
USA
Phone: [phone]
Fax: [phone]
Email: [email protected]
Email: [email protected]
KMT Waterjet Systems GmbH
Wasserstrahl-Schneidetechnik
Auf der Laukert 11
D-61231 Bad Nauheim
Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
1.6 Spare Parts
KMT Waterjet maintains a well-stocked Spare Parts Department, staffed by trained,
knowledgeable personnel. If required, emergency shipment is available. Contact the Customer
Service Department to order spare parts, or for additional information.
1.7 Manual Organization
This manual contains operating and maintenance procedures for the complete SL-V series.
Information is organized as follows:
•Section 1, Introduction, provides an overview of equipment features and options, a brief
operational overview, details regarding safety issues and contact information for product
support.
•Section 2, Installation, details installation requirements and procedures, and provides
systematic guidelines for commissioning the intensifier are also provided.
•Section 3, Maintenance, highlights routine and preventive maintenance requirements.
Precautions associated with high pressure cutting equipment are also reviewed.

Section 1
Introduction
20428681
7-2007/Rev 02 1-10
•Section 4, Operation, explains the control functions and the display panel where operating
parameters are set and monitored.
•Sections 5 through 9 are specific to each individual system. Each section contains a
detailed description of the principles of operation and the function of each system.
Routine maintenance procedures associated with the system are also provided.
•Section 10, Troubleshooting, is a comprehensive guide containing the information
required to diagnose problems and repair the machine.
•Section 11, Specifications, contains a comprehensive list of equipment specifications; a
detailed discussion of water quality standards and treatment guidelines; as well as flow
requirements for various orifice sizes.
•Section 12, Parts List, contains part numbers, descriptions and drawings to facilitate the
ordering of replacement parts.
1.8 Equipment and Service Manual Questionnaire
We are interested in your impression of the KMT Waterjet System recently installed at your
location. Your comments and recommendations will aid us in our continuing goal to improve our
products, and make our technical information more useful to our customers.
At your convenience, please take a few minutes to complete the following questionnaire, and
return it to the applicable Customer Service Department listed above.

20428681
7-2007/Rev 02 1
Equipment and Service Manual Questionnaire
1. General Appearance
Was the unit received in good condition? Yes No
Comments:
Is the unit a convenient size? Yes No
2. Controls
Are the controls user friendly? Yes No
Is the unit easy to operate? Yes No
Comments:
3. Performance
Does the unit perform smoothly and meet your expectations? Yes No
Does the unit run quietly? Yes No
Comments:
4. Did the installation and startup go smoothly? Yes No
Comments:
5. What features do you consider the most significant?
Quiet operation
Appearance
Performance/Operation
Repair/Maintenance
Other
6. What areas could be improved?
Appearance
Performance
Serviceability
Other

Equipment and Service Manual Questionnaire
20428681
7-2007/Rev 02 2
7. Manual Organization
Does the Table of Contents help you find topics easily? Yes No
Comments:
Is the information well organized? Yes No
Comments:
Is the page layout suitable for the material being presented? Yes No
Comments:
8. Graphics
Are the illustrations suitable for the material being presented? Yes No
Comments:
9. Text
Does the information adequately explain how to operate and service the
equipment? Yes No
Comments:
Are there paragraphs or procedures you feel need clarification? Please identify
them by page number and add your comments. Yes No
Comments:
Is there anything you would add or delete to make the manual more useful? Yes No
Comments:
Is there any information that should receive more emphasis? Yes No
Comments:
Name Title
Company Date
Address

(LD-101) 05/2007
Terms and Conditions of Sale
1. General
The Terms and Conditions of Sale outlined herein shall apply
to the sale by KMT Waterjet Systems Inc. (hereinafter referred to
as Company) of products, equipment and parts relating thereto
(hereinafter referred to as Equipment). Unless prior written
agreement is reached, it shall be understood that the Company's
proceeding with any work shall be in accordance with the terms
and conditions outlined herein
The Company will comply with applicable laws and
regulations in effect on the date of the Company's proposal as they
may apply to the manufacture of the Equipment. Compliance with
any local governmental laws or regulations relating to the location,
use or operation of the Equipment, or its use in conjunction with
other equipment, shall be the sole responsibility of the Purchaser.
2. Title and Risk of Loss
Title and risk of loss or damage to the Equipment shall pass to
the Purchaser upon tender of delivery F.O.B. manufacturing facility
unless otherwise agreed upon by the parties, except that a security
interest in the Equipment shall remain in the Company, regardless
of mode of attachment to realty or other property, until full
payment has been made therefor. Purchaser agrees upon request to
do all things and acts necessary to perfect and maintain said
security interest and shall protect Company's interest by adequately
insuring the Equipment against loss or damage from any cause
wherein the Company shall be named as an additional insured.
3. Assignment
Neither party shall assign or transfer this contract without the
prior written consent of the other party. The Company however
shall be permitted to assign or transfer, without the prior written
consent of the Purchaser, the Company's right to receive all or any
portion of the payment due from the Purchaser under this contract.
4. Delivery and Delays
Delivery dates shall be interpreted as estimated and in no event
shall dates be construed as falling within the meaning of "time is of
the essence".
The Company shall not be liable for any loss or delay due to
war, riots, fire, flood, strikes or other labor difficulty, acts of civil
or military authority including governmental laws, orders, priorities
or regulations, acts of the Purchaser, embargo, car shortage,
damage or delay in transportation, inability to obtain necessary
labor or materials from usual sources, faulty forgings or castings, or
other causes beyond the reasonable control of the Company. In the
event of delay in performance due to any such cause, the date of
delivery or time for completion will be adjusted to reflect the actual
length of time lost by reason of such delay. The Purchaser's receipt
of Equipment shall constitute a waiver of any claims for delay.
5. Taxes
The price does not include any present or future Federal, State,
or local property, license, privilege, sales, use, excise, gross
receipts or other like taxes or assessments which may be applicable
to, measured by, imposed upon or result from this transaction or
any services performed in connection therewith. Such taxes will be
itemized separately to Purchaser, who shall make prompt payment
to the Company. The Company will accept a valid exemption
certificate from Purchaser, if applicable. If such exemption
certificate is not recognized by the governmental taxing authority
involved, Purchaser agrees to promptly reimburse the Company for
any taxes covered by such exemption certificate which the
Company is required to pay.
6. Set Offs
Neither Purchaser nor any affiliated company or assignee shall
have the right to claim compensation or to set off against any
amounts which become payable to the Company under this contract
or otherwise.
7. Patents
The Company shall defend any Suit or proceeding brought
against the Purchaser and shall pay any adverse judgment entered
therein so far as such suit or proceeding is based upon a claim that
the use of the Equipment manufactured by the Company, and
furnished under this contract constitutes infringement of any patent
of the United States of America, providing the Company is
promptly notified in writing and given authority, information and
assistance for defense of same; and the Company shall, at its
option, procure for the Purchaser the right to continue to use said
Equipment, or to modify it so that it becomes non-infringing, or to
replace the same with non-infringing equipment, or to remove said
Equipment and to refund the purchase price. The foregoing shall
not be construed to include any agreement by the Company to
accept any liability whatsoever in respect to patents for inventions
including more than the Equipment furnished hereunder or in
respect of patents for methods and processes to be carried Out with
the aid of said Equipment. The foregoing states the entire liability
of the Company with regard to patent infringement.
8. Warranty
The Company warrants that the Equipment manufactured by it
and delivered hereunder will be free of defects in material and
workmanship for a period of twelve months from the date of
placing the Equipment in operation or eighteen months from the
date of shipment, whichever shall first occur. The Purchaser shall
be obligated to promptly report any failure to conform to this
warranty, in writing to the company within said period, whereupon
the Company shall, at its option, correct such nonconformity, by
suitable repair to such Equipment or, furnish a replacement part
F.O.B. point of shipment, provided the Purchaser has stored,
installed, maintained and operated such Equipment in accordance
with good industry practices and has complied with specific
recommendations of the Company. Accessories or equipment
furnished by the Company, but manufactured by others, shall carry
whatever warranty the manufacturers have conveyed to the
Company and which can be passed on to the Purchaser. The
Company shall not be liable for any repairs, replacements, or
adjustments to the Equipment or any costs of labor performed by
the Purchaser or others without the Company's prior written
approval.
The effects of corrosion, erosion and normal wear and tear are
specifically excluded. Performance warranties are limited to those
specifically stated within the Company's proposal. Unless
responsibility for meeting such performance warranties are limited
to specified shop or field tests, the Company's obligation shall be to
correct in the manner and for the period of time provided above.
THE COMPANY MAKES NO OTHER WARRANTY OR
REPRESENTATION OF ANY KIND WHATSOEVER,
EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND
ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY
DISCLAIMED.
Correction by the Company of nonconformities whether patent
or latent, in the manner and for the period of time provided above,
shall constitute fulfillment of all liabilities of the Company for such
nonconformities, whether based on contract warranty, negligence,
indemnity, strict liability or otherwise with respect to or arising out
of such Equipment.
