6 Intended Use
AZURA V 2.1S User Manual, V6860, Version 2.2
Intended Use
Note: Only use the device for applications that fall within the range of the
intended use. Otherwise, the protective and safety equipment of the device
could fail.
Description
2-position valves are used in the HPLC to bring in the sample from the sample
loop in the pumps high pressure flow, so that the sample is transported to the
column. The sample is brought into the sample loop with a syringe or a feed
pump. Multiposition valves serve for fractionating, eluent selection, or sample
selection.
2-position valves have 6 ports and 3 channels (6P/3C), multiposition valves
have 1 channel always.
Operating Ranges
Among others, the device can be used for analytical or purification tasks.
Device Overview
Various types of valves with different operating modes allow the use of these
valves for a variety of applications. It is important that valve drive and valve are
compatible.
You can mount additional manual valves to an optional mounting bracket that
can be fixed with screws on the AZURA modules or other devices. Find further
information on our website www.knauer.net.
Valves and Valve Drives
Valves and valve drives are completely assembled and tested when they leave
the factory.
Legend
1 valve drive with valve
2 valve for drive
3 manual valve
Fig. 1 overview of valves and valve drives
3
1
2

Intended Use 7
AZURA V 2.1S User Manual, V6860, Version 2.2
Front View
The valve drive has a display and a keypad.
Rear View
On the rear of the device there are the power-connection bushing, ground for
grounding the device, connections for external devices, symbols, warning signs
and serial number.
External devices can be connected to the valve drive in three different ways:
via remote connector
via LAN connector within a network
via RS-232 port
Legend
1 multifunction key [L] [>]
2 multifunction key [I] [<]
3 position indicator
4 adapter plate
5 valve for drive
6 bore holes for mounting bracket
Fig. 2 valve drive with 2-position valve
1
2
3
4
56

8 Intended Use
AZURA V 2.1S User Manual, V6860, Version 2.2
Valve Types
Generally, valves can be operated manually through a lever or electrically
through the valve drive. Valves are available as 2-position valves or multiposition
valves
Ports and channels are described by abbreviations to enable the identification of
a specific valve. Example: 6P/3C = 2-position valve with 6 ports and 3 channels.
In case of the multiposition valves, the input/output port is not counted.
Valves are available in stainless steel or PEEK and with 1/8¨ or 1/16¨ connectors.
2-Position Valves
2-position valves are used for injection, column switching, or column backflush-
ing. In case of the 2-position valves, the rotary motions of the electrical valve are
limited to 2 positions with a rotation angle of 60°.
You control 2-position valves either manually through a lever or electrically
through the valve drive.

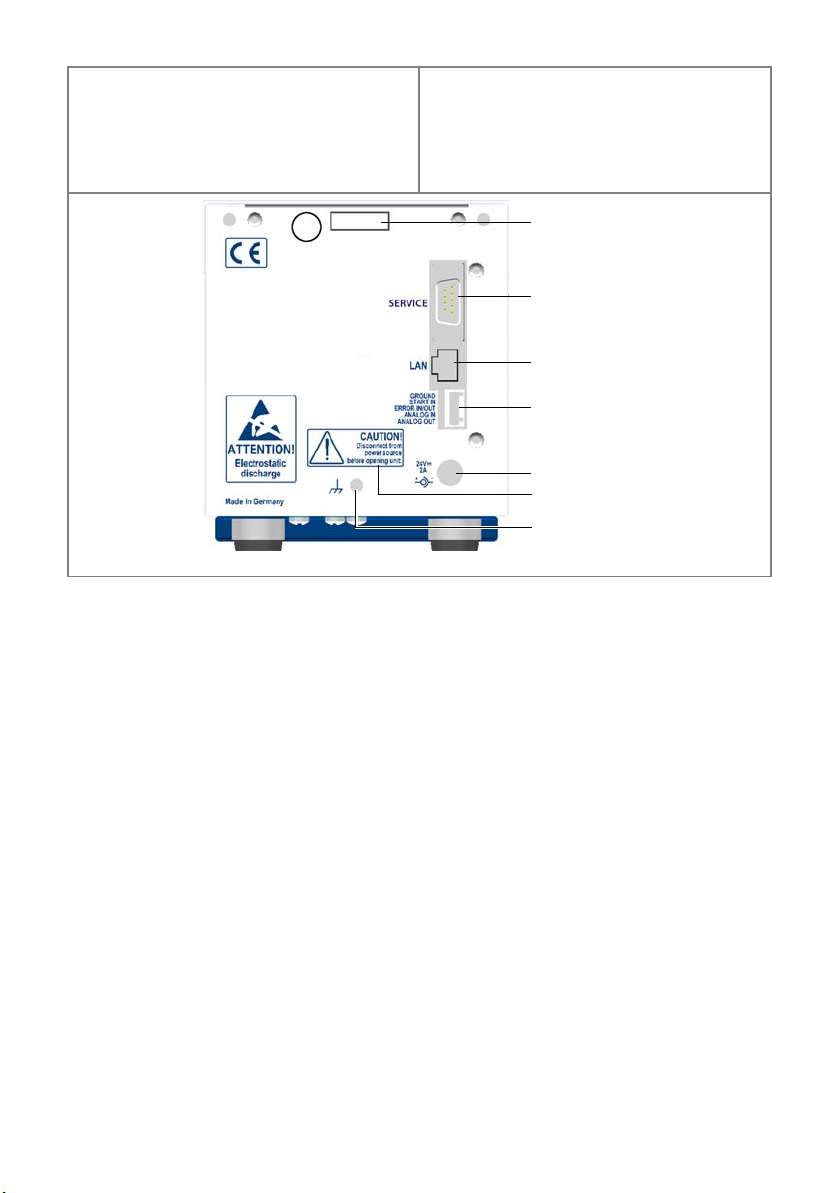

Legend
1 serial number
2 RS-232 port
3 LAN connector
4 remote connector
5 mains power connection
6 hole for the ground connection
Fig. 3 valve drive
1
2
3
5
4
6
7

Intended Use 9
AZURA V 2.1S User Manual, V6860, Version 2.2
Reed Contact
The reed contact inside the 2-position valve causes a short-circuit contact. This
short-circuit contact can be used as a start signal for the entire analytical system
or as a start signal for a measurement with the detector. The function is to be
set on the receiving device.
Multiposition Valves
Multiposition valves are used to switch fluid streams, e.g. the selection of elu-
ents, columns or for fractionating of eluate. Multiposition valves are employed
for fractioning if the form and the size of the fraction containers should be freely
selectable. By combining up to 8 multiposition valves, up to 120 positions can
be used for fractioning in applications in the preparative HPLC.
You control all multiposition valves electrically through a valve drive. 6P-multi-
position valves can alternatively be controlled manually through a lever.
Legend
1 adapter plate for mounting on the
valve drive
2 port number
3 channel
Fig. 4 scheme of a 2-position valve
1
4
62
53
12 3

10 Intended Use
AZURA V 2.1S User Manual, V6860, Version 2.2
Valve Drives
Valve drives are operated by a 24 V direct current motor. The valve drive and
the valve come factory-set. You can change the valve mode by using the DIP
switches (Dual-Inline Package) on the bottom of the device.
By means of chromatography software or a cable for remote control, certain
ports can be controlled directly on a valve.
switch duration of the valve: 150 ms
There is a matching valve drive for every valve type. 6P/3C valves and 6P-multi-
position valves operate on the same valve drive.
Note: Submit any questions about the possible combinations between valves
and valve drives to the Technical Support of KNAUER.
All valve drives come with a ready-mounted valve (see “Repeat Orders” on
page 43).
Seals
You are to use the seals according to their pressure resistance.
For pressures < 50 bar you can use a bicone seal.
For pressures > 50 bar you use Dynaseal for PEEK capillaries and screw fittings
with ferrules for stainless steel or titanium capillaries.
Legend
1 port number
2 connection between central port and ports 1-6
3 adapter plate for mounting on the valve drive
Fig. 5 scheme of a 6P-multiposition valve
123

Intended Use 11
AZURA V 2.1S User Manual, V6860, Version 2.2
Eluents
Chemical resistance of a valve depends on the stator material and the rotor seal.
Even small quantities of other substances, such as additives, modifiers, or salts
can influence the durability of the materials.
Note: The list of selected solvents was compiled based on research in the perti-
nent literature and is only a recommendation. If there is any doubt, contact the
Technical Support.
Legend
1 biconical seal
2 Dynaseal
3 screw fitting with ferrule
Fig. 6 seals
Material
pH range
Suitable Eluents Less Suitable Elu-
ents
Unsuitable Elu-
ents
POM-H-TF
pH 3-14
ethanol
ethylacetate
hexane
heptane
isopropanol
methanol
acetone
acetonitrile
dichlorometh-
ane
PPS HPV acetone
dichlorometh-
ane
ethanol
ethylacetate
hexane
heptane
isopropanol
methanol
1 M NaOH
50 mM
KH2PO4
acetonitrile
strong bases
oxydizing acids
2
13

12 Scope of Delivery
AZURA V 2.1S User Manual, V6860, Version 2.2
Scope of Delivery
Note: Only use original parts and accessories made by KNAUER or a company
authorized by KNAUER.
V 2.1S valve + valve drive
power adapter 24 V; max. 55 W + power cable
user manual DE/EN
Installation Qualification
AZURA accessories kit
Safety
Professional Group
The user manual addresses persons who are qualified as chemical laboratory
technicians or have completed comparable vocational training.
The following knowledge is required:
Fundamental knowledge of liquid chromatography
Knowledge regarding substances that are suitable only to a limited extent for
use in liquid chromatography
Knowledge regarding the health risks of chemicals
Vespel
pH 0-10
acetone
acetonitrile
ethanol
ethylacetate
hexane
heptane
isopropanol
methanol
50 mM
KH2PO4
Tefzel
pH 0-14
acetonitrile
ethanol
ethylacetate
hexane
heptane
isopropanol
methanol
dichlorometh-
ane
acetone
Material
pH range
Suitable Eluents Less Suitable Elu-
ents
Unsuitable Elu-
ents

Safety 13
AZURA V 2.1S User Manual, V6860, Version 2.2
Participation during an installation of a device or a training by the company
KNAUER or an authorized company.
If you do not belong to this or a comparable professional group, you may not
perform the work described in this user manual under any circumstances. In this
case, please contact your superior.
Safety Equipment
When working with the device, take measures according to lab regulations and
wear protective clothing:
Safety glasses with side protection
Protective gloves
Lab coat
What must be taken into account?
All safety instructions in the user manual
The environmental, installation, and connection specifications in the user
manual
National and international regulations pertaining to laboratory work
Original spare parts, tools, and solvents made or recommended by KNAUER
Good Laboratory Practice (GLP)
Accident prevention regulations published by the accident insurance compa-
nies for laboratory work
Filtration of substances under analysis
Use of inline filters
Once they have been used, never re-use capillaries in other areas of the HPLC
system.
Only use a given PEEK fitting for one specific port and never re-use it for
other ports. Always install new PEEK fittings on each separate port.
Follow KNAUER or manufacturer's instructions on caring for the columns
More safety-relevant information is listed below:
flammability: Organic solvents are highly flammable. Since capillaries can
detach from their screw fittings and allow solvent to escape, it is prohibited
to have any open flames near the analytical system.
solvent tray: Risk of electrical shock or short circuit if liquids get into the
device's interior. For this reason, place all bottles in a solvent tray.
solvent lines: Install capillaries and tubing in such a way that liquids cannot
get into the interior in case of a leak.
leaks: Regularly check if any system components are leaking.
power cable: Defective power cables are not to be used to connect the
device and the power supply system.

14 Safety
AZURA V 2.1S User Manual, V6860, Version 2.2
self-ignition point: Only use eluents that have a self-ignition point higher
than 150 °C under normal ambient conditions.
power strip: If several devices are connected to one power strip, always con-
sider the maximum power consumption of each device.
power supply: Only connect devices to voltage sources, whose voltage equals
the device's voltage.
toxicity: Organic eluents are toxic above a certain concentration. Ensure that
work areas are always well-ventilated! Wear protective gloves and safety
glasses when working on the device!
Where is use of the device prohibited?
Never use the system in potentially explosive atmospheres without appropriate
protective equipment. For further information, contact the Technical Support of
KNAUER.
Decommissioning the Device Securely
At any time, take the device completely out of operation by either switching off
the power switch or by pulling the power plug.
Opening the Device
The device may be opened by the KNAUER Technical Support or any company
authorized by KNAUER only.
Signal Words
Possible dangers related to the device are divided into personal and material
damage in this user manual.
Lethal injuries will occur.
Serious or moderate injuries can occur.
Minor injuries can occur.
Device defects can occur.
Decontamination
Contamination of devices with toxic, infectious or radioactive substances poses
a hazard for all persons during operation, repair, sale, and disposal of a device.

Symbols and Signs 15
AZURA V 2.1S User Manual, V6860, Version 2.2
Life-threatening injuries
Health danger if getting in contact with toxic, infectious or radio-active sub-
stances.
Before disposing of the device or sending it away for repair, you are required
to decontaminate the device in a technically correct manner.
All contaminated devices must be properly decontaminated by a specialist com-
pany or the operating company before they can be recommissioned, repaired,
sold, or disposed of. All materials or fluids used for decontamination must be
collected separately and disposed of properly.
Symbols and Signs
The following symbols and signs can be found on the device, in the chromatog-
raphy software or in the user manual:
Installation
This chapter describes all preparatory steps prior to the start-up. If you
encounter difficulties during installation, contact the Technical Support.
Symbol Meaning
Electric shock hazard
Electrostatic discharge hazard, damages to system, device, or
components can occur.
A device or system marked with CE fulfills the product specific
requirements of European directives. This is confirmed in a
Declaration of Conformity.
Testing seals in Canada and the USA at nationally recognized
testing centers (NRTL). The certified device or system has suc-
cessfully passed the quality and security tests.

16 Installation
AZURA V 2.1S User Manual, V6860, Version 2.2
Contact Data
Transport
Carefully prepare the device for transport or storage. If you want to return your
device to KNAUER for repairs, enclose the Service Request Form which can be
downloaded from our website.
Device Data
For a secure transport, note the weight and dimensions of the device (see
Technical Data).
Bruises
Damage to the device by carrying or lifting it on protruding housing parts. The
device may fall and thus cause injuries.
Lift the device on the side of the housing only.
Lifiting
Clasp the device at its side panels and lift it out of the packaging. Do not hold
onto front cover or leak tray.
Operating Environment
Only if the requirements for ambient conditions of the operating environment
are met, can the intended use be ensured. You will find the ambient conditions
under Technical Data and below.
Device defect
The device overheats at exposure to sunlight and insufficient air circulation.
Device failures are very likely.
Set up the device in such a way that it is protected against exposure to direct
sunlight.
Keep at least 15 cm clear at the rear and 5–10 cm at each side for air circula-
tion.
Space Requirements
Position the device on a level and even surface.
Phone [phone]
Fax [phone]
E-mail [email protected]

Installation 17
AZURA V 2.1S User Manual, V6860, Version 2.2
Protect the device against direct exposure to sunlight.
Set up the device at a location not exposed to air drafts (A/C systems).
Do not set up the device in the vicinity of other machines that cause floor
vibrations.
Lateral distance to other devices:
At least 5 cm if another device is set up on one side
At least 10 cm if further devices are set up on both sides
Leave the power plug on the rear of the device accessible to be able to
disconnect the device from the mains.
Installation Site
air humidity: below 90 % (non-condensing)
temperature range: 4–40 °C; 39.2–104 °F
Setup
Prior to setting up the device, find a suitable place according to the require-
ments and remove the packaging.. The setup requirements and a description
can be found in the following section.
Unpacking
Prerequisites
Check packaging for damage caused during transportation.
Tools
utility knife
Bruises
Damage to the device by carrying or lifting it on protruding housing parts. The
device may fall and thus cause injuries.
Lift the device on the side of the housing only.
Process
1. Set-up the package in such a way that you can read the label.
2. Using the utility knife, cut the adhesive tape and open the packaging.

18 Installation
AZURA V 2.1S User Manual, V6860, Version 2.2
Next Steps
Store packaging and keep the included packing list for repeat orders.
Checking the Scope of Delivery
1. Check whether the device and accessories are complete.
2. If a part is missing, inform the technical support of the manufacturer.
Mounting the Valve onto the Valve Drive
All valve drives are delivered with a ready-mounted valve head. For repeat
orders, the electrical valves are delivered with included adapter plate.
Setting the Valve Mode
You set the mode by means of the 4 DIP switches. The DIP
switch is located on the bottom side of the device.
The valve drive for valves with 6 ports can be set for 6P/3C
or 6P-multiposition valves.
Note: While setting the valve mode, switch the device off.
Switch on the device after the configuration so that the changes become effec-
tive.
Switch Assignment
3. Remove the foam insert. Take out the accessories kit and the manual.
4. Open the accessories kit and check the scope of delivery. In case any parts
are missing, contact the Technical Support.
5. Clasp the device from below, lift it out of the packaging and place it on its
feet. Do not hold onto the front cover.
6. Check the device for signs of damage that occurred during transport. In
case you notice any damage, contact the Technical Support.
7. Place the device in its side of operation. Remove the protective foil.
DIP Function Comment
1specify valve type -
2specify valve position -
3 and 4 set the port OUT/BIN 3 on the
back of the device as input or
output
set DIP switches 3 and 4
always opposite
Process

Installation 19
AZURA V 2.1S User Manual, V6860, Version 2.2
Basic Functions of the DIP Switches
Combination Possibilities per Valve Type
Screwing the Adapter Plate onto the Valve Drive
Tools
Phillips screwdriver, size 3
1. Attach the adapter plate the right way around. The openings for the screws
point to the front.
2. Using the screwdriver, screw on the 2 screws (M3).
DIP I/0 S6 S12 S16
1ON 6P-multiposition
valve
12P-multiposition
valve
not permitted
OFF 6P/3C not permitted 16P-multiposition
valve
2ON BIN 0-2 at 6P-multi-
position valves
BIN 0-3 BIN 0-3
OFF RS-232, manual,
Pos. 1; [I]; [L]
RS-232, manual,
Pos. 1; [I]; [L]
RS-232, manual,
Pos. 1; [I]; [L]
3ON output OUT/BIN 3 output OUT/BIN 3 output OUT/BIN 3
4OFF
3OFF not permitted input OUT/BIN 3 input OUT/BIN 3
4ON
Drive Valve Mode DIP1 DIP2 DIP3 DIP4
V6 6P/3C analog/RS-232 OFF OFF ON OFF
6P-multiposi-
tion valve
analog/RS-232 ON OFF ON OFF
6P-multiposi-
tion valve
binary ON ON ON OFF
V12 12P-multipo-
sition valve
analog/RS-232 ON OFF ON OFF
12P-multipo-
sition valve
binary ON ON OFF ON
V16 16P-multipo-
sition valve
analog/RS-232 OFF OFF ON OFF
16P-multipo-
sition valve
binary OFF ON OFF ON

20 Installation
AZURA V 2.1S User Manual, V6860, Version 2.2
Screwing the Valve onto the Valve Drive
Prerequisites
The DIP switch was set correctly.
The valve drive matches the number of the valve ports.
Tools
Allen wrench, size 3
Device defect
Device damage due to blocked eluent flow.
Check that the number of valve ports is identical with the type of valve drive
(6V, 12V, 16V).
Note: The sample loop is not included with the delivery.
Legend
1 rear side of a valve drive
2 markings for the mounting
3 opening for the drive axle
4 adapter plate for the mounting
5 opening for countersunk screws
6 Phillips-head screws
Fig. 7 rear side of valve drive
1
2
3
4
5
6
